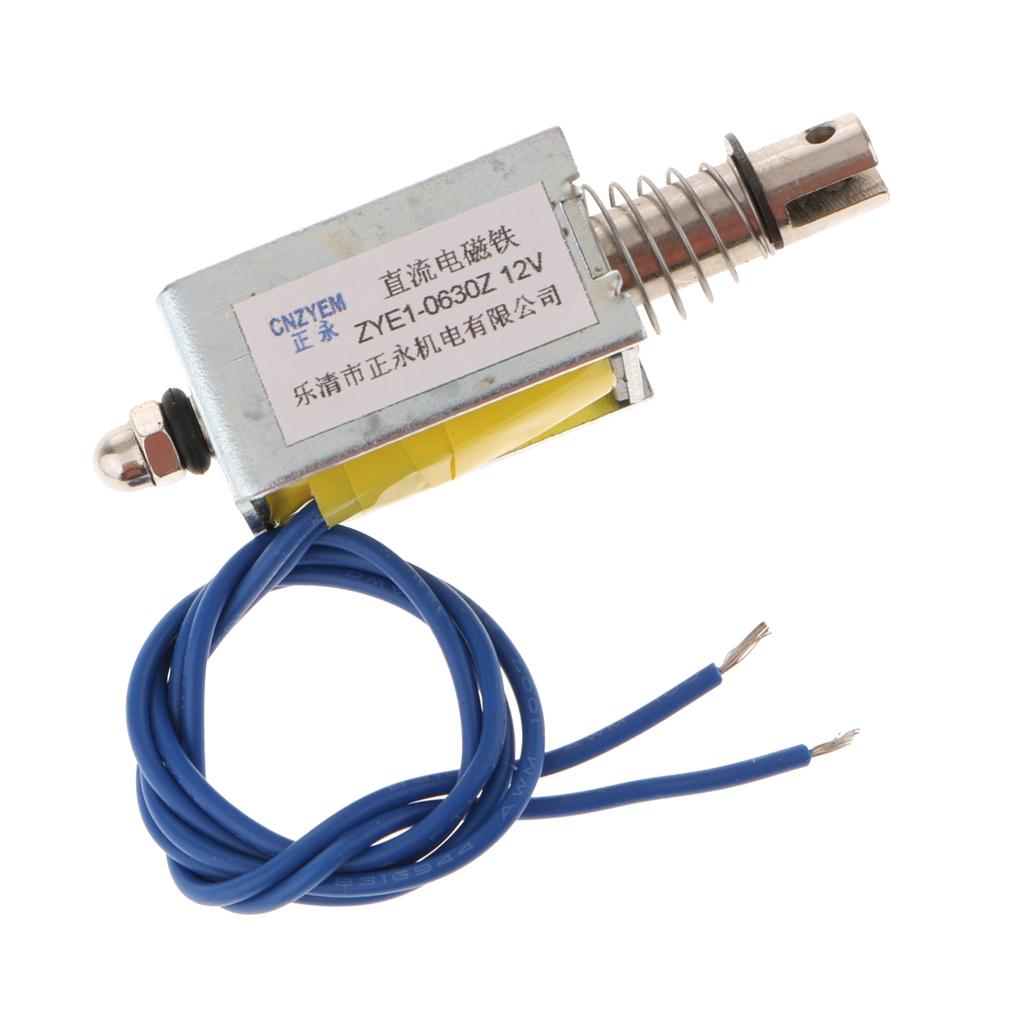

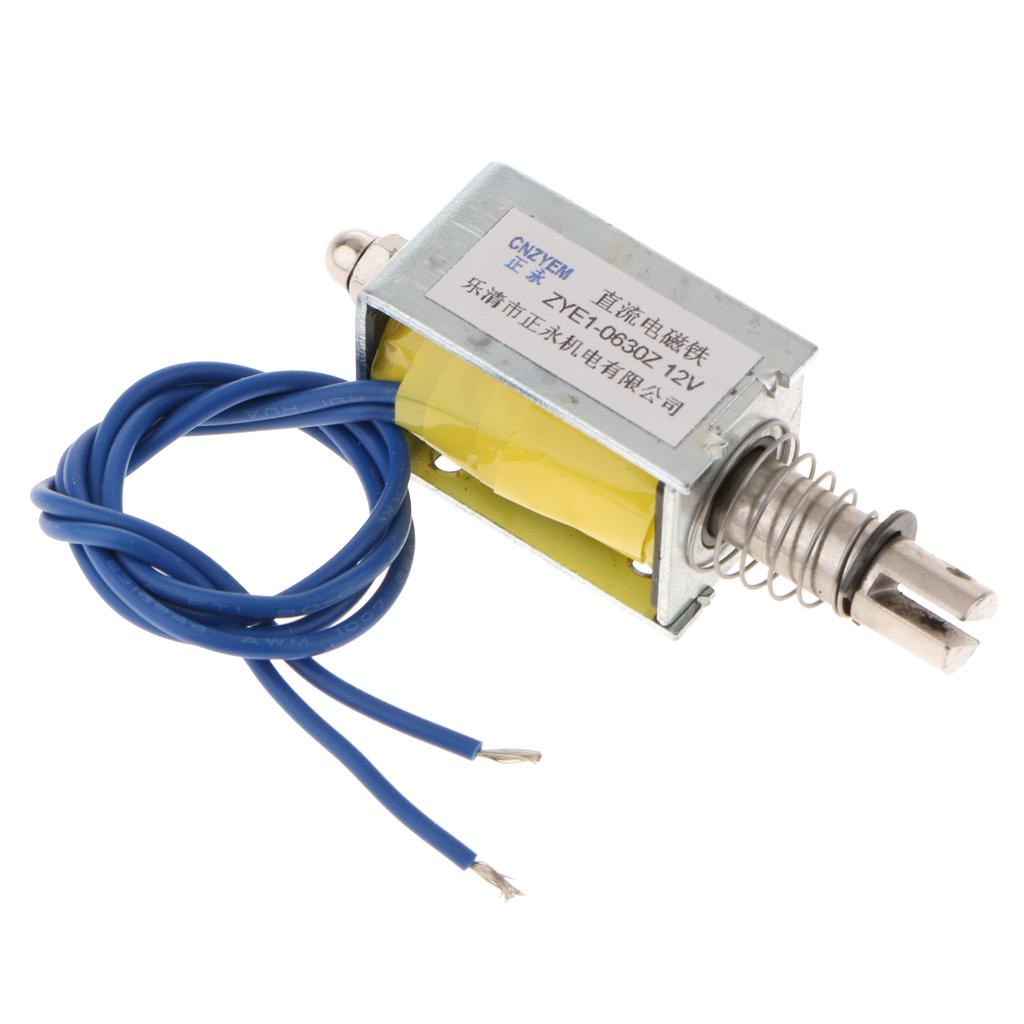

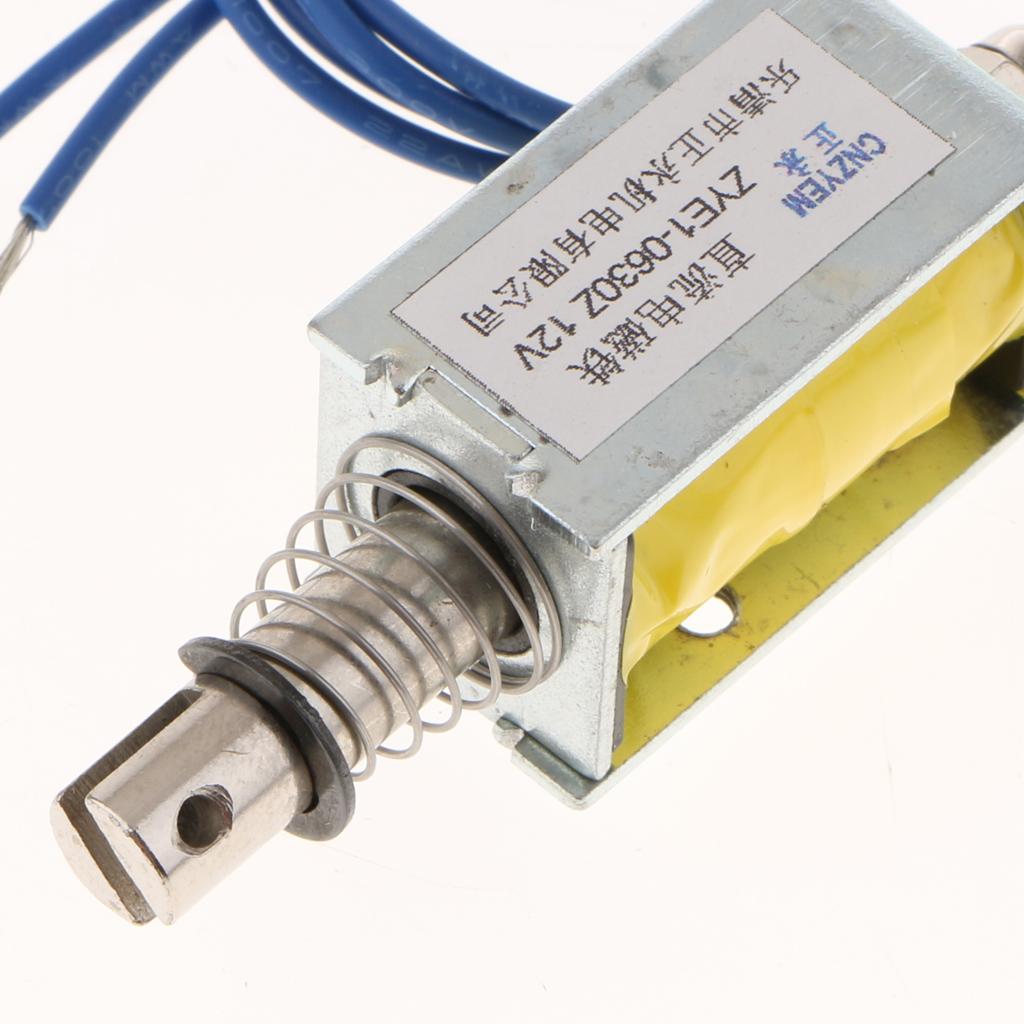

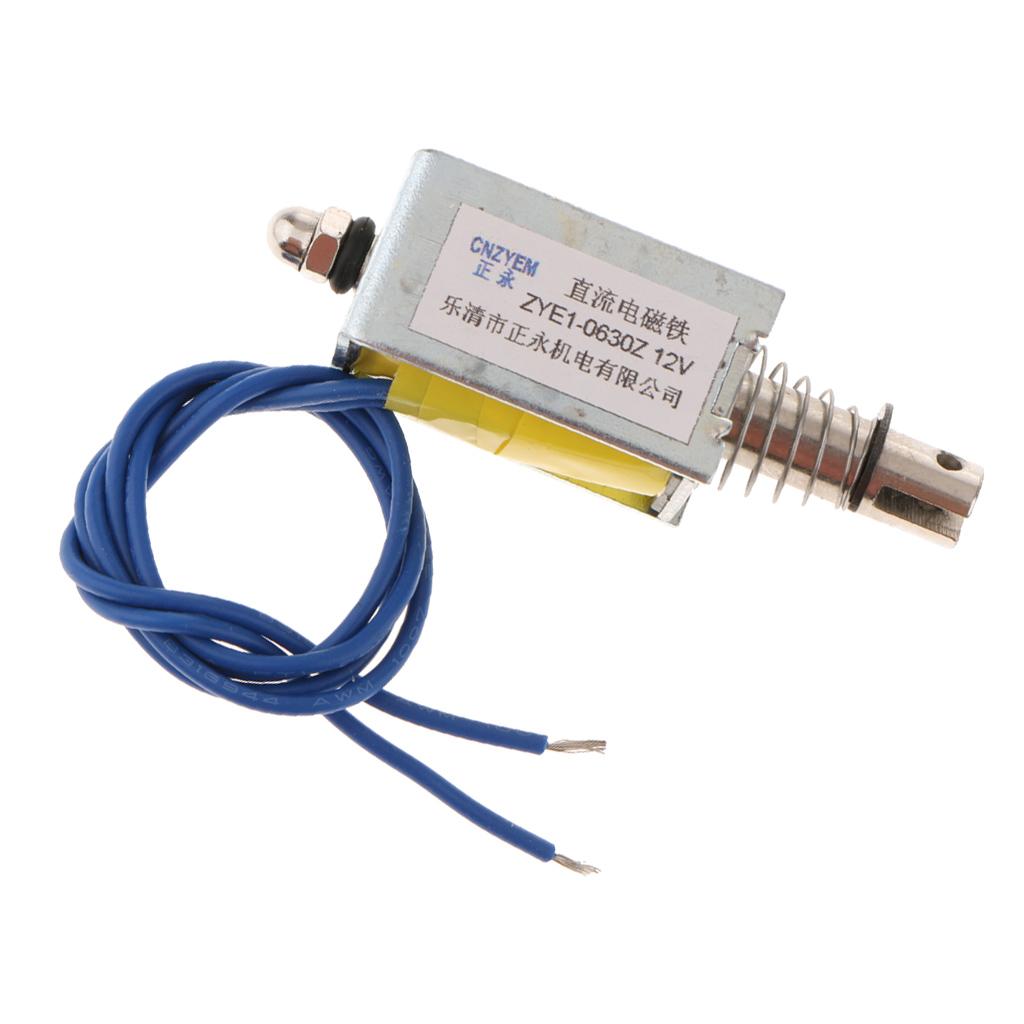

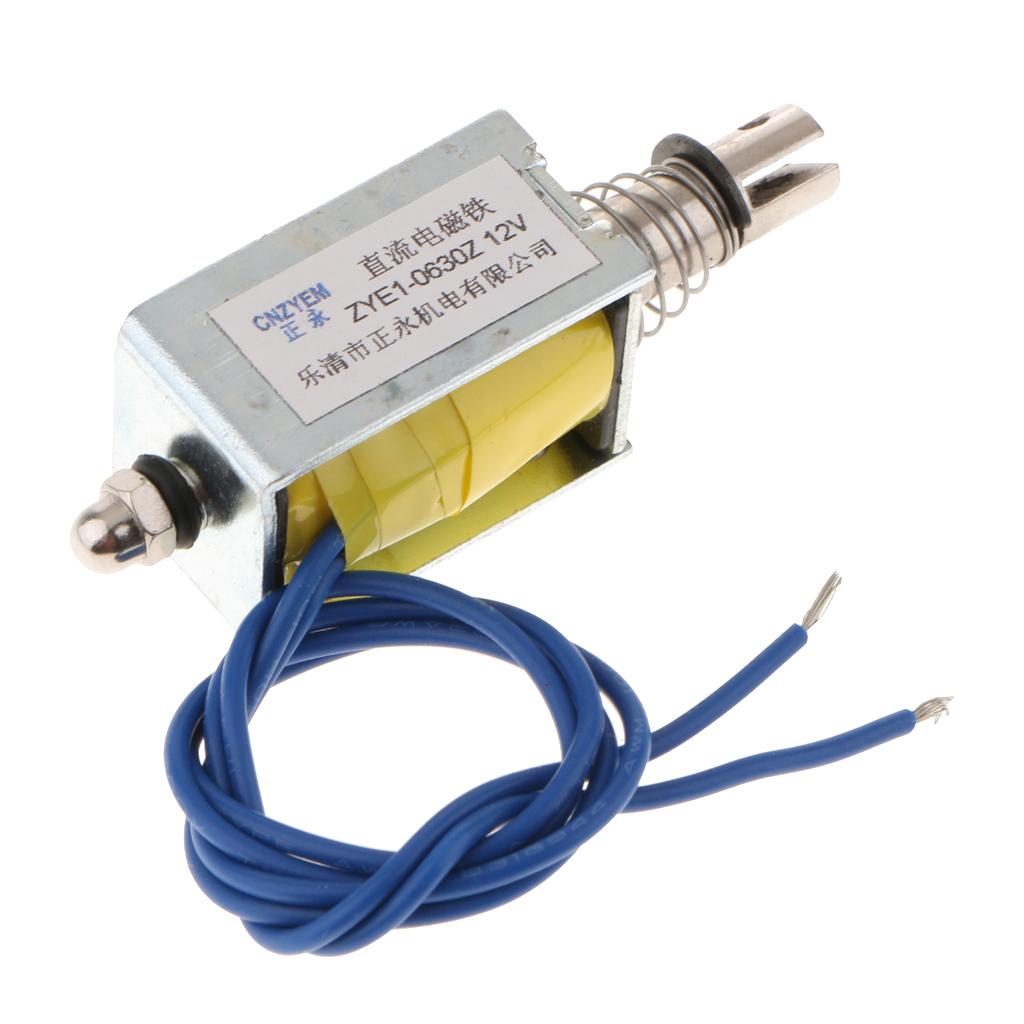

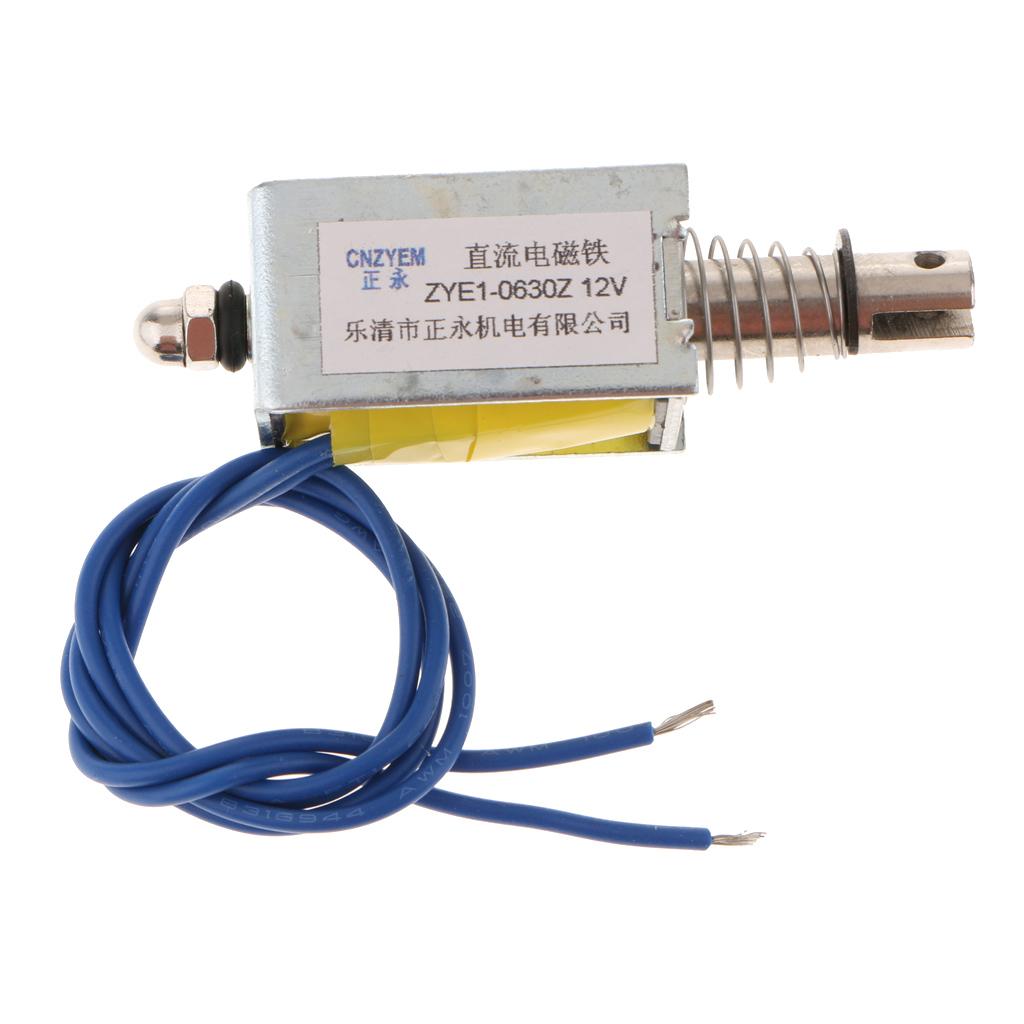

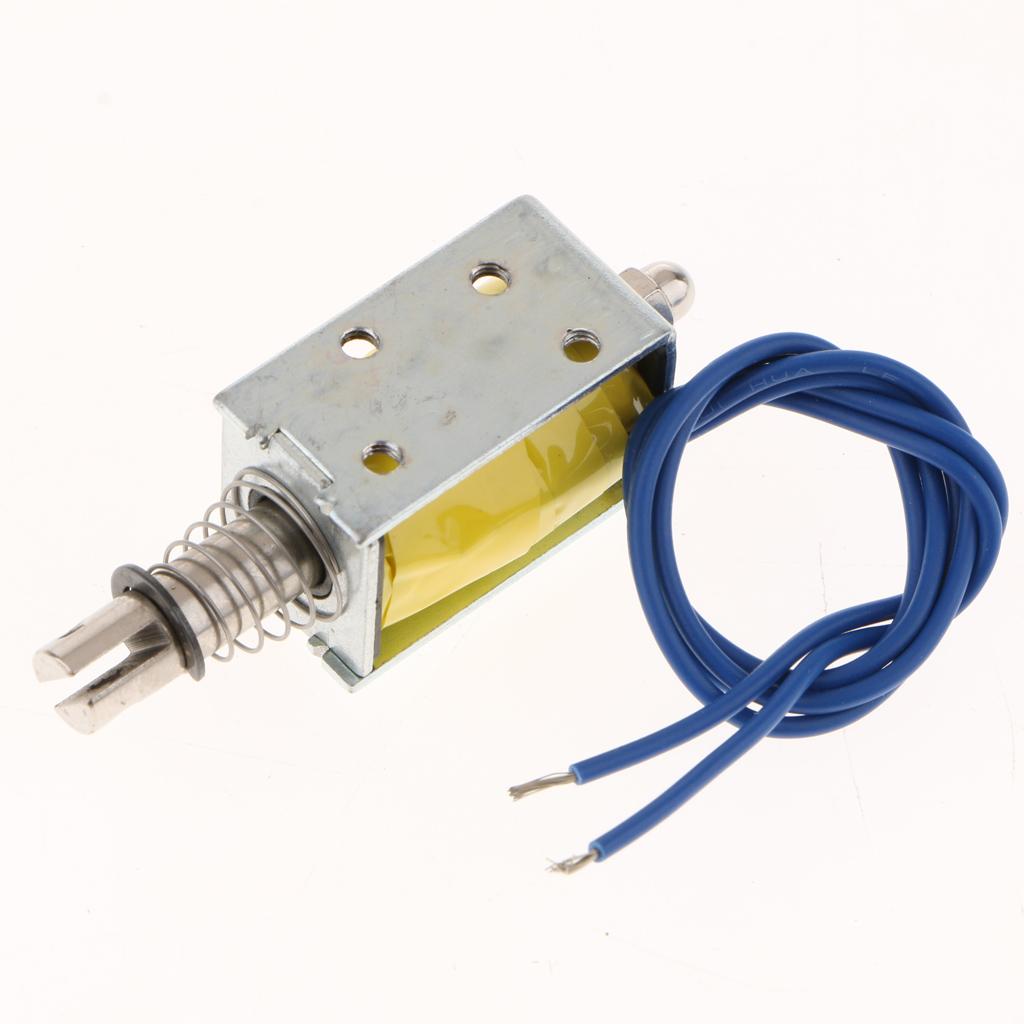

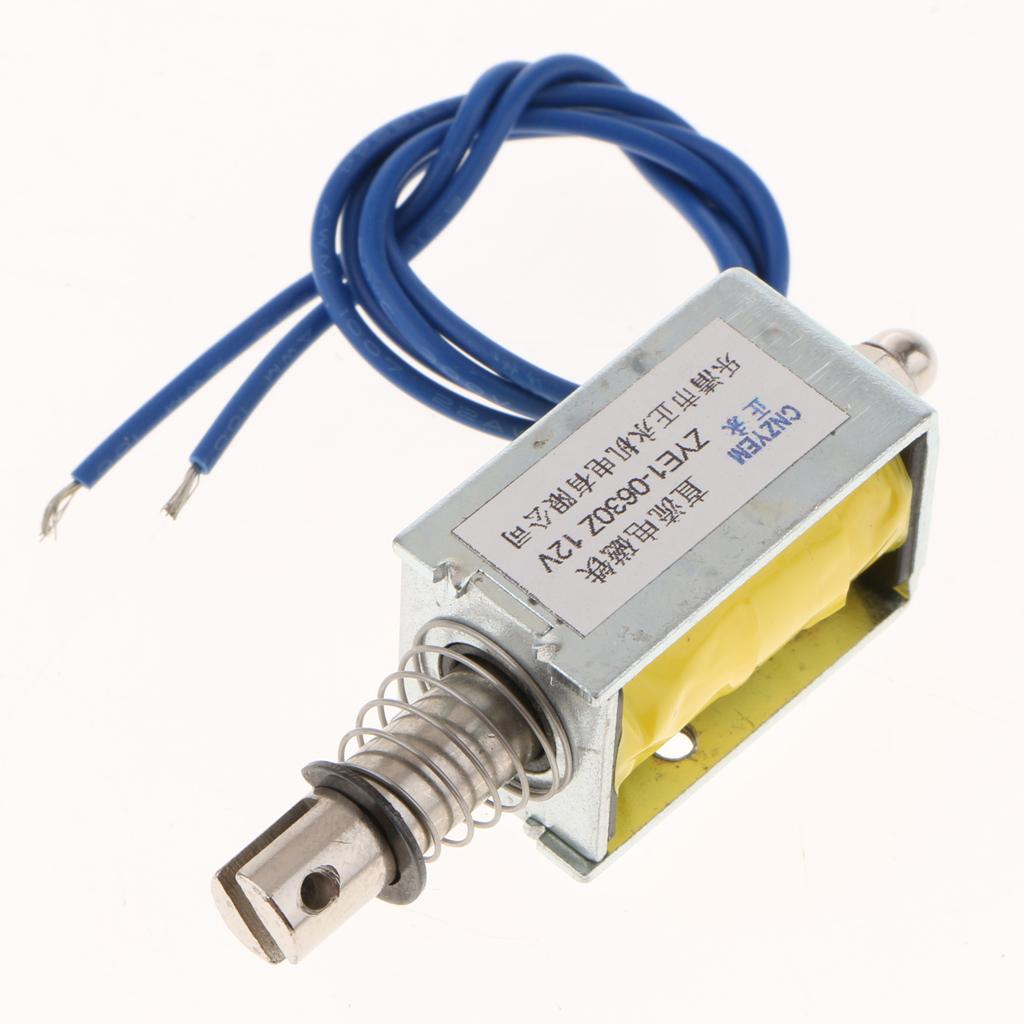

Max ZYE1-0630Z Linear Mini Push Pull Solenoid Electromagnet Reset DC12V
Description:
Product name: DC solenoid electromagnet
Rated Voltage: DC6V/DC12V/DC24V Type: push pull
Push type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
DC Solenoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc.
Used widely in home appliances,vending machines, game machine,auto door lock.
Specification:
Size: 47x13x16 mm / 1.85x0.51x0.62 inch
Line length: approx. 230mm
Operating temperature: -5 ° C -40 ° C
Operating humidity: 45%-85%
Storage temperature: -40 ° C -75 ° C
Storage humidity: 0%-95%
Temperature rise: 65 or less (level A)
Lifetime: 1 million cycles or more can be used under load
Ambient temperature: 23±2°C
Relative humidity: 50±10%
Atmospheric pressure: 1013MPa
Insulation resistance: When measured with a 500VDC insulation resistor, the insulation resistance between the coil and the yoke must be at least 100MΩ.
Insulation strength: The insulation strength between the coil and the yoke should be at least 600VAC/1 minute.

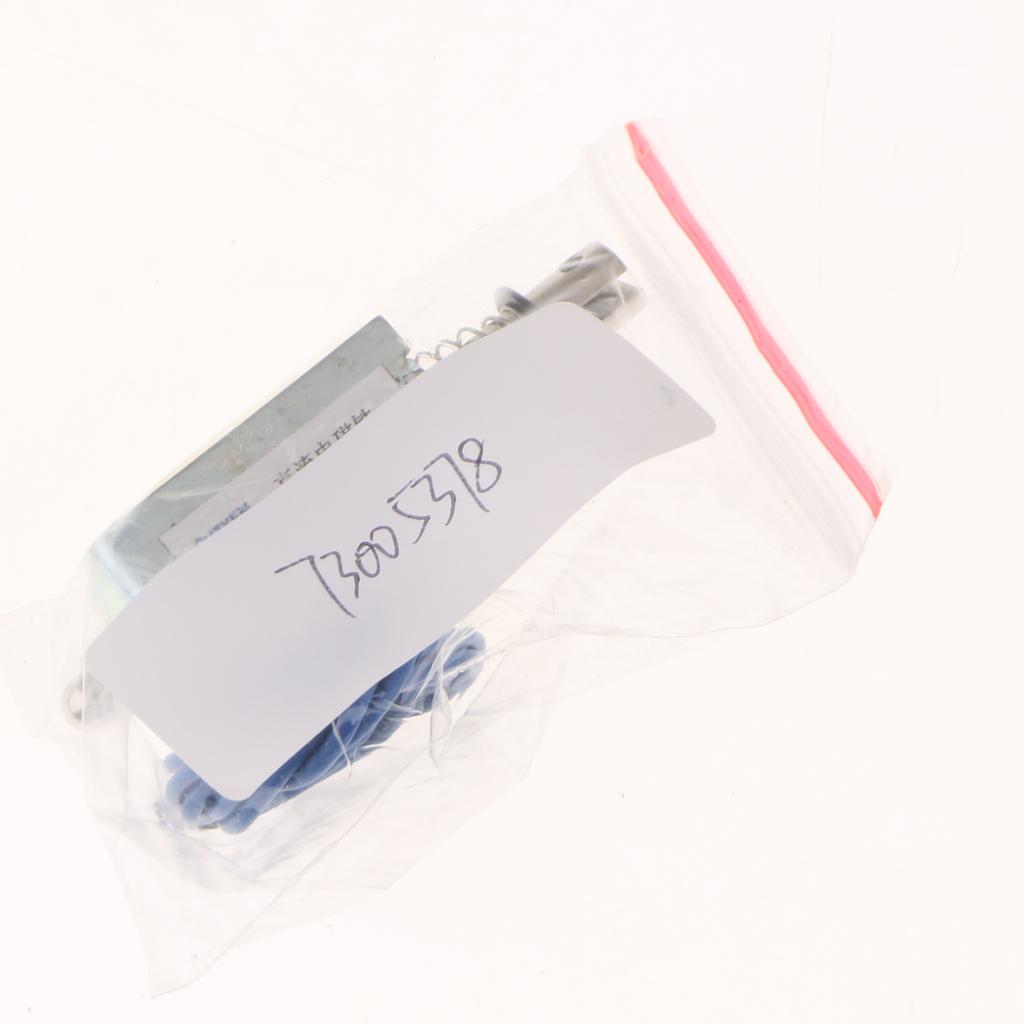

Package Includes:
1 Piece Push-Pull Type Electromagnet
