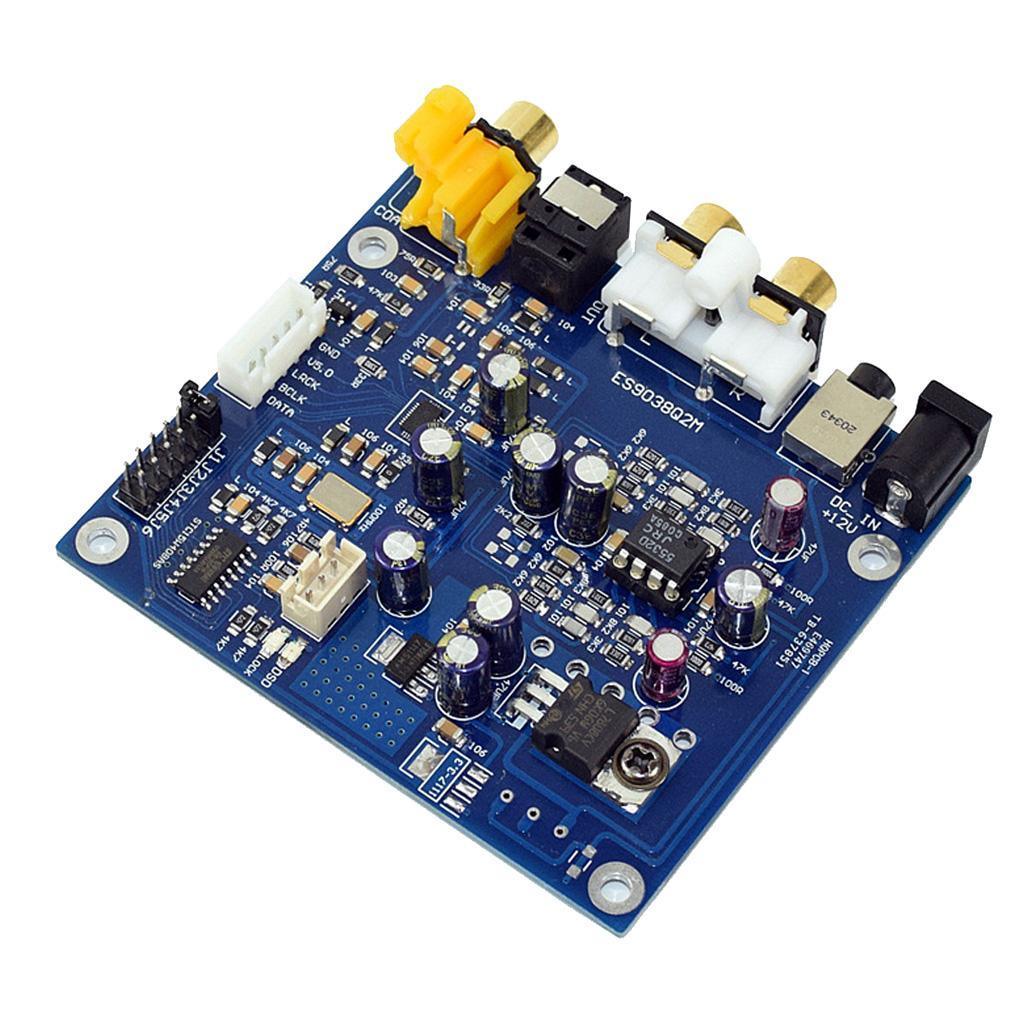

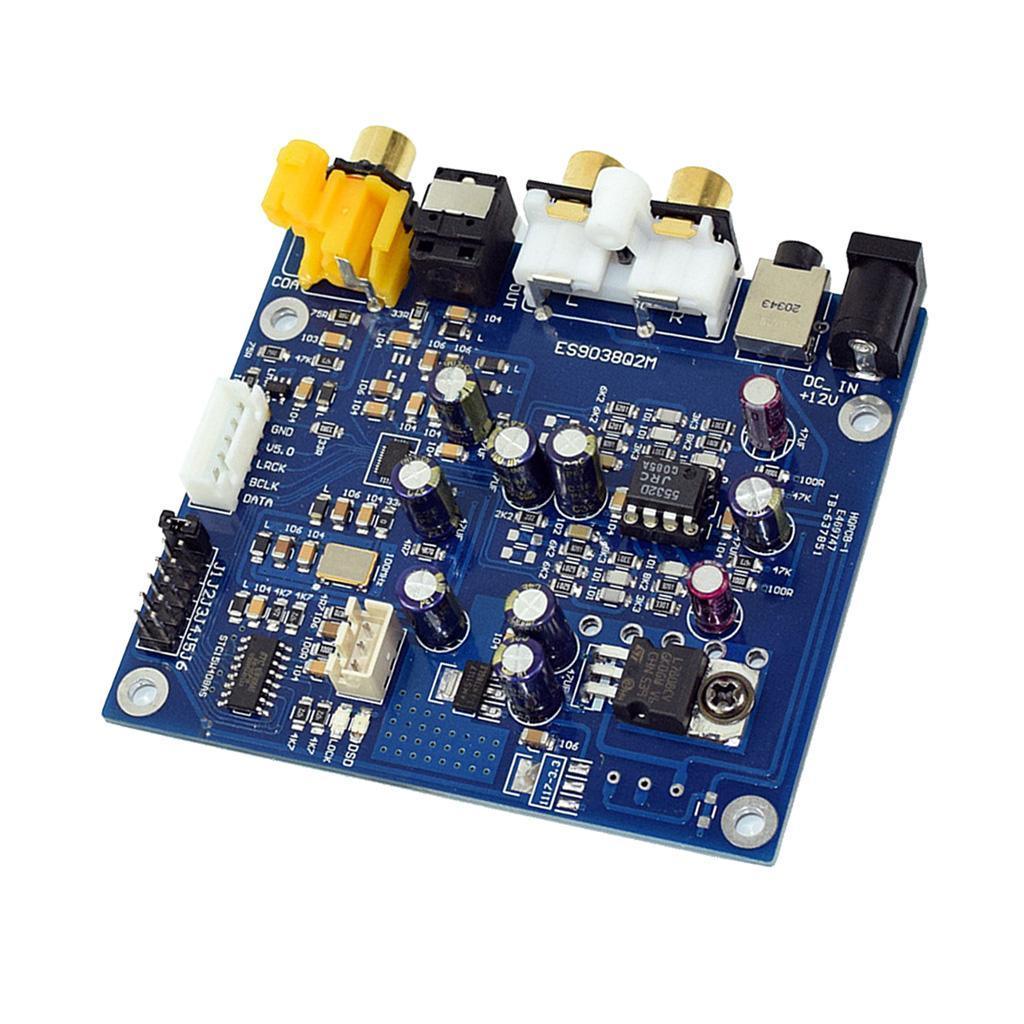

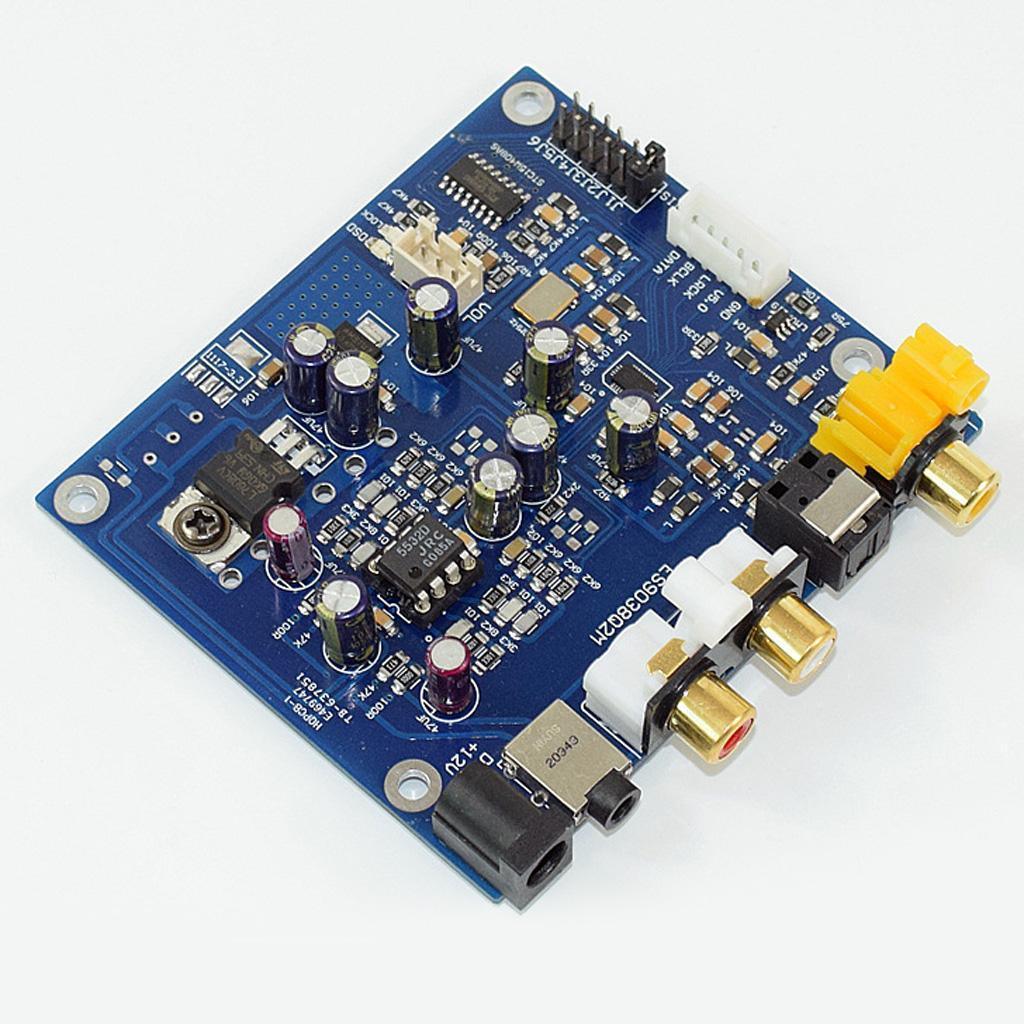

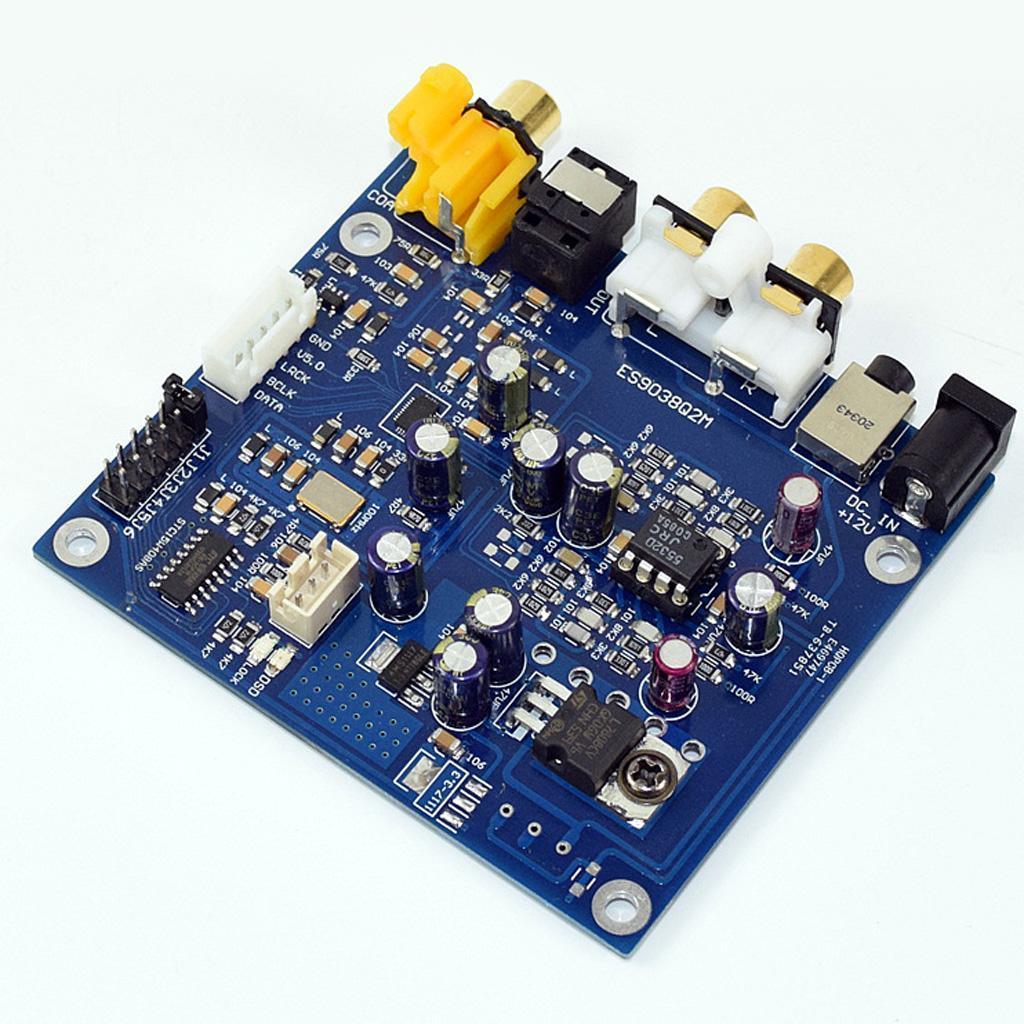

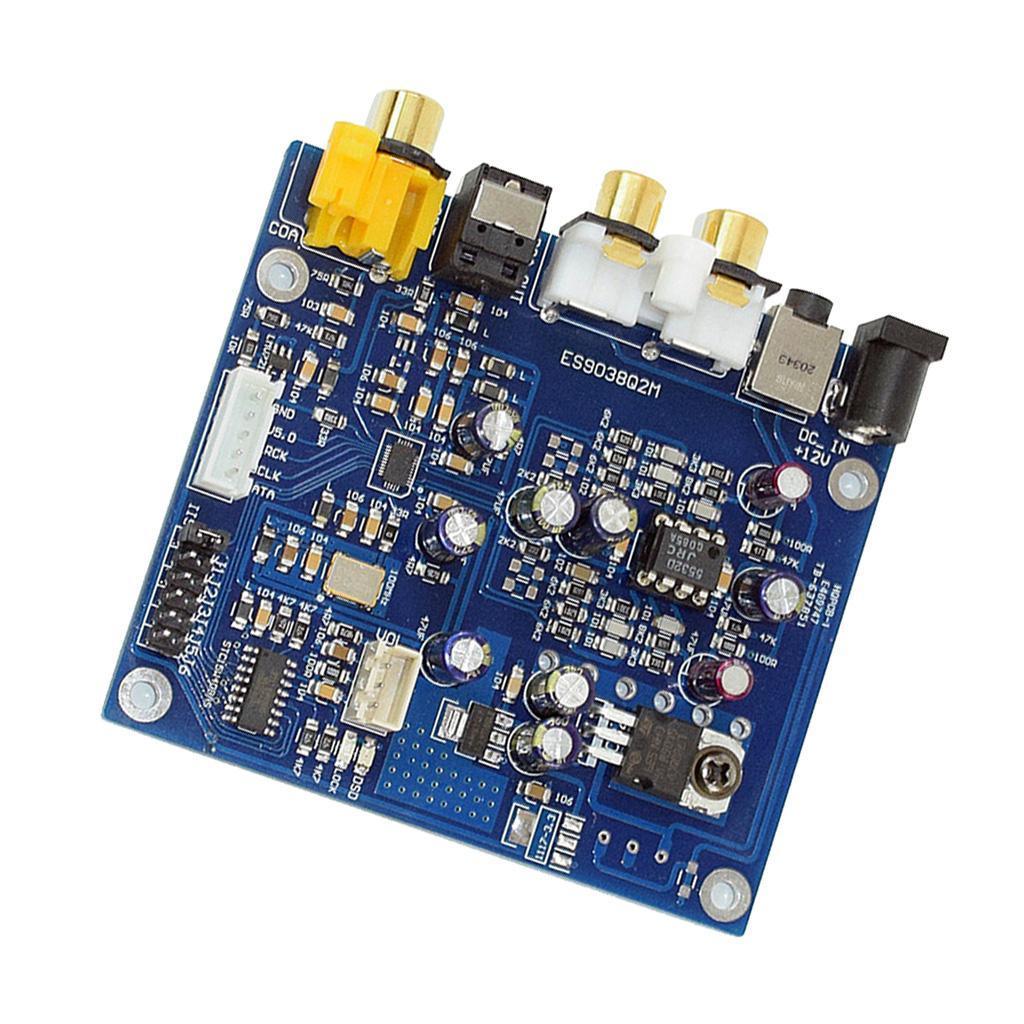

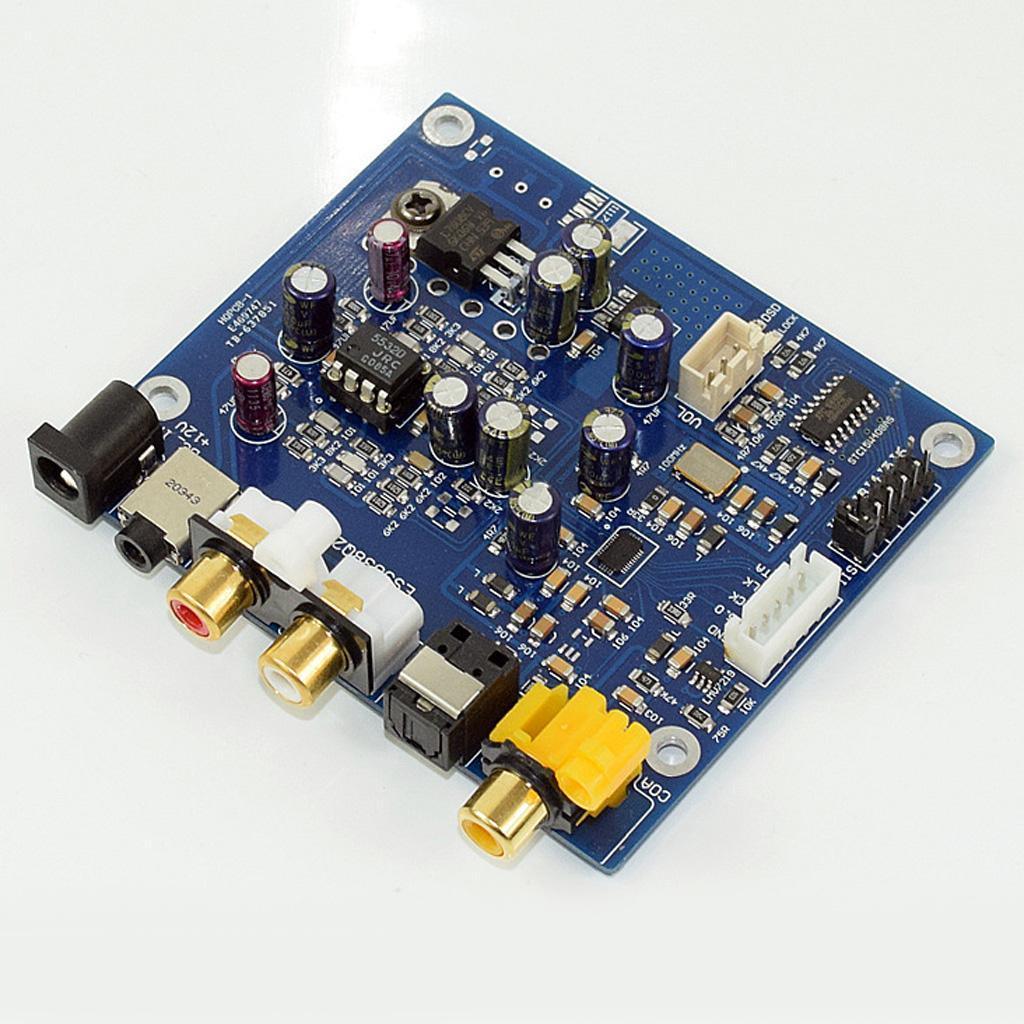

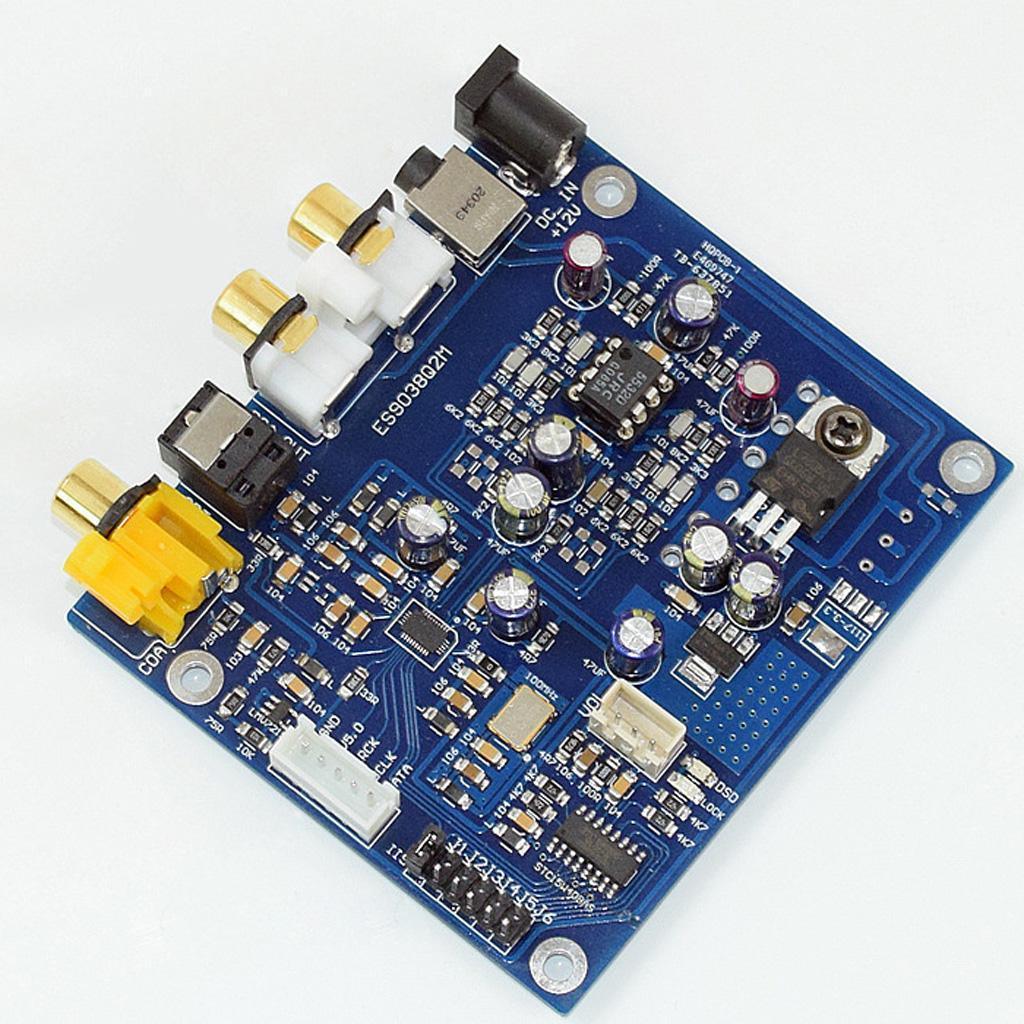

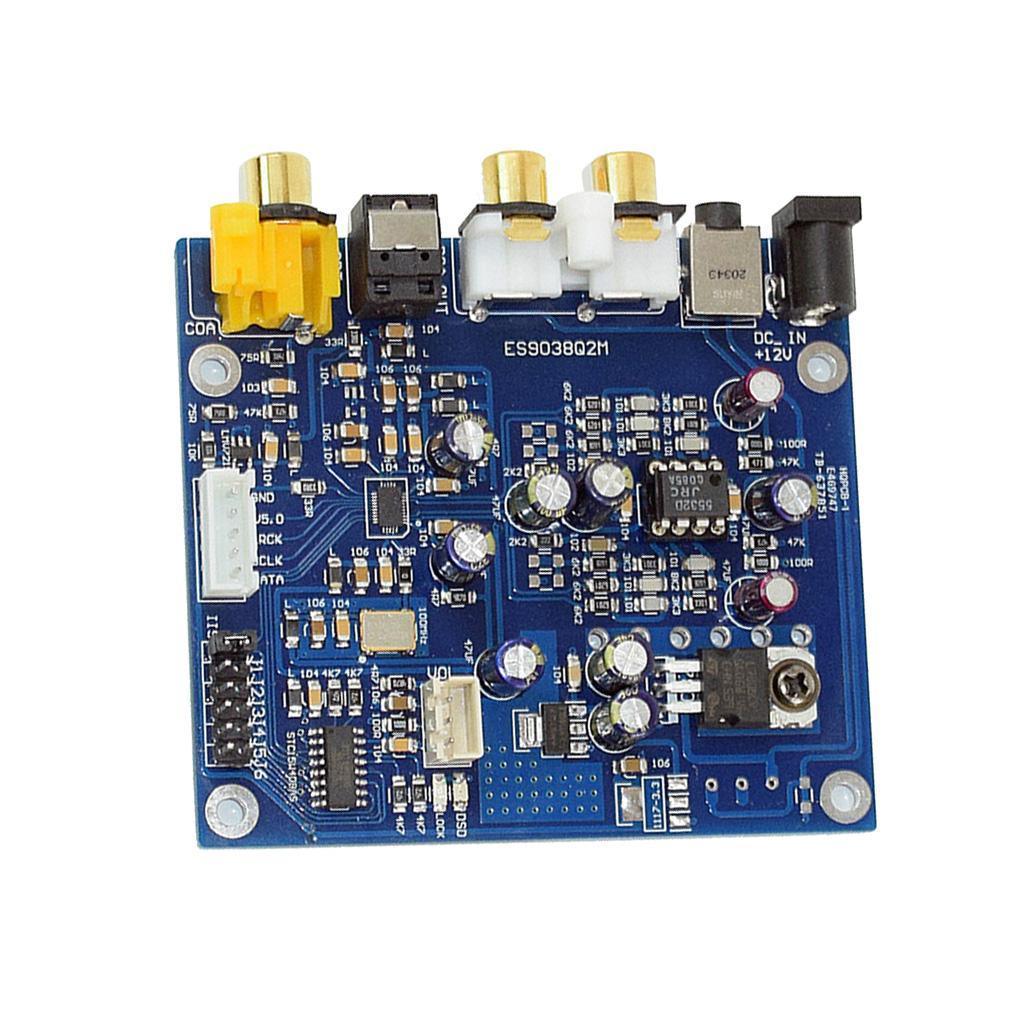

Maxbell Maxbell YJ-ES9038 Q2M I2S DSD Optical Coaxial Input Decoder DAC DC 9-15V
Description:
Perfectly seamless with the interface, PCM DSD switching is flawlessly.
The ES9038Q2M parameter is relatively perfect, 129dB DNR -120dB THD+N.
Easy to install.
Since the MCLK of the ES9038 is an independent clock 100M, it is sufficient to input the DATA BCK LRCK only.
Polished CD DVD old decoding works well. Delicate and sleek, the extension is very good.
Specification:
Voltage: DC 9-15V
Output terminals: RCA can be connected amplifier, amp, 3.5 terminals can be connected to headphones
Input support:
Coaxial: PCM44.1k~192k 24bit/DOP DSD64
Fiber: PCM44.1k~192k 24bit/DOP DSD64
I2S/DSD:PCM44.1k~384k 32bit/DSD64, DSD128, DSD256
I2S/DSD pin definition: PCM_BCLK-DSD_CLK, PCM_LRCK-DSD_L, PCM_DATA-DSD_R
Audio input settings:
Short J1, coaxial input
Short J2, optical fiber input
Neither J1 nor J2 are shorted, I2S input
Filter settings:
J3, J4, J5, J6 are not shorted, filter=apodizing fast roll-off filter
J3 is not shorted:
Short J4, filter=brick wall filter
J5 shorted, filter=corrected minimum phase fast roll-off filter
Short J6, filter=minimum phase slow roll-off filter
Short J3:
J4 short, filter=minimum phase fast roll-off filter
J5 short, filter=linear phase slow roll-off filter
Short J6, filter=linear phase fast roll-off filter
volume control:
VOL: 1-2 short to mute, 2-3 short to maximum volume
Can be connected to a single potentiometer, potentiometer handle to jump the direction of the needle, followed by corresponding wiring, increase the volume from left to right
Package Includes:
1 Piece Coaxial Decoder Board
