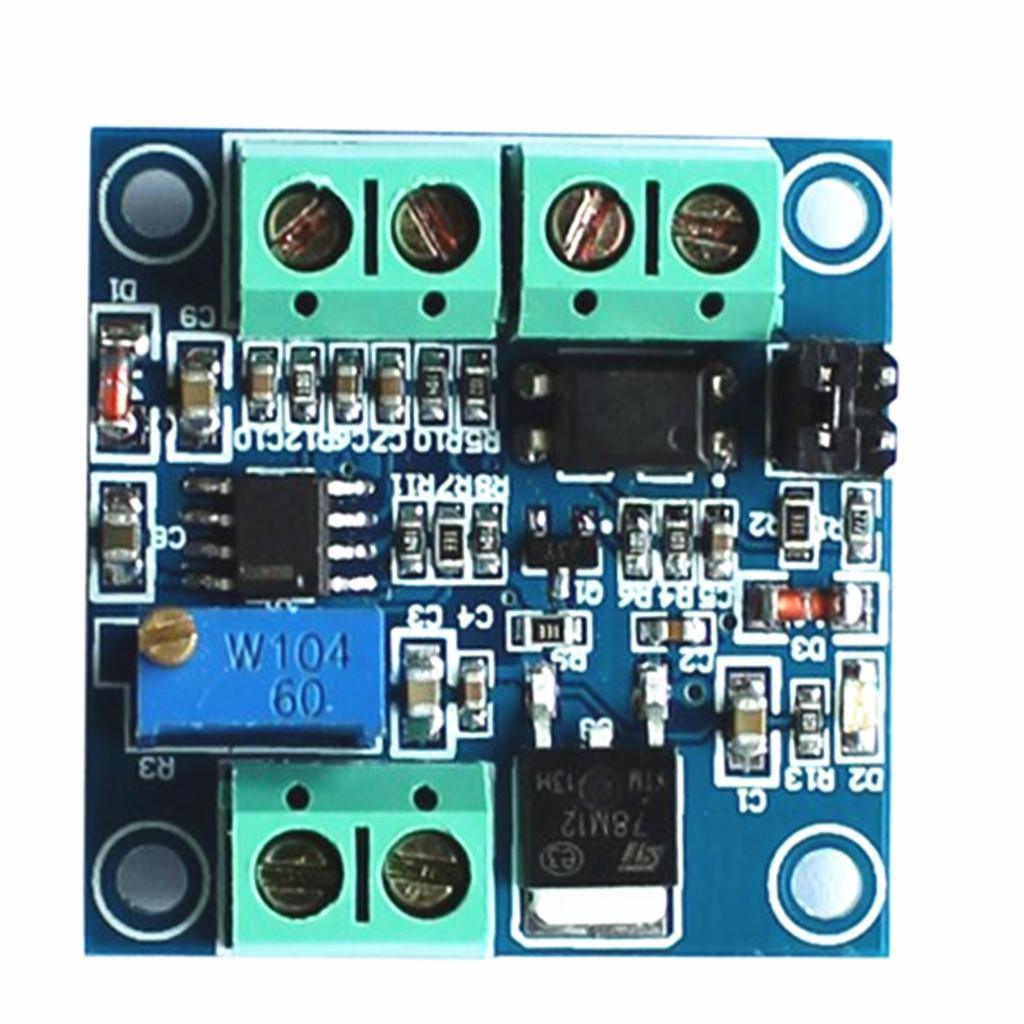

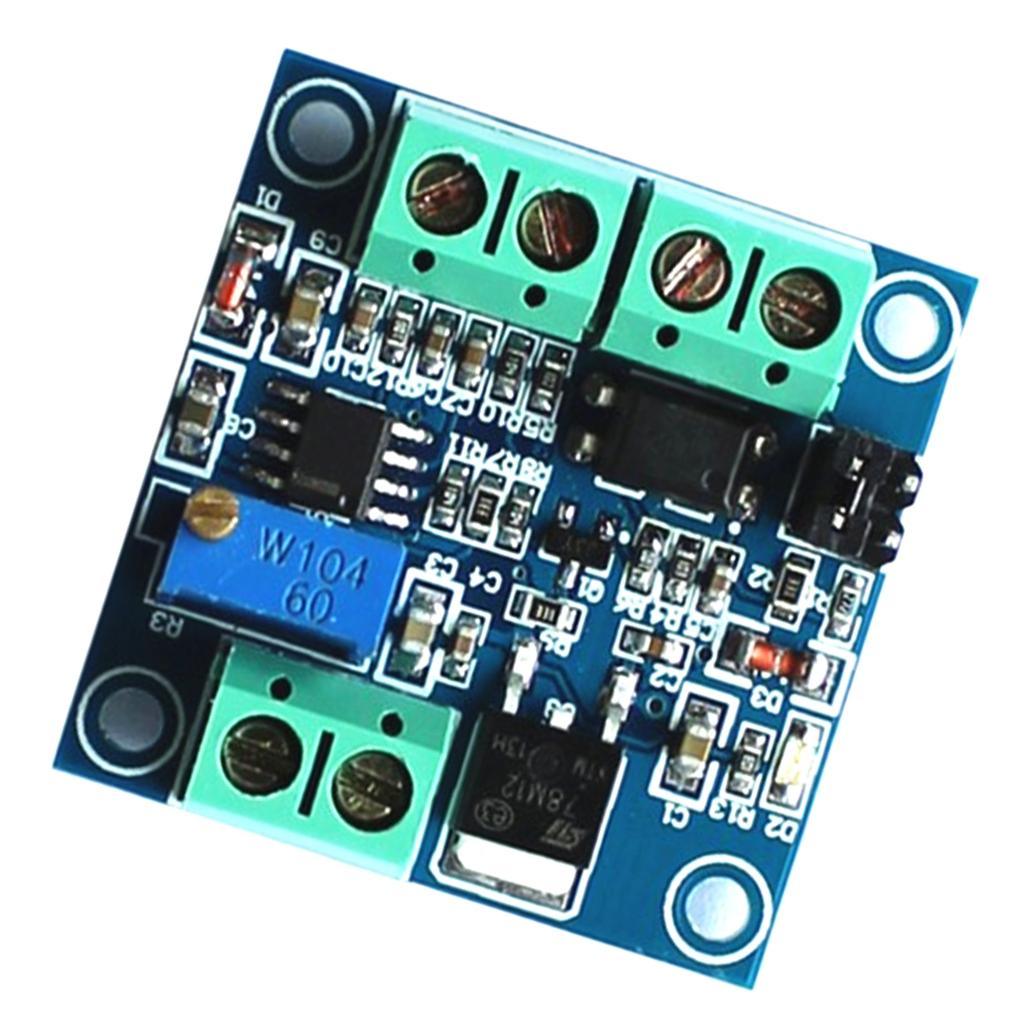

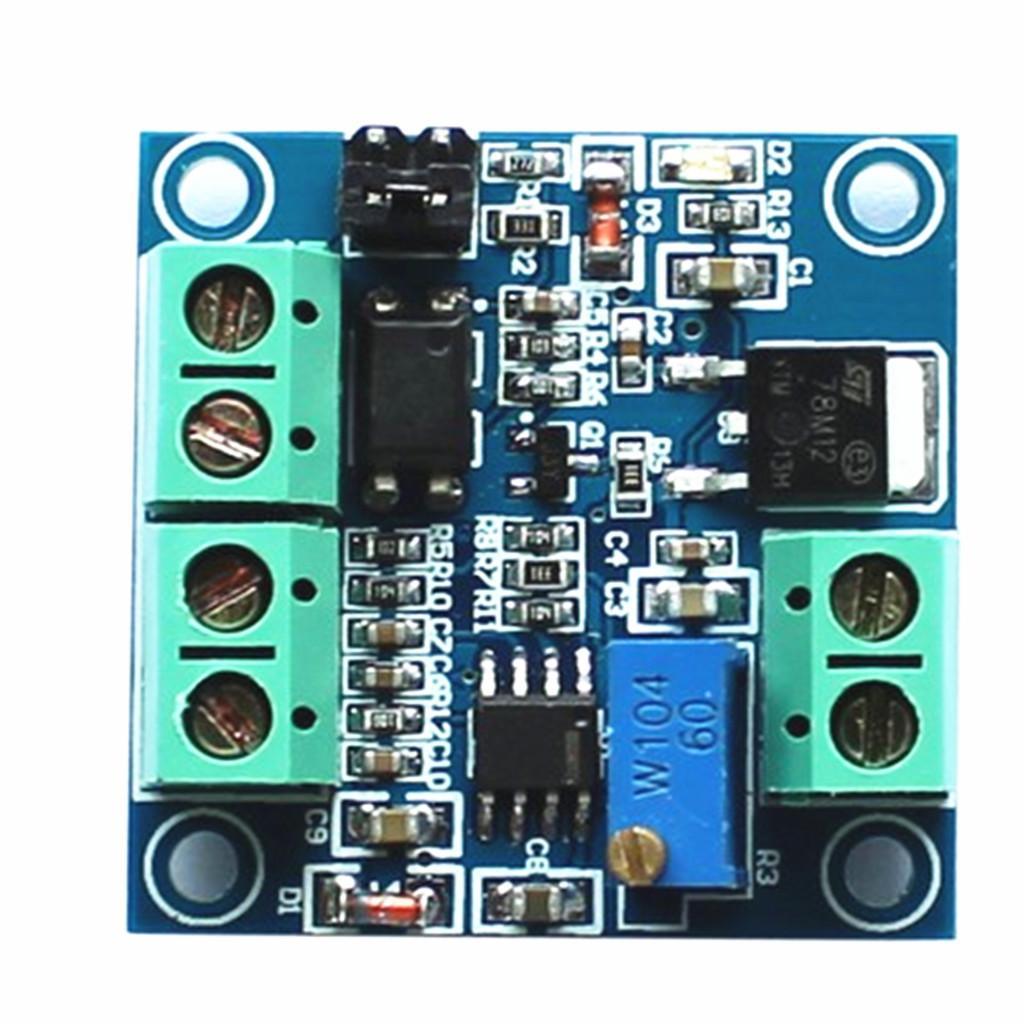

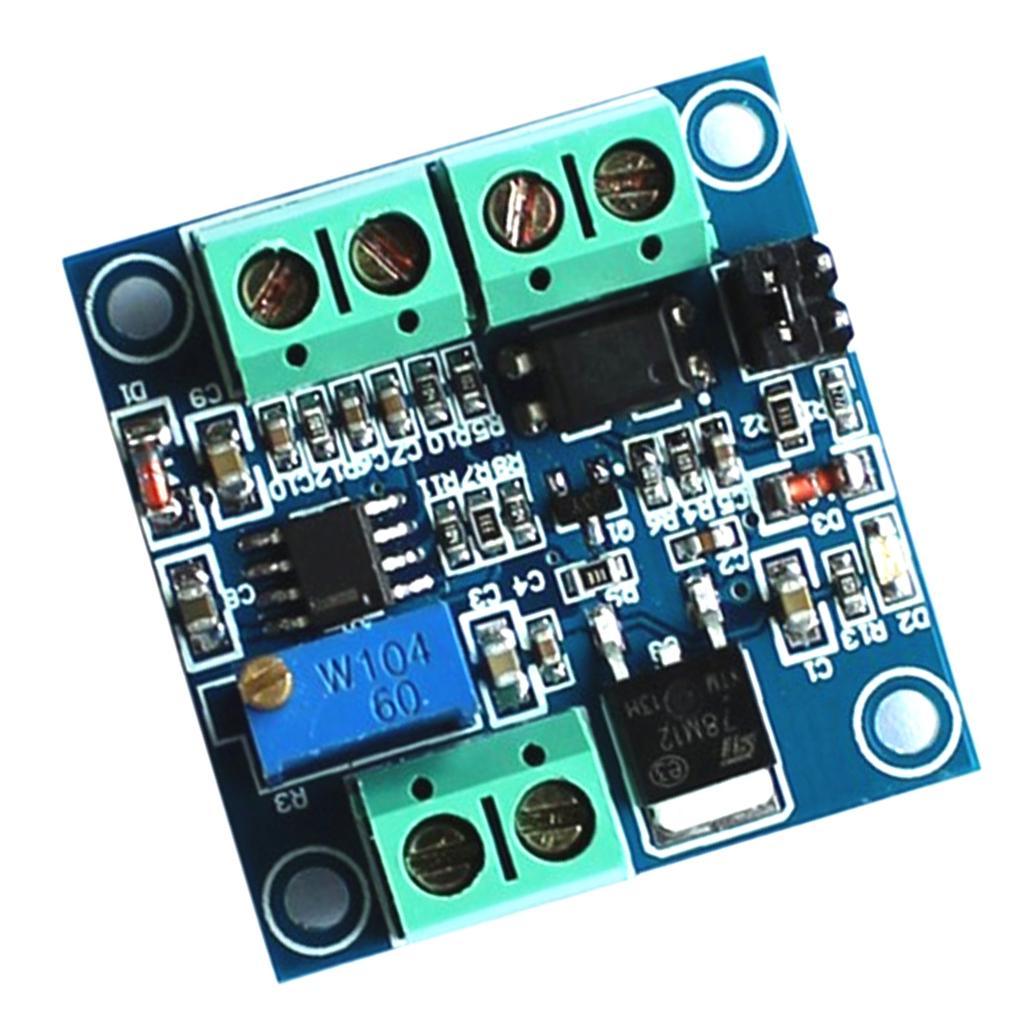

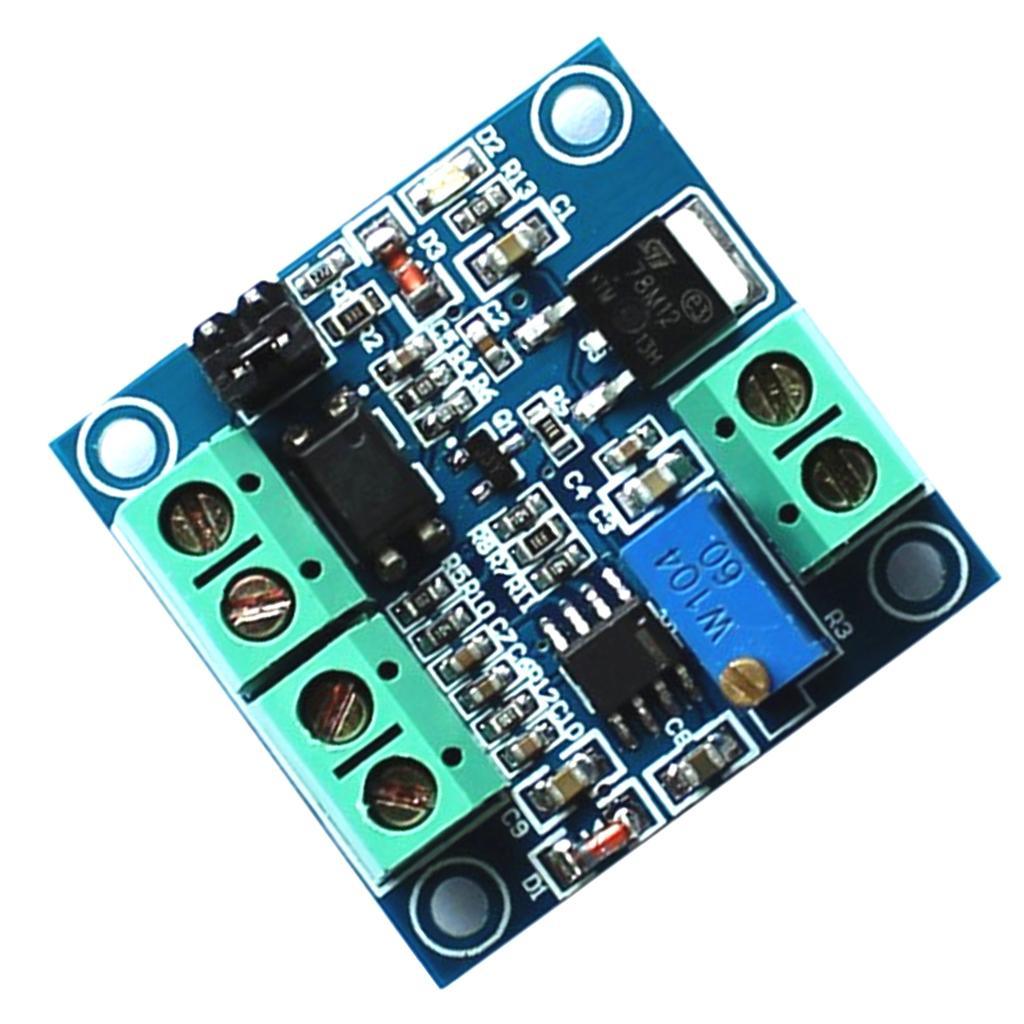

Maxbell Maxbell XD-39 PWM to Voltage Volt Converter Module 0%-100% PWM to 0-10V Voltage
Description:
PWM-to-voltage module can convert the digital PWM signal 0%-100% into an analog signal 0 ~ 10V.
Can be used for industrial control panel or other signal interface switching, by adjusting the PWM duty cycle to regulate the output voltage.
Adopts embedded microcontroller technology, easy to operate, you can fine-tune it through the potentiometer.
Further increases the output voltage accuracy to within 1%, the input frequency is increased to 3KHZ, support PWM, duty cycle to voltage (via short resistor) and 5V/10V selection (via short resistor).
Specification:
Size: Approx. 33.14 x 33.02 mm/1.304 x 1.3 inches
5/10 short D/F open 1-1KHz frequency to 0-5V (duty cycle at will)
5/10 open D/F open 1-1KHz frequency to 0-10V (duty cycle at will)
5/10 short D/F short 0-100% duty cycle to 0-5V (frequency range 1Hz-3KHz)
5/10 open D/F short 0-100% duty cycle to 0-10V (frequency range 1Hz-3KHz)
Supply voltage: 9V ~ 24V
Signal input frequency range: 1Hz ~ 3KHz (amplitude 3.3V-5V)
Signal input duty cycle range: 0 ~ 100% (amplitude 3.3V-5V)
Output voltage: 0.00V ~ 5.00V/0.00V ~ 10.00V
Error Tolerance: within 1%, linear conversion

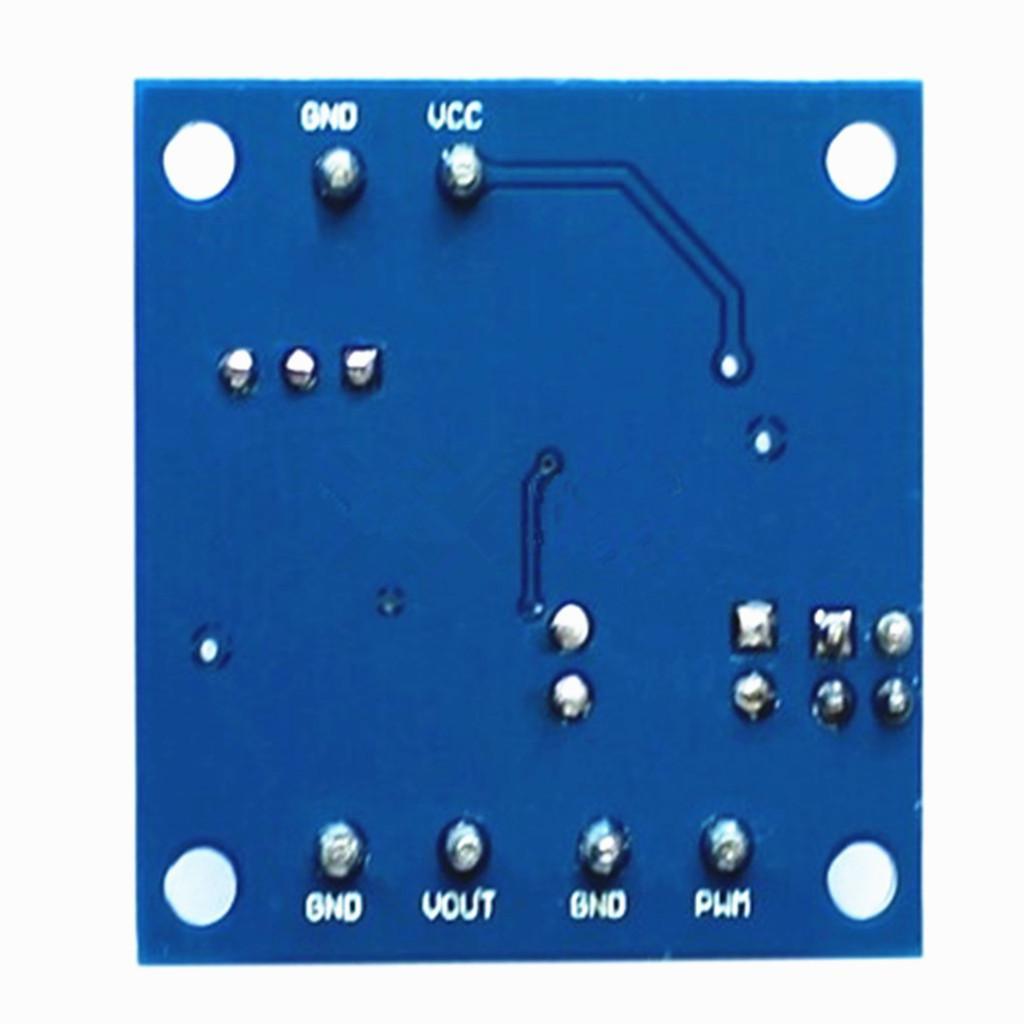

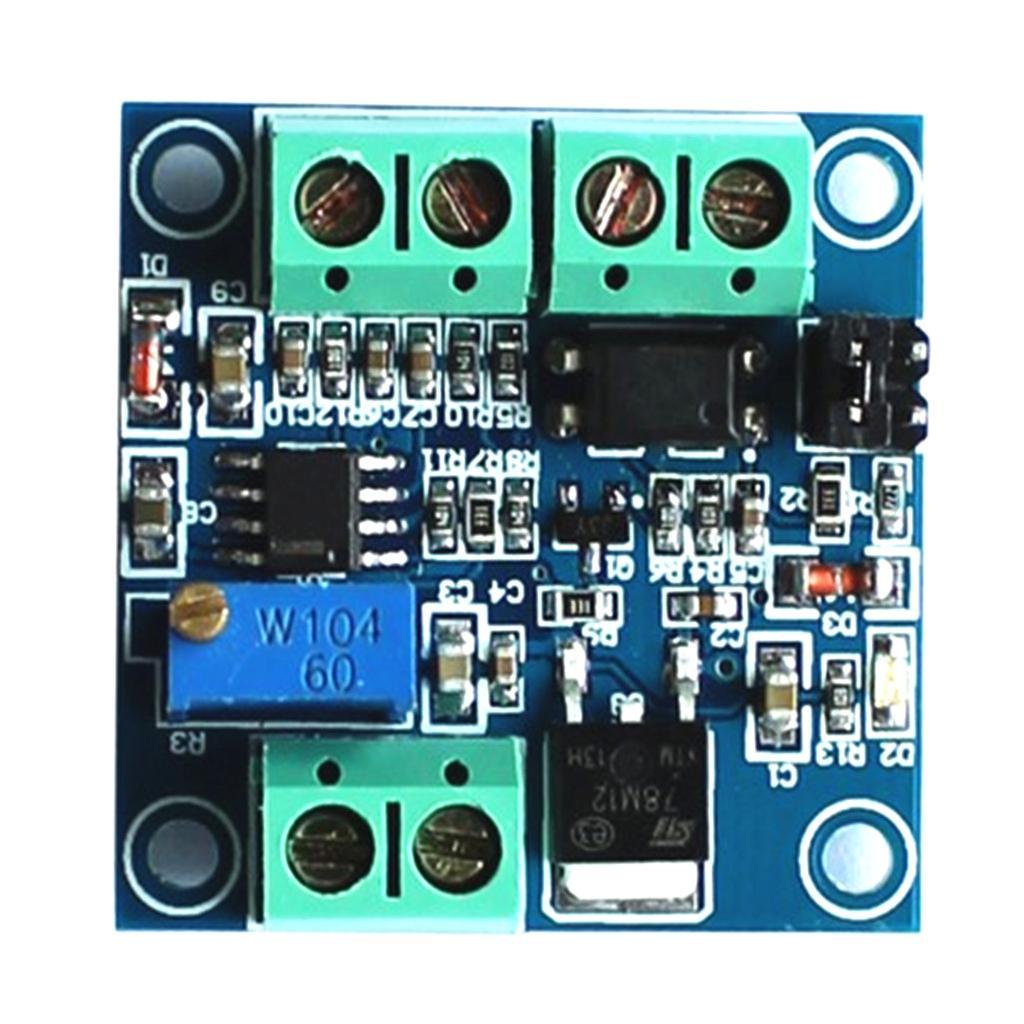

Wiring definition:
12V: Positive power connector (9V to 24V)
GND: Power ground interface
PWM: signal input (1-1KHz 0-100%) (amplitude 3.3V-5V)
GND: signal input negative interface or ground
OUT: Signal output interface (0.00V to 5.00V/0.00V to 10.00V)
GND: Ground interface
Note: When the output is from 0.00V to 10.00V, the power supply voltage must be more than 10 volts.
