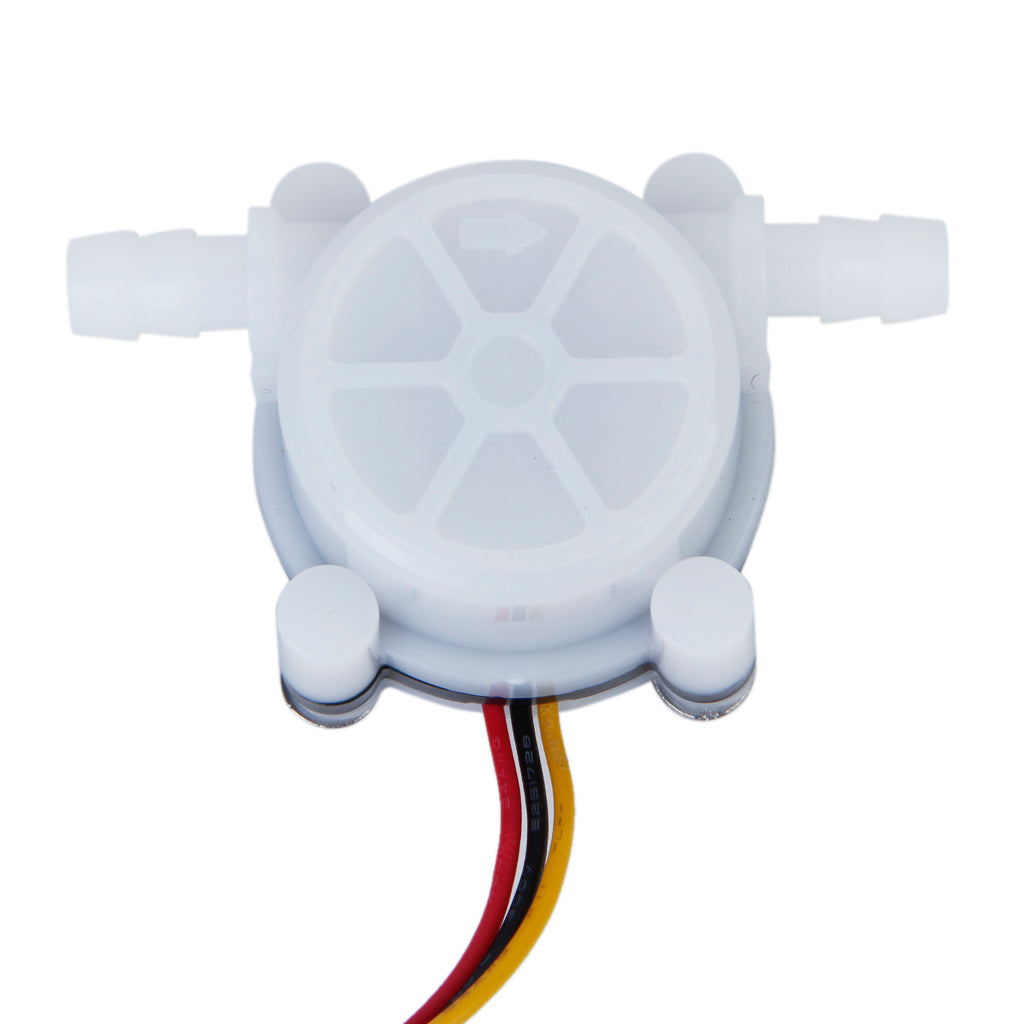

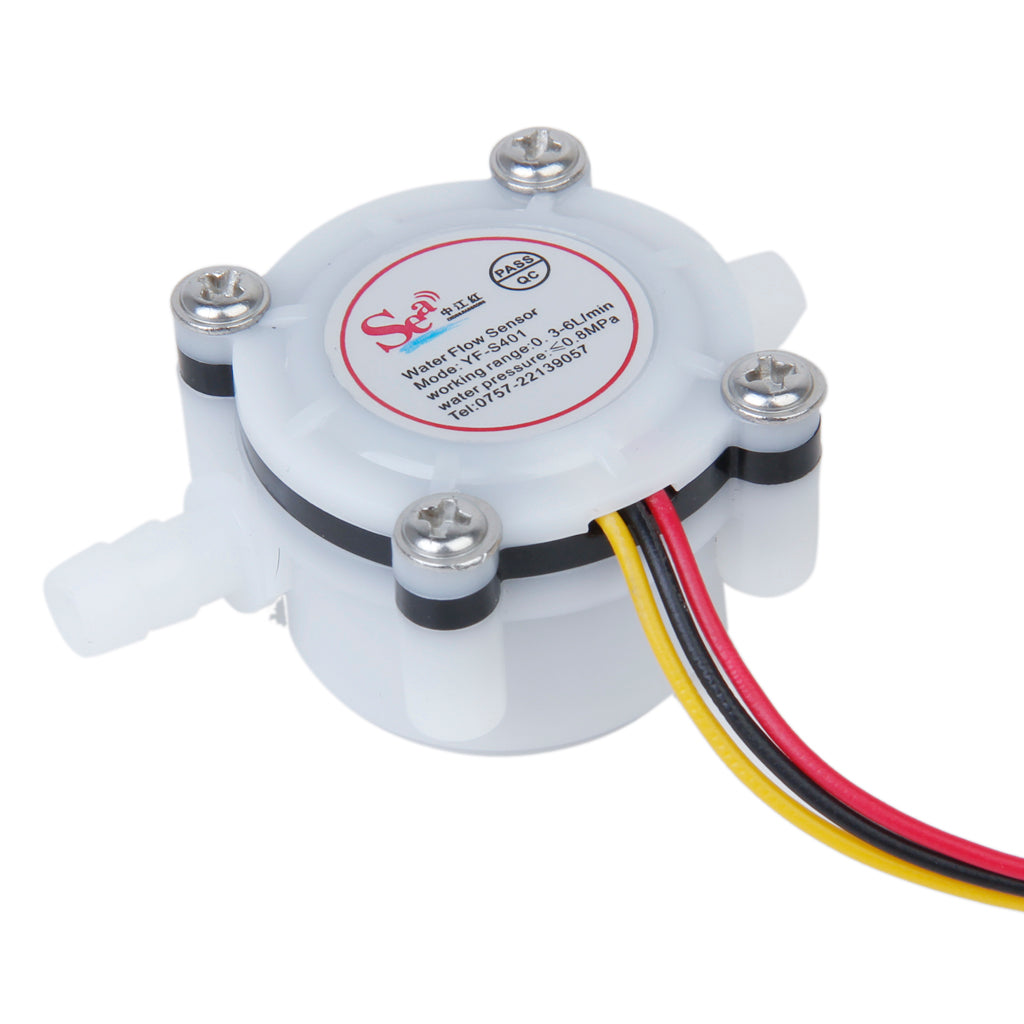

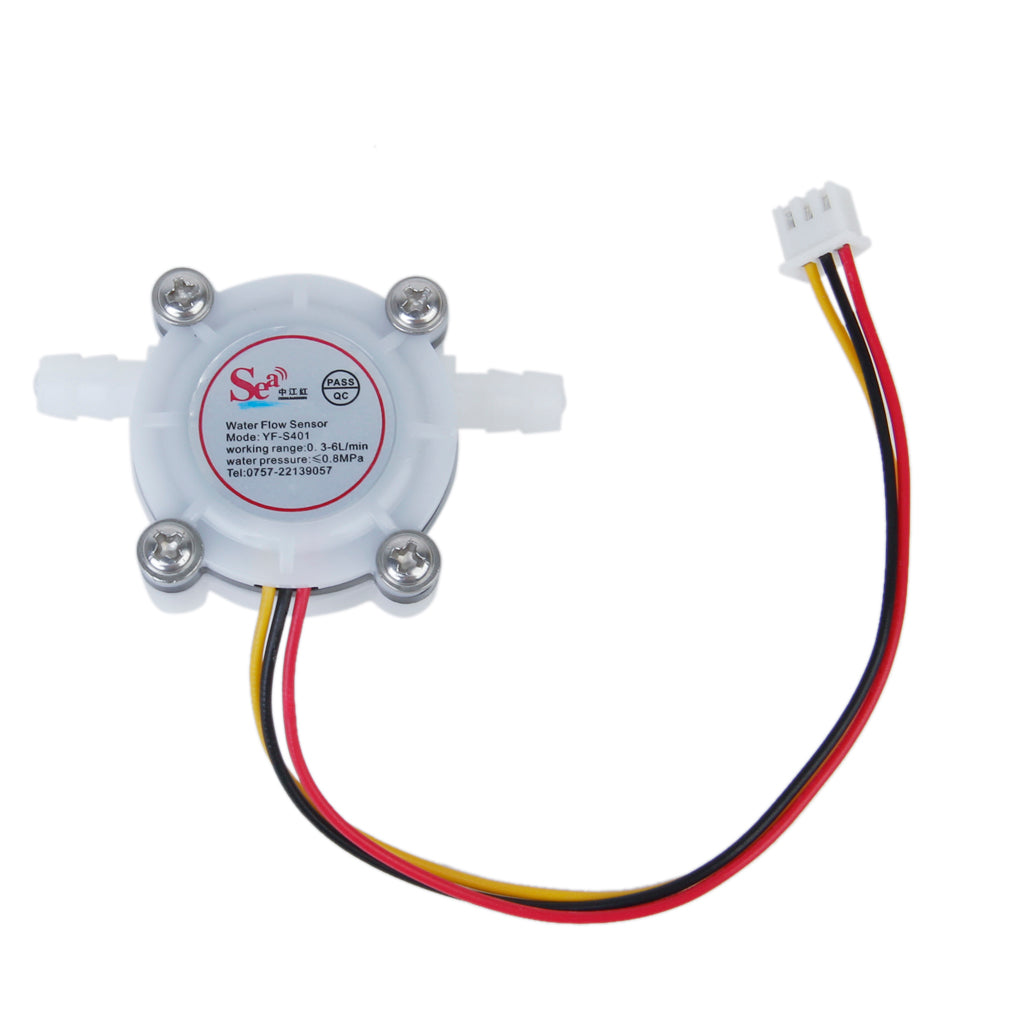

Maxbell Water Flow Sensor Switch Meter Flowmeter Coffee Dispenser Counter Fluid Control 0.3-6L/min
2
sold in last
8
hours
In stock
Rs. 1,684.00
Rs. 842.00
customers are viewing this product
Feature:
- The water flow sensor is applied for water heater, imprinter, automatic water machine, and other flow metering equipment.
- With stainless steel ball inside of the impeller, wear-proof
- Up and down structure stress applied for the seal ring, avoid to leak
- with imported Hall element, and adopt pouring sealant encapsulation to avoid to leak and age
- Install vertically, angle of inclination should not be exceeded 5 degree
- Medium temperature should not be exceeded 120degree

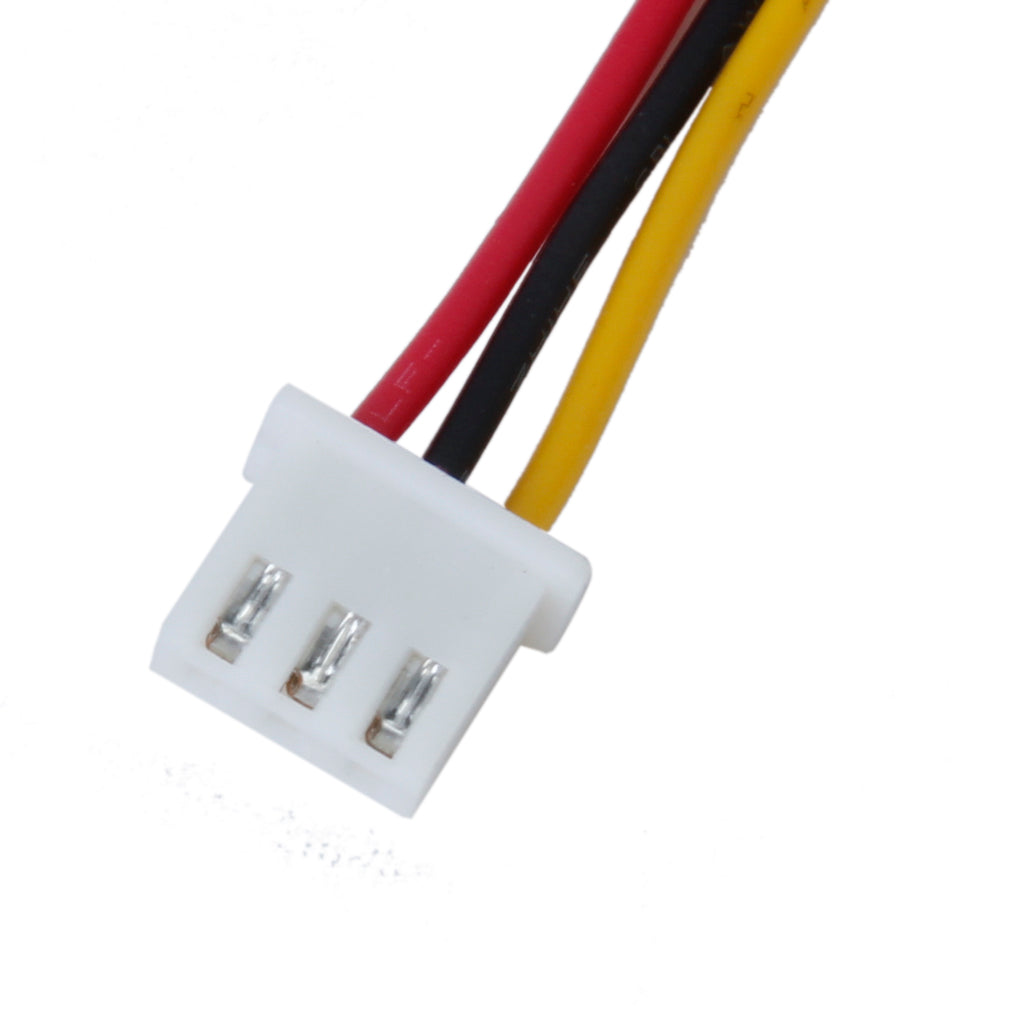

Wiring:
- Red - In - Connect positive
- Yellow - Out - Signal output
- Black - GND - Connect negative
Technical Parameters:
- Working range: 0.3-6L/min
- Water pressure: ≤0.8MPa
- Minimum rated working voltage: DC4.5 5V-24V
- Maximum working current: 15 mA（DC 5V）
- Working voltage range: DC 5～18 V
- Load capacity: ≤10 mA（DC 5V）
- Operating temperature range: ≤80℃
- Operating humidity range: 35%～90%RH (no frost)
- Storage temperature: -25～+ 80℃
- Storage humidity: 25%～95%RH

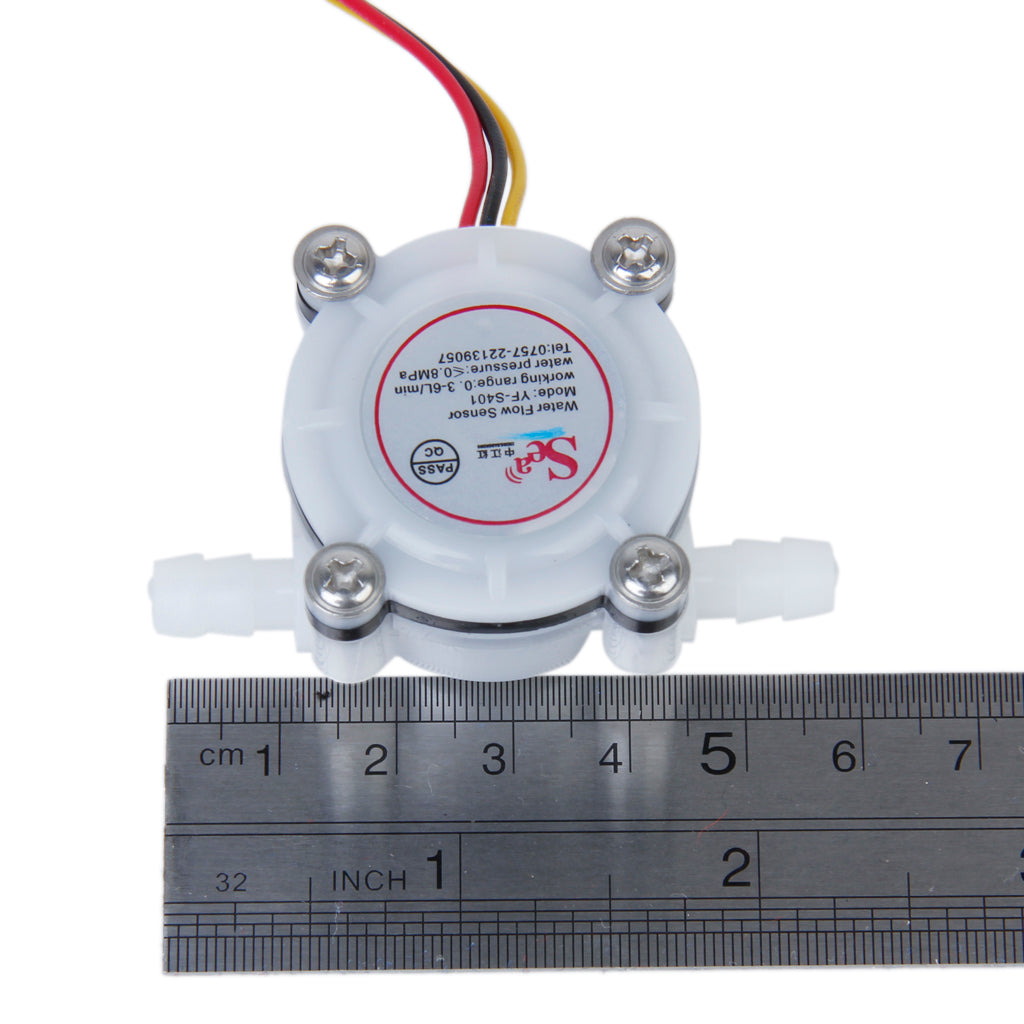

- Size (L x W x H): Approx. 5.8 x 3.4 x 2.7cm / 2.28 x 1.34 x 1.06 inch
- Output interface diameter: Approx. outer 7mm, inner 3mm
Package Includes:
- 1 x Water Flow Sensor Switch Meter Flowmeter Coffee Dispenser Counter
