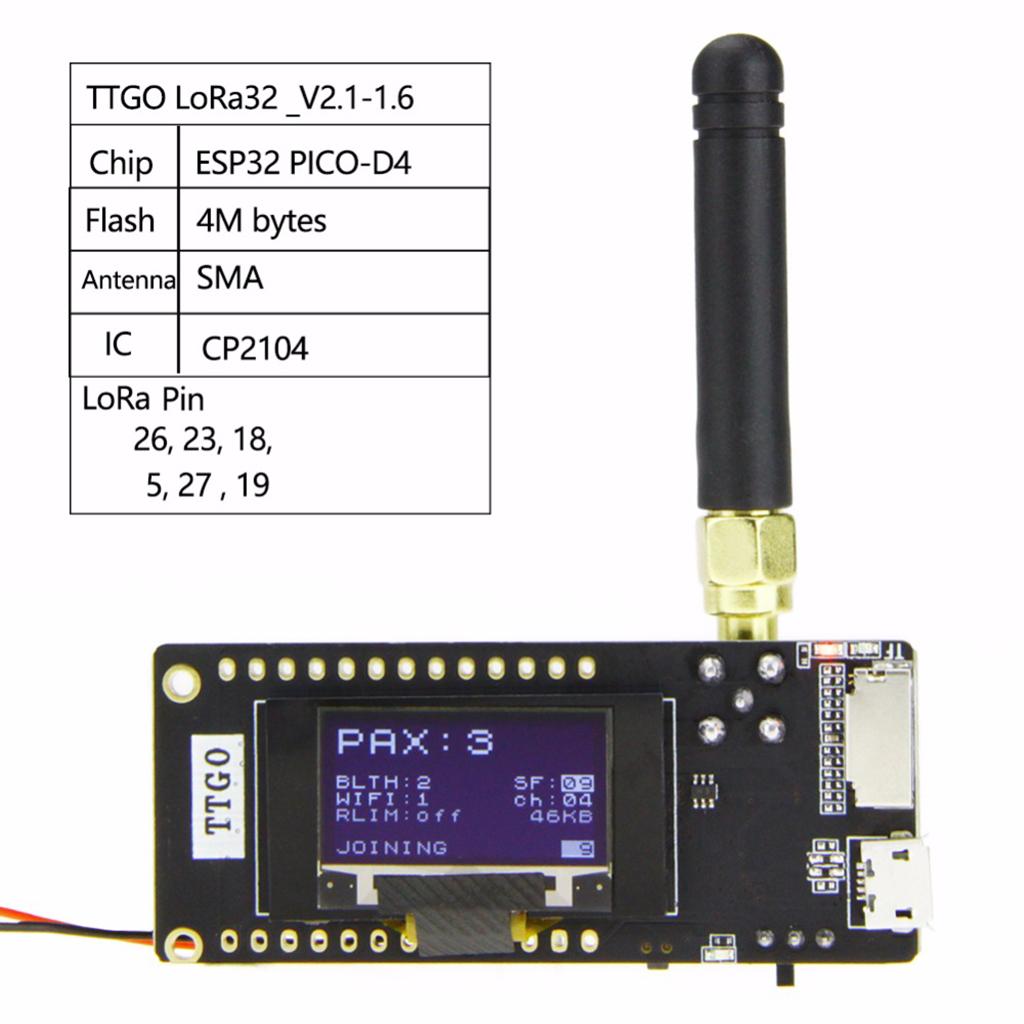

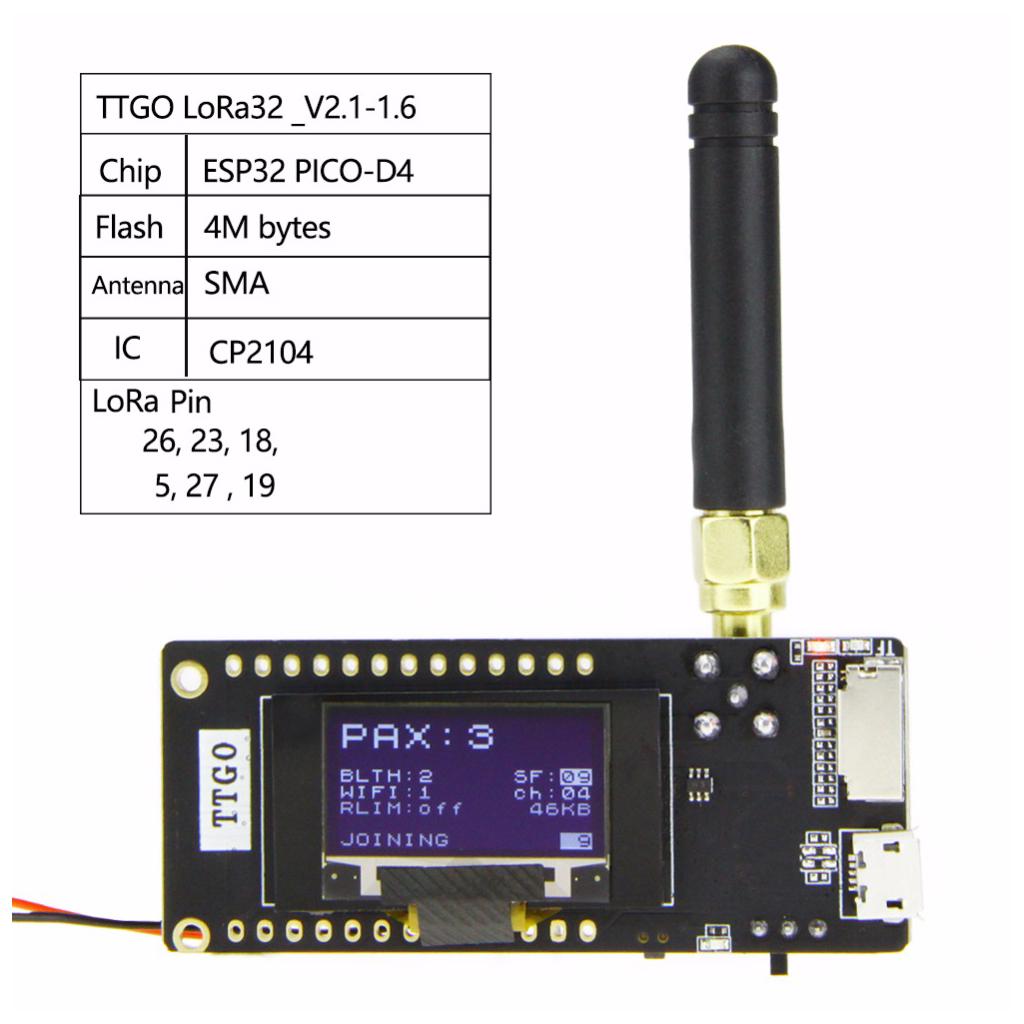

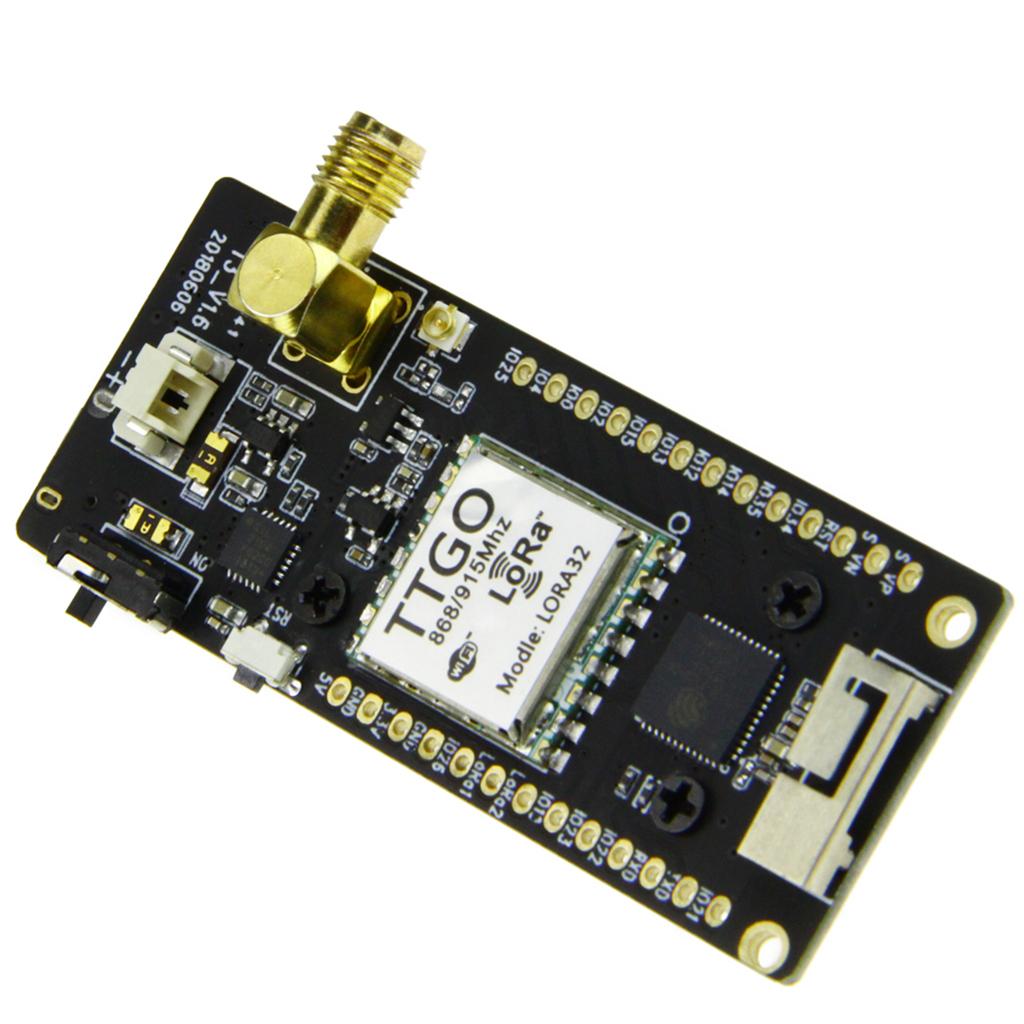

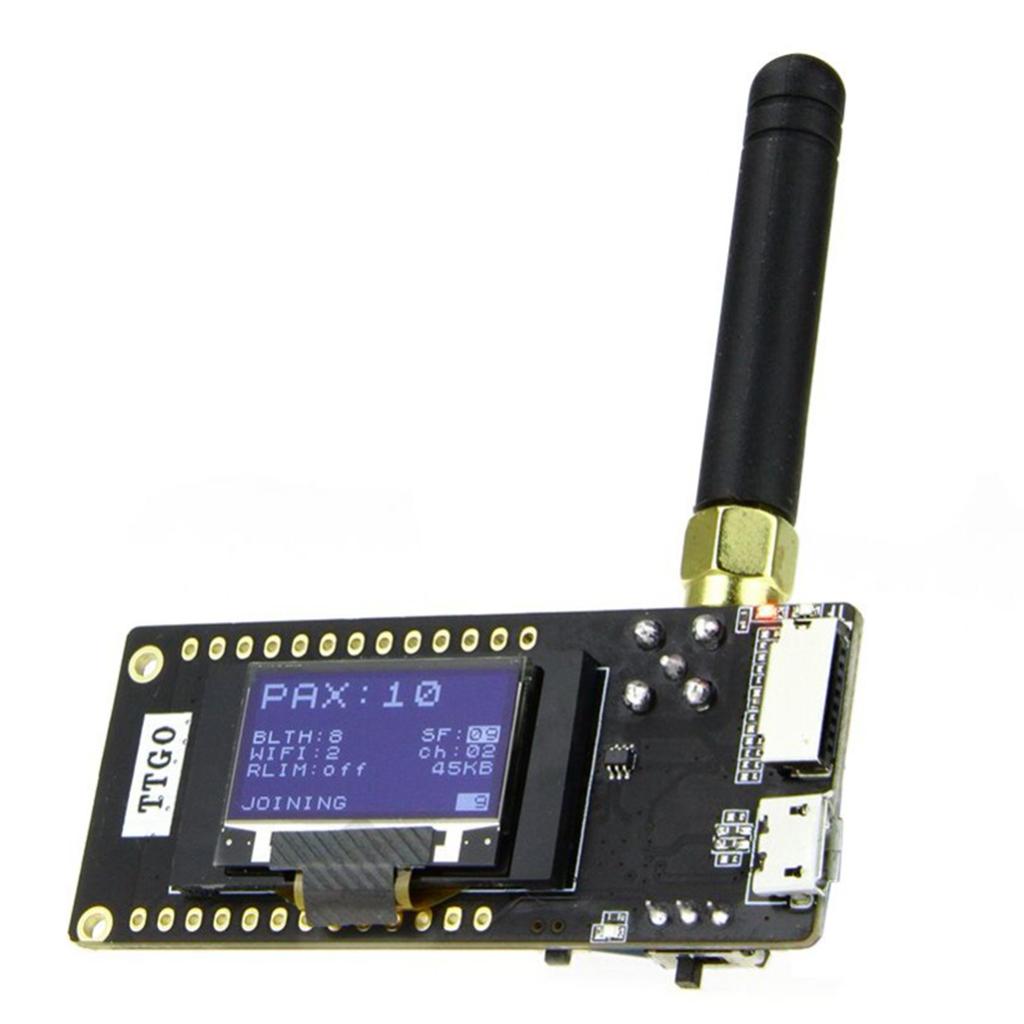

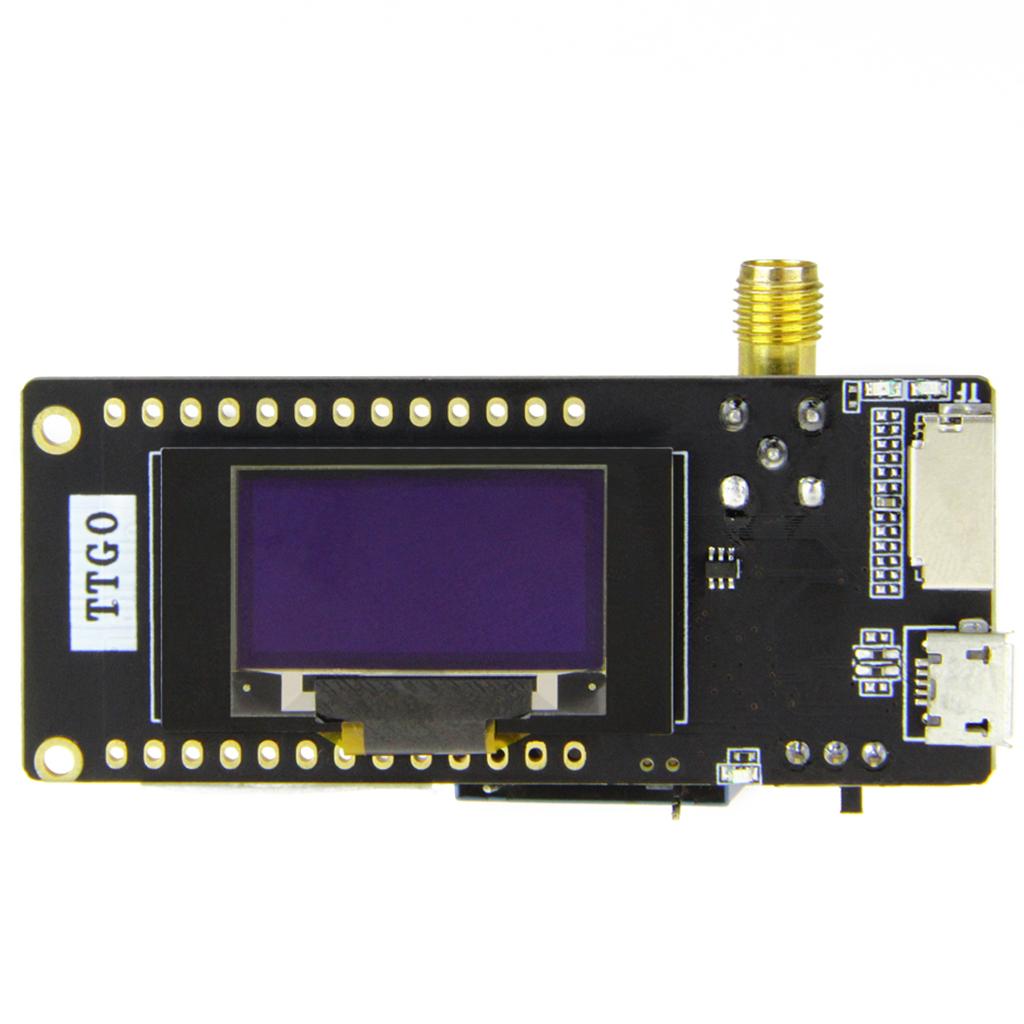

Maxbell TTGO LoRa32 V2.1 433MHz ESP32 OLED 0.96 Inch Bluetooth WIFI Wireless Module
Description:

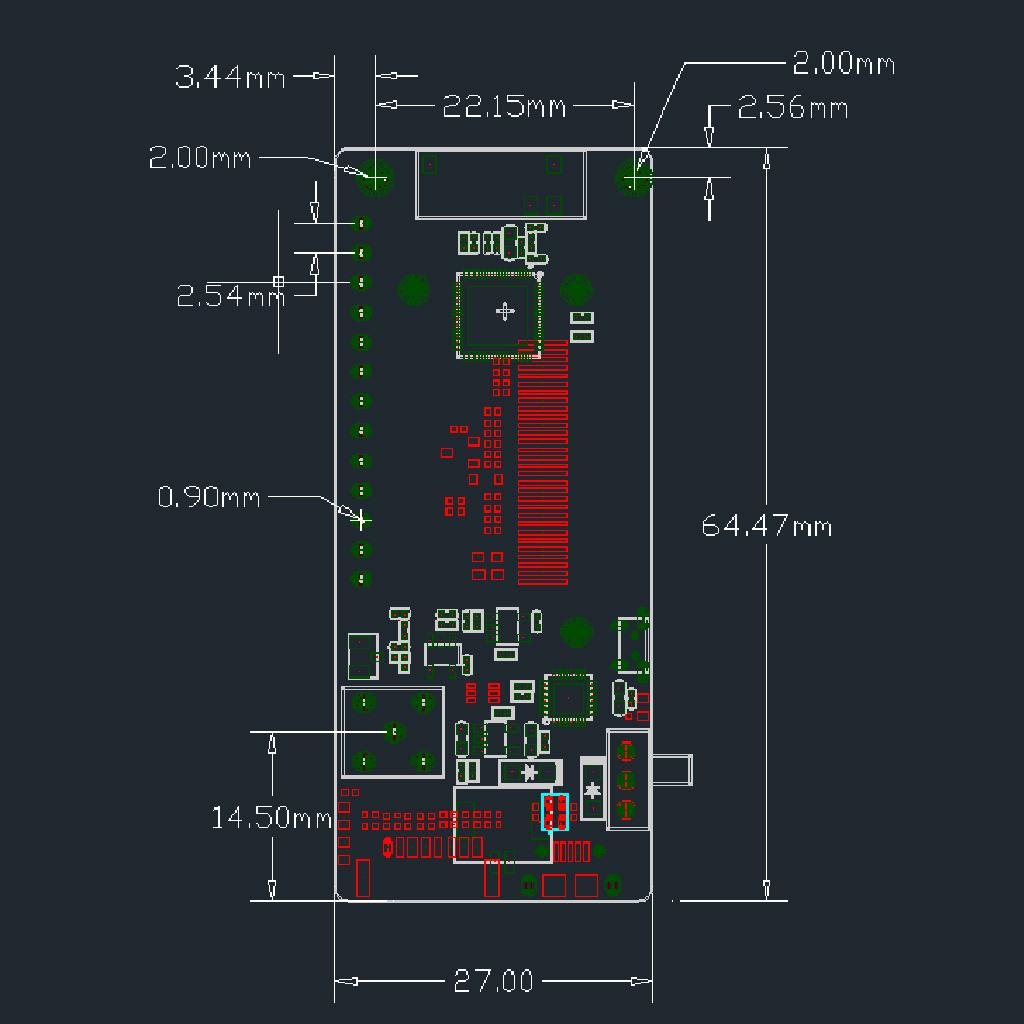

Size: 64.47mm*27mm
Working voltage: 1.8-3.7V
Acceptable current: 10-14mA
Transmit current: 120mA@+20dBm
90mA@+17dBm
29mA@+13dBm
Operating frequency: 433MHz
Transmit power: +20dBm
Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error: +/-15KHz
FIFO space: 64Byte
Data rate: 1.2K-300Kbps@FSK
0.018K-37.5Kbps@LoRa
Modulation : FSK,GFSK,MSK,GMSK,LoRa TM，OOK
Interface form: SPI
Sleep current: 0.2uA@SLEEP
1.5uA@IDLE
Operating temperature: -40℃- +85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
RF wake-up function
Fast wake-up and frequency hopping
Highly configurable data packet handler
SMA Antenna IP5306

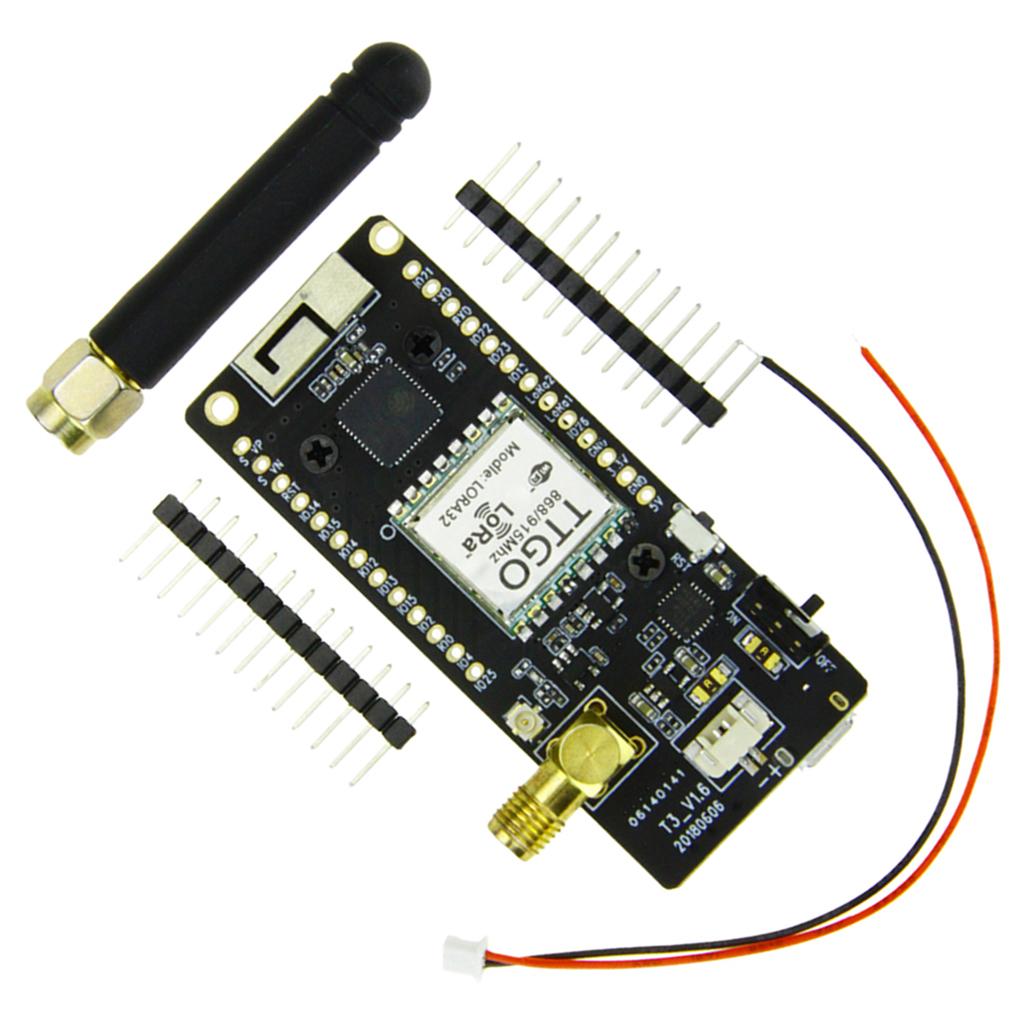

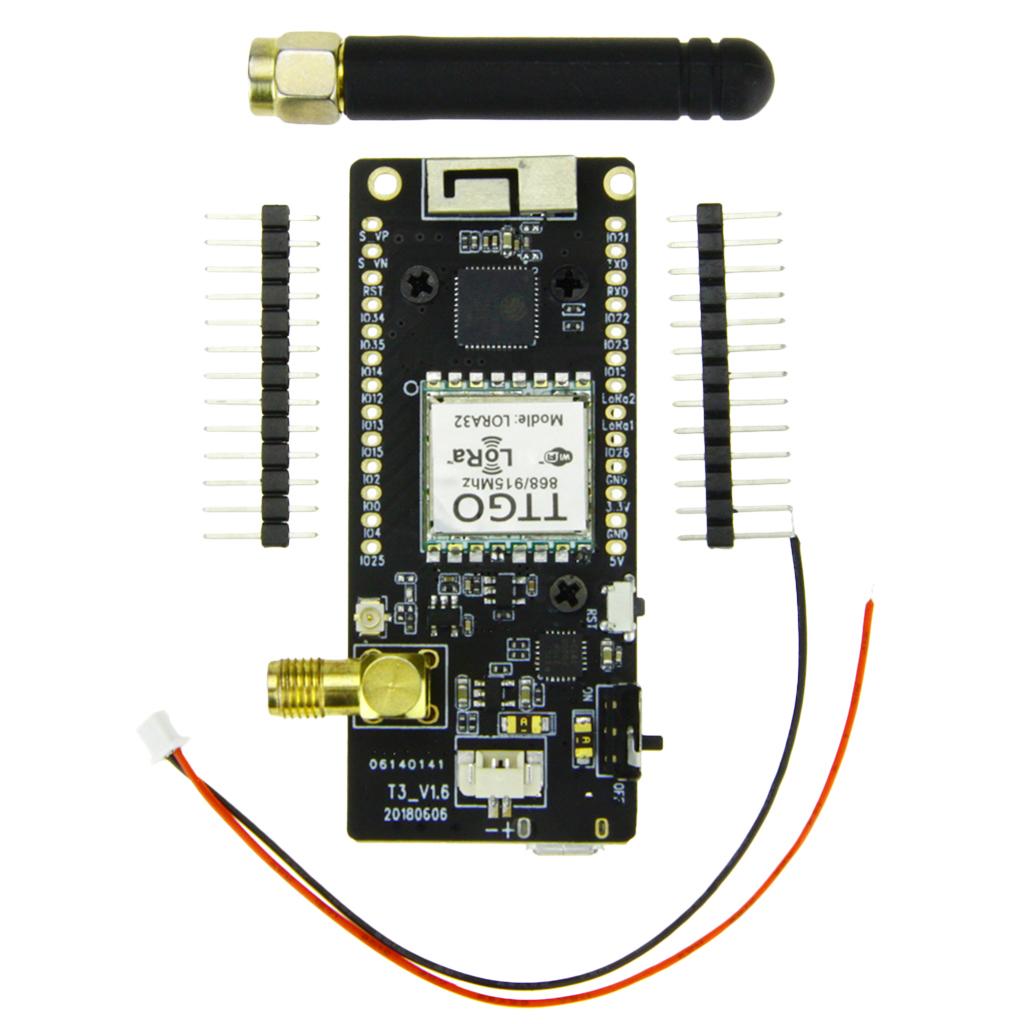

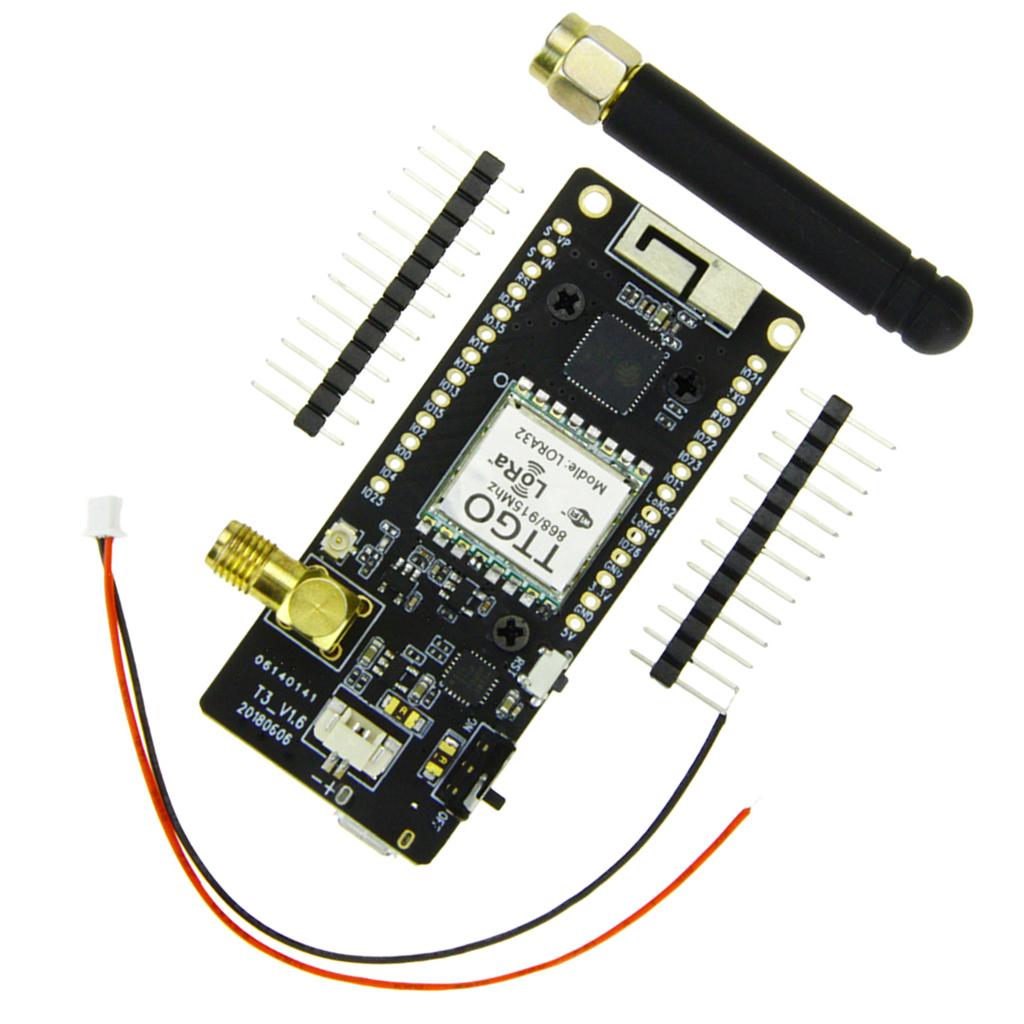

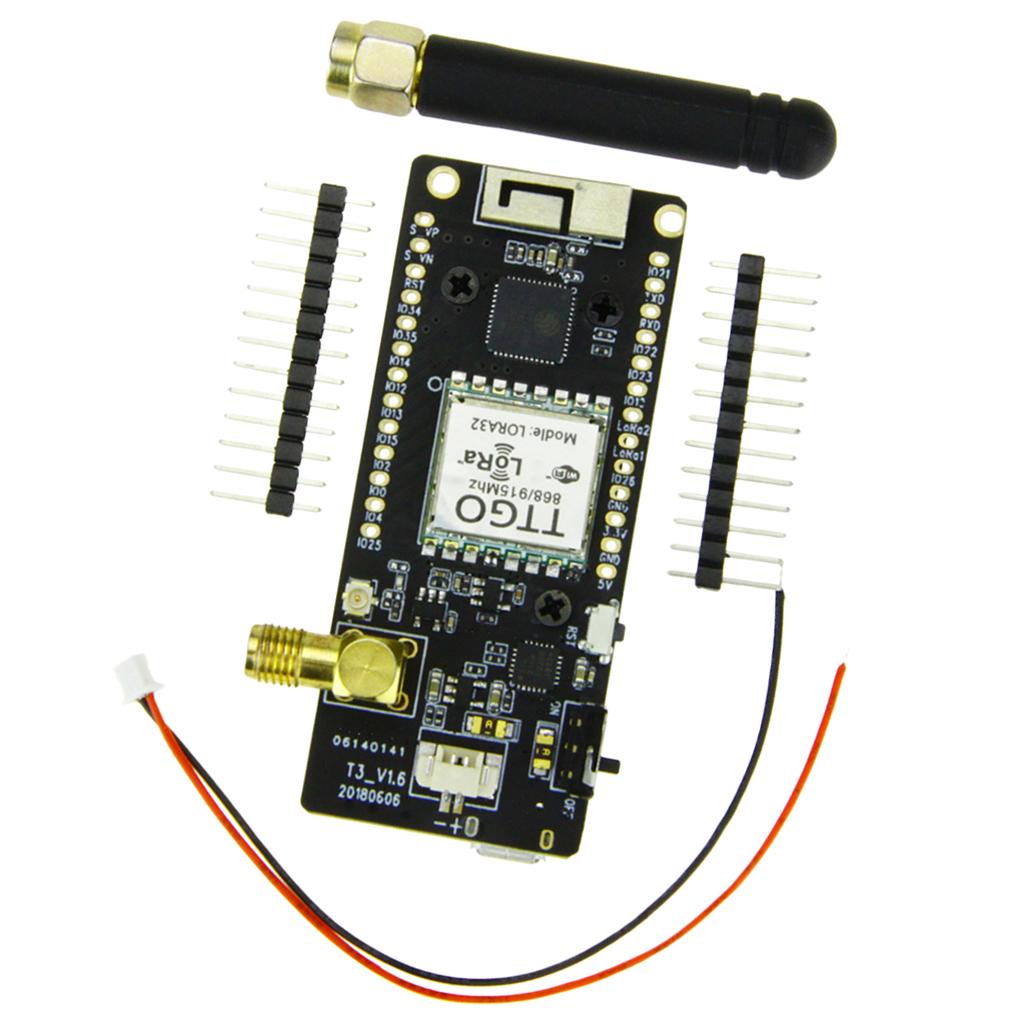

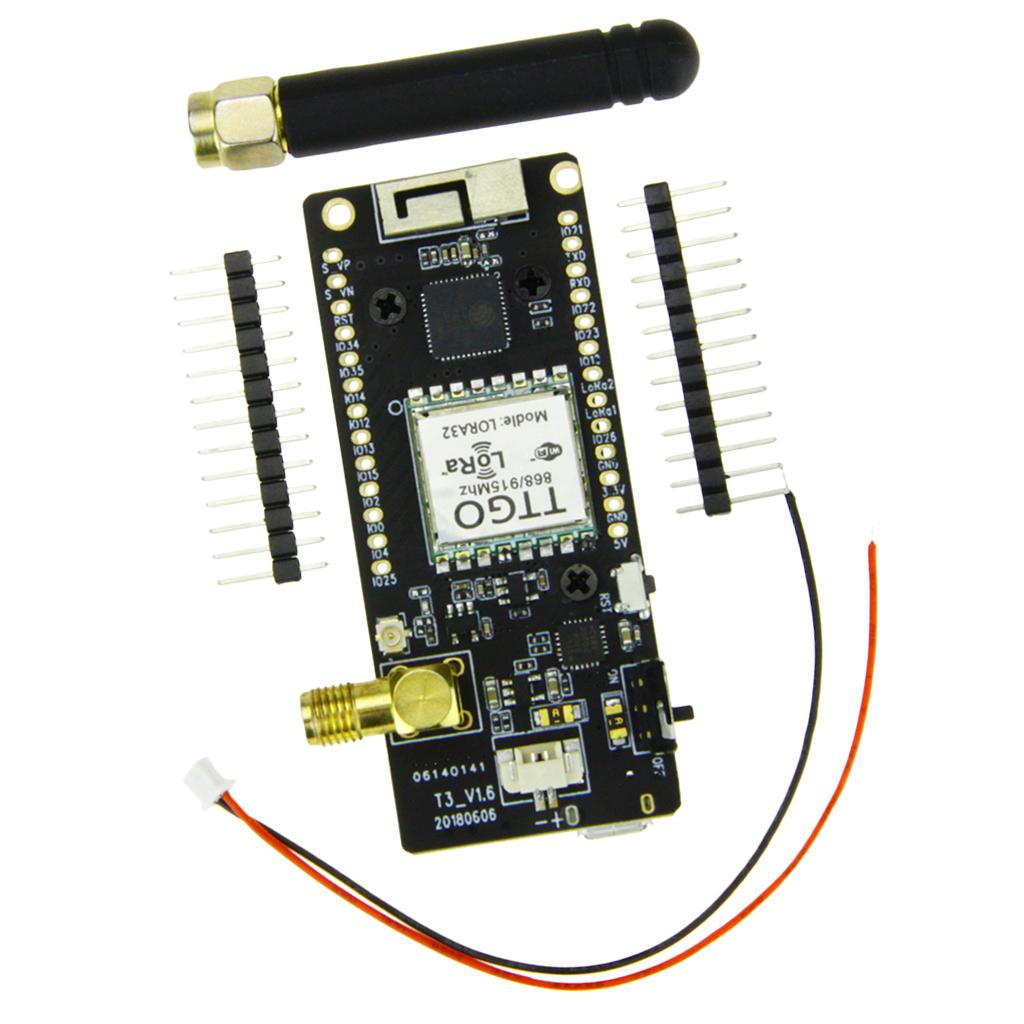

Package Includes:
1 Piece LoRa32 V2.1 433MHz Module
2 Pieces Pin
1 Piece Antenna
1 Piece Power Cable
