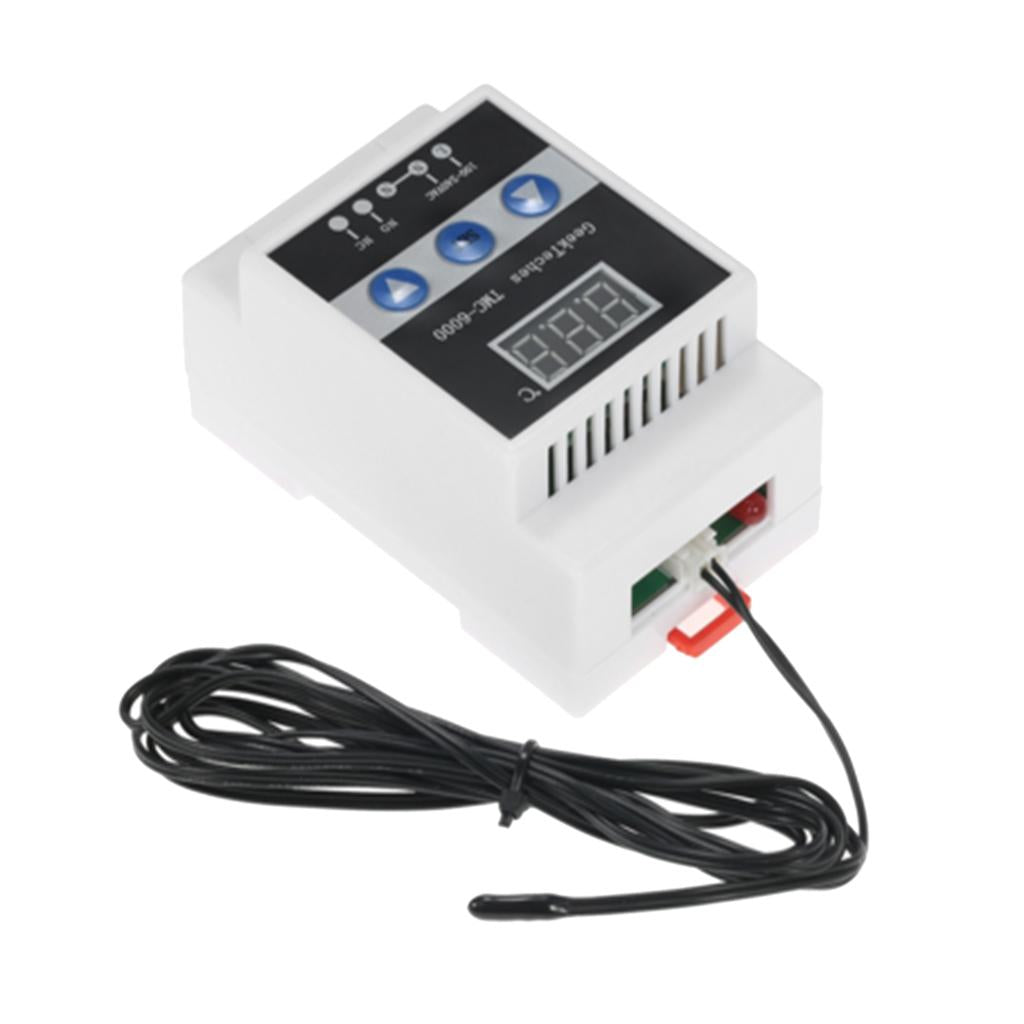

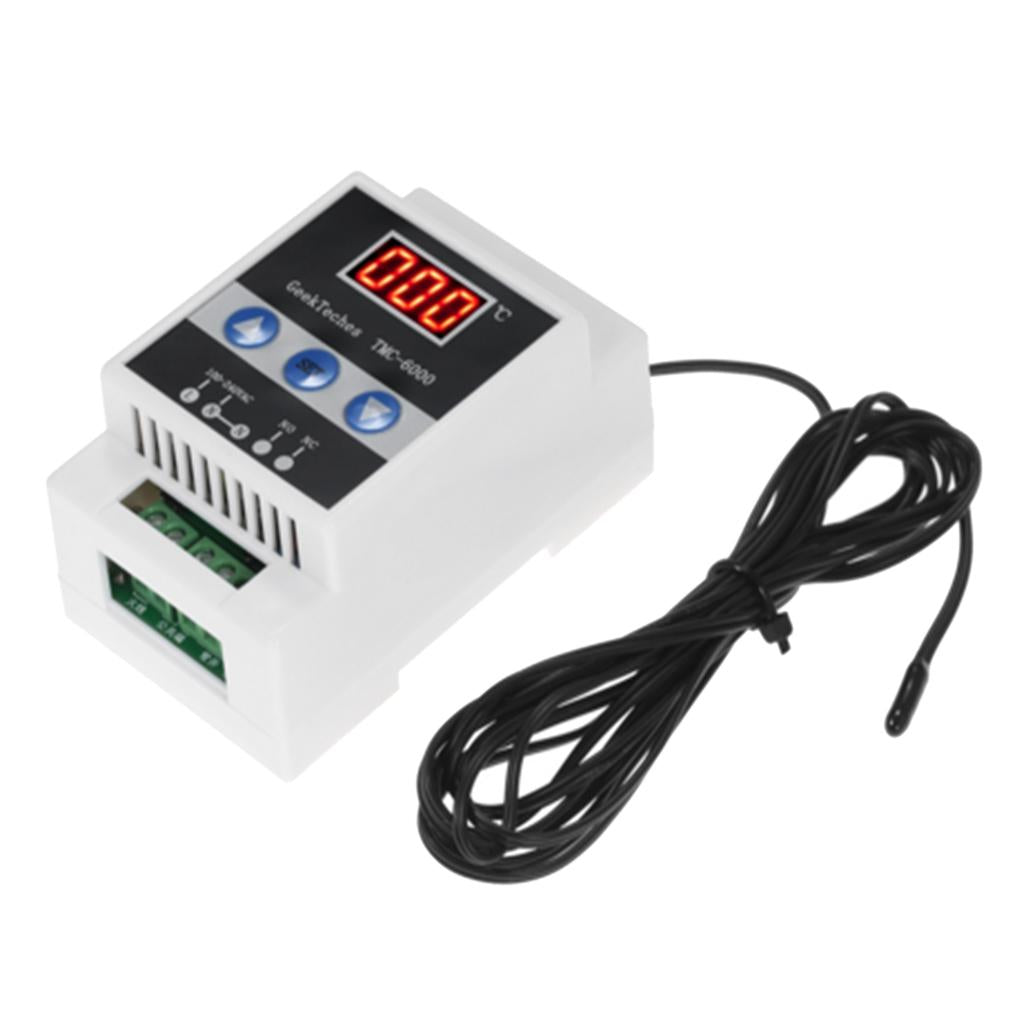

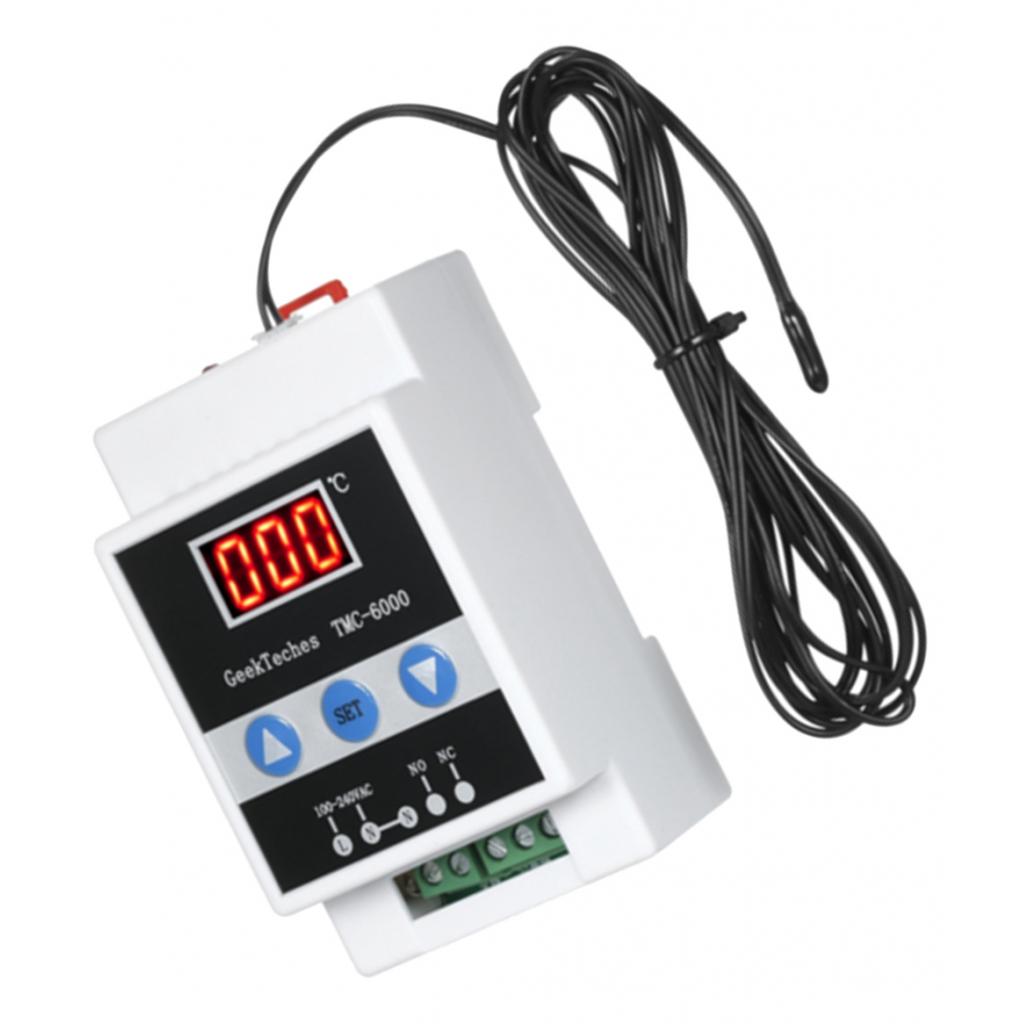

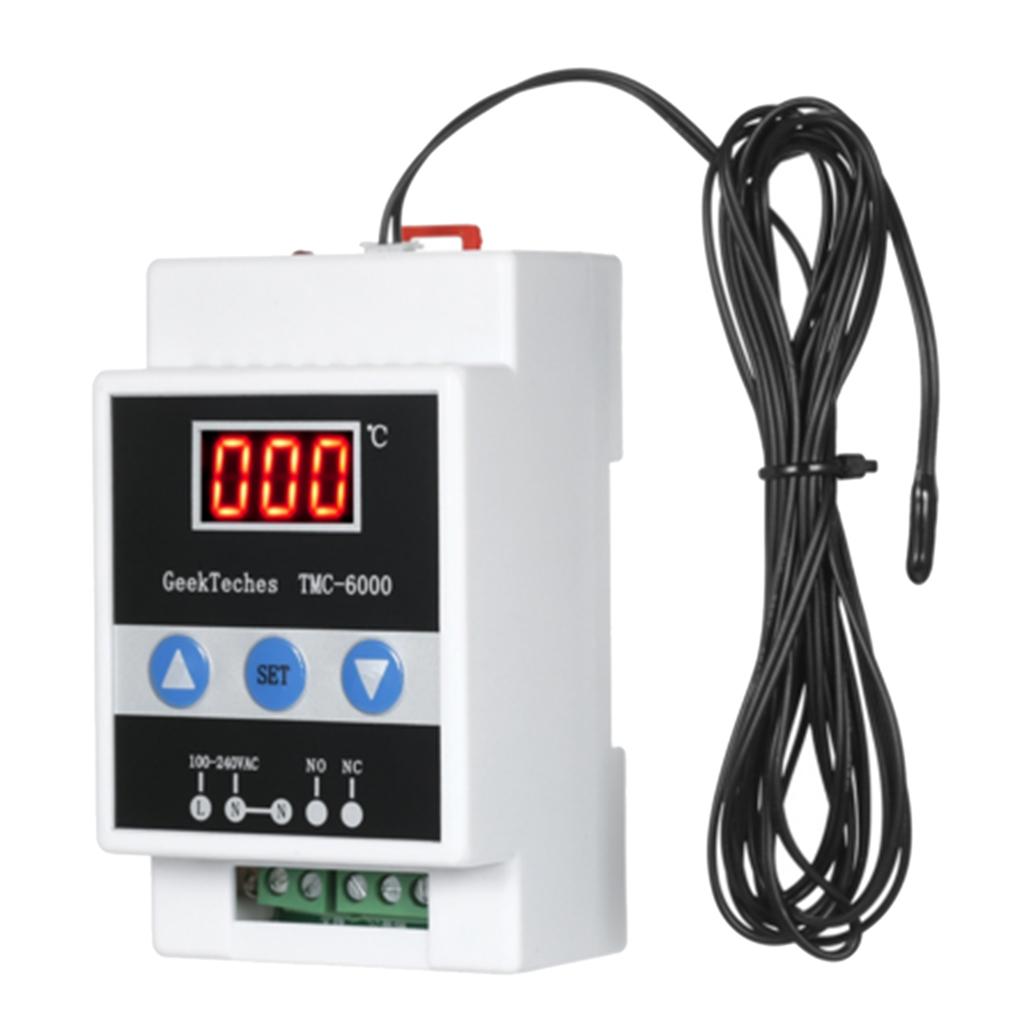

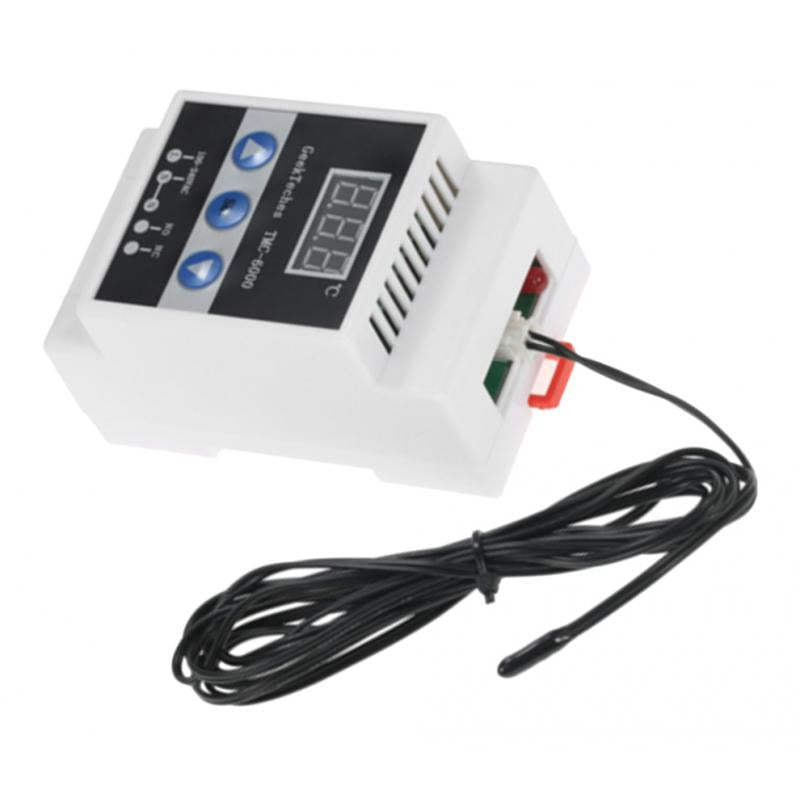

Max TMC-6000 Guide Rail Thermoregulator Digital Temperature Controller Style2

Description:

The one-way temperature controller can set as "refrigerating" or "heating", using 10K general NTC thermistor to control temperature, control the one-way relay (NO, NC) output.
The temperature range controlled is -45 Celsius ~110 Celsius.
Under refrigerating mode, the output opens when the temperature is above (temperature control value + return difference) and stops when temperature is at the temperature control value.Under heating mode, the output opens when the temperature is below (temperature control value - return difference) and stops when temperature is at the temperature control value.
Adjustable temperature control value and return difference value with correction function for measured temperature deviation.Adopt DIN guide rail type installation, easy and fast to install.Adopt the advanced design of isolating power supply, ensuring the controller work steadily, reliably and continuously when the power supply changes between 100V~250V ADC.
The temperature sensing line could be connected with general wire for 100 meters.Set the parameter to conserve long-term memory of power-down.

Specification:

Material: Metal + PC

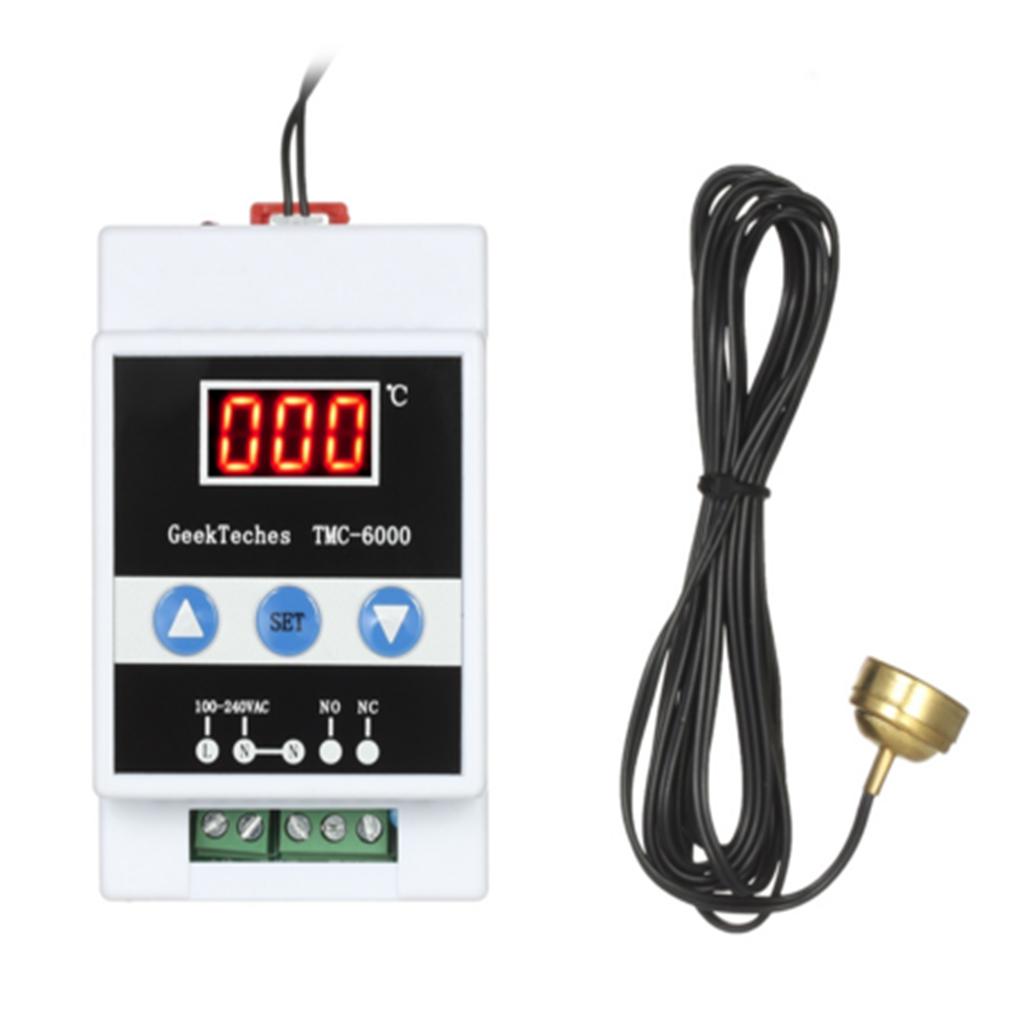

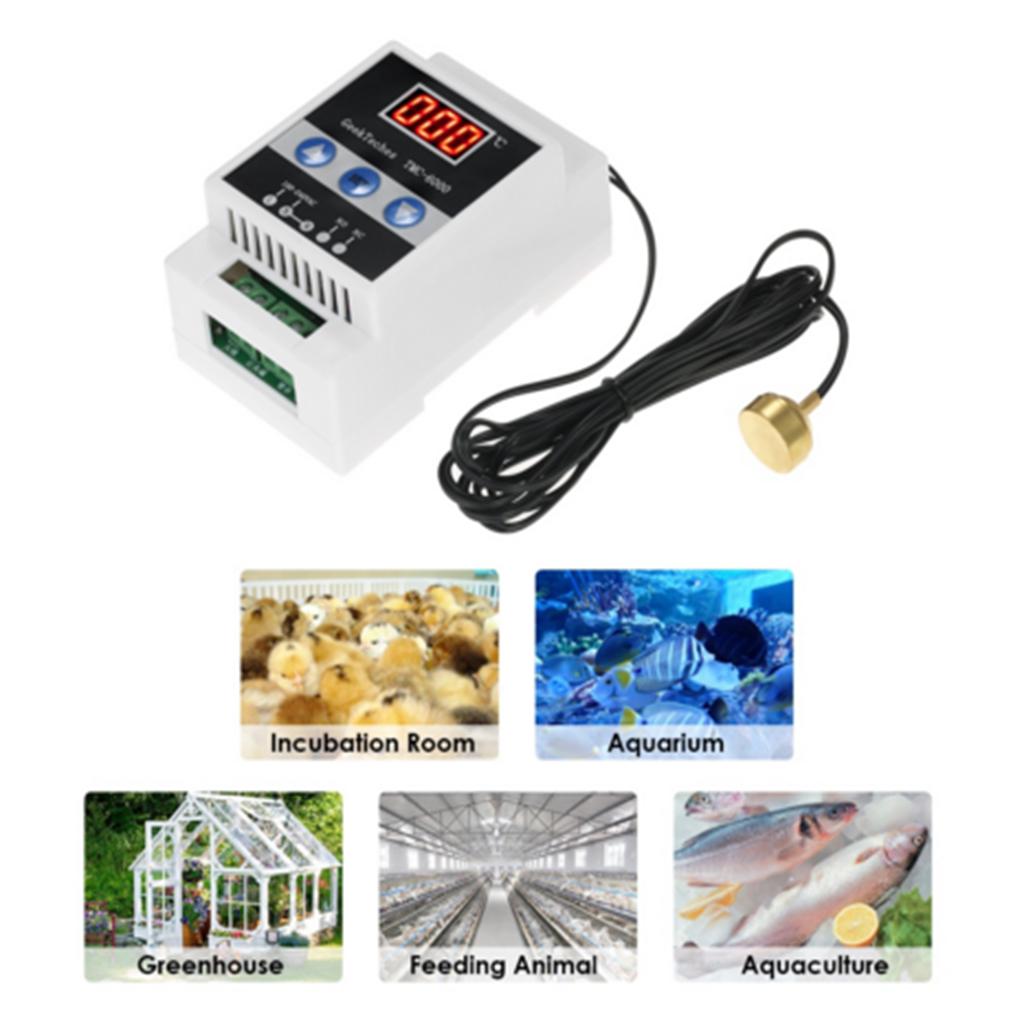

Probe Model: Water Drop Probe
Installation Mode: Standard DIN rail installation or fixed installation
Display: 22 x 11mm 3 Digits LED Display
Power Supply: ADC 110-240V
Power: 2W
Buttons: Press-type Membrane Keypad

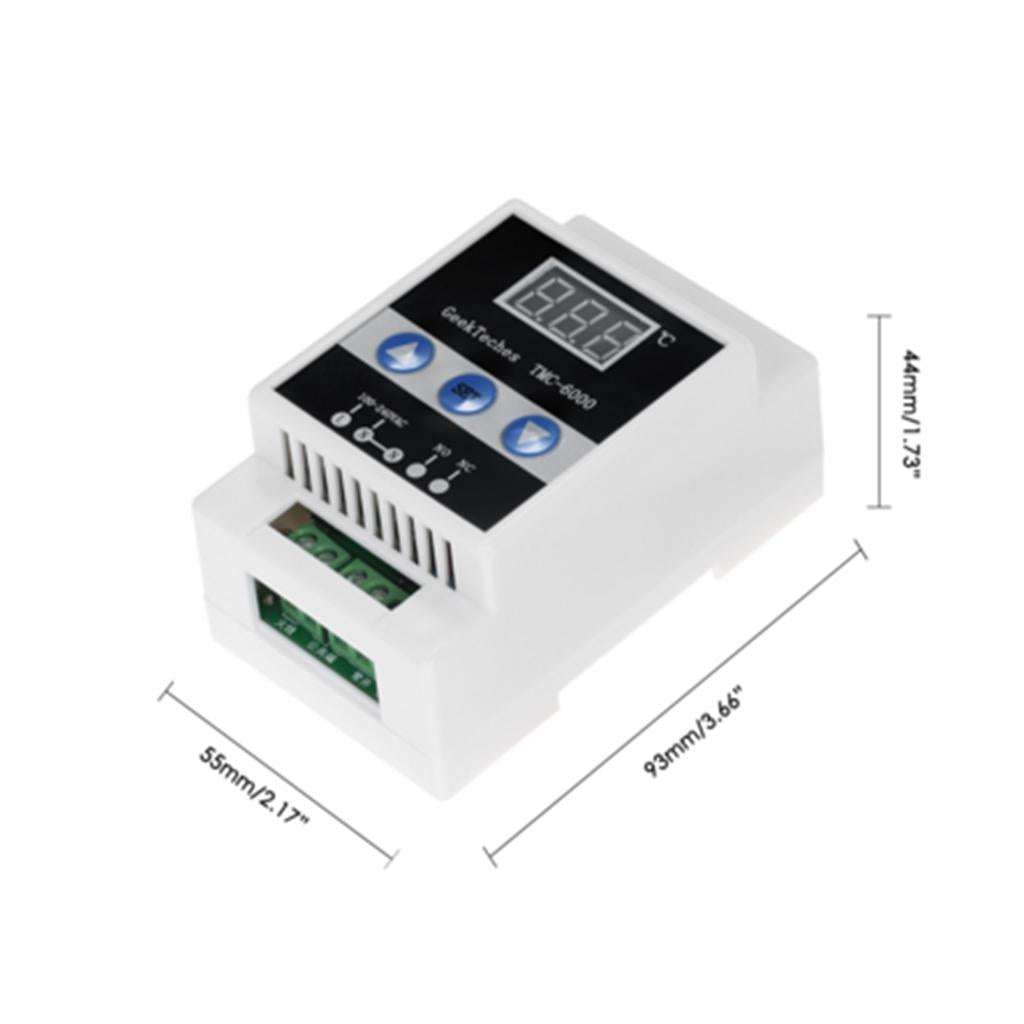

Size Chart:

Size: 93x55x44mm / 3.66x2.17x1.73inch

Package Includes:

1 Piece Temperature Controller
1 Piece NTC(10K) Temperature Sensing Line
1 Piece User Manual

Note:

Please allow 1-3mm measuring deviation due to manual measurement.
Due to the different monitor and light effect,the actual color of the item might be slightly different from the color showed on the pictures.
