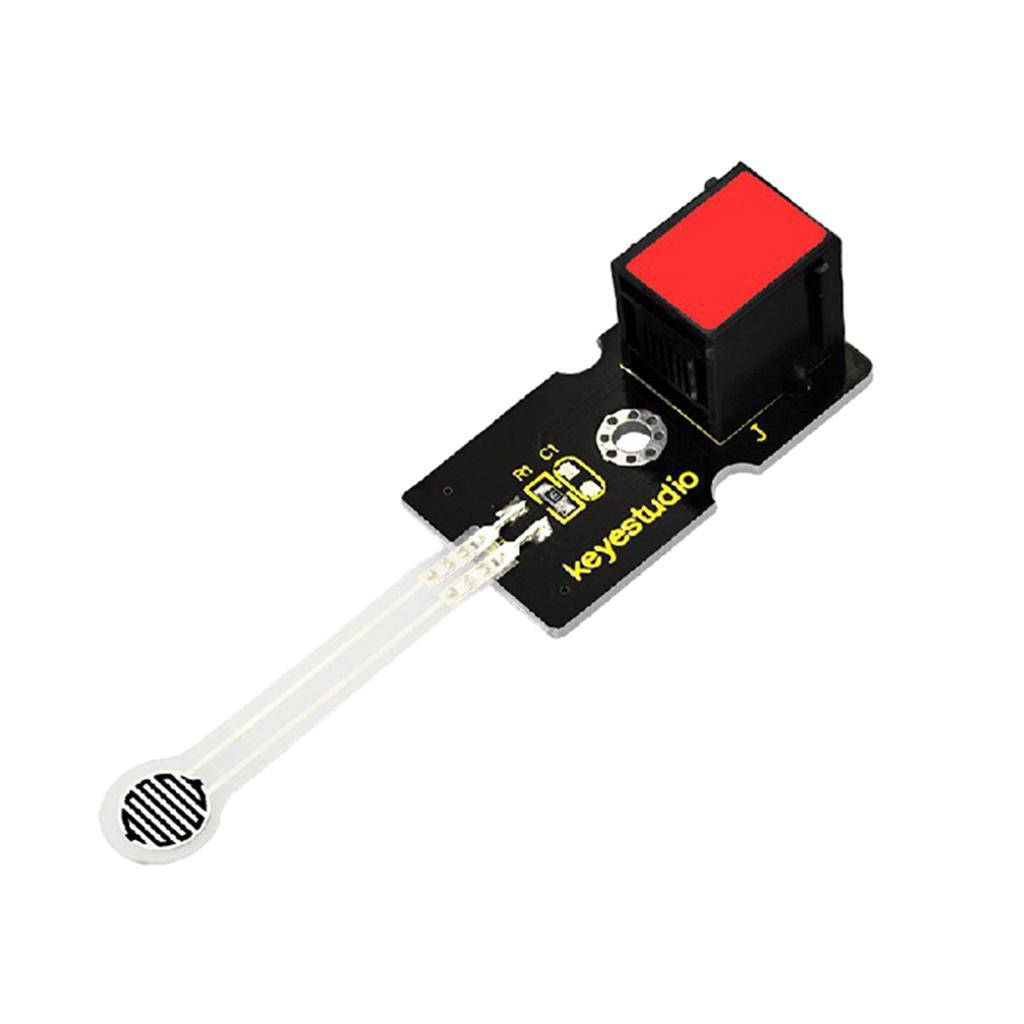

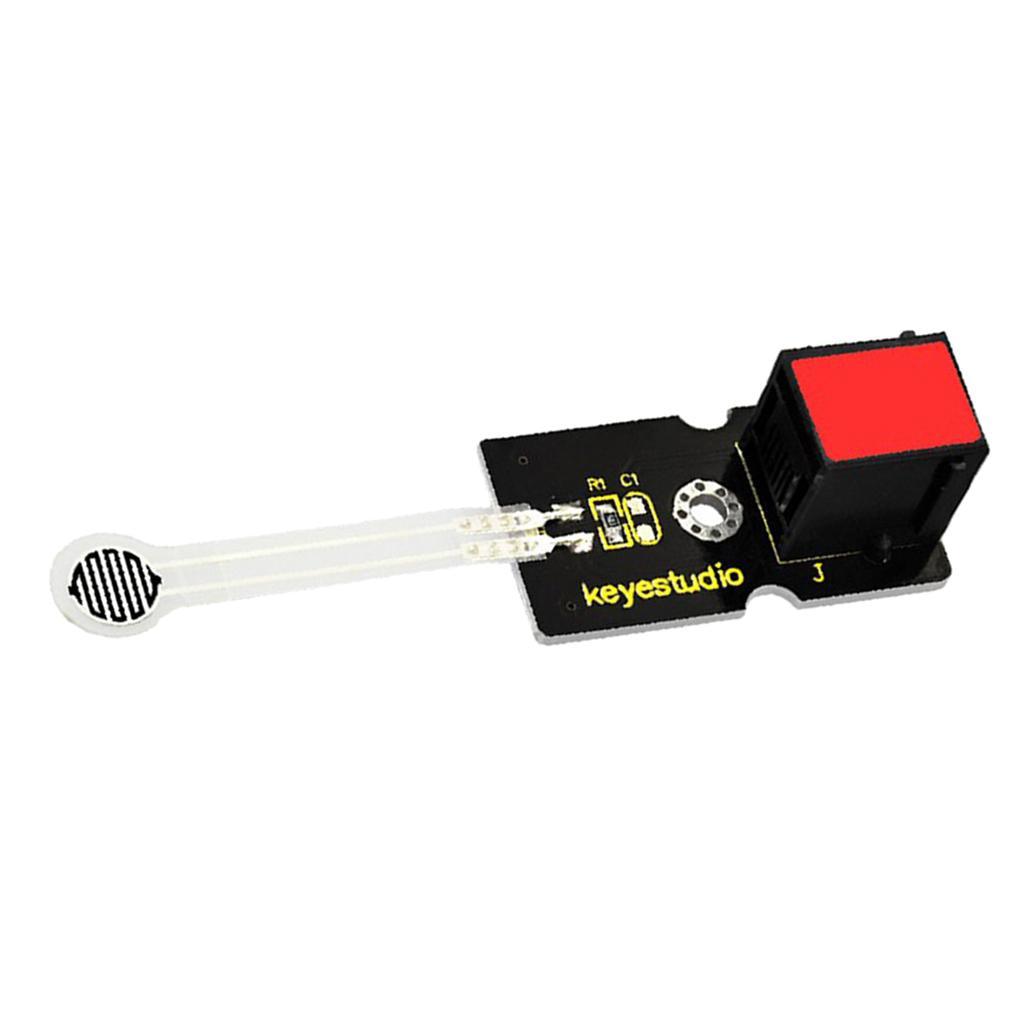

Max Thin Film Resistive Pressure Sensor Transducer Force Sensing Resistor Small
Description:
This EASY plug pressure sensor adopts the flexible Nano pressure-sensitive material with an ultra-thin film pad.
It has the functions of water-proof and pressure detection.
The force sensors are ultra-thin and flexible printed circuits, which can be easily integrated into force measurement applications.
The harder you press, the lower the sensor's resistance.
When the sensor detects the outside pressure, the resistance of sensor will make a change.
So we can use the circuit to convert the pressure signal that senses pressure change into the corresponding electric signal output.
In this way, we can know the conditions of pressure changes by detecting the signal changes.

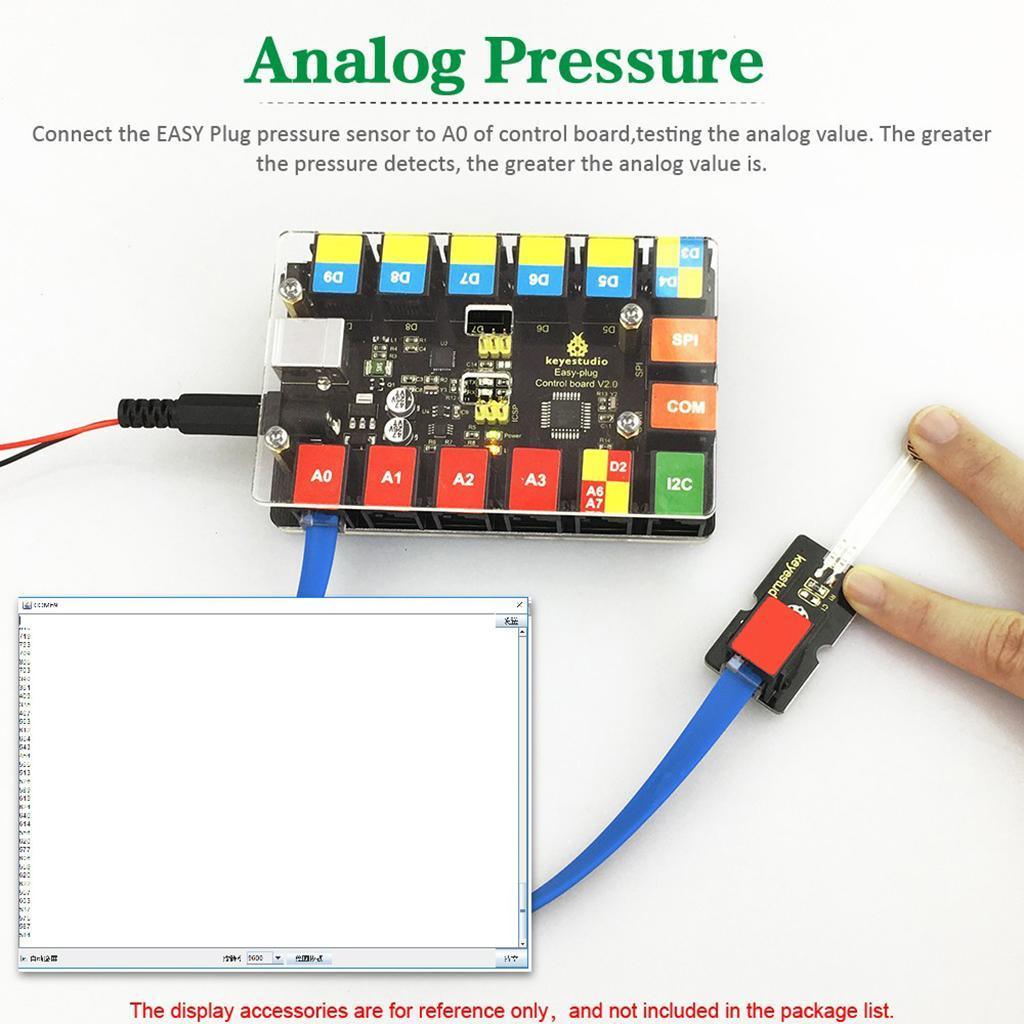

You can connect the sensor to EASY plug Control board for communication using only a RJ11 cable.

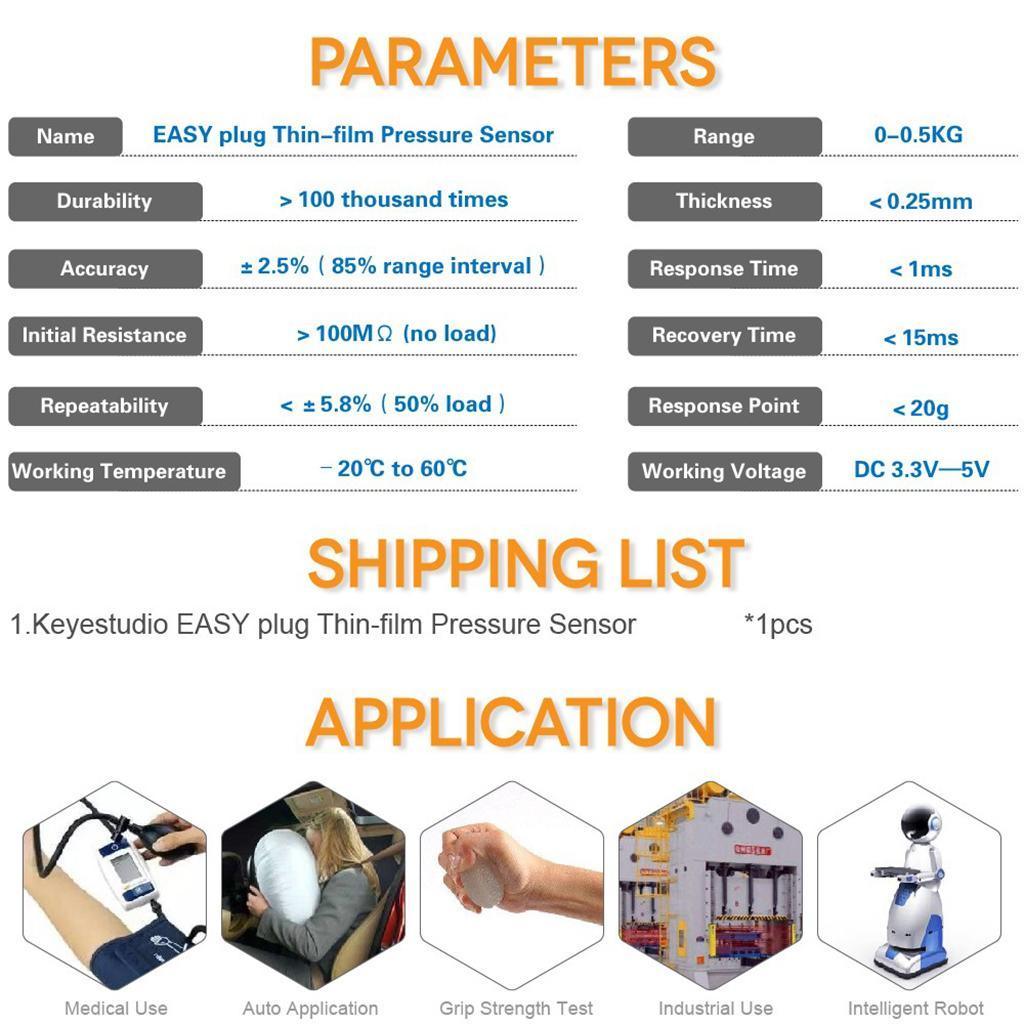

Specification:
Working Voltage: DC 3.3V—5V
Range: 0-0.5KG
Thickness: ＜0.25mm
Response Point: ＜20g
Repeatability: ＜±5.8%（50% load）
Accuracy: ±2.5%（85% range interval）
Durability: ＞100 thousand times
Initial Resistance: ＞100MΩ (no load)
Response Time: ＜1ms
Recovery Time: ＜15ms
Working Temperature: -20℃ to 60℃

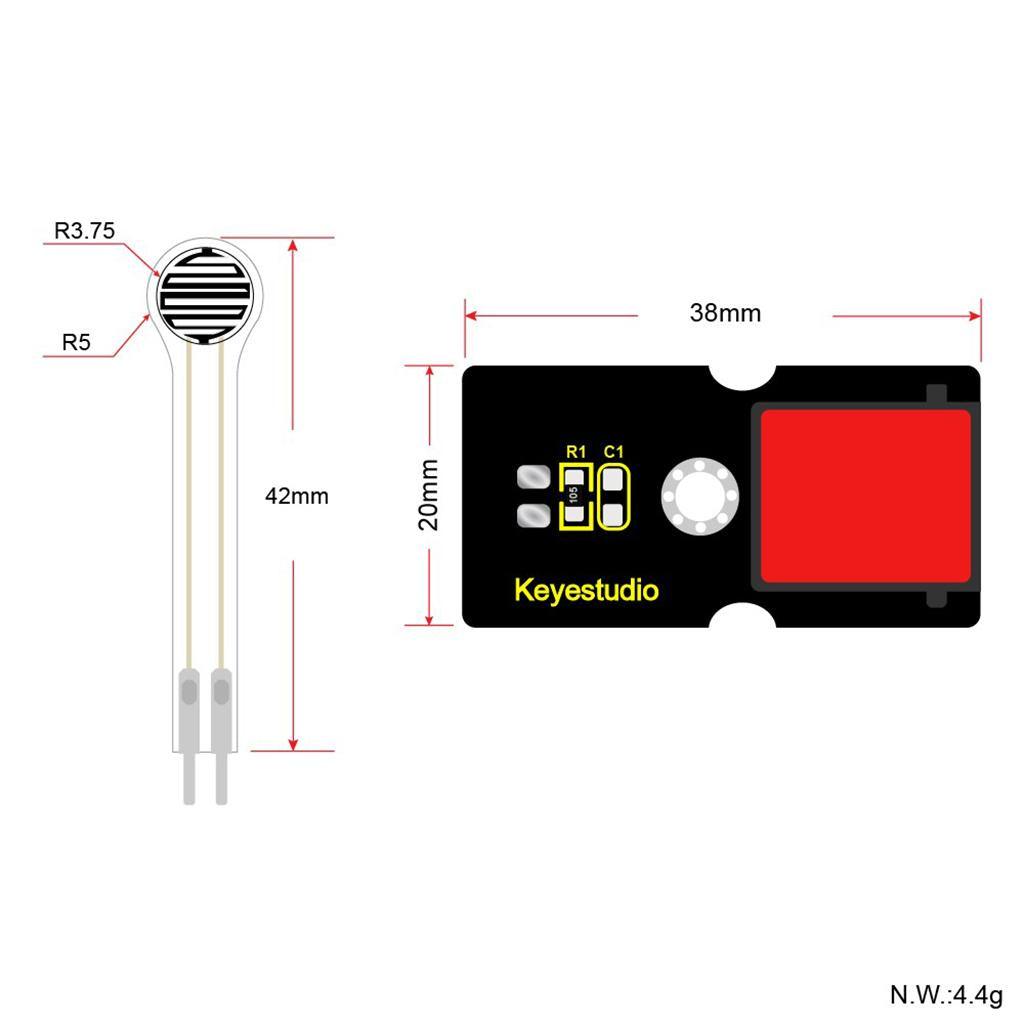

Size: 3.8x2x1.7cm/1.49x0.78x0.66 inch
Package Includes:
1 piece pressure sensor
