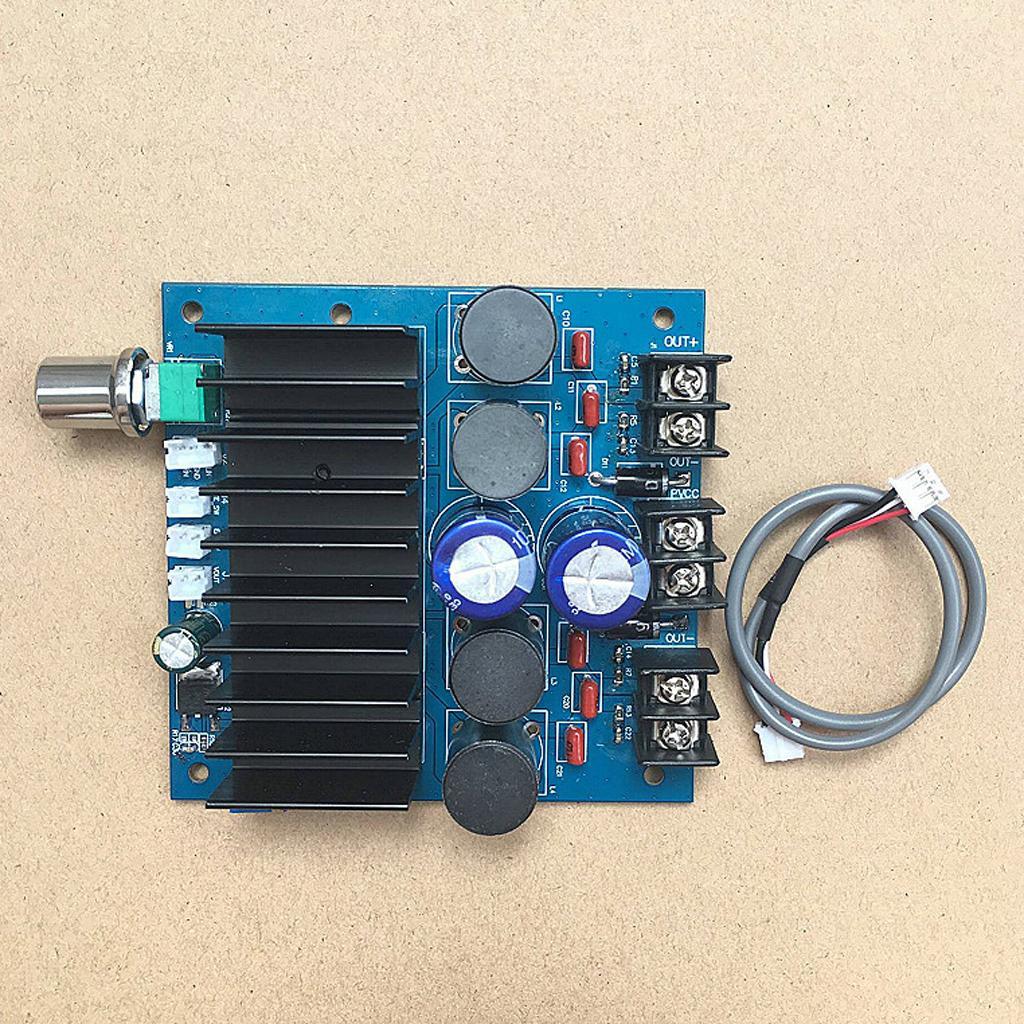

Maxbell TDA7498 Digital Audio Amplifier Board 100W*2 High Power Two-channel Class-D
Description:

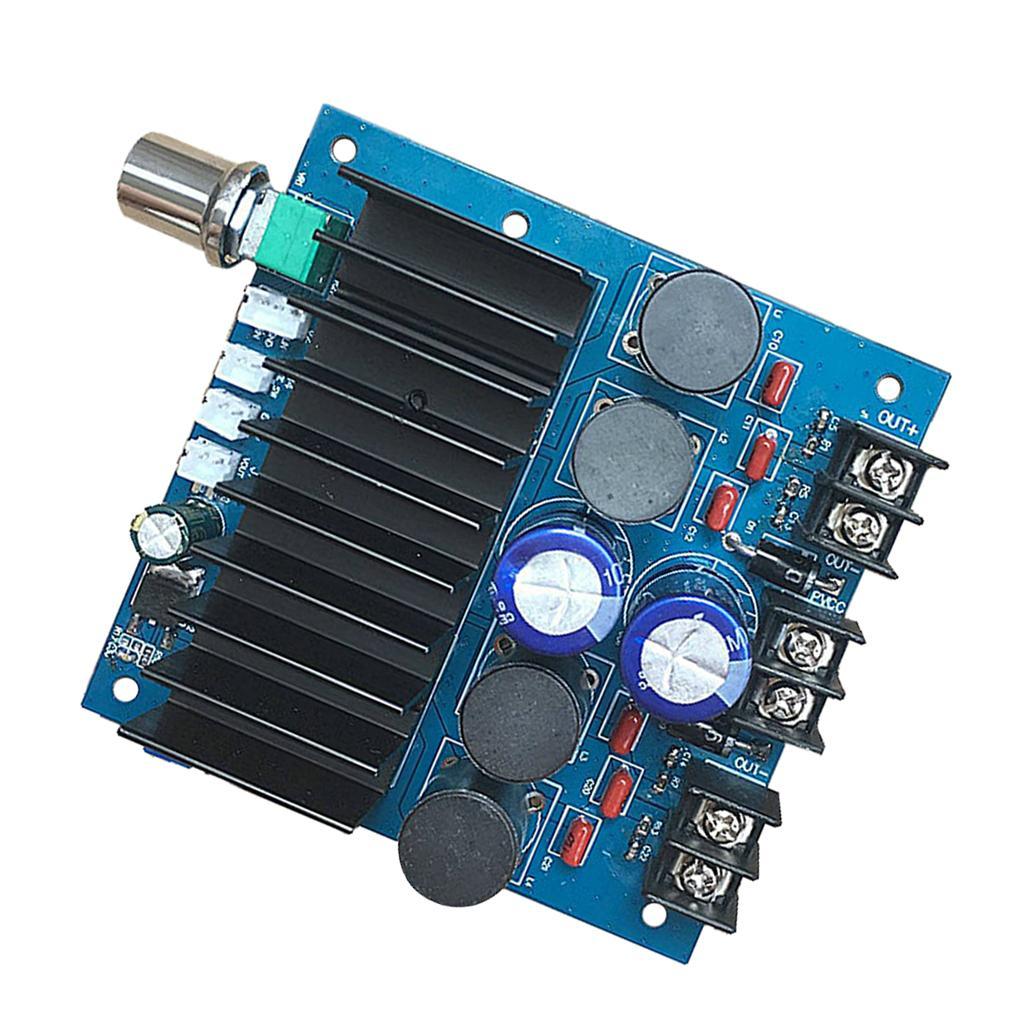

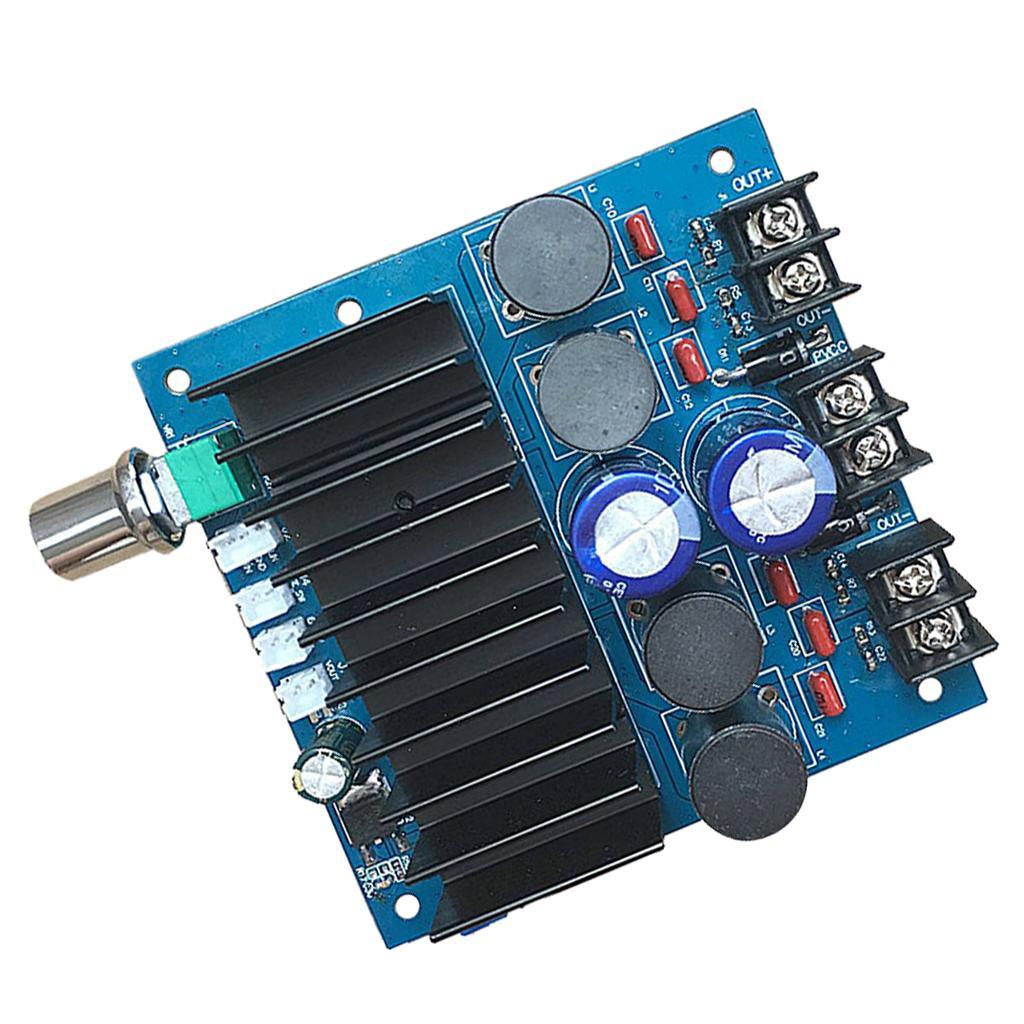

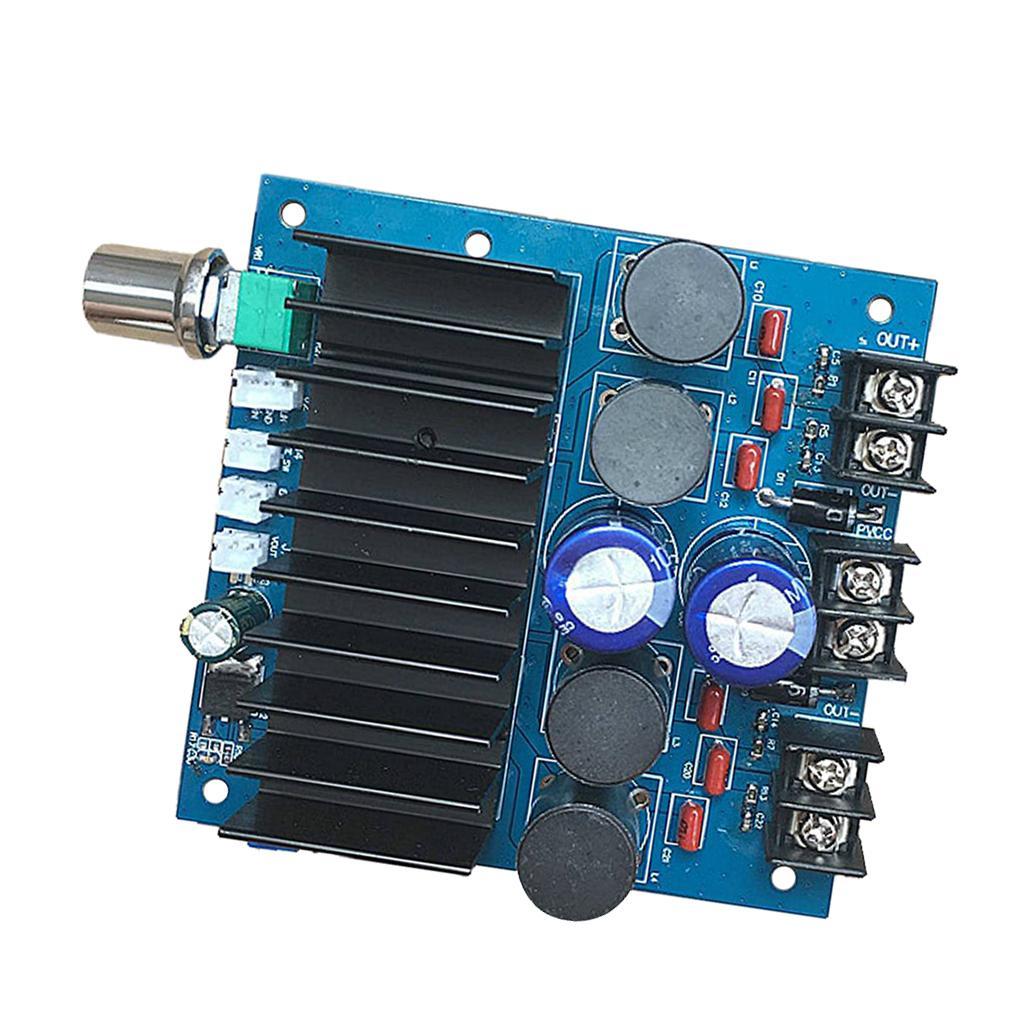

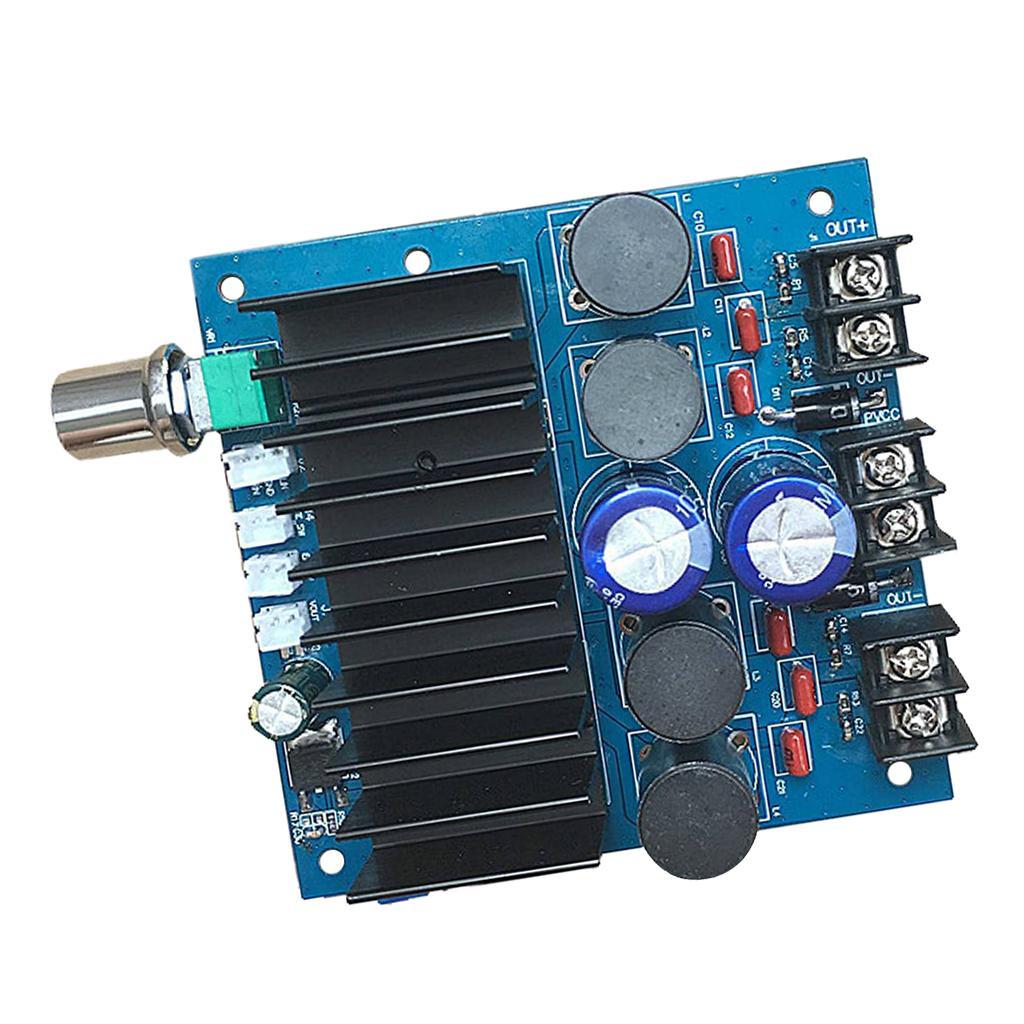

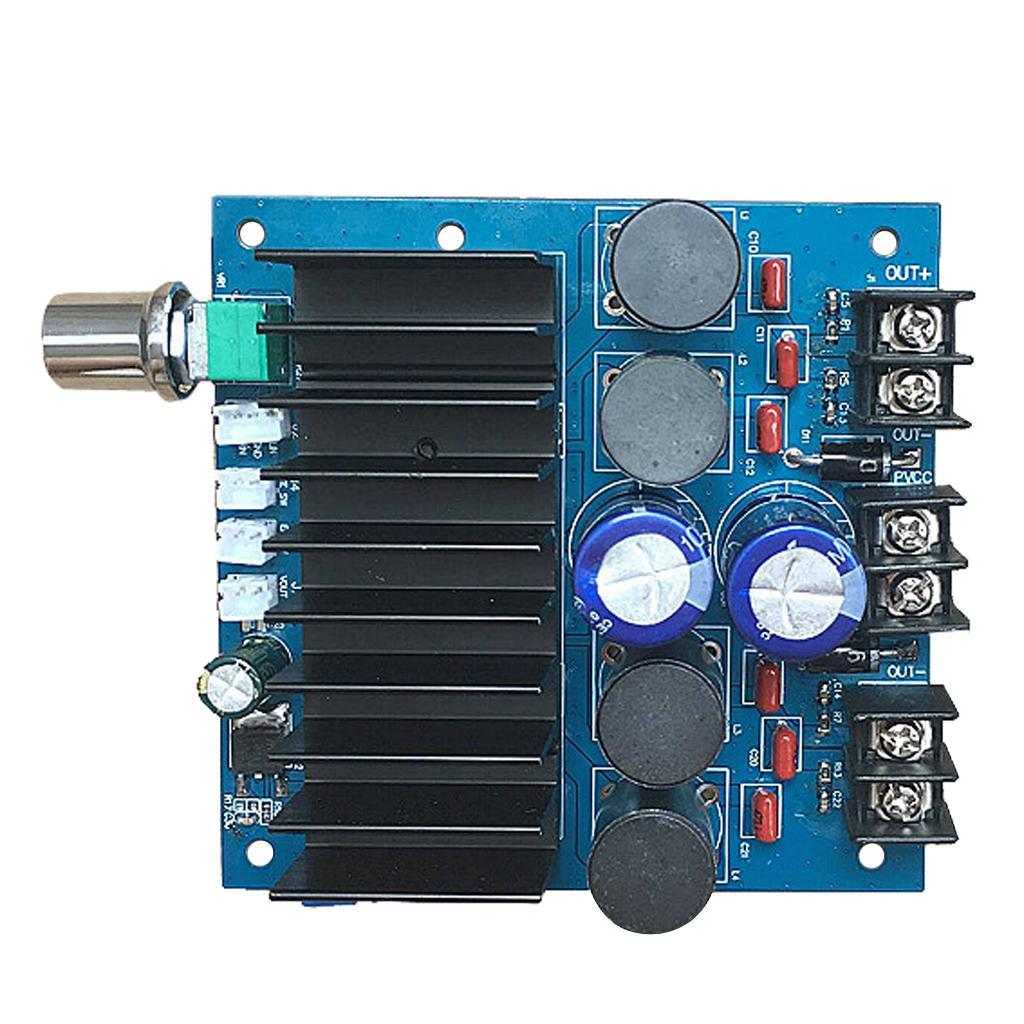

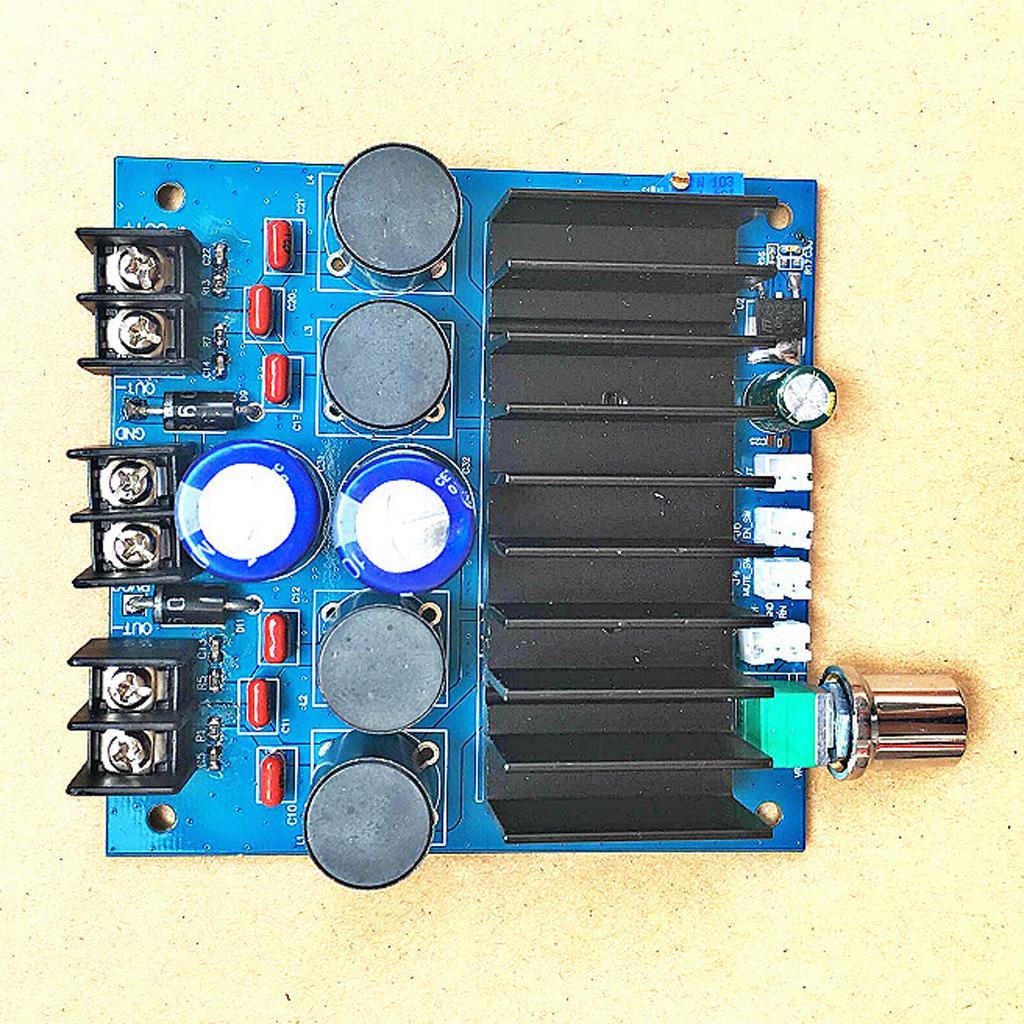

TDA7498 high power digital power amplifier board 100W+100W.
This board is designed with anti-reverse protection, and will not burn the components of the power amplifier board because of the negative and negative poles of the power supply.

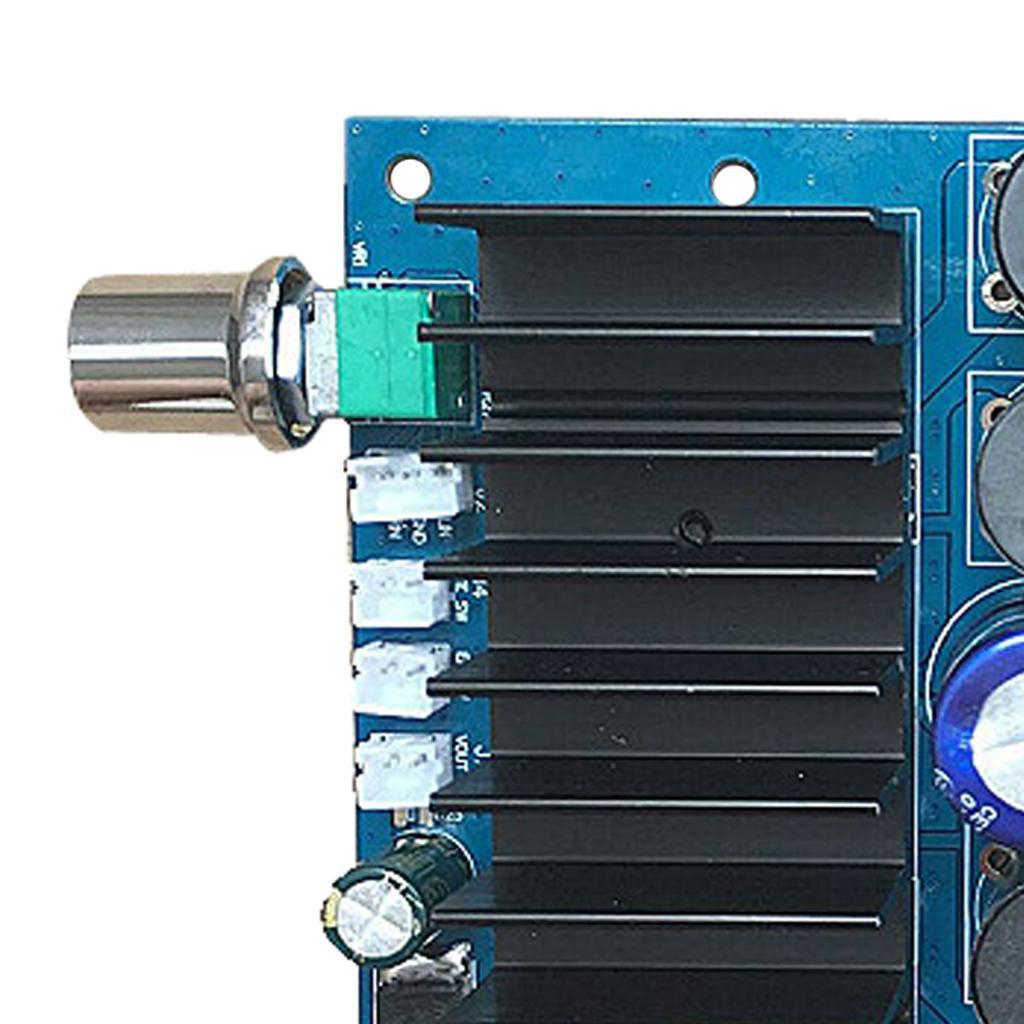

Added mute and standby control interface to enable DIY enthusiasts to install applications more reasonably.
The power input and the speaker output use a large current terminal block, which can use thicker wires to ensure high power requirements.
Ultra-large heat sink ensures that the high-power output can better dissipate the high temperature generated by the chip.
The TDA7498 is a dual bridge load (BTL) Class D audio amplifier chip that uses a single power supply and is small, efficient, and powerful.
The power supply voltage is 15V-36V (the voltage is recommended not to exceed 36V), the maximum output is 100Wx2, the heat is small, and the efficiency can reach more than 90%.
Specification:
Size: 90X92X38mm
Power output: 100Wx2 (36V 8 ohms) Parallel mode (200WX1 4 ohms)
Board input hole spacing is 2.0mm
The output hole spacing is 7.62mm
Package Includes:
1x Audio Amplifier Board
