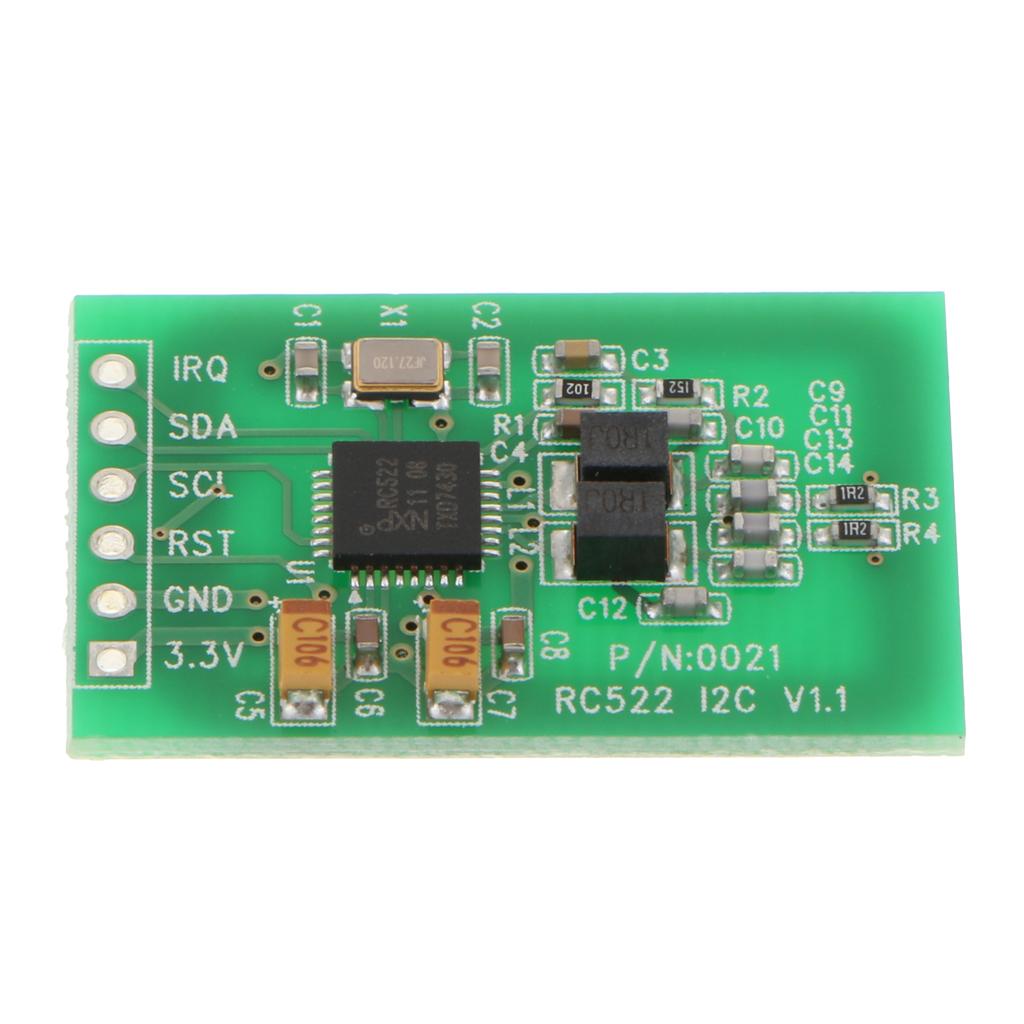

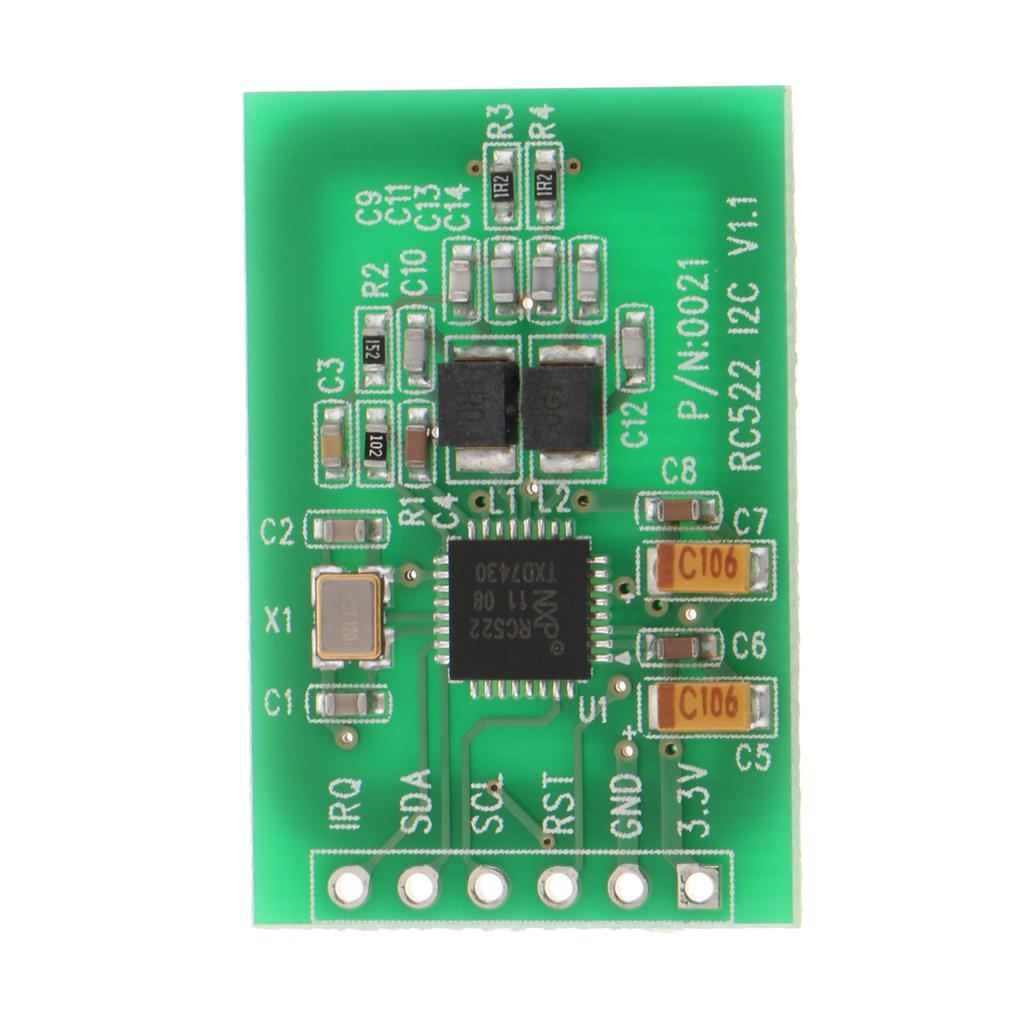

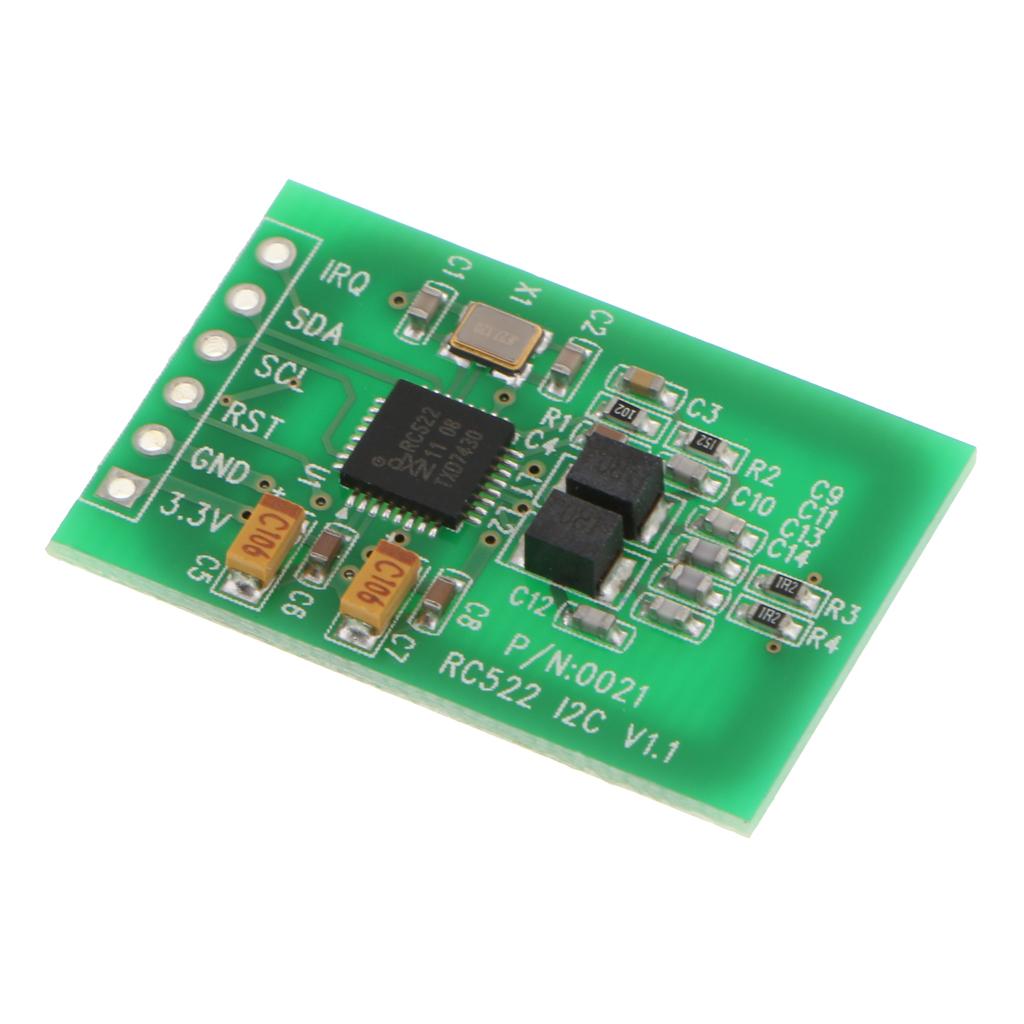

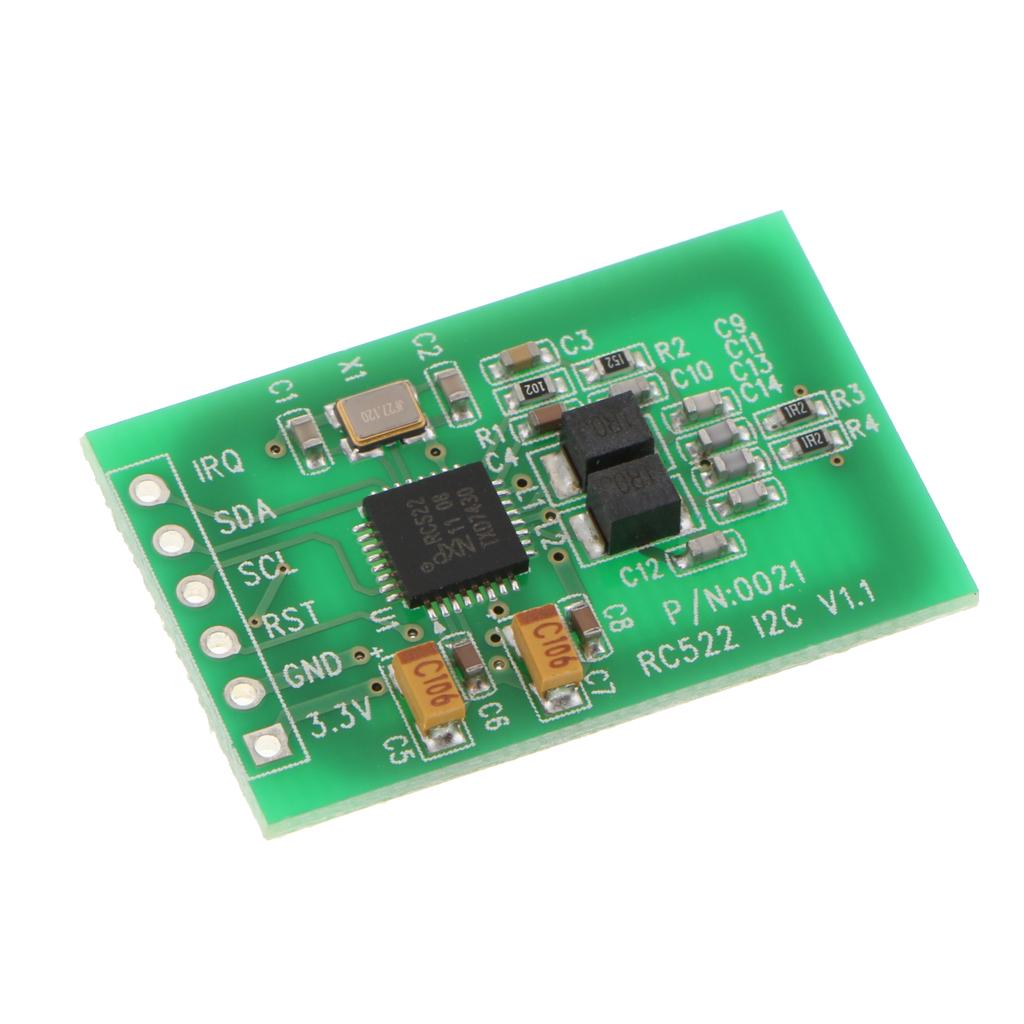

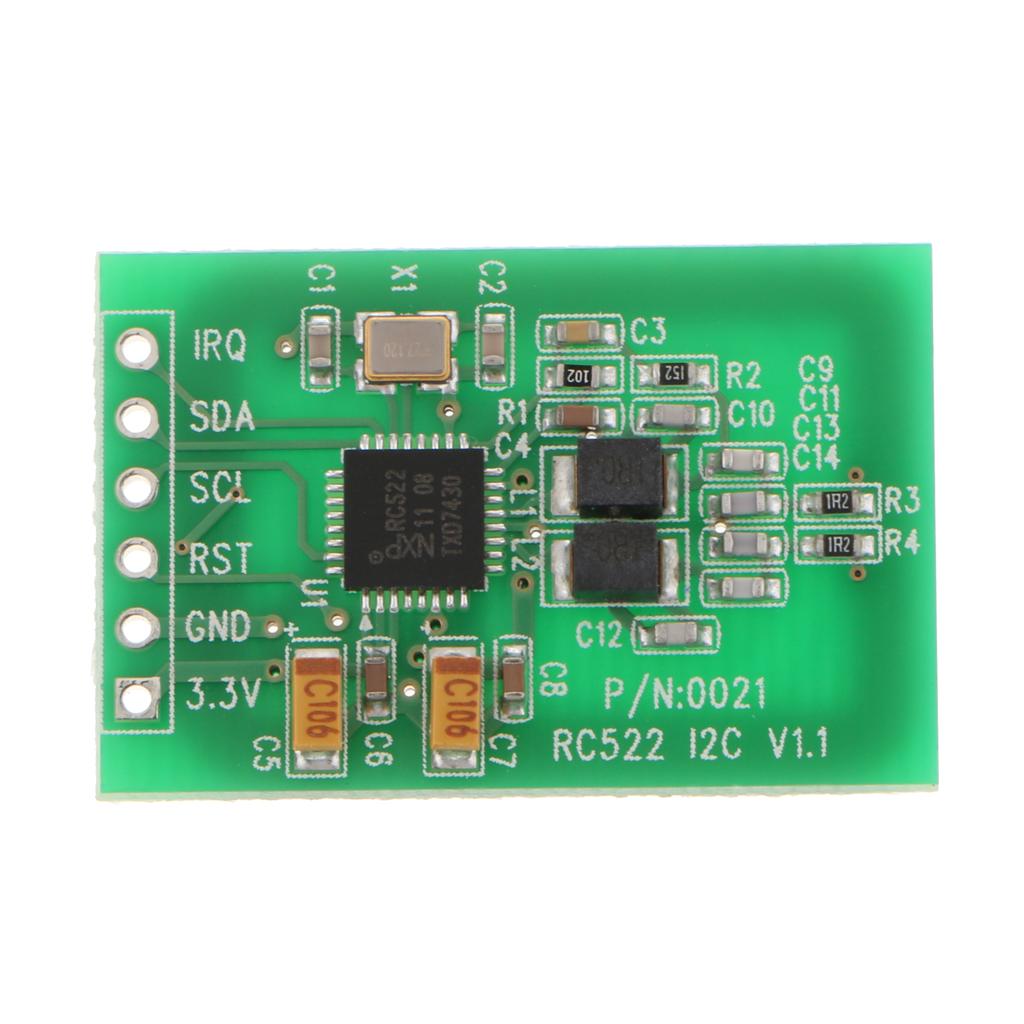

Max SPI RC522 RFID Module Card Reader Writer Sensor Module for I2C Interface IIC
Description:
RC522 RFID card reader module SPI interface IC card RF induction 13.56MHz small size
The
RC522 module is a card reader module based on NXP's NXP RF base station
chip. The module works at 13.56MHz and supports Mifare1 S50, Mifare1
S70, Light, UltraLight.
Installation is more convenient: direct serial read, all pins lead to electronic building blocks interface
Higher Sensitivity: Advanced RF Receiving Line, Embedded Microcontroller Design, Efficient Decoding Algorithm
More compact size: the full version of the design optimization, rational wiring, practical superior performance
Specification:
Material: plastic + electronic components
Product detailed size: 35x25mm/1.38x0.98inch
Working frequency: 13.56MHz
Working voltage: 2.5~3.6V
Working current: Using the program routine to find the card current 20mA (3.3V power supply)
Card reading distance: 0~50mm (M1)
Support Type :MIFIRE1 S50 S70 UltraLight Pro
Working temperature: -25~+85 degrees
Package Includes:
1 Piece RC522 RFID card reader module
