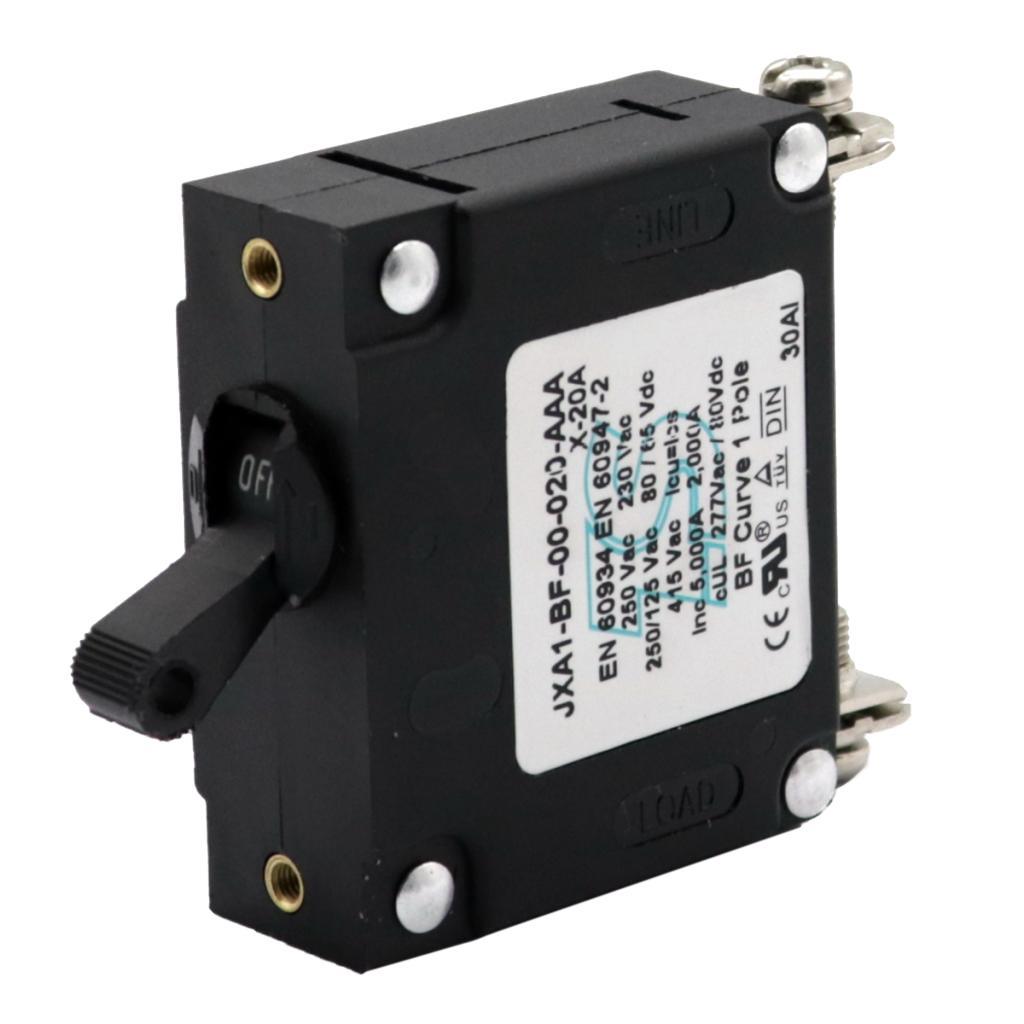

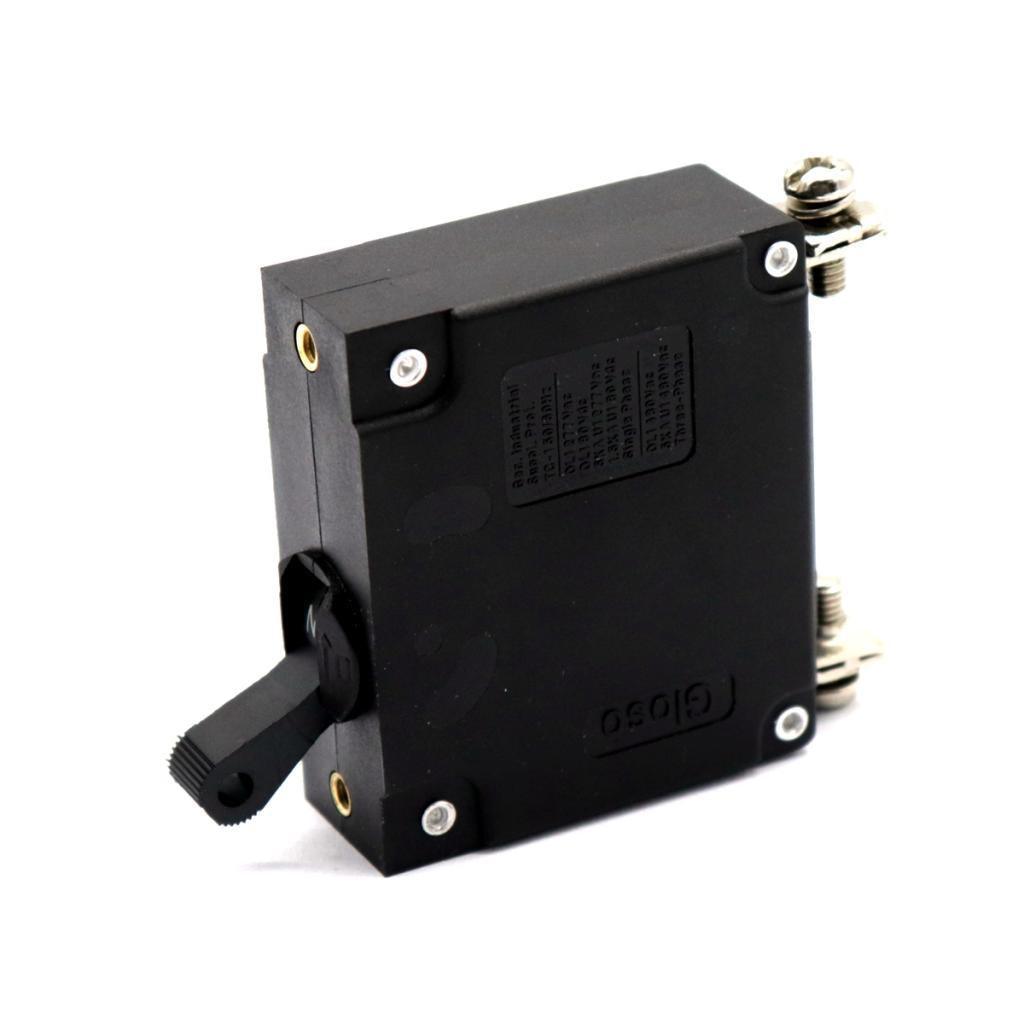

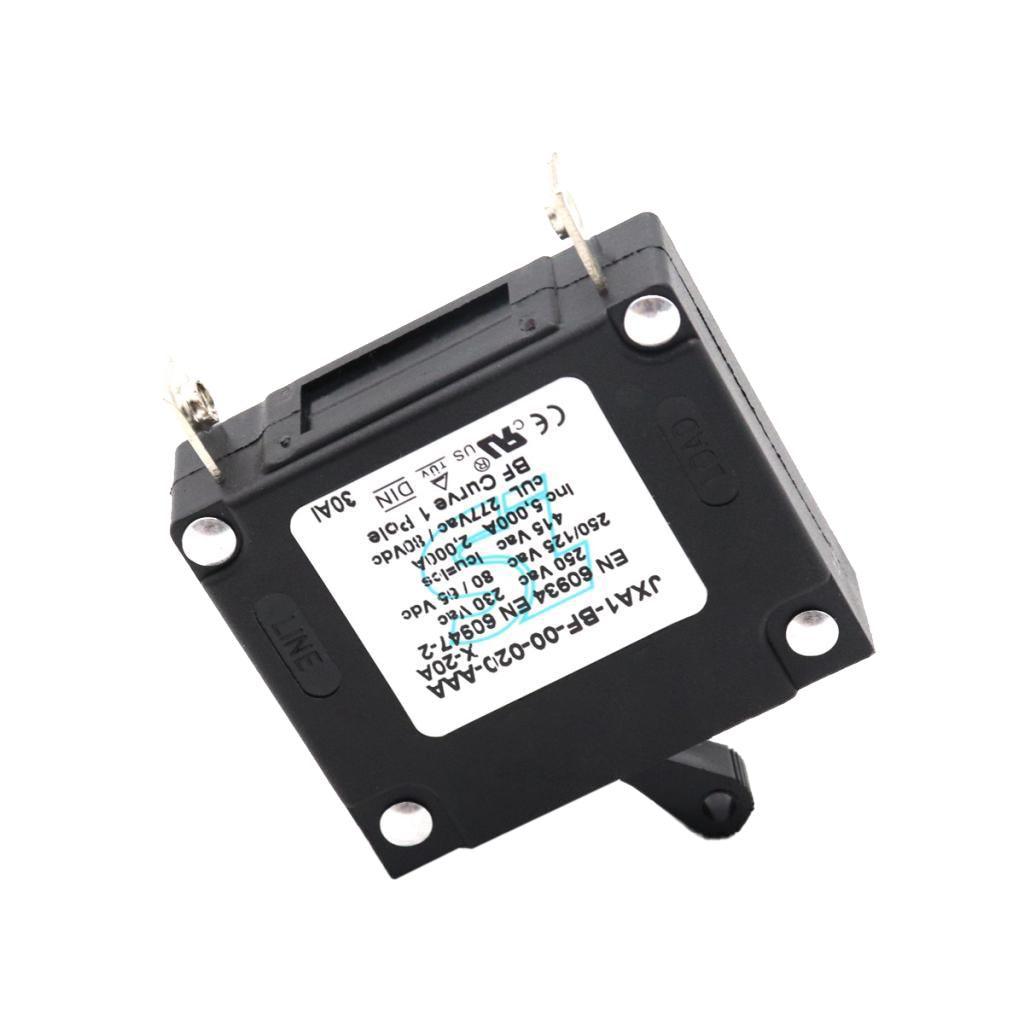

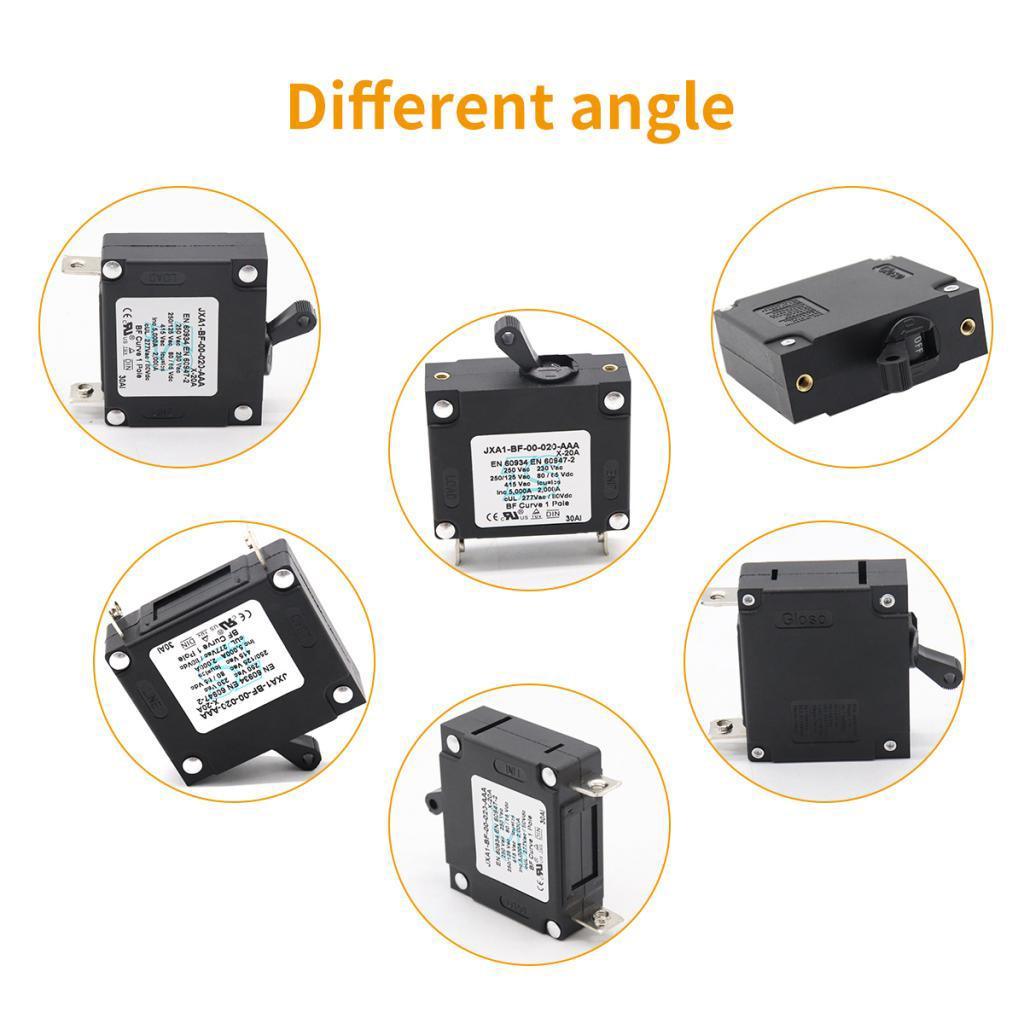

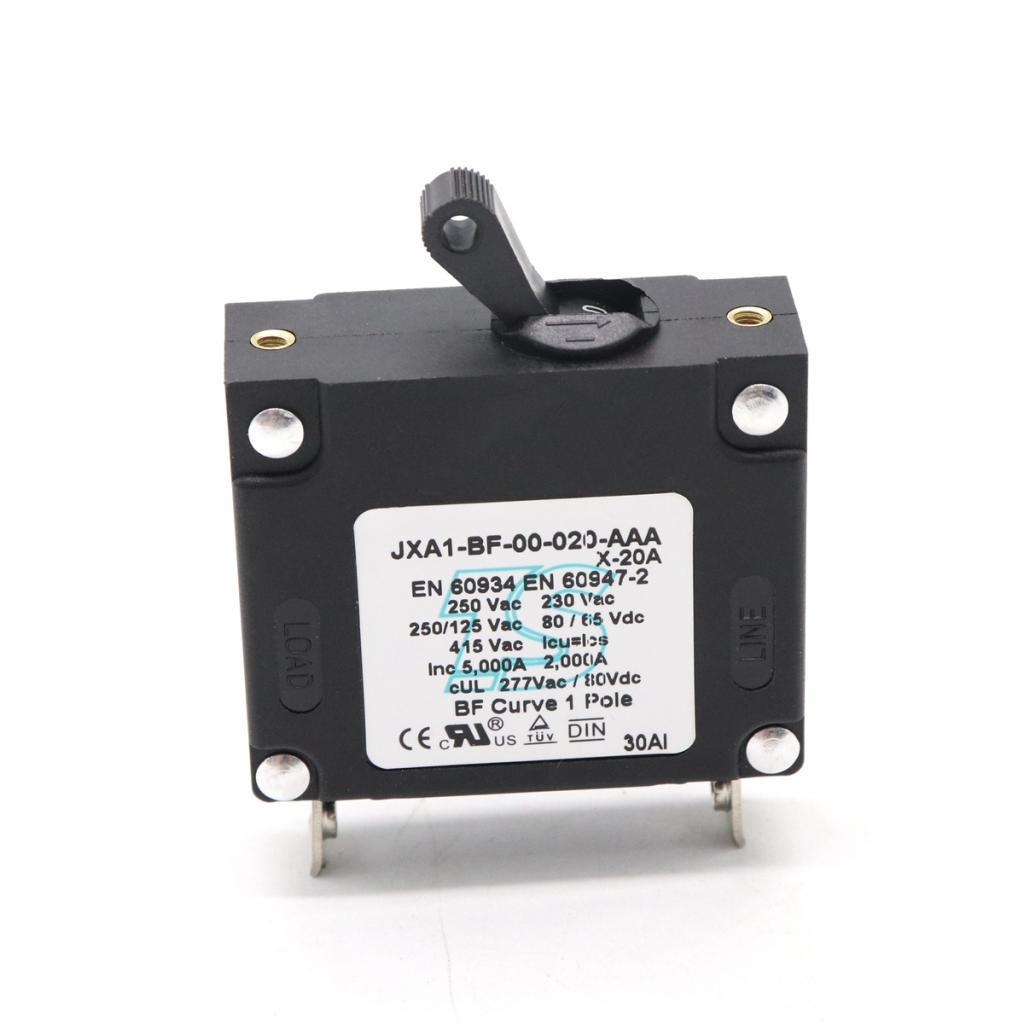

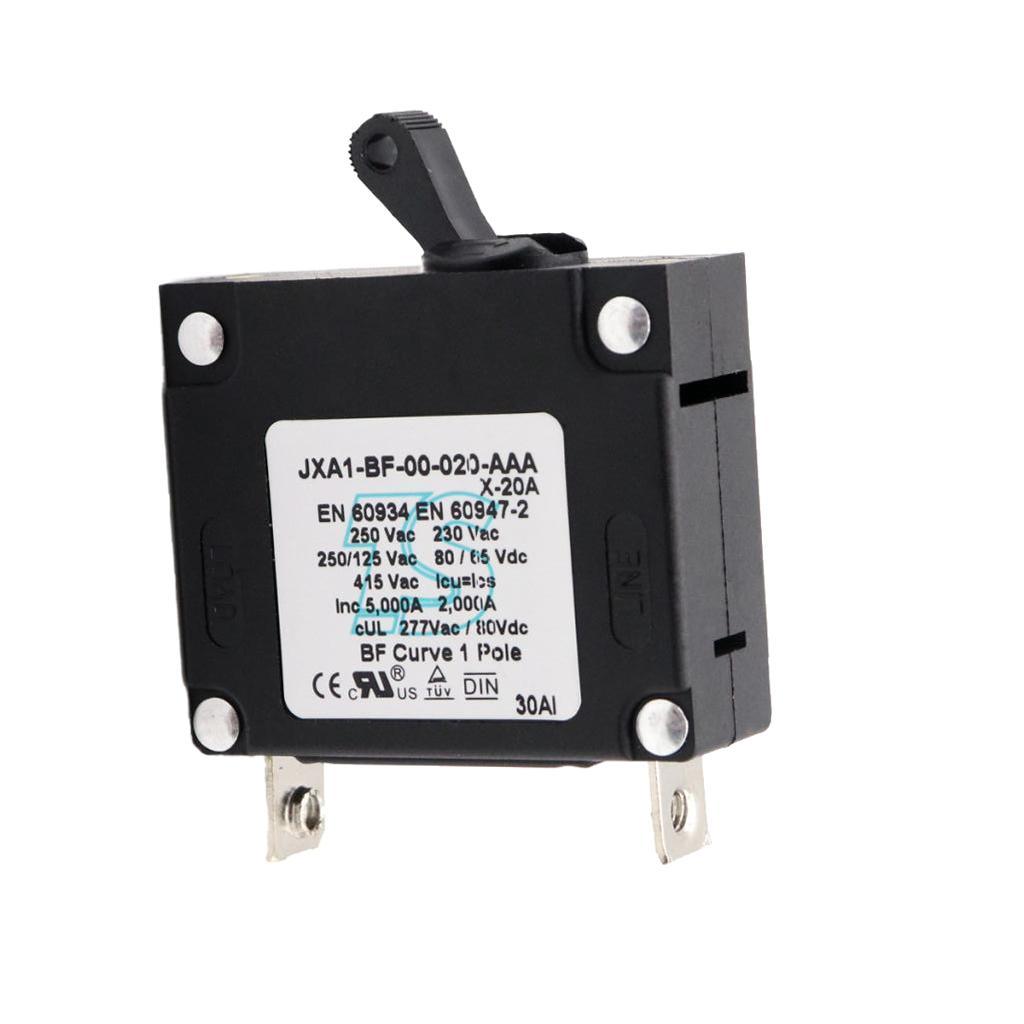

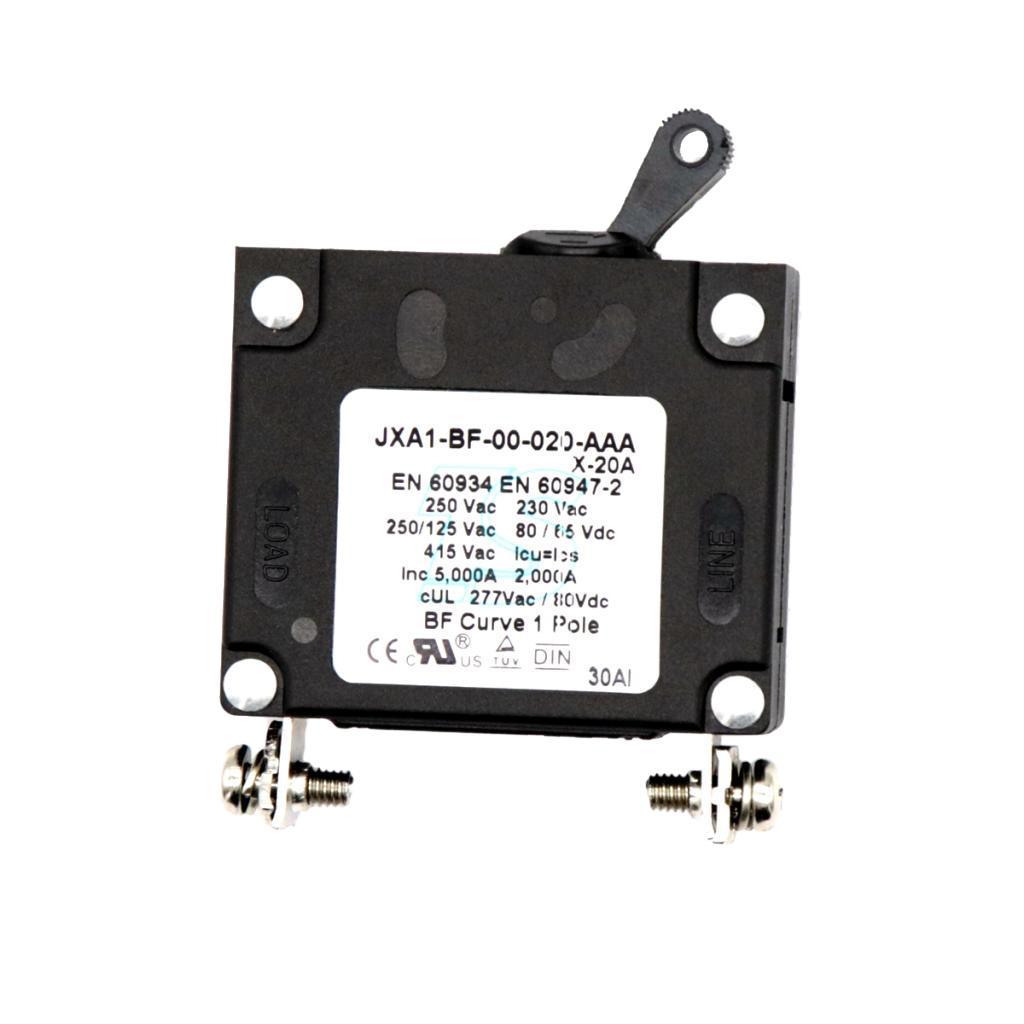

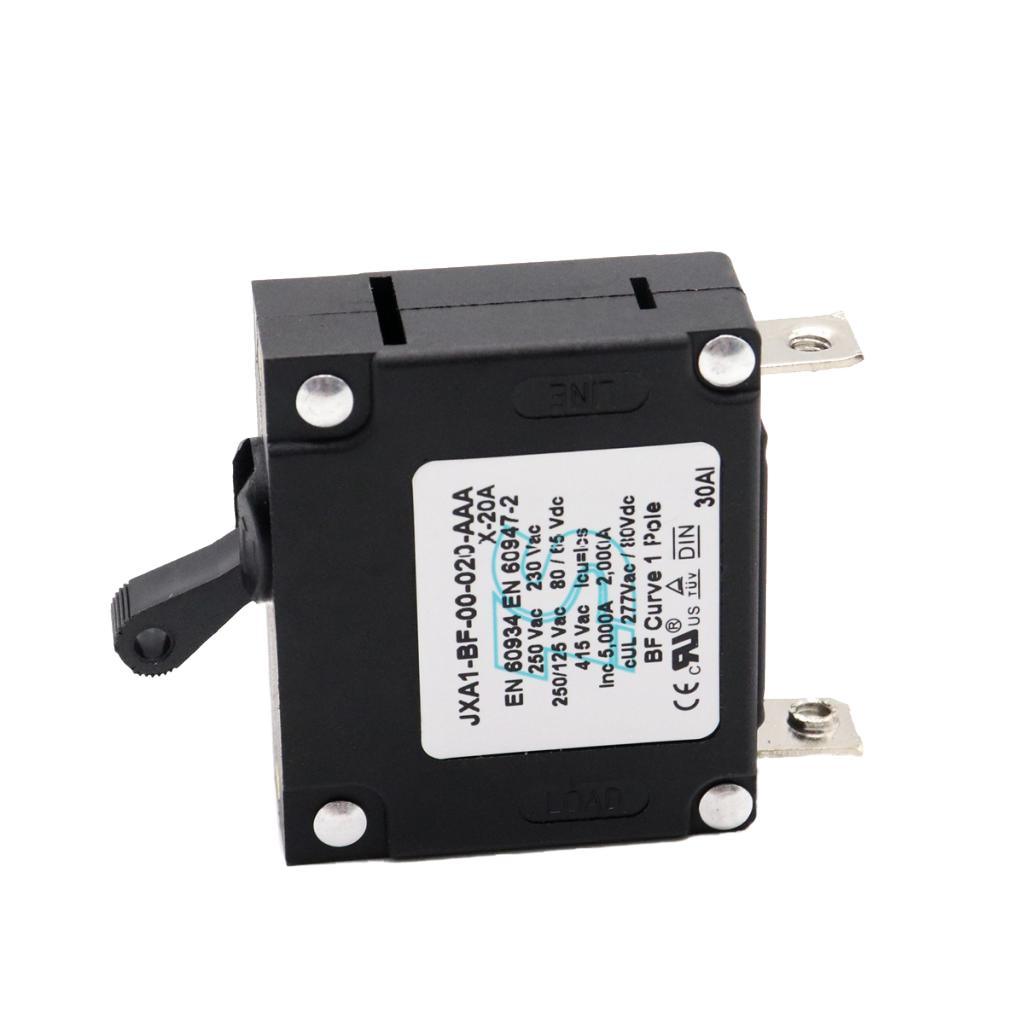

Maxbell Maxbell Single Pole Hydraulic Magnetic Circuit Breaker 15A for Car Boat 250V 80Vdc
Description:
Hydraulic Magnetic Circuit Breaker 15A
Voltage: 125/250/277/415/480Vac; 65/80 Vdc
Operating temperature: -40℃ (-40℉) to 85℃ (185℉)
Combines switching and circuit protection into a single device
Compatible with AC and DC systems for the stated amperag
Specification:
Mounting Rear Mounted
Interrupt Capacity 5,000A (PC1)
3,000A @ 250 Vac (SC)
1,000A @ 415 Vac (SC)
2,000A @ 80 Vdc (SC)
RoHS Y
Regulatory Sepcification cUL1077; EN60934; EN60947; DIN; CE
Termination 0.250"QC
Technical Specification
Shock : 50G, 11ms or 100G, 6ms
Vibration : 10 to 500 Hz. 10G(1.6 mm to 50 Hz)
Life : 10,000 Switching opearation with 6,000 at rate current
Approximate weight: 1P-85g
Dielectric Streight: 2,500 Vac 50 / 60 Hz
Rated Current: 1-100A according requirement
Torgue Allowed for inserts screw : M3 / 6-32 (0.6'0.8 Nm)

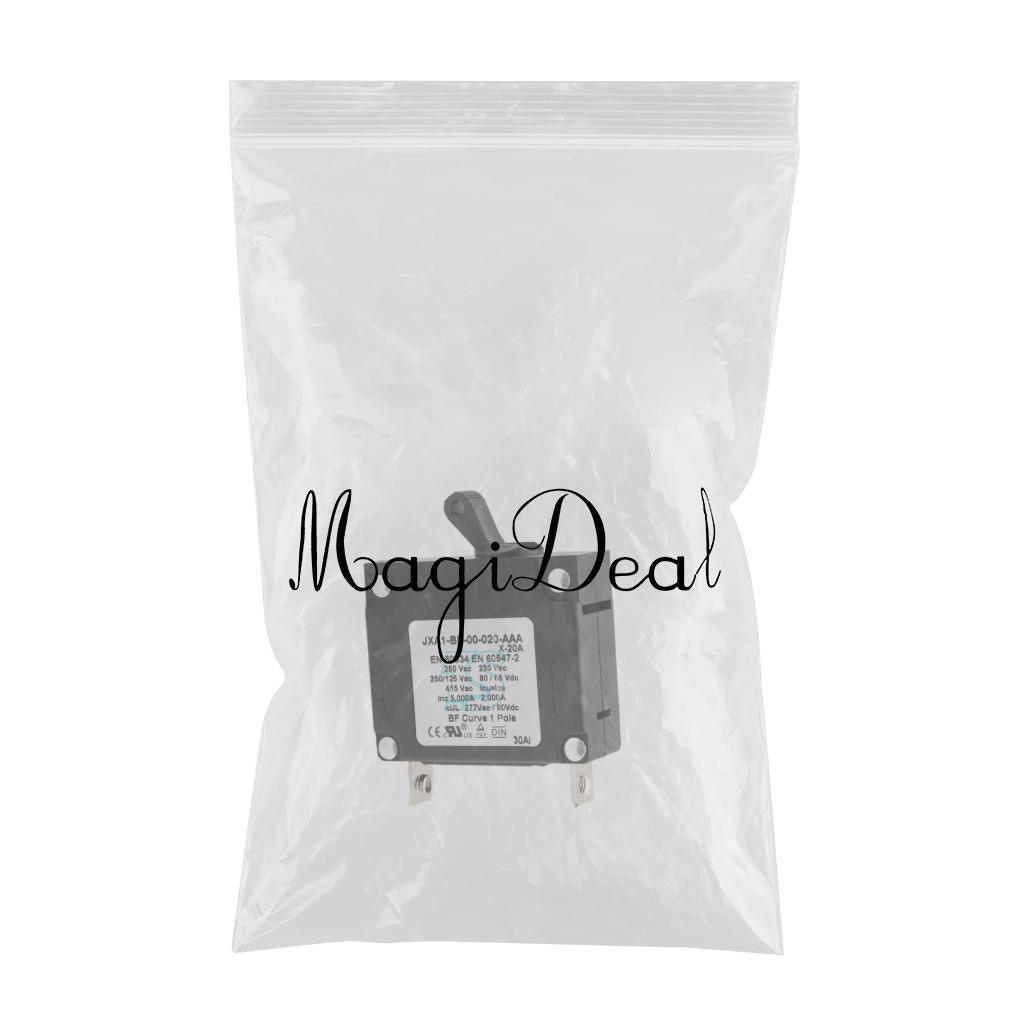

Package Includes:
1 Piece Car Circuit Breaker
