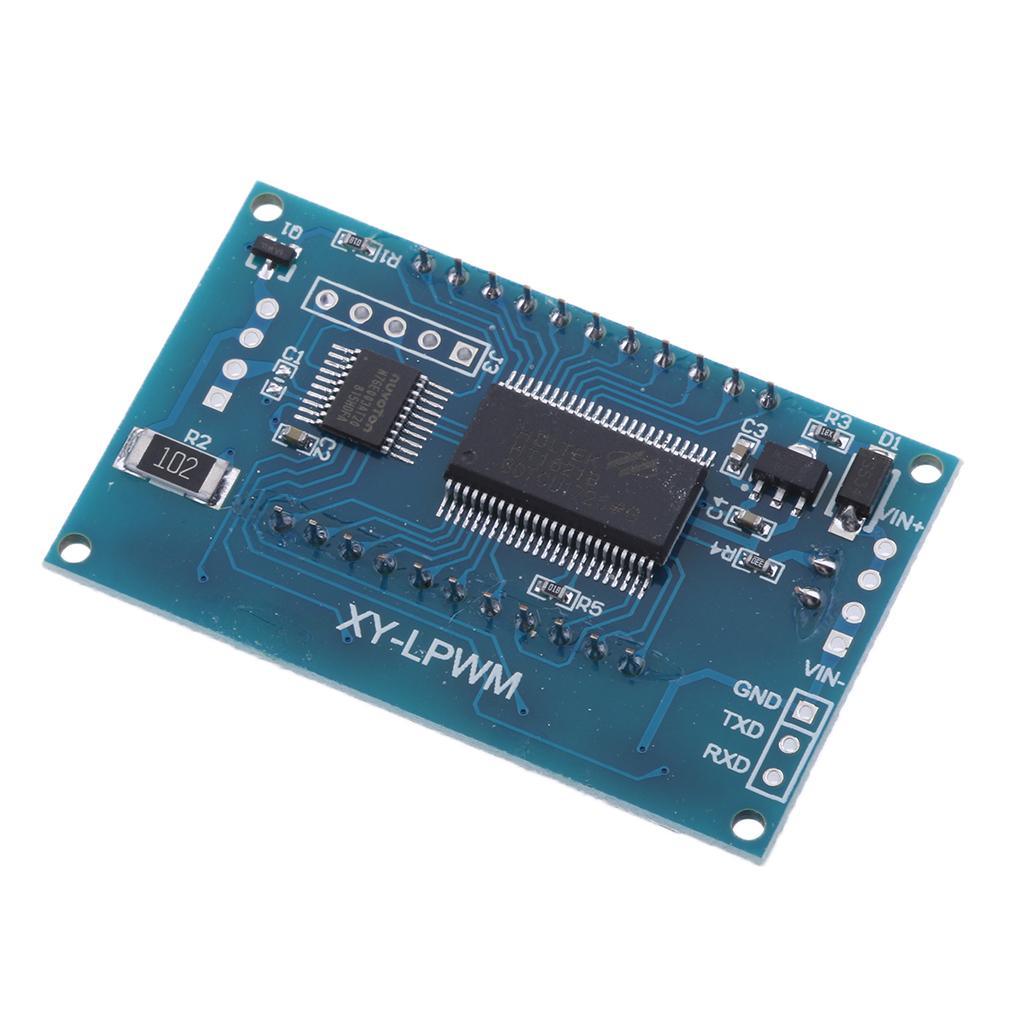

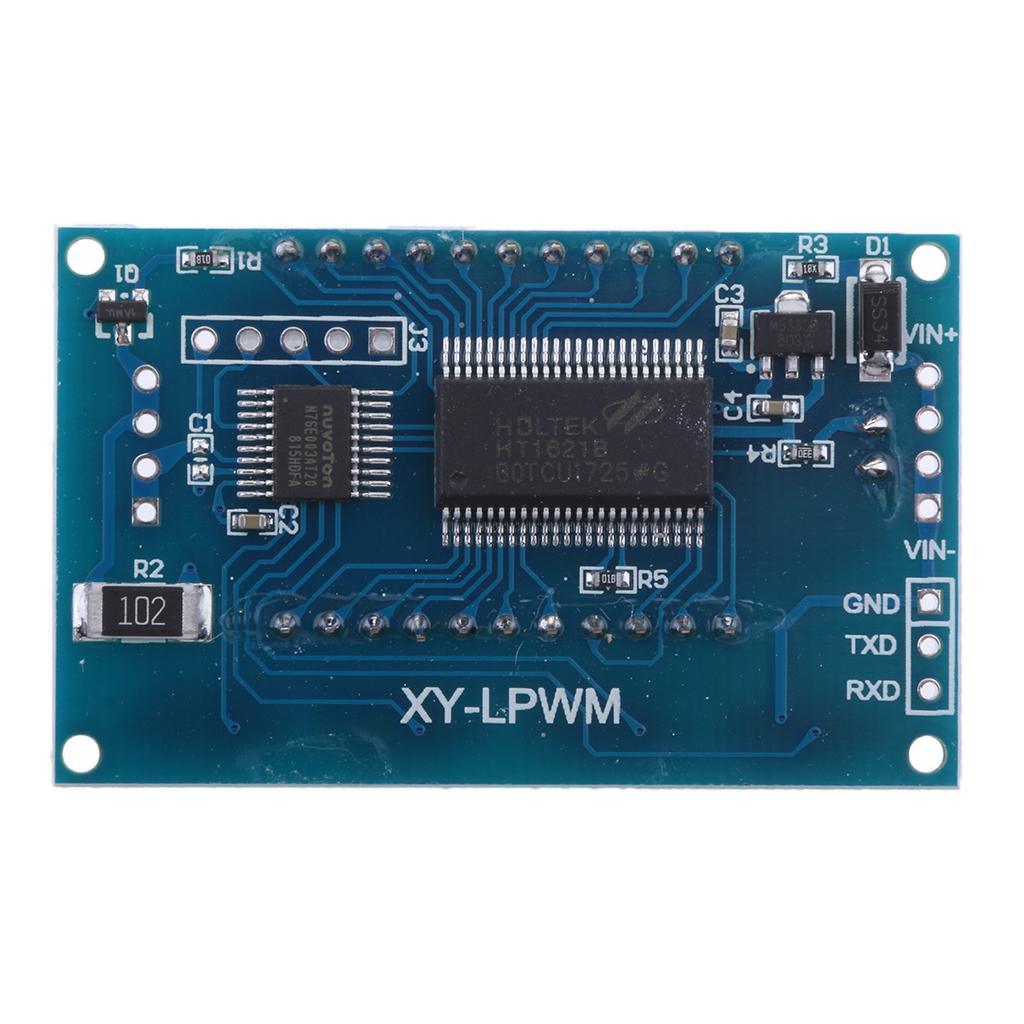

Maxbell Signal Generator PWM Pulse Frequency Meter LCD Display Module Board
Description:
PWM signal generator operating voltage range is DC 3.3-30V, adjustable pwm frequency range is 1Hz-150kHz, adjustable duty ratio range is 0%-100%.
Application: it can be used as a square wave signal generator, generate square wave signal for experimental development; generate square wave signal to control the motor driver; generate adjustable pulse for MCU; generate adjustable pulse to control the relevant circuit (PWM dimming speed application etc).
High Frequency Resolution: frequency in range 1Hz~999Hz, display resolution is 1Hz; range 1.00kHz~9.99kHz, display resolution is 0.01kHz; range 10.0kHz~99.9kHz, display resolution is 0.1kHz; range 1kHz~150kHz, display resolution is 1kHz.
TTL Level Communication: the frequency meter is designed with single-chip TTL level communication, communication standard is 9600 bps.

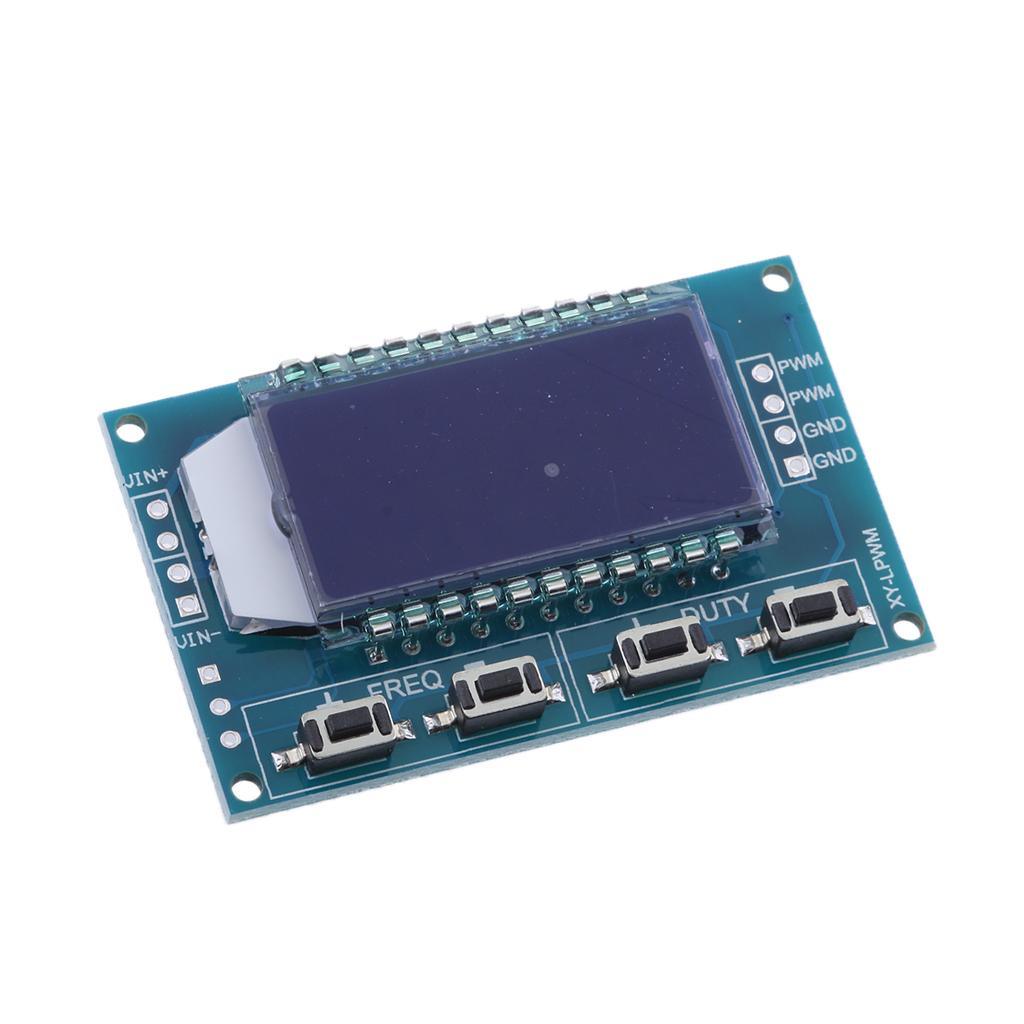

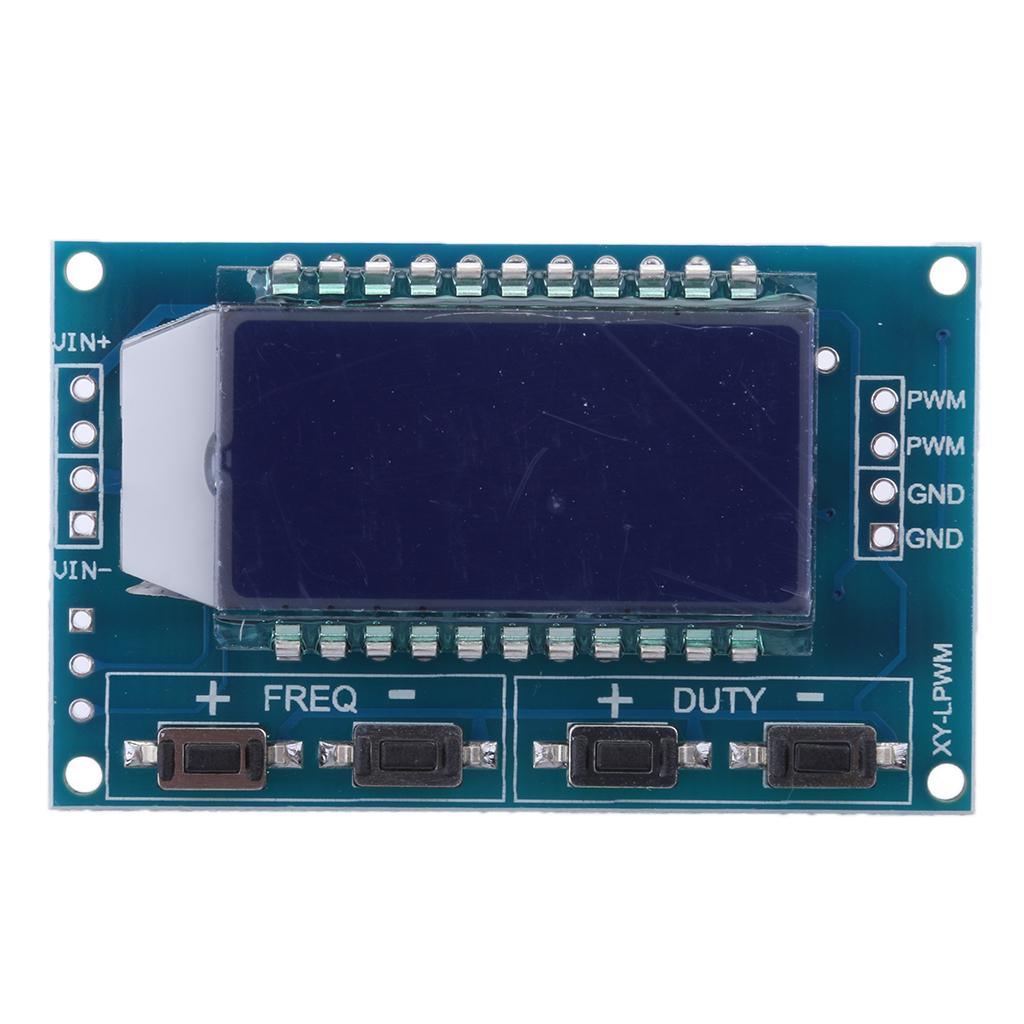

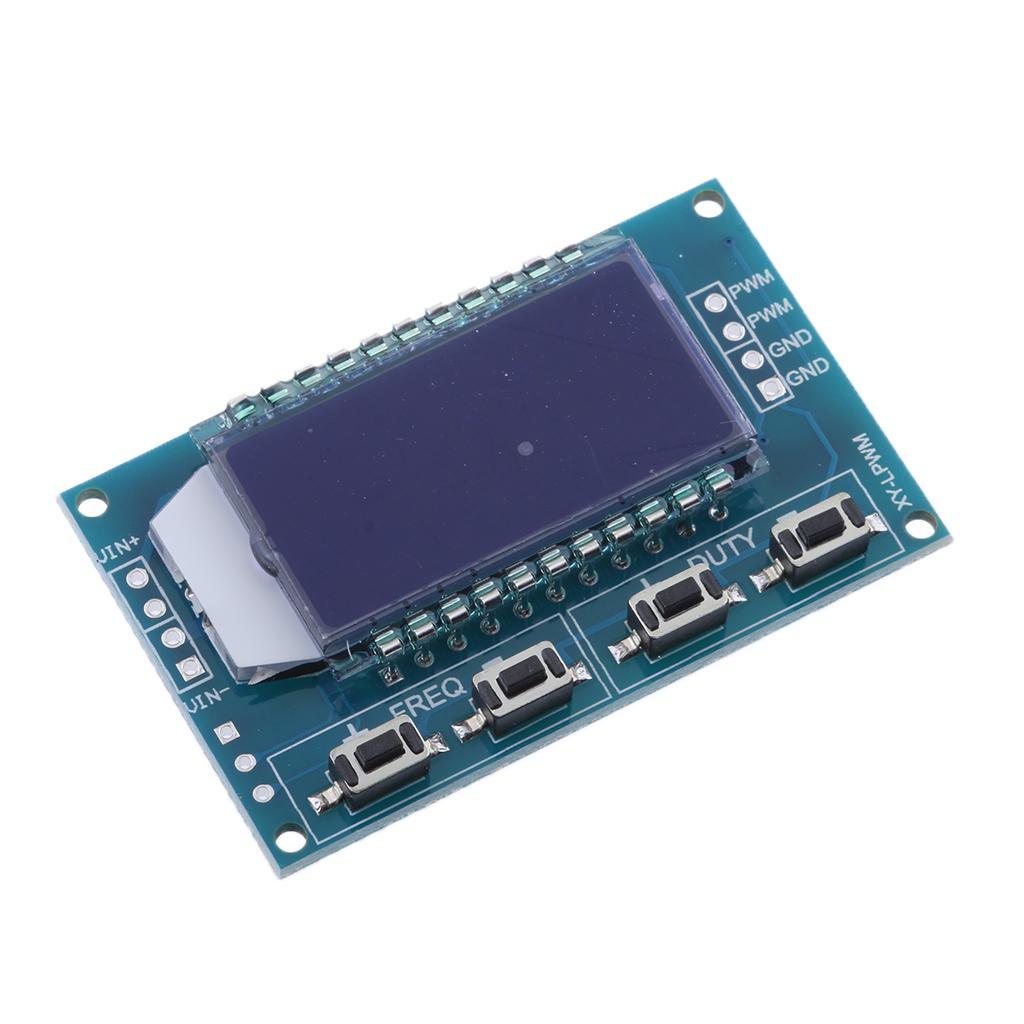

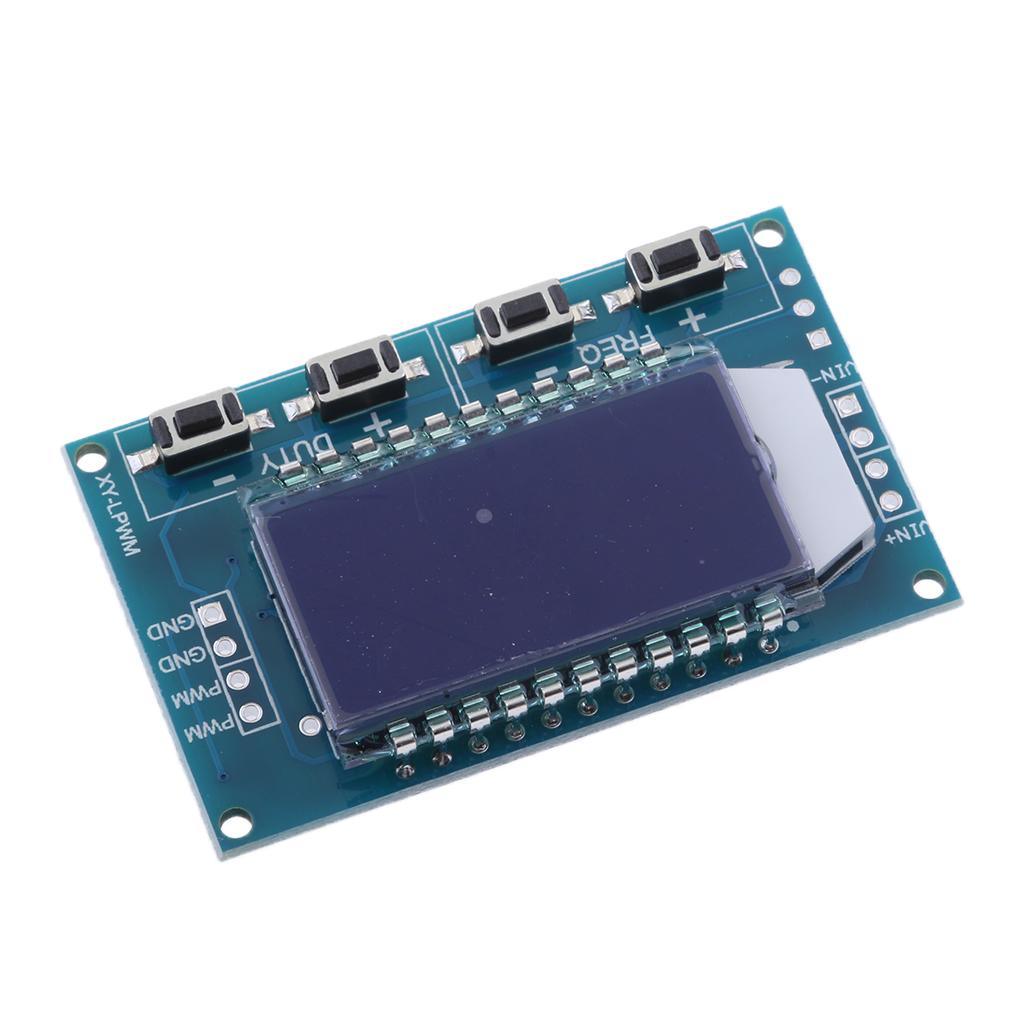

LCD Display: the blue LCD clearly displays frequency and duty ratio, PWM output can set frequency and duty ratio independently.
Specification:
Material: Plastic + Alloy
Size: 53x32x10mm/2.08x1.25x0.39inch
Package Includes:
1 Piece Signal Generator
Note:
Please allow slightly difference due to manual measurement.
Color may be slightly different since different monitor.
