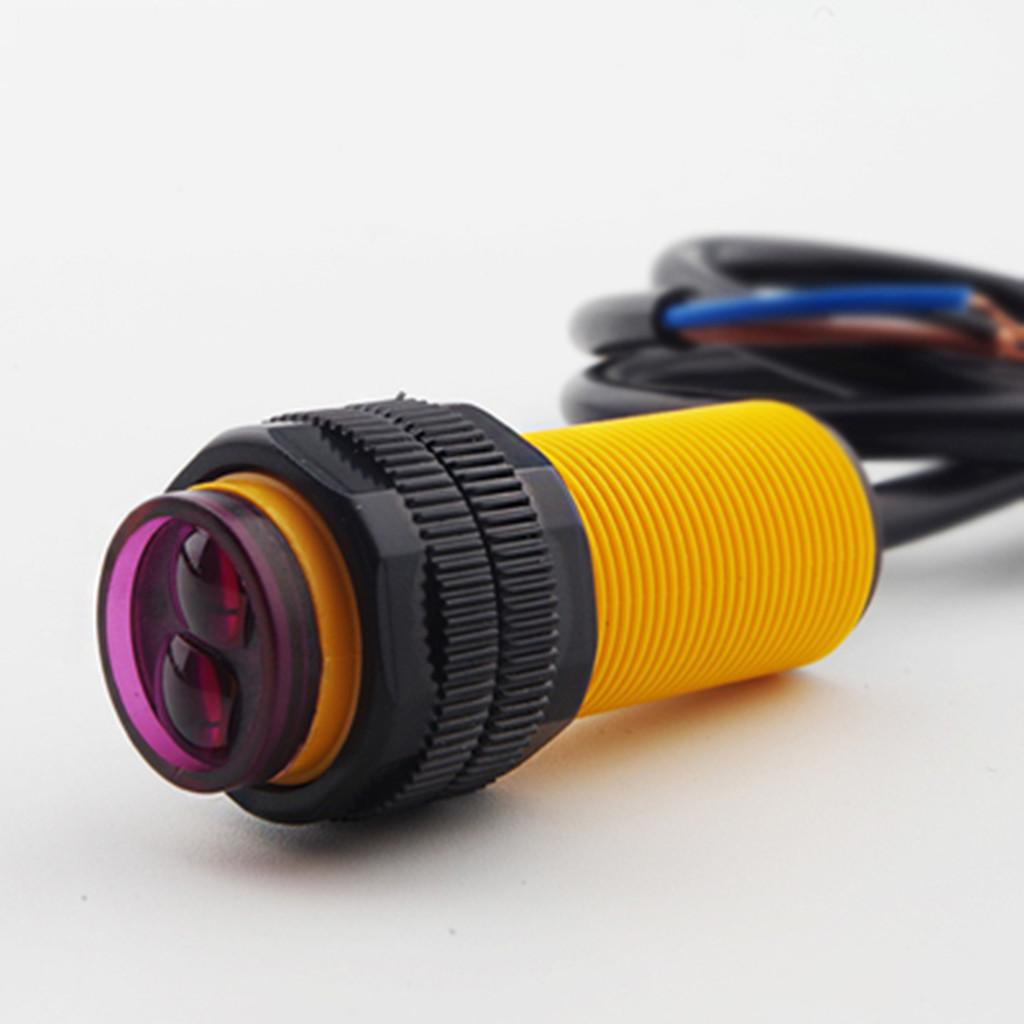

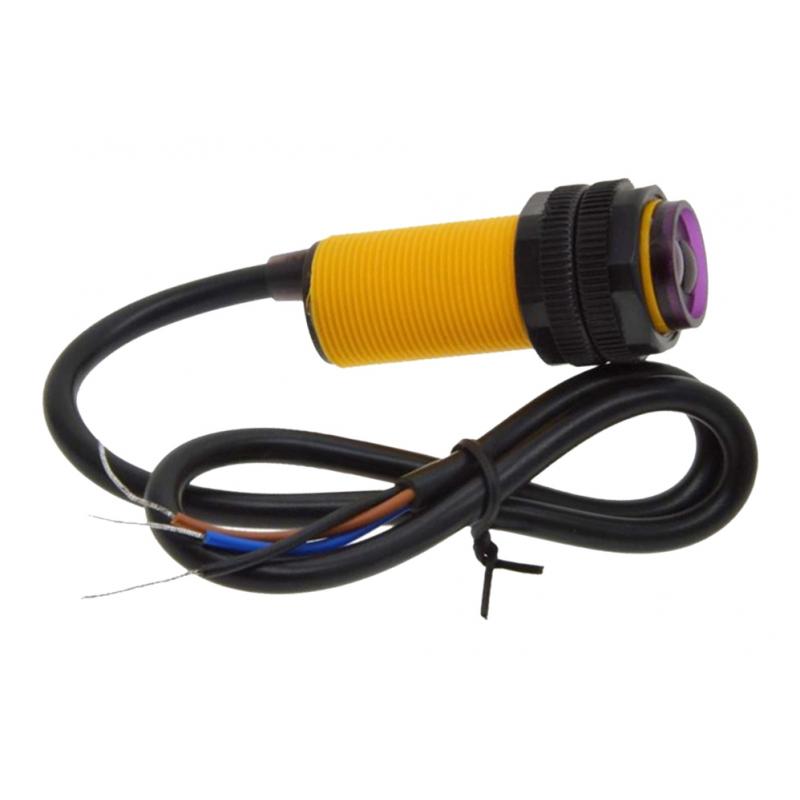

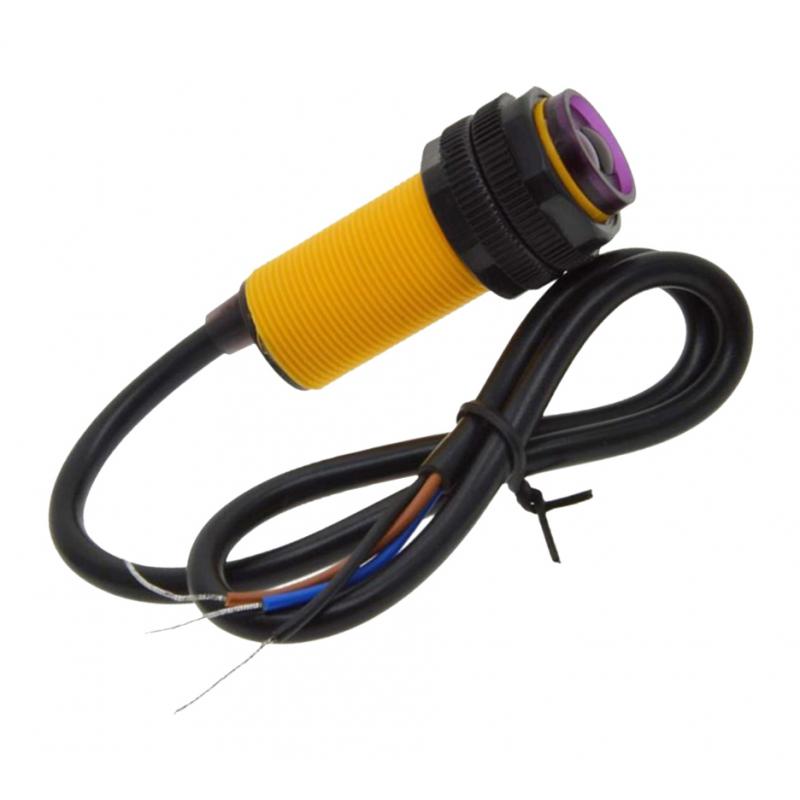

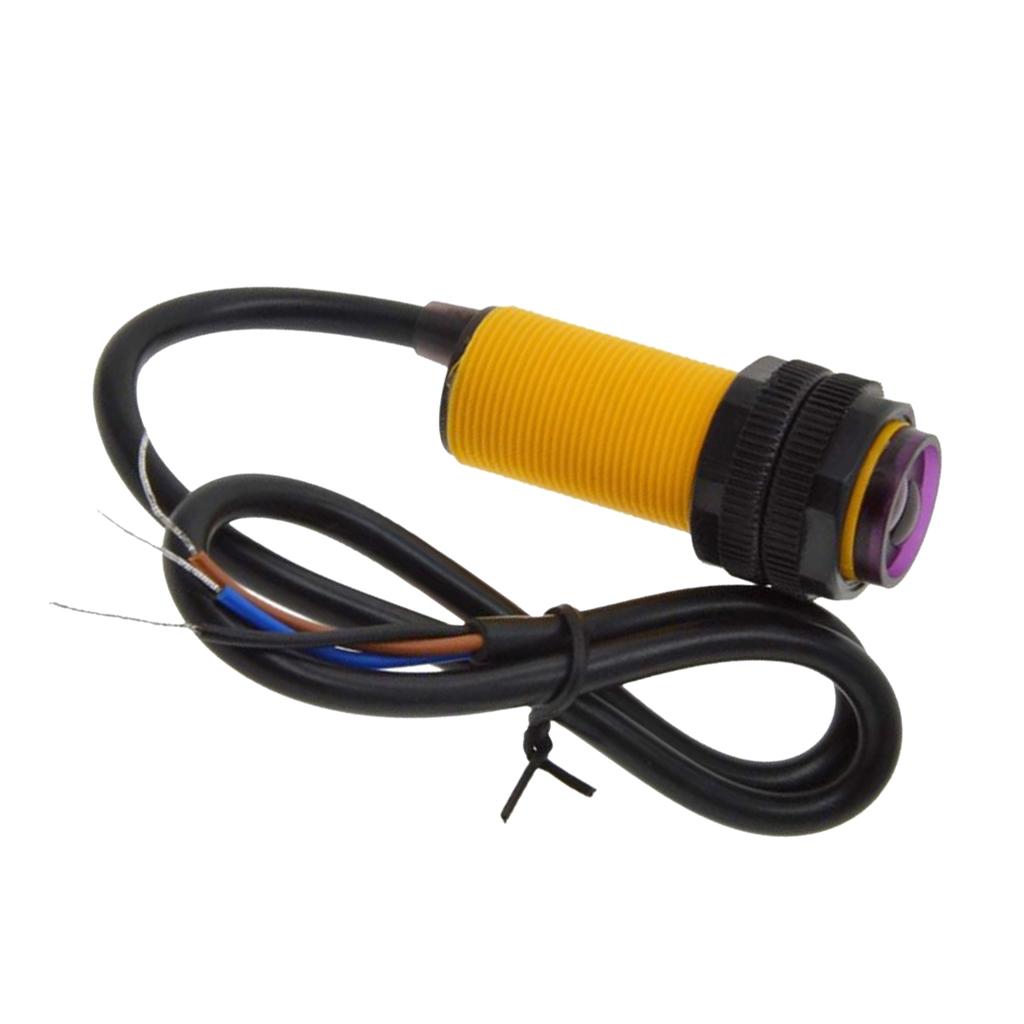

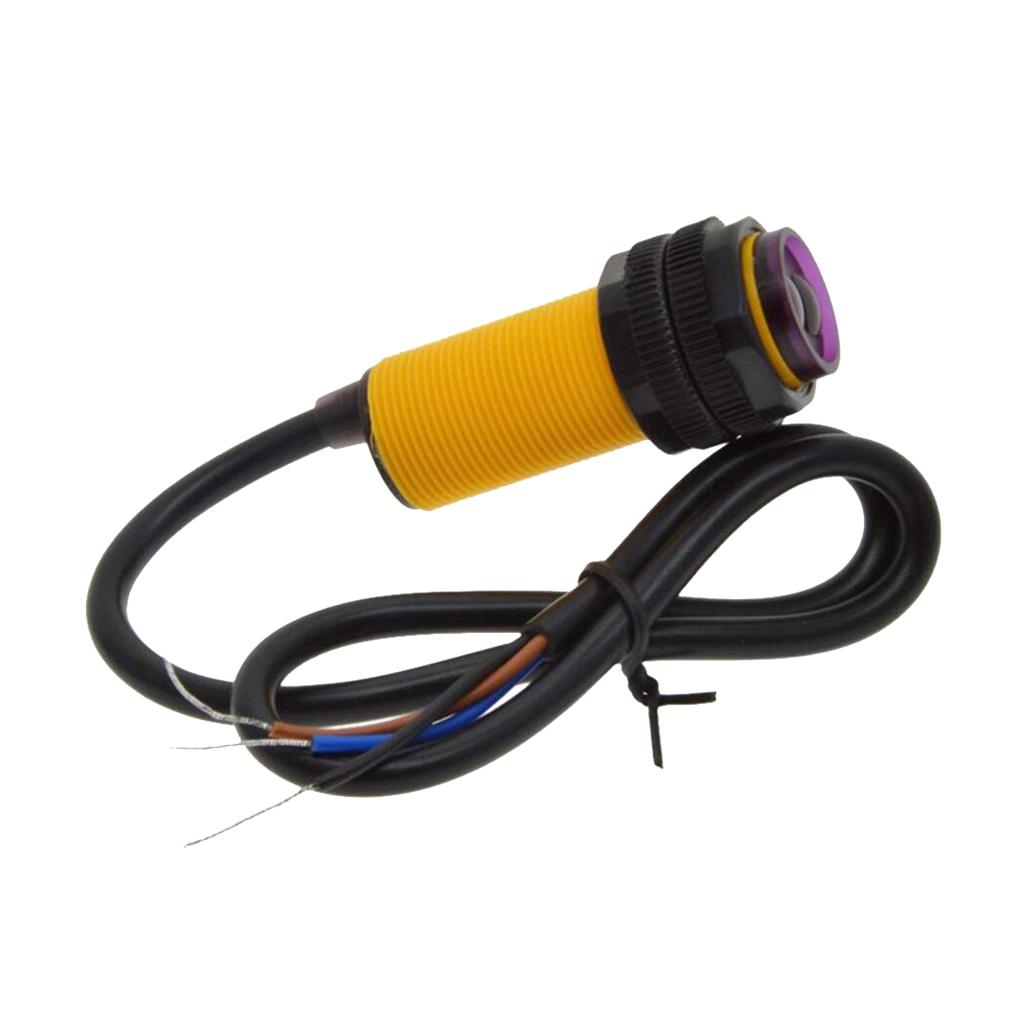

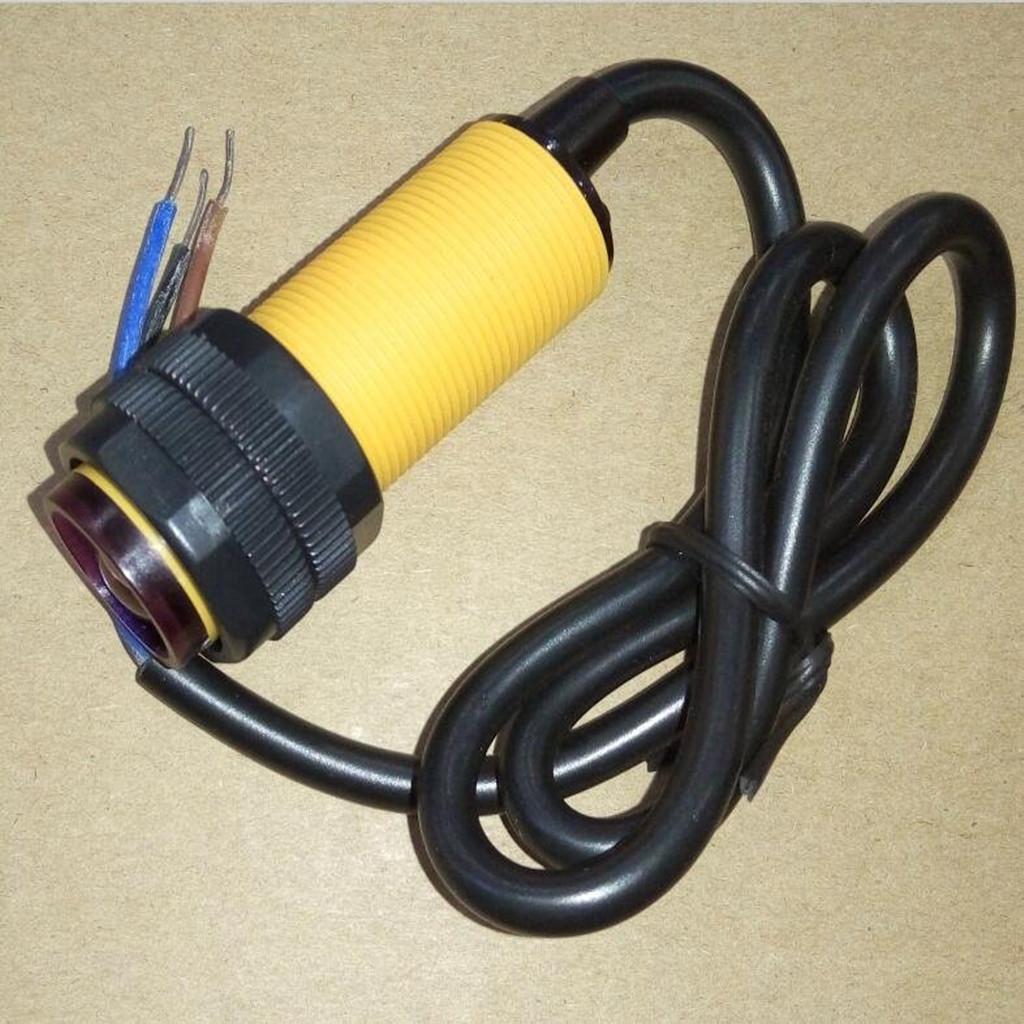

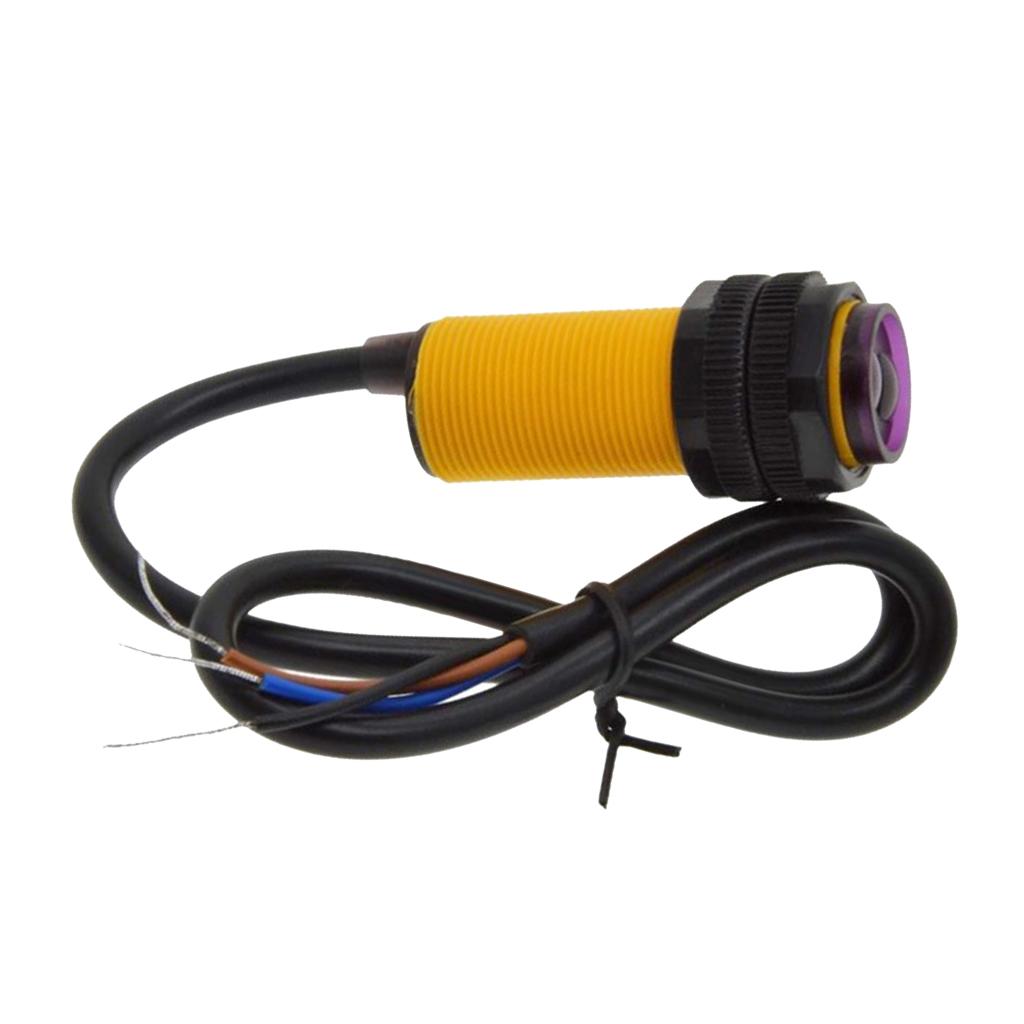

Max Sensor Photocell Reflection IR Infrared E18-D80NK Obstacle Avoidance

Description:

This is a photoelectric sensor which integrates transmitting and receiving. The detection distance can be adjusted according to the requirements. The sensor has a long detection distance and can be accepted.

Light interference is small, the price is cheap, easy to assemble, easy to use and other characteristics, can be widely used in robot obstacle avoidance, assembly line parts and many other automation products.

Specification:

U:5VDC

I:100mA

Sn:3-80cm

Diameter: 17mm

Sensor Length: 45mm

Lead length: 45cm

Model: E18-D80NK

Application cases:

1. Automatic counting equipment for goods in production line

2. Multi-function reminder

3. Labyrinth Walking Robot

4. Kitchen Automation System

5. Security and anti-theft system, etc.

Photoelectric sensor (photoelectric switch) NPN normally open

Technical parameters of photoelectric switch E18:

1. Output Current DC/SCR/Relay Control Output: 100mA/5V Power Supply

2. Consumption current DC < 25 mA

3. Response time < 2ms

4. Direction angle:<15 degrees, effective distance 3-80CM adjustable

5. Detecting objects: transparent or opaque objects

6. Working Environment Temperature: -25 ~55

7. Standard test object: Incandescent lamp below 10000LX of sunlight and below 3000LX of sunlight

8. Shell Material: Plastics

Package Includes:

1 x E18-D80NK Infrared Obstacle Avoidance Sensor
