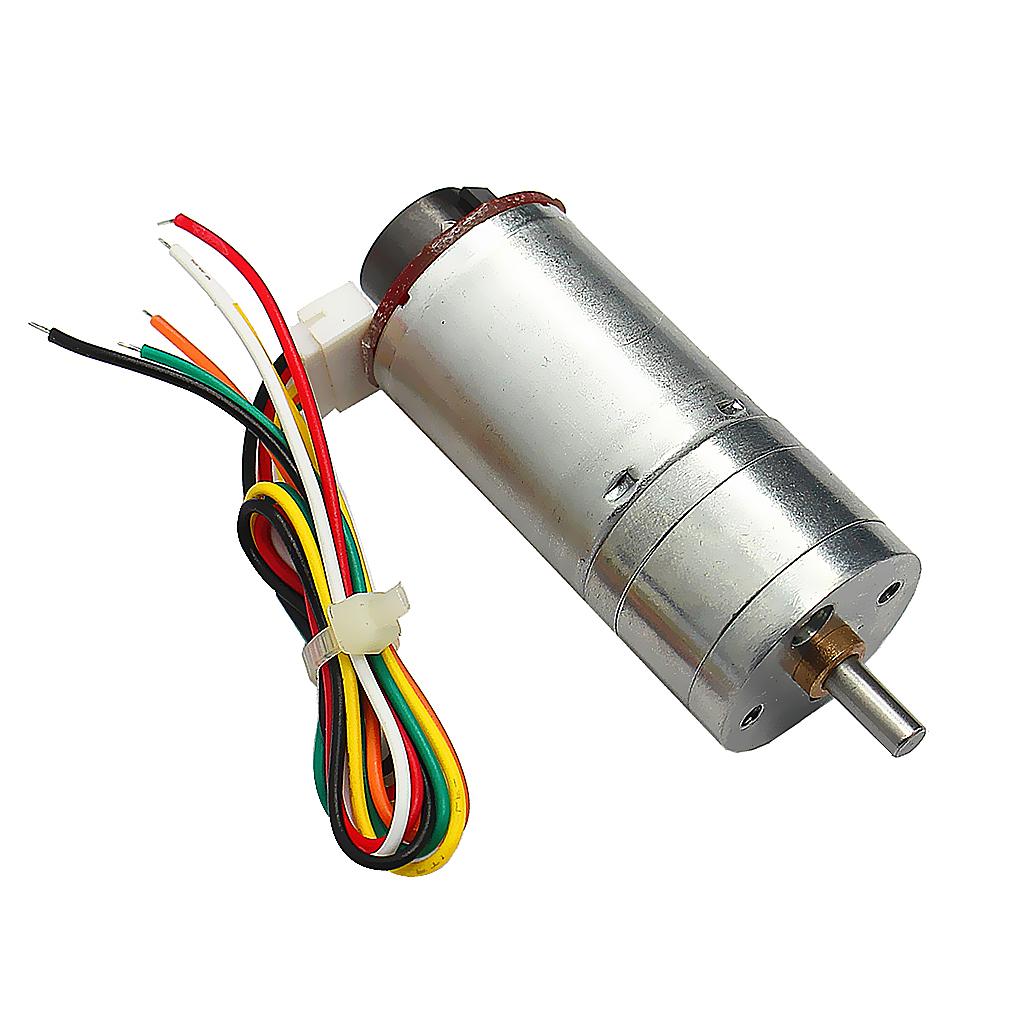

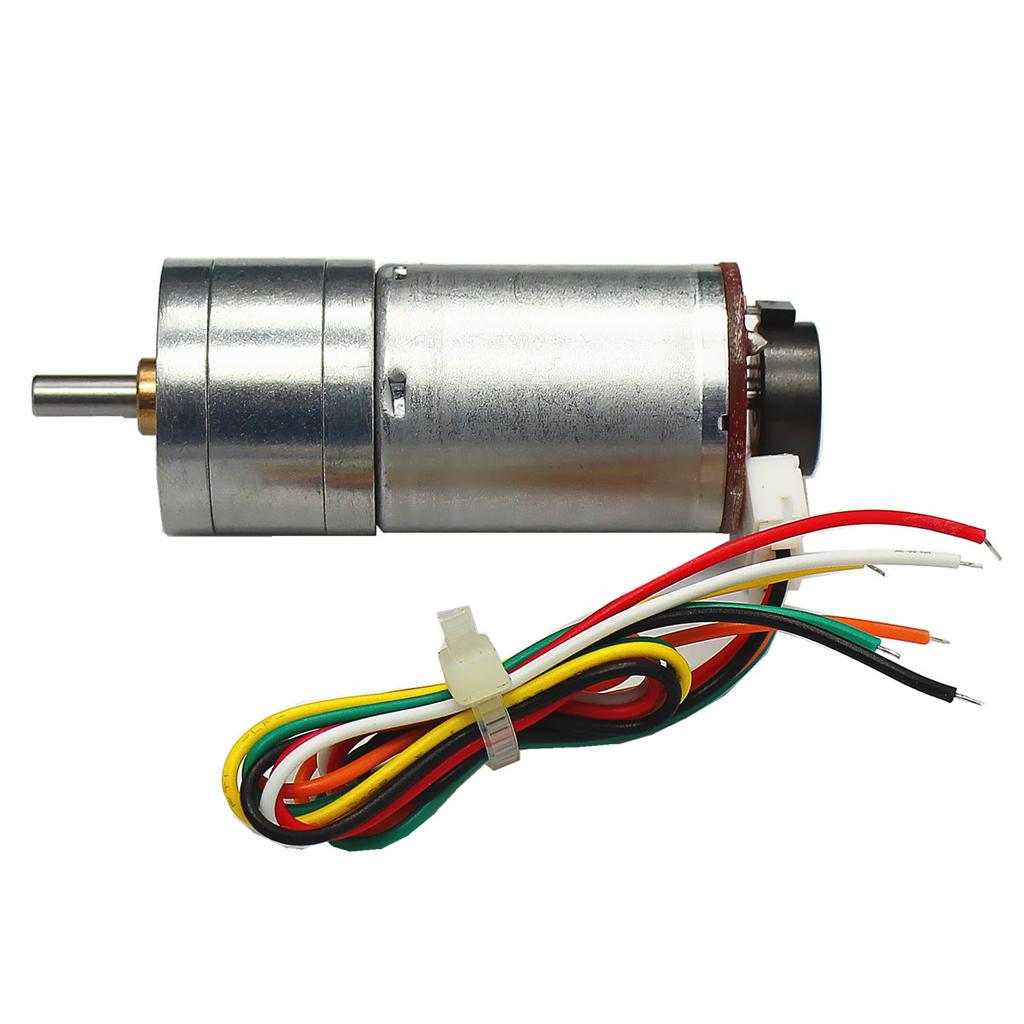

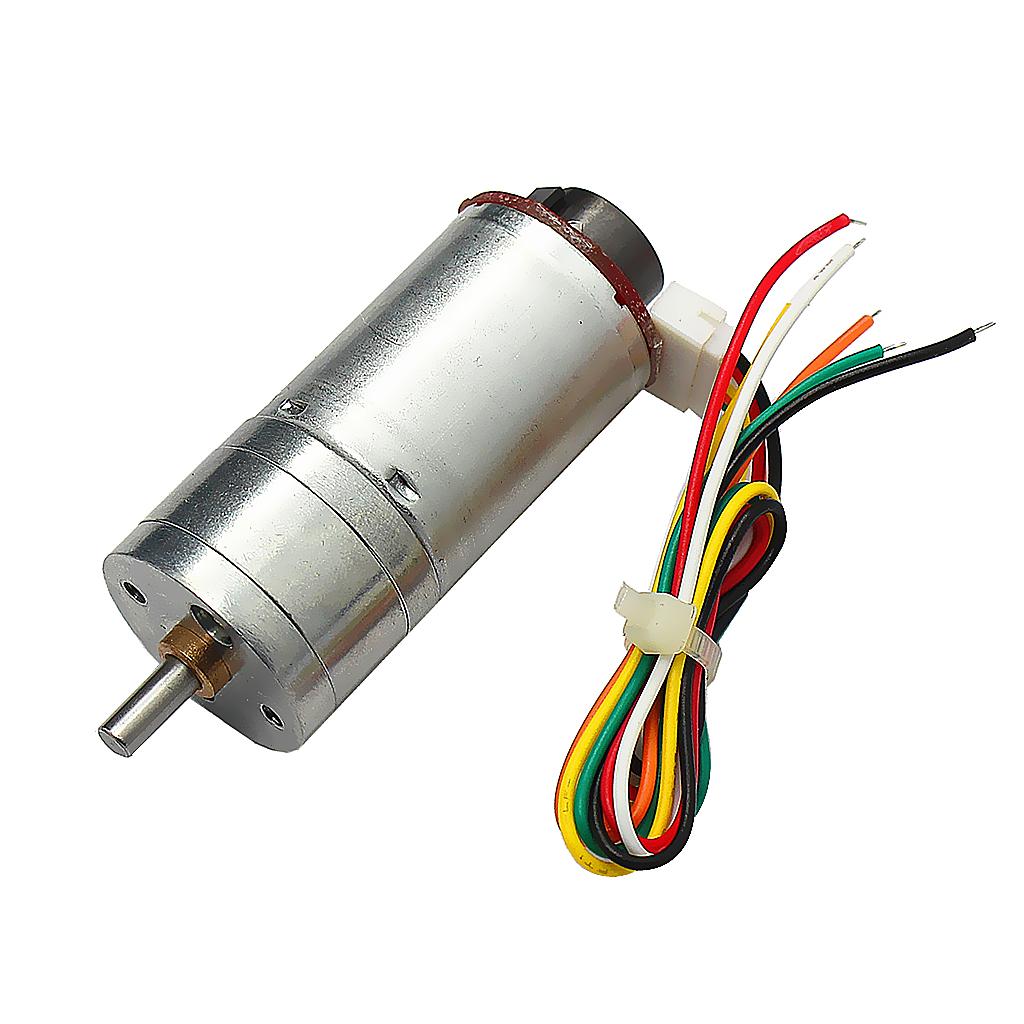

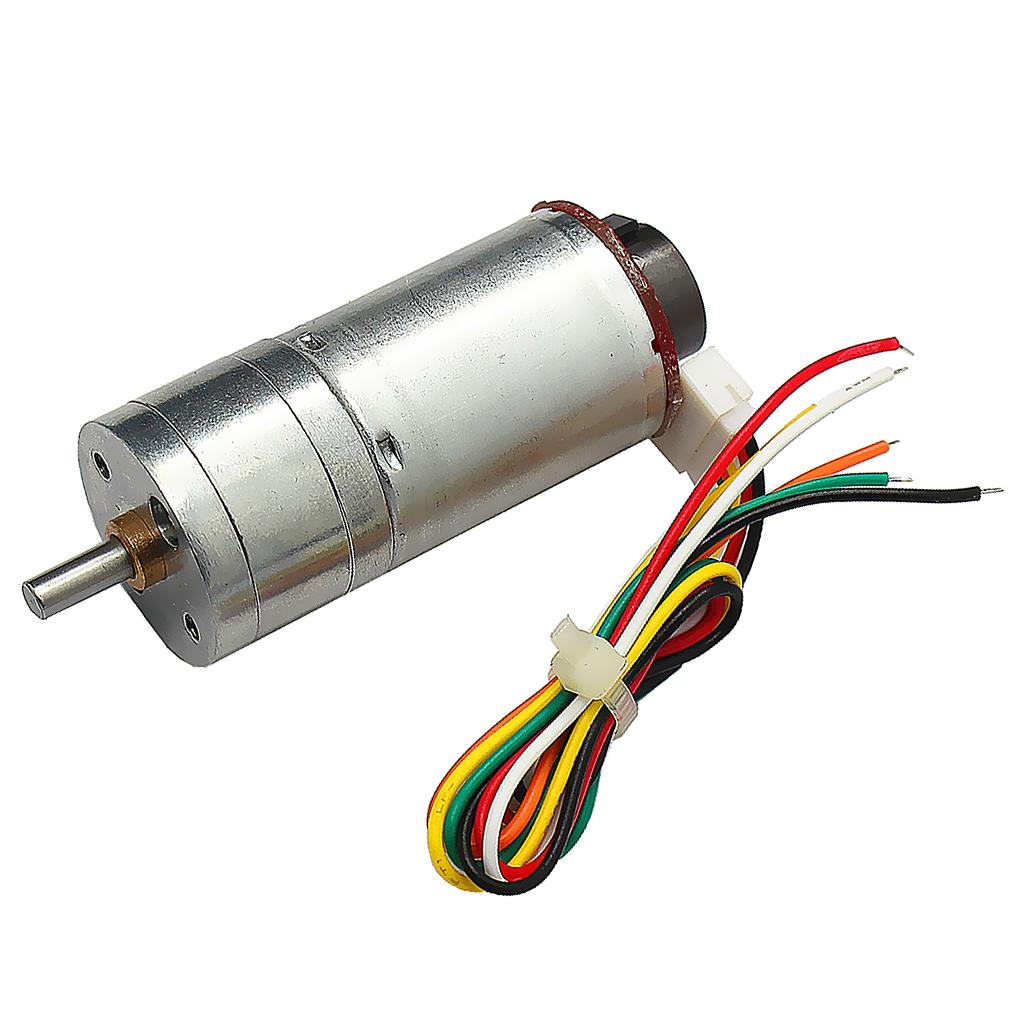

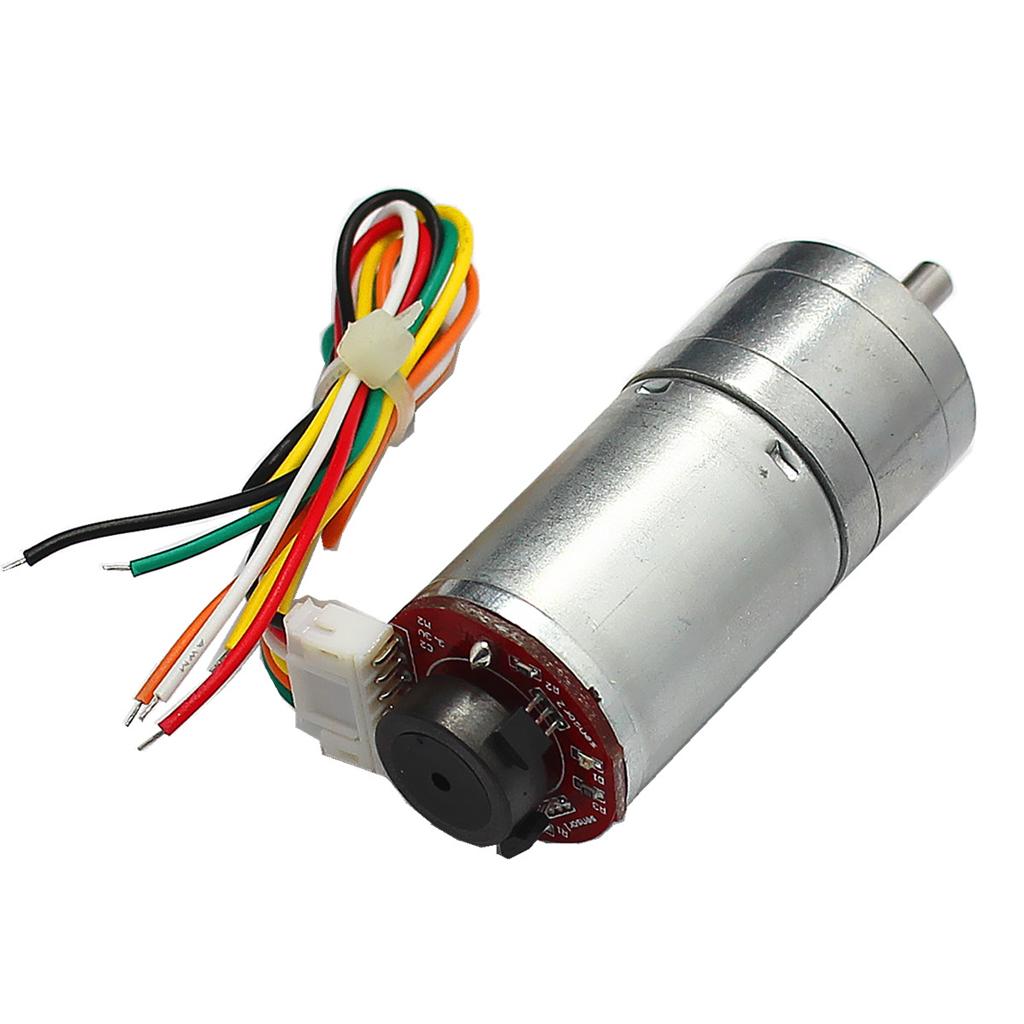

Maxbell Reducer Gear Motor With Magnetic Coded Disc Encoder Tachomotor DC12V 1930RMP
Description:
Long service life, low noise, large torque.
Two-phase reduction gear motor with encoder.
Made of stainless steel
Stable and reliable performance.
Can rotate and reversal, work more accurate.
Specification:
Material: Stainless Steel
No-loading Revolving Speed: 190RMP, 250RMP, 400RMP, 915RMP, 1930RMP

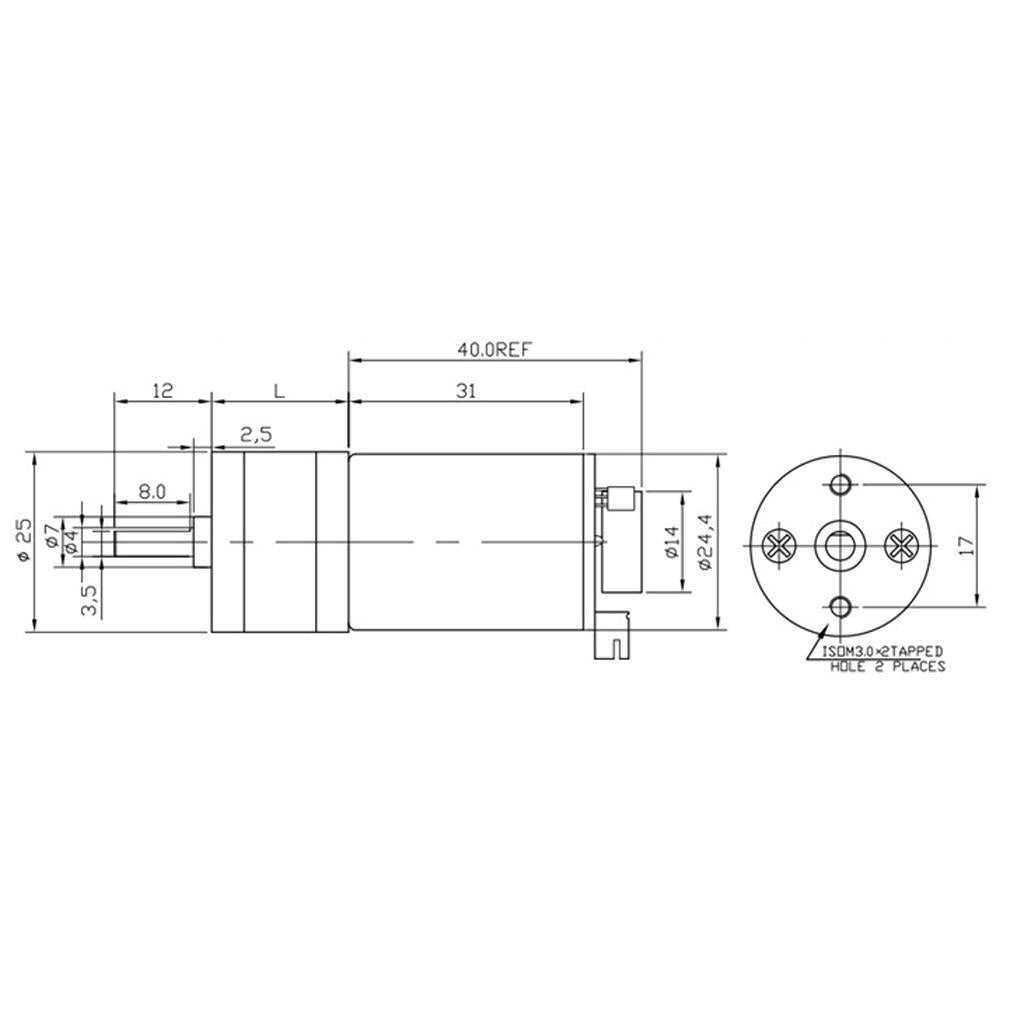

Shaft Length: Approx. 12mm/ 0.47inch
Shaft Diameter: Approx. 4mm/ 0.16inch D-shaped shaft
Working Voltage: DC 6V, 12V, 24V
Max Torque: 0.9kg/ cm
Max. Current: 1.2A
Color: As pictures show
Wiring Methods:
Red: Motor power + (exchange can control rotating and reversing of motor)
Black: Coding power- negative (polarity cannot be wrong 3.3-5V)
Green: Signal feedback (motor rotate 1 circle 11 signal)
Yellow: Signal feedback (motor rotate 1 circle 11 signal)
Blue: Coding power + Positive (polarity cannot be wrong 3.3-5V)
White: Motor power - (exchange can control rotating and reversing of motor)
Package Includes:

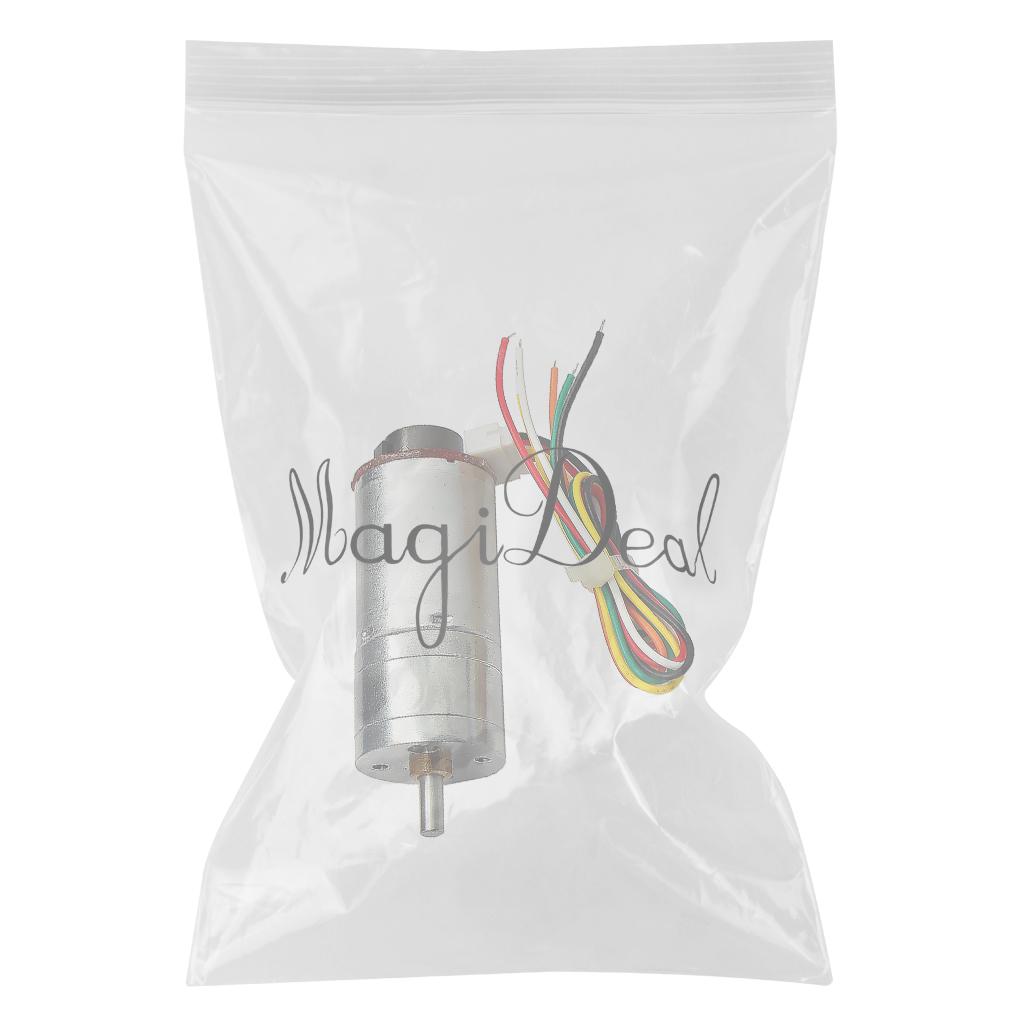

1 Piece Encoder Gear Motor
