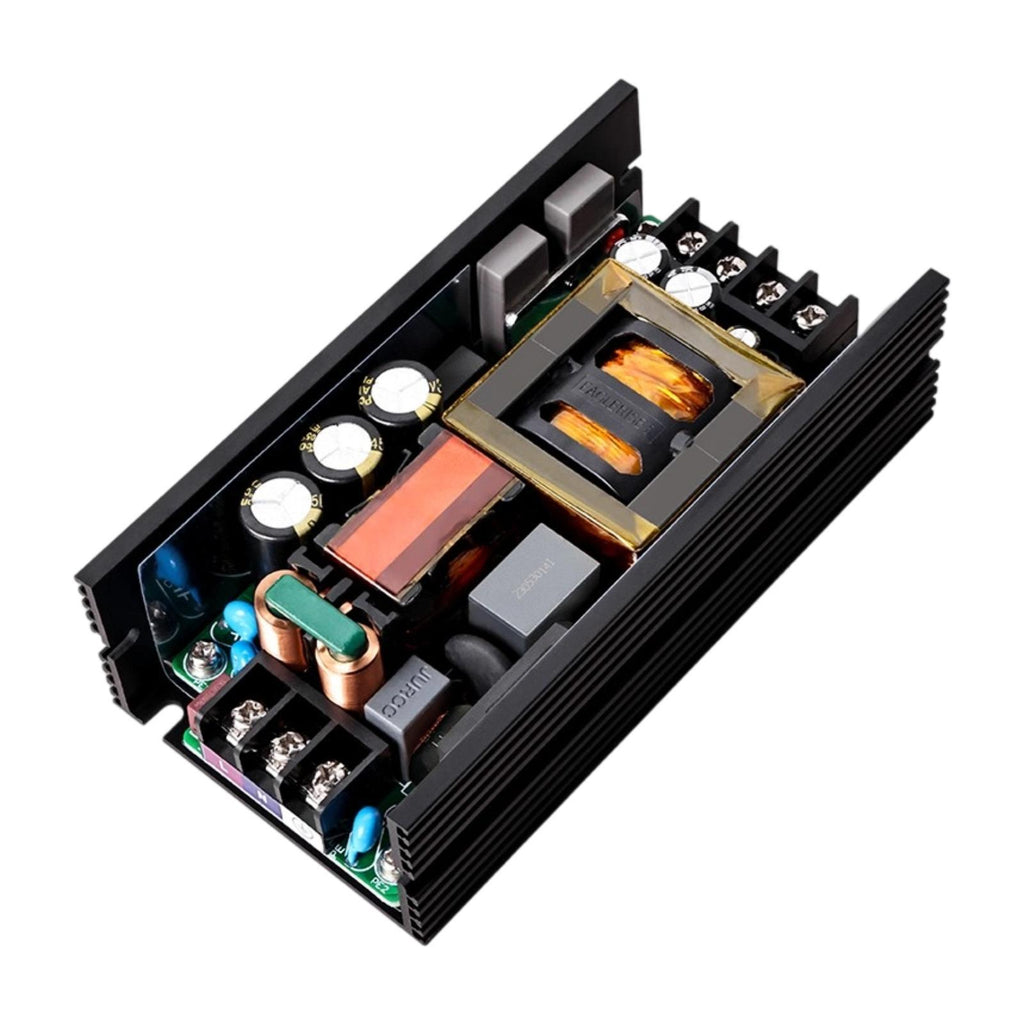

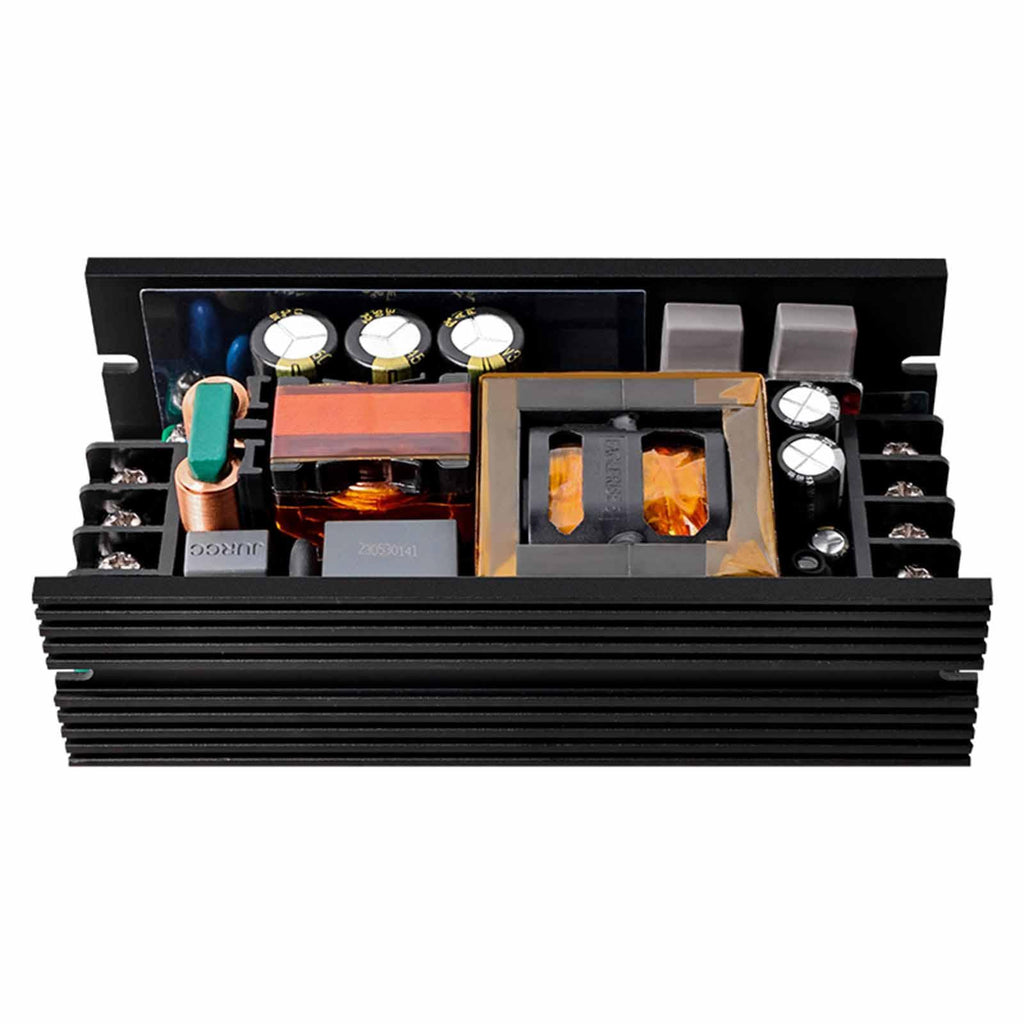

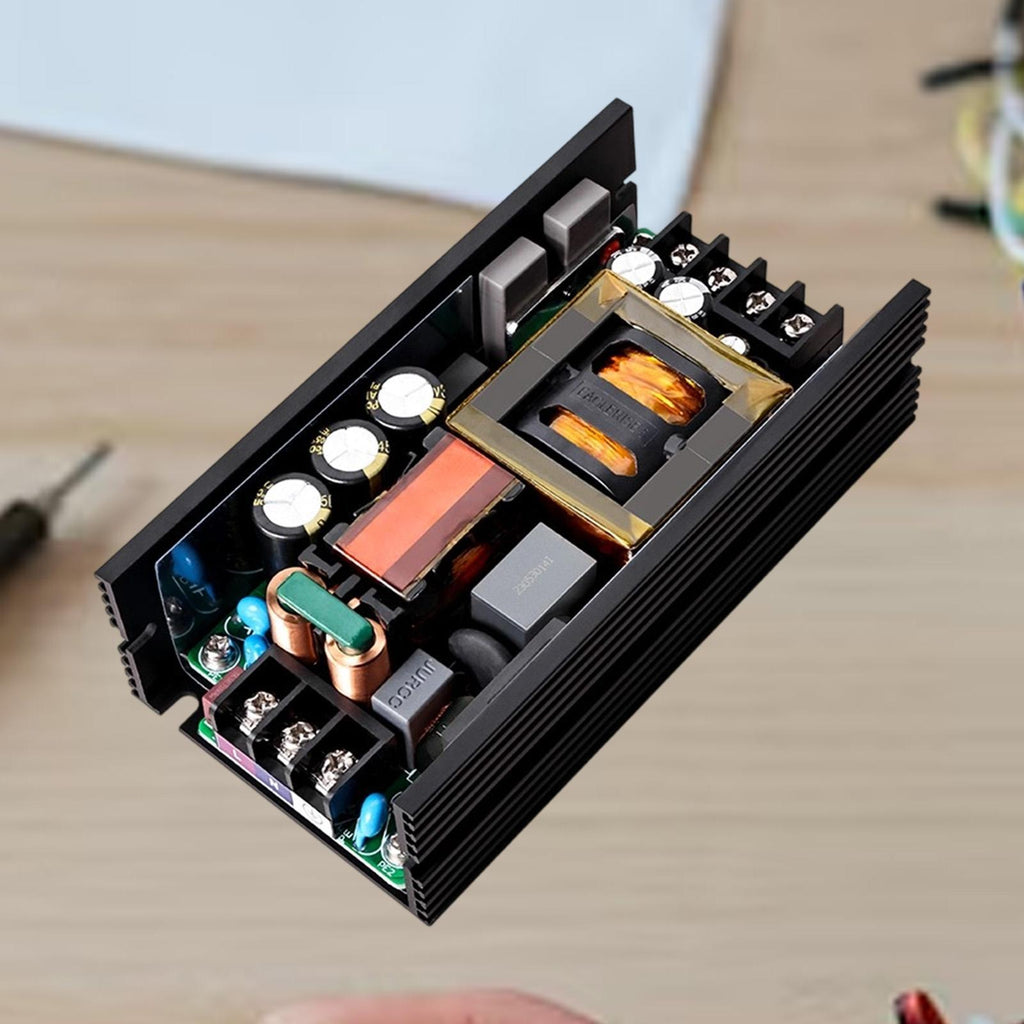

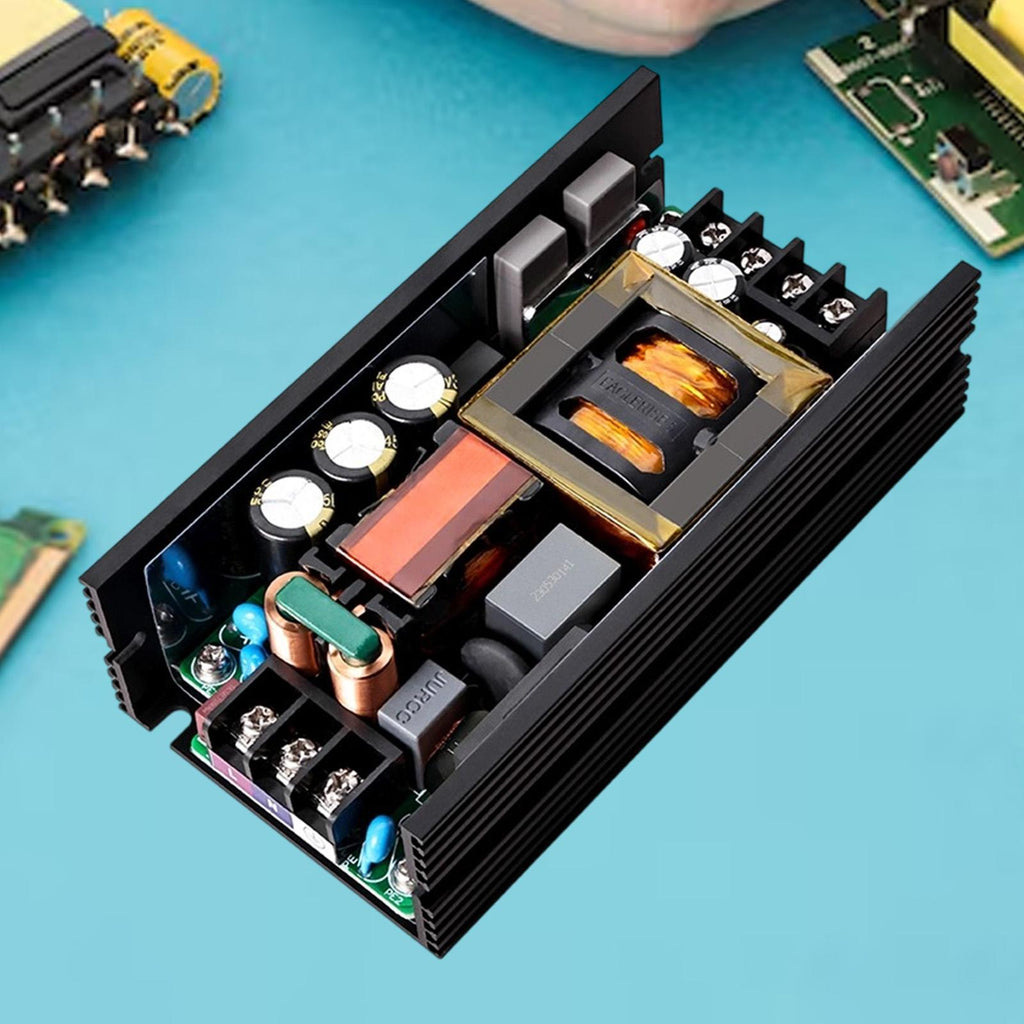

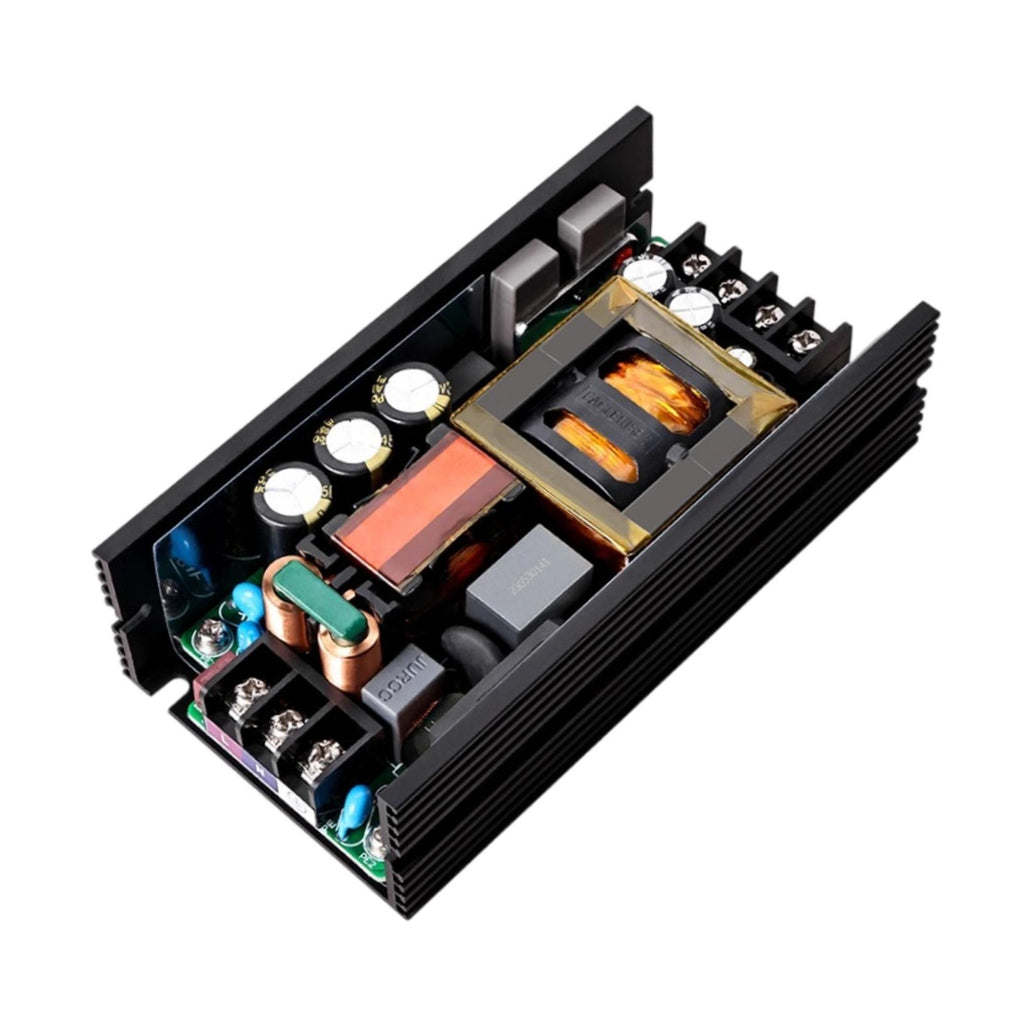

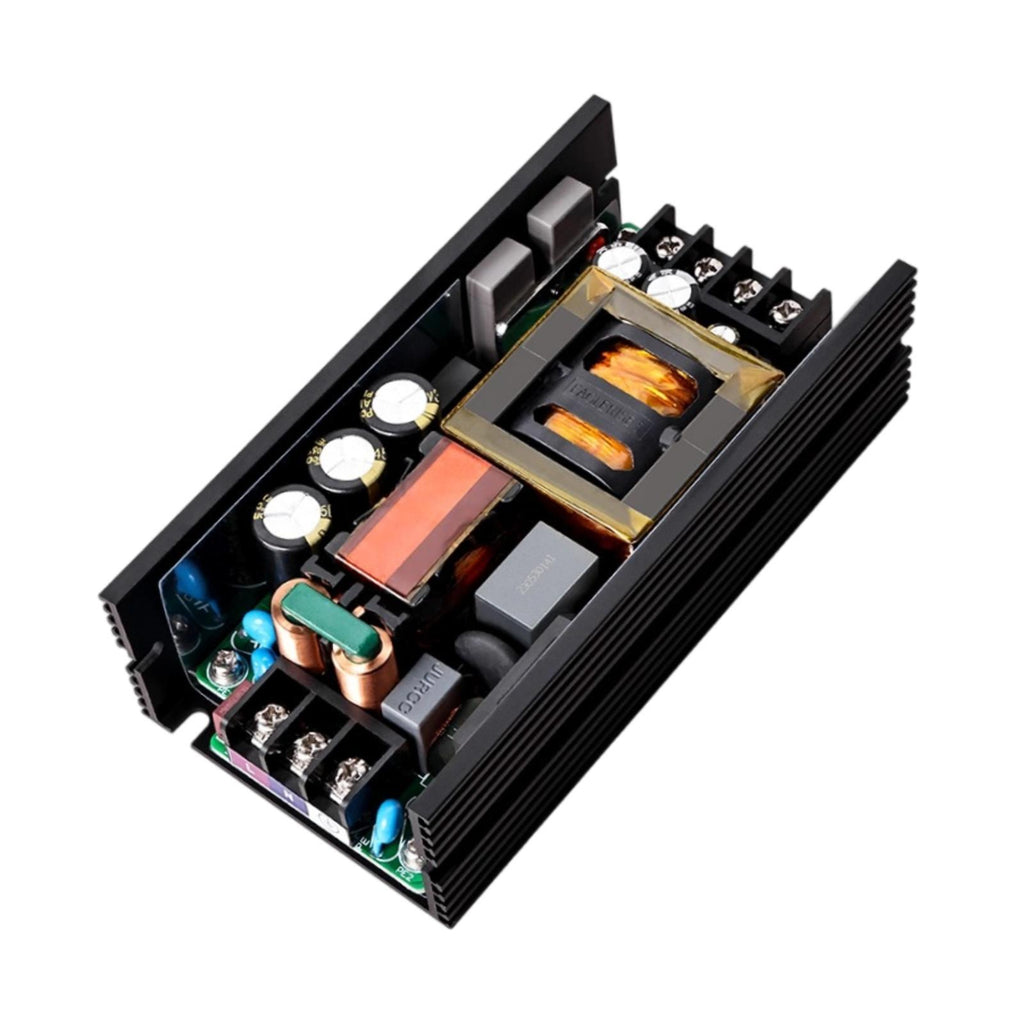

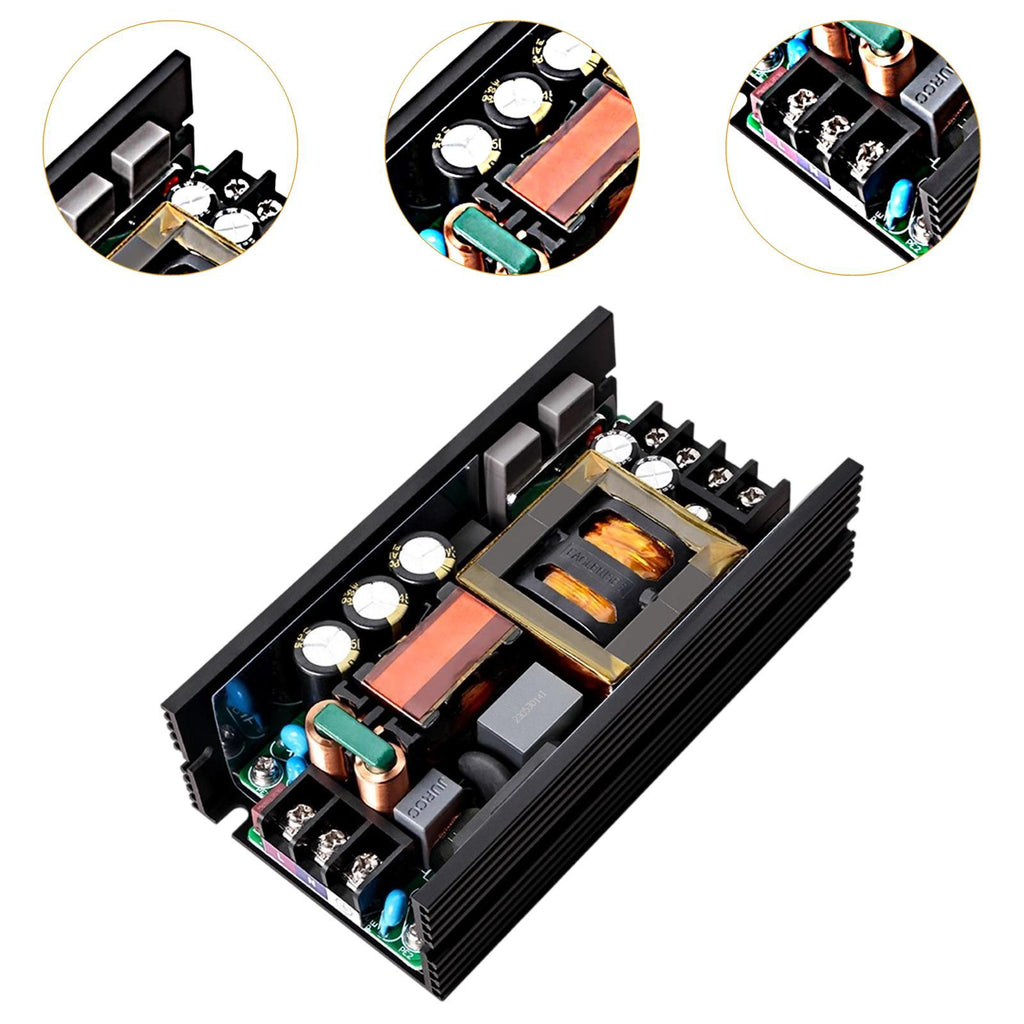

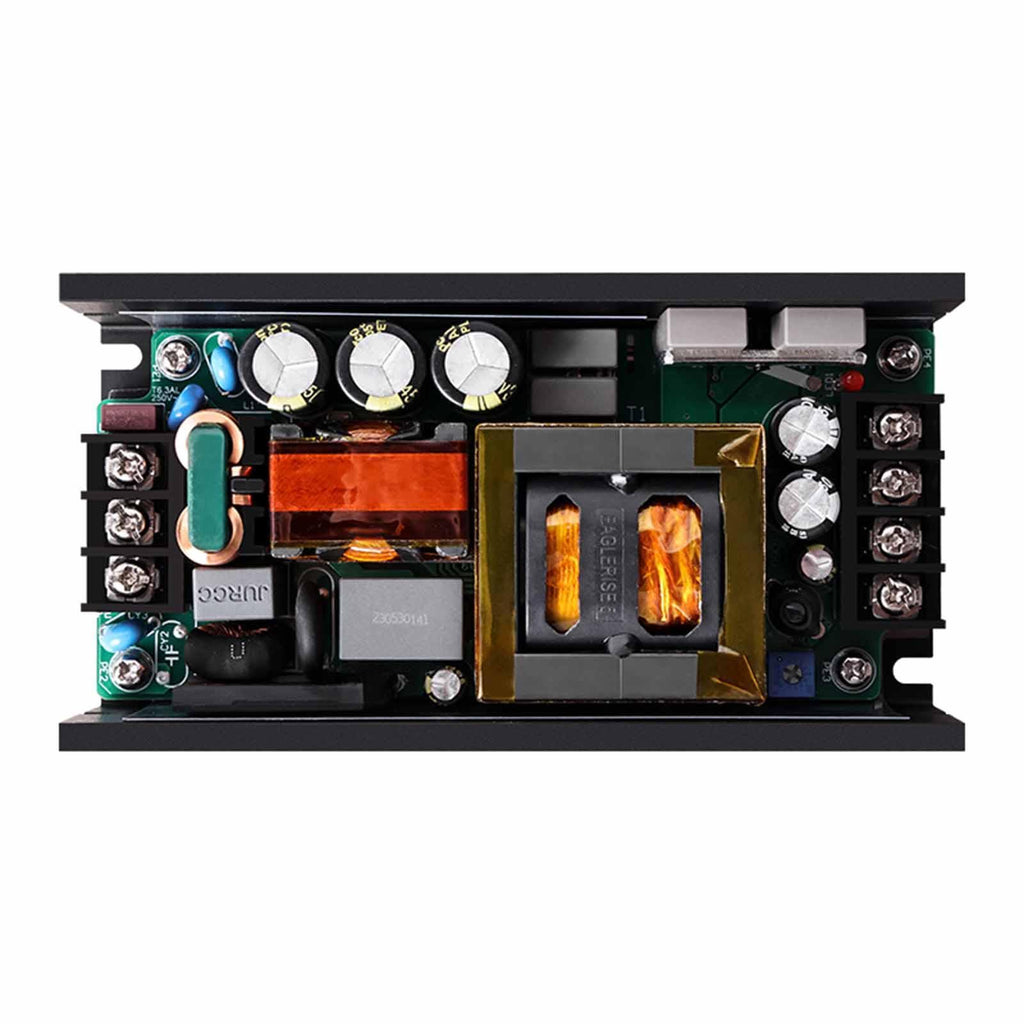

Maxbell Power Module Industrial Sturdy Reliable Professional Wide Voltage AC Adapter

Description:

【Wide Voltage】: This power supply module operates efficiently within a voltage range of 90-264VAC and supports a frequency range of 47-63Hz, making it versatile for various applications across different regions
【Features】: Equipped with multiple protect mechanisms including input undervoltage protect (60-80VAC), output overcurrent protect (110%-150% of rated current), output overvoltage protect (110%-130% of rated voltage), short circuit, and over temperature protect, ensuring reliable performance and safety
【Quick Start Up and Response Time】: The module boasts a maximum start up time of 0.5 seconds and a typical rise time of 10ms, providing quick power delivery to connected devices
【Material】: Constructed from pp material, this module meets the IEC62368 standards with high insulation resistance (>100MΩ/500VDC) and withstands high voltages up to 3750VAC between input output
【Compact Design for Versatile Use】: With dimensions of 126mm x 66mm x 36mm, this compact power supply is easy to integrate into various systems while operating effectively in temperatures ranging from -25°C to +70°C with humidity levels between 20%~90% RH without condensation

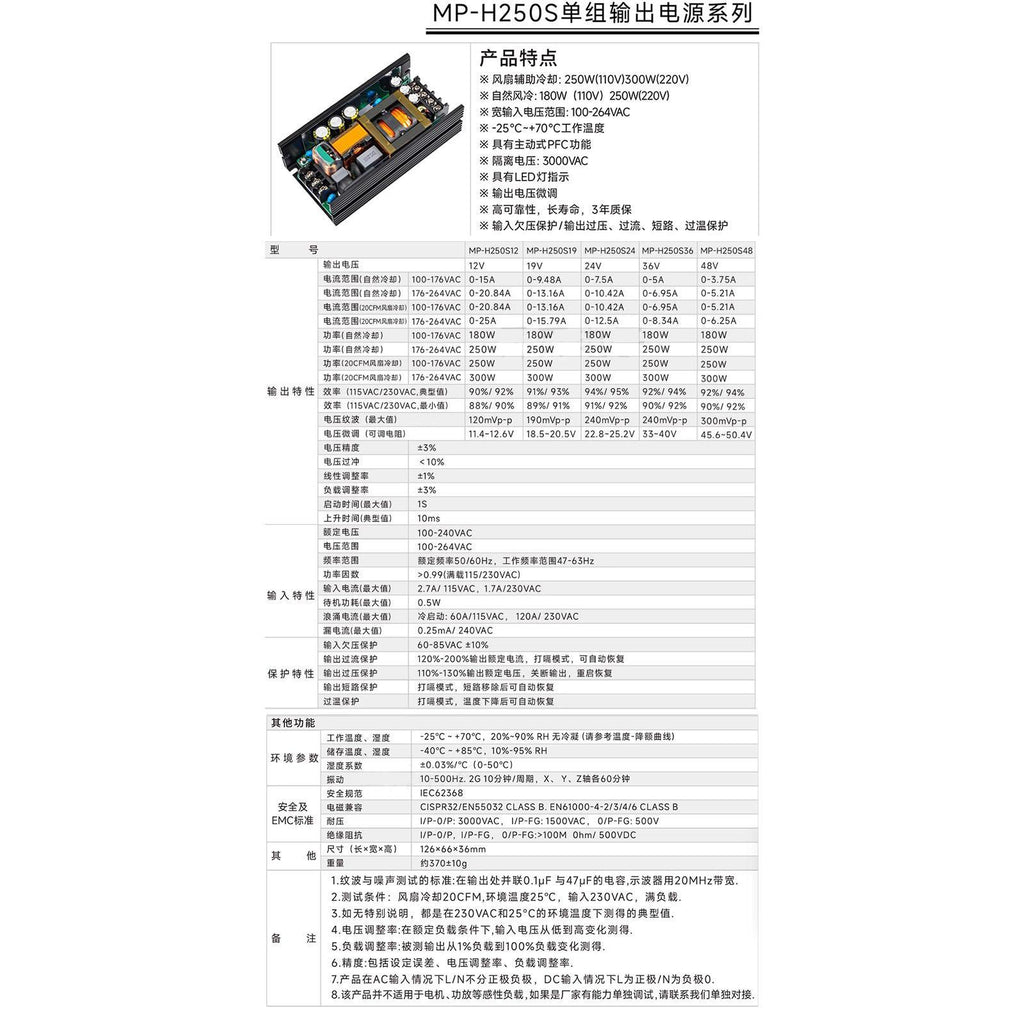

Specification:

Material: PP

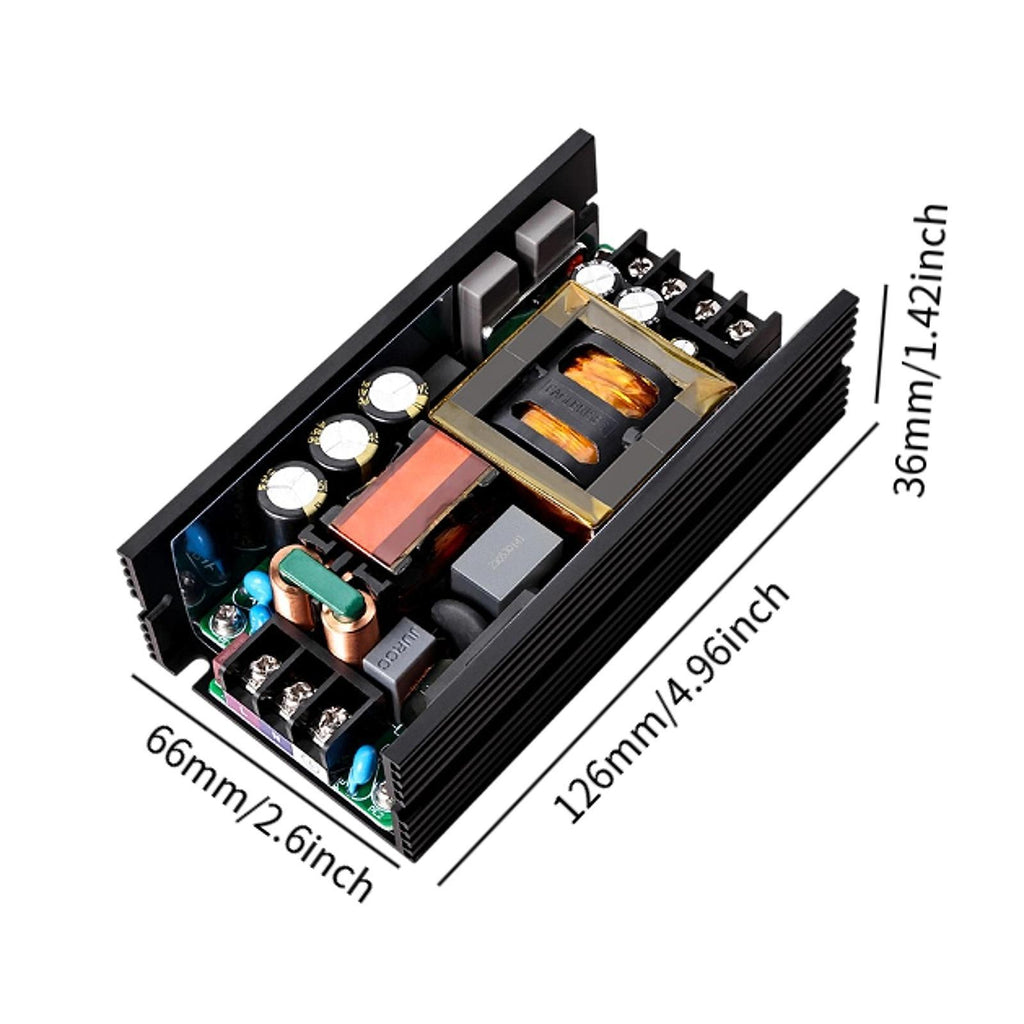

Size Chart:

Length: 12.6cm/4.96inch
Width: 6.6cm/2.60inch
Height: 3.6cm/1.42inch

Package Includes:

1X Switching Power Supply

Note:

Please allow slightly errors 1-2cm differences due to manual measurement.
