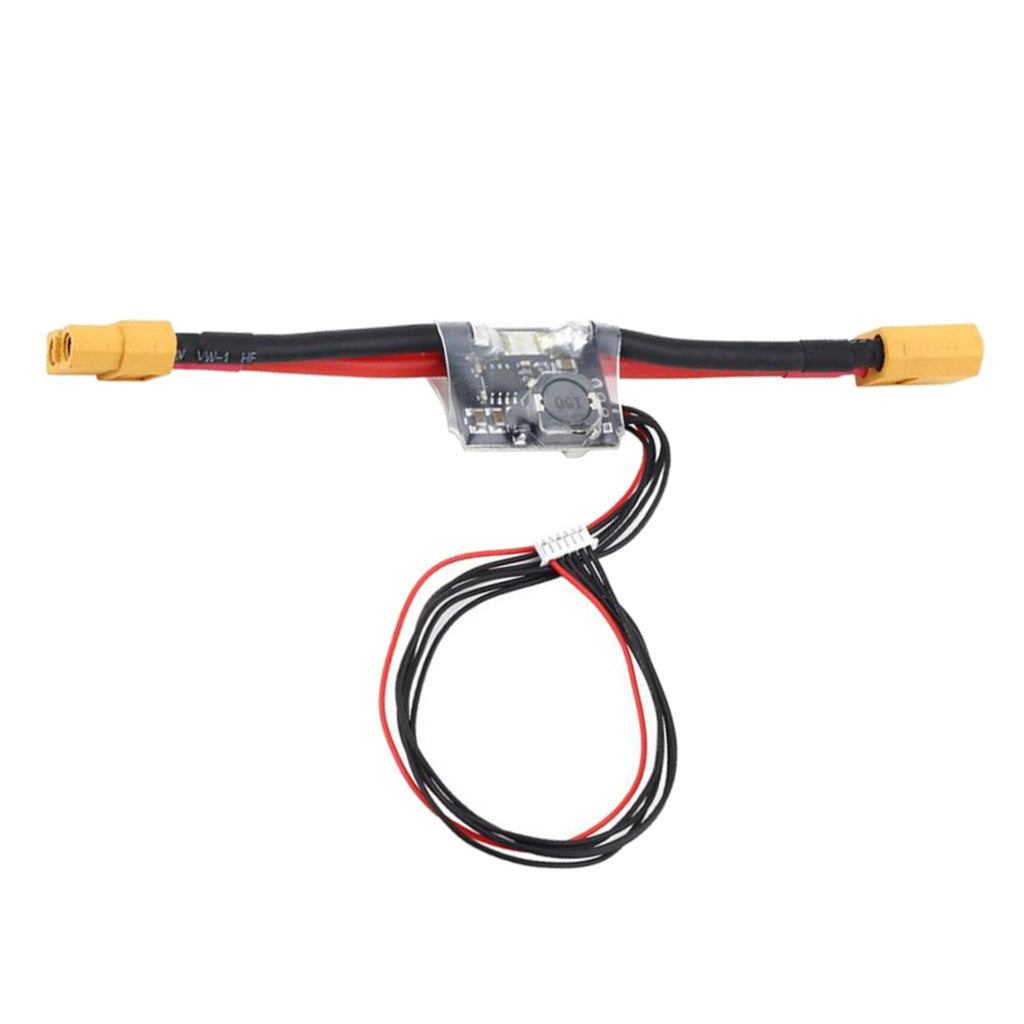

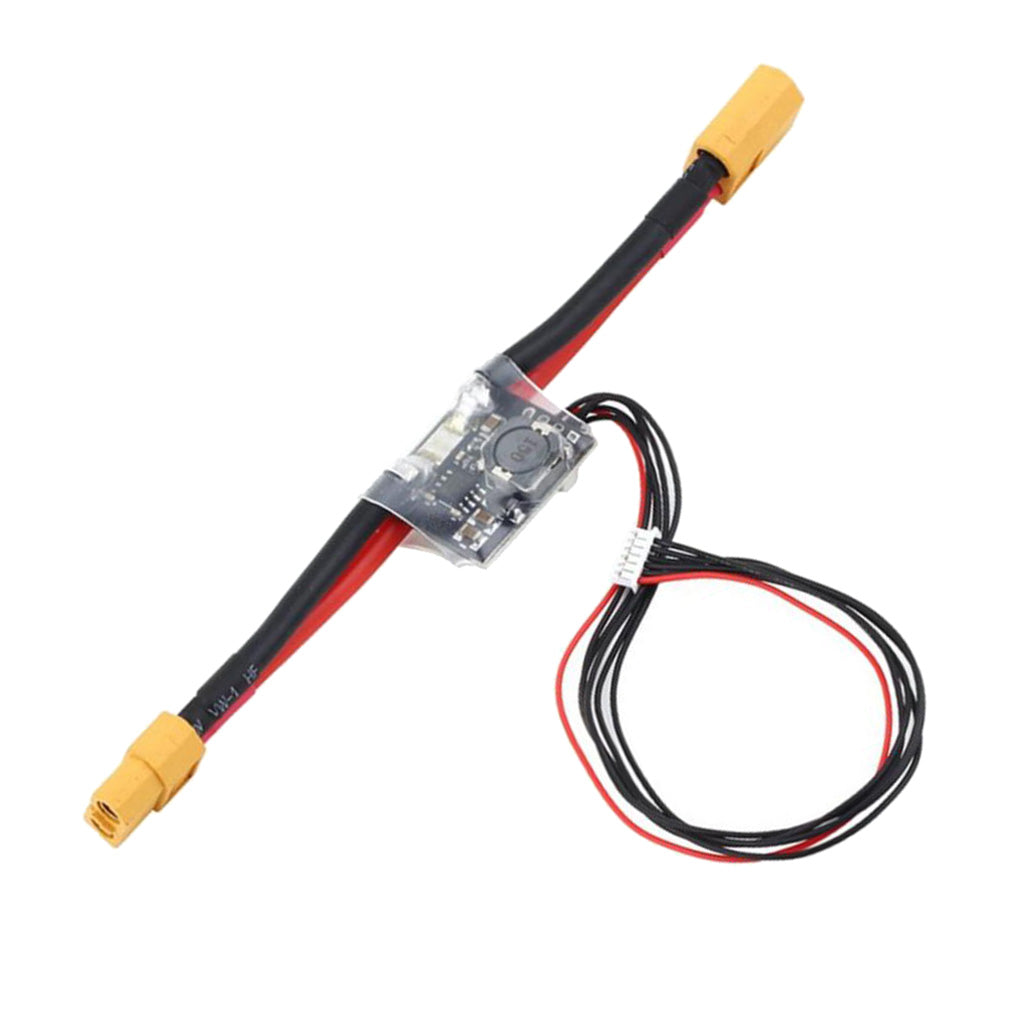

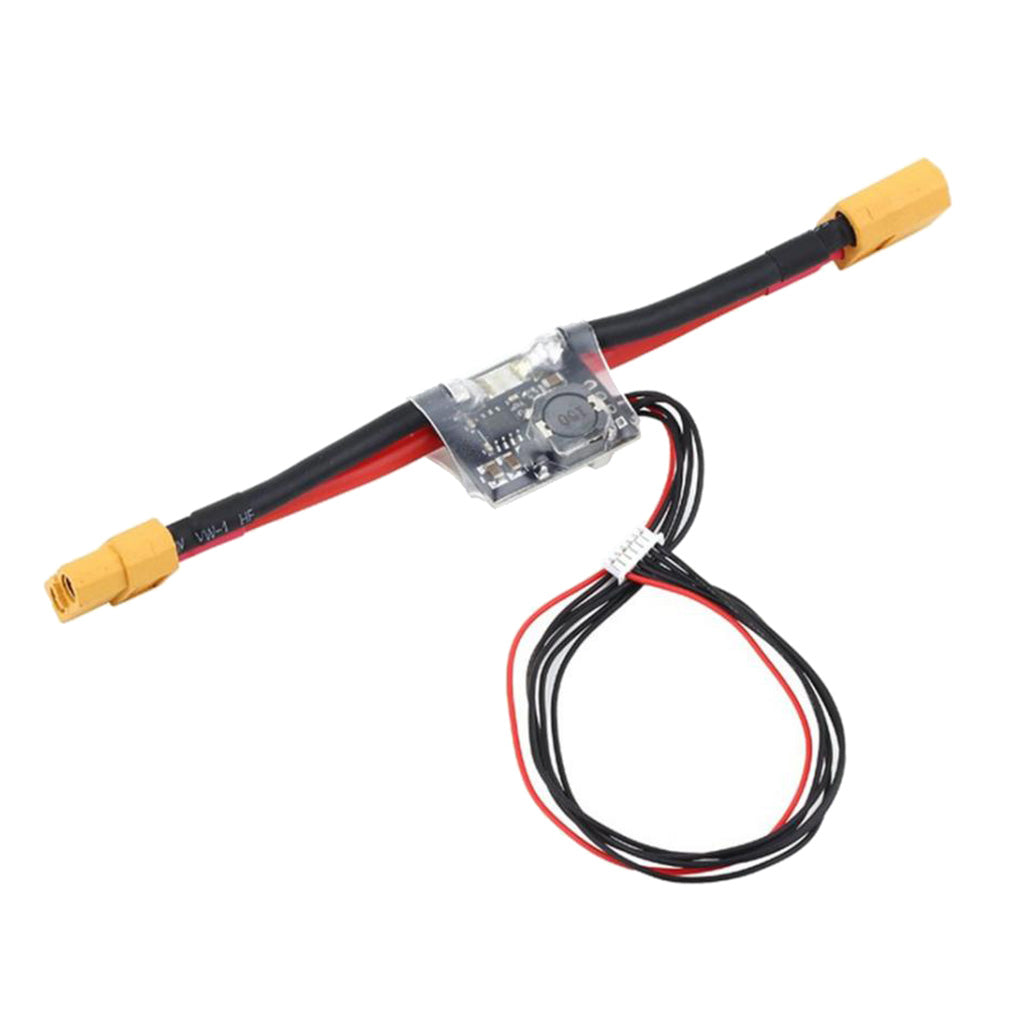

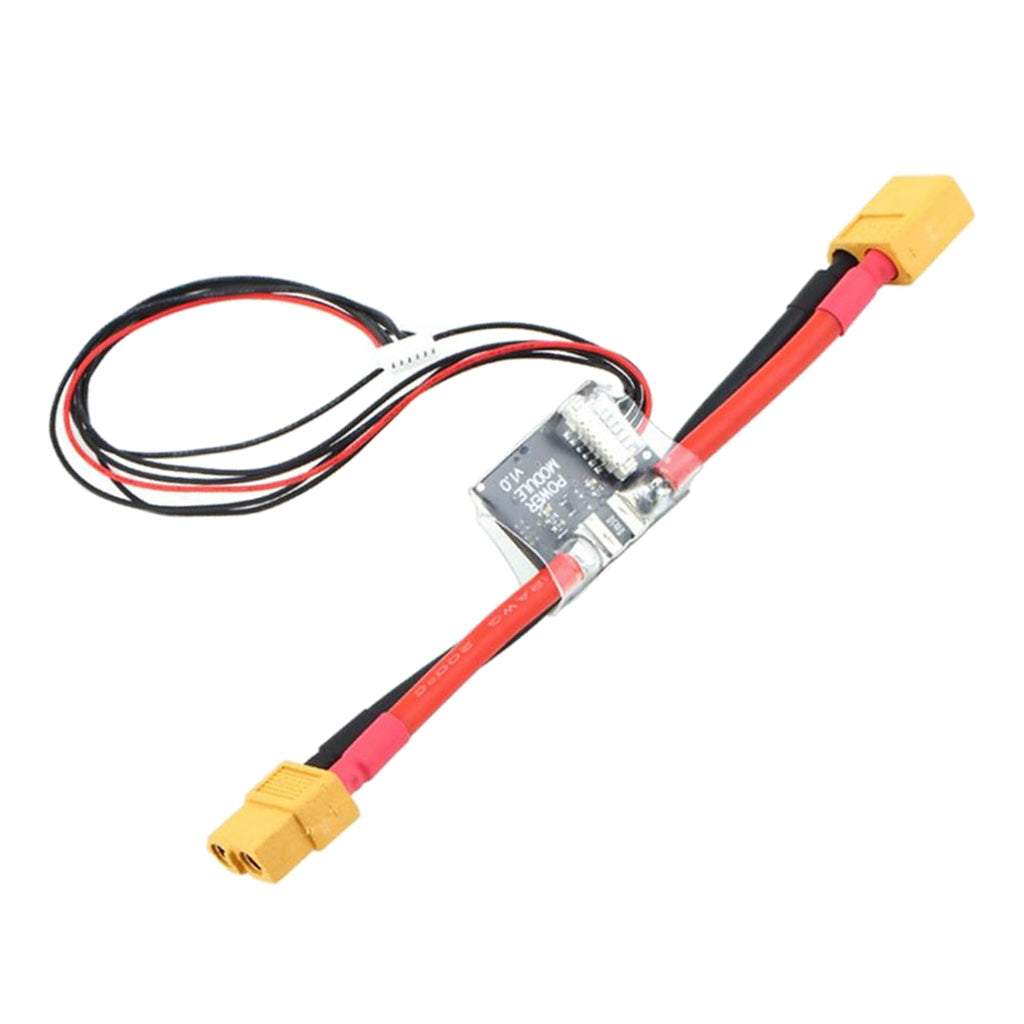

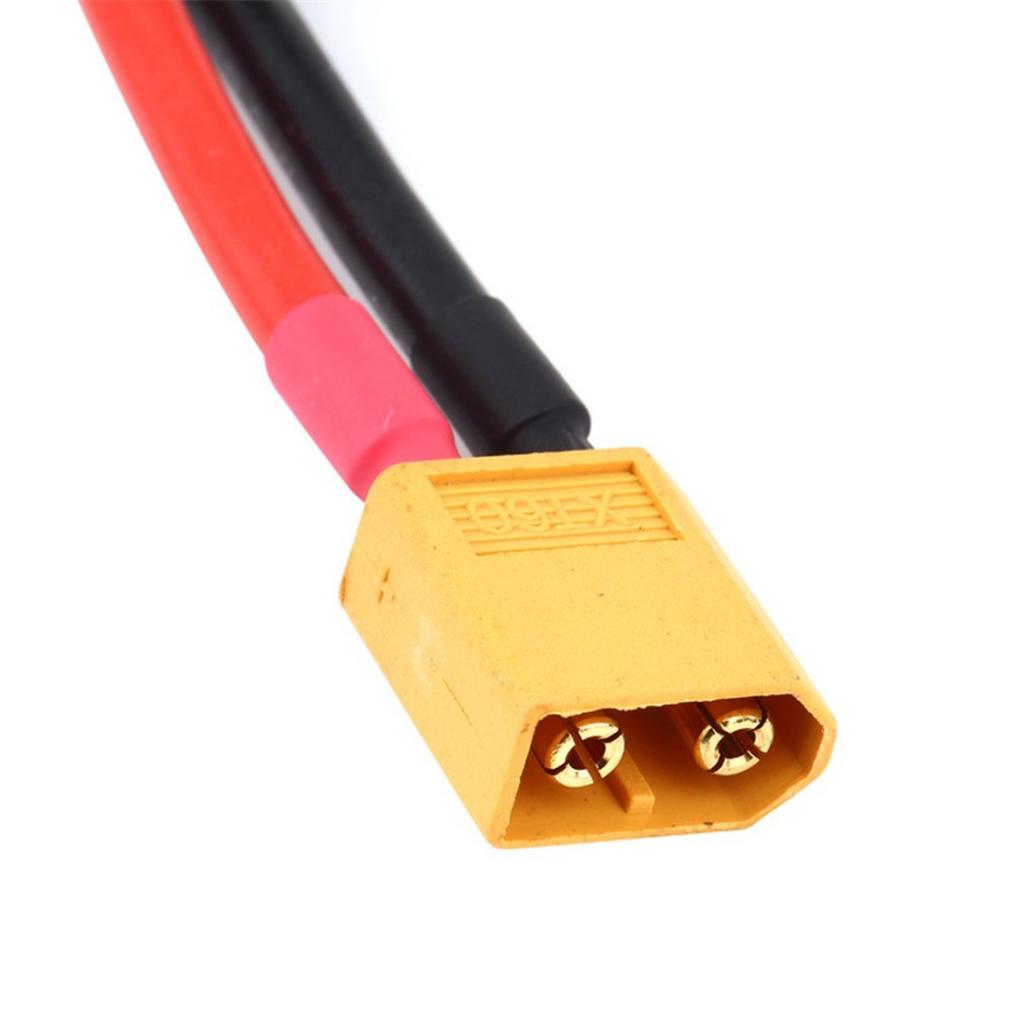

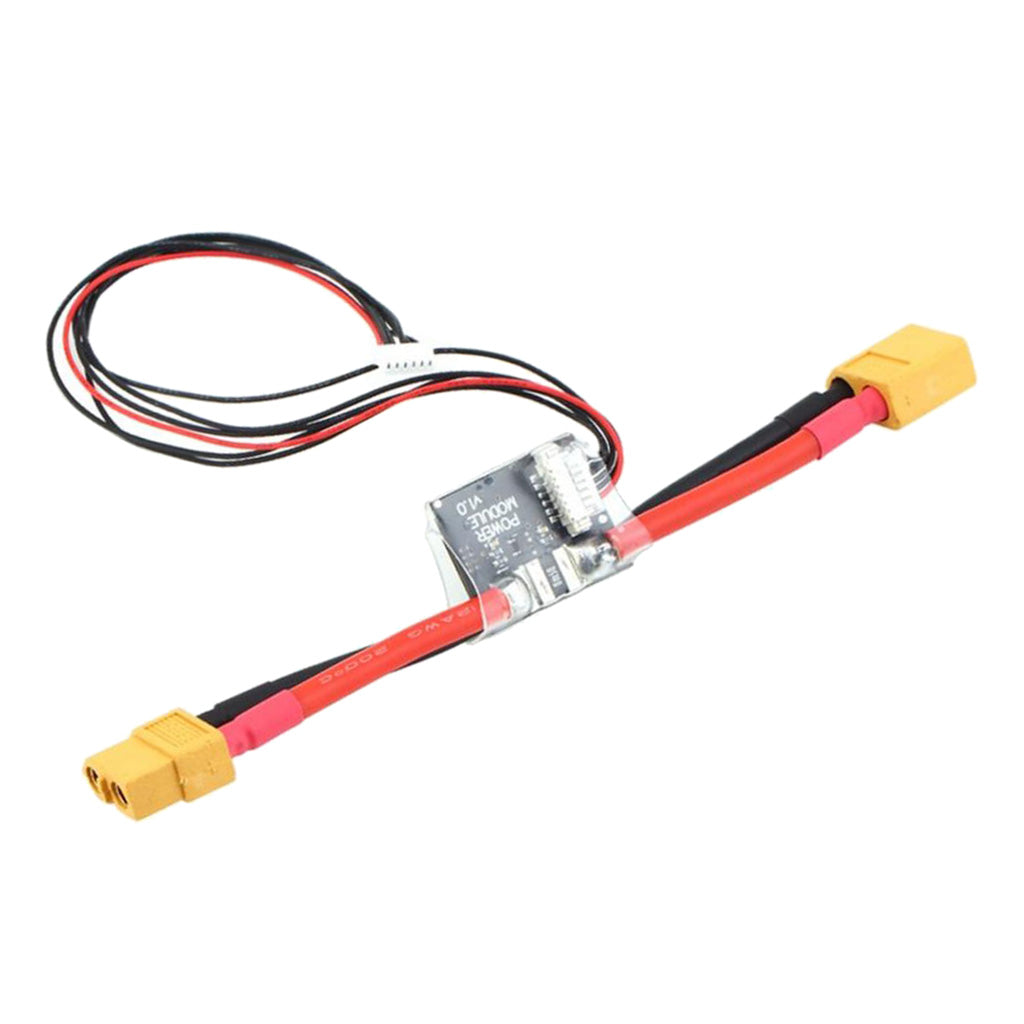

Max Maxb Power Module for Pixhawk APM2.8 2.6 2.52 Flight Controller 30V/90A XT60
Description:

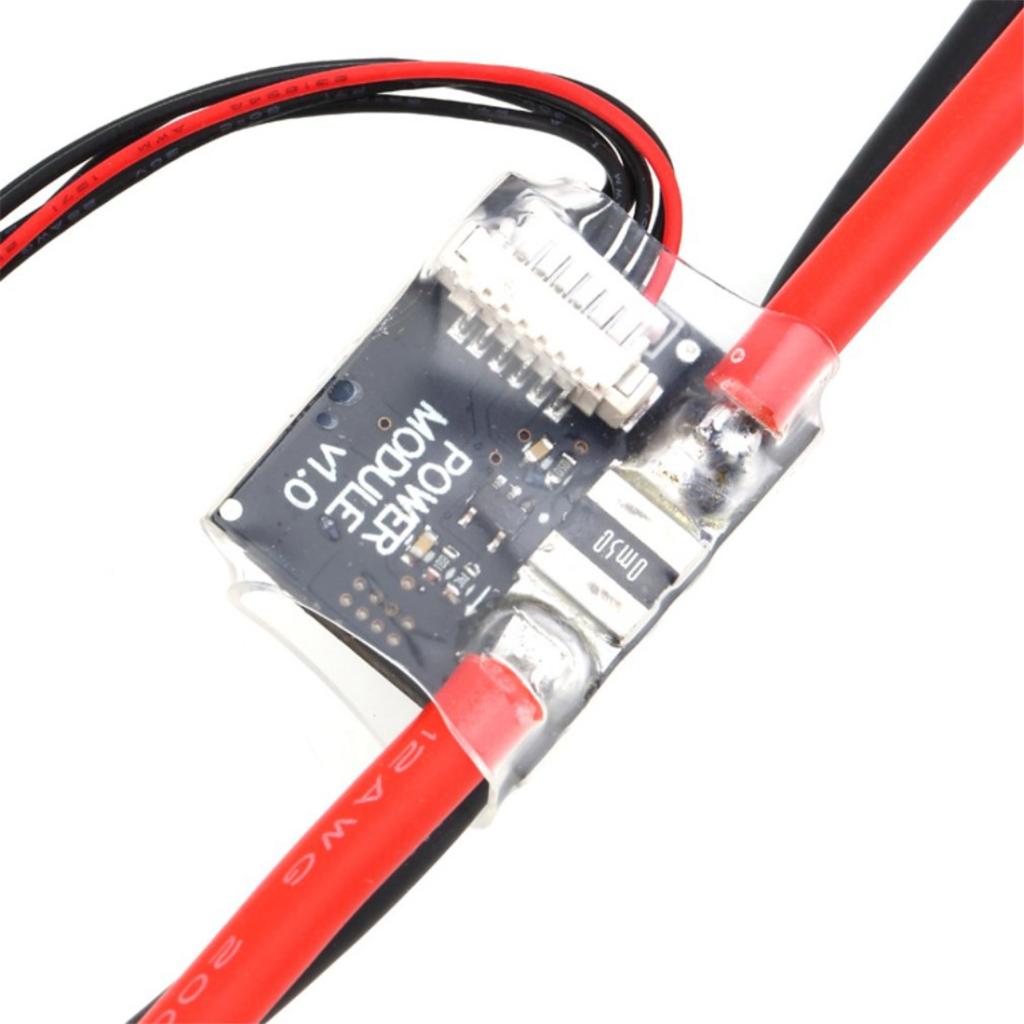

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable.

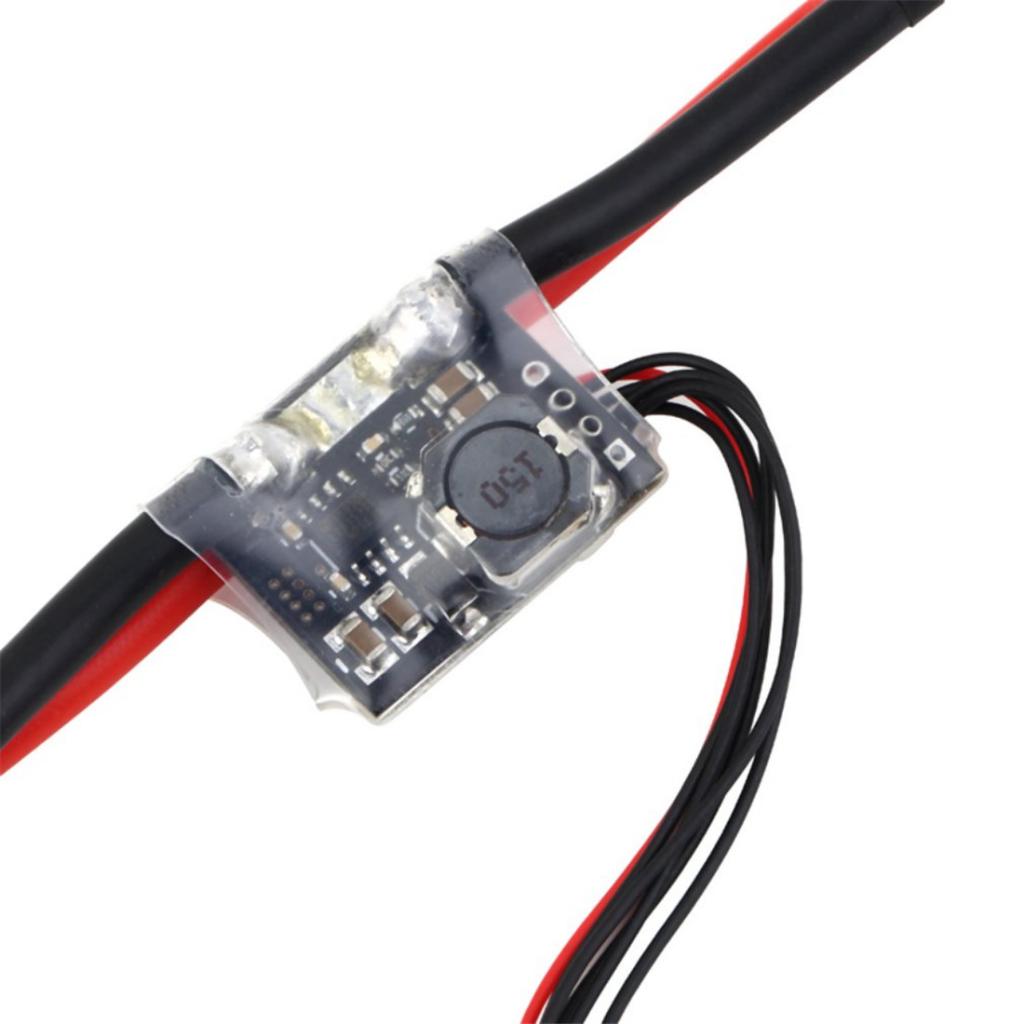

The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Used to detect the battery voltage and the battery current, flight control board receives two signals, calculate the remaining battery power, estimate the remaining flight time.
Comes with BEC function, you can output 5.3 DC, 3A maximum continuous current for the flight control board to provide a stable power supply.
Specification:
Max input voltage: 30V
Max current sensing: 90A
Size:25x21x9mm/0.98x0.83x0.35inch
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 3A max
Package Includes:
1pc Power Supply Module
Note:
The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It isnotdesigned to power servos. Use your aircraft's own ESC/BEC for that.
