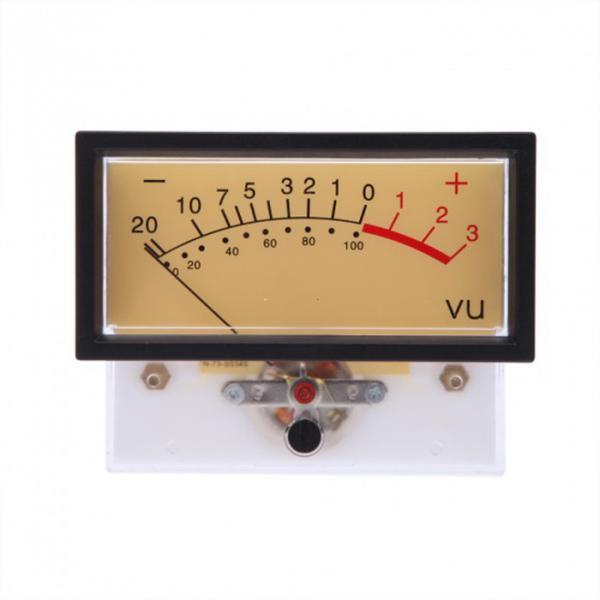

Maxbell Plastic Shell Audio Amp Panel VU Volume Unit Level Meter Testing Indicator
2
sold in last
8
hours
In stock
Rs. 5,999.00
Rs. 3,000.00
customers are viewing this product
Description:
- Complete set, directing use.
- VU level meter with PMMA plastic cover and PS case.
- High precision internal Alnico sintering magnet coiling movement.
- Come with black plastic frame and screws.
- Please open a hole (80.5*37.0mm, W*H) to fix the frame/VU meter on a panel.
- Can be used widely in audio recorder equipment.
- Movement: Internal magnet coiling movement (Moving coil)
- Pointer material: Zinc silver strip
- Pointer color: Black
- Pointer direction: From left to right
- Pointer length: 39+/-1mm from center of movement
- Pointer width: 0.45 +/-0.05mm
- Cover material: PMMA
- Case material: PS
- Magnet: Alnico sintering magnet
- Frame: SPCC
- Coil: UEW
- Meter Direction: Vertical

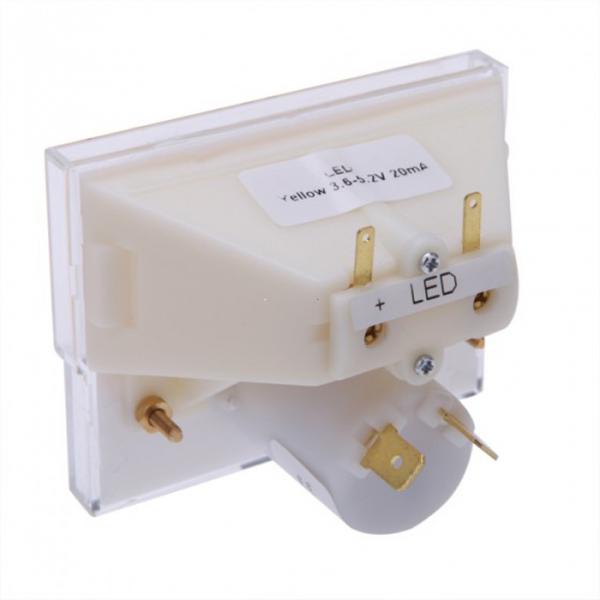

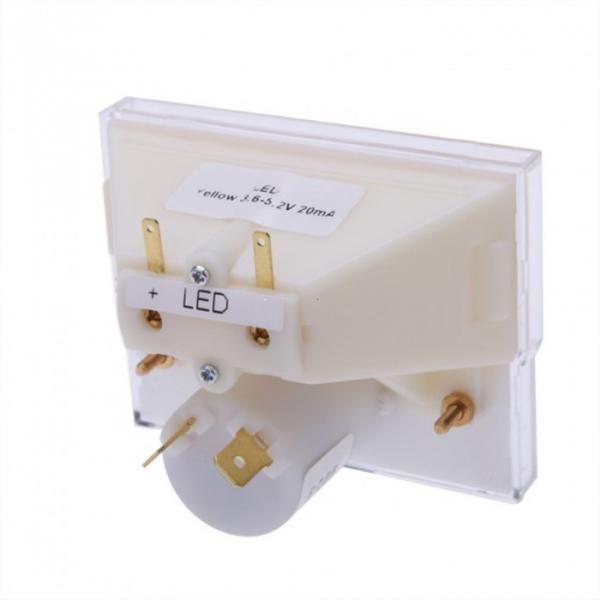

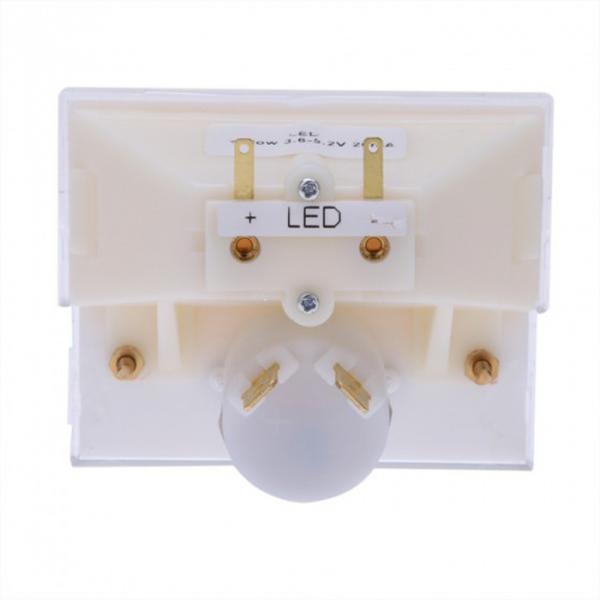

- LED: Yellow 1.8-2.6V 20mA (two LED in series, input voltage: 3.6V-5.2V)
- Item size:76 * 59 * 41mm(without frame) / 3.0 * 2.4 * 1.6in
- View area: 73.5 *32.5mm / 2.9 * 1.2i

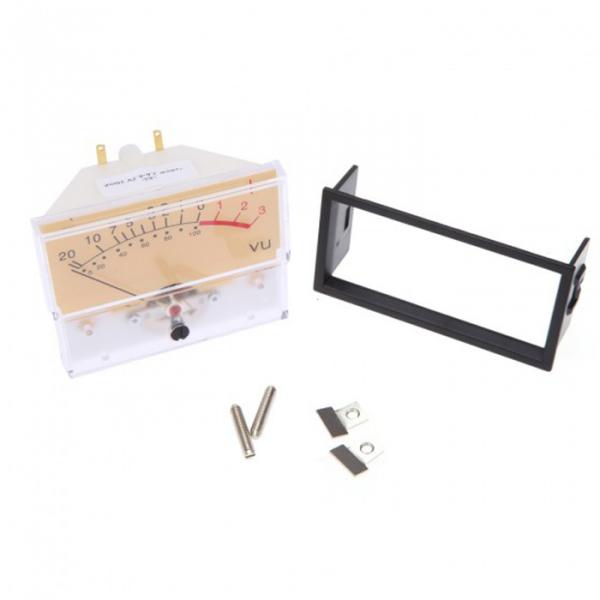

Package Includes:
- 1x VU Meter
- 1x Package of Screws
- 1x Frame
