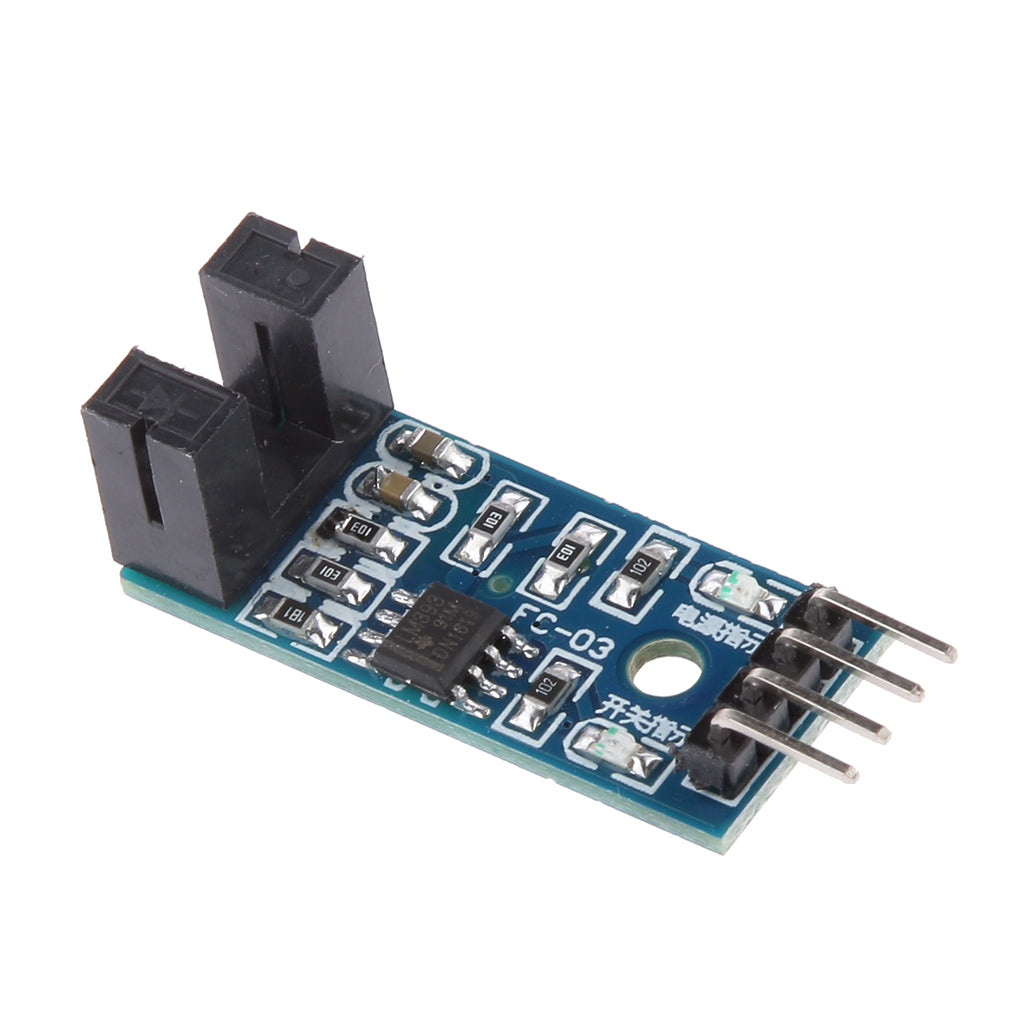

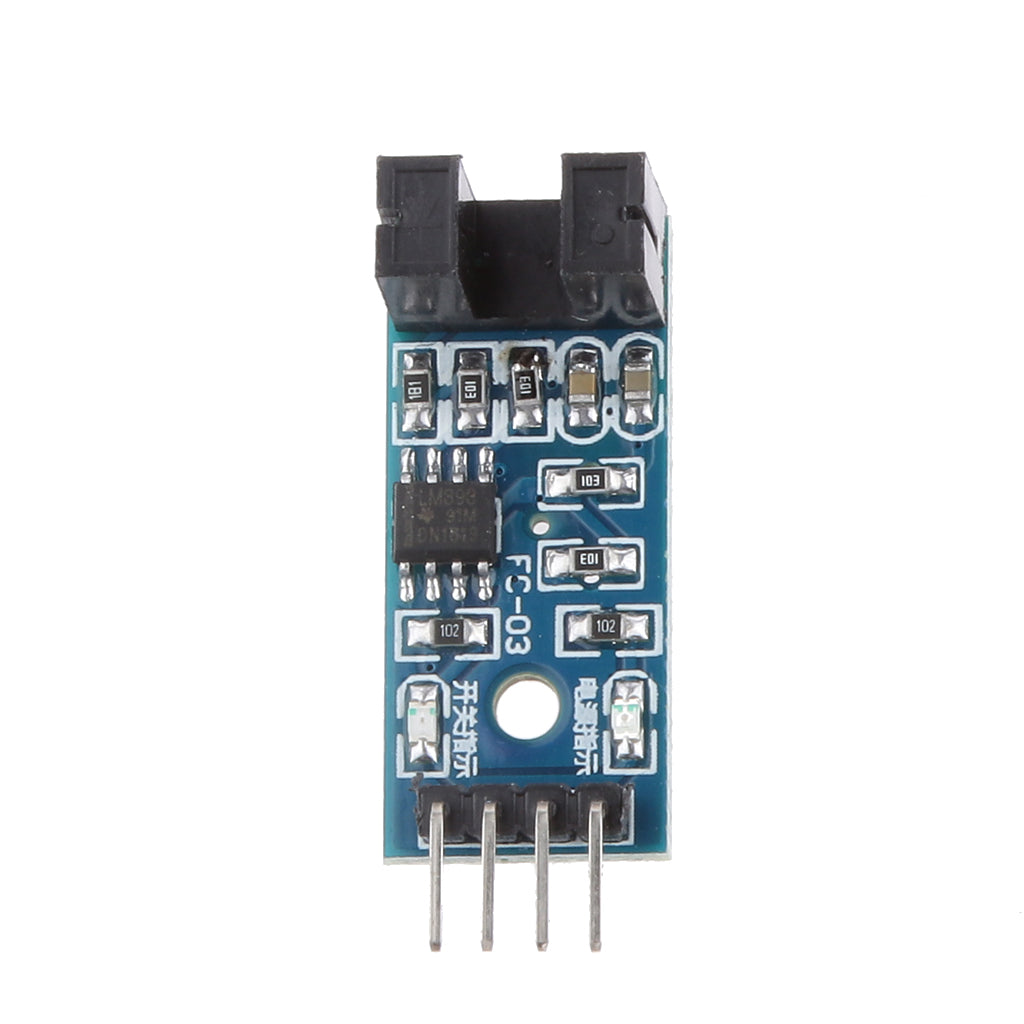

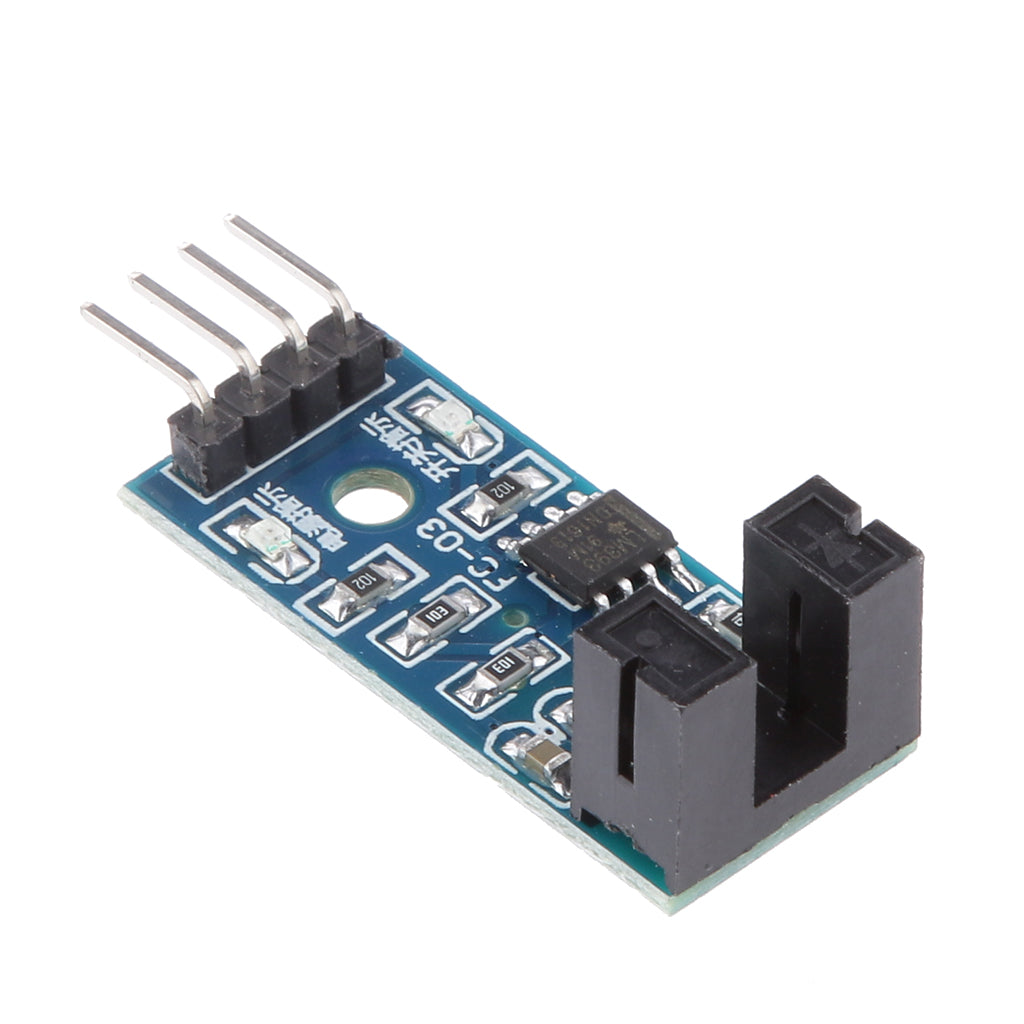

Maxbell Optocoupler Motor Speed Measuring Counter Sensor Module Slot Type

Description:

• Use imported groove coupler sensor
• The groove width of 5mm.
• Output status indicator, the lamp output high, output low lights.
• Obscured output high; unobstructed output low.
• The comparator output, the signal is clean, the waveform, driving ability, more than 15mA.
• Operating voltage 3.3V-5V
• The output in the form: Digital switching outputs (0 and 1)
• A fixed bolt hole for easy installation
• Small plates PCB dimensions: 3.2cm x 1.4cm
• Using a wide voltage LM393 comparator

Specification:

• Material: Plastic
• Size: Approx. 35*15mm / 1.38*0.59inch

Module using the instructions:

• 1. Module slot unobstructed, receiver tube conduction module DO output low, shelter, DO output high;
• 2. Module DO connected to the relay, composed of the limit switch functions can also be connected to the active buzzer module, composed of the alarm.

Package Includes:

• 1 x Sensor Module
