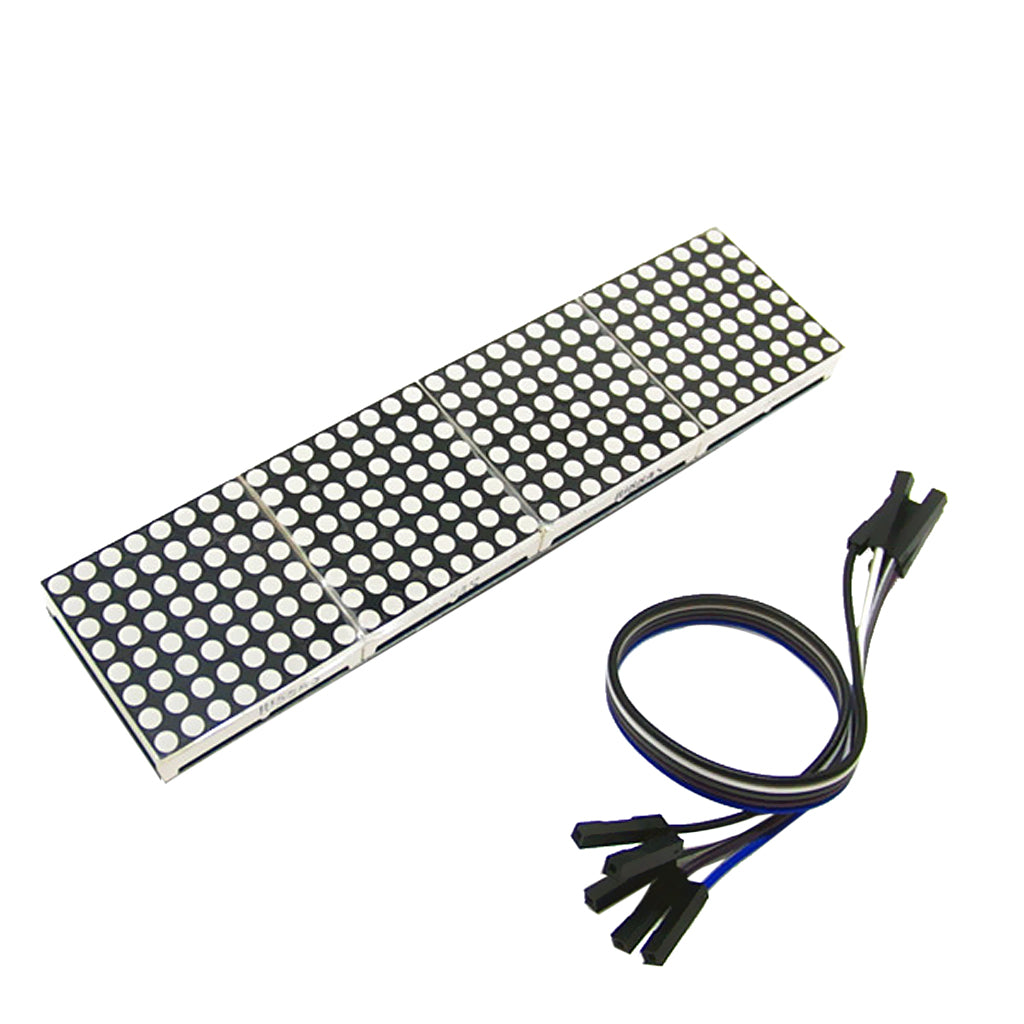

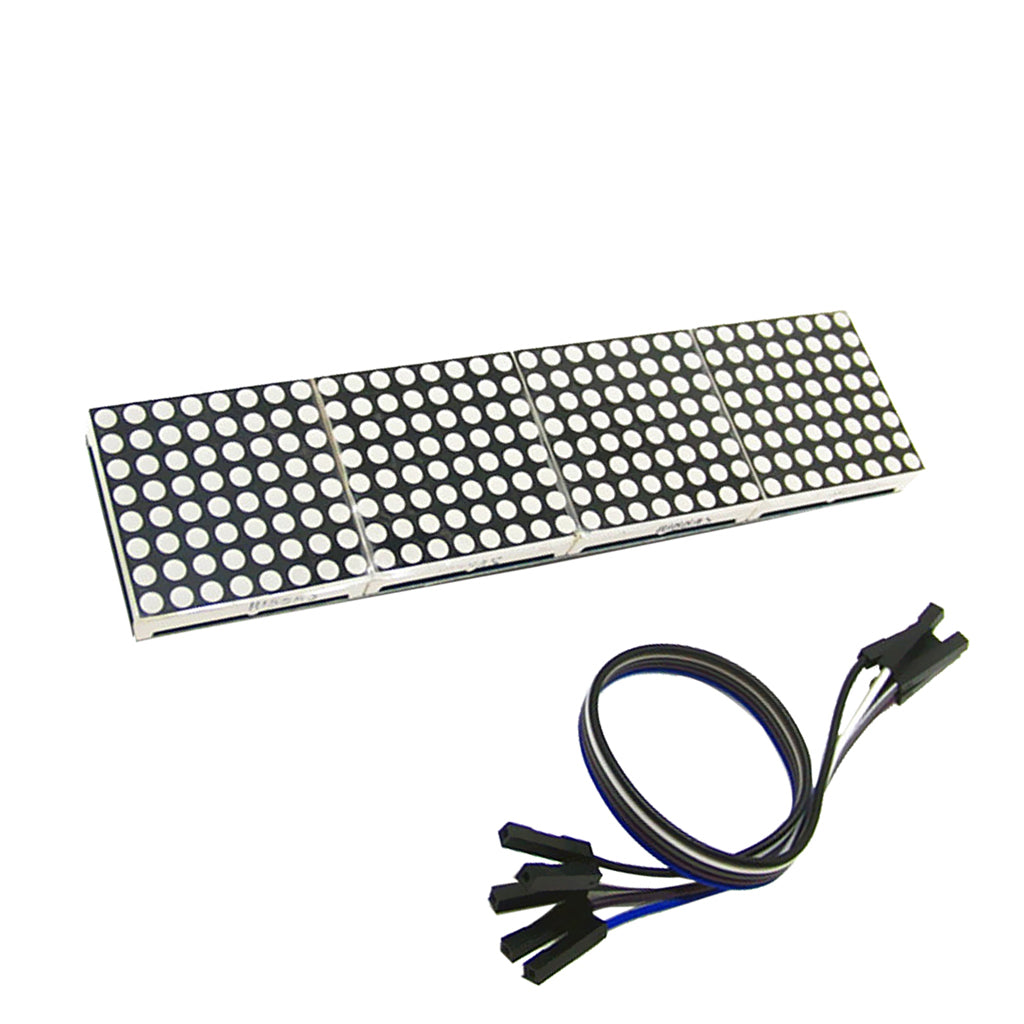

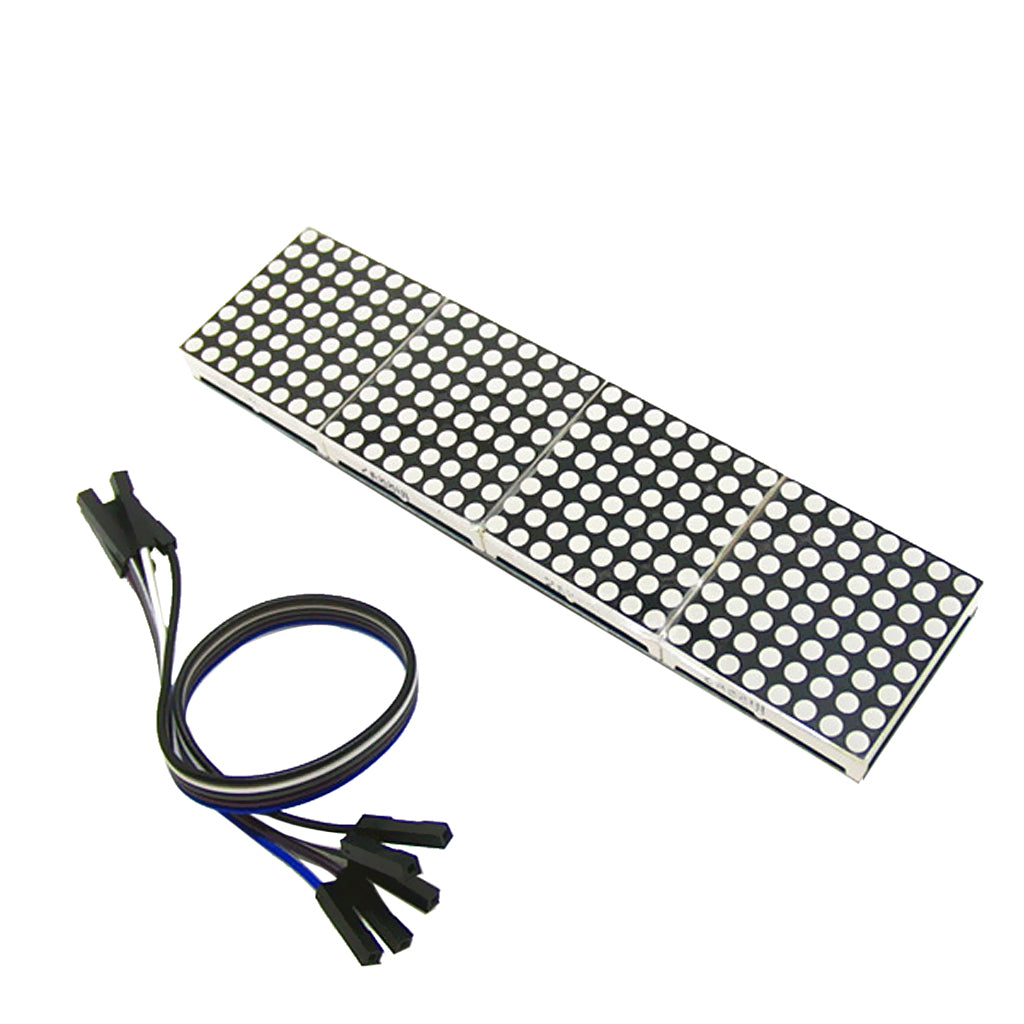

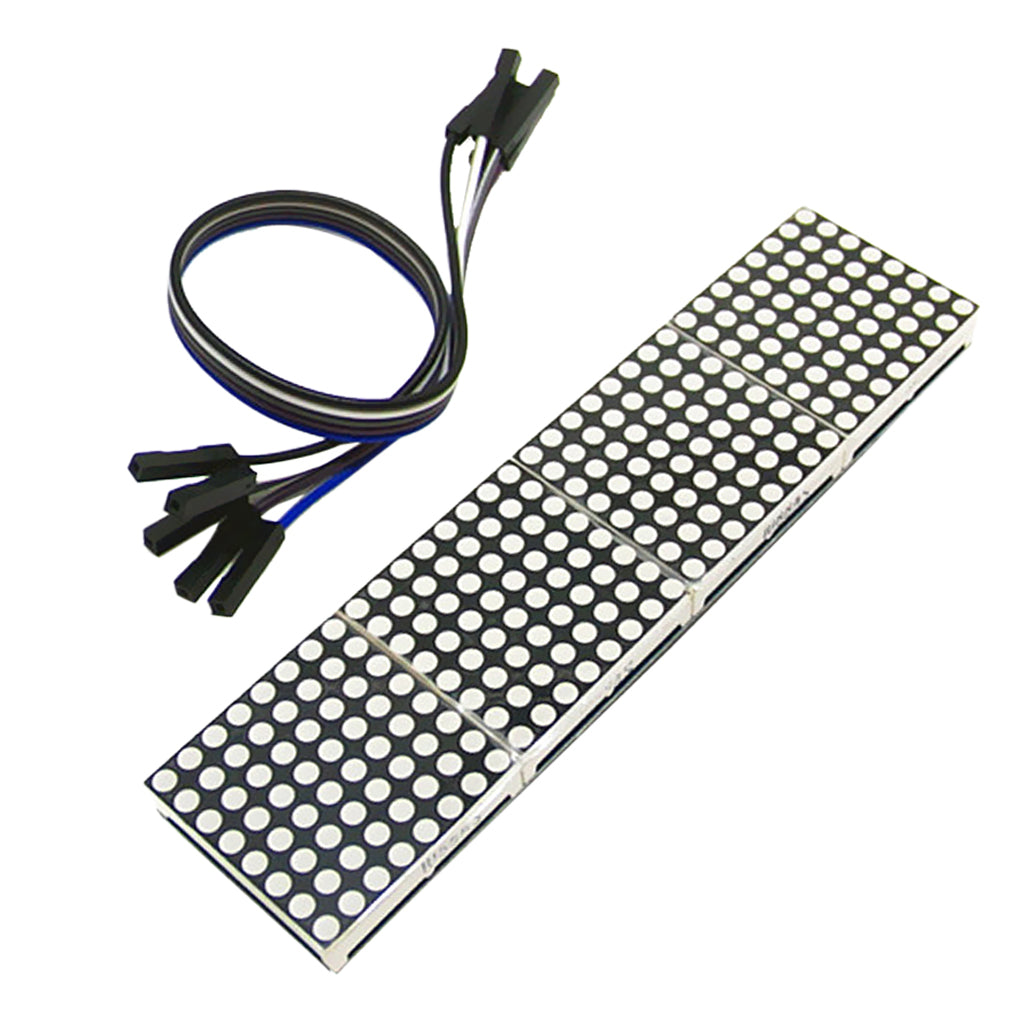

Maxbell MAX7219 LED Dot matrix 8-Digit Digital Display Control Module for Arduino
Description:
A single module can drive an 8 * 8 common cathode lattice
Module Operating voltage: 5V.
Fixing screws with 64 holes with a diameter about 3mmModule with input and output interfaces, supports multiple modules cascade
The control of a single module, just need to input ports from the CPUWire Length: Approx. 20cm/ 7.87inch
Size: Approx. 128x 32x 13mm/ 5.04x 1.26x 0.51inch
Specification:
Wiring instructions:

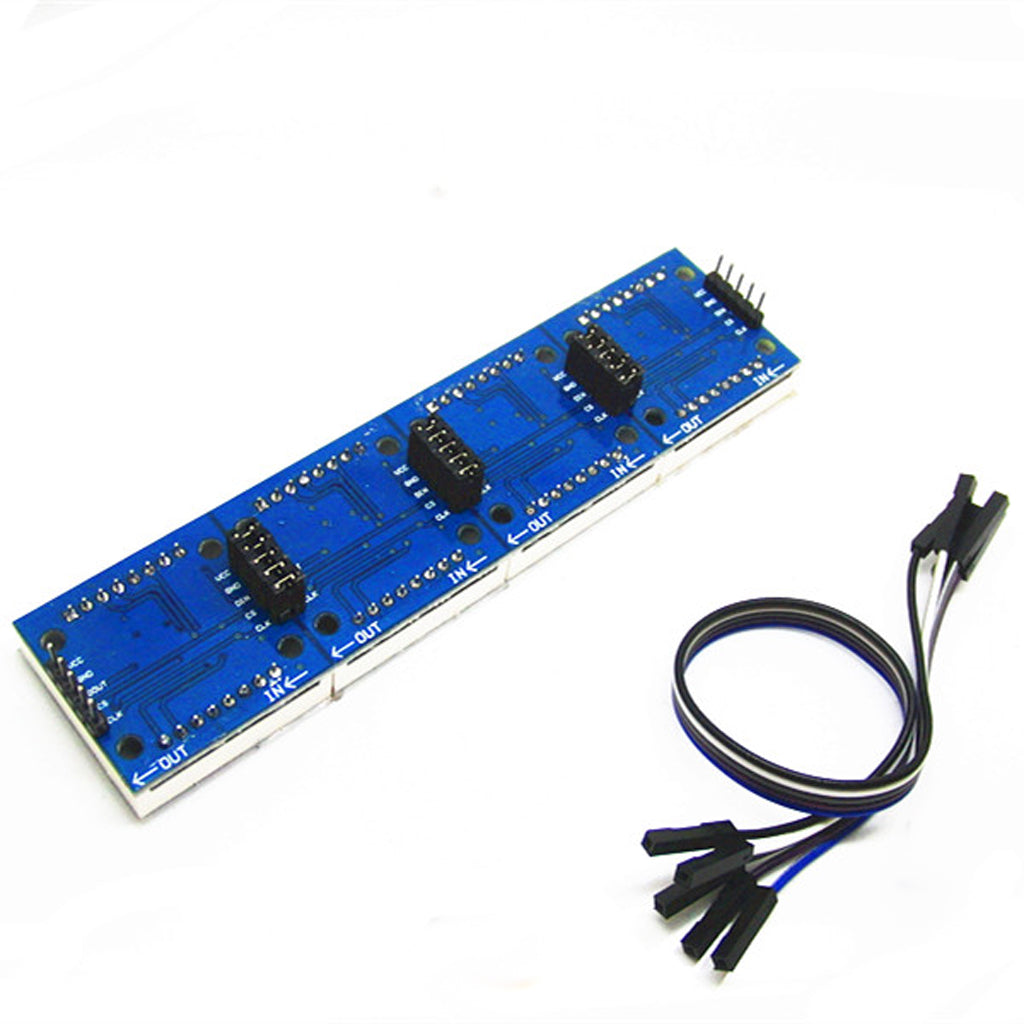

The module left as an input port to the output port on the right.
The control of a single module, simply input port to the CPU
Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ...
51 MCU, for example:
VCC → 5V
GND → GND
DIN → P22
CS → P21
CLK → P20
Package Includes:
1 Piece MAX7219 LED Dot matrix Module
1 Piece 20cm 5P Line
