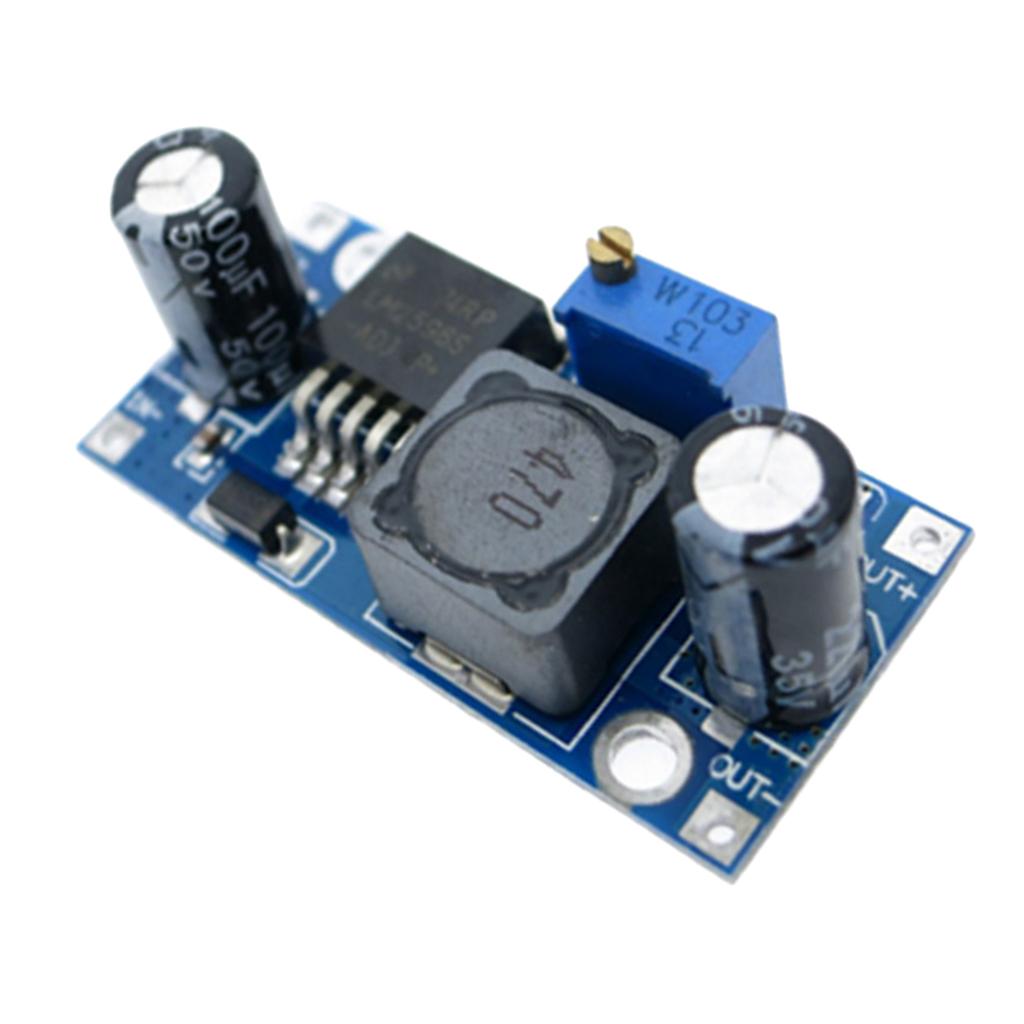

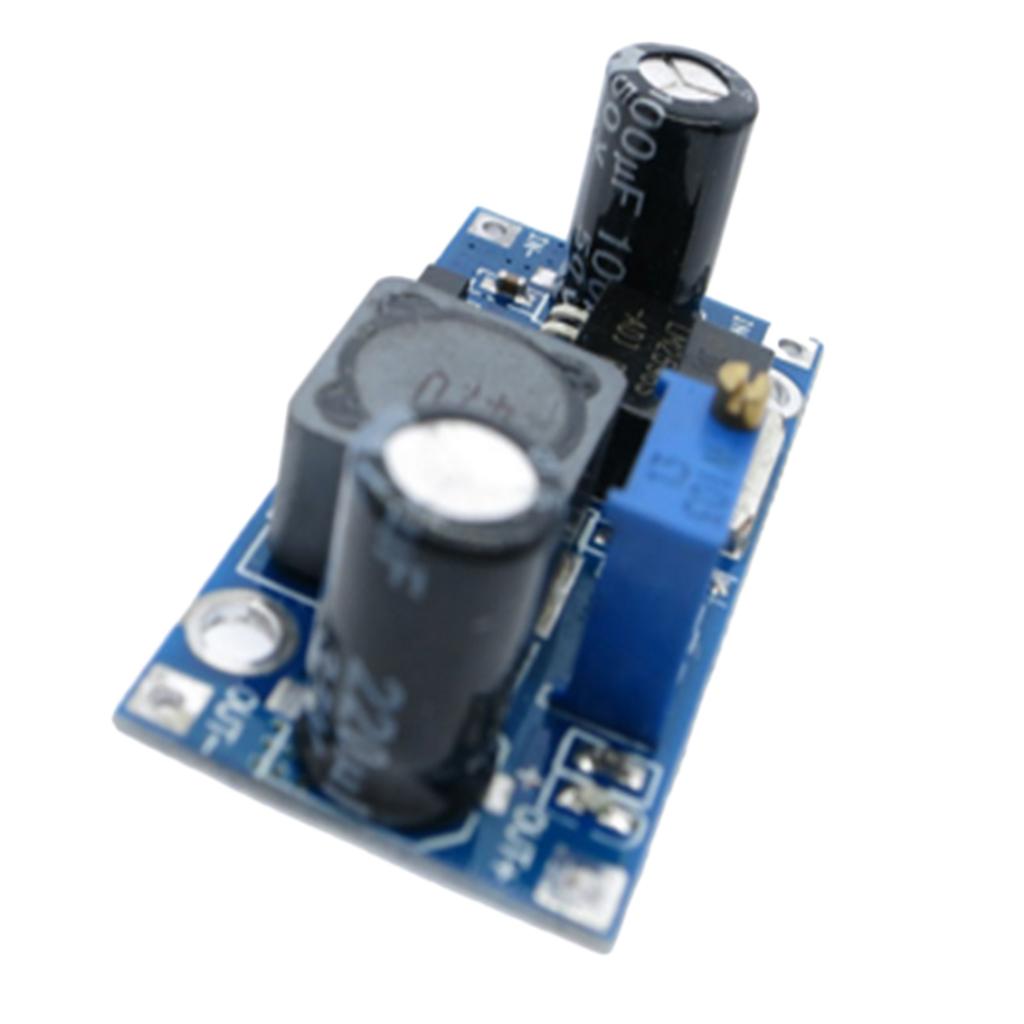

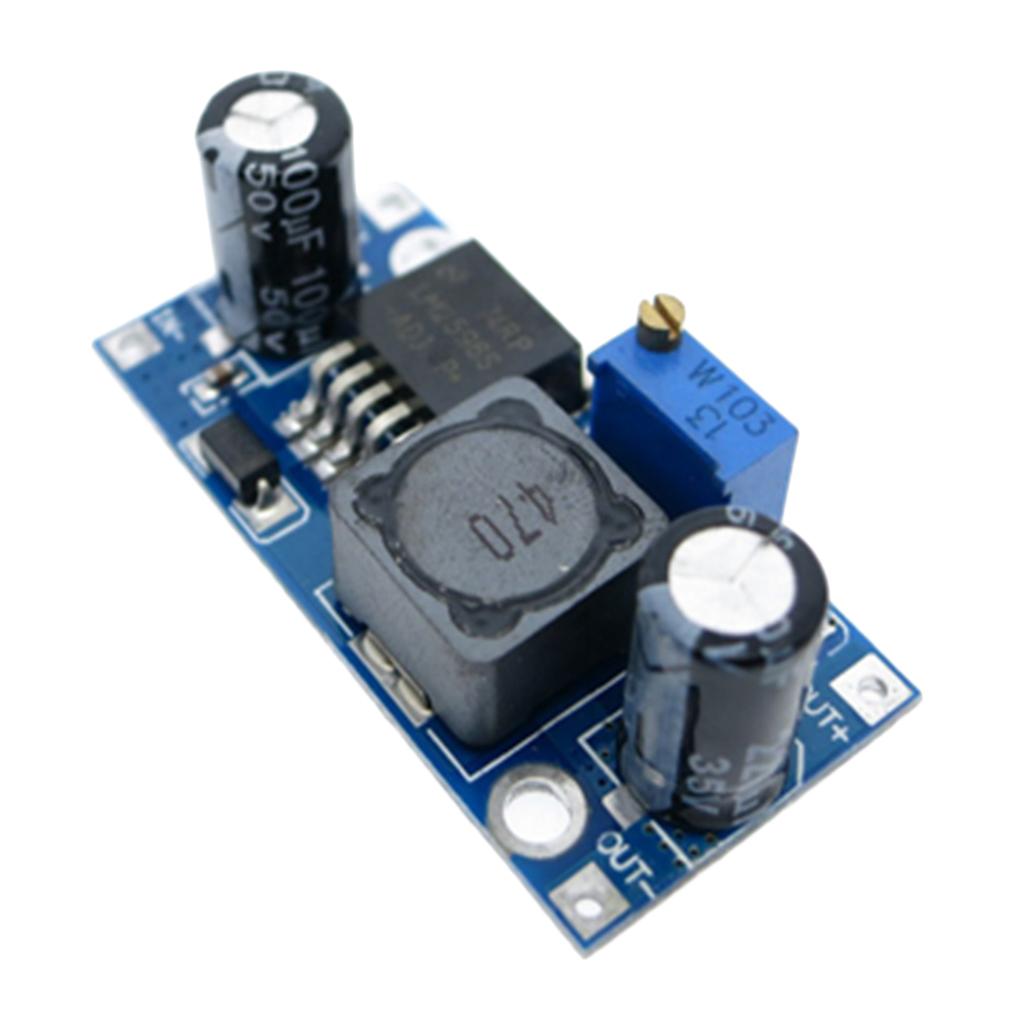

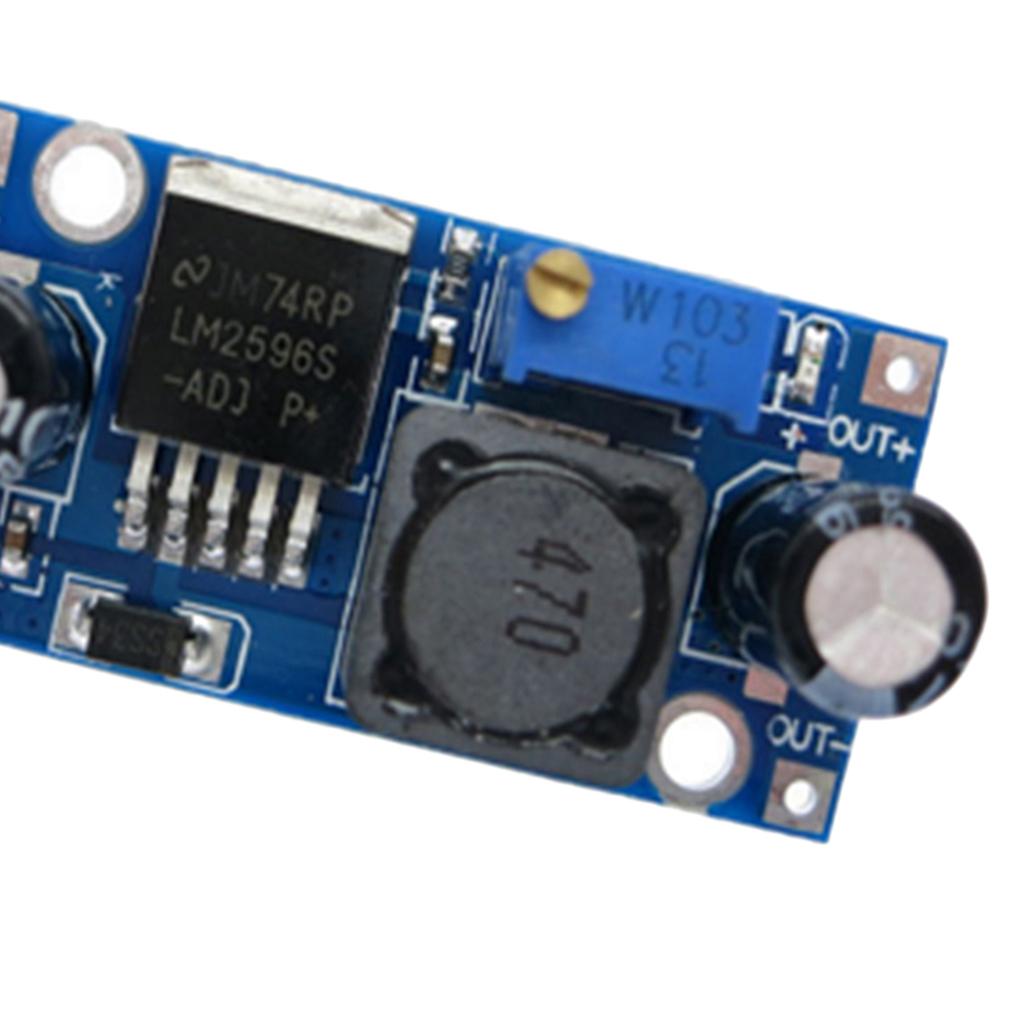

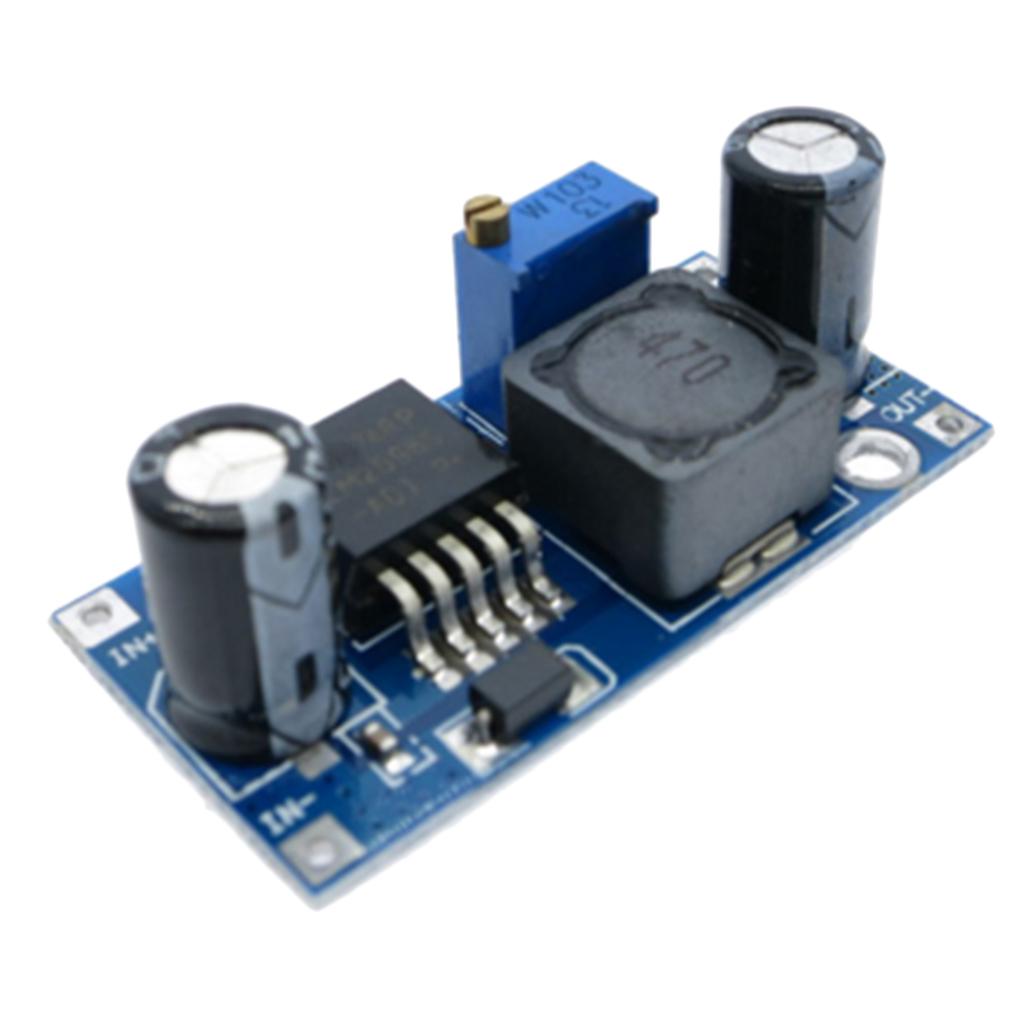

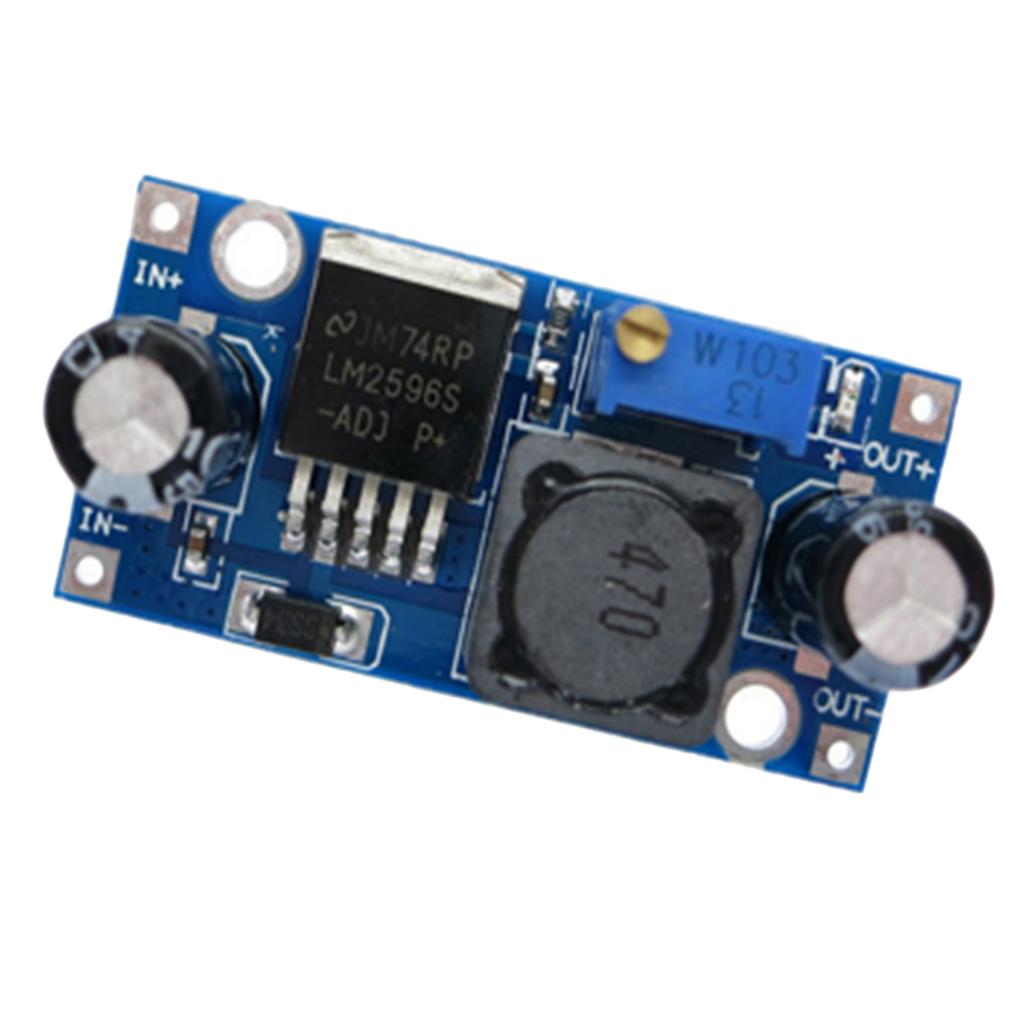

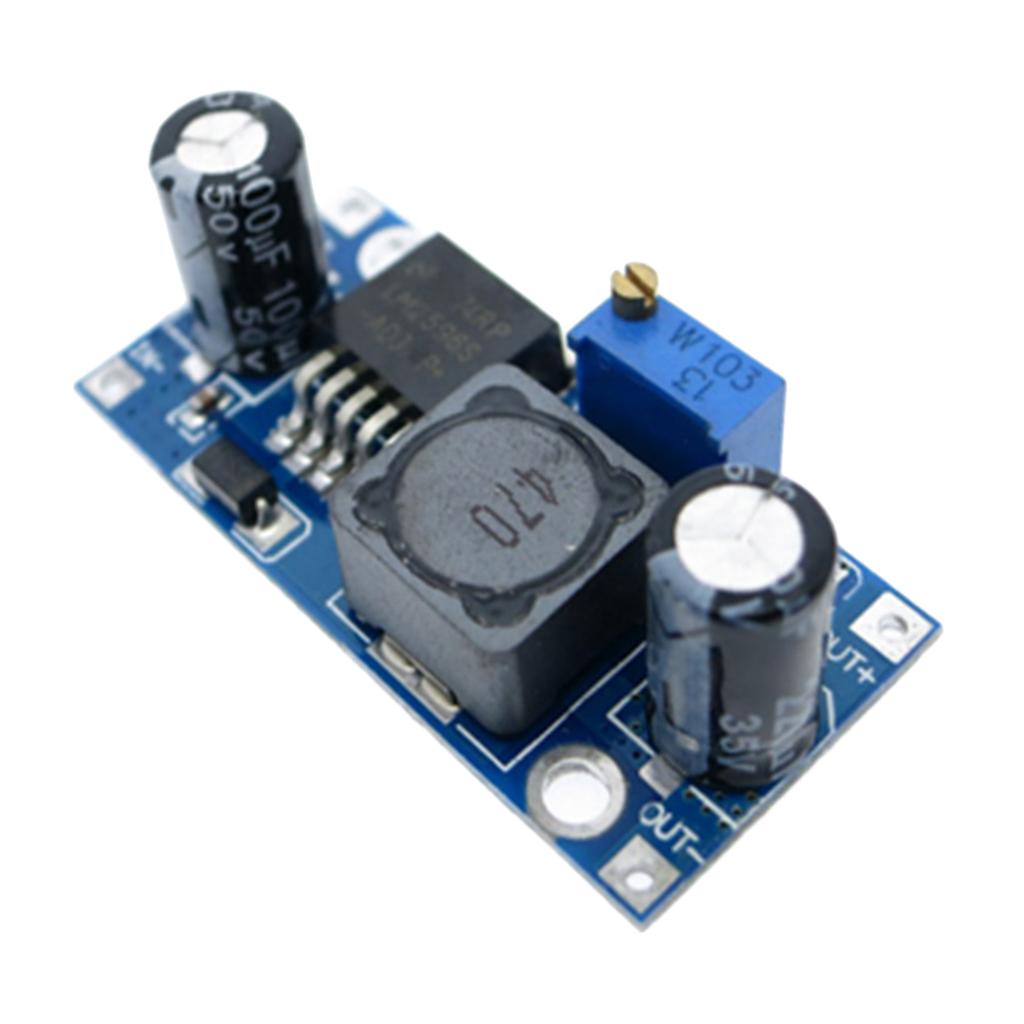

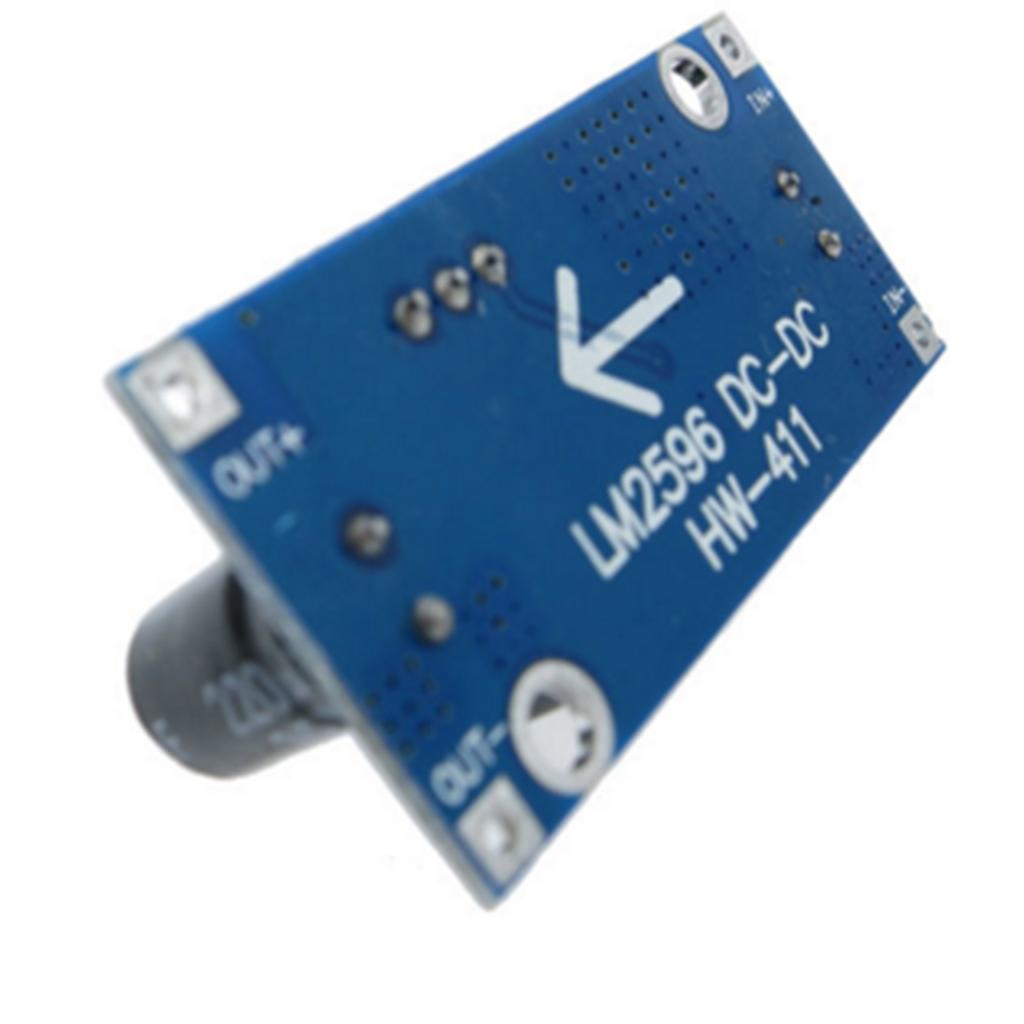

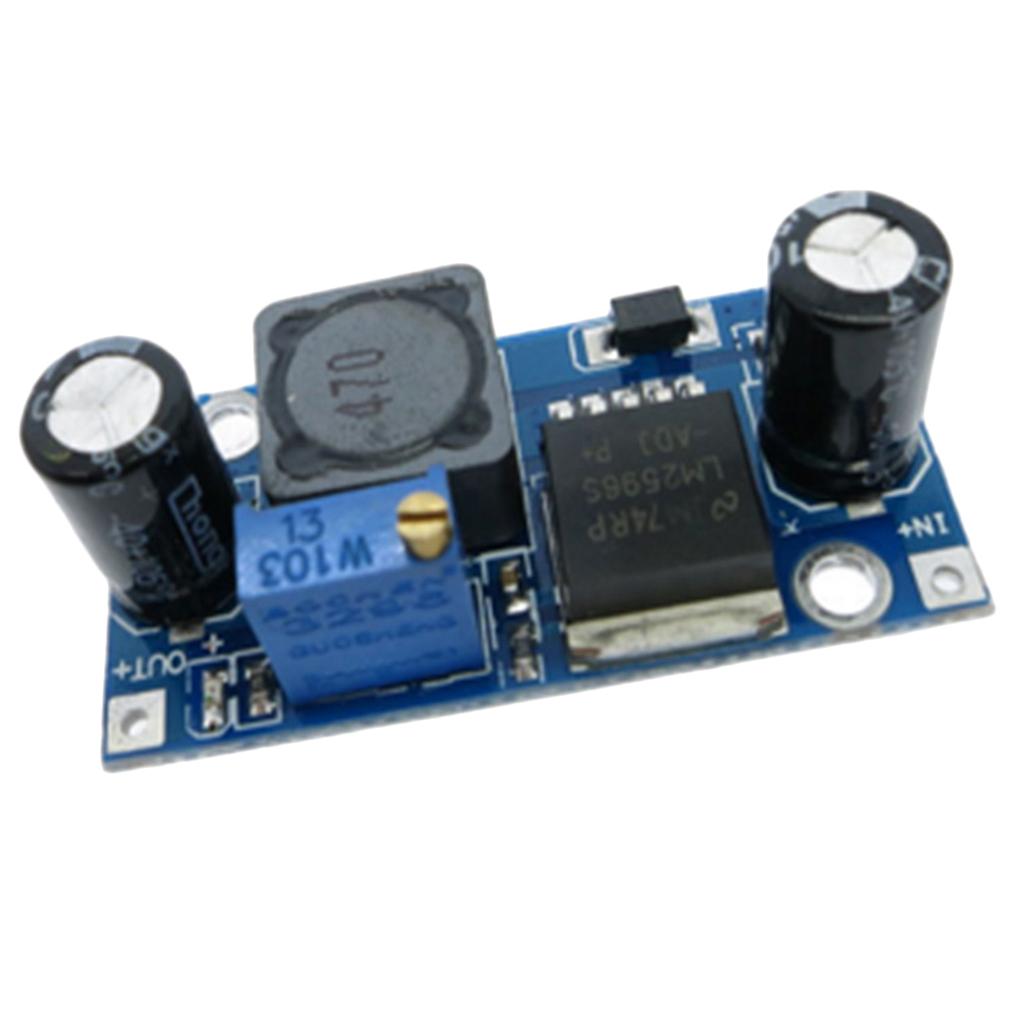

Max LM2596S-ADJ Power Module DC-DC Buck Regulator 3A Adjustable 5V/12V/24V
Description:
LM2596 chip module uses high-quality , high efficiency (up to 92% ) , heat a small , can easily bring up 3A ( short ) over current, long working hours is recommended for use in less than 2.5A current , while adding fins (10W output above ) .
This module uses machine placement, reflow soldering, and each module before shipment after two hours of aging test, to ensure high reliability.
Input voltage range: DC 3.2V-40V (input voltage output voltage must be higher than 1.5V or more. Could not boost)
Output voltage range: 1.25V-35V DC voltage is continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A.
Specification:
Module property : Non-isolation buck
Rectification mode: Non-synchronous rectification
Input voltage: 3.2V-40V
Output voltage:1.25V-35V
Input current: 3A(maximum)
Conversion efficiency: 92%( highest)
Switching frequency : 150KHz
Output ripple:30mV(maximum) Load regulation :±0.5%
Voltage regulation: ±2.5%
Work temperature: -40℃ -- +85℃
Size: 43x21x14mm / 1.69x0.82x0.55inch
Package Includes:
1 Piece Power Module DC-DC Buck Regulator
