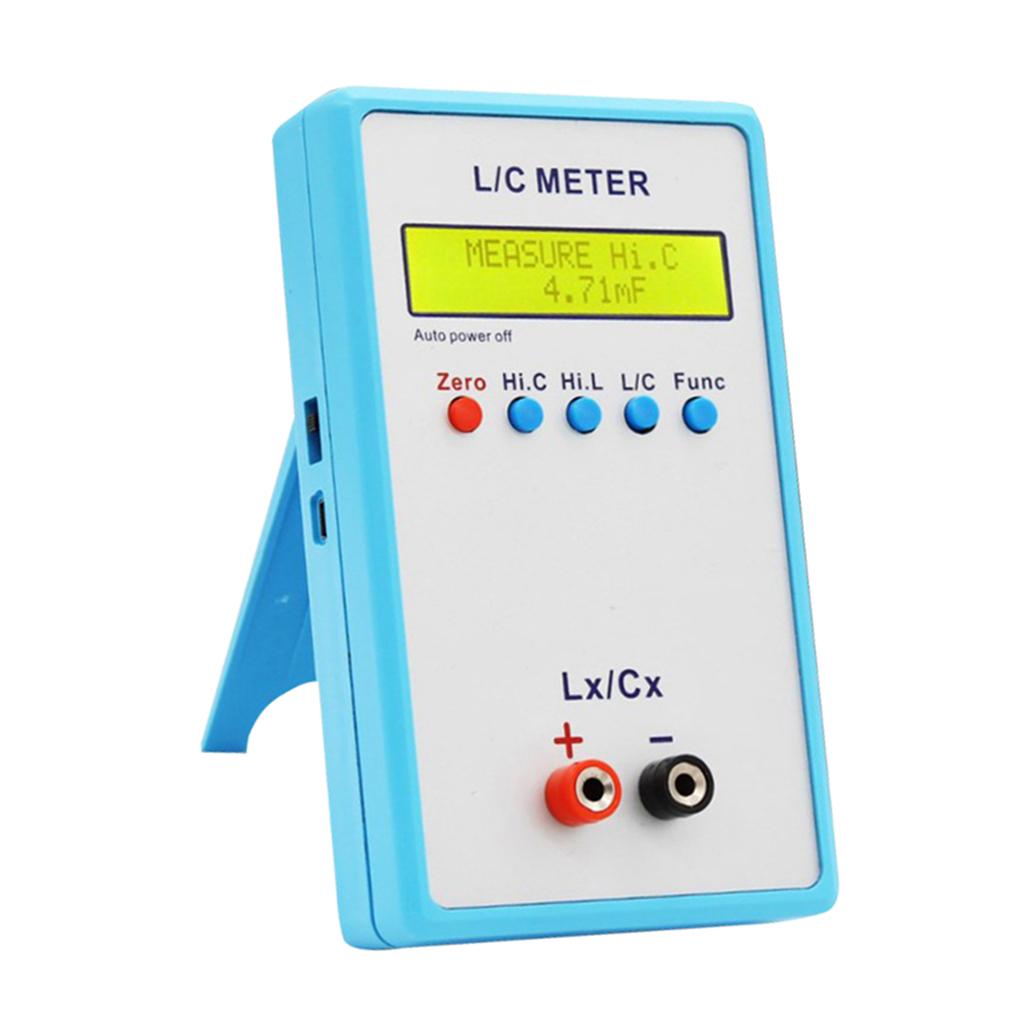

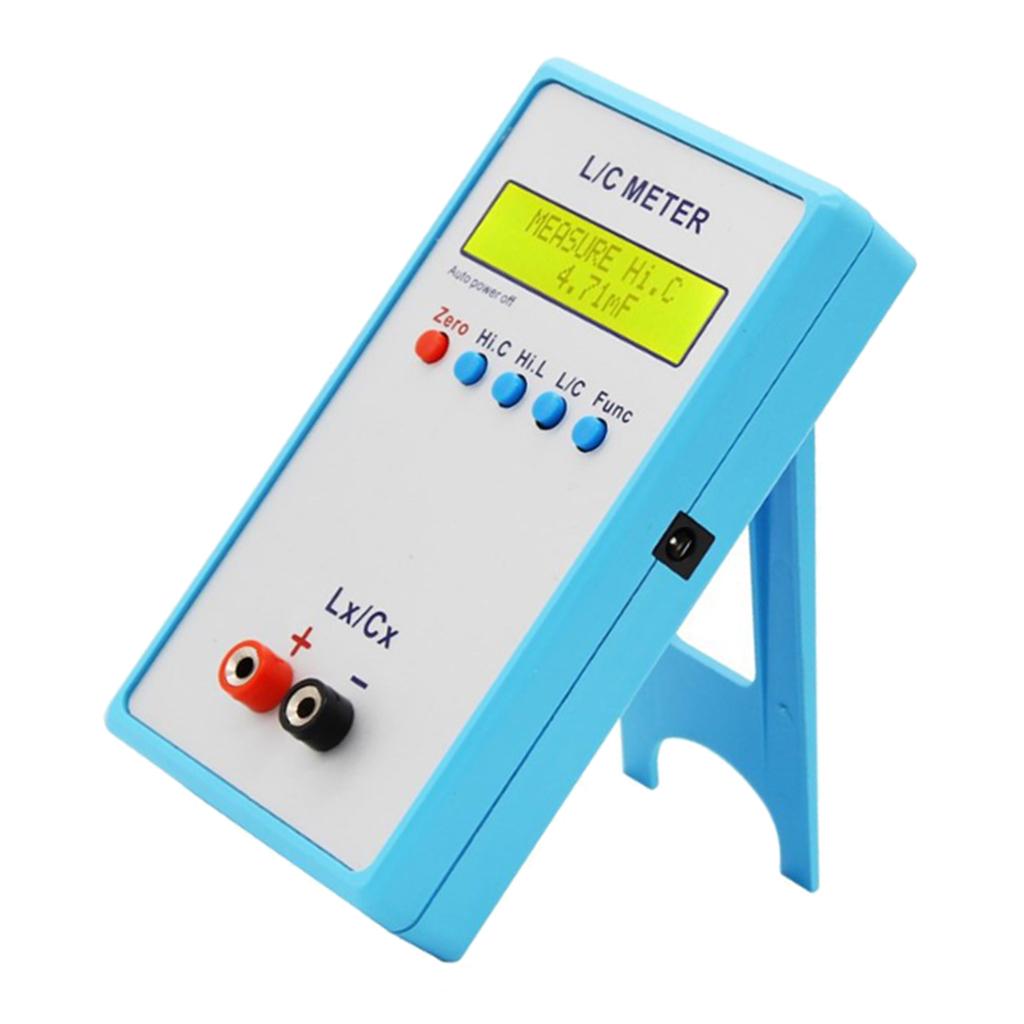

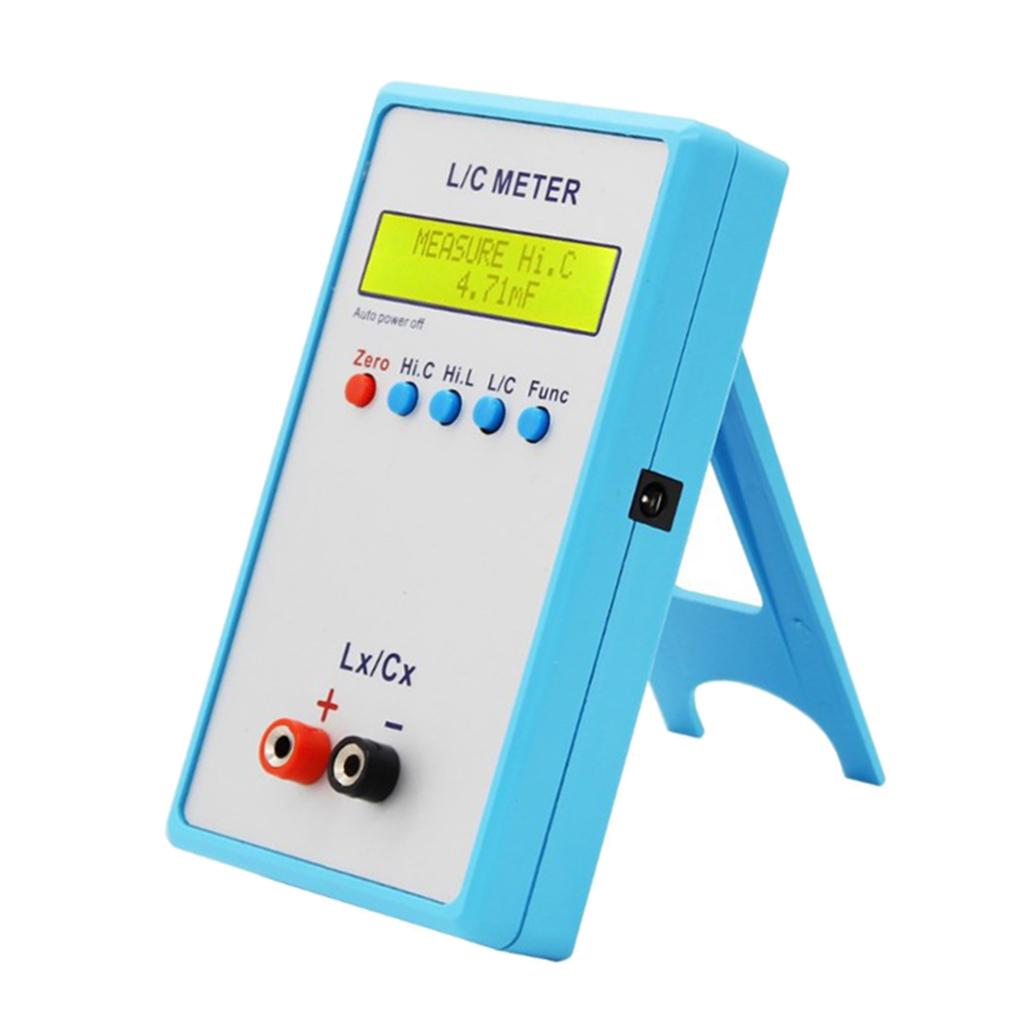

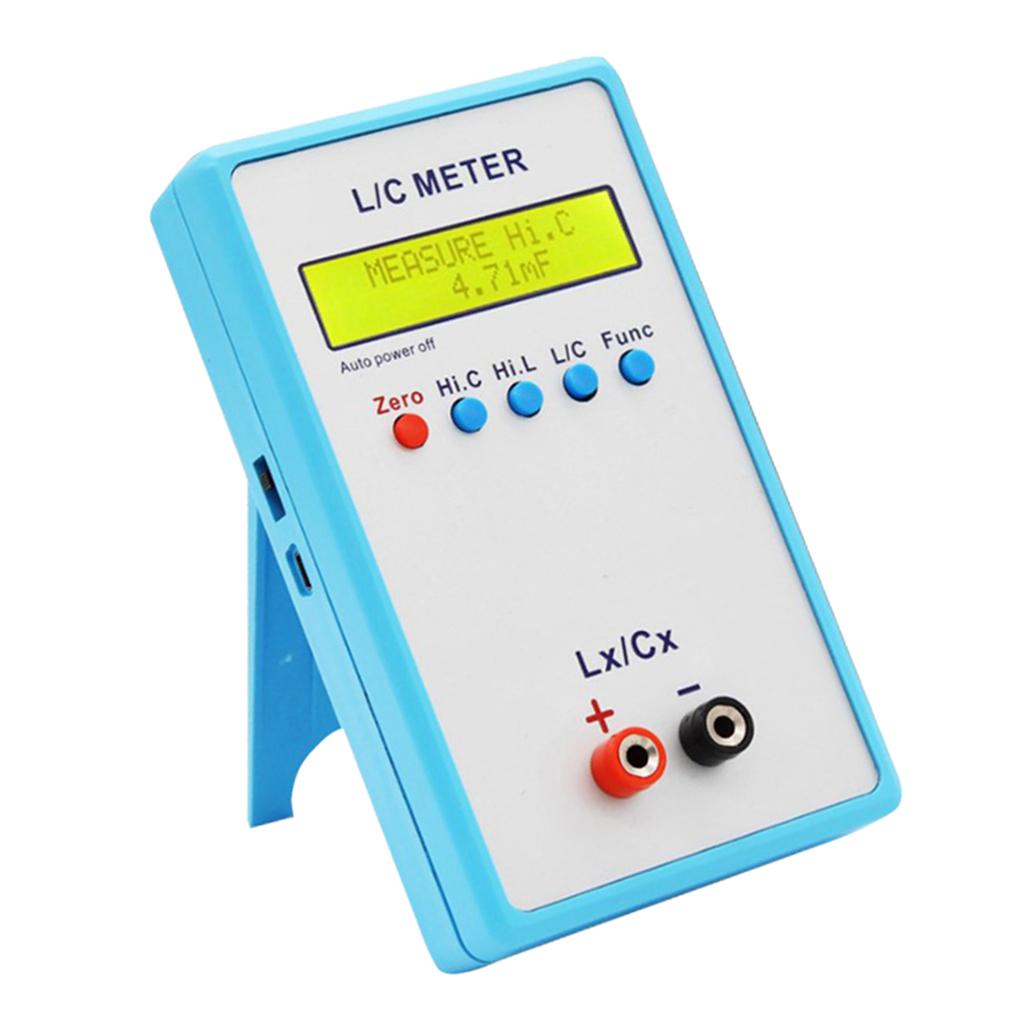

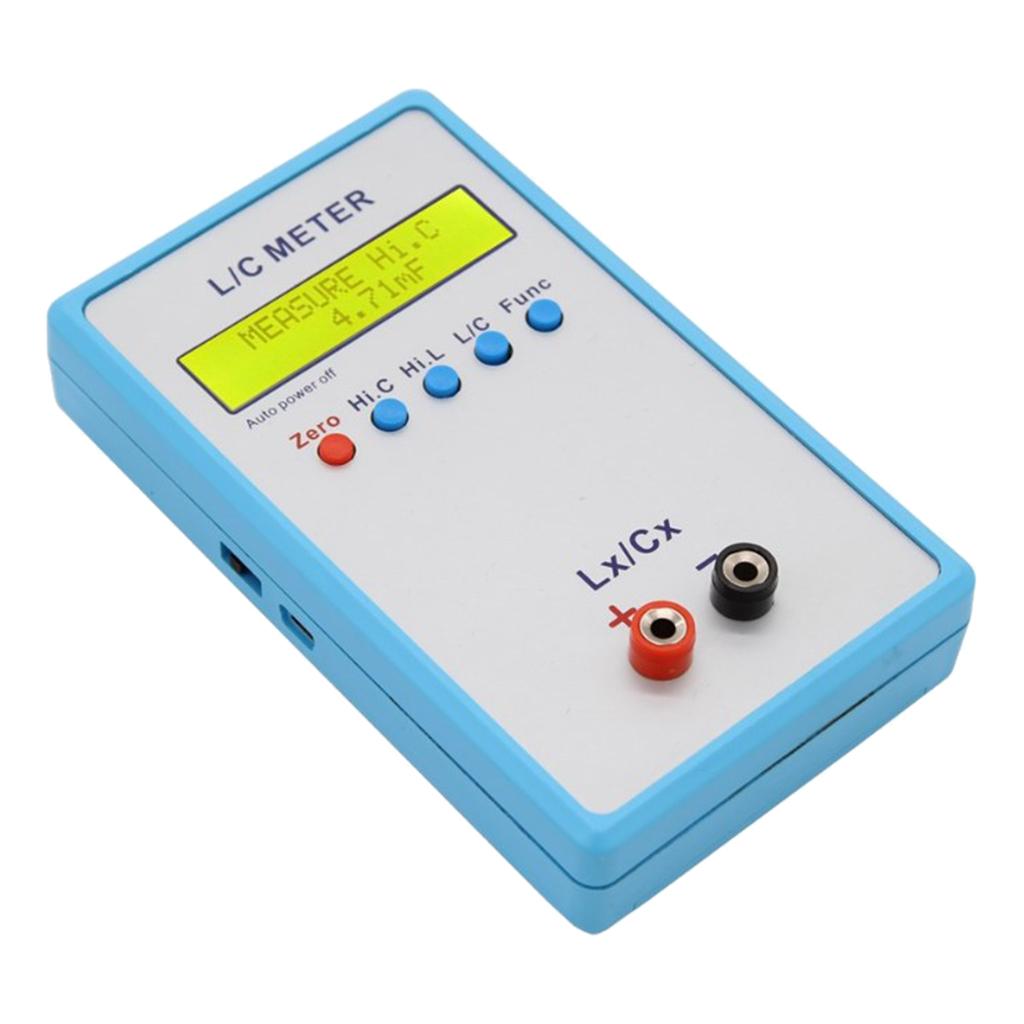

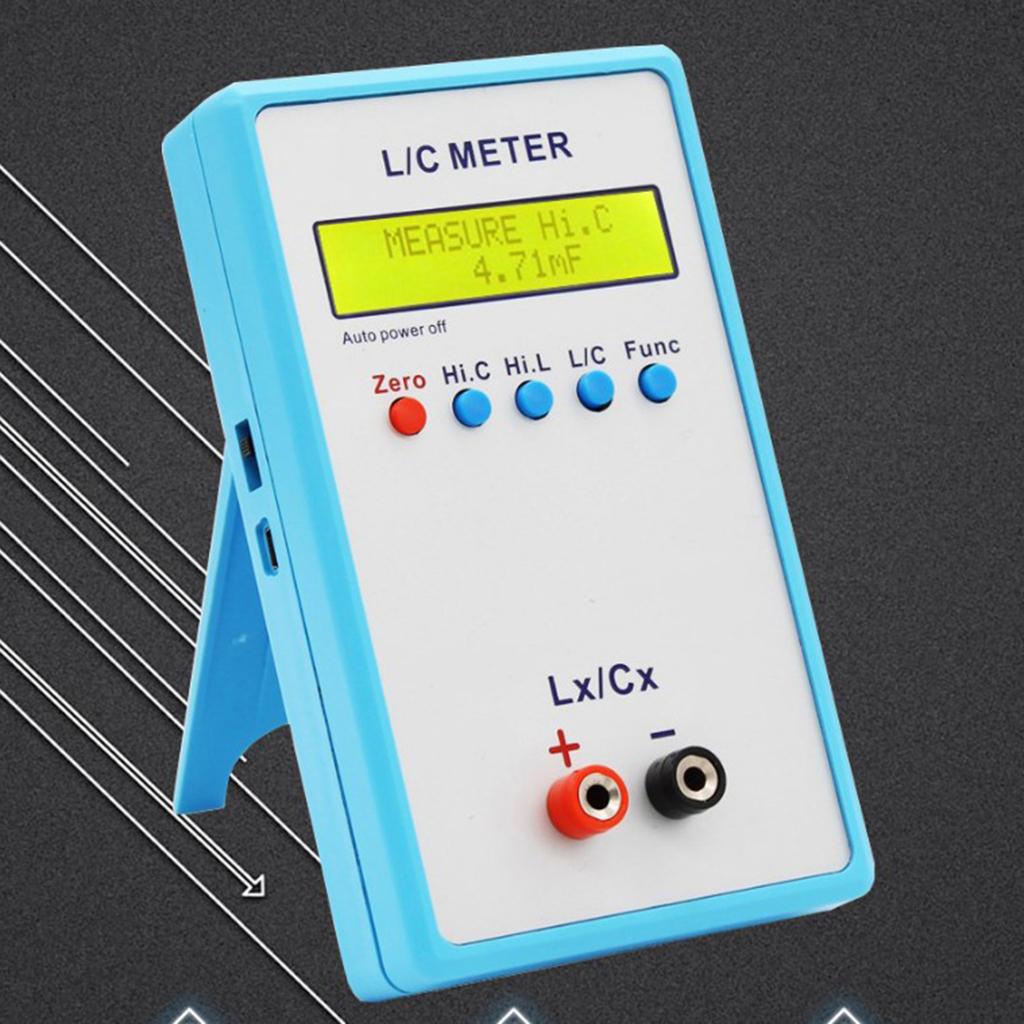

Max LC-200A Digital LCD Capacitance Inductance Meter LC 1pF-100mF 1uH-100H

Description:

LC200A handheld inductor and condenser meter is an LC tester built by the Department to open the mold.
It has a wide range and is easy to use.
With a blue plastic case, the internal use of high quality surface mount components to ensure excellent quality.
It can measure 1pF-100mF capacitance and 1uH-100H inductance, capacitance resolution up to 0.01pF, inductor resolution 0.001uH.
Especially qualify in microwave manufacture and measuring switching power supply transformer, filter inductance and so on.

Specification:

C range: capacitance (1pF-10uF)
Capacitance Accuracy: 1% (1pF ~ 1 uF), 5% (1 uF ~ 10 uF)
Capacitance measurement resolution (range C): 0.01pF
Hi range C: Great capacitance, 1uF-100mF
High capacitance accuracy: 5% (1uF-100mF)
High capacitance measurement resolution (range Hi. C): 0.01 uF
L range: inductance (1uH-100mH)
Inductance Accuracy: 1% (1 ° MH 100mH)
Inductance measurement resolution (range L): 0.001uH
Hi L range: large inductance (0.001 mH-100 H)
High inductance accuracy: 1% (100 mH ~ 1 H), 5% (1 H ~ 100 H)
High inductance measurement resolution (range Hi. L): 0.001mH
Test frequency: range L 、 C, 500 kHz; Hi. 500Hz ~ 50KHz L
Capacitance inductance and large inductance measurement method: LC resonance
High capacitance measurement method: Load discharge
Display: 1602 LCD screen
Effective display digits: 4 digits

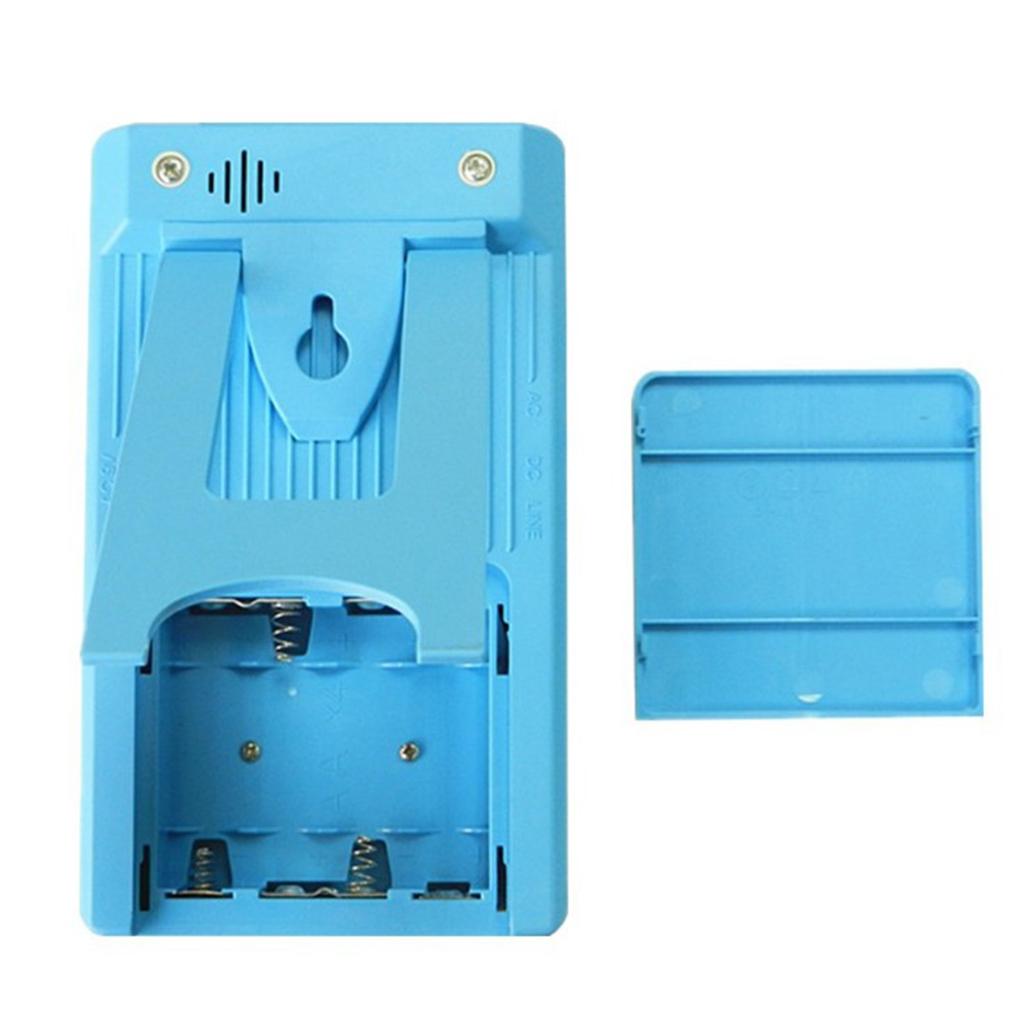

Power supply interface: Mini USB & Φ5. 5 DC plug, 4 AA batteries(Not Include)
Supply voltage: 5V

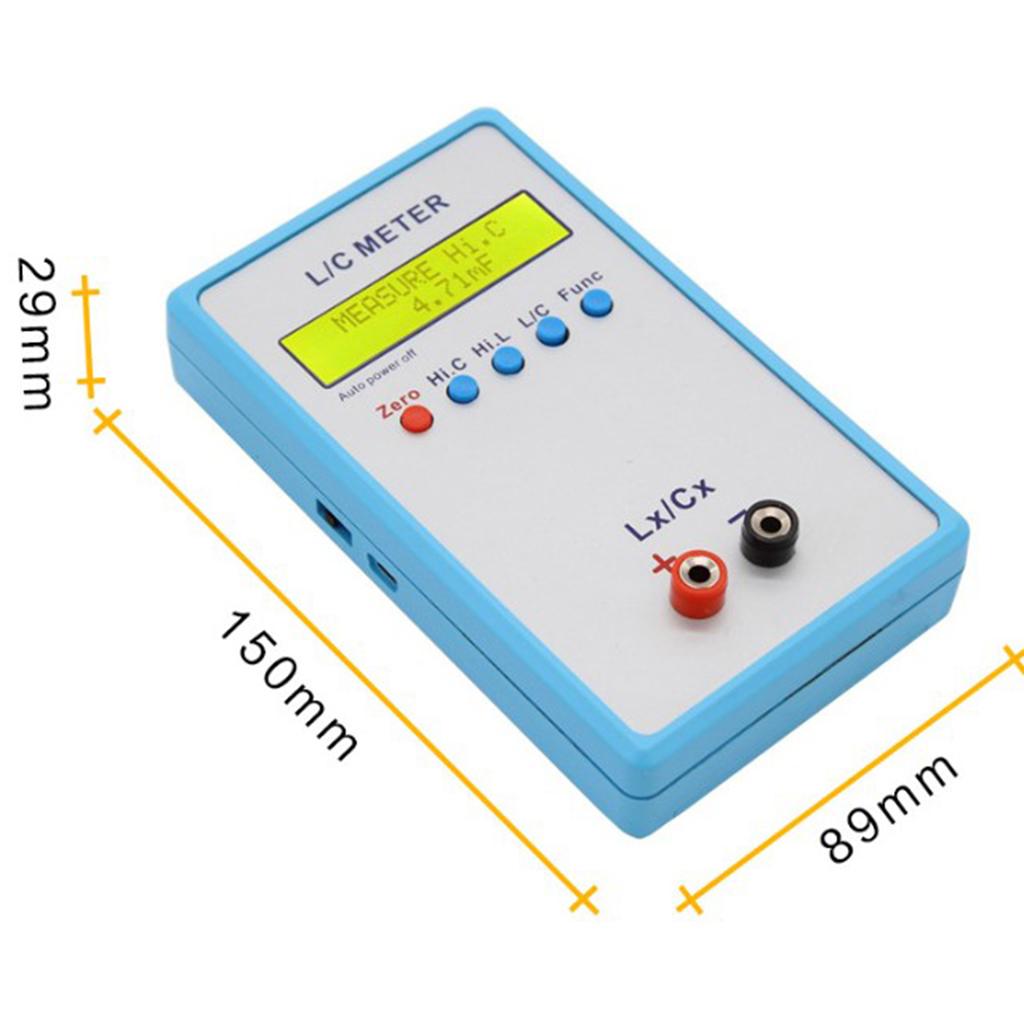

Size Chart:

Size: 150x89mm / 5.90x3.50inch

Package Includes:

1 Piece LC200A L/C Meter

Note:

Please allow 1-3mm measuring deviation due to manual measurement.
Due to the different monitor and light effect,the actual color of the item might be slightly different from the color showed on the pictures.
