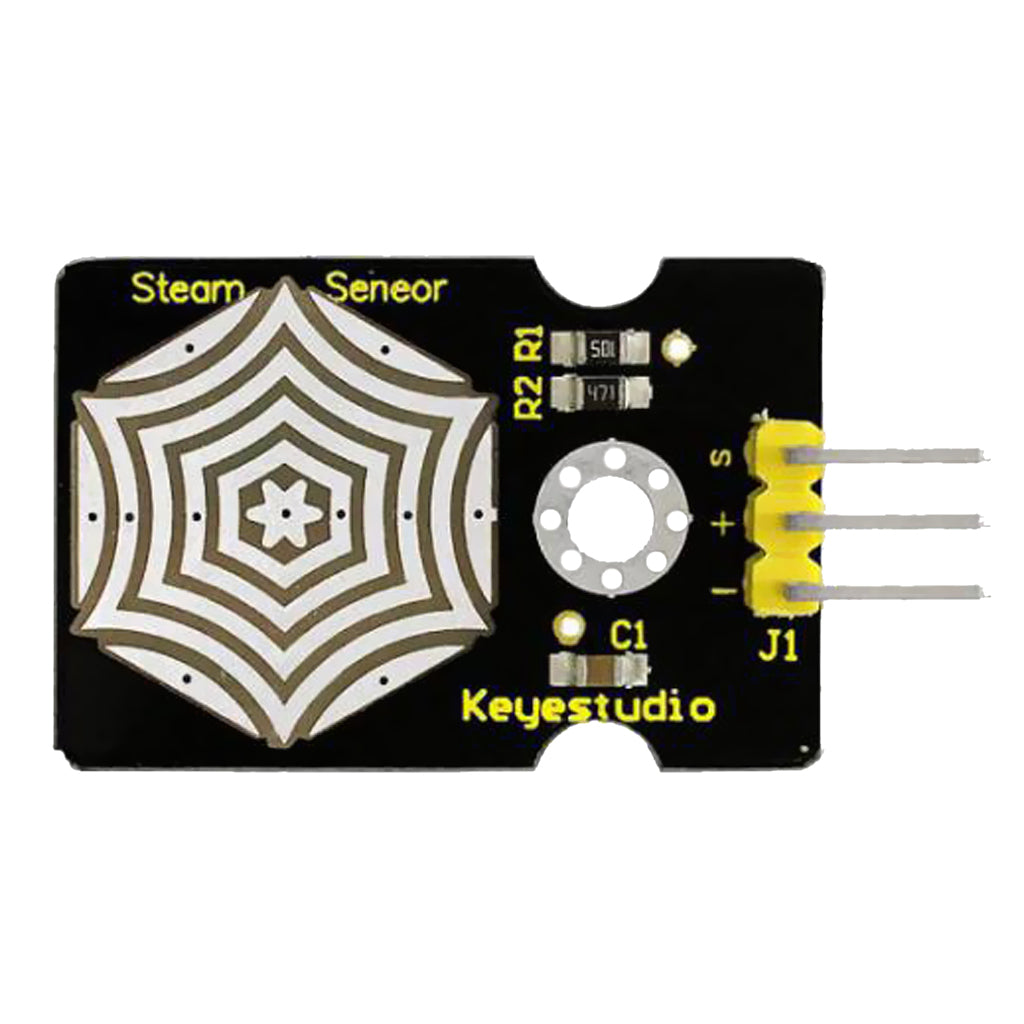

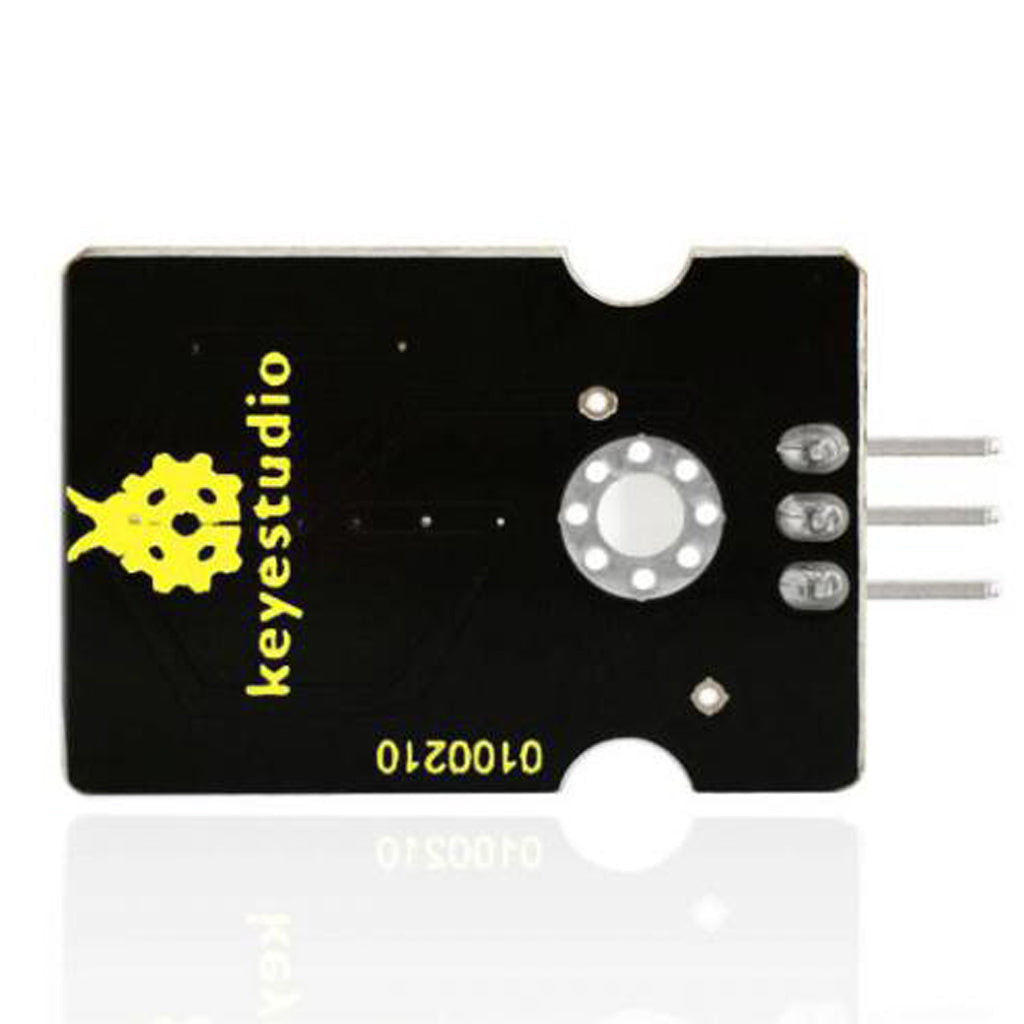

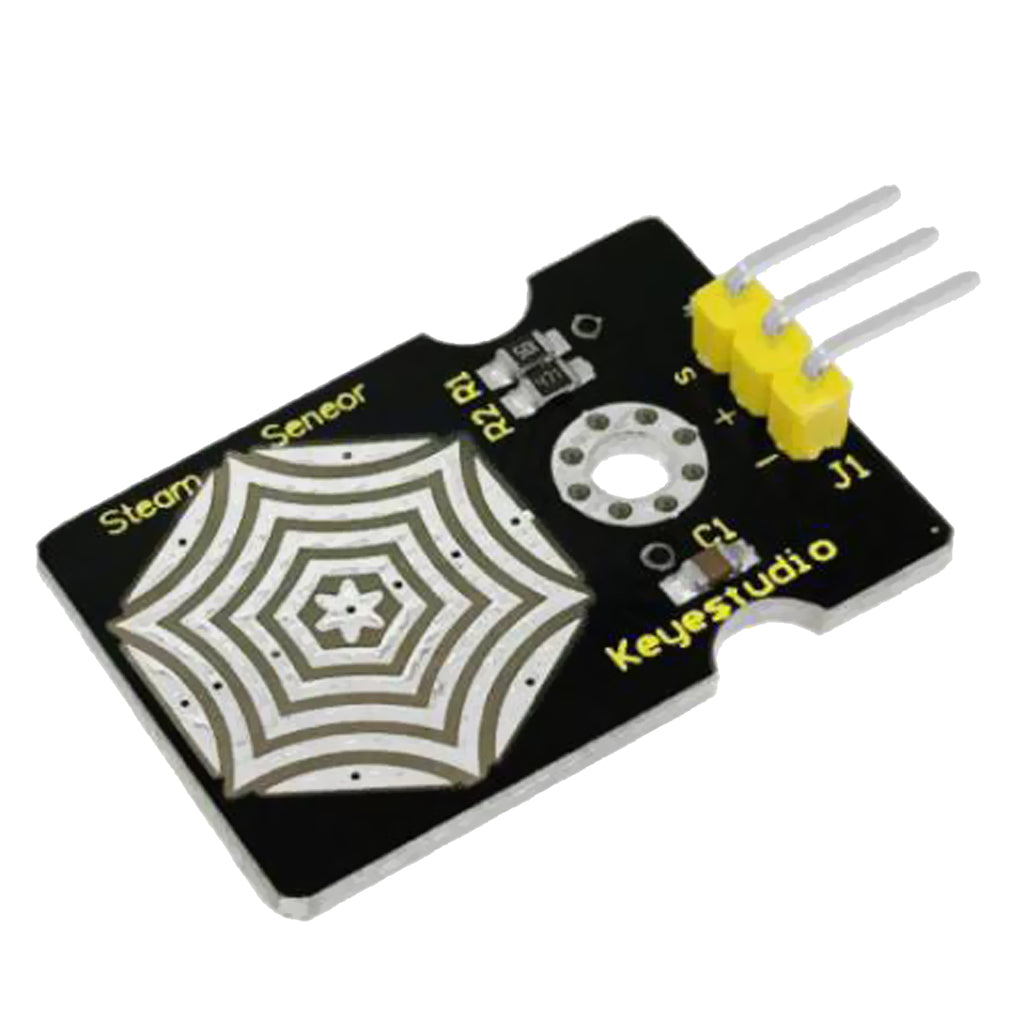

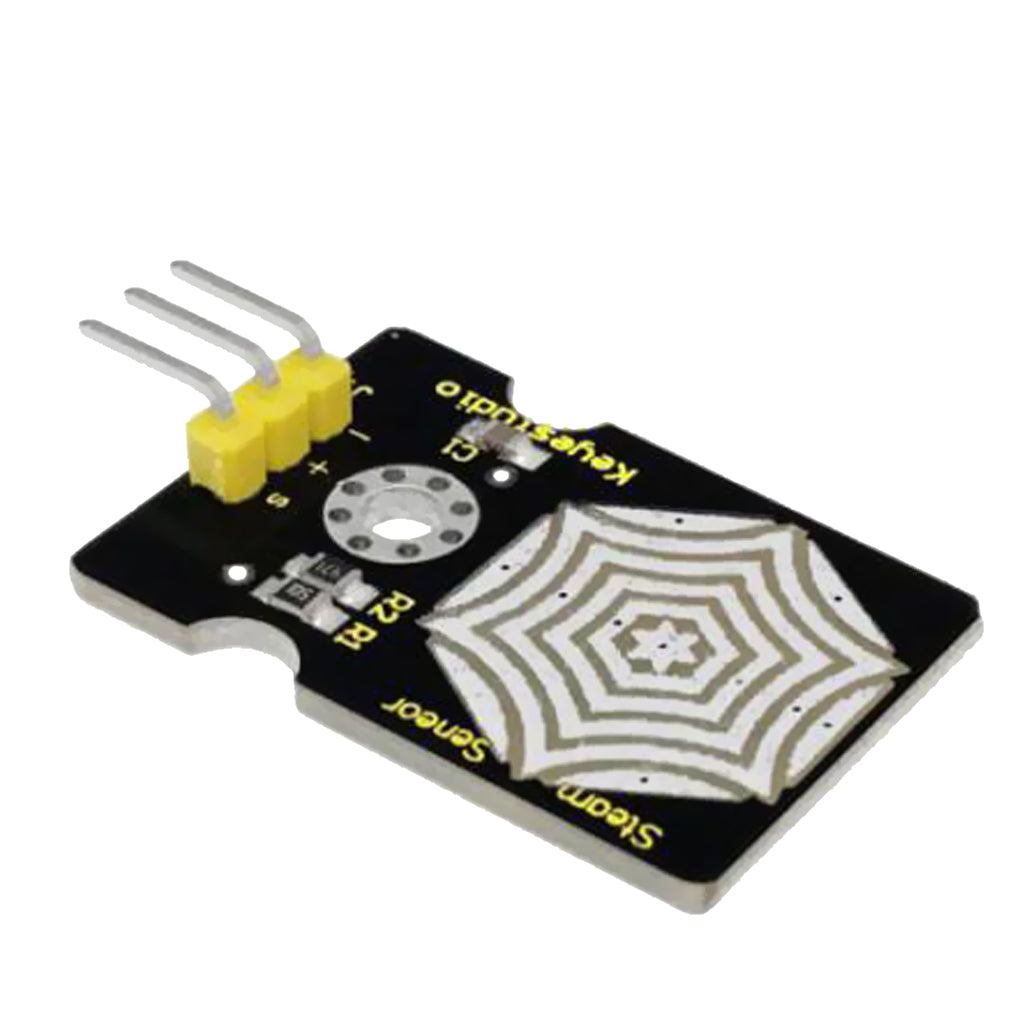

Maxbell Keyestudio Vapor Sensor for Arduino Rainwater Detector Liquid Level Switch

Description:

• Vapor Sensor is an analog sensor and can make a simple rainwater detector and liquid level switch
• This module is ideally suited to adding water/steam detection to build in water detection, for your weather, watering or monitoring project
• This is a sensor module which can detect water droplets and relay a signal to a micro-controller or project
• The board outputs analog signals, the analog output will change with the level of water detected upon the plate when read by an analog pin
• When humidity on the face of this sensor rises, output voltage will increase

Specification:

• Working Voltage: 3.3V or 5V
• Working Current: <20mA
• Range of Working Temperature: -10°C~+70°C
• Interface Type: Analog Signal Output
• Pin Definition: S: Signal Output; +: Power Supply(VCC); -: Ground(GND)
• Size: 3.6 x 2 x 0.8 cm/ 1.42 x 0.79 x 0.31 inch
• Material: FR-4 Epoxy Glass Fibre Board

Package Includes:

• 1pcs Vapor Sensor

Note:

• Please allow 1-3mm differs due to manual measurement.
• Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
