Max IR Infrared Obstacle Avoidance Sensor Module, Object Detector for Arduino
Description:

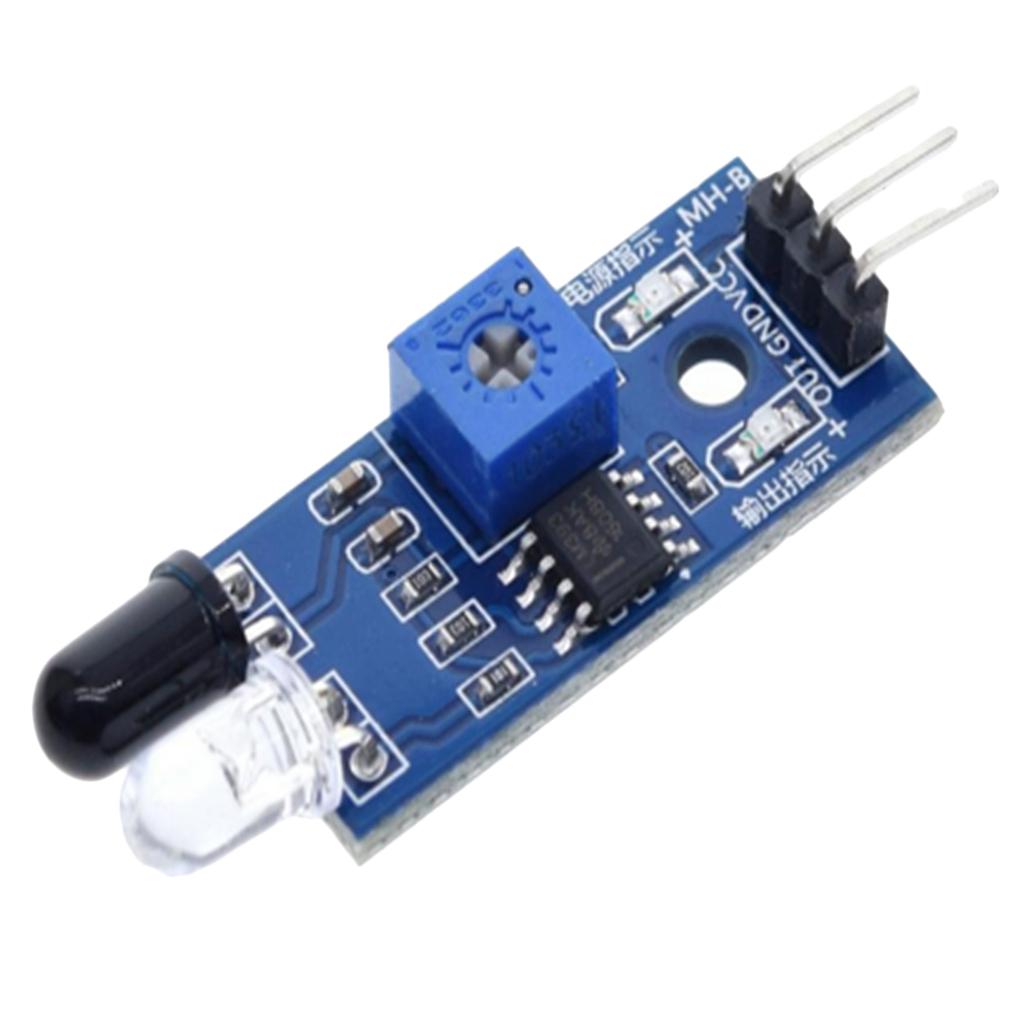

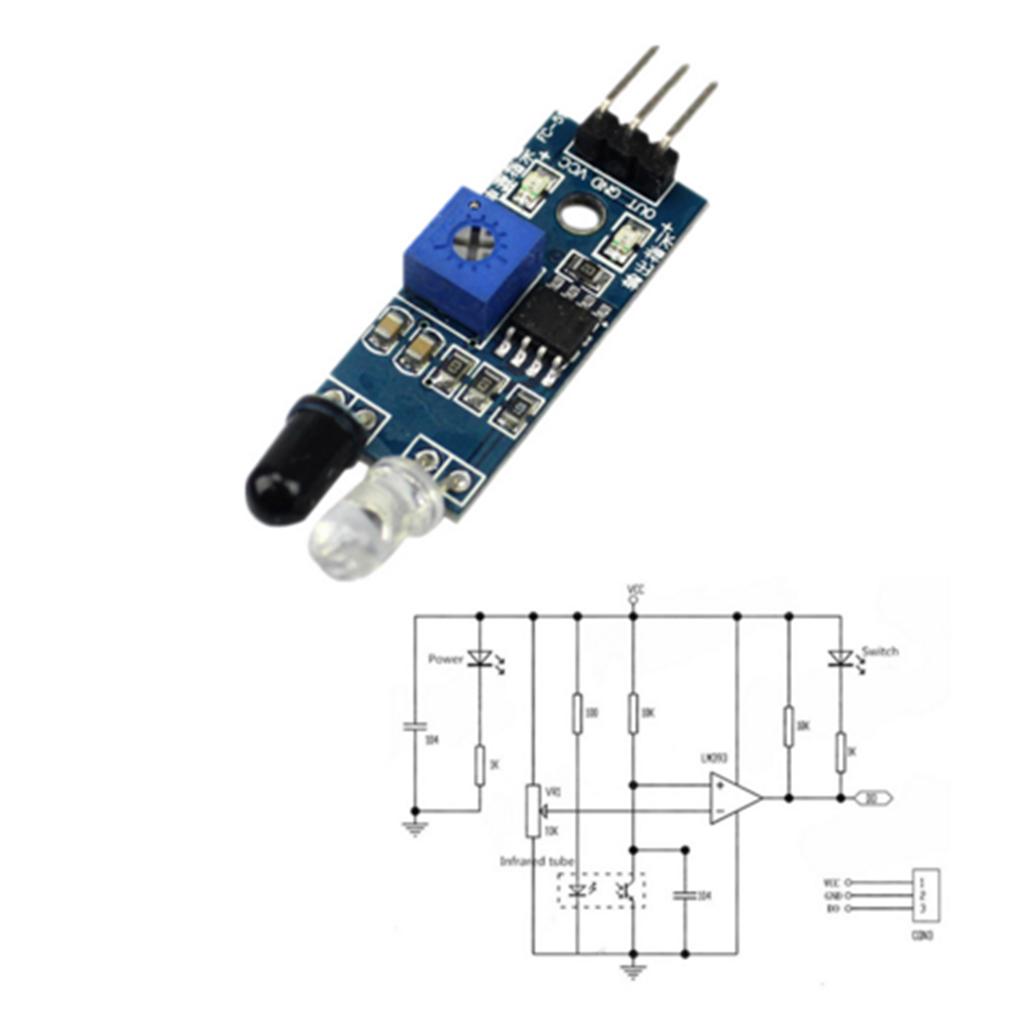

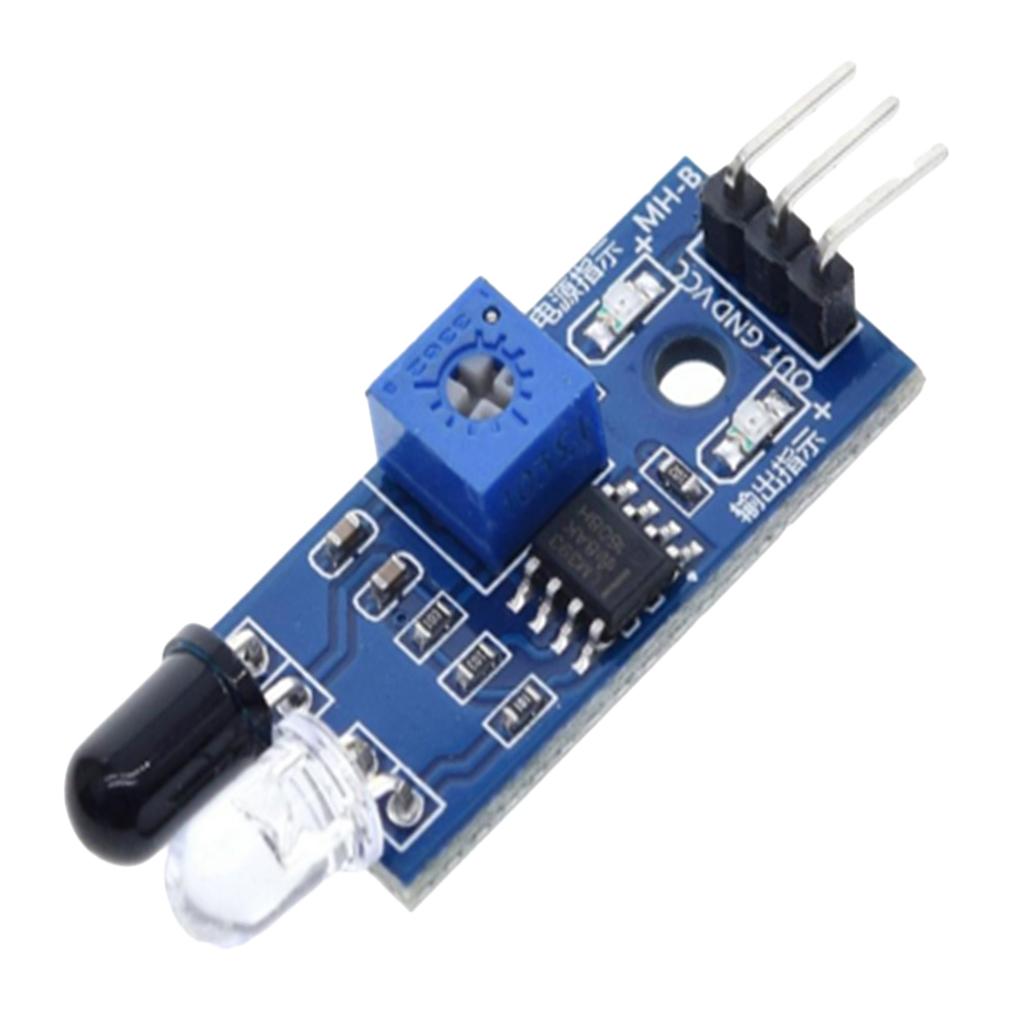

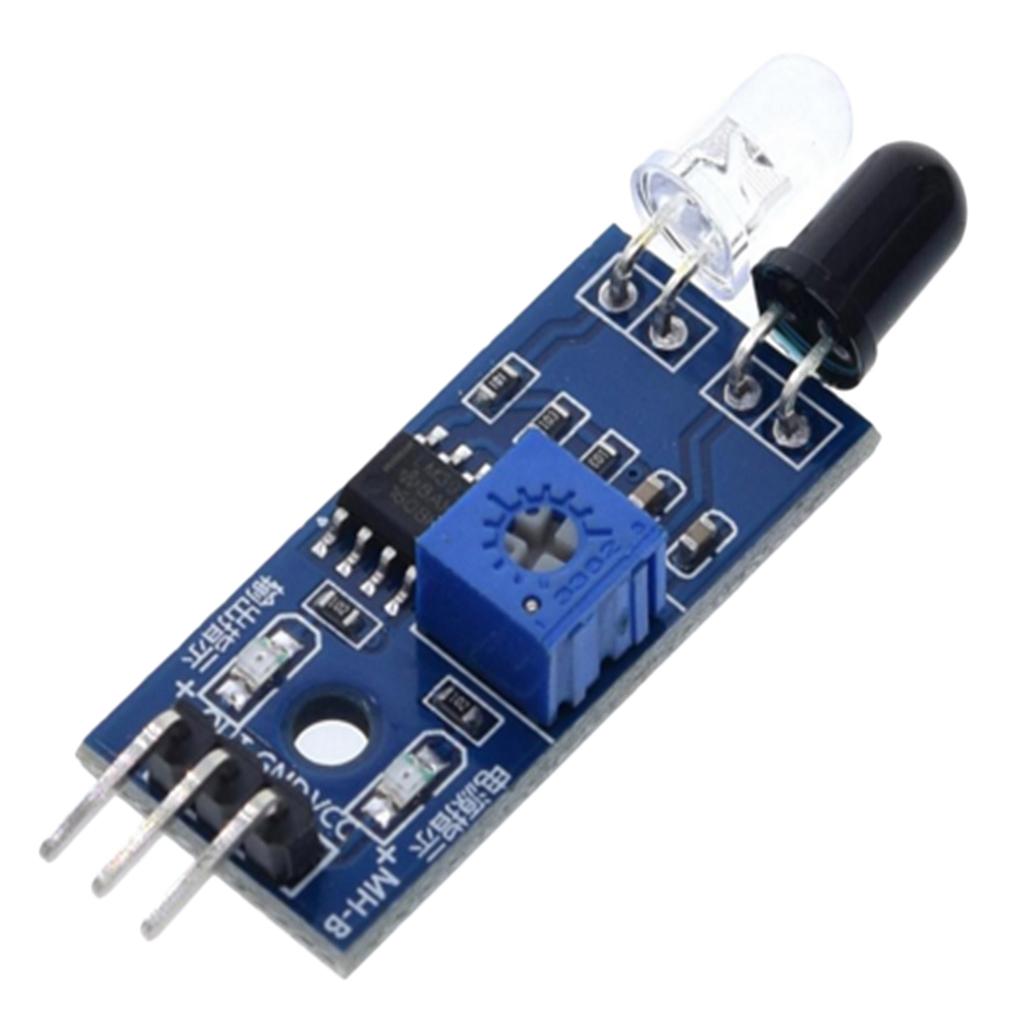

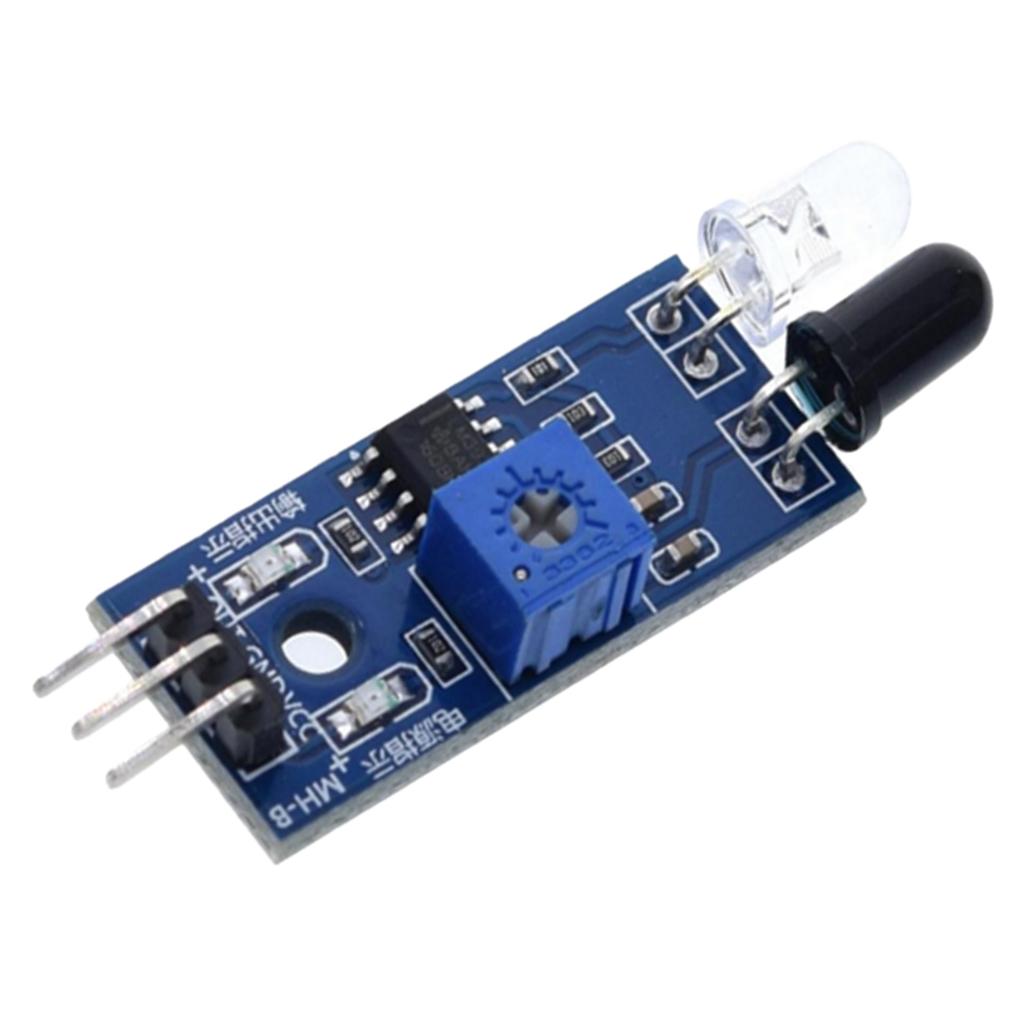

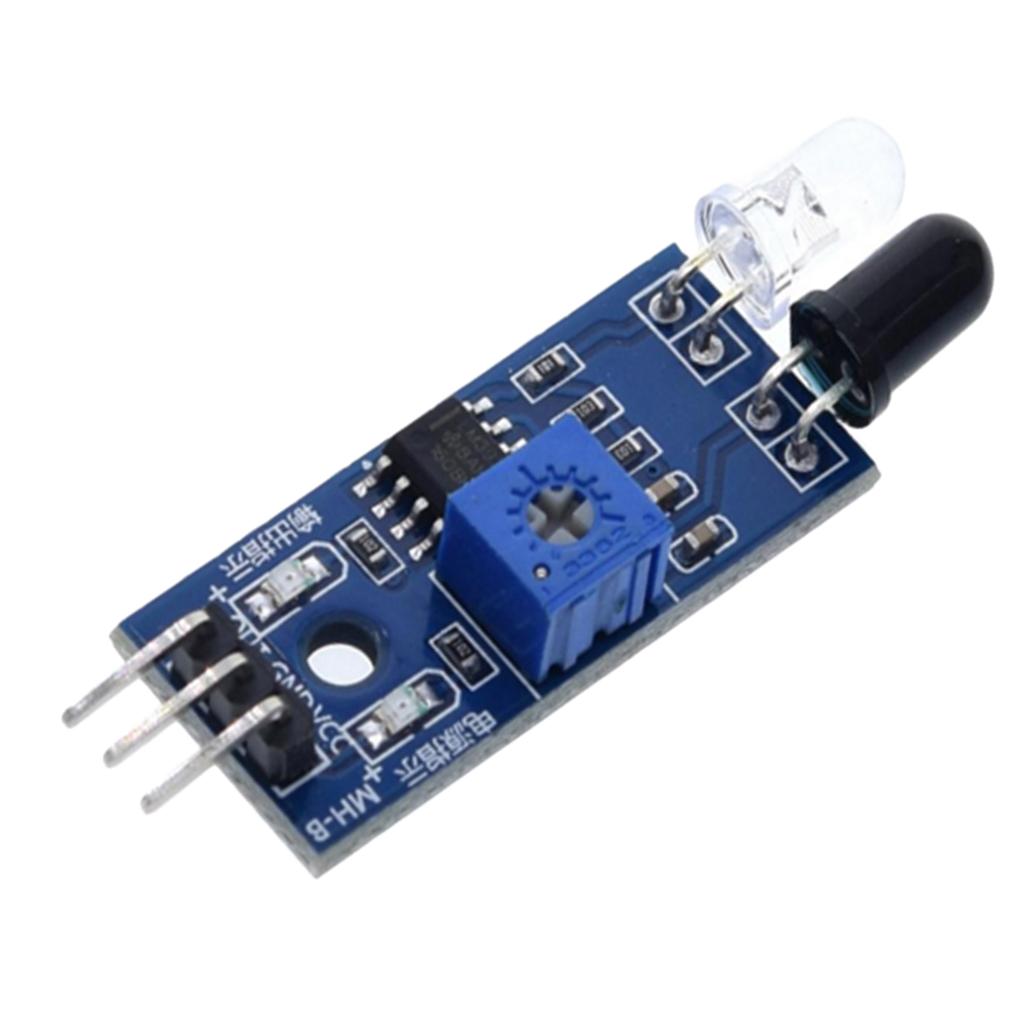

IR infrared obstacle avoidance sensor module
This small module is ideal for detecting objects within 3cm of the IR LED devices.
With a simple 3 pin interface, the ouput pin will go low when an object is within detecting range.

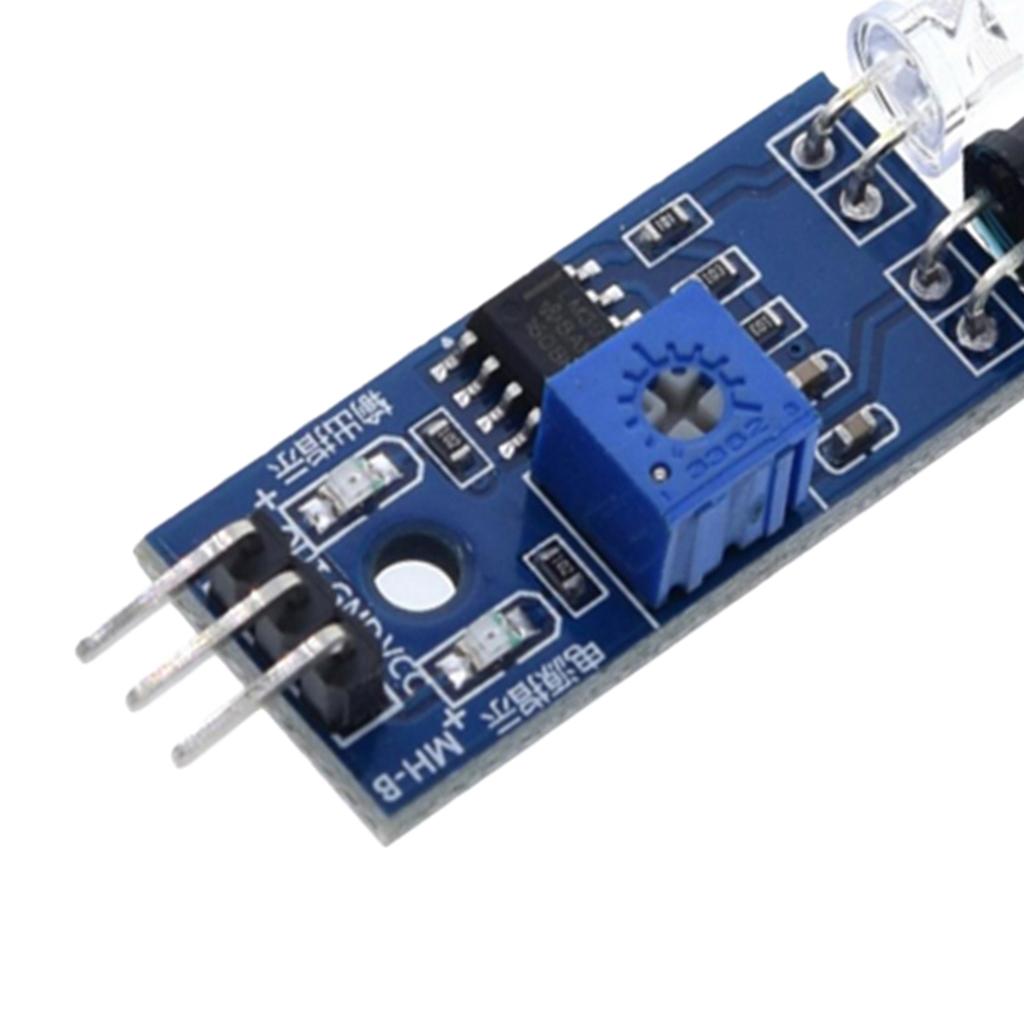

With two LEDs fitted, one for power and one shows if an object is detected, this is a really easy to use module giving an easy method to detect objects for many embedded projects.
Specification:

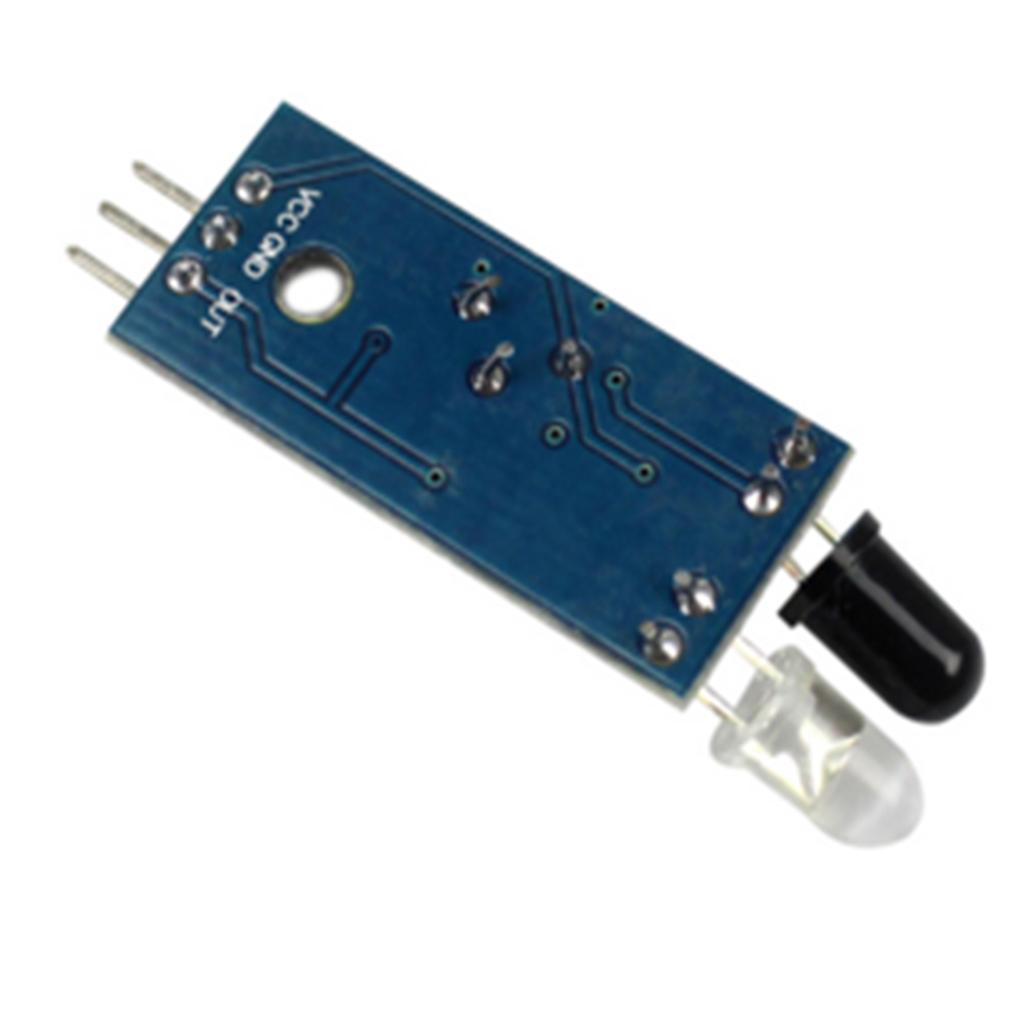

Simple 3 pin operation (VCC, GND, O/P)
Adjustable detection range 1 to 3cm (Approx)

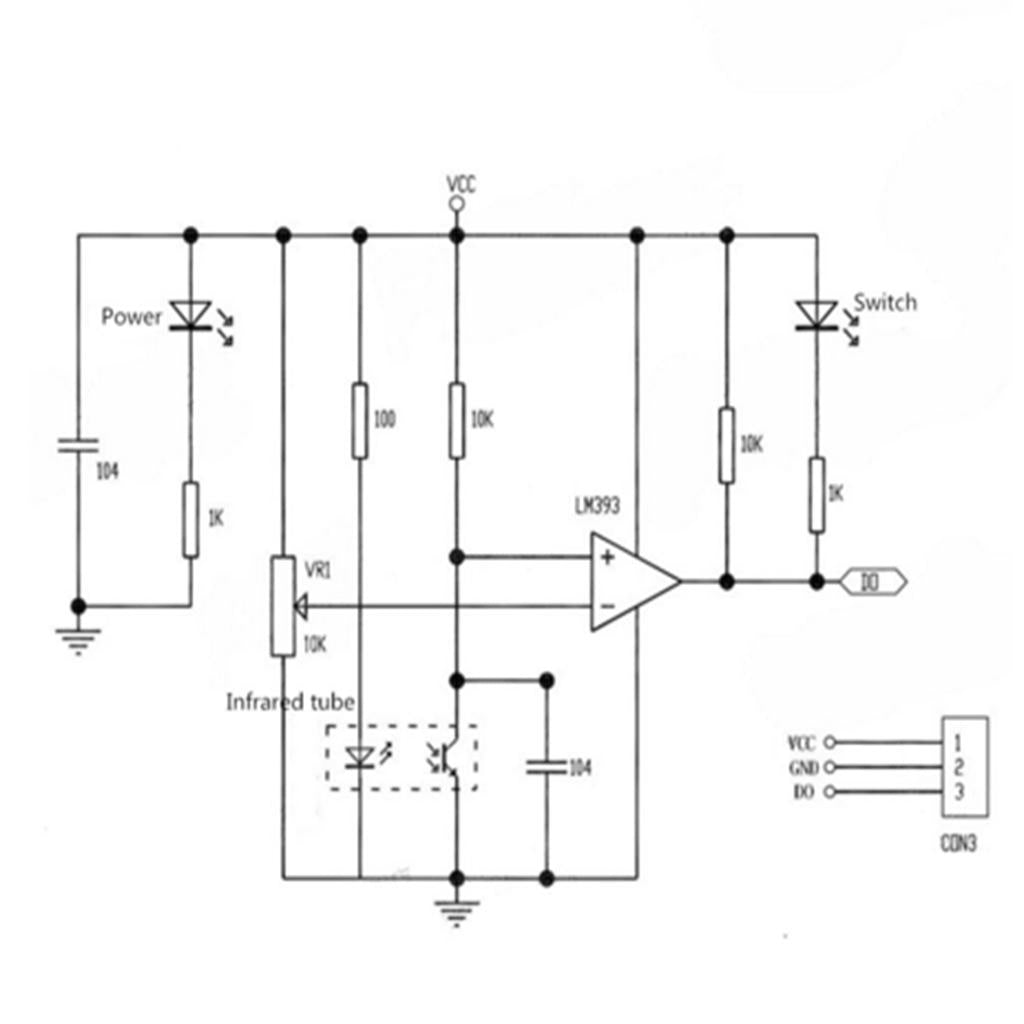

LM393 Comparator
Output pin goes low when object detected.
Detection angle: approx. 35 Degrees
Supply voltage: 3V-5V
Power LED
Object detect LED (on when objected detected)
Ideal for Arduino, PIC, AVR and RPI projects
Package Includes:
1 x IR Infrared Obstacle Avoidance Sensor Module
