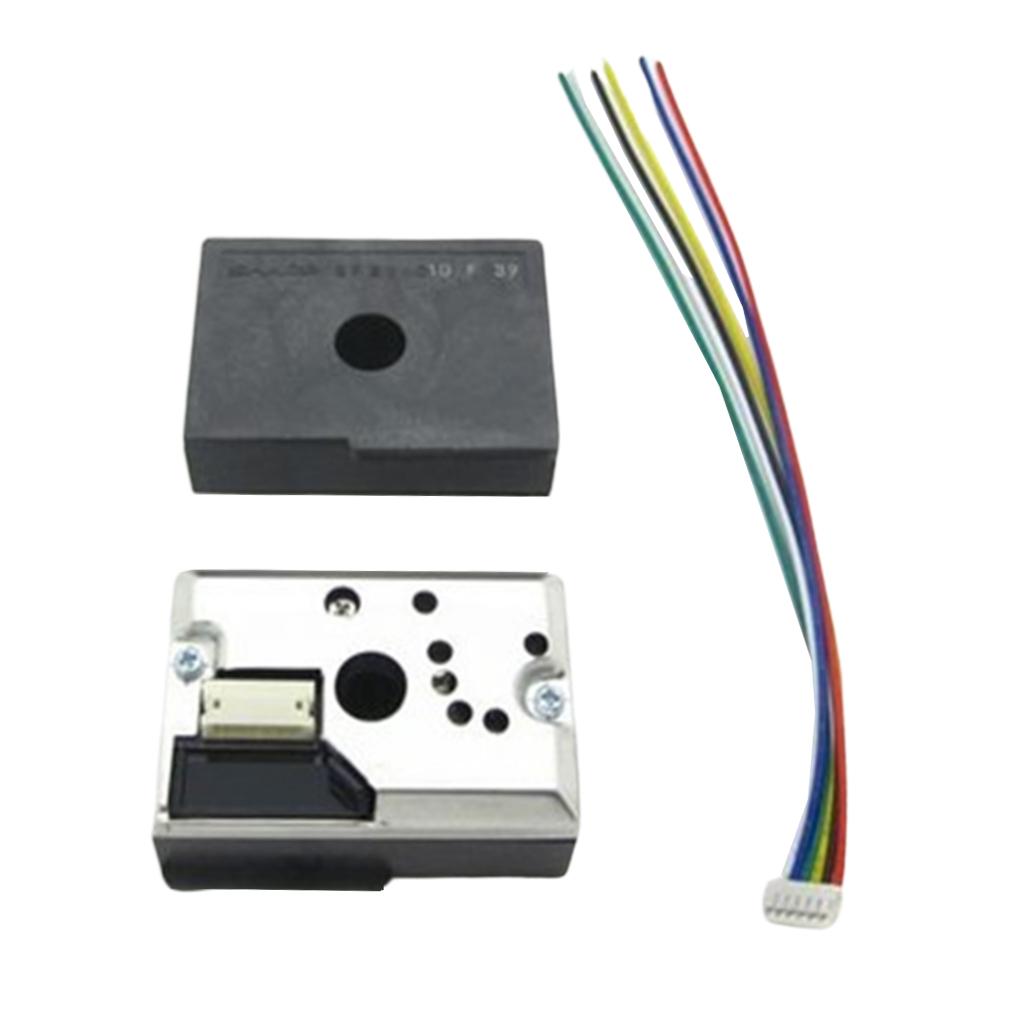

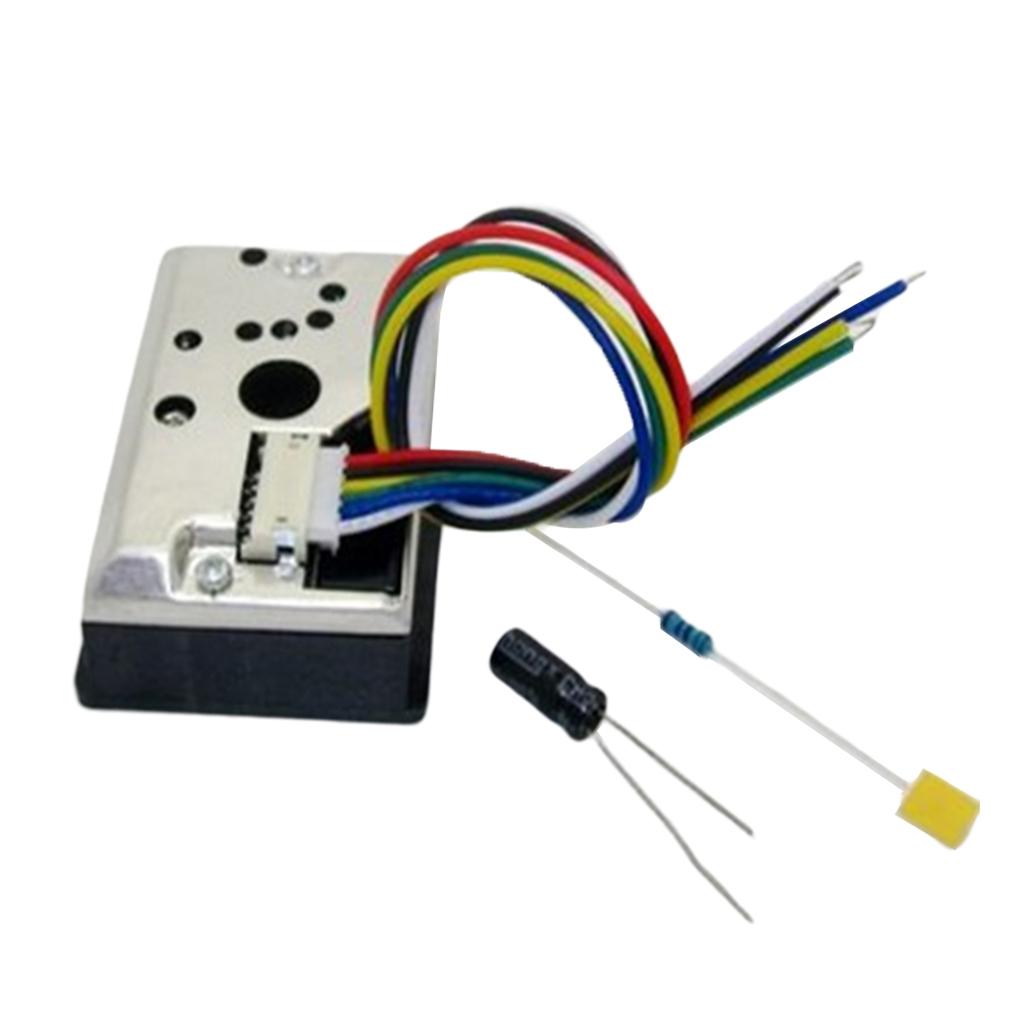

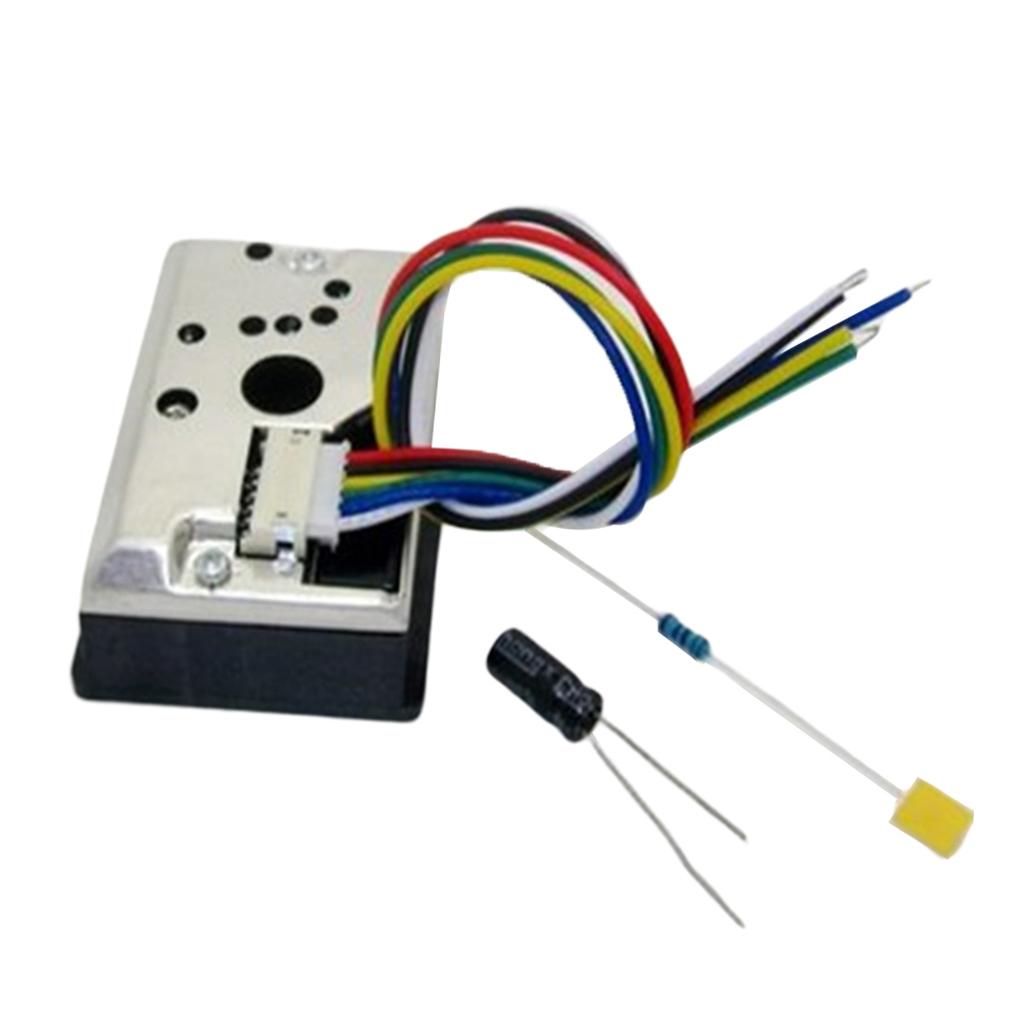

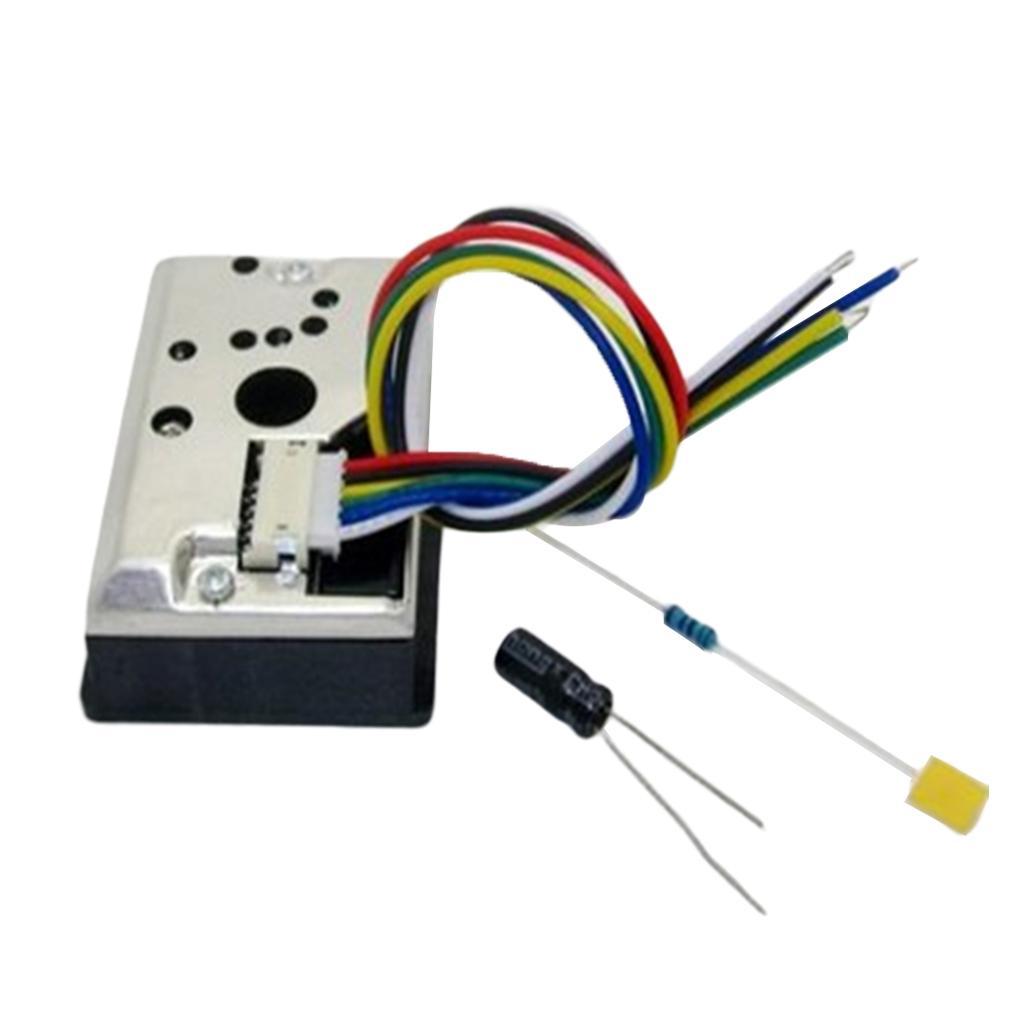

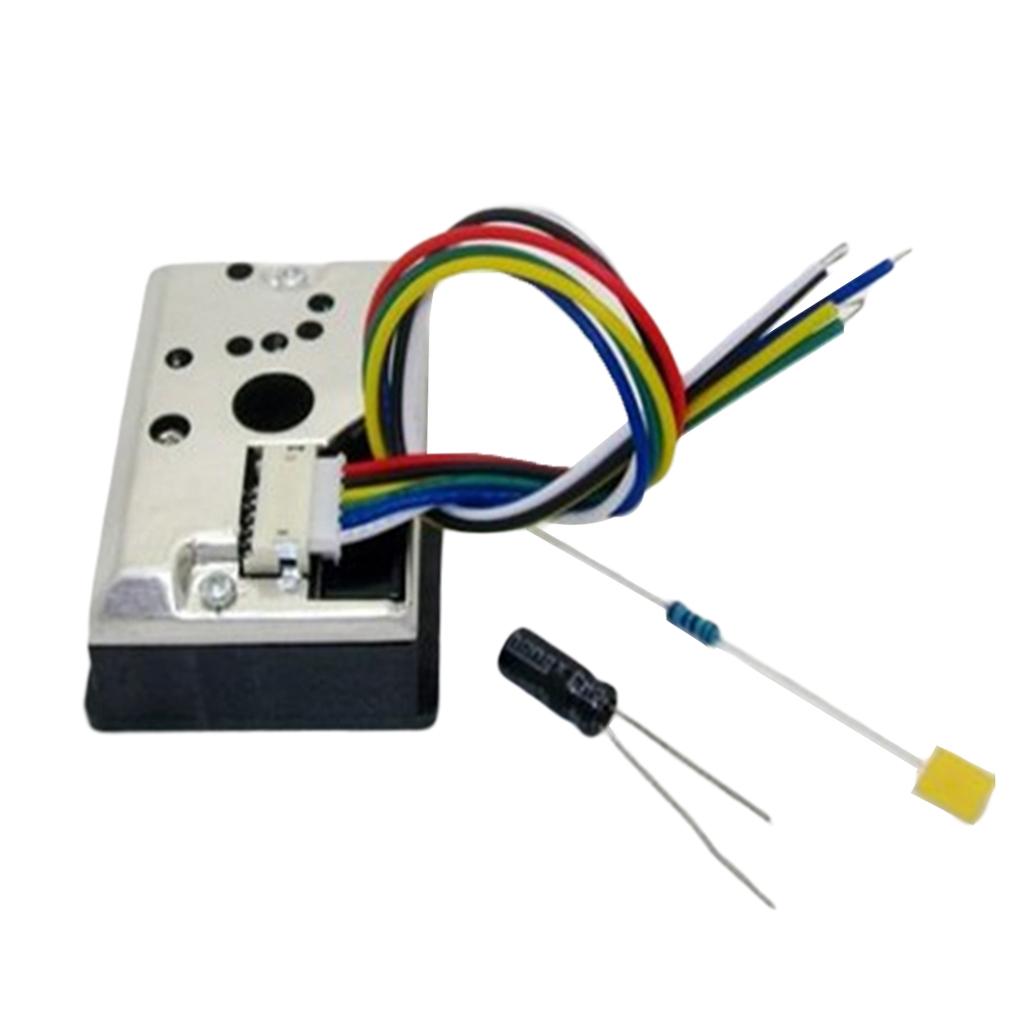

Maxbell GP2Y1010AU PM2.5 Optical Dust Sensor Moudle Kit with Cable for Arduino
Description:
Optical dust sensor (GP2Y1014AU) is particularly effective in detecting very fine particles, such as cigarette smoke.
An infrared light emitting diode and a phototransistor are diagonally arranged to allow them to detect dust reflected light in the air.
The sensor has a very low current consumption(maximum 20 ma, ma 11 typical), and can carry up to 7 VDC sensors.
The output voltage is proportional to the measured dust concentration, and the sensitivity is 0.5V/0.1mg/m3.
It is a commonly used system of air purifier.
Specification:
Working temperature: -10-65 degrees Celsius
Consumption current: 20 mA maximum
Minimum particle detection value: 0.8 micron
Sensitivity: 0.5V/(0.1mg/m3)
Voltage in Clean Air: 0.9V Typical Value
Working temperature: - 10 ~ 65s ℃
Storage temperature: - 20 - 80s ℃
Size Chart:
Size: Approx. 46 x 30 x 17.6mm/1.81 x 1.18 x 0.69 inch
Package Includes:
1 Piece Dust Sensor
