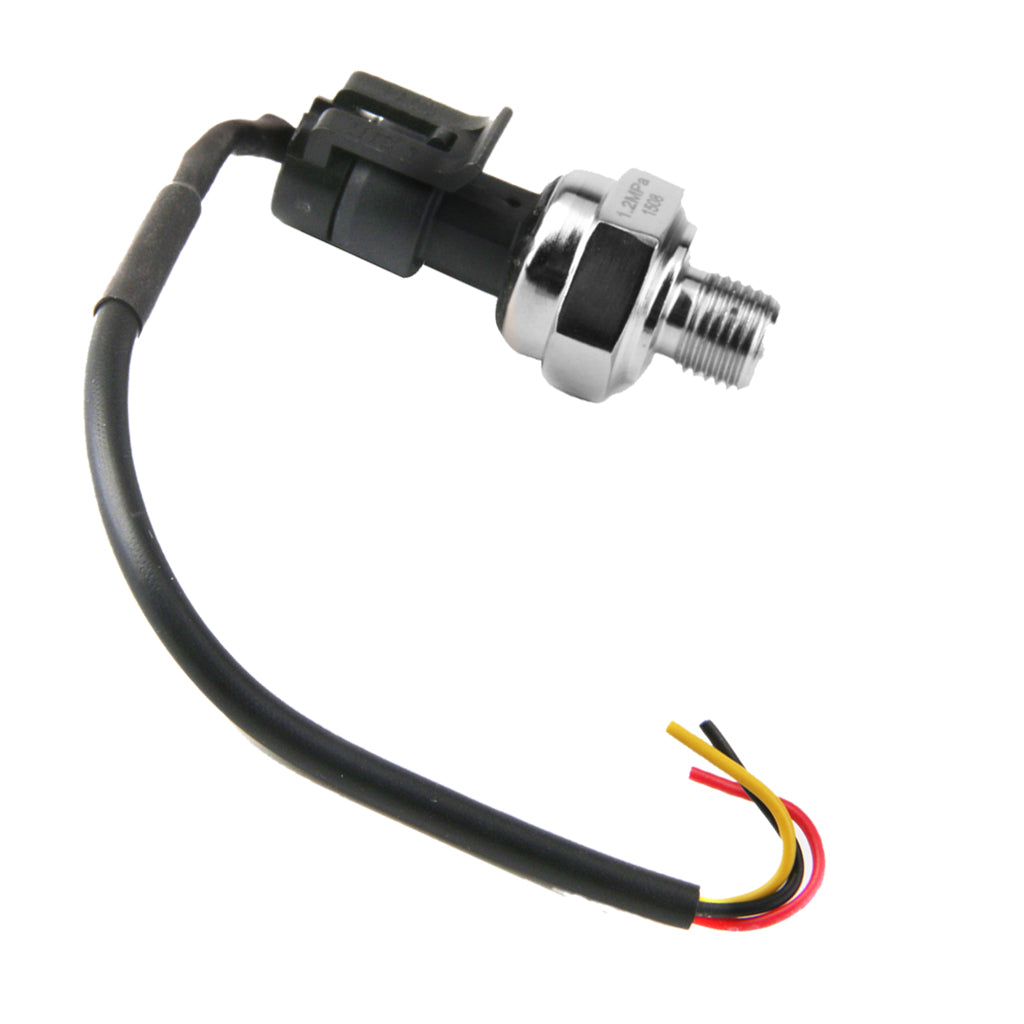

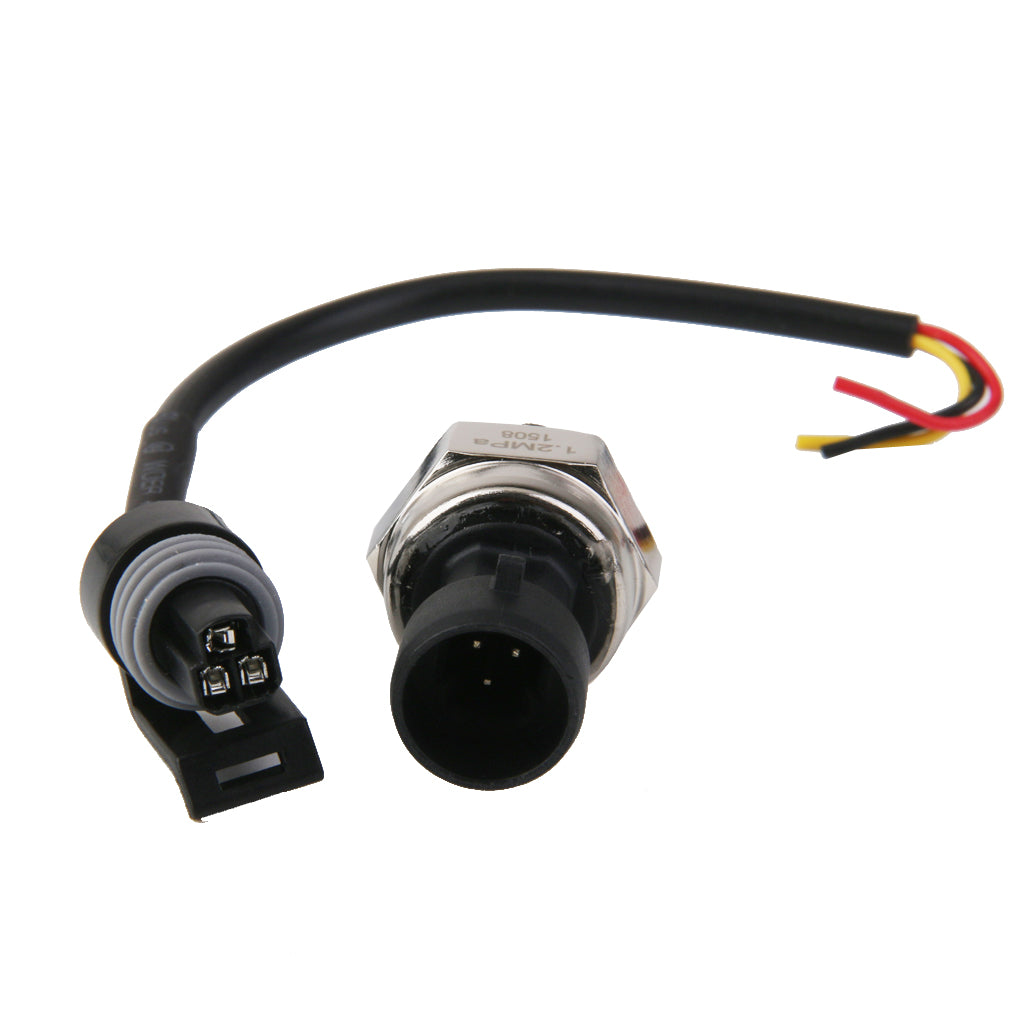

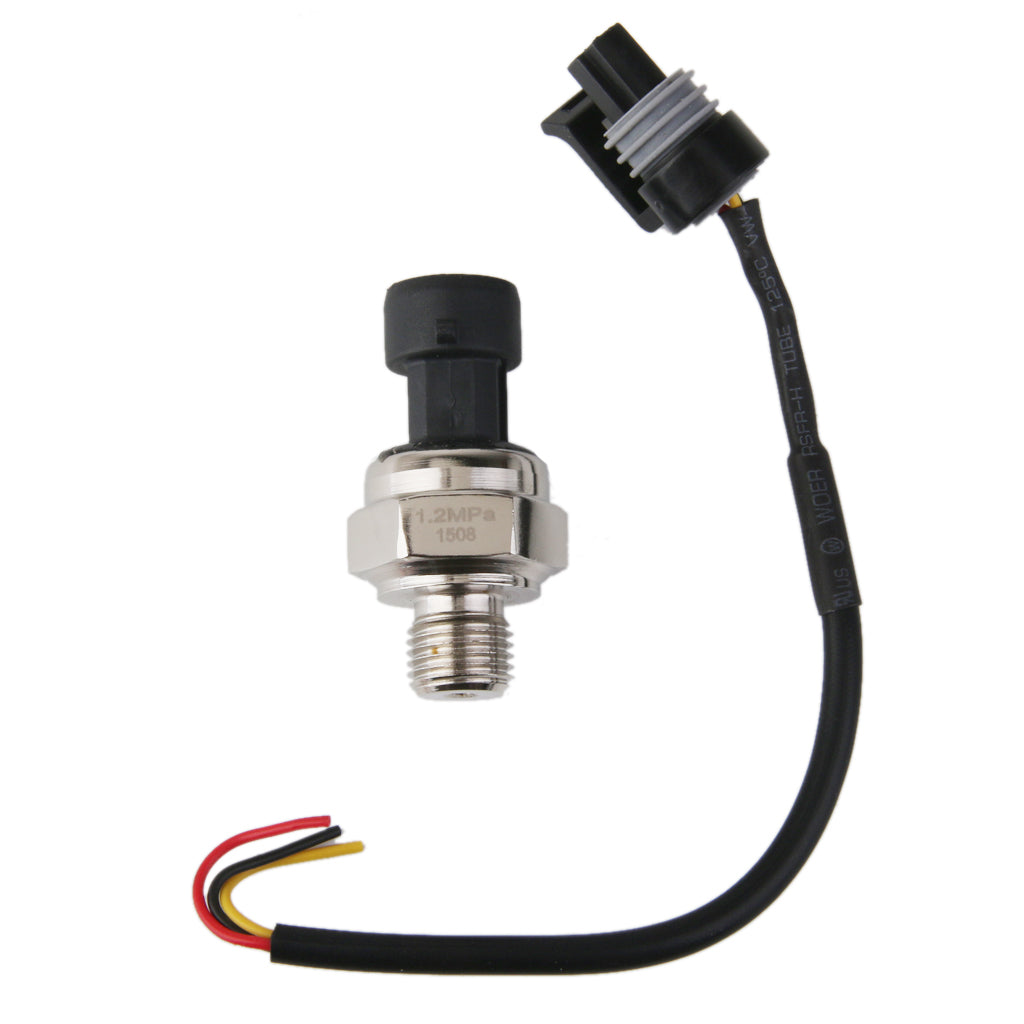

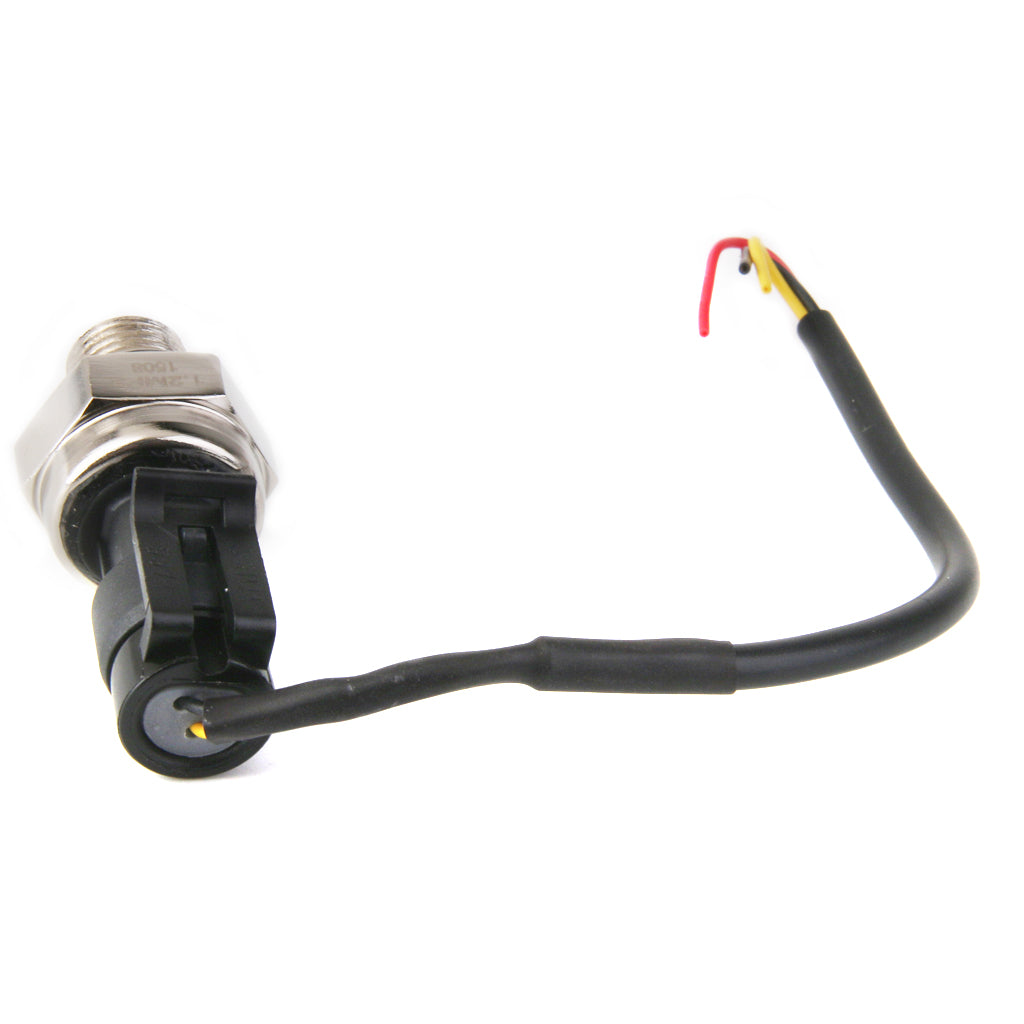

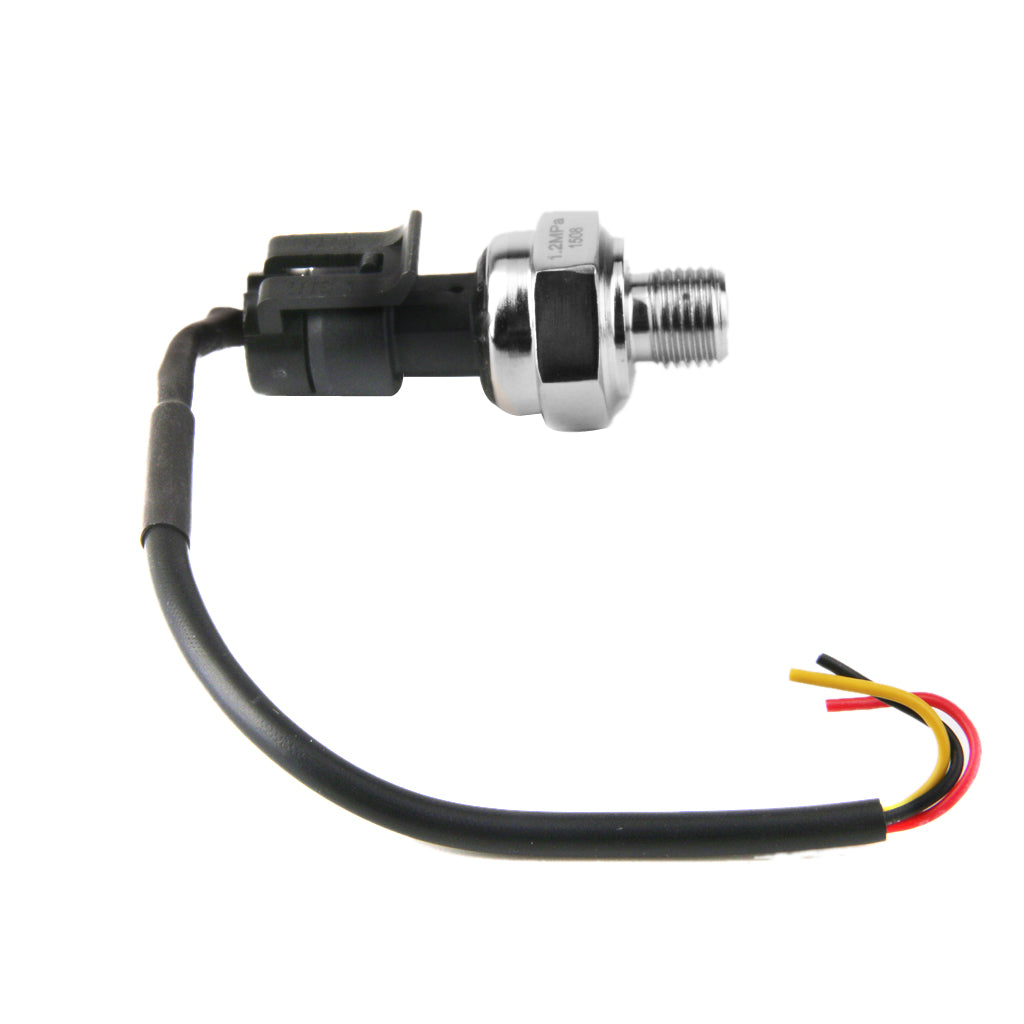

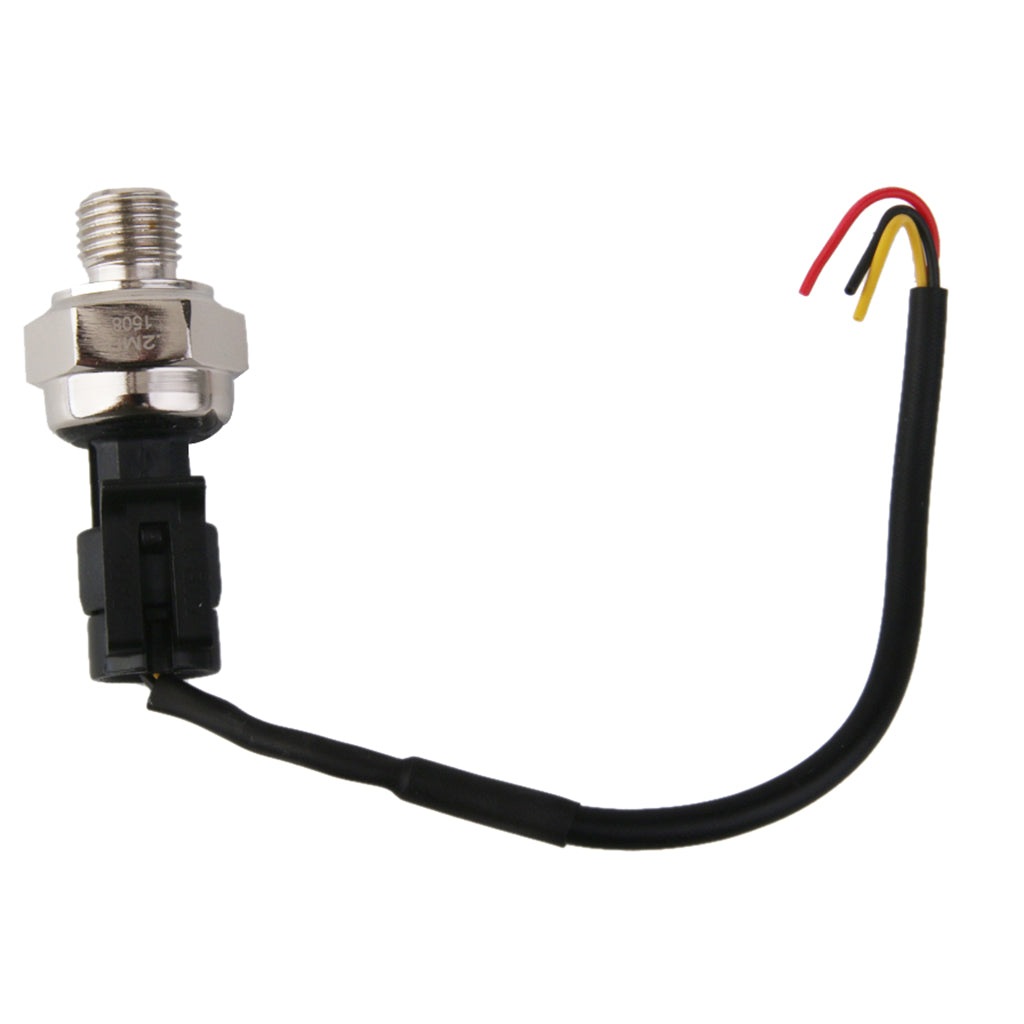

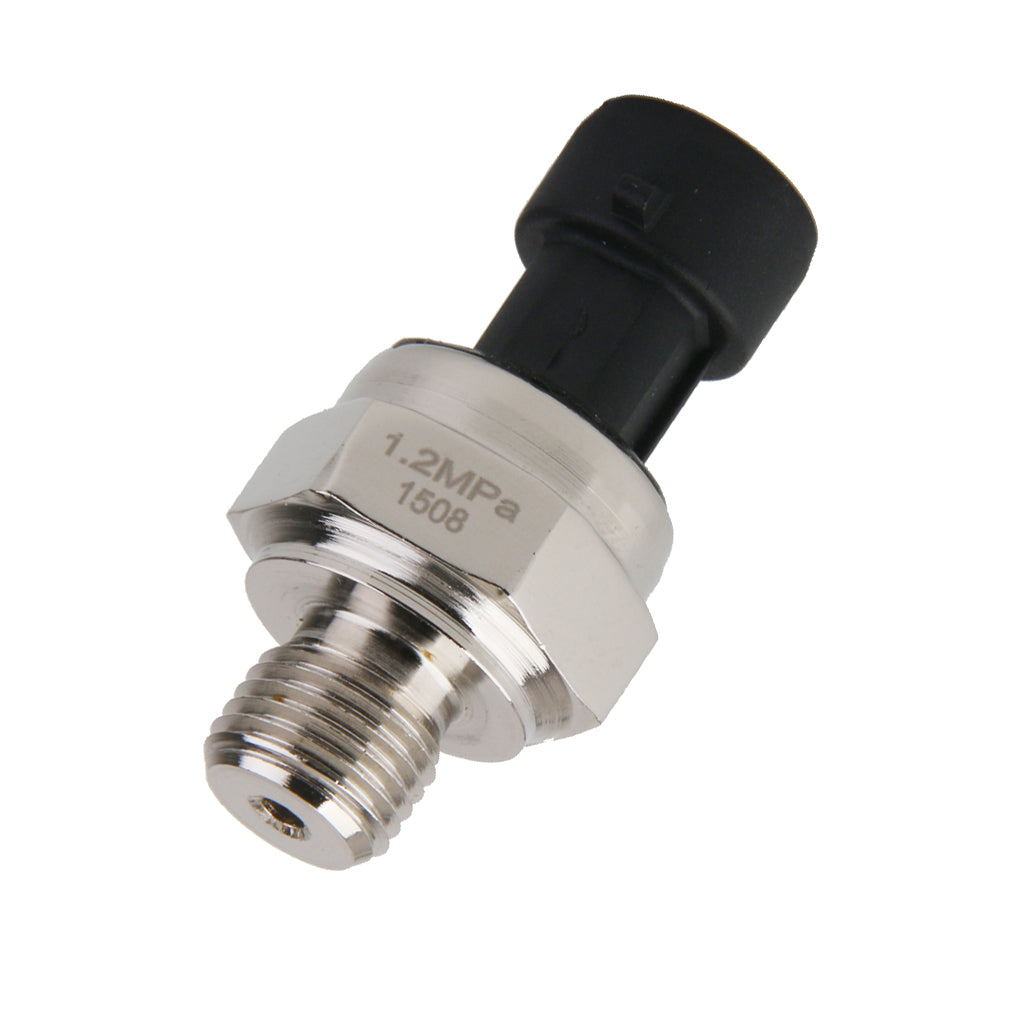

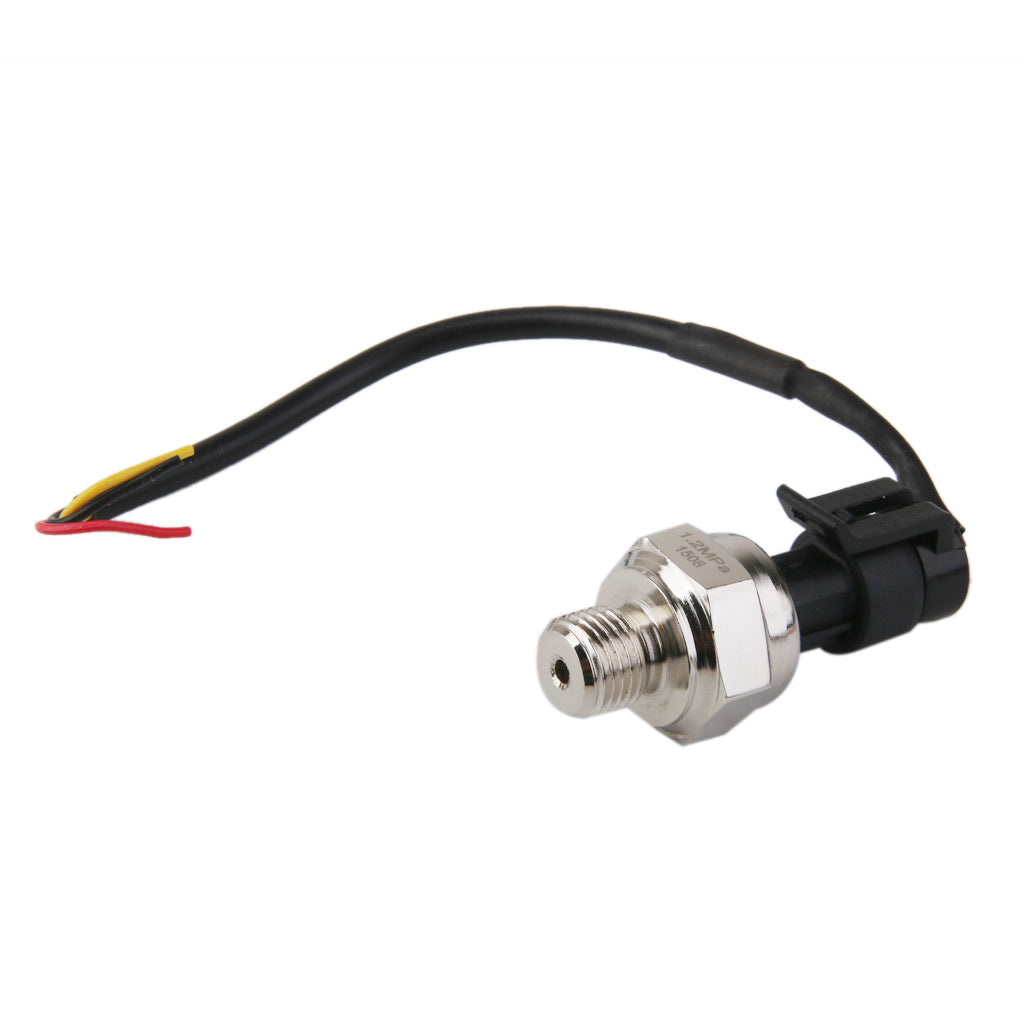

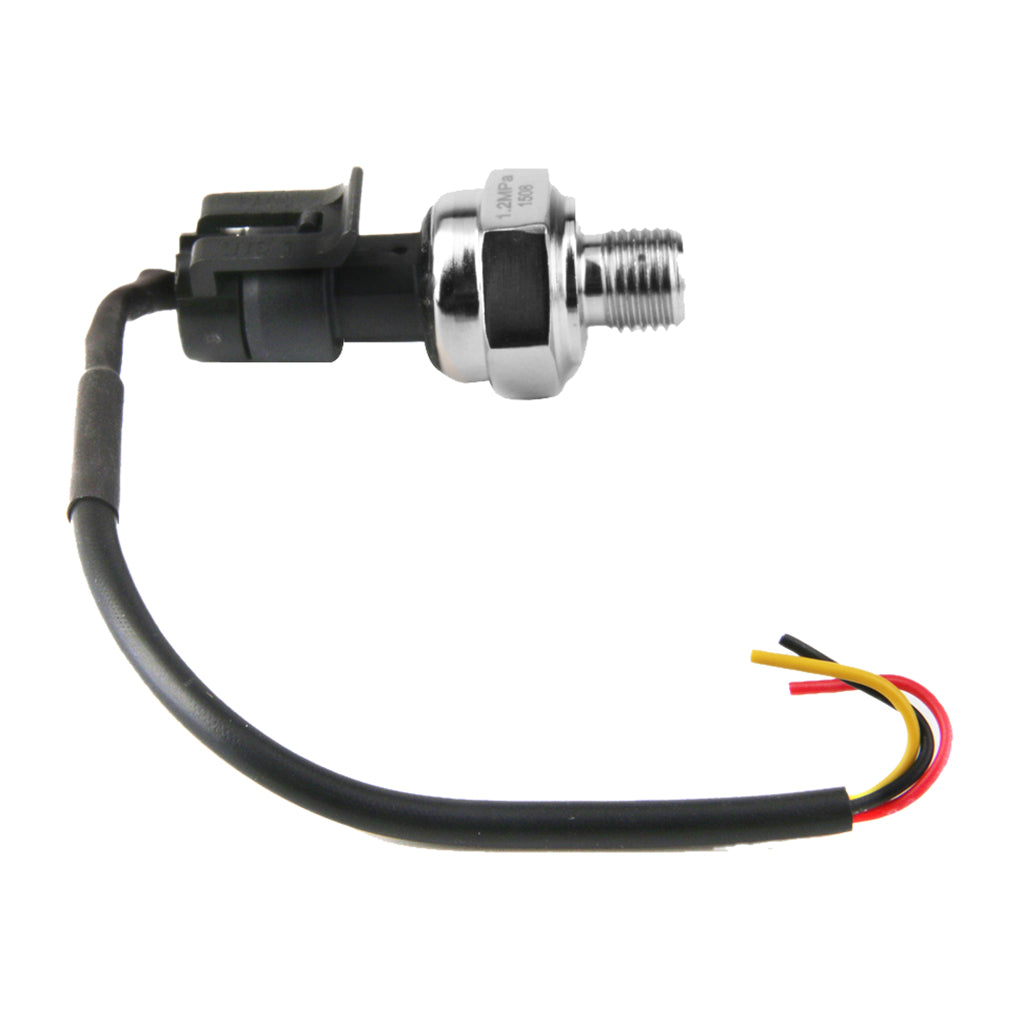

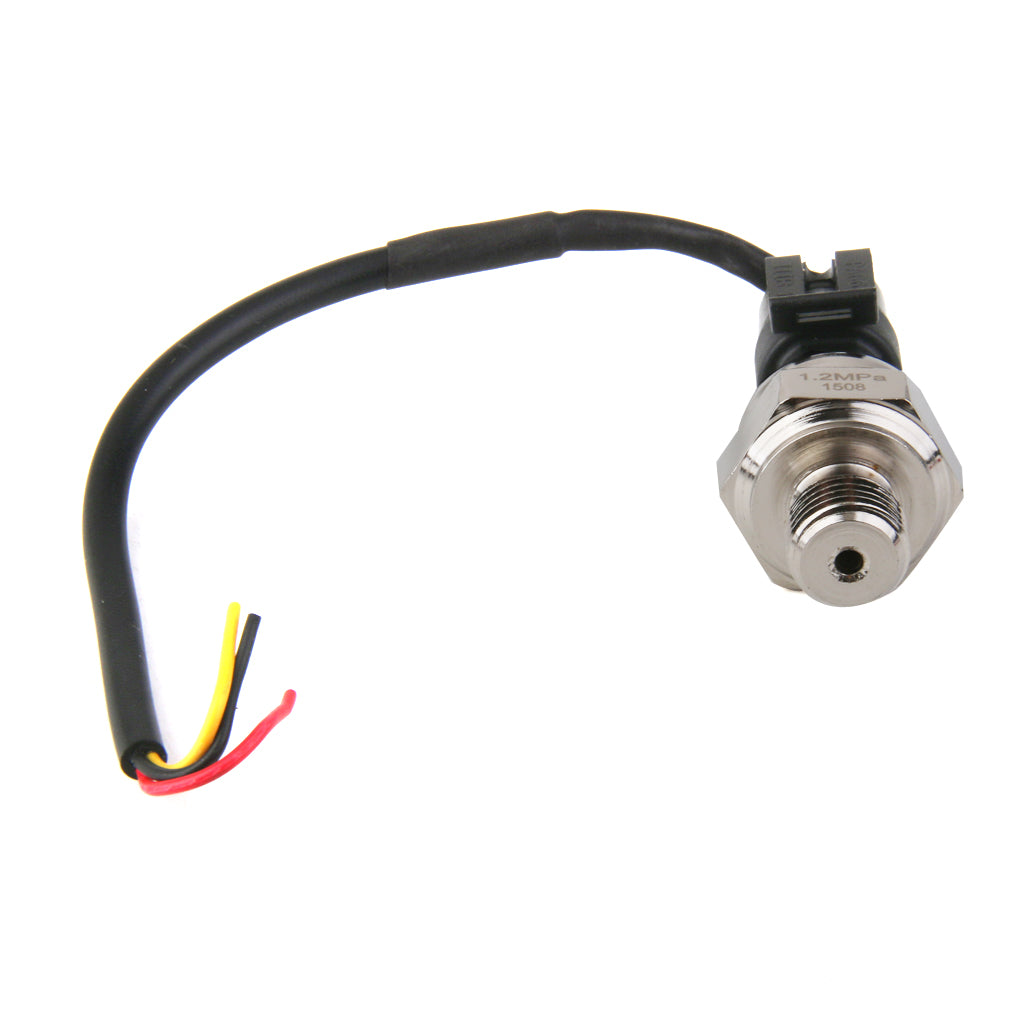

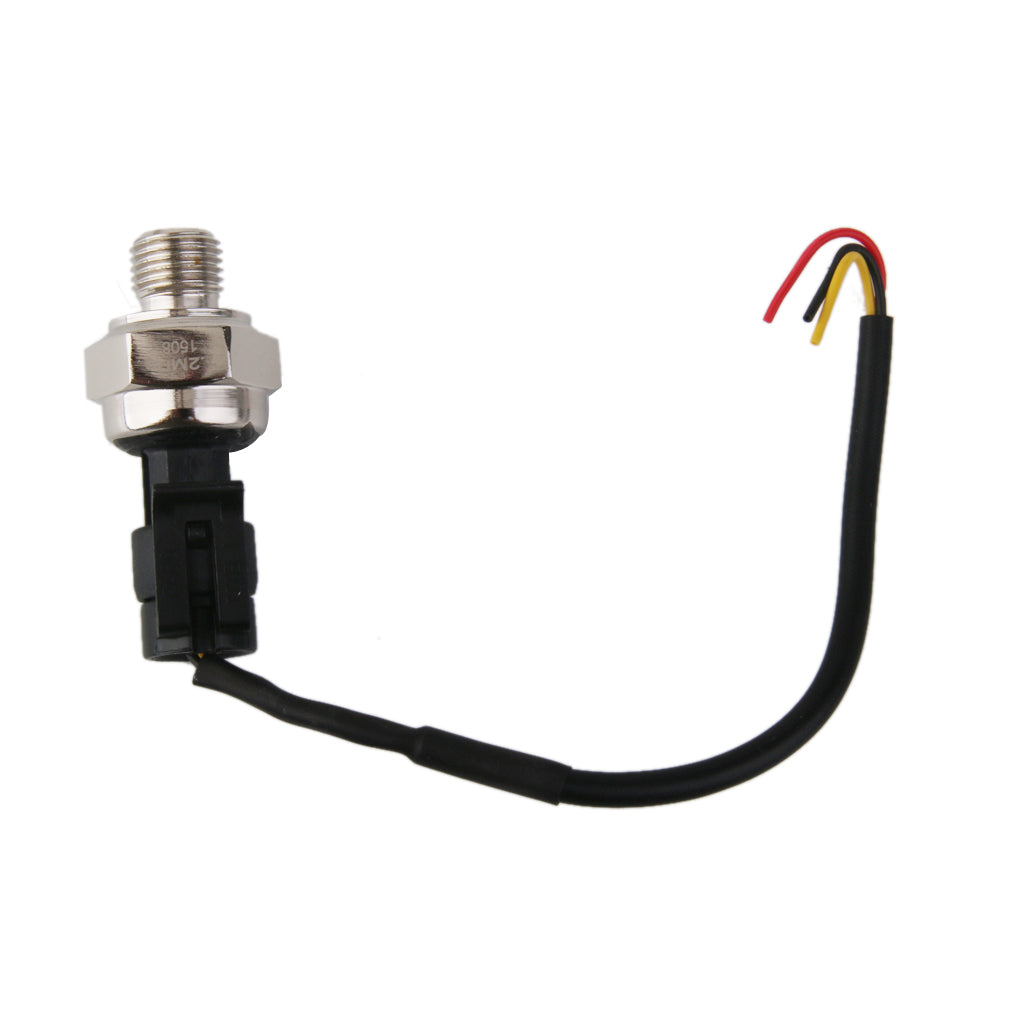

Maxbell G1/4 Pressure Transducer Sensor 0-1.2 MPa for Oil Fuel Diesel Gas Water Air
2
sold in last
8
hours
In stock
Rs. 4,572.00
Rs. 2,286.00
customers are viewing this product

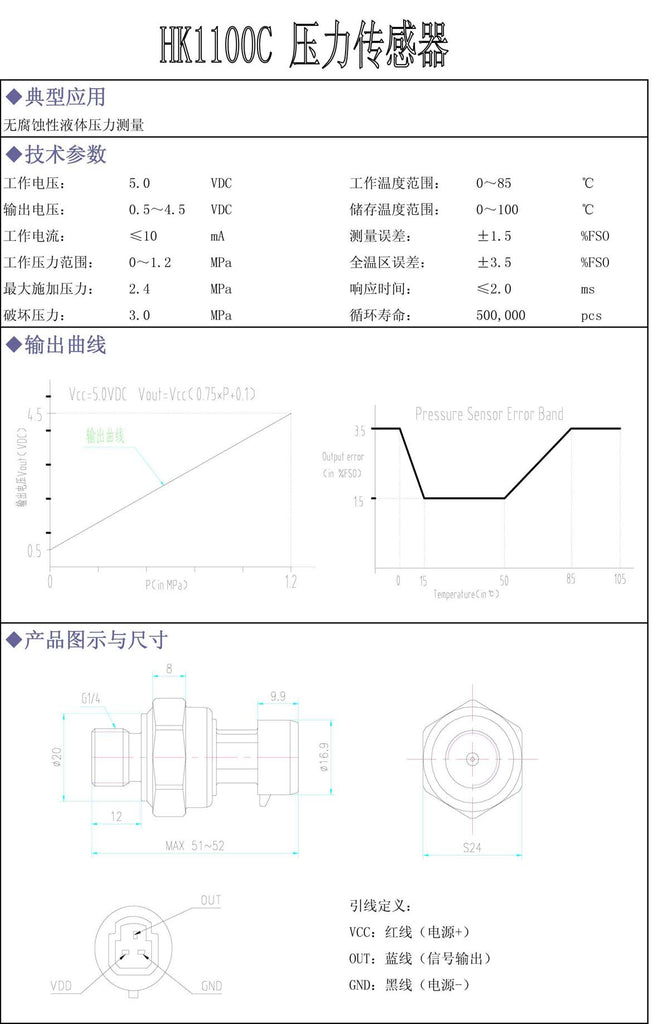

Description:
- Working Voltage: 5VDC
- Output Voltage: 0.5-4.5 VDC
- Sensor material: Carbon steel alloy
- Working Current: <=10 mA
- Working Pressure Range: 0-1.2 MPa
- Cable length: 17cm / 6.69inch
- Sensor Length: Approx. 5.1cm / 2.01inch
- Screw Diameter: 1.3cm / 0.51inch
- Destroy Pressure: 3.0 MPa
- Working TEMP. Range: -20 to 85 Celsius Degree
- Storage Temperature Range: 0-85 Celsius Degree
- Measuring Error: +_ 1.5 %FSO
- Temperature Range Error: +_3.5 %FSO
- Response Time: <=2.0 ms
Pressure Range:
| Max. Pressure | Destroy Pressure | Working Temperature | |
| G1/4" 0-0.5mpa | 1.5mpa | 3.0mpa | 0-85℃ |
| G1/4" 0-0.8mpa | 1.5mpa | 3.0mpa | 0-85℃ |
| G1/4" 0-1.0mpa | 2.0mpa | 3.0mpa | 0-100℃ |
| G1/4" 0-1.2mpa | 2.4mpa | 3.0mpa | 0-85℃ |
| G1/4" 0-5mpa | 7.5mpa | 10.0mpa | -20~85℃ |
| G1/4" 0-10mpa | 15.0mpa | 20.0mpa | -20~85℃ |
| G1/2" 0-2.5mpa | 5.0mpa | 7.0mpa | 0-105℃ |
Package Includes:
- 1 x Pressure Transducer Sensor
- 1 x Cable
