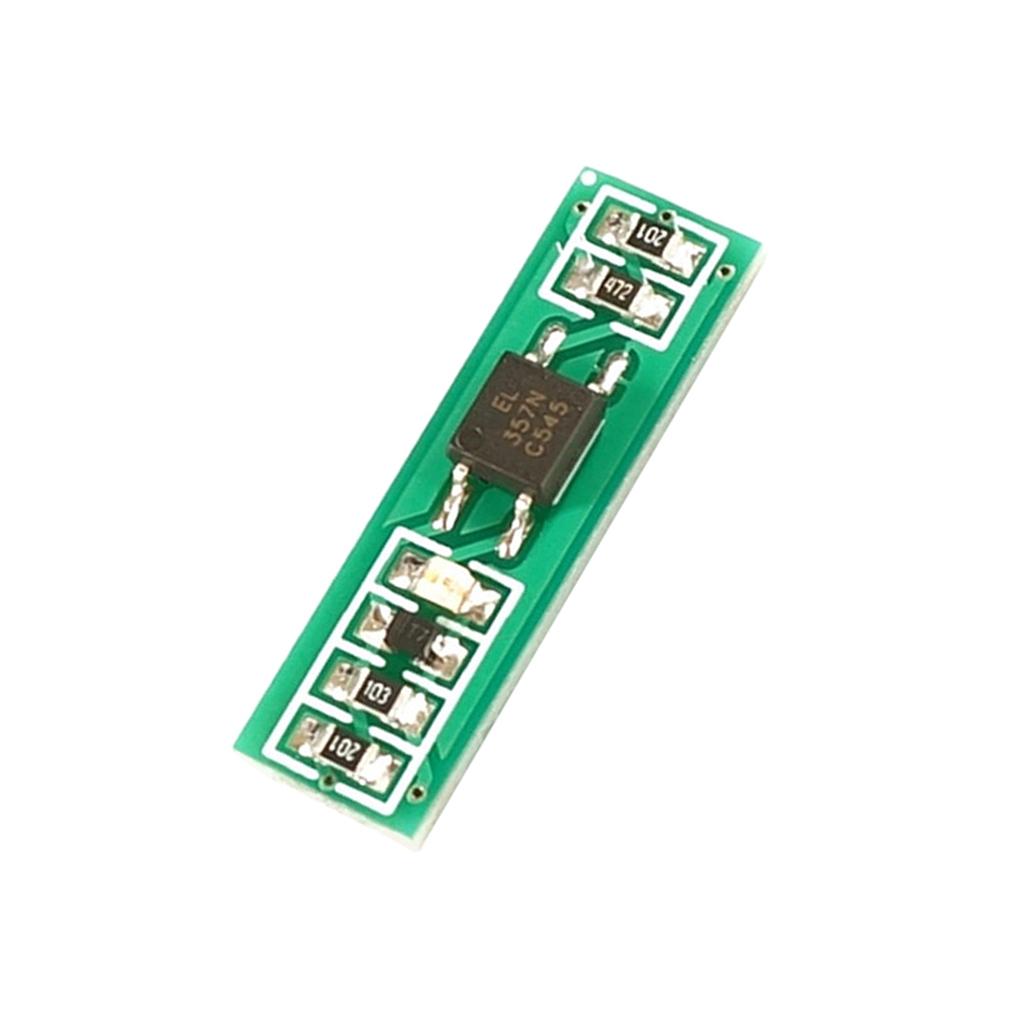

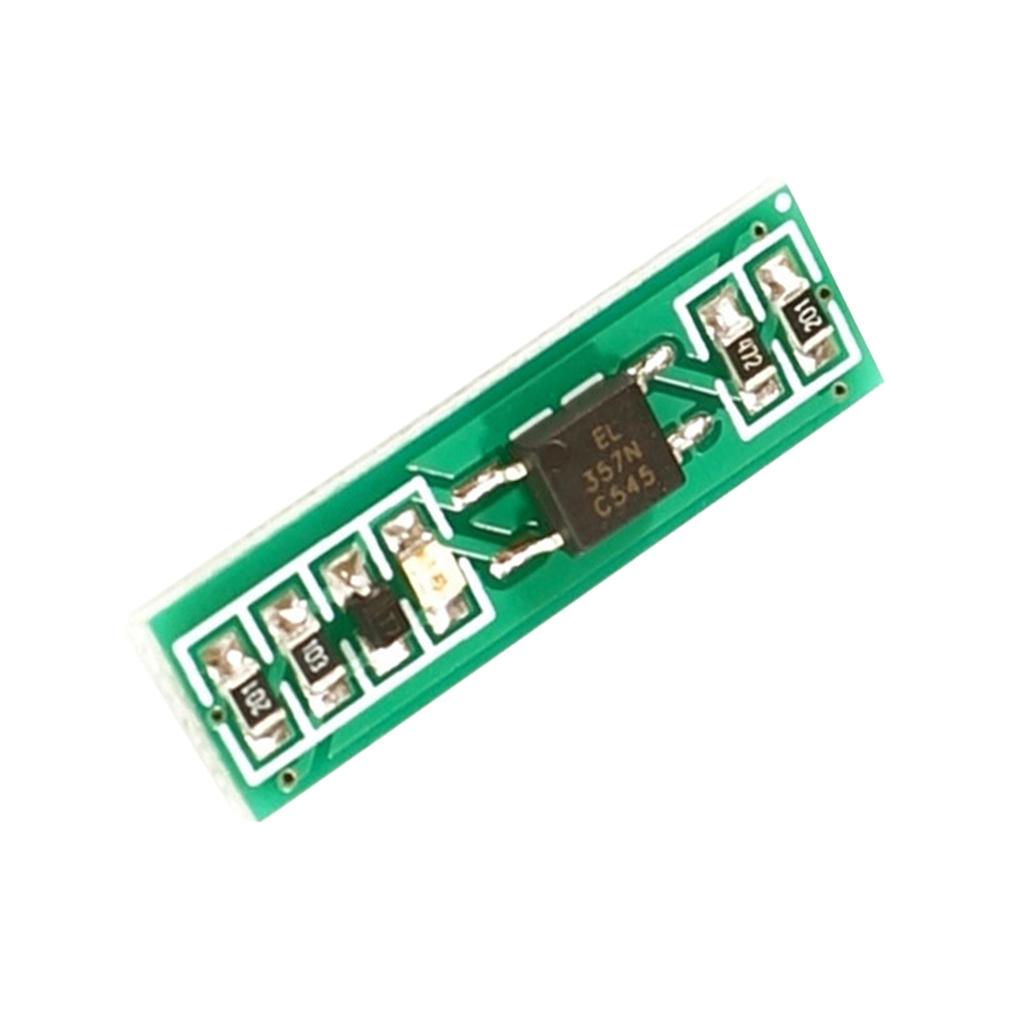

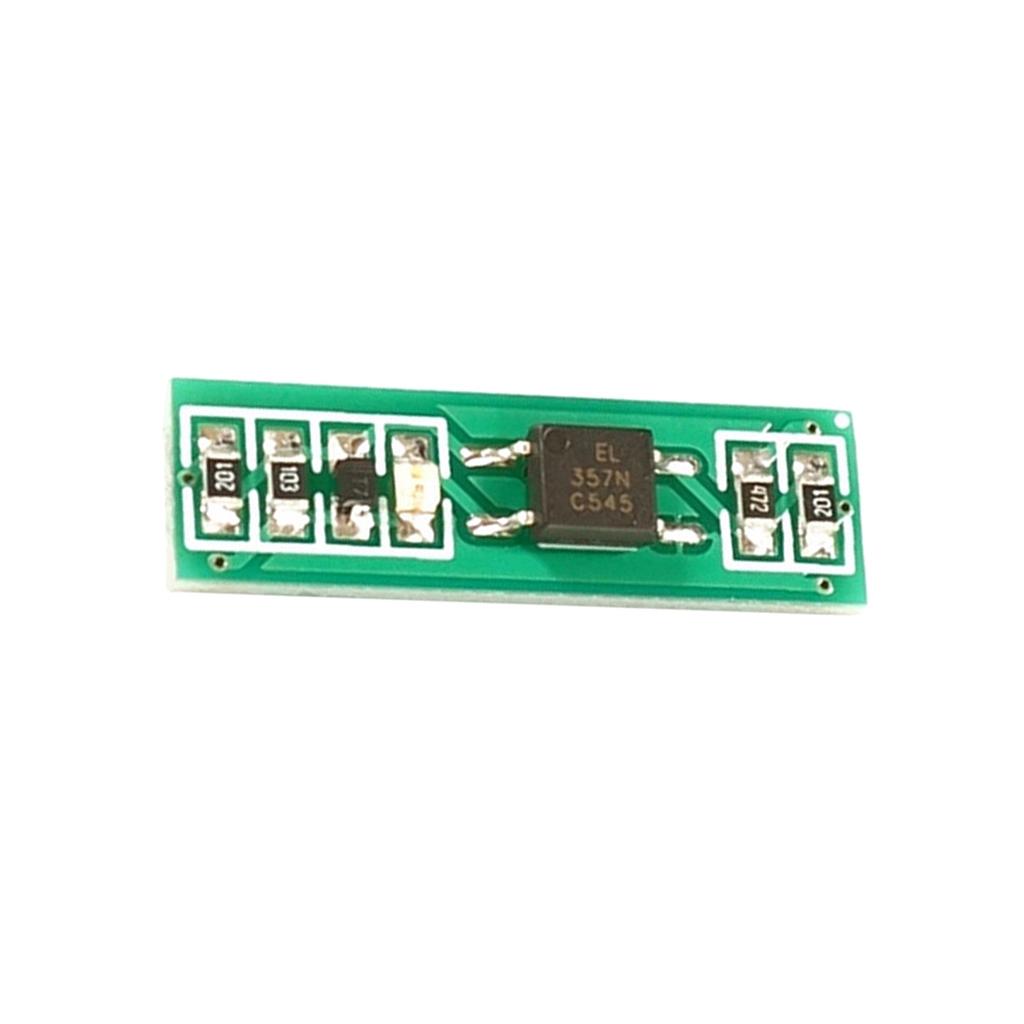

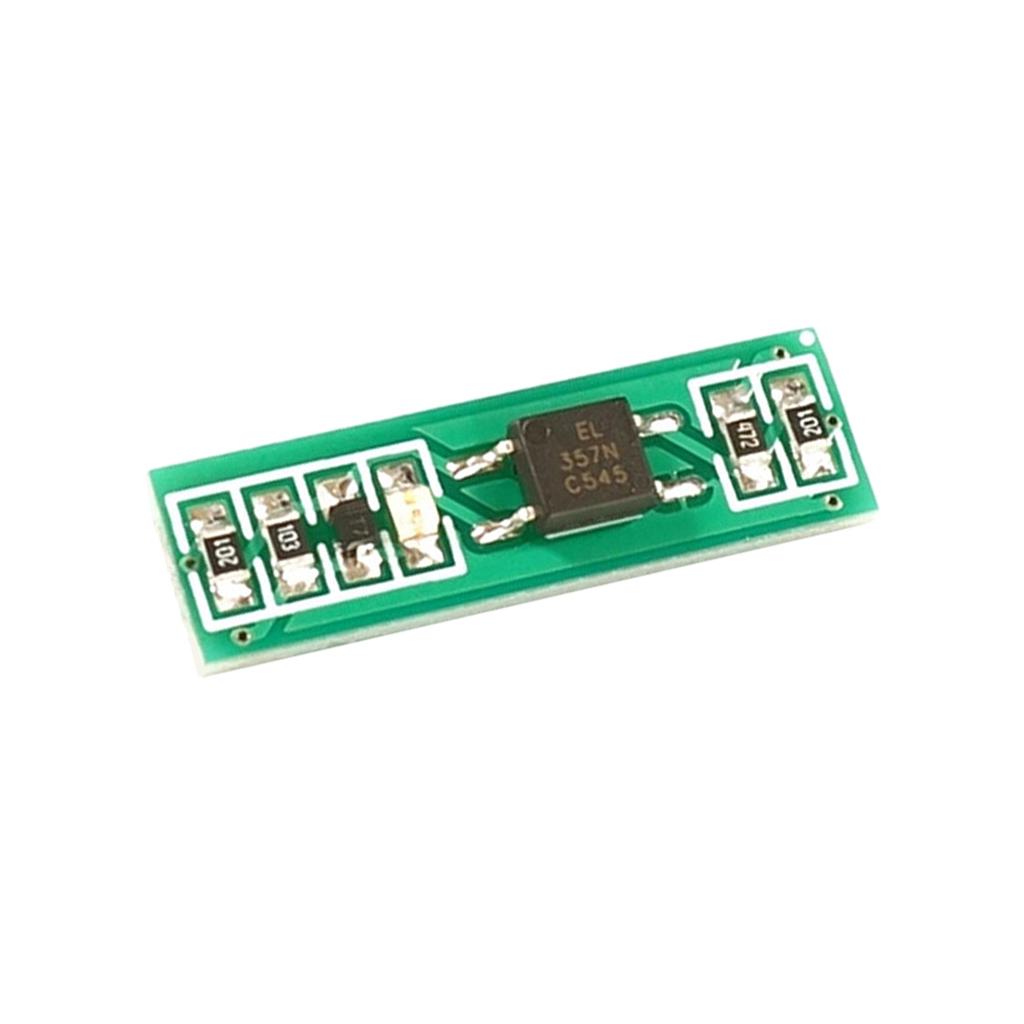

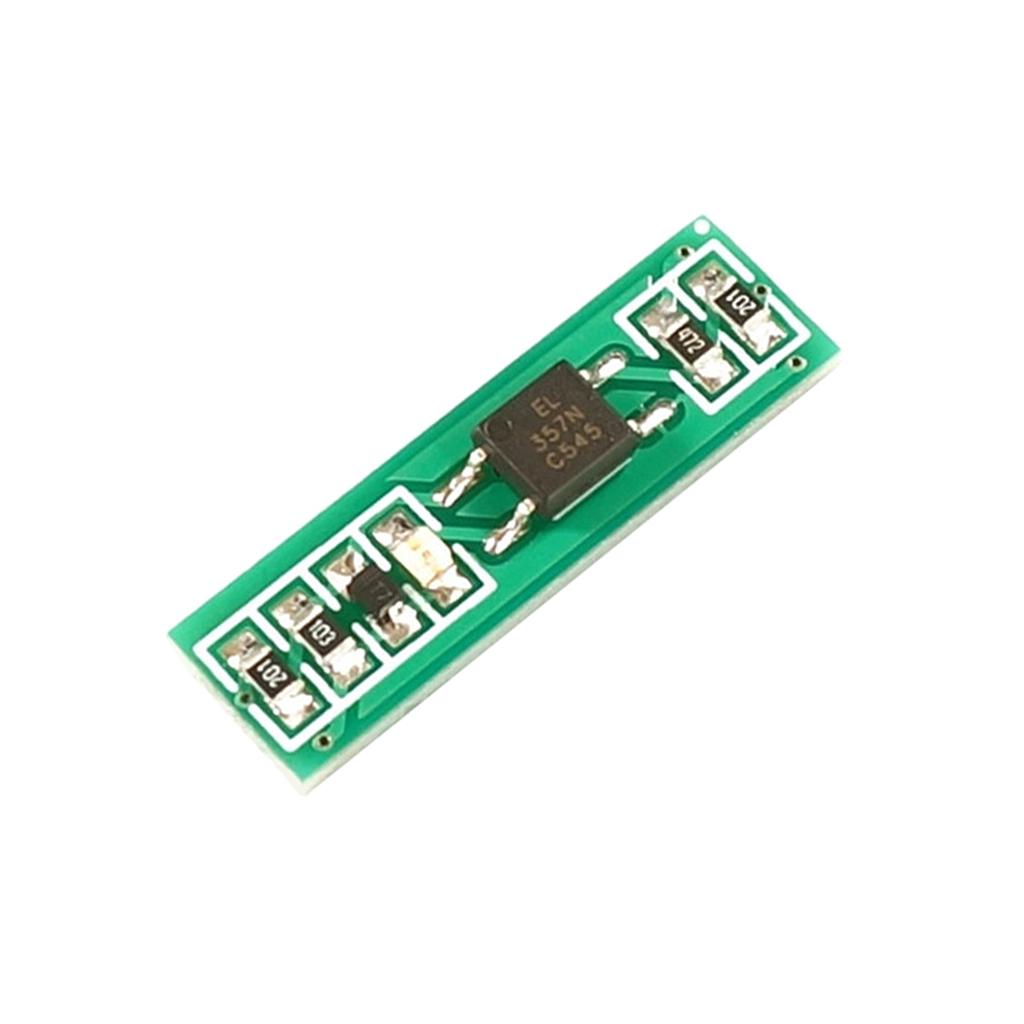

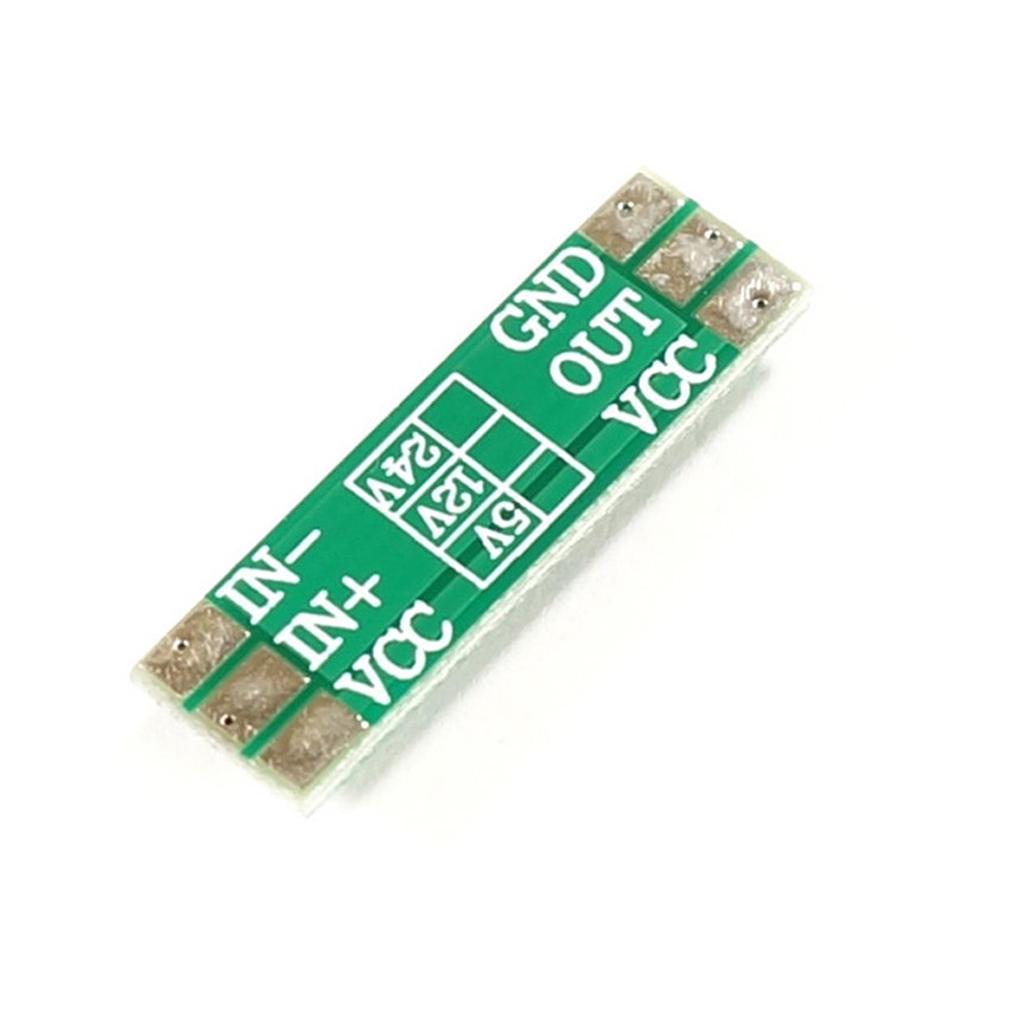

Max EL357N-C Optocoupler Isolation Module Signal Level Conversion 24V Input 3.3V NPN Output
Description:
Mini optocoupler isolation, signal level conversion module.
Suitable for general level conversion.
24V side can use long wire connect with button, the output side is connected to the MCU IO pin.
The highest signal frequency is 2KHz.
With input signal indicator, reverse connection protection for diode and current limiting resistor.
The output end is an optocoupler triode, NPN output ; The output terminal has current limiting resistance, and can not directly drive the relay module and other high current equipment.
Specification:
Optocoupler: EL357N
Input signal voltage: DC 24V
Output signal voltage: DC 3.3V / 5V / 12V /24V
Output signal type: NPN
Signal frequency:<2K Hz
Working temperature: - 40 ℃ ~ 85 ℃
Input signal indicator: Yes
Input reverse connection protection diode: Yes
NPN output type:
When the input without signal, output high level
When the input with signal, output low level
Size Chart:
Size: approx. 7.4 x 25mm

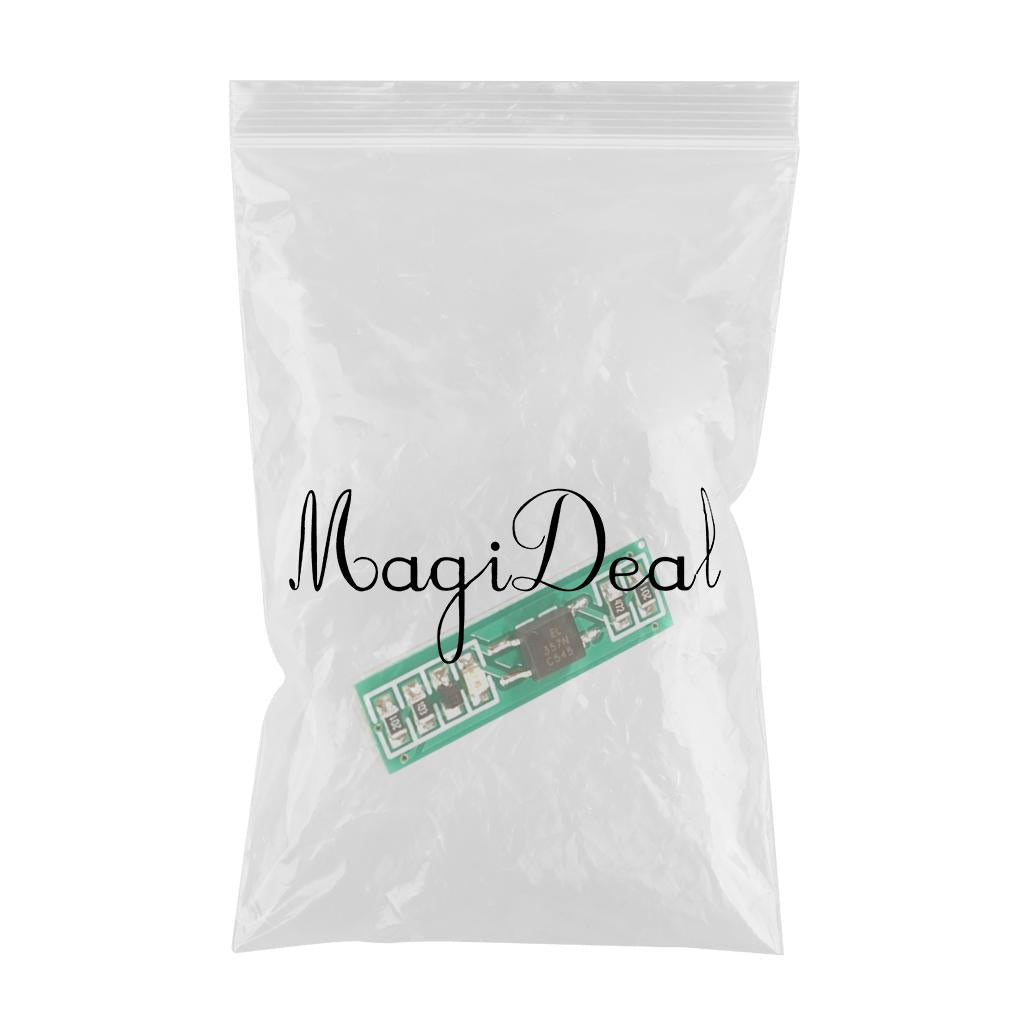

Package Includes:
1 Piece EL357N-C Optocoupler Isolation Module
