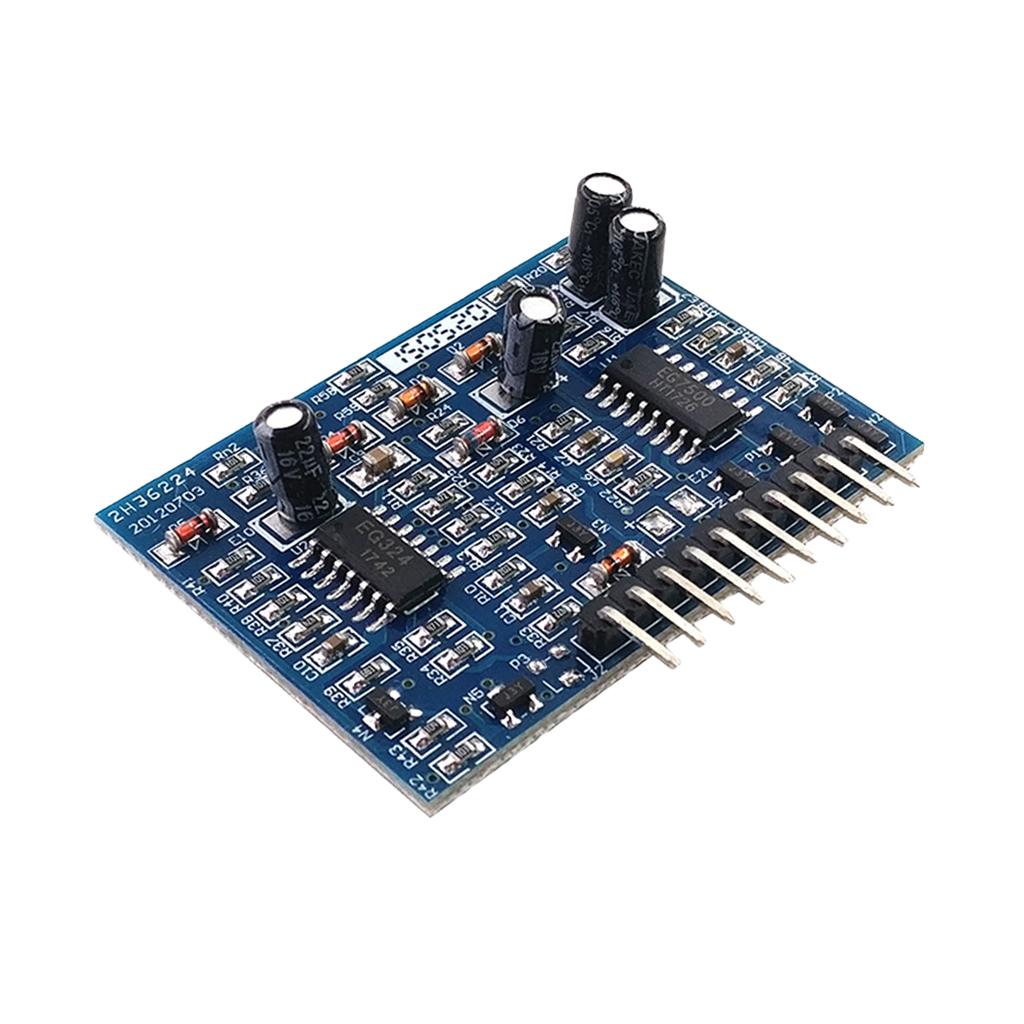

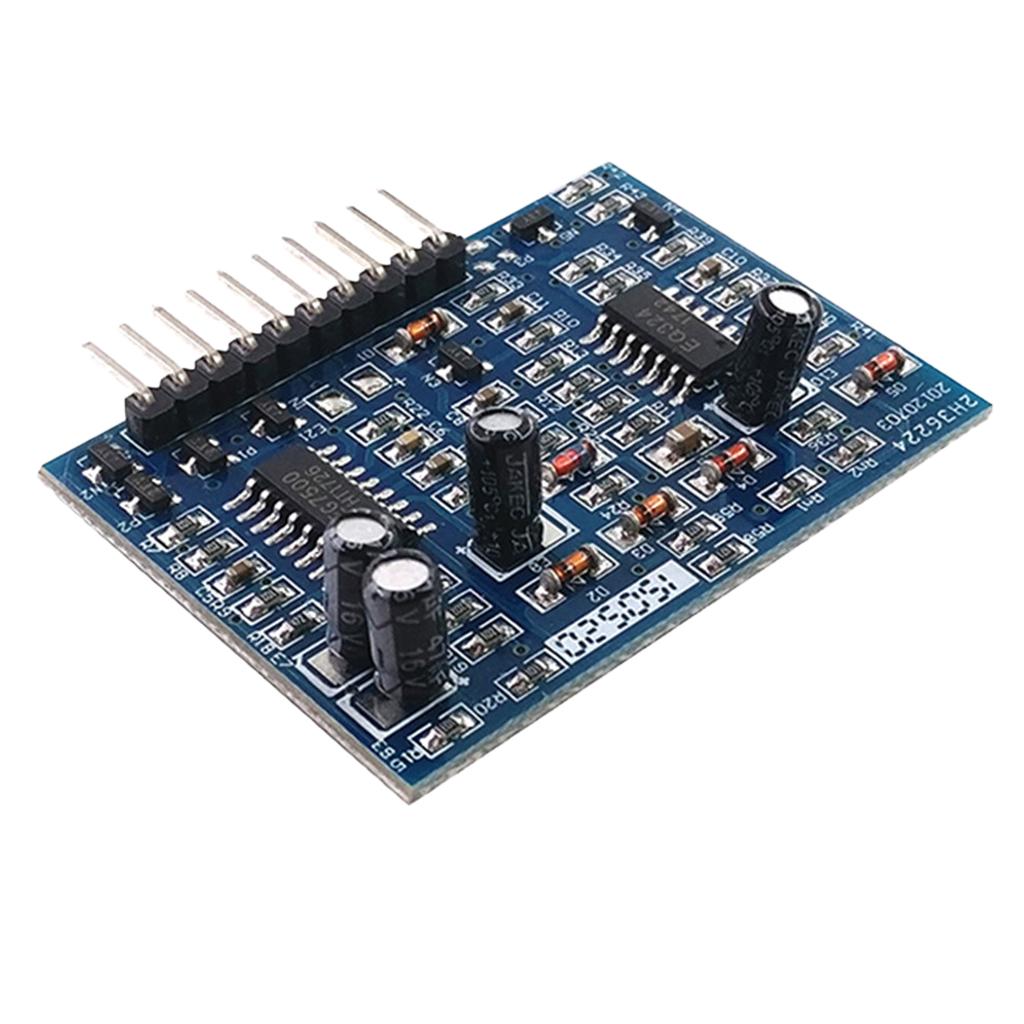

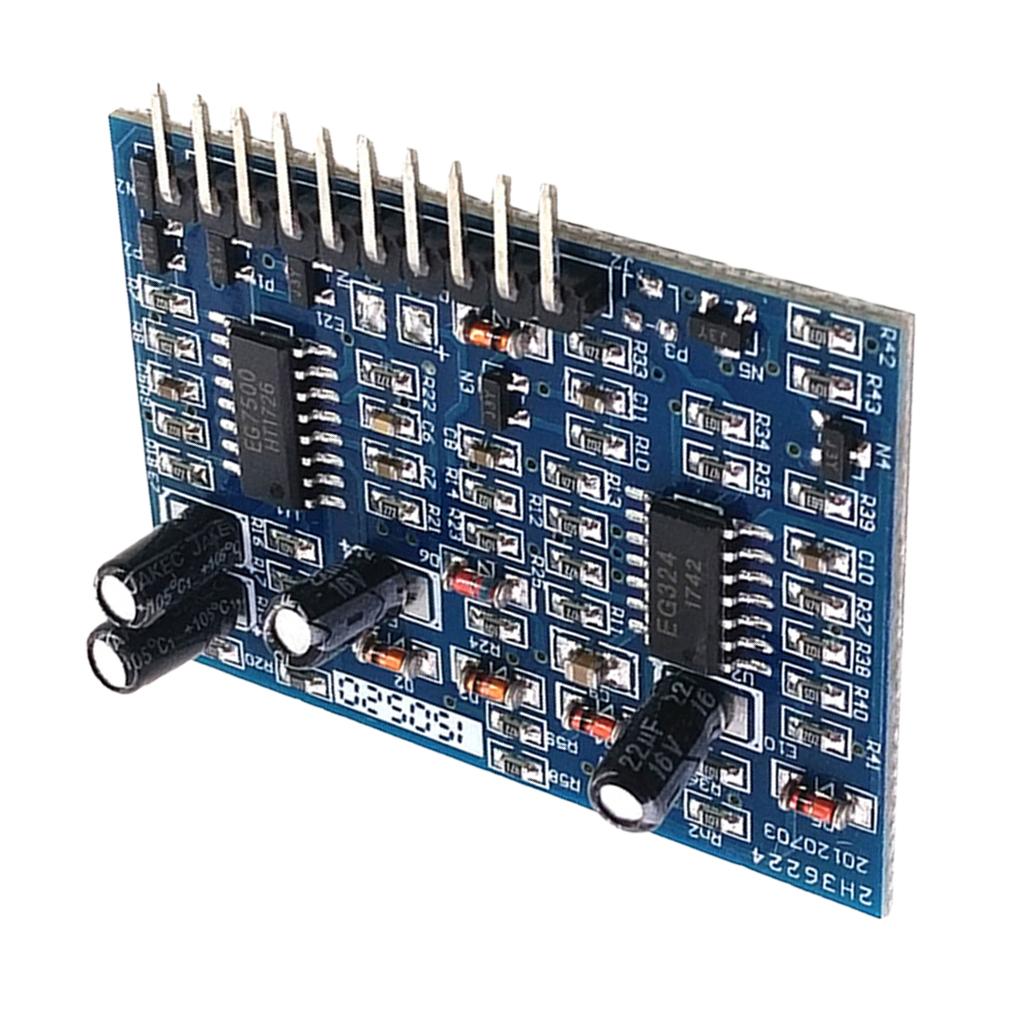

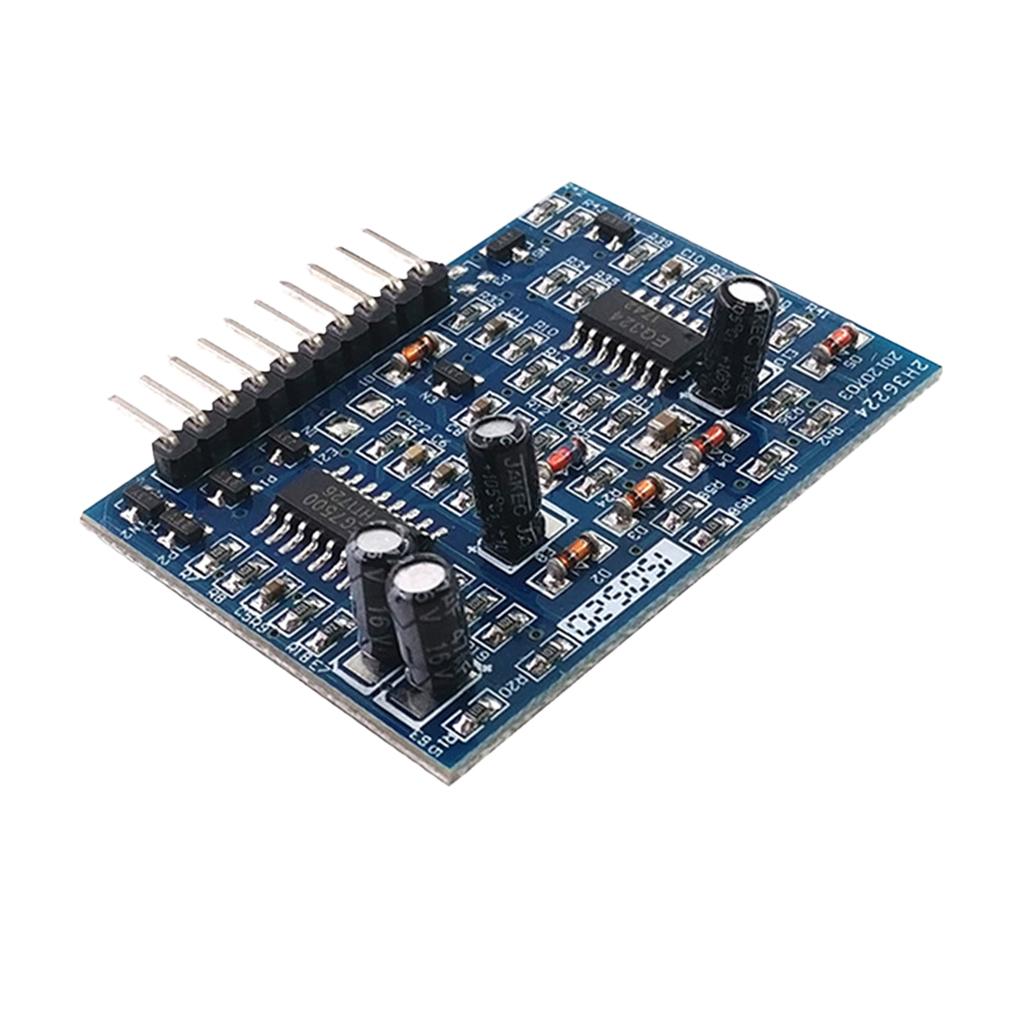

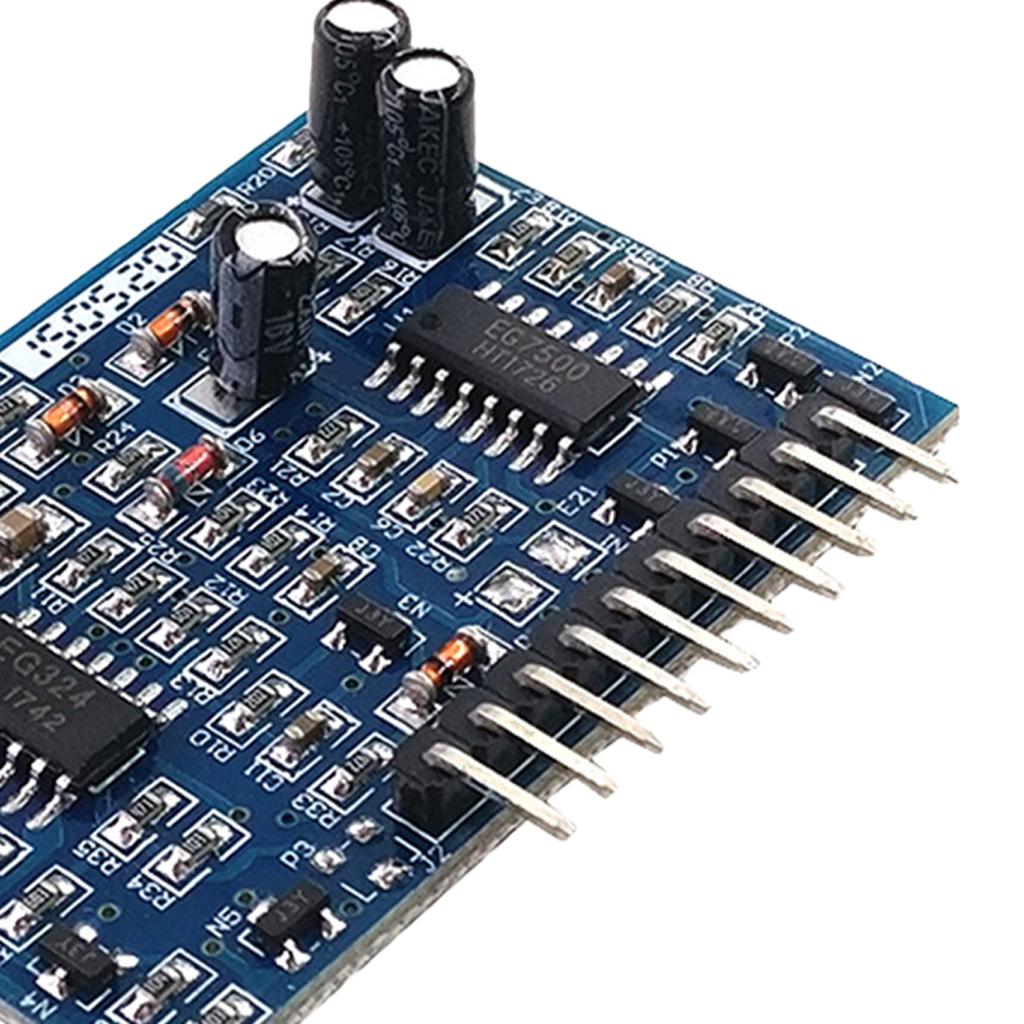

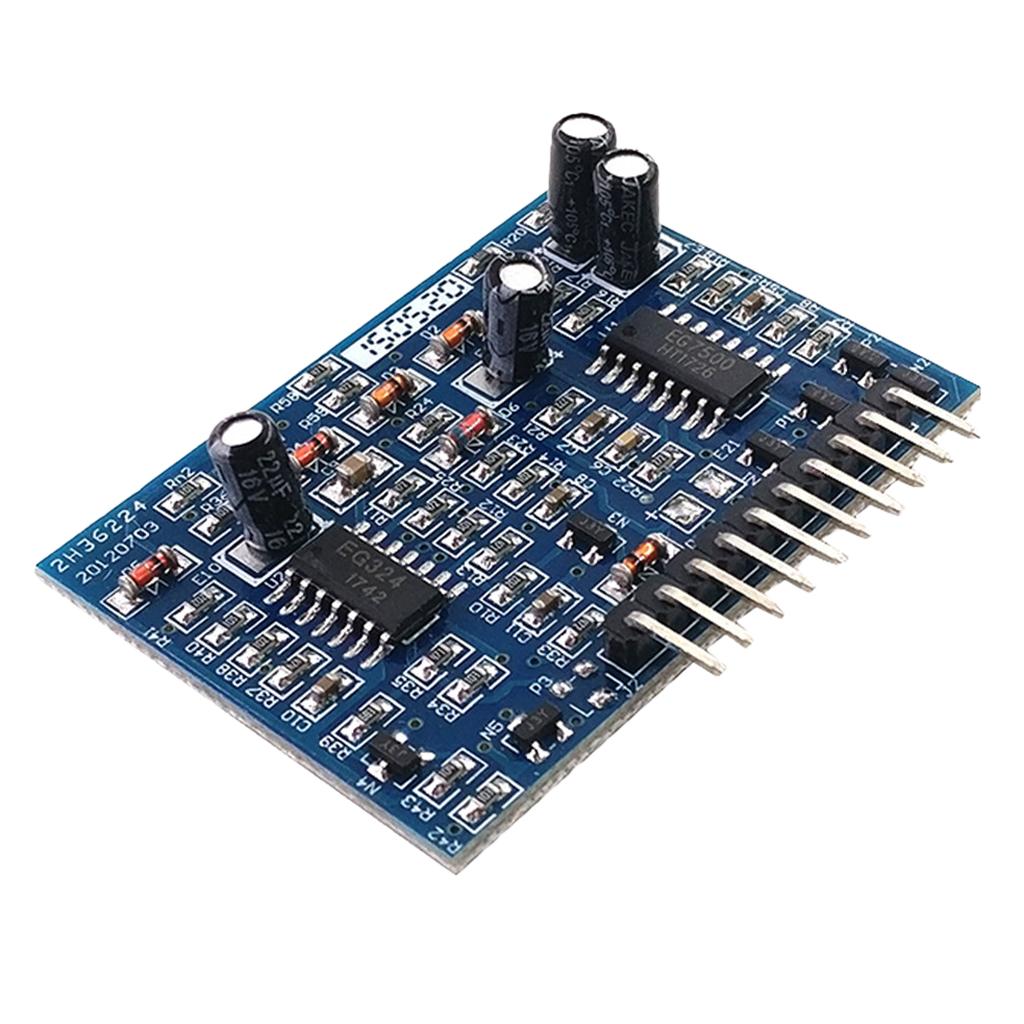

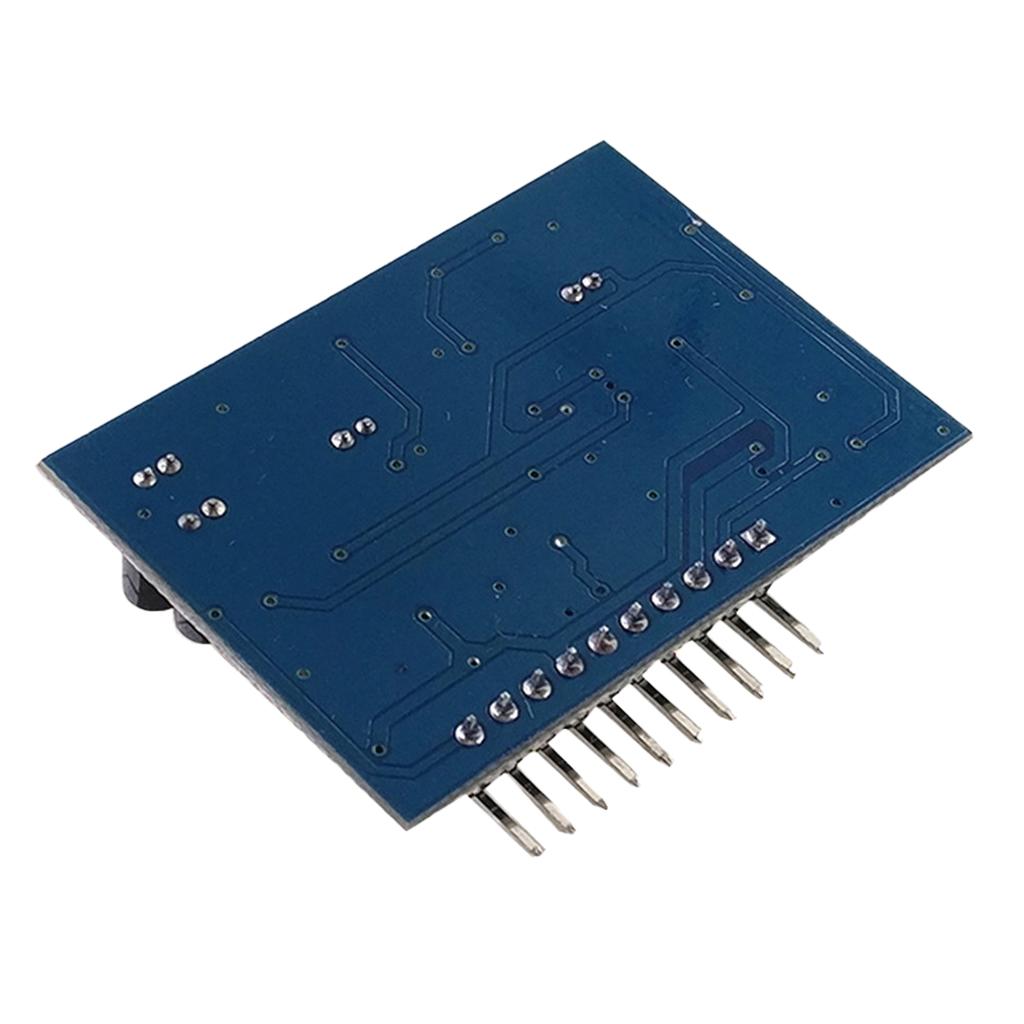

Maxbell EG7500 Inverter Switching Power Driver Board Panel Compatible KA7500 TL494
Description:
EG7500 Boost Driver Board Function Description:
Adopts push-pull mode to boost structure.
The PWM frequency of the EG7500 boost driver board is 40KHZ.
With ±1A current output drive capacity.
Overvoltage Shutoff >15V± 0.5V
Undervoltage Buzzer <10.5V±0.5V
Undervoltage Shutoff < 9.5v ± 0.5V
Overcurrent shut off IFB foot >48mV
PCB Material : FR-4, Thickness: 1.5mm
Size(LxW) : Approx.46x33.5 mm / 1.81x1.32 inch
Maximum Height of Parts on Board : 9mm
Weight : 7 g
EG7500 driver board pin function description:
1 Temperature
2 Undervoltage Buzzer
3 VCC + 12 v
4 Fan Control
5 VFB
6 GND
7 +12 V
8-9 drives the output terminal
10 IFB MOS tube Rds detection, overcurrent protection detection
The over-current protection follows the MOS tube driven by 8-9 feet. If the connection is wrong, the device will not start up.

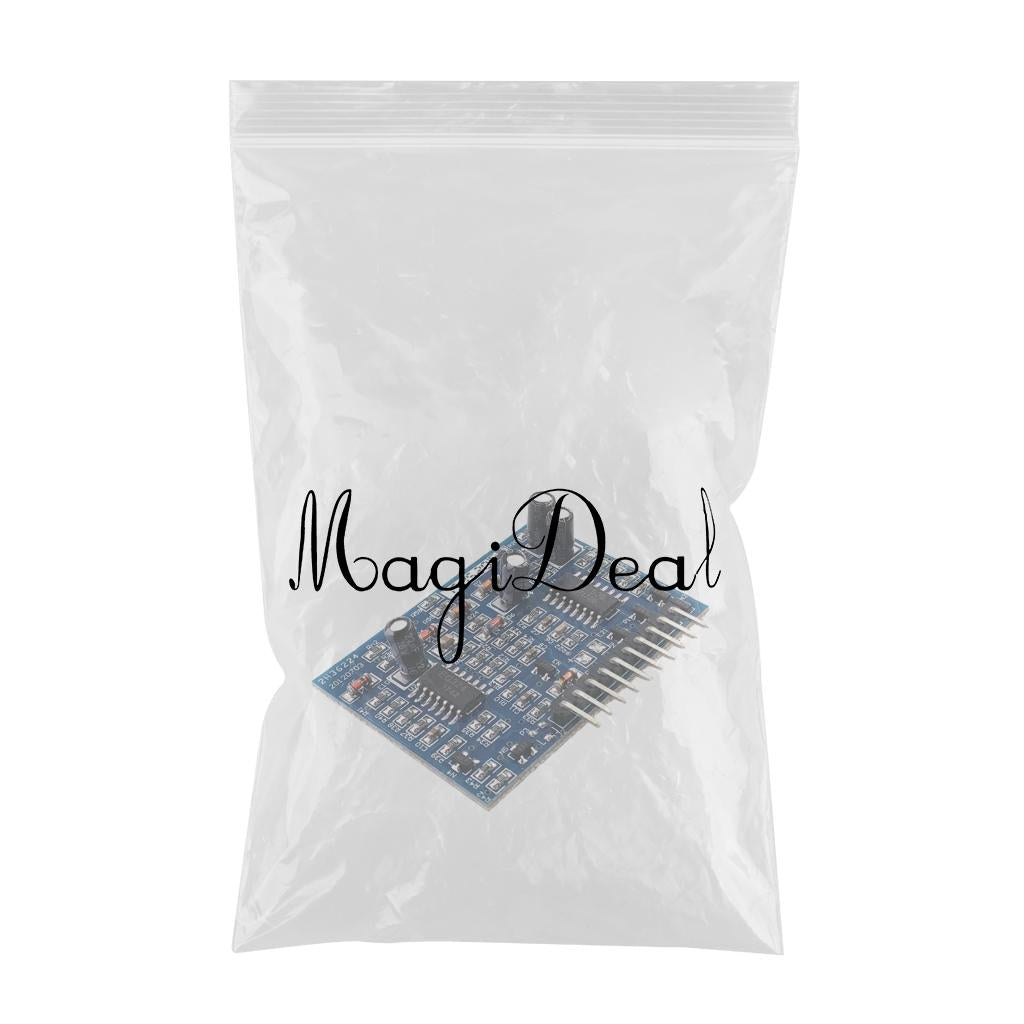

Package Includes:
1 Piece EG7500 Power Driver Board
