Maxbell DPS5005 Communication DC50V 5A Step Down Programmable Power Supply Module

Description:

This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one.

Its adjustable output voltage range is 0-50.00V, step by 0.01V. Its adjustable output current range is 0-5.000A, step by 0.001A.

The module can storage 10 groups of preset value and it can quickly extract 2 groups of preset value.

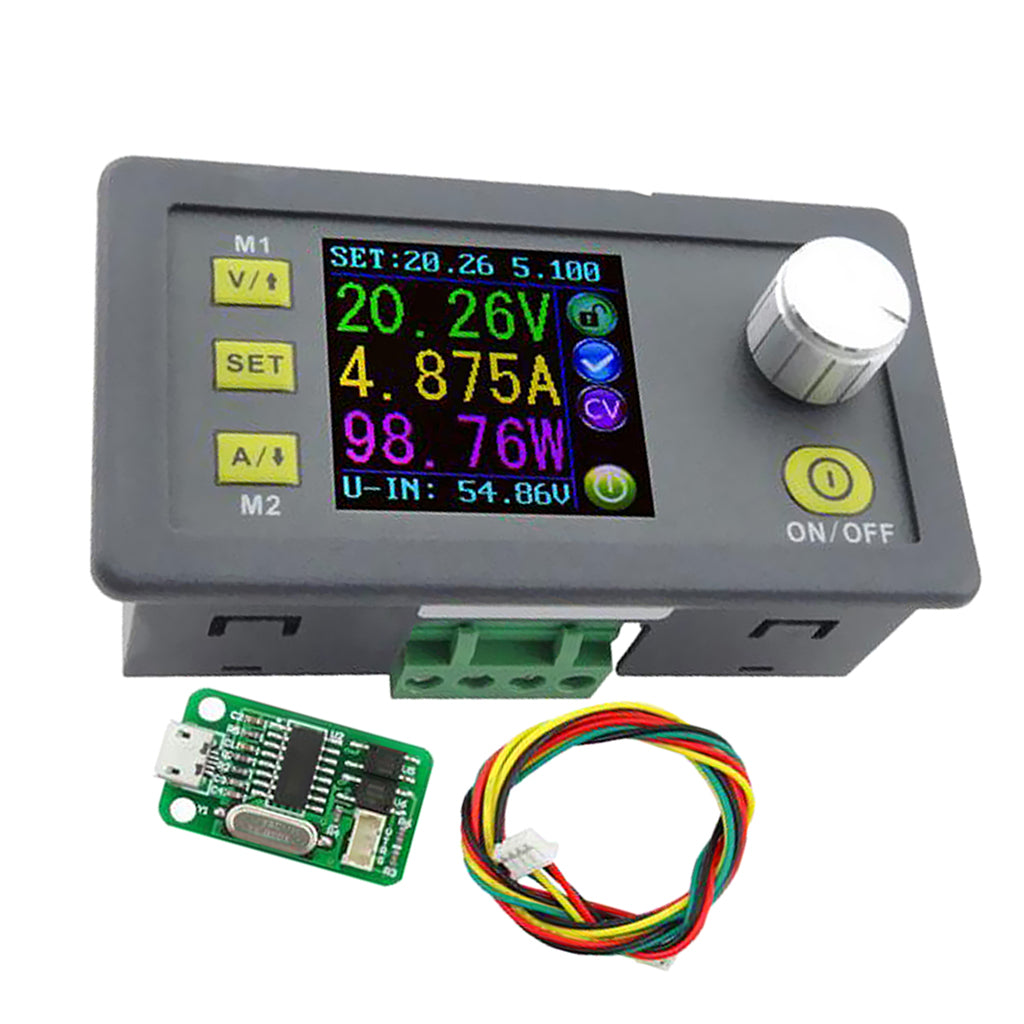

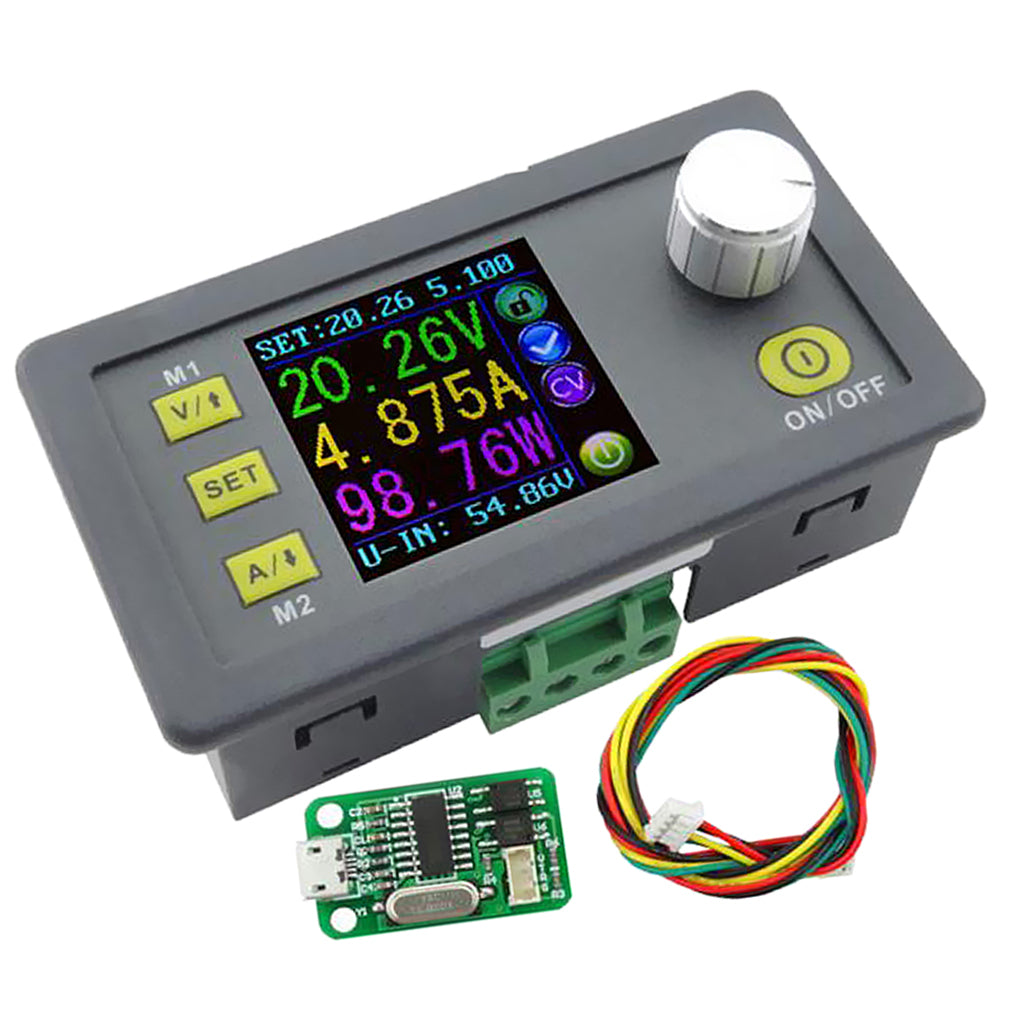

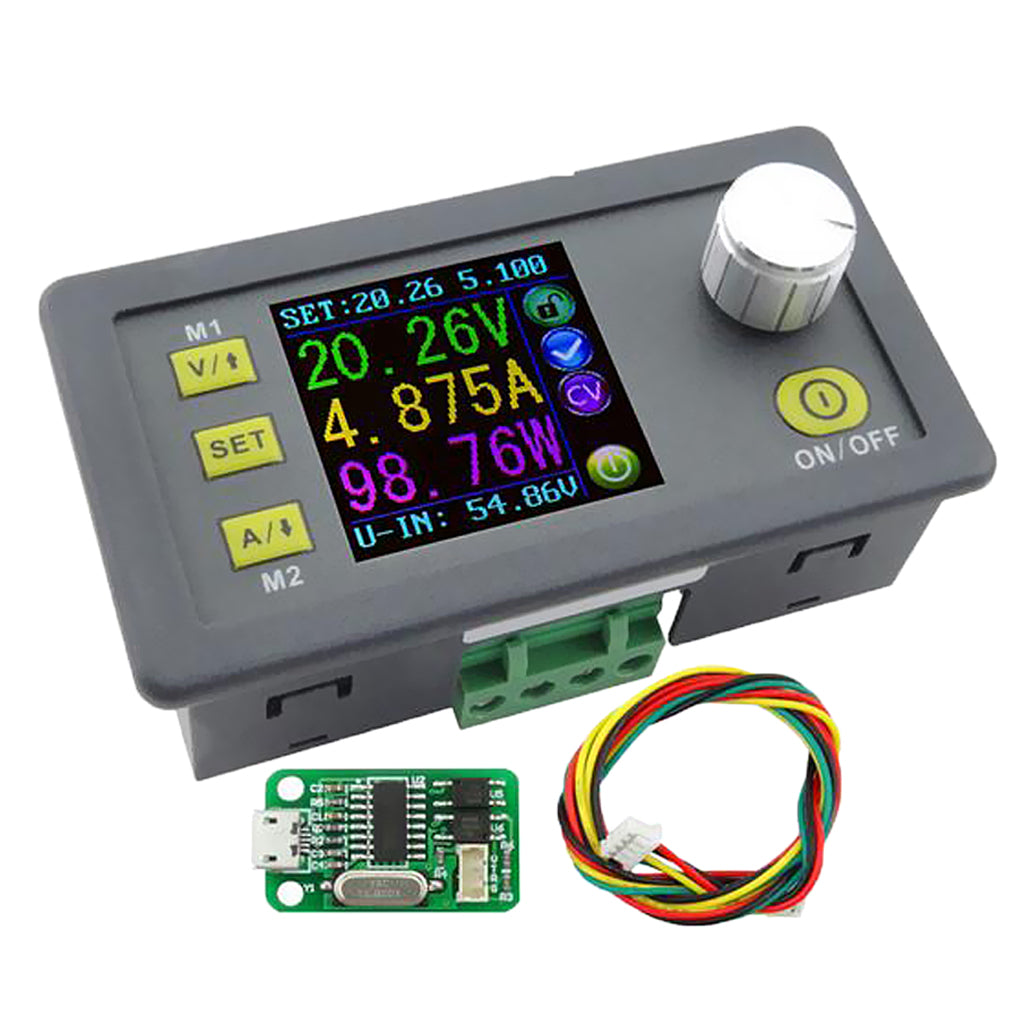

With LCD display and the function of voltage and current meter, you can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc.

In the output state display area, it is convenient for you to know whether the output works, constant voltage/current output state, current data group extracted, etc.

With advanced functions, high accuracy, wide application, the item is really practical.

Specification:

This is file for upper computer installation and software, you can download https://www.mediafire.com/folder/3iogirsx1s0vp/DPS_communication_upper_computer

Note: 1.Before buying this product, please download the upper computer software and test, if it fits your computer , you can buy

2. the upper computer only support For Win7 and above

Material: Plastic

Color: As Pictures Shown

Model Type: DPS5005 Communication Version

Input voltage range: 6.00-55.00V

Output voltage range: 0V-50.00V

Output current: 0-5.000A

Output power range: 00.00-250.0W

Output voltage resolution: 0.01V

Output current resolution: 0.001A

Output Voltage accuracy: ± (0.5% + 1 digit)

Output Current accuracy: ± (0.5% + 2 digits)

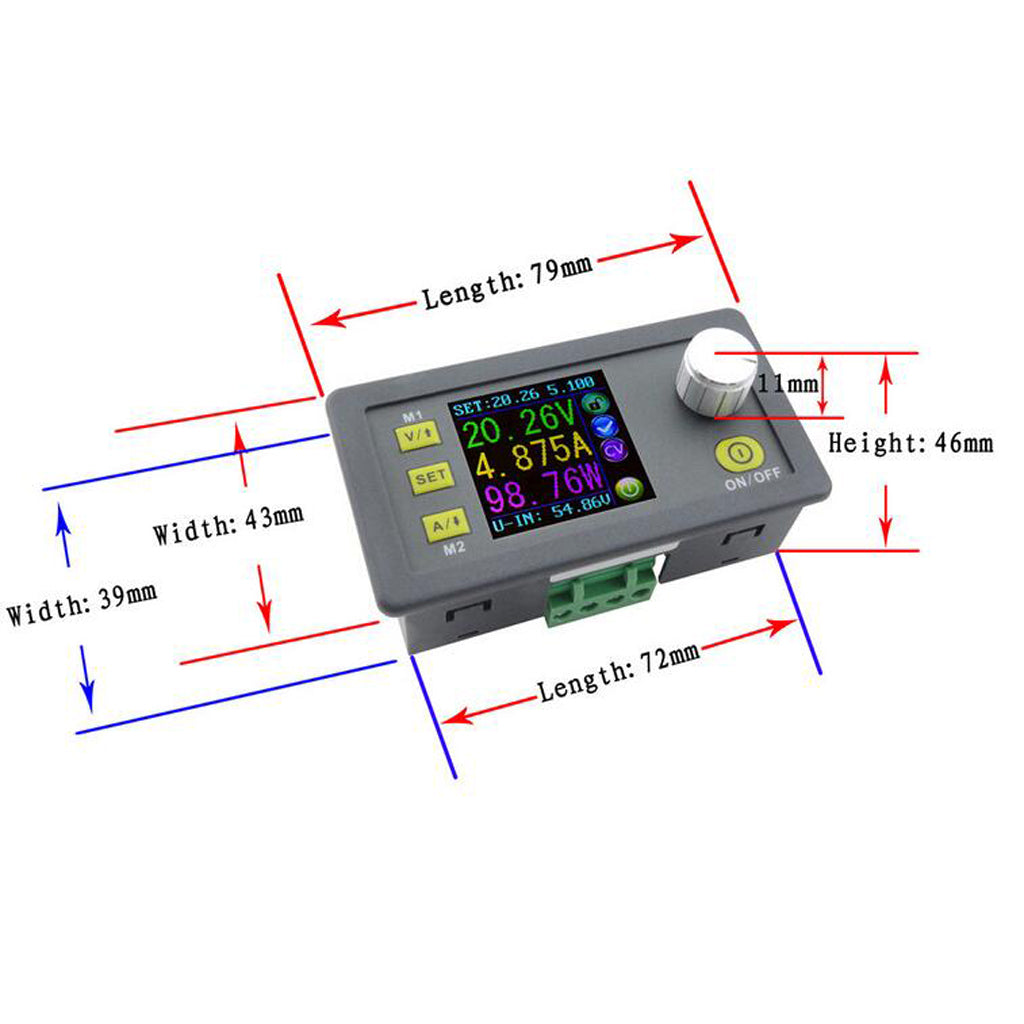

Product Dimension: Approx. 79*43*48(mm) (L*W*H)/ 3.11x 1.69x 1.89inch

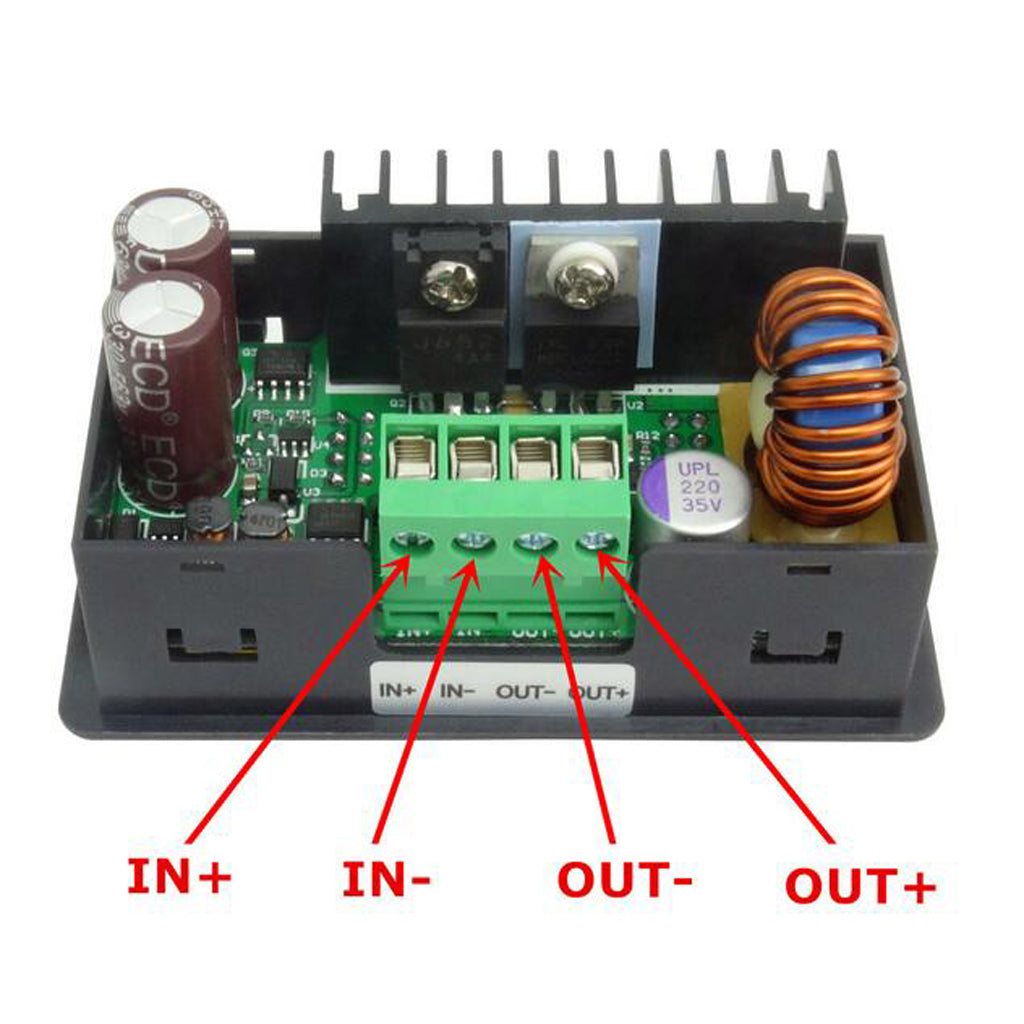

Input positive: IN+

Input negative: IN-

Output positive: OUT+

Output negative: OUT-

Package Includes:

1 Piece Programmable Power Supply

1 Piece User Manual

Note:

When you get the product in the first time, please don't use your hands to touch the components, because human static electricity can damage some chips.

You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.

When the current is more than 10A or the temperature is more than 45 °c , the fan will begin to work. when the temperature is more than 65°c, the module will stop working.
