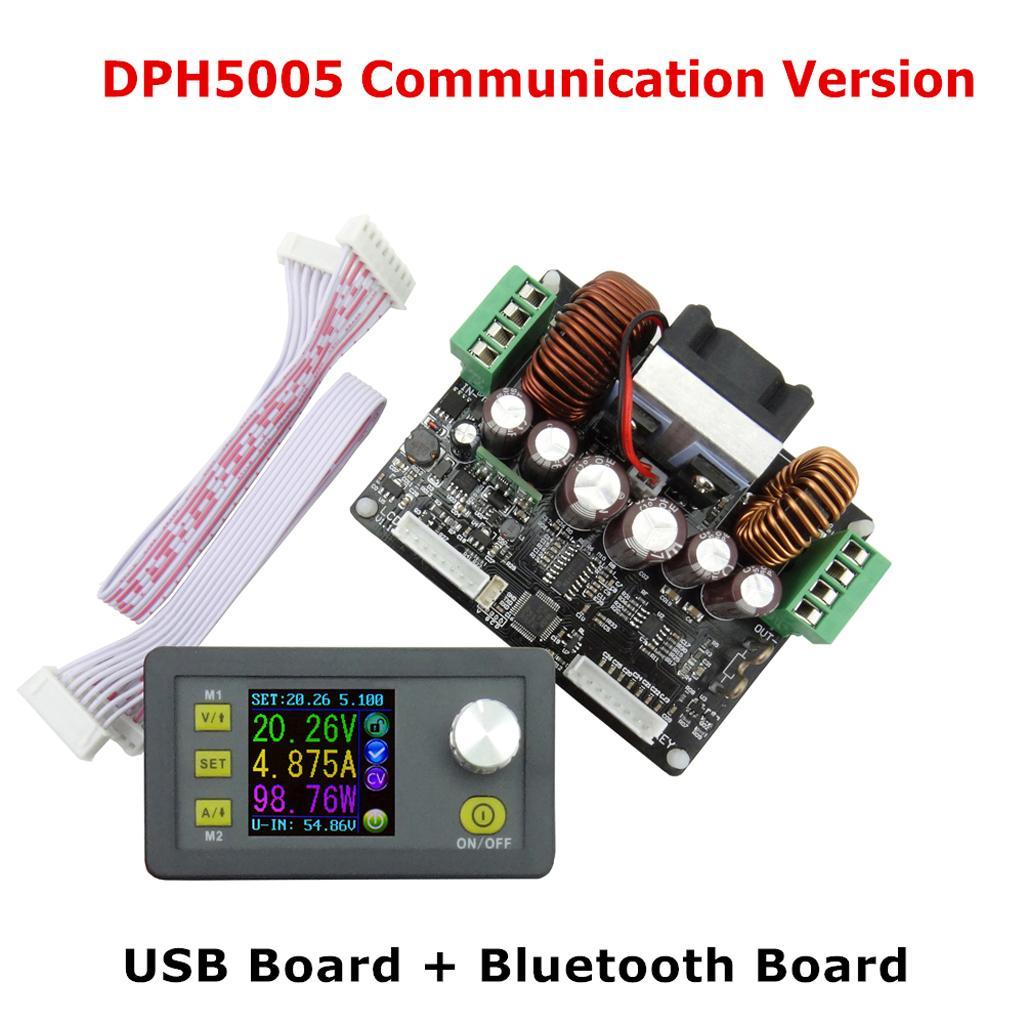

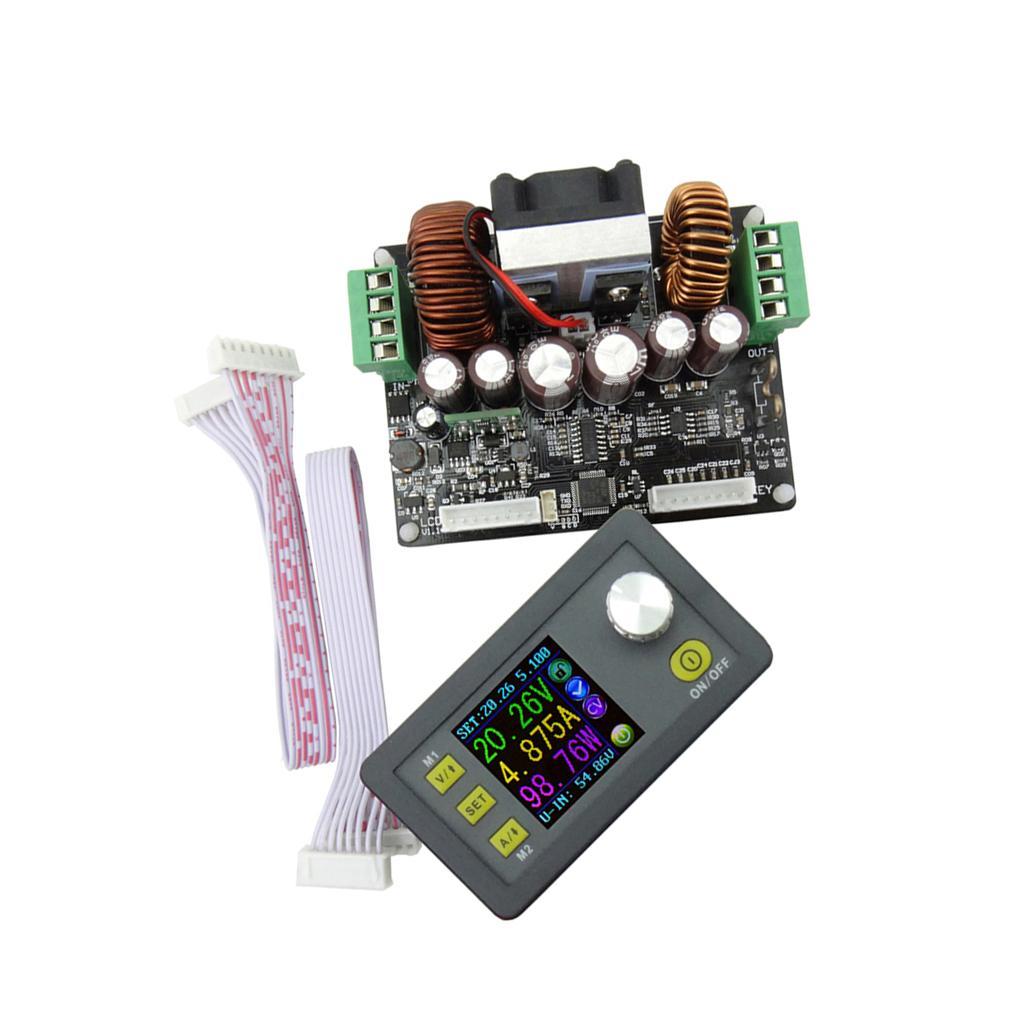

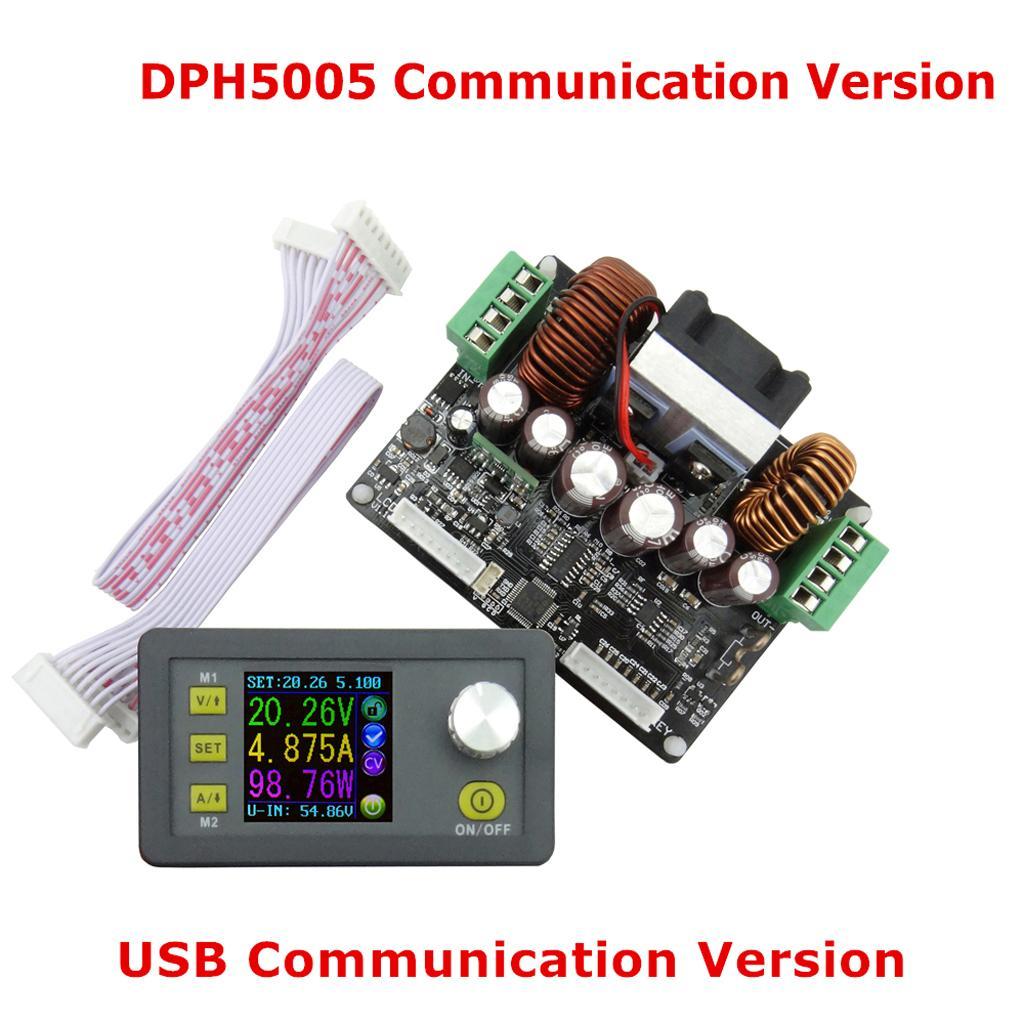

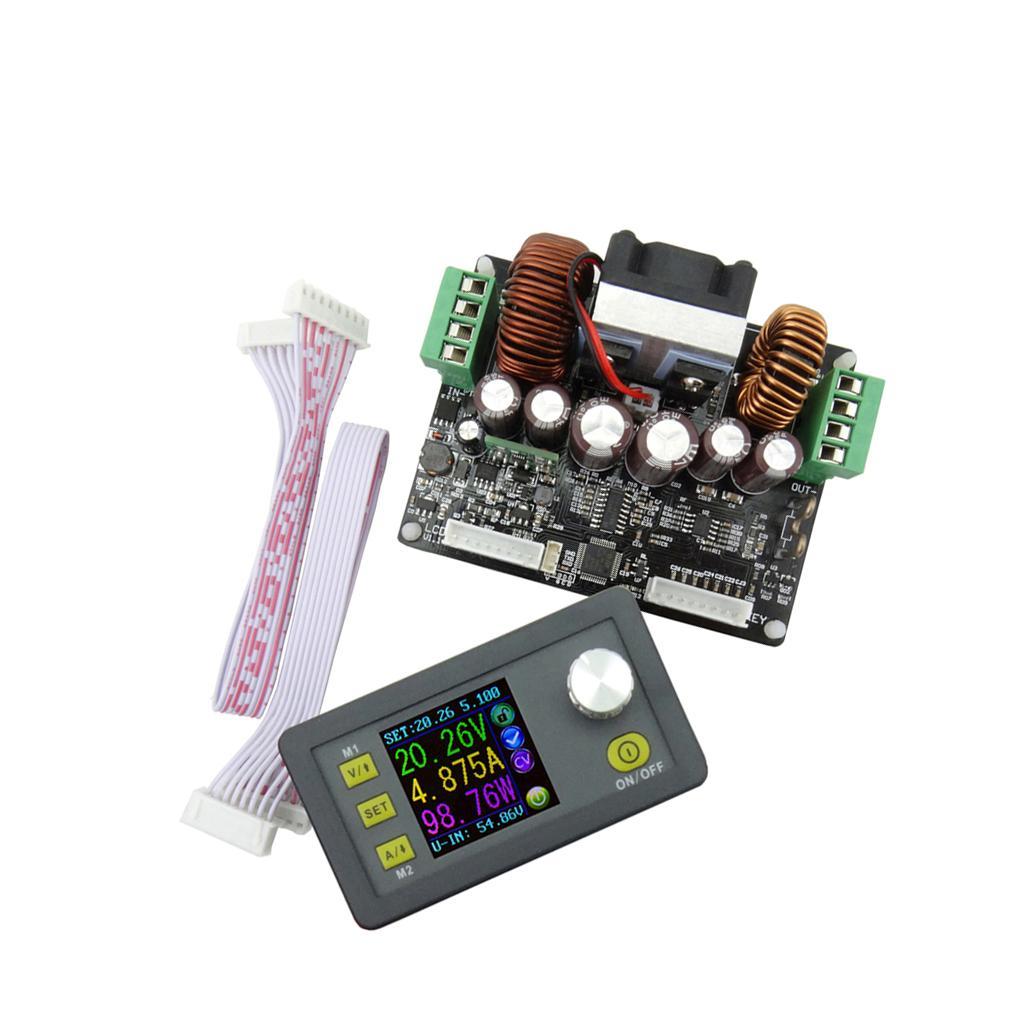

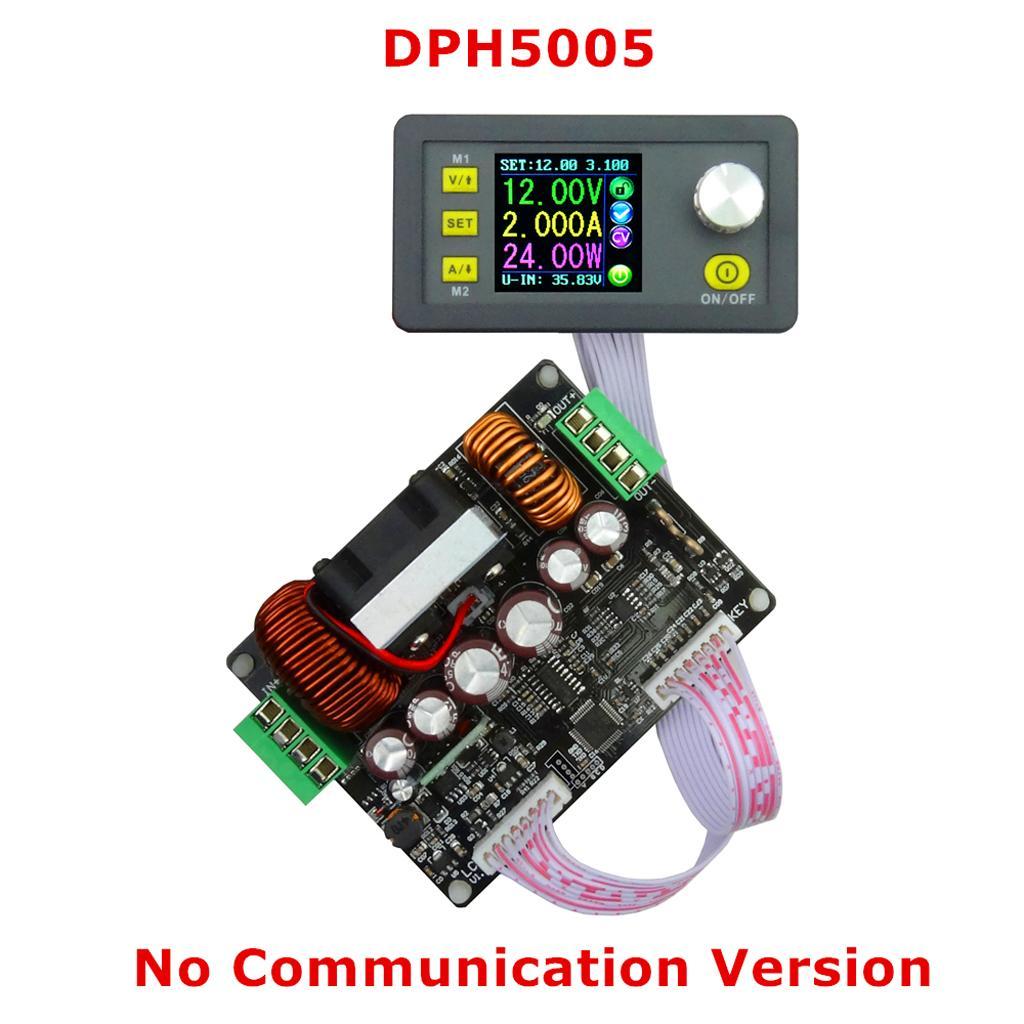

Max Maxb DPH5005 Digital Control Buck-Boost Power Supply Constant Voltage Current
Description:
The constant voltage and constant current programmable digital control Buck-Boost power supply module put the collection of analog integration and digital control functions in one.
Its adjustable output voltage range is 0-50.00V, step by 0.01V. Its adjustable output current range is 0-5.000A, step by 0.001A.
This module has power-down stored function and can store 10 groups preset value. And it also has the function of extracting quickly two groups stored value.
More convenient to quickly extract the voltage or current required.
LCD display on the module has the function digital voltmeter and ammeter.You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc
On the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used.
On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data group and LCD brightness.
This module adopts buck-boost structure; when input voltage is lower, equal to or higher than output voltage, output voltage is still stable and changeless. This feature has wide range of application.
Specification:
Input voltage range: 6-50V
Output voltage range: 0V-50.00V
Output current: 0-5.000A
Output power range: 0-250W
Max allowable input current: 10A
Output ripple: about 100mVpp
Product Weight: about 267g

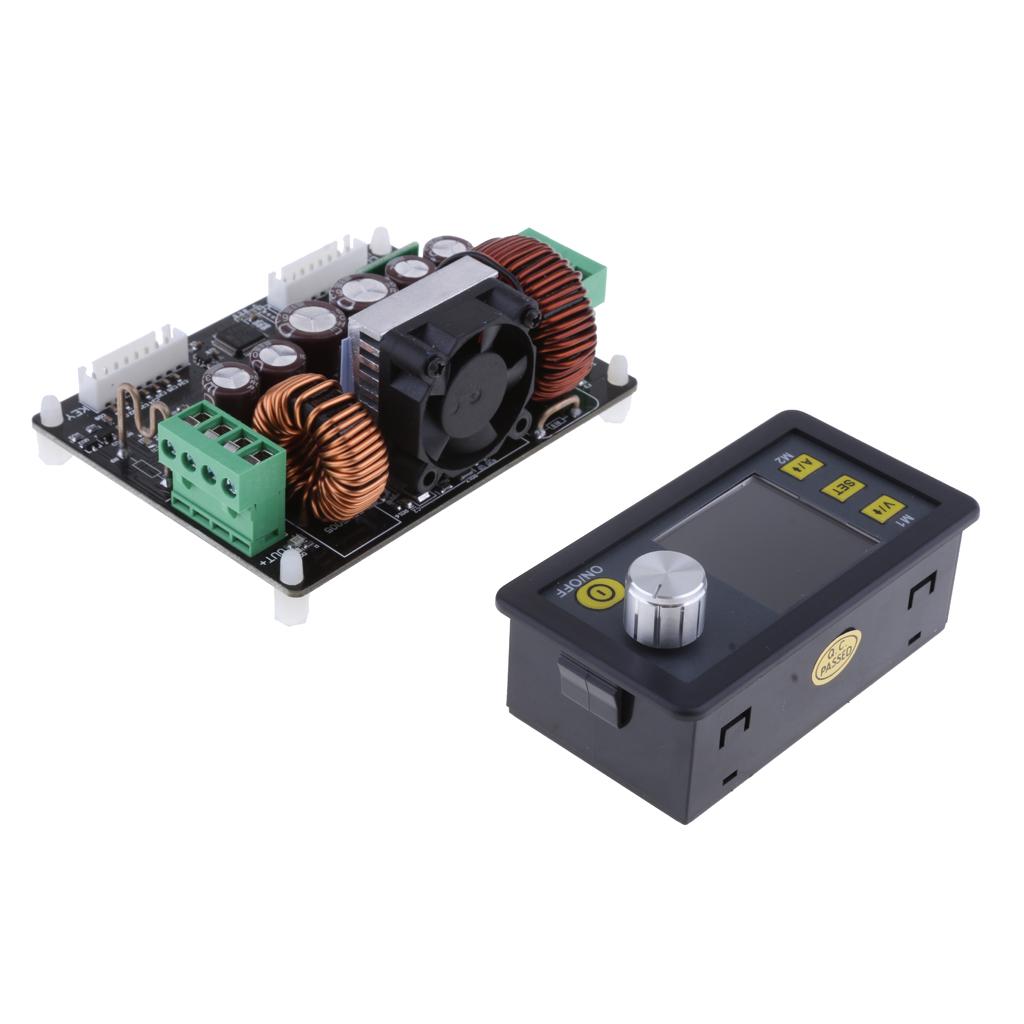

Display module size: 79*43*38(mm) (L*W*H)
Open size: 76mm*39mm

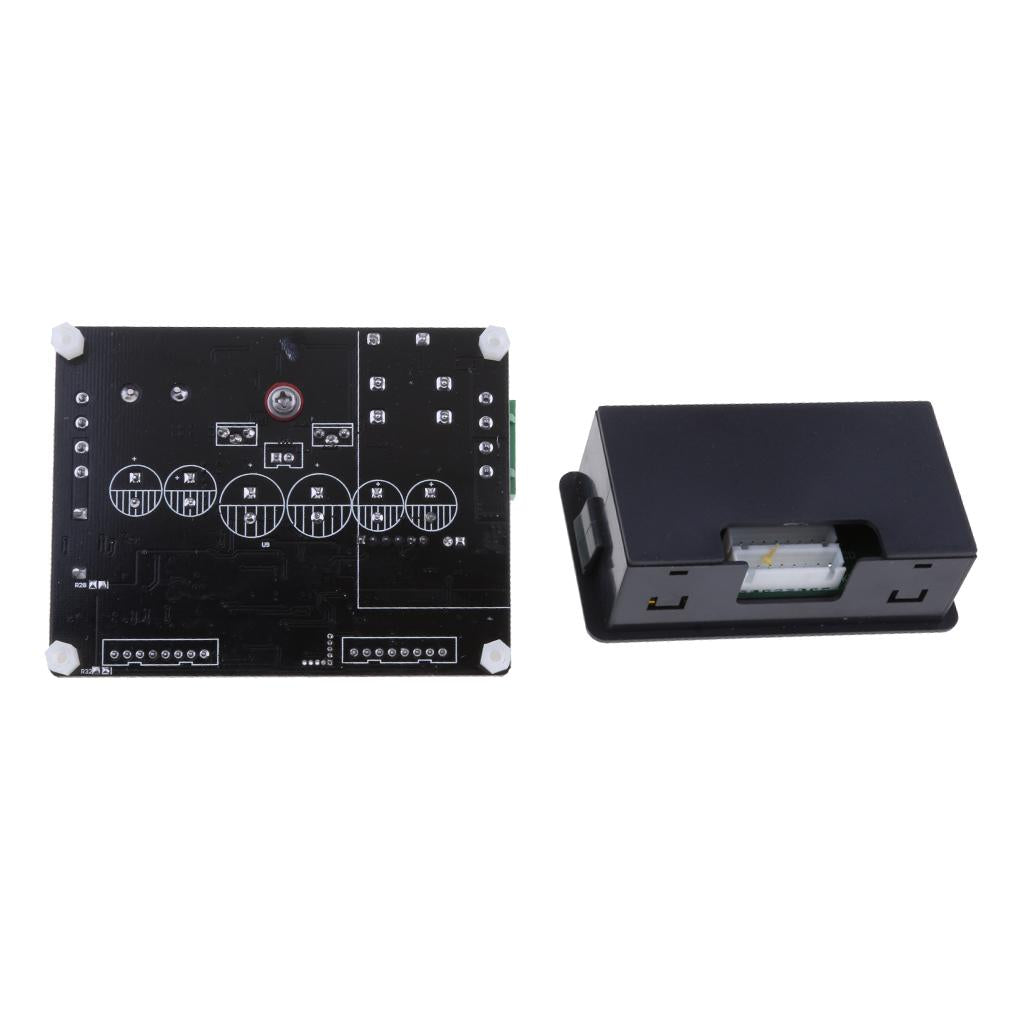

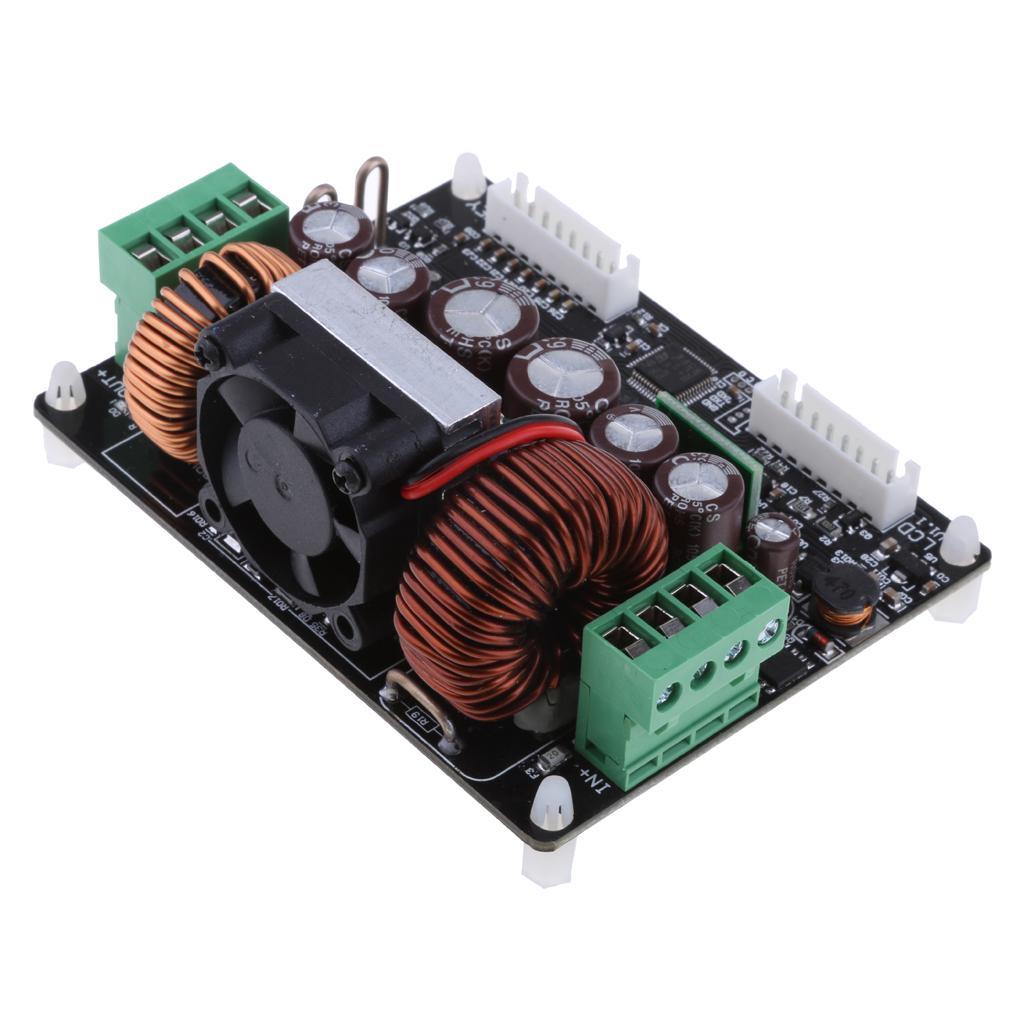

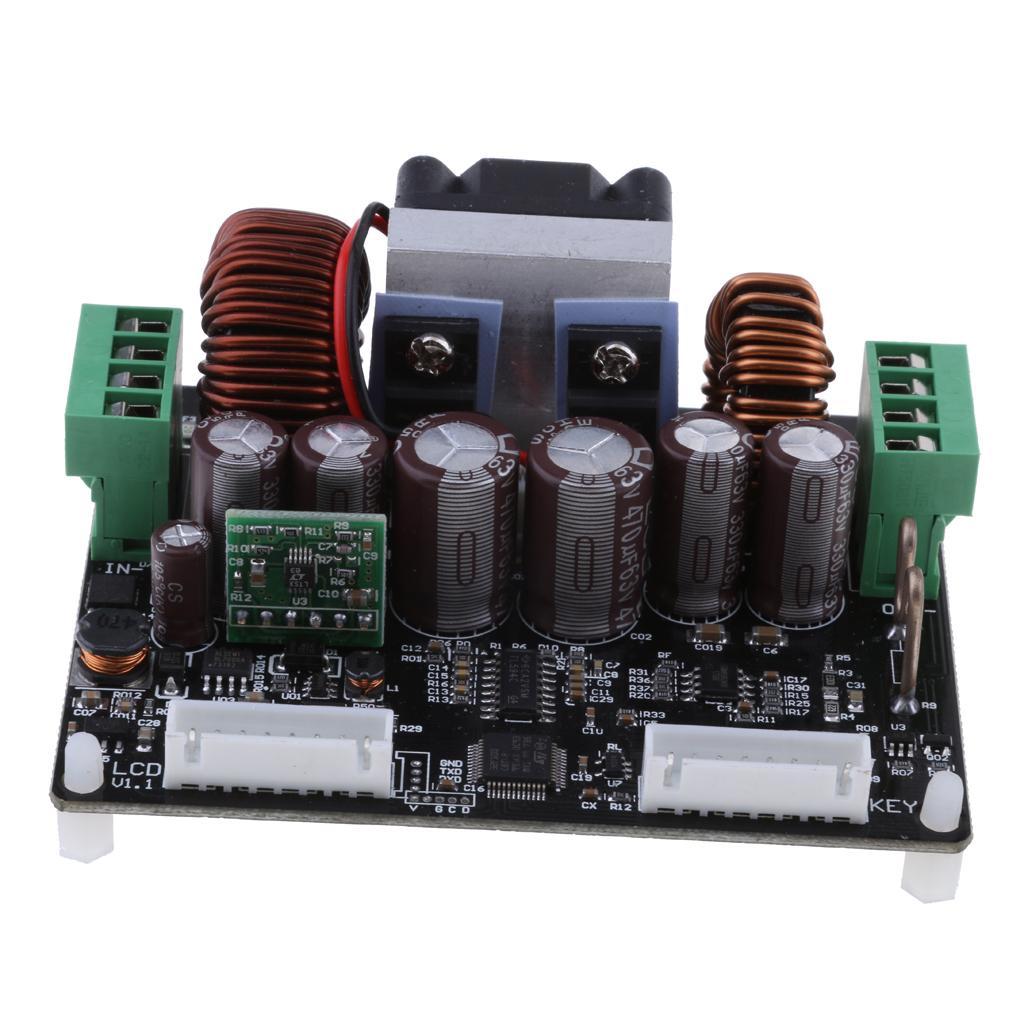

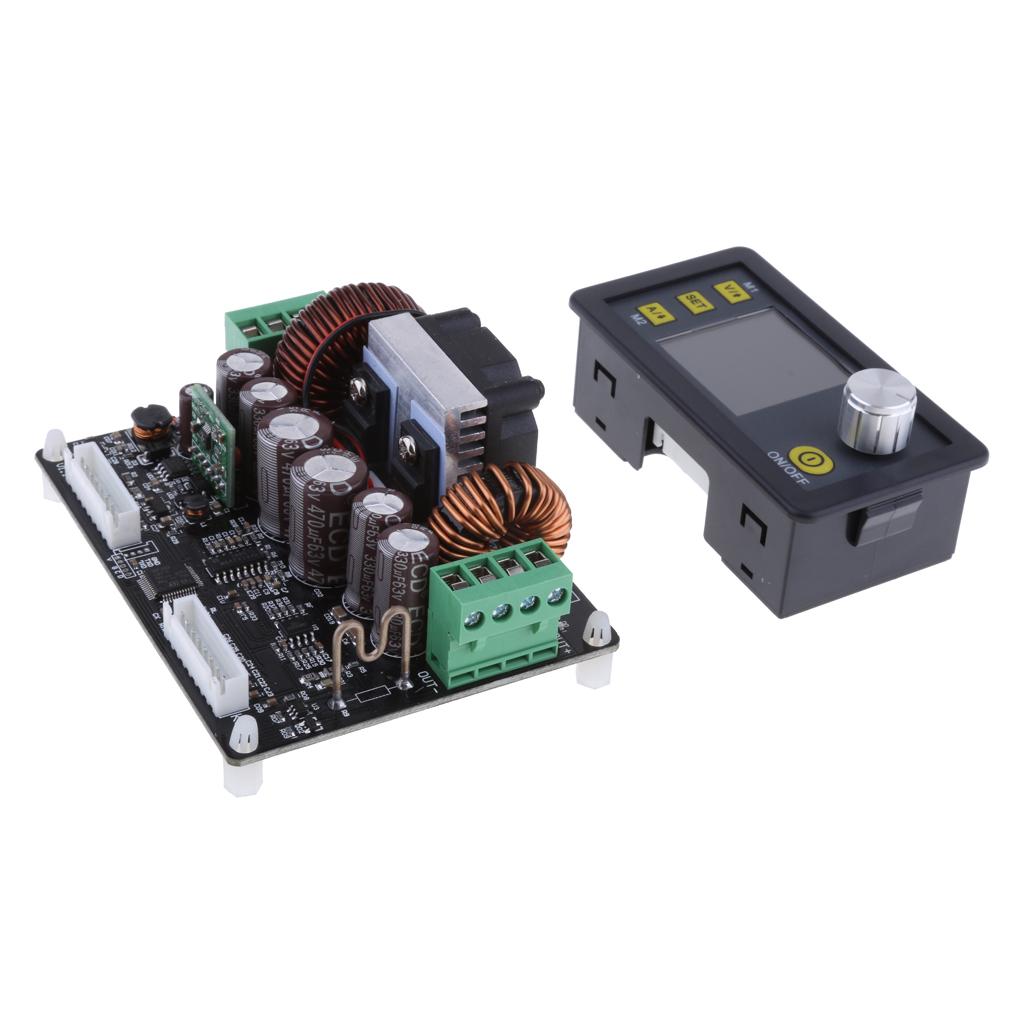

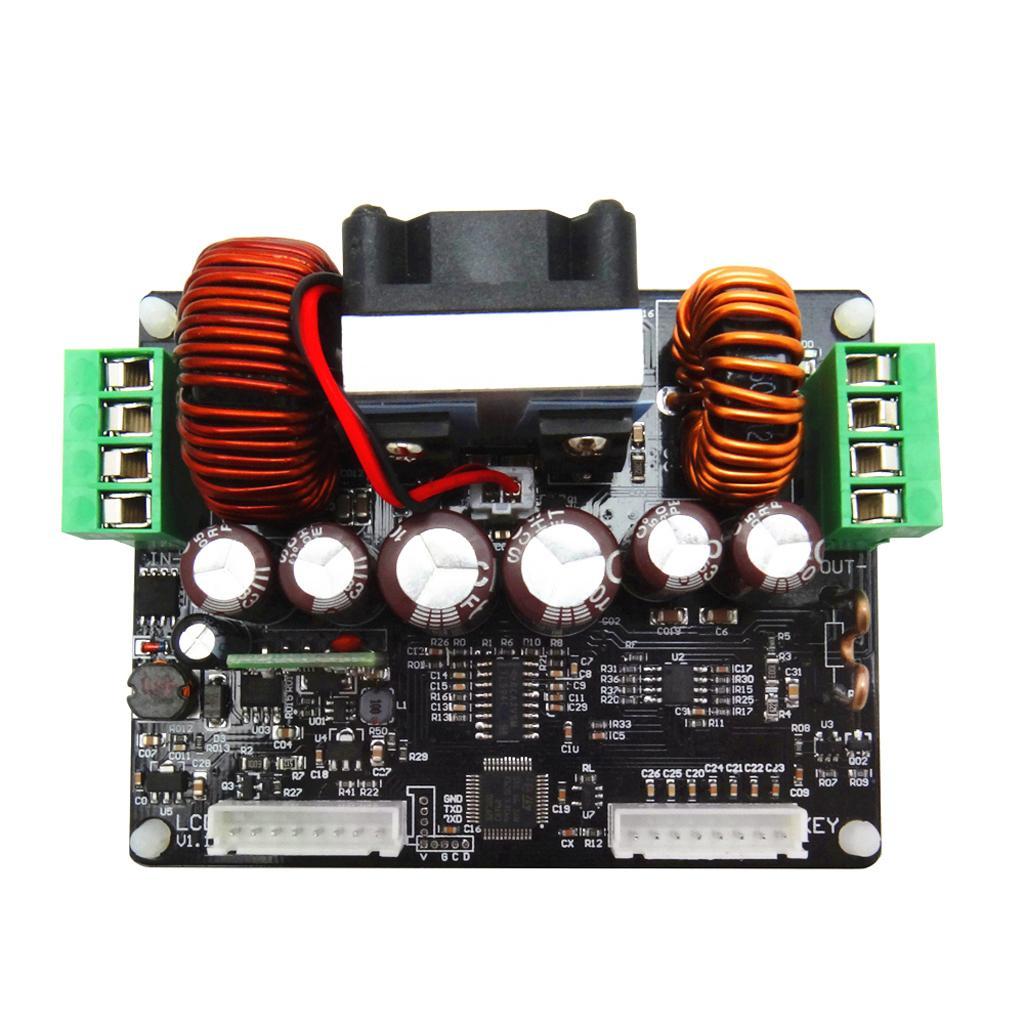

Power module size:93*72*42(mm) (L*W*H)
Length of connecting line: 200mm
Fixed hole center distance: 86mm, 64mm
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: ± (0.5% + 2 digits)
Output Current accuracy: ± (0.5% + 3 digits)
Environment Temperature: -10 to 45℃

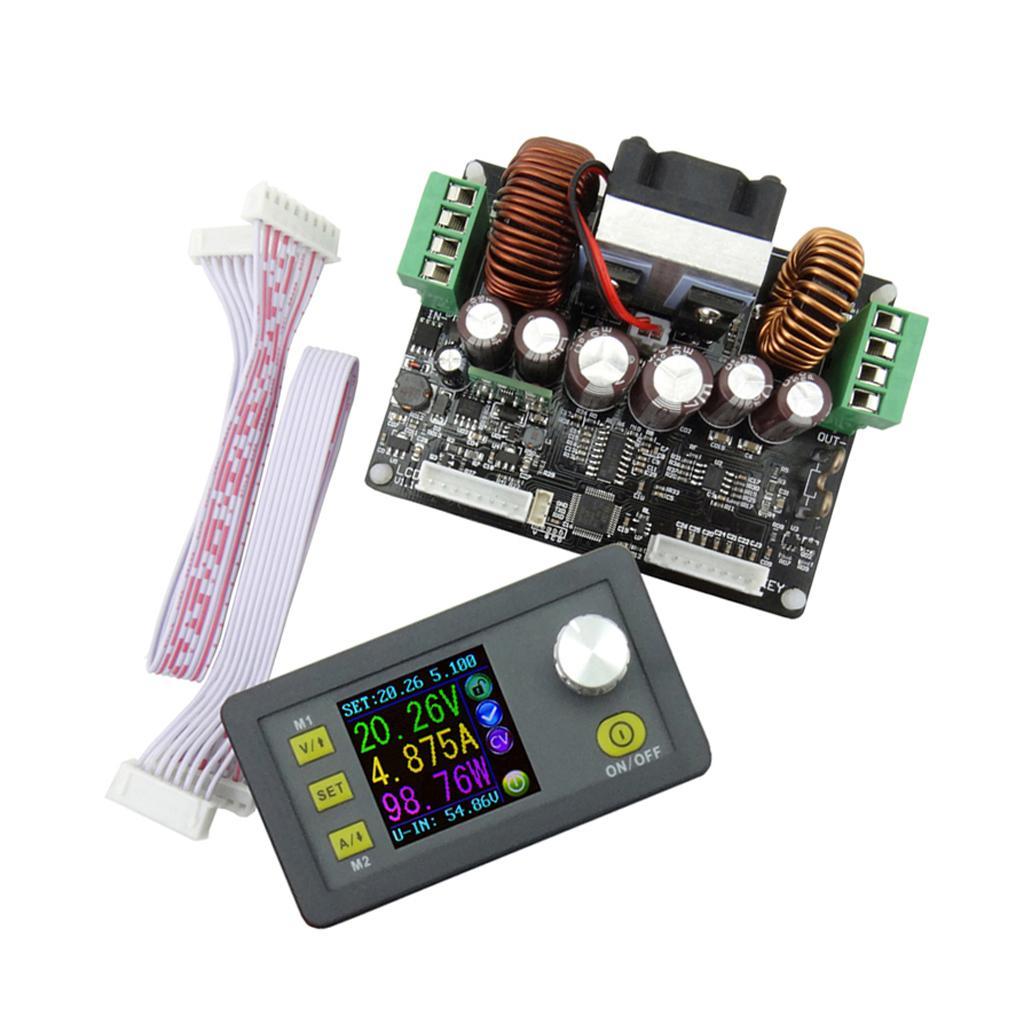

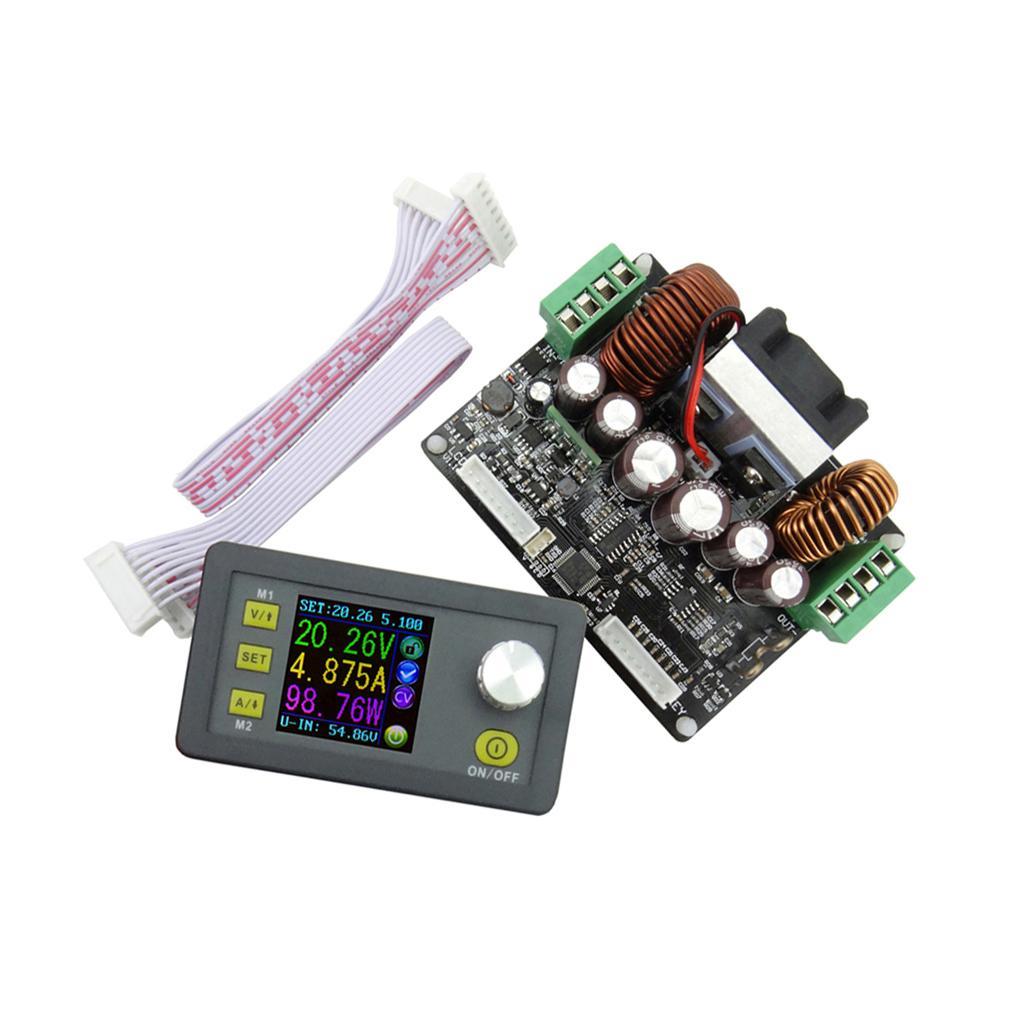

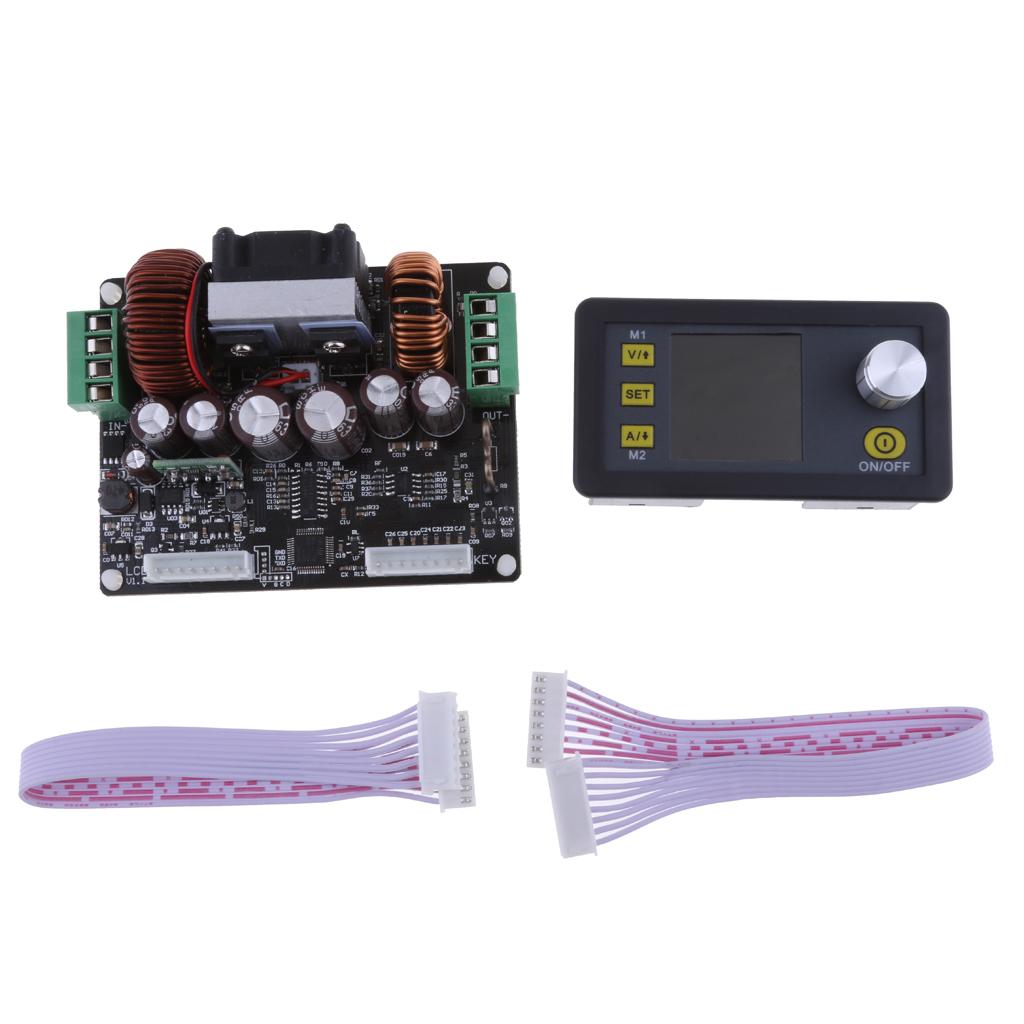

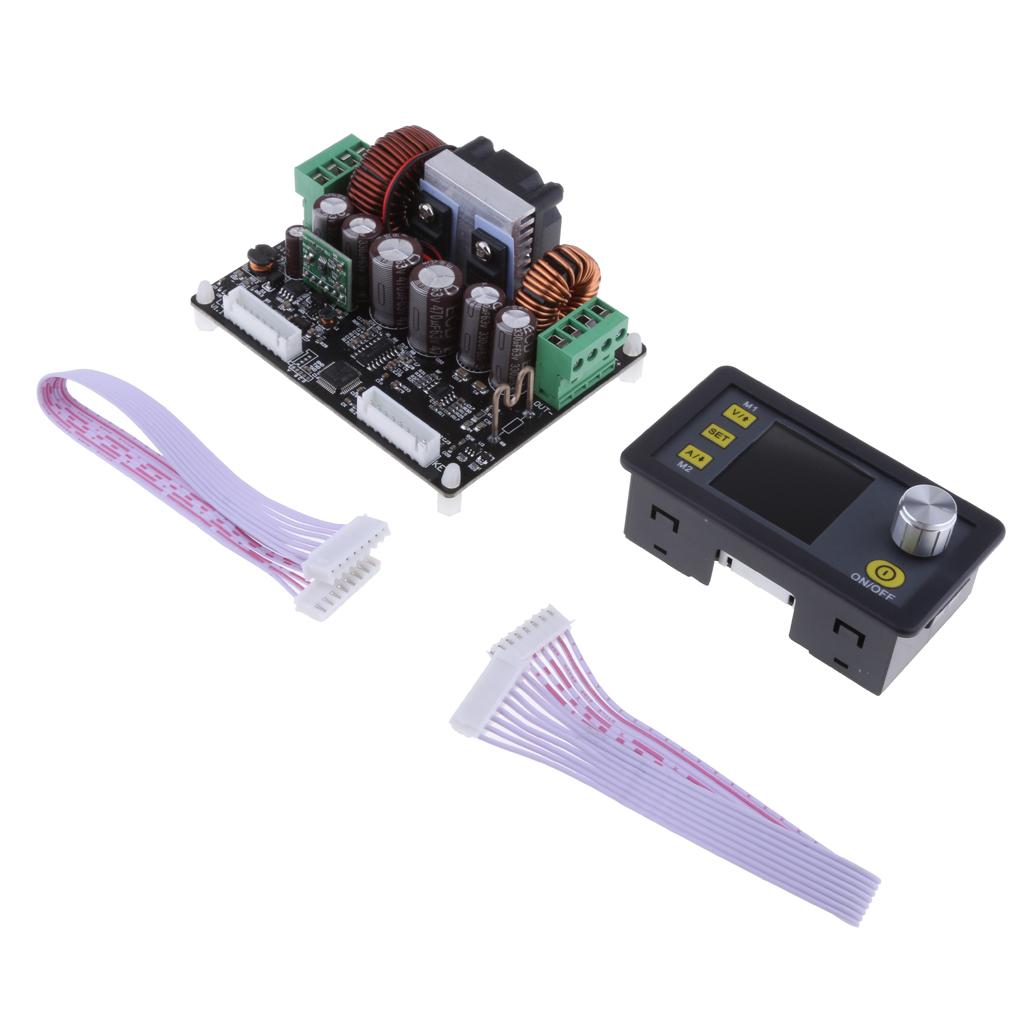

Package Includes:

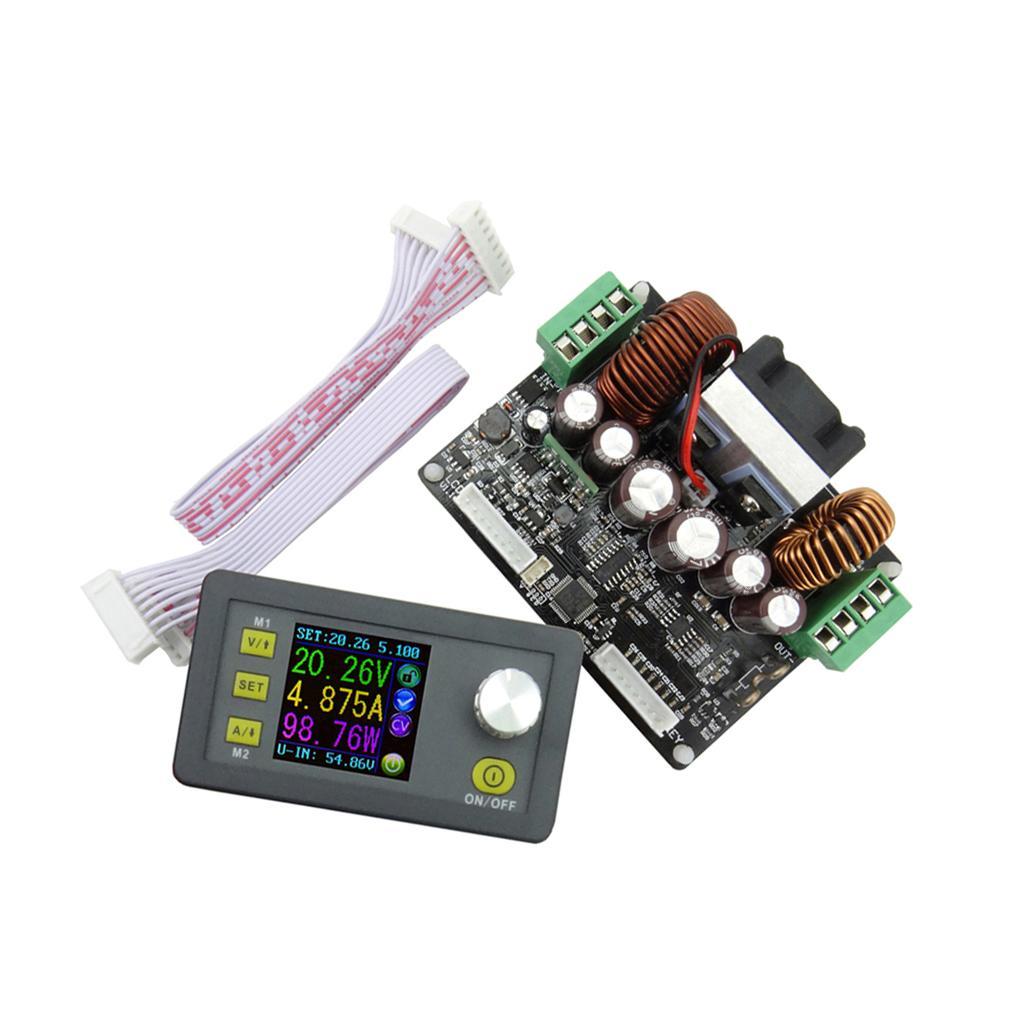

1 Piece Digital Control Buck-Boost Supply Power Module
1 Piece LCD Screen
2 Pieces Data Cable
1 Piece User Manual
