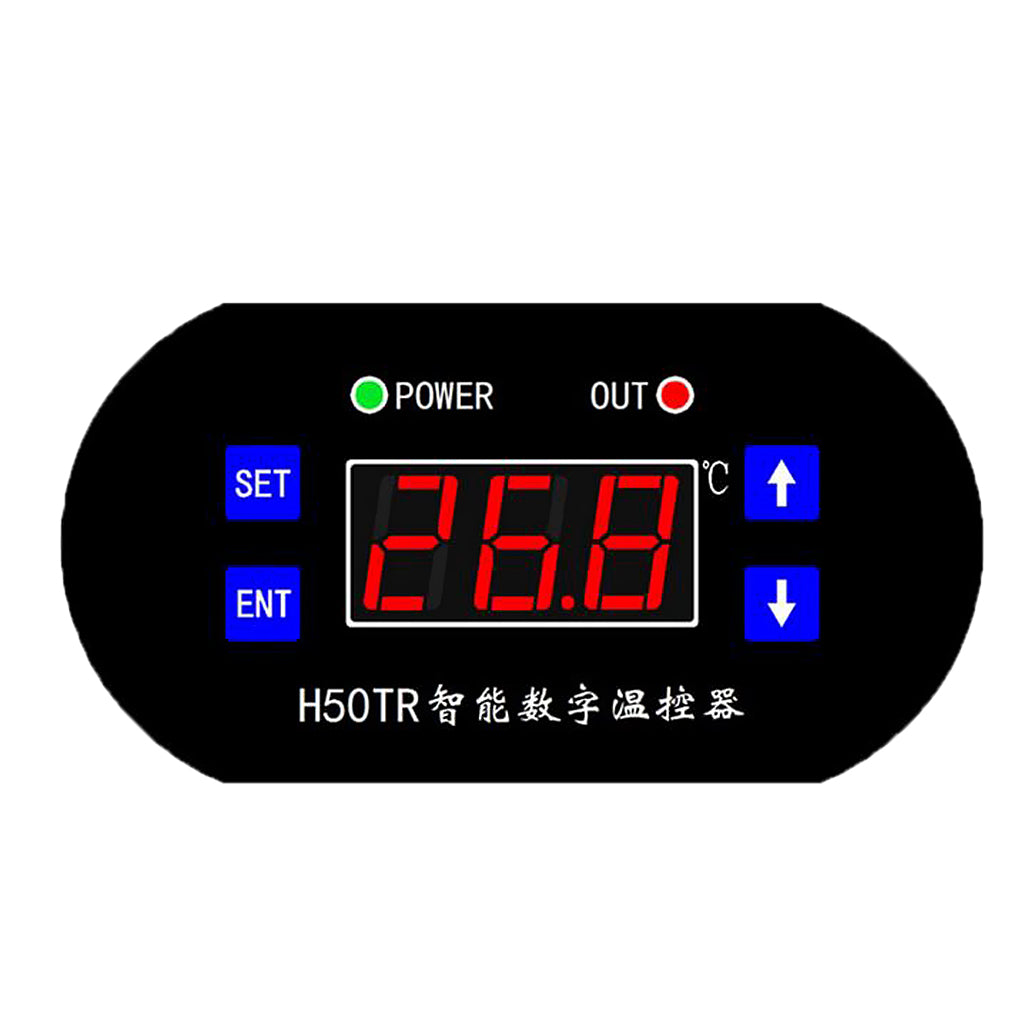

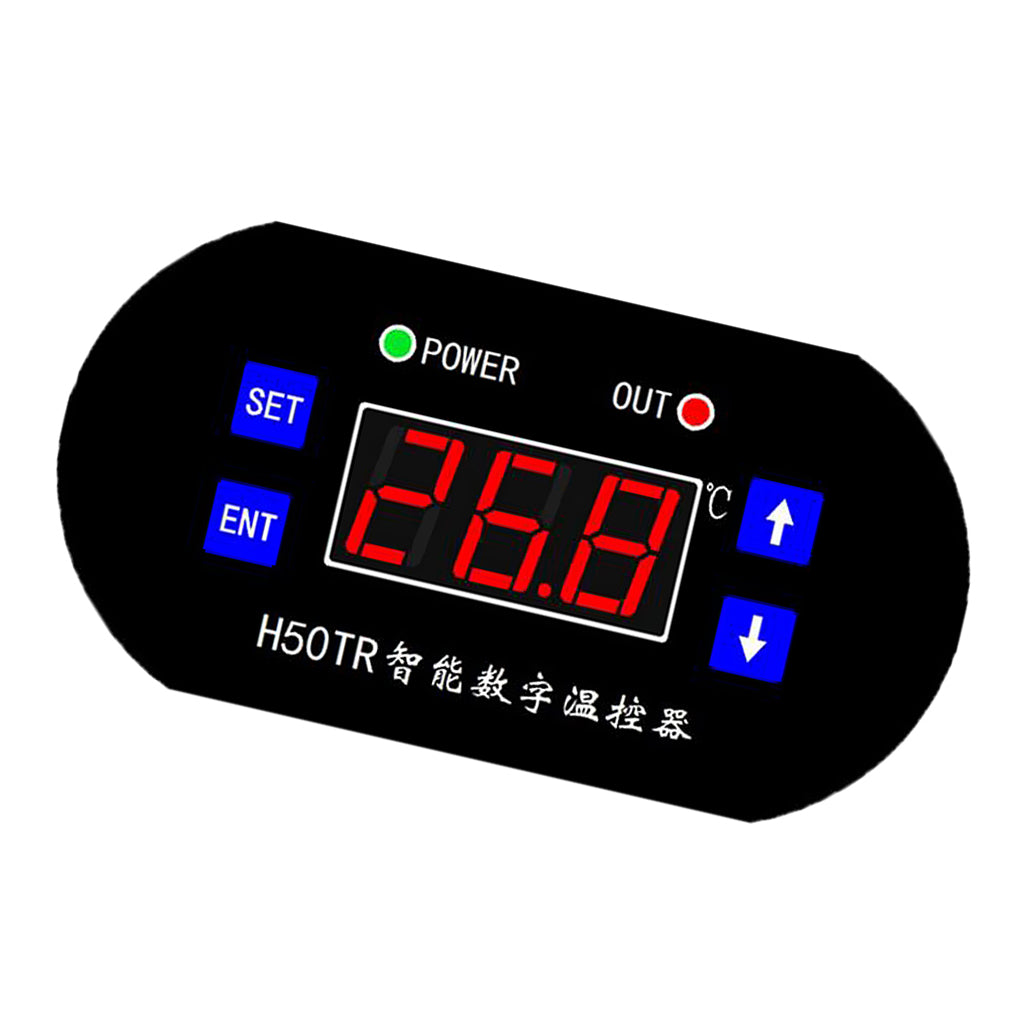

Maxbell Digital Temperature Control Switch Heat Cool Thermostat Controller 24V

Description:

Function:

-Cooling or heating working mode
-Hysteresis setting （for example, environment temp is 30℃, the setting temp is 25℃, the hysteresis setting temp is 2℃, when cooling reach to 23℃, relay off and cooler off, then temp go up to 25℃, the relay on and cooler start）
-Set highest/ lowest upper limit temp to avoid accident
-Temperature calibration, you can calibrate temp according to requirement
Temp (after) = temp (before) + correction value
-Turn on/ off button tone
-Delay start to protect your device
-High temp alarm, when measure temp reach to the setting temp, controller will alarm
-Restore factory settings, when the setting value is confusion, please restore factory

Specification:

Specifications:
Control Temp Range: -50-120℃
Power Requirement: DC/AC 12V
Resolution: 0.1℃
Measuring Input: NTC(10k 0.5%) waterproof sensor 0.5m
Relay Output: 1 way
Rated Current: 10A
Control Accuracy: 0.1℃
Hysteresis Accuracy: 0.1℃
Refresh Time: 0.5s
Power consumption: Static current<=35MA, attract current: <=65MA
Display Type: 0.28" 3 digits display tube
Environmental Requirement: -10-60℃, humidity: 20-85%

How to use:

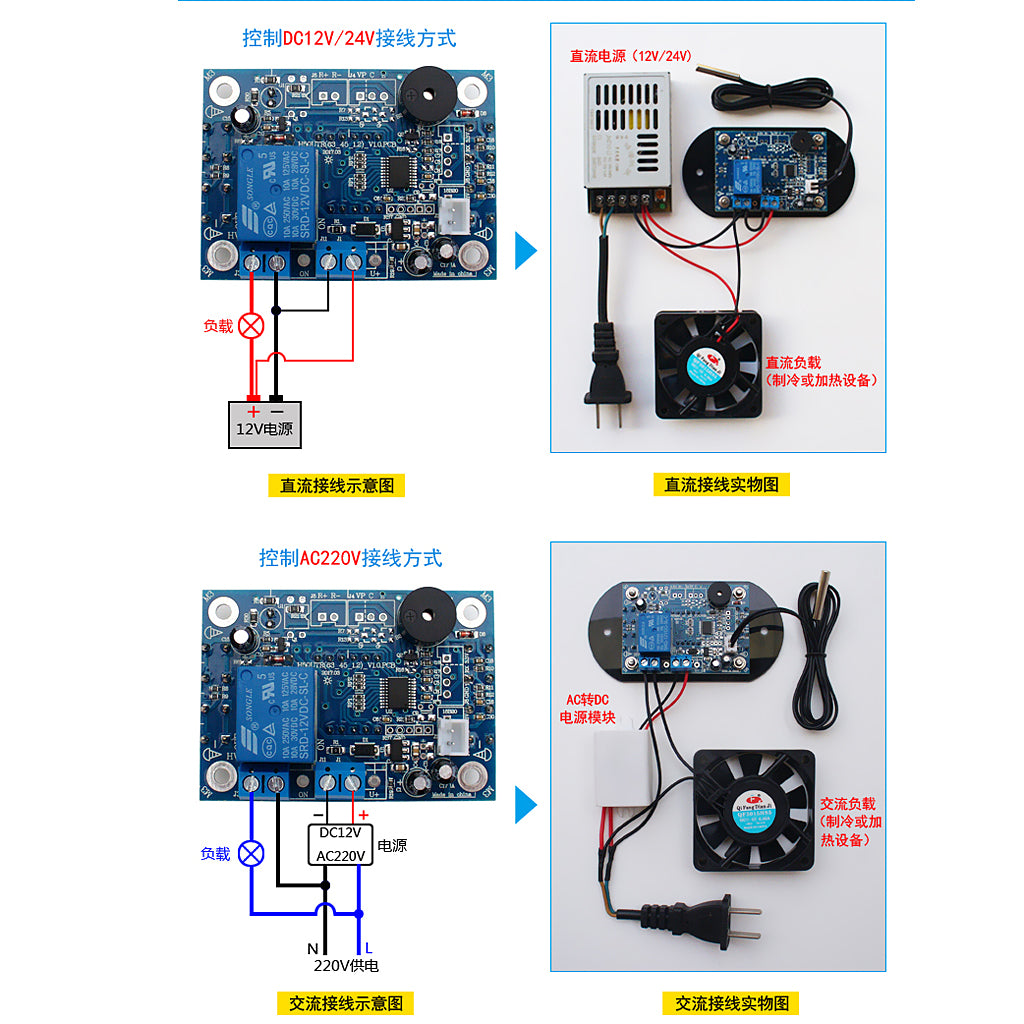

Connect DC/ AC12Vor 24V power and the load
Setting the desires temp:
1. Press the SET button, the LED flash the temperature
2. Press +- button to change the temperature value
3. Press SET to save and exit after setting successfully. or no operation 10s, temp save and exit

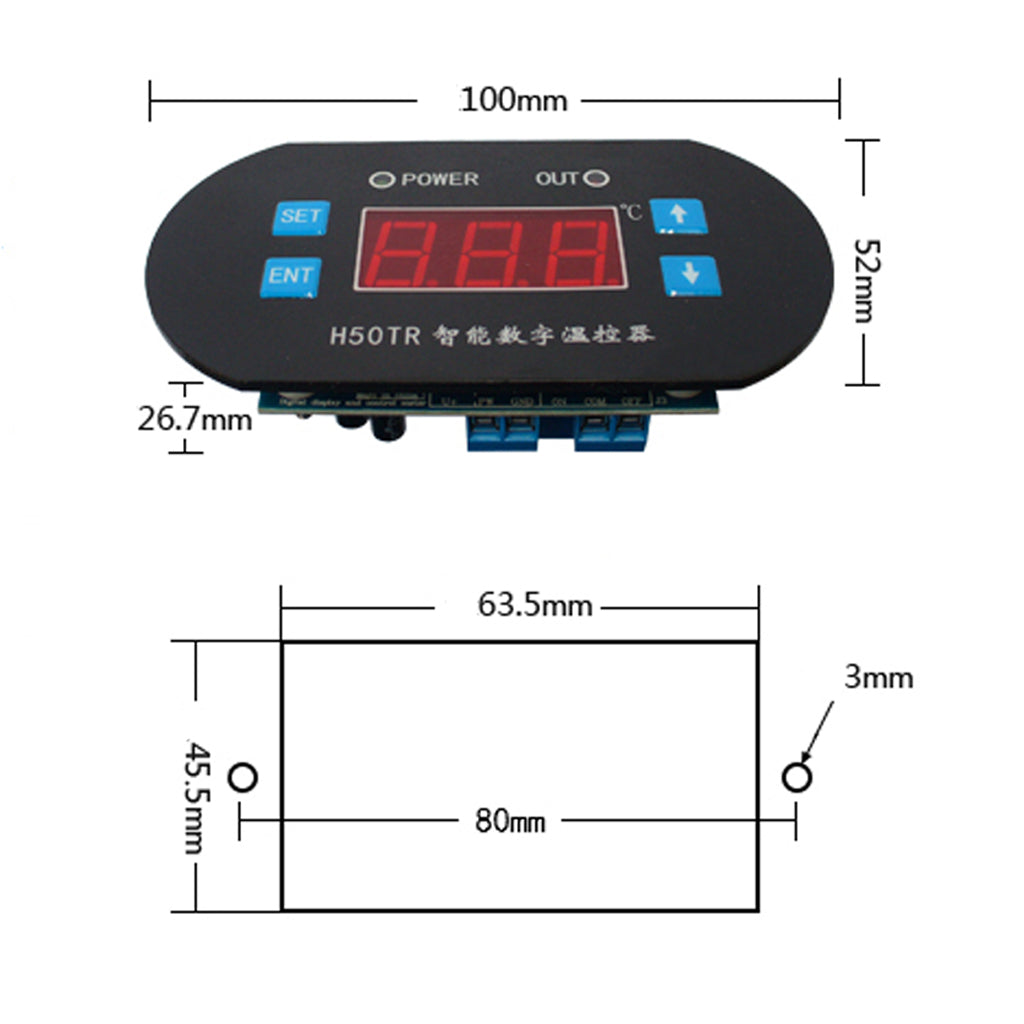

Size Chart:

Control panel: approx. 100x52x27mm/3.94x2.05x1.06 inch

Installation size: approx. 63.5x45.5mm/2.5x1.79 inches

Package Includes:

1 Piece digital temperature controller
