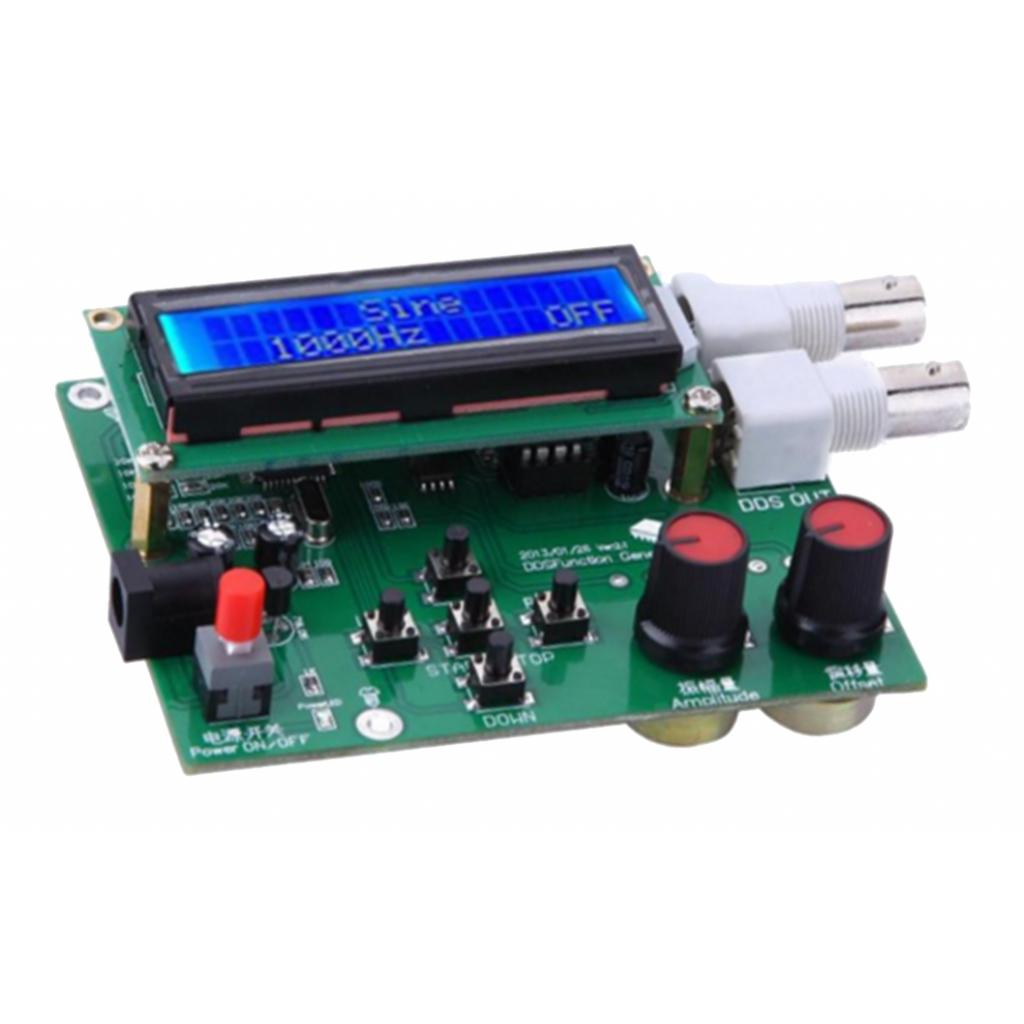

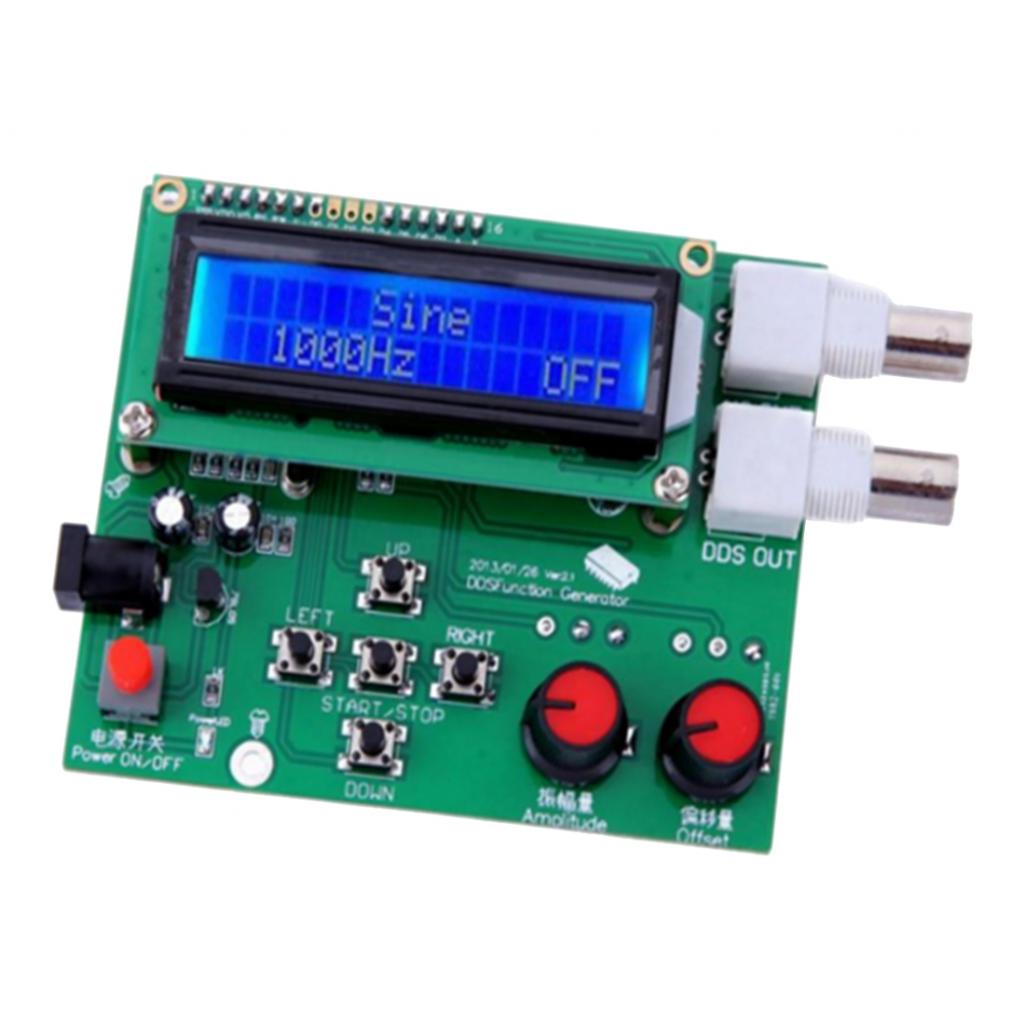

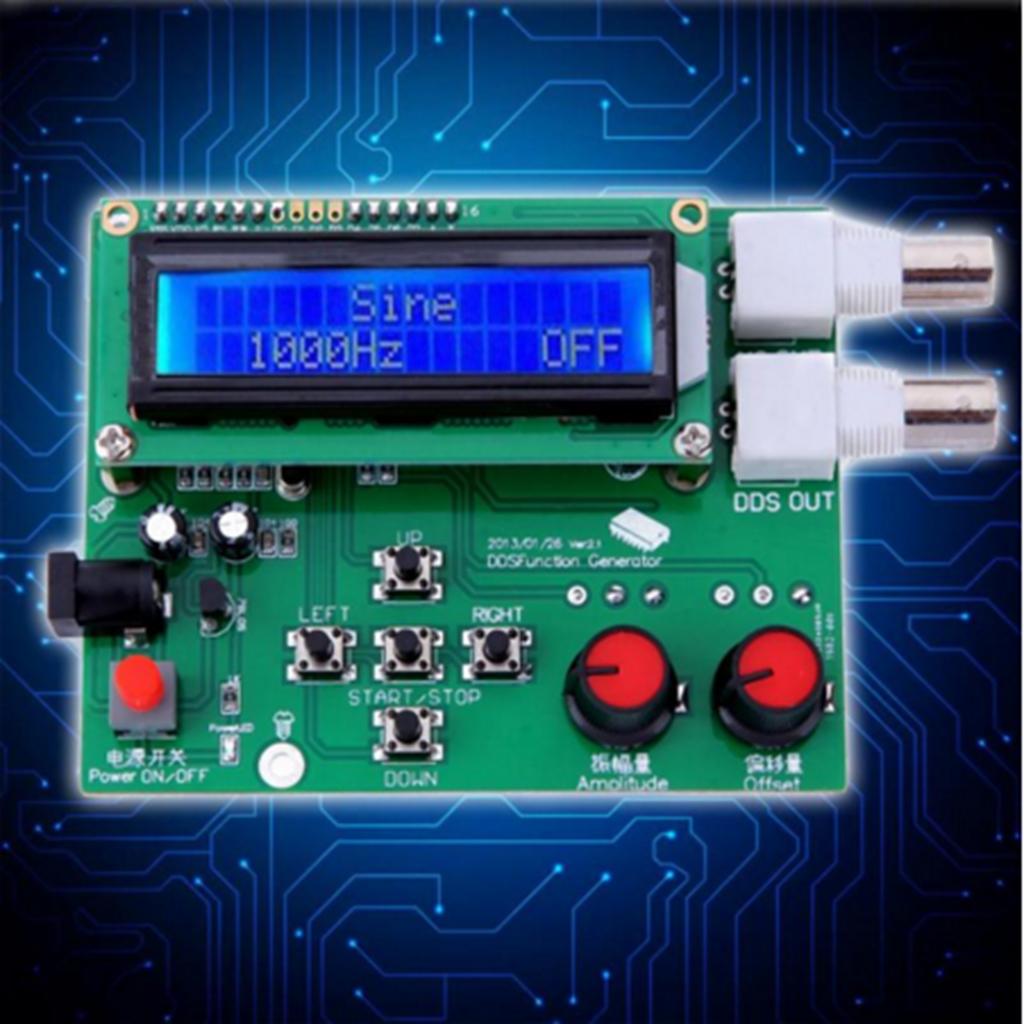

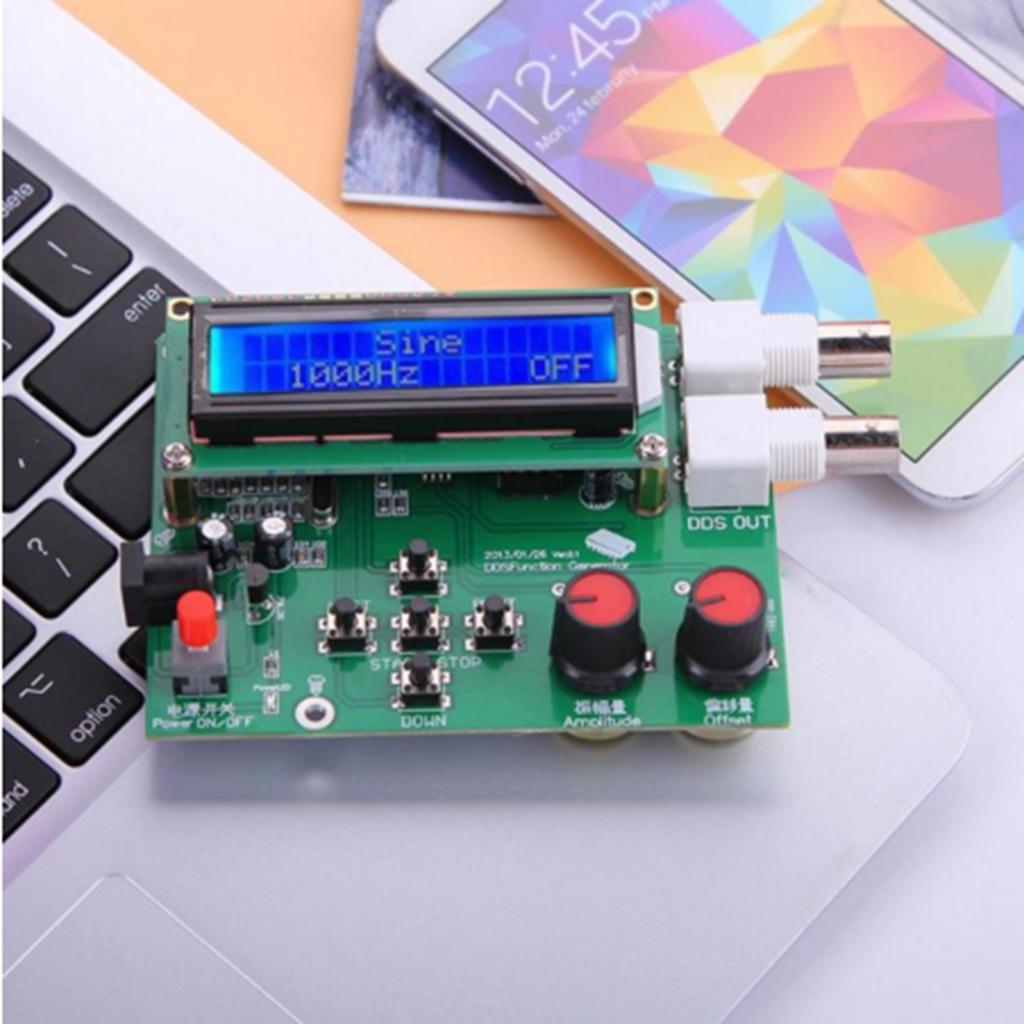

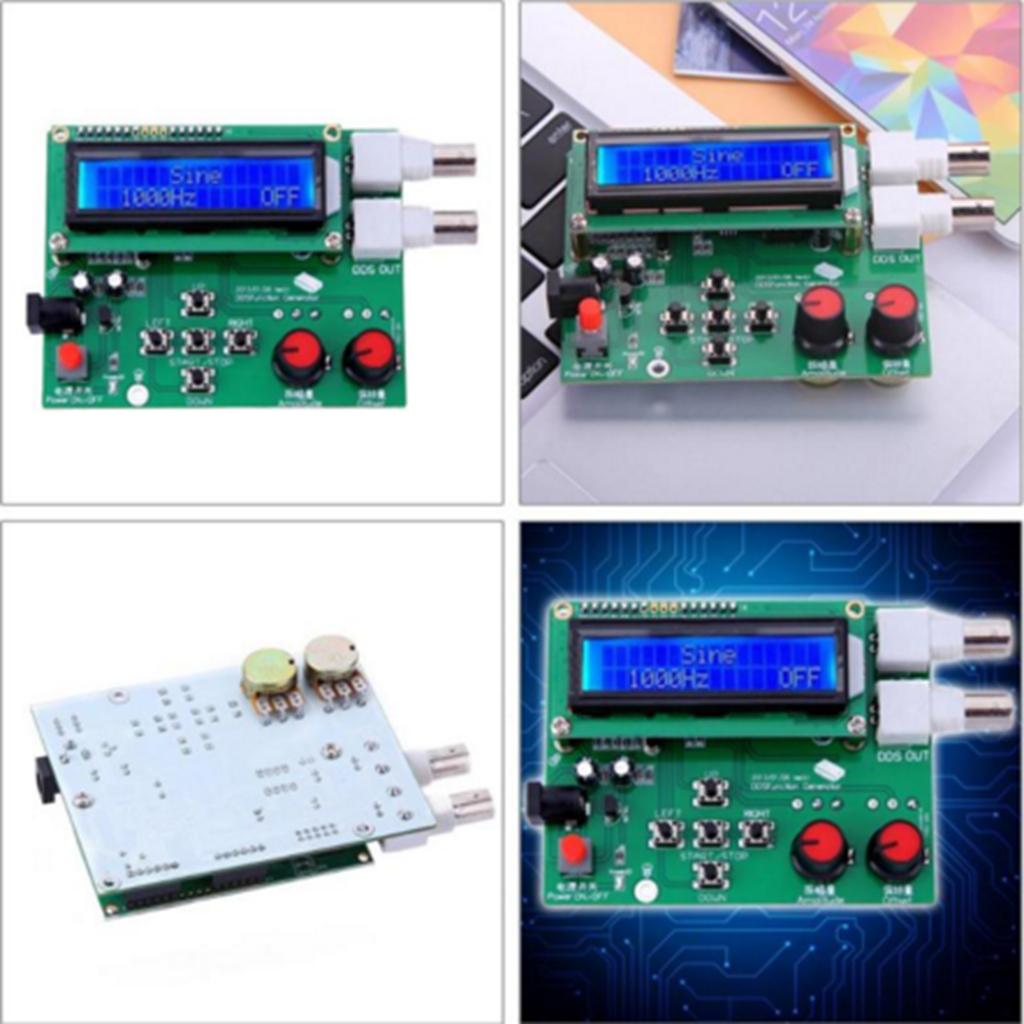

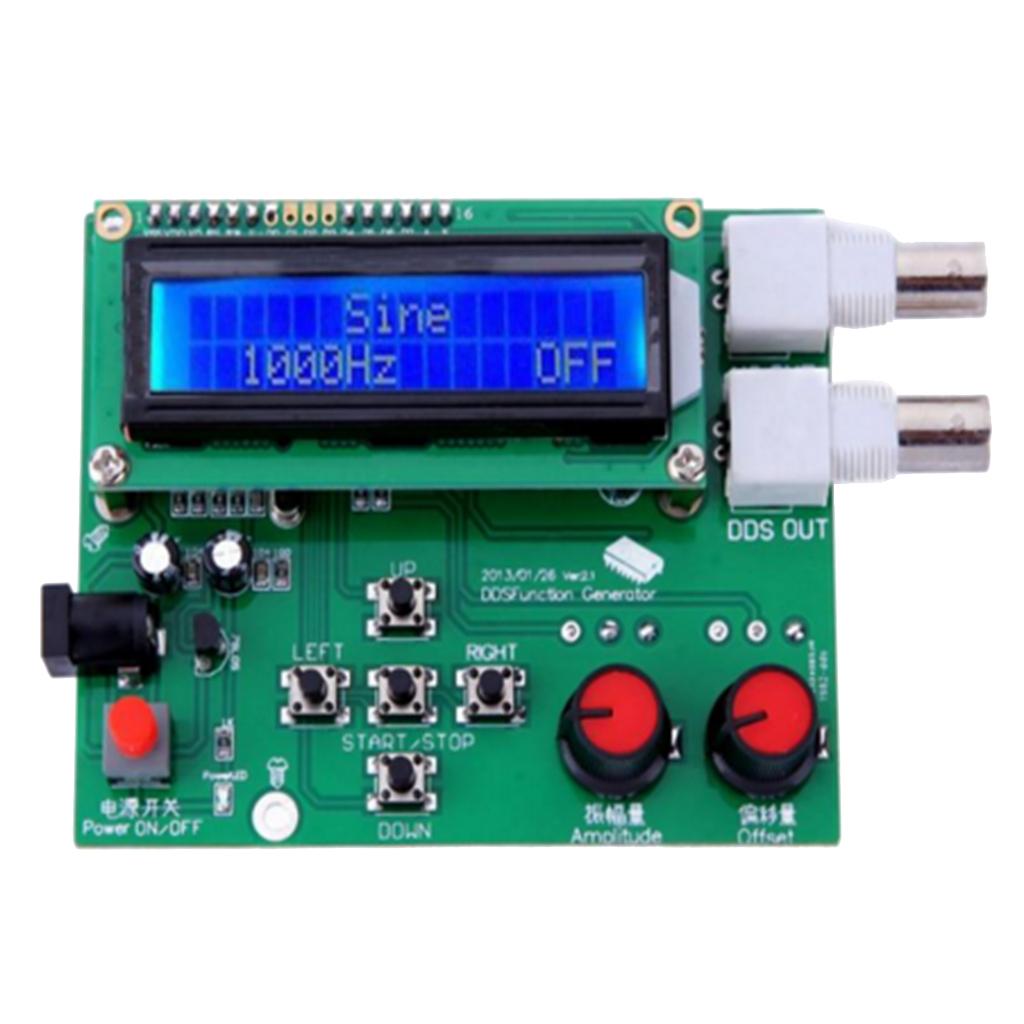

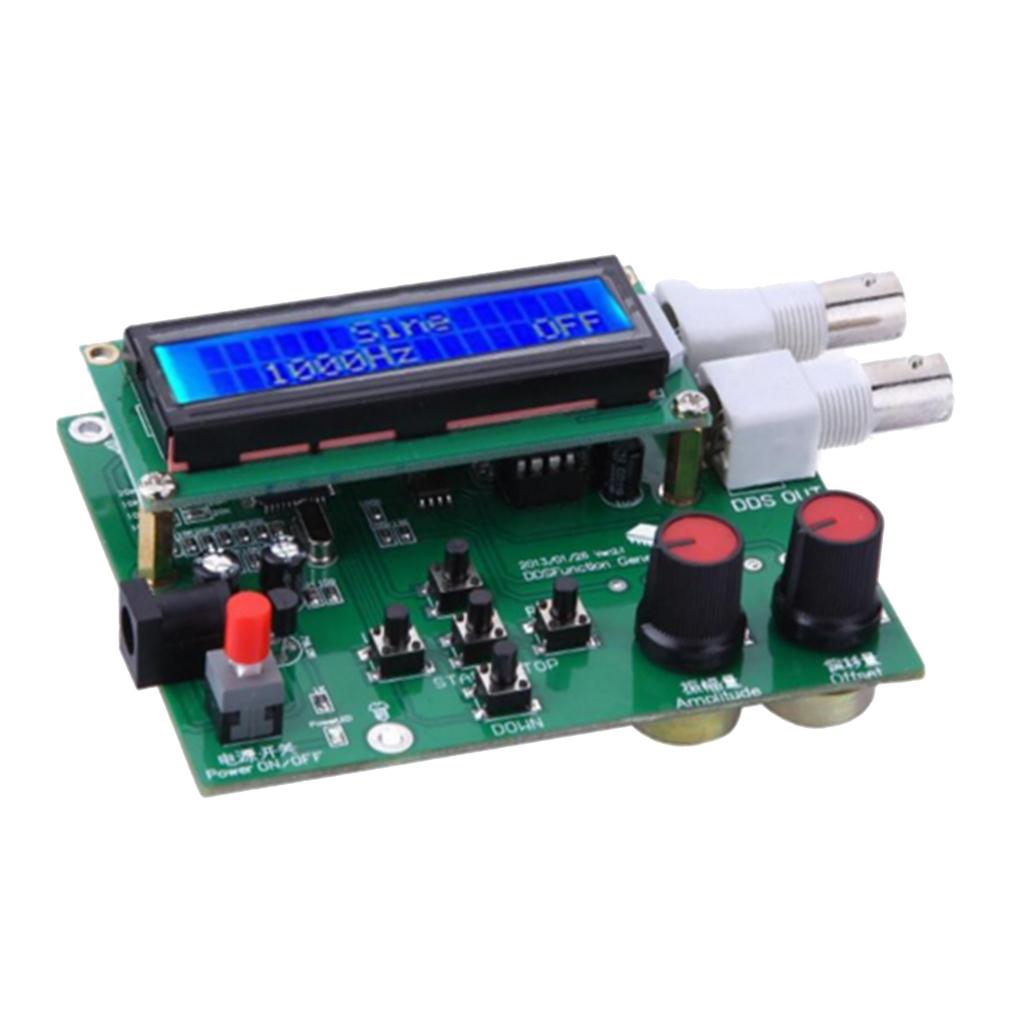

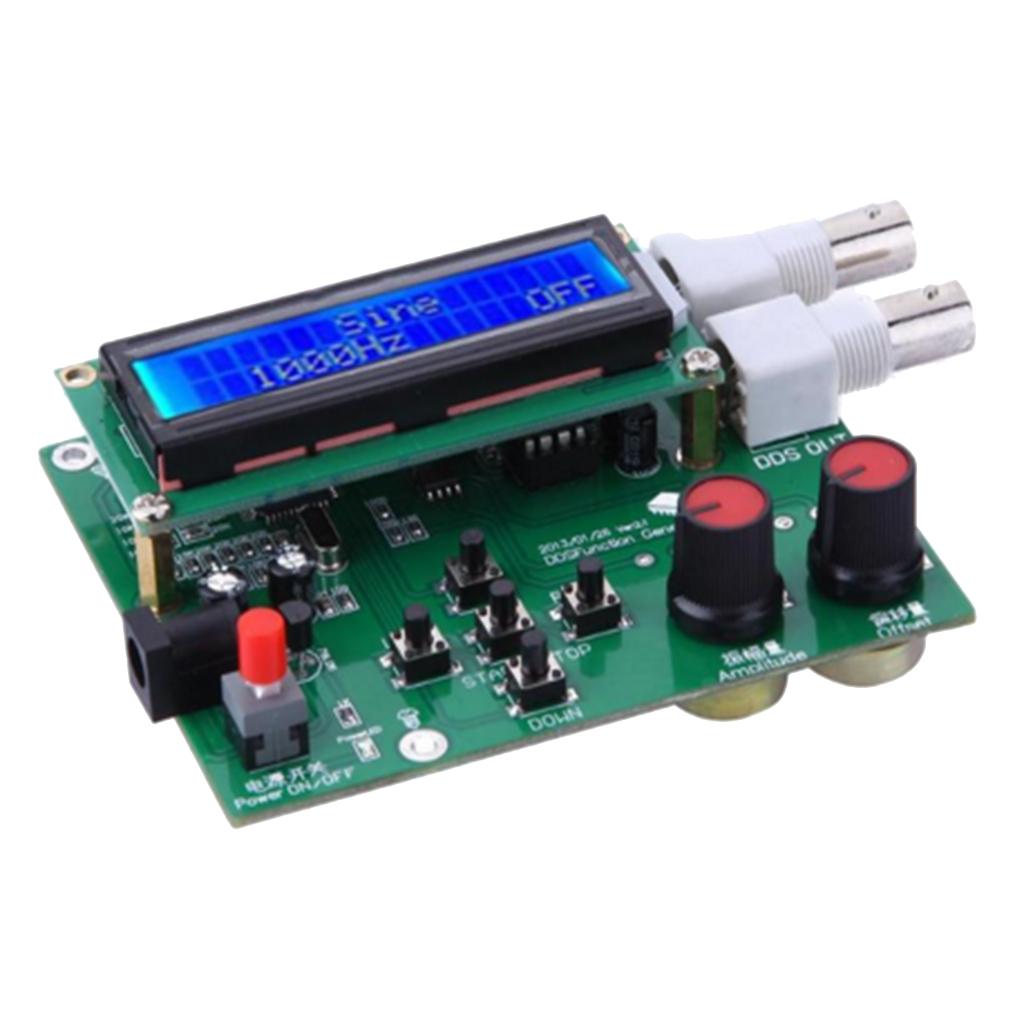

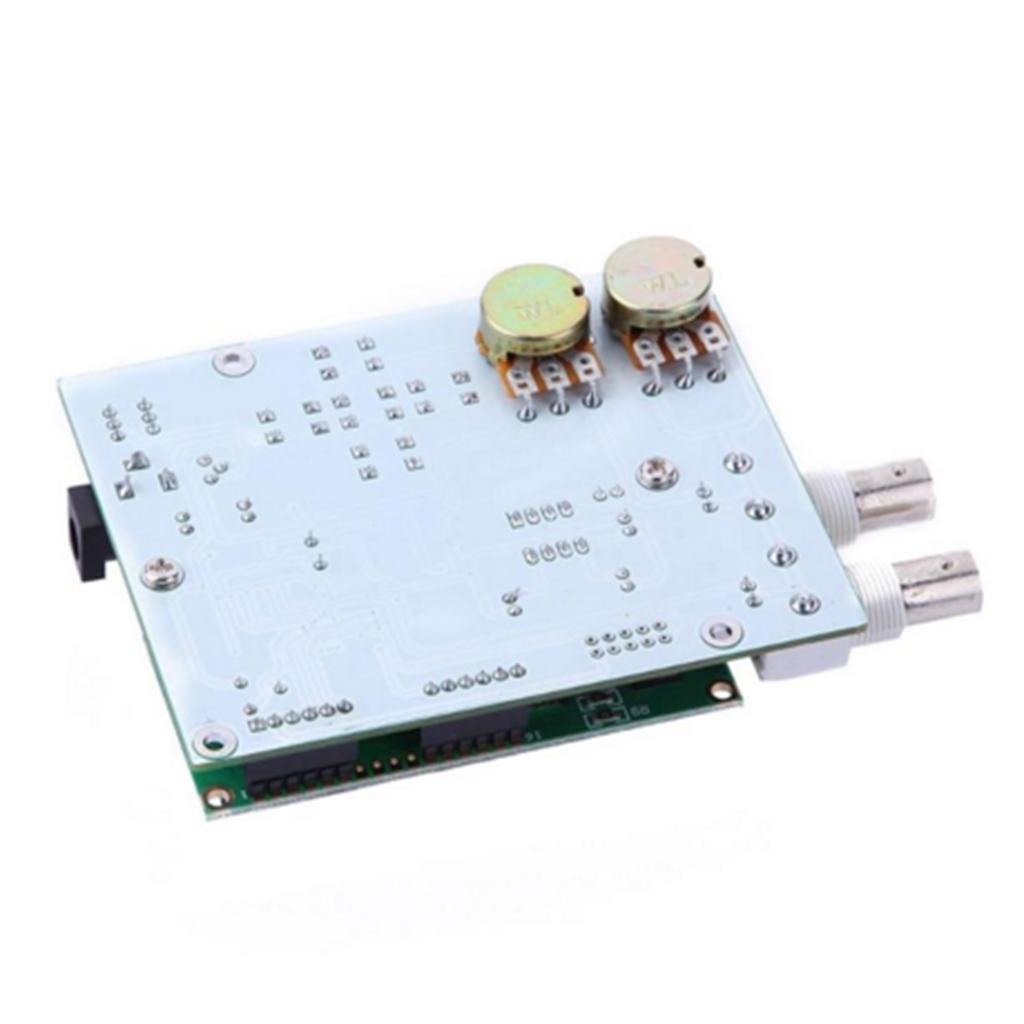

Max DDS Function Signal Generator Module Board Sawtooth Triangle Wave
Description:
Small size, powered by DC 7V-9V, easy and portable for use.
DDS frequency range: 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz.
DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
LCD display for clear reading, intuitive 5 buttons for convenient operation.
The power automatically restore the last used configuration.
Specification:
Display: 1602 LCD
Operating Voltage: DC 7V-9V
DDS Frequency Range: 1Hz-65534Hz
Frequency(HS) Output: up to 8MHz
Section into the Value: 1, 10 , 100, 1000, 10000 Hz
Offset: 0.5pp-5Vpp
Amplitude Amount: 0.5Vpp-14Vpp
PCB Board Size: approx. 100 * 80mm / 3.94 * 3.15in
Product Weight: approx. 100g / 3.53oz
Size Chart:
Size: Approx. 100 x 80mm/3.94 x 3.15 inch
Package Includes:
1 x Function Signal Generator Module
