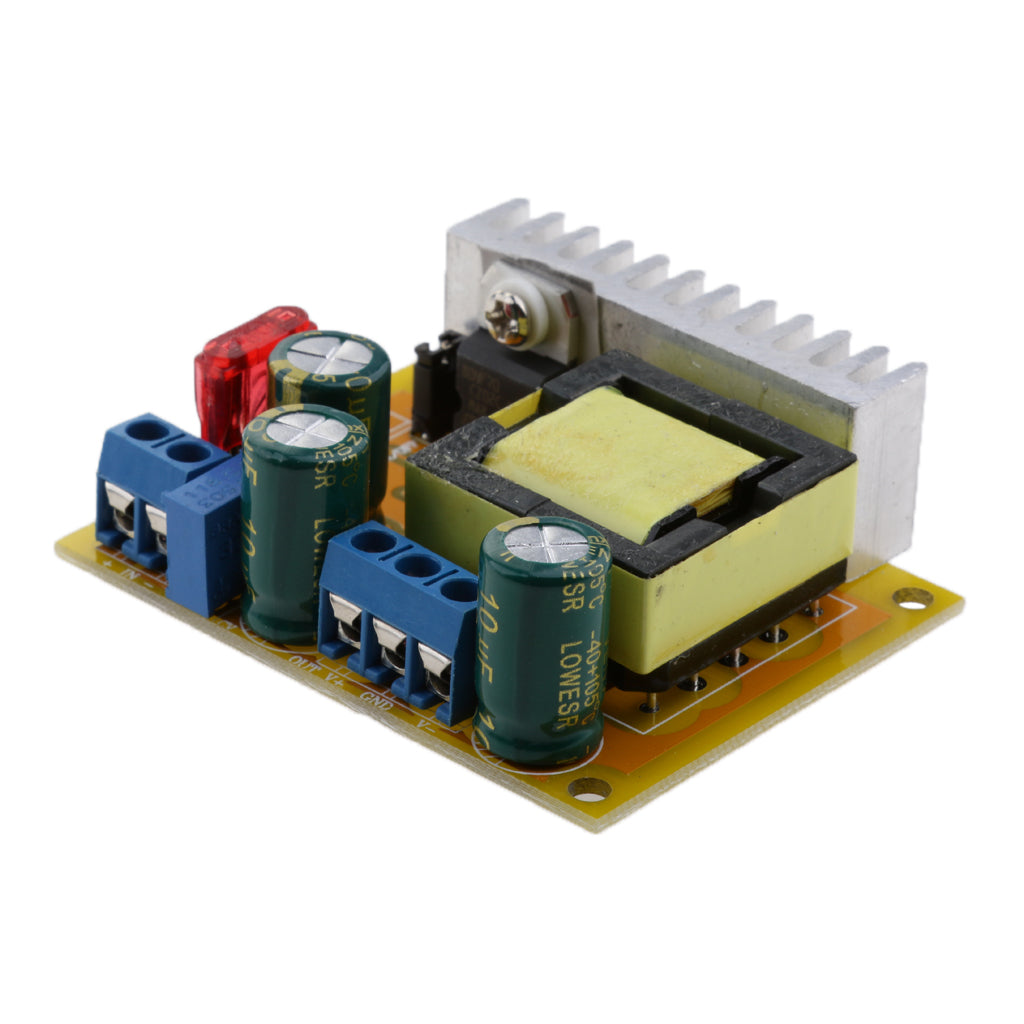

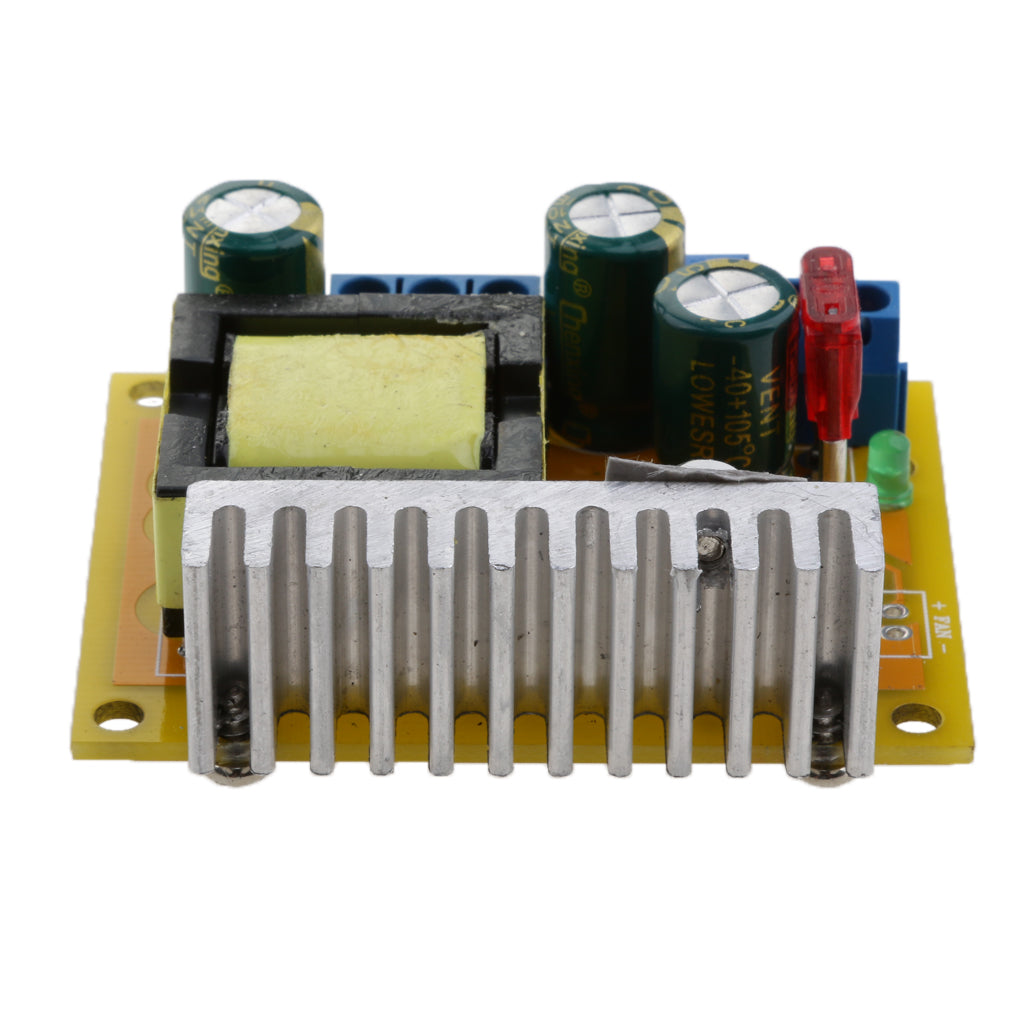

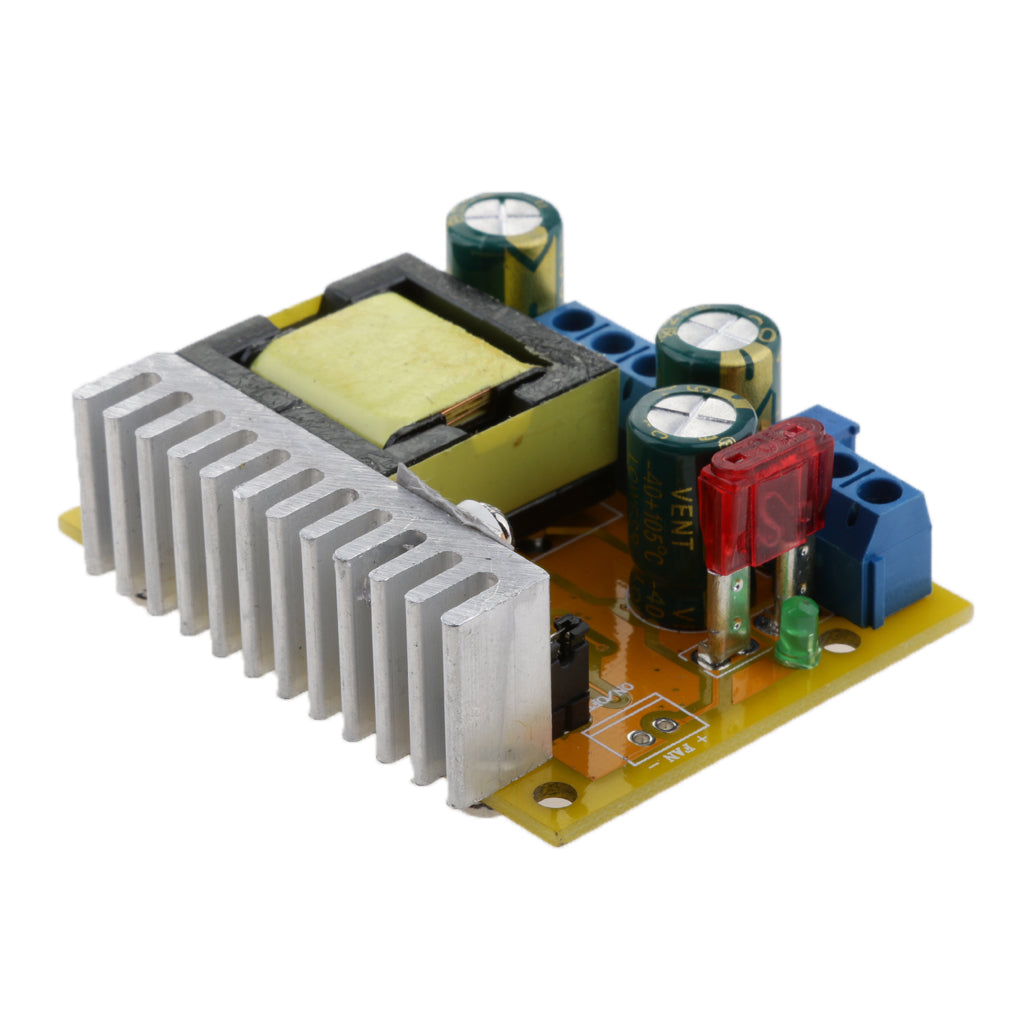

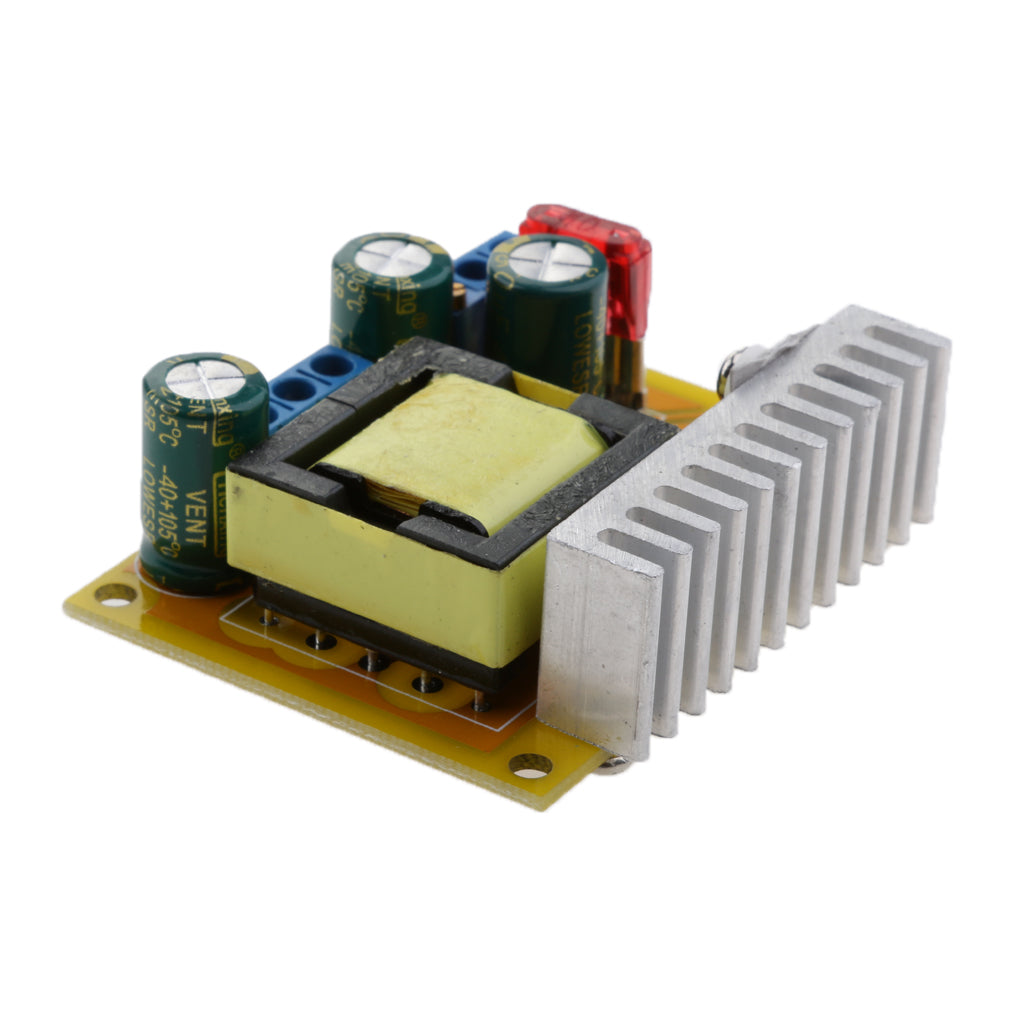

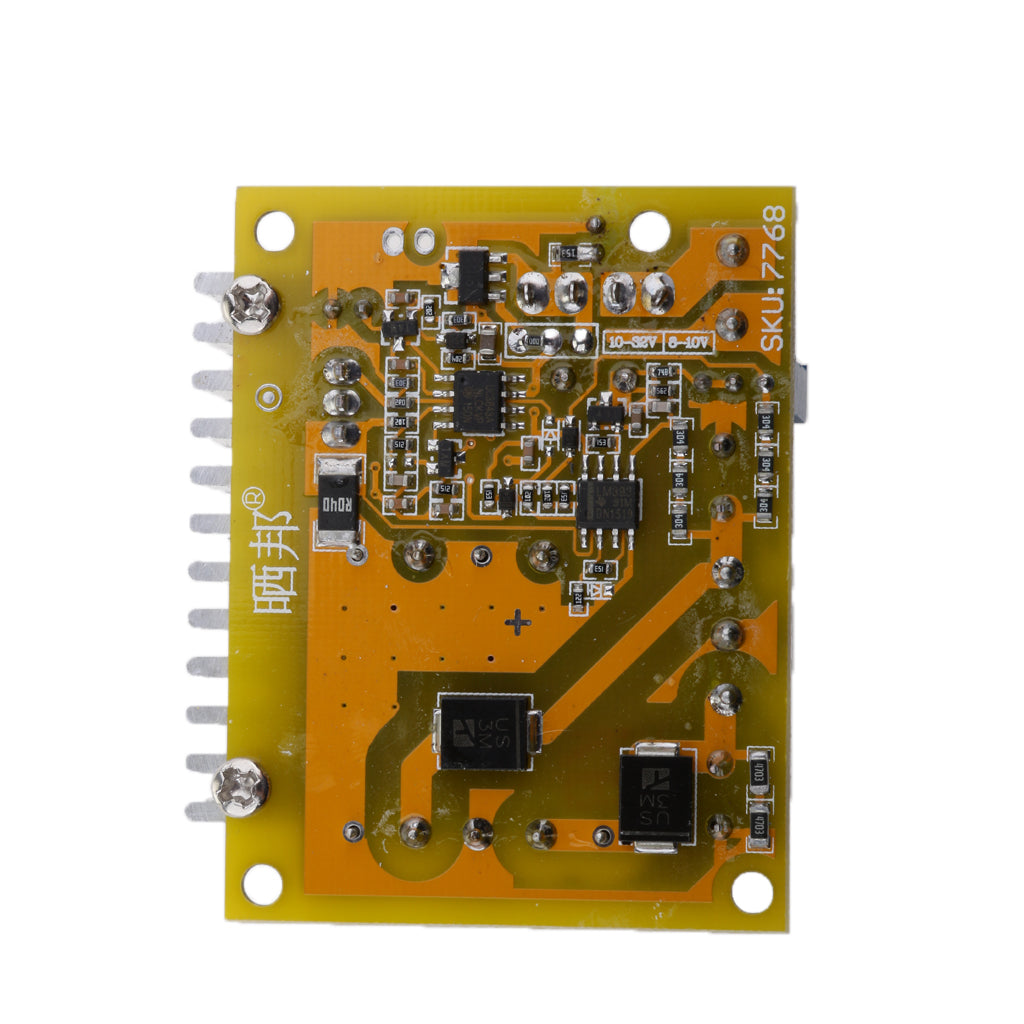

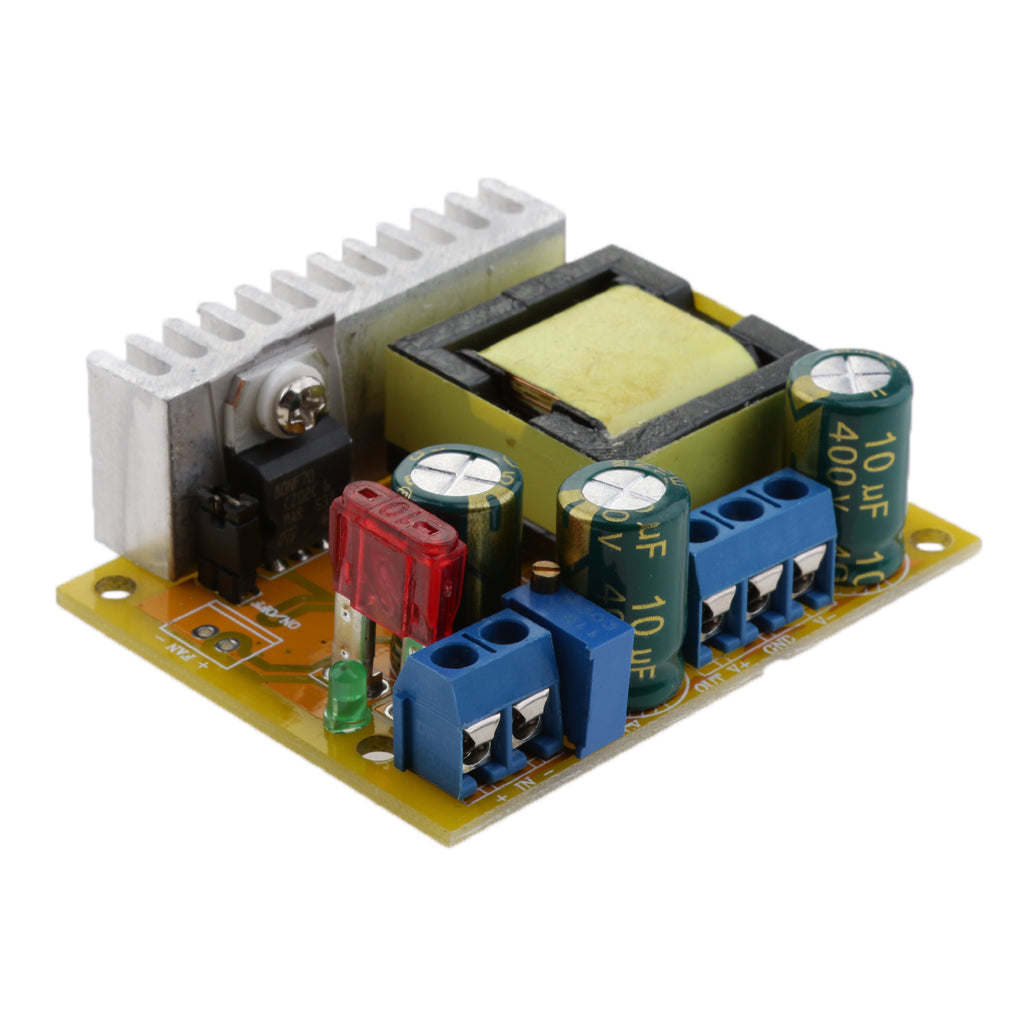

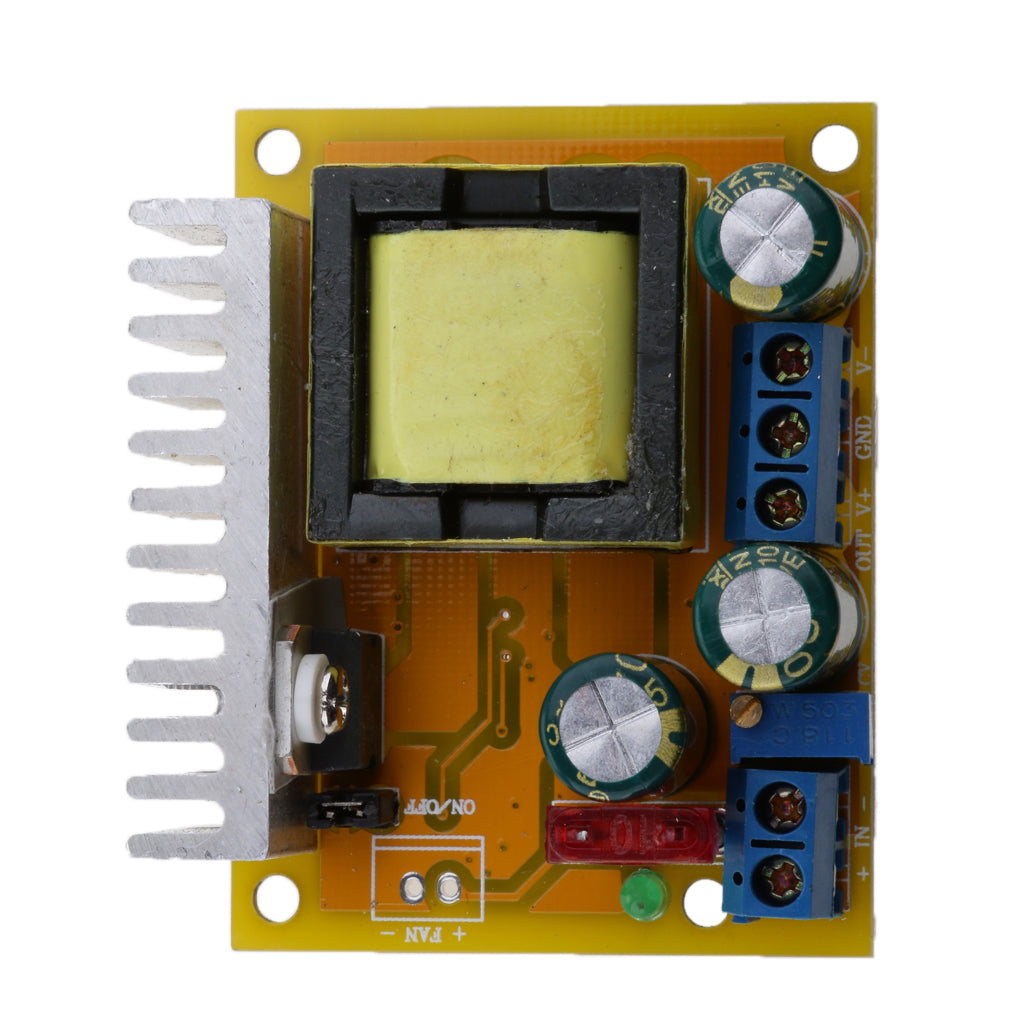

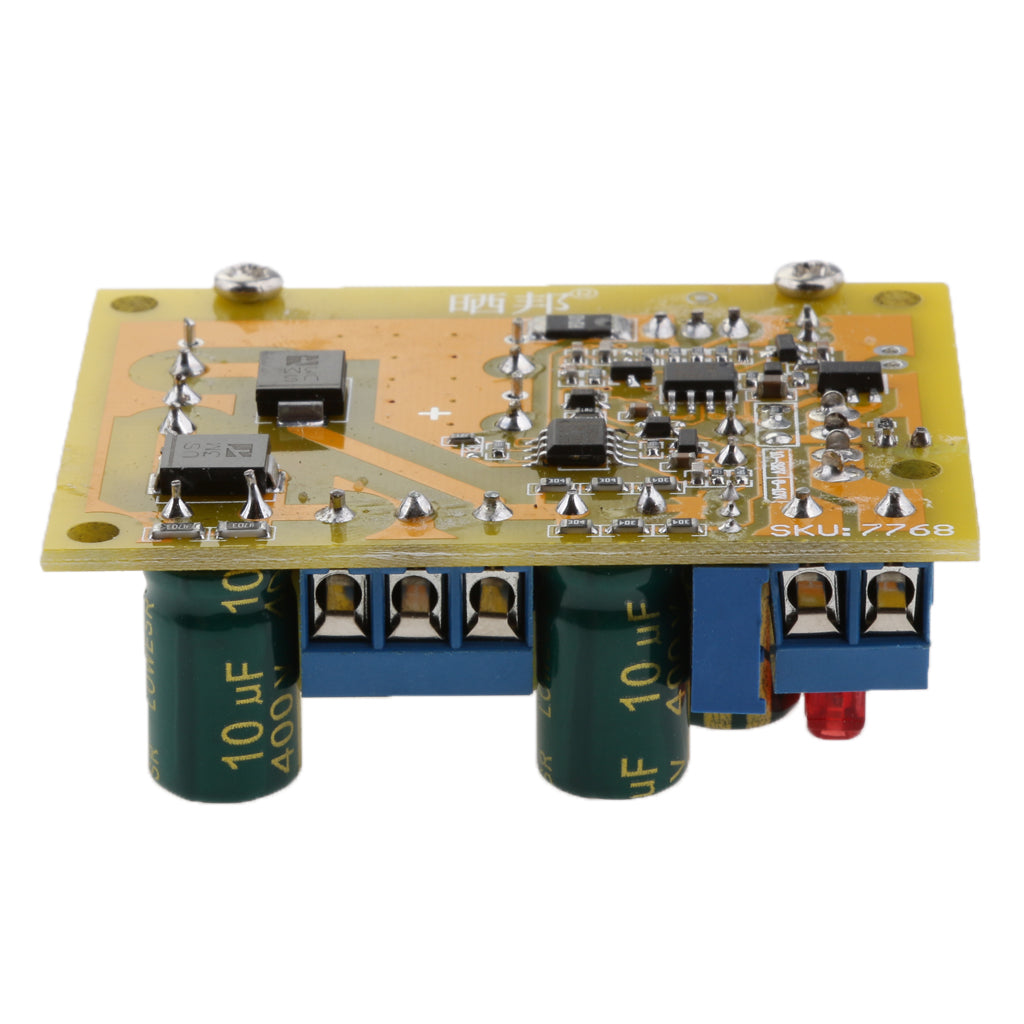

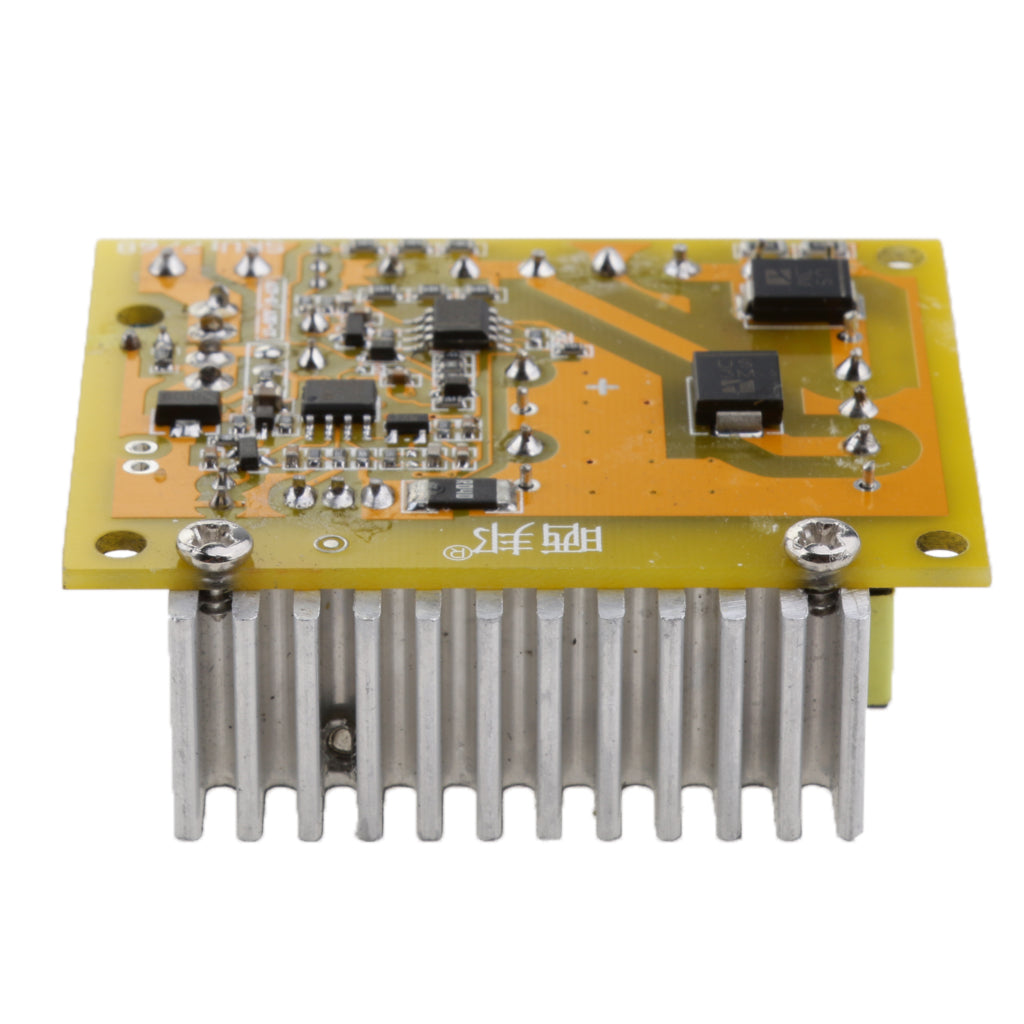

Maxbell DC-DC Booster Module Step-up Converter 8-32V Input Adjustable Dual Output

Description:

Module Properties: Non-isolated step-up module

Input Voltage: 8~32V input(the default is 10~32V input.)

Input Current: 5A (Max)

Quiescent current: 15mA (12V liter 50V, the output voltage, the higher the current will increase too quiet)

Wiring: free welding output terminals

Size(L*W*H): Approx. 60 x 50 x 20 mm / 2.36x1.97x0.79inch

Specification:

Output Voltage: +45~390V continuously adjustable (default output ±50V)

Output Current: 0.2A Max(with input, output pressure related,the higher the output voltage, output current is smaller)

Output Power: 40W (Peak 70W)

Working Temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)

Operating frequency: 75 KHz

Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)

Short circuit protection: Yes.

Over current protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)

Over voltage protection: Yes. (Output voltage exceeds 410V, lowering the output voltage)

Input reverse polarity protection: Yes ( reverse burning fuse, try not reversed.)

Installation: Four 3 mm screws

Applications:

1.Pressure test power.

2.Hunting,eradication of mice.

3.Capacitor charging,electromagnetic guns power supply.

4.The power supply for your electronic device, according to your system can set the output voltage value.

Package Includes:

1 Piece of Booster Module
