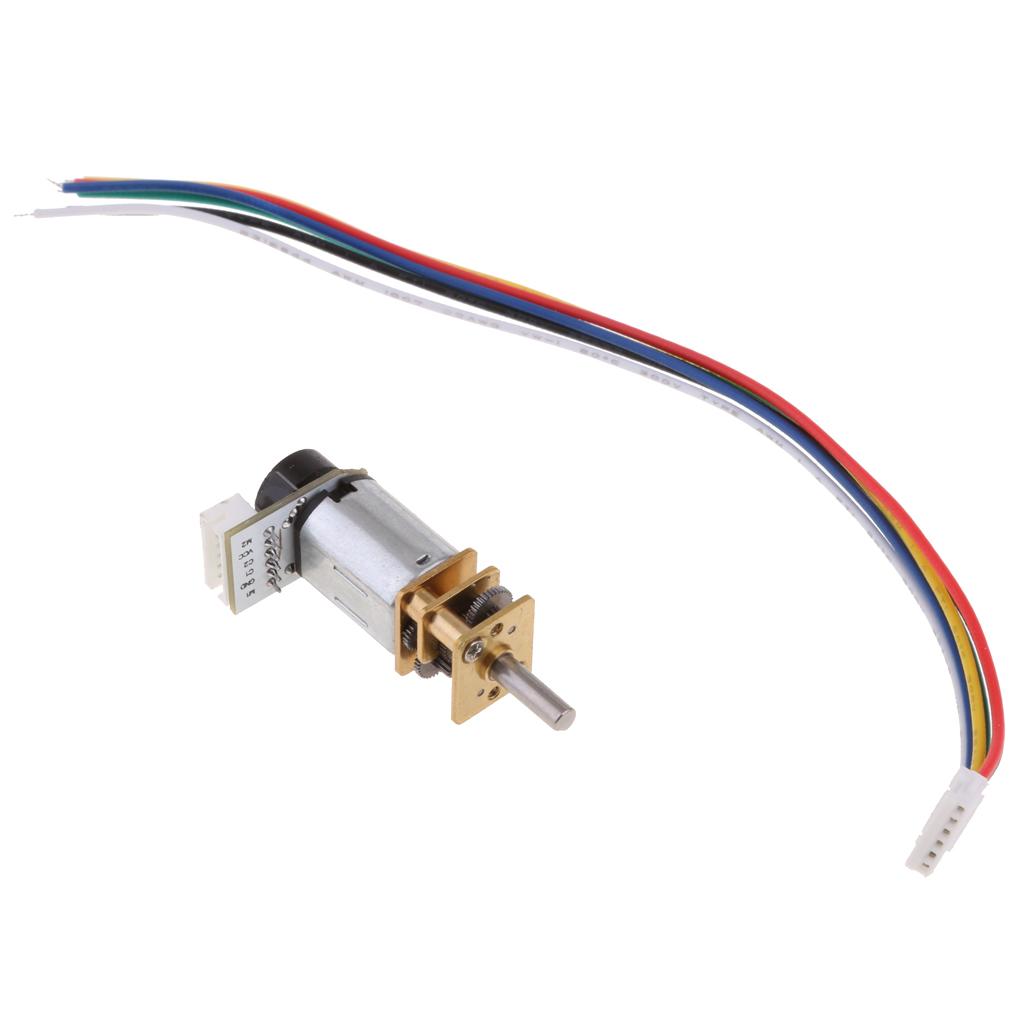

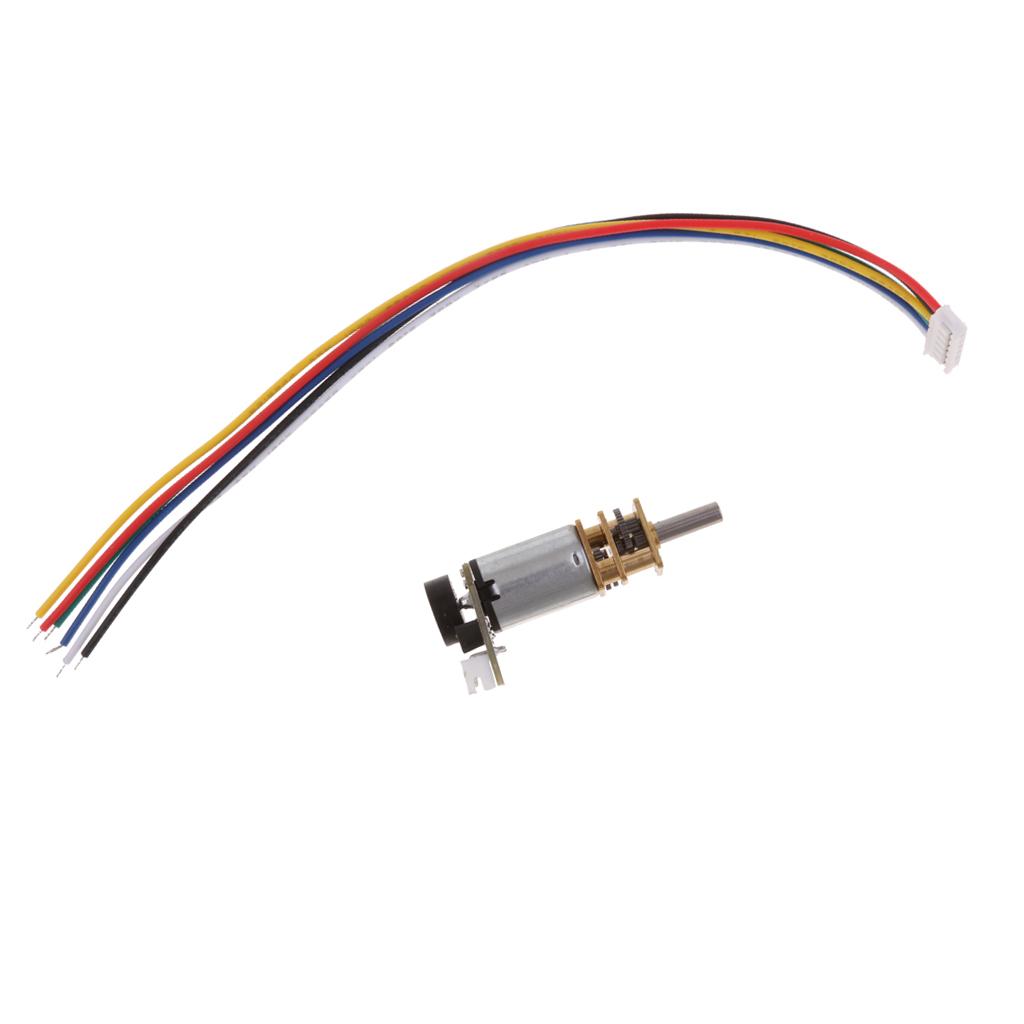

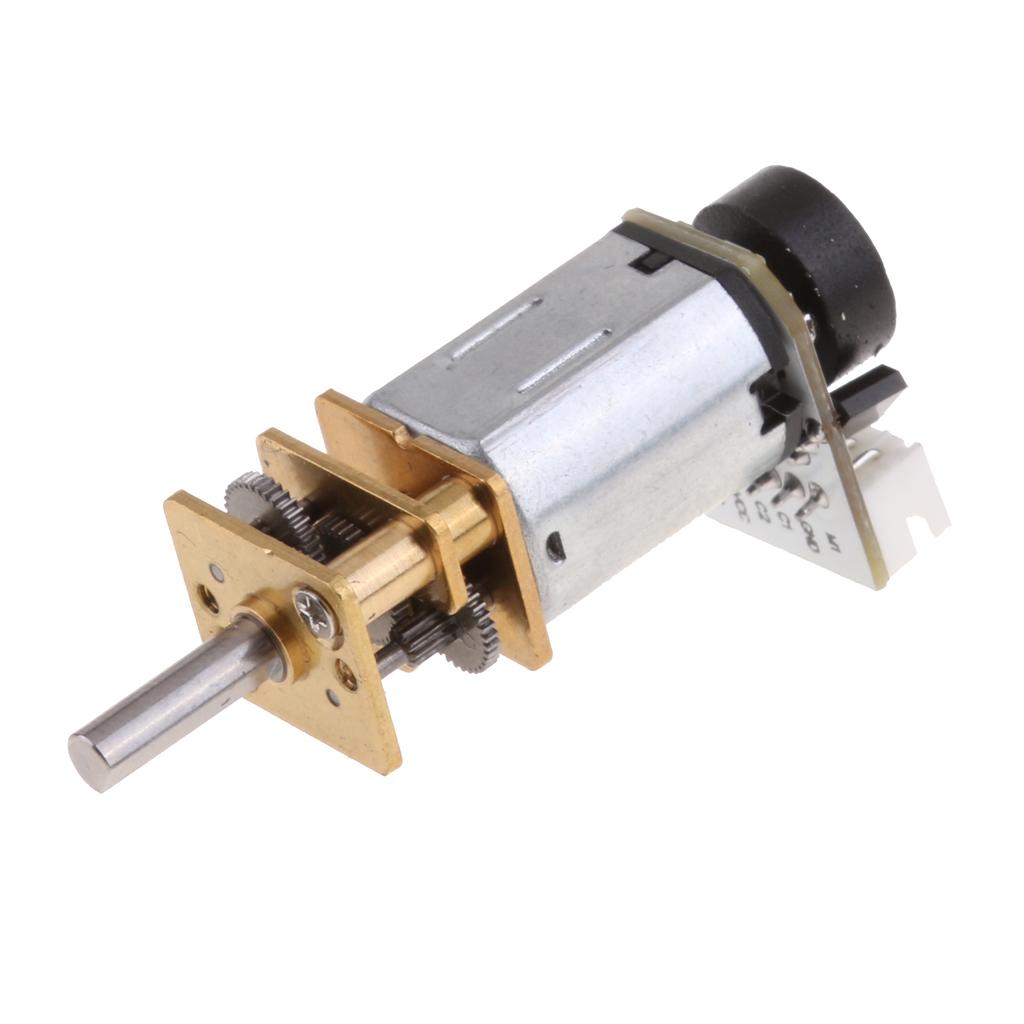

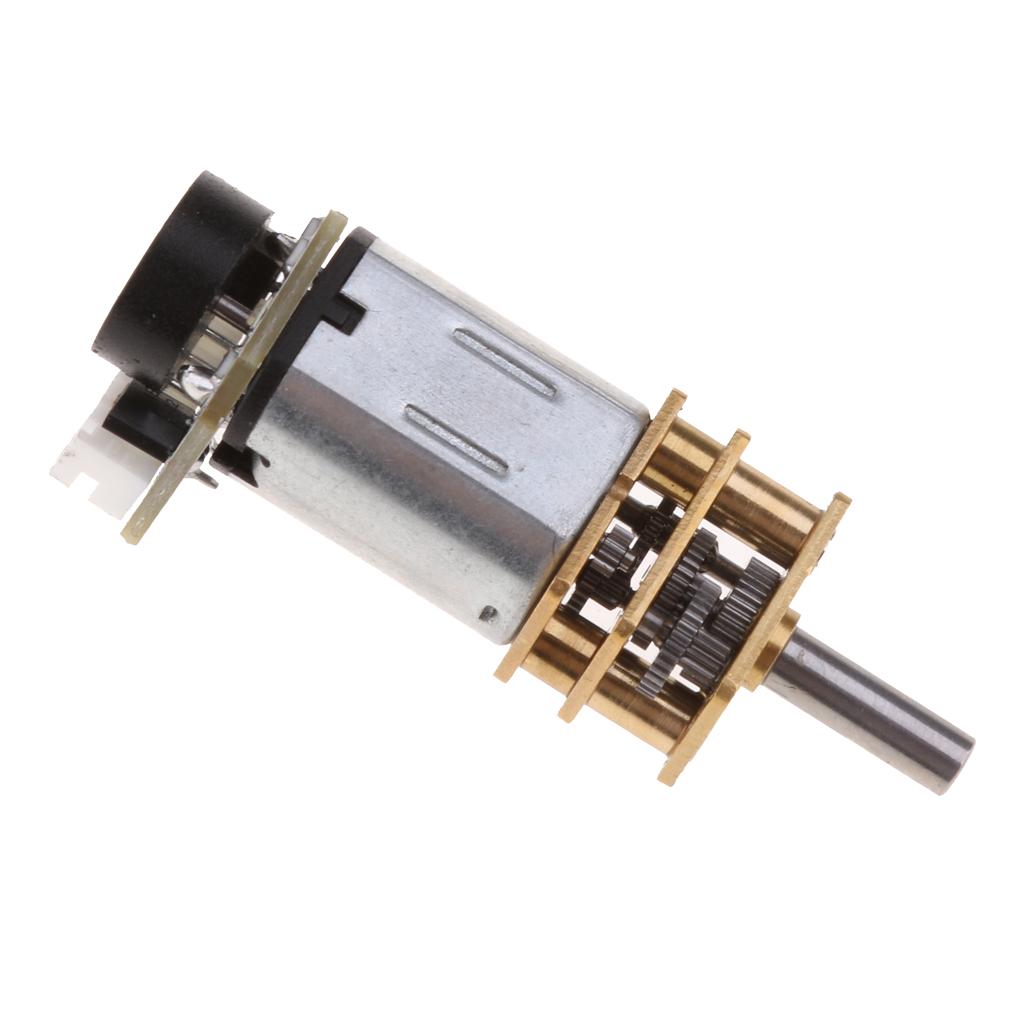

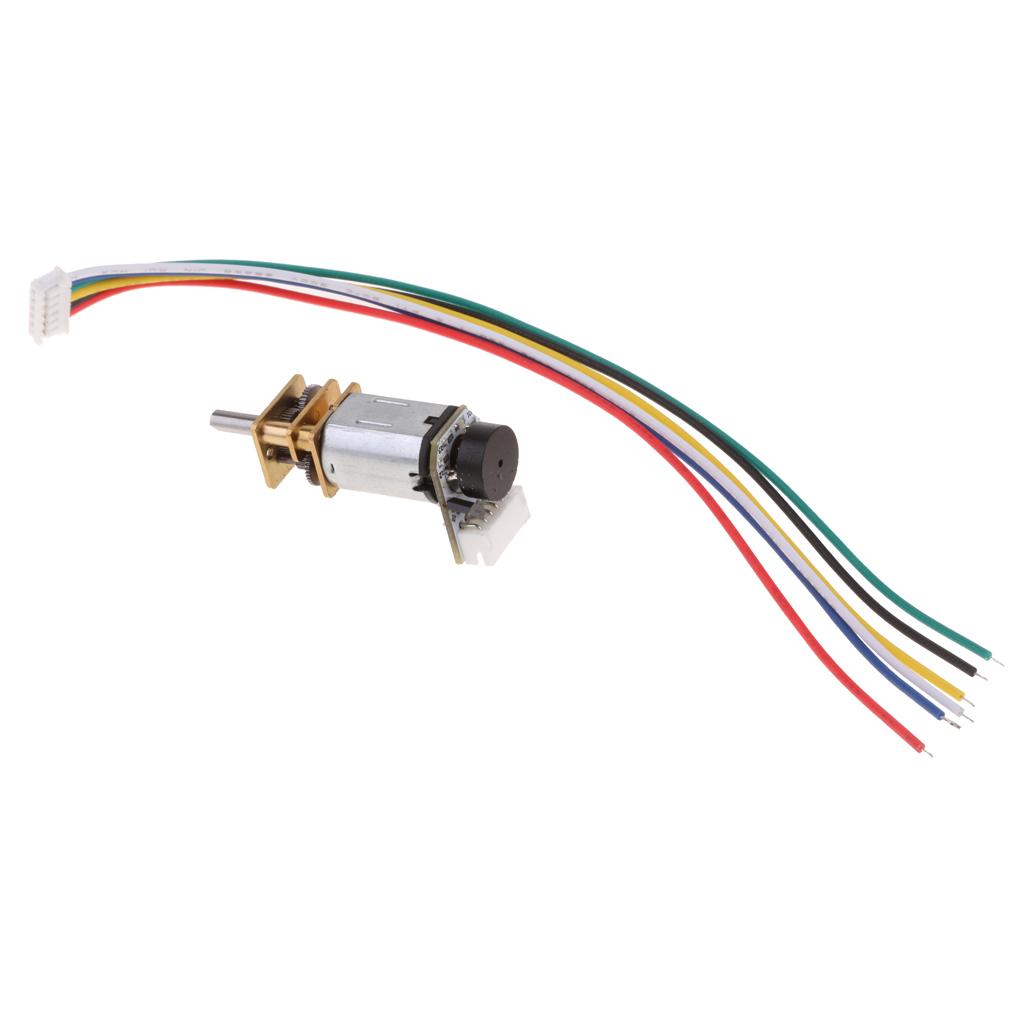

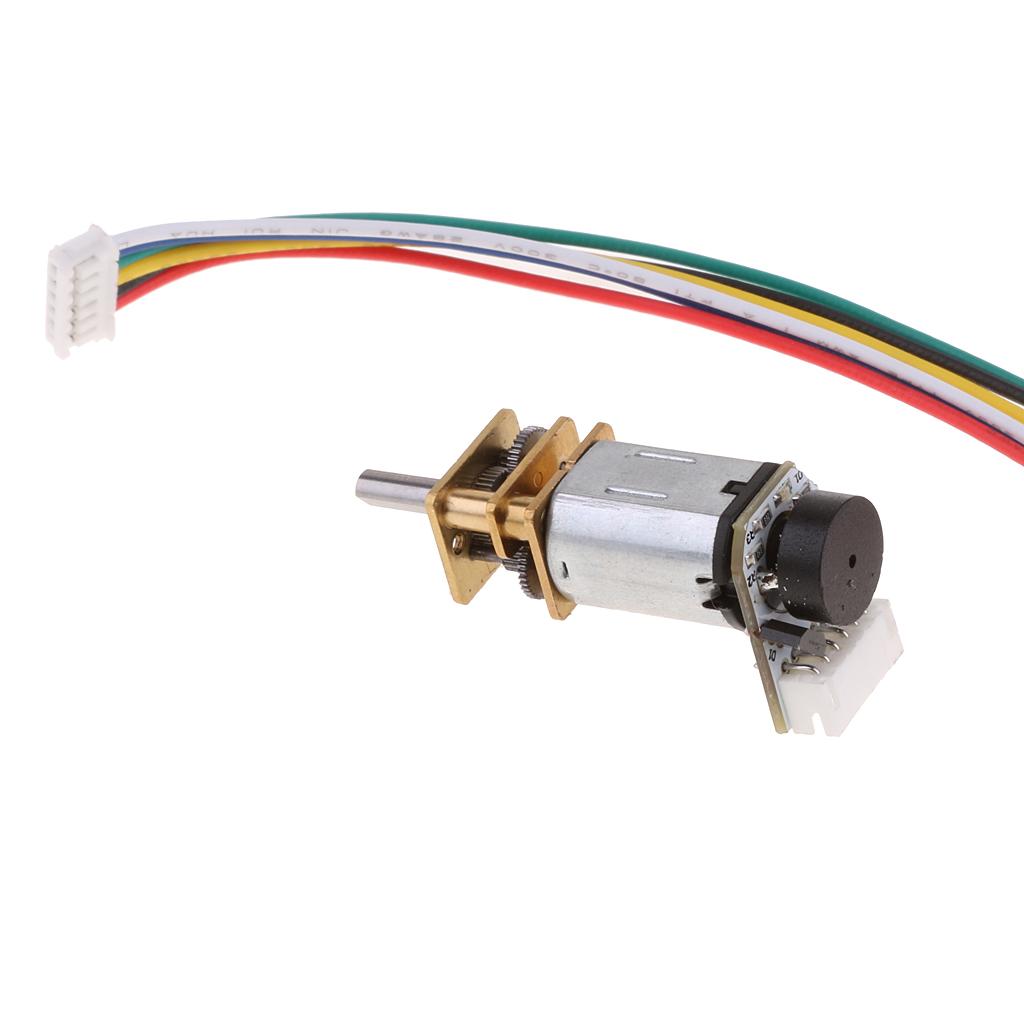

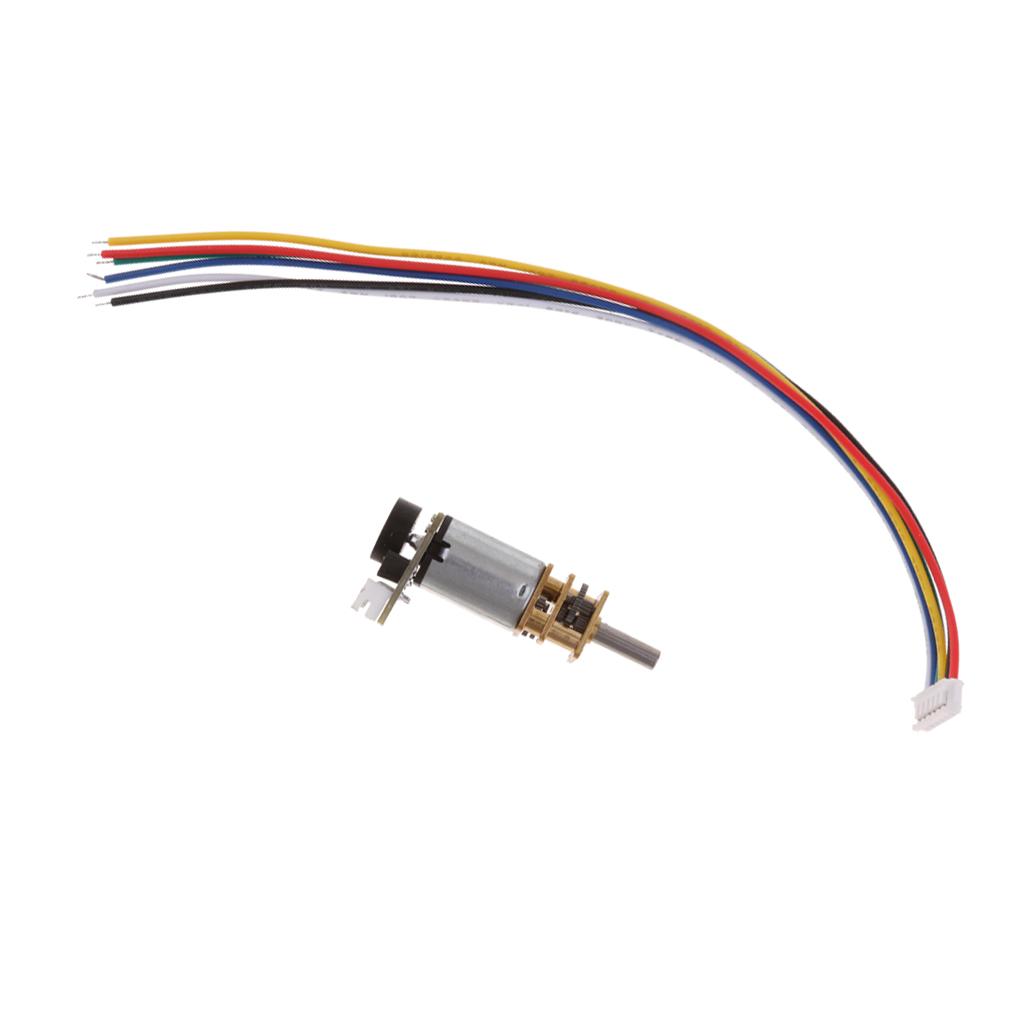

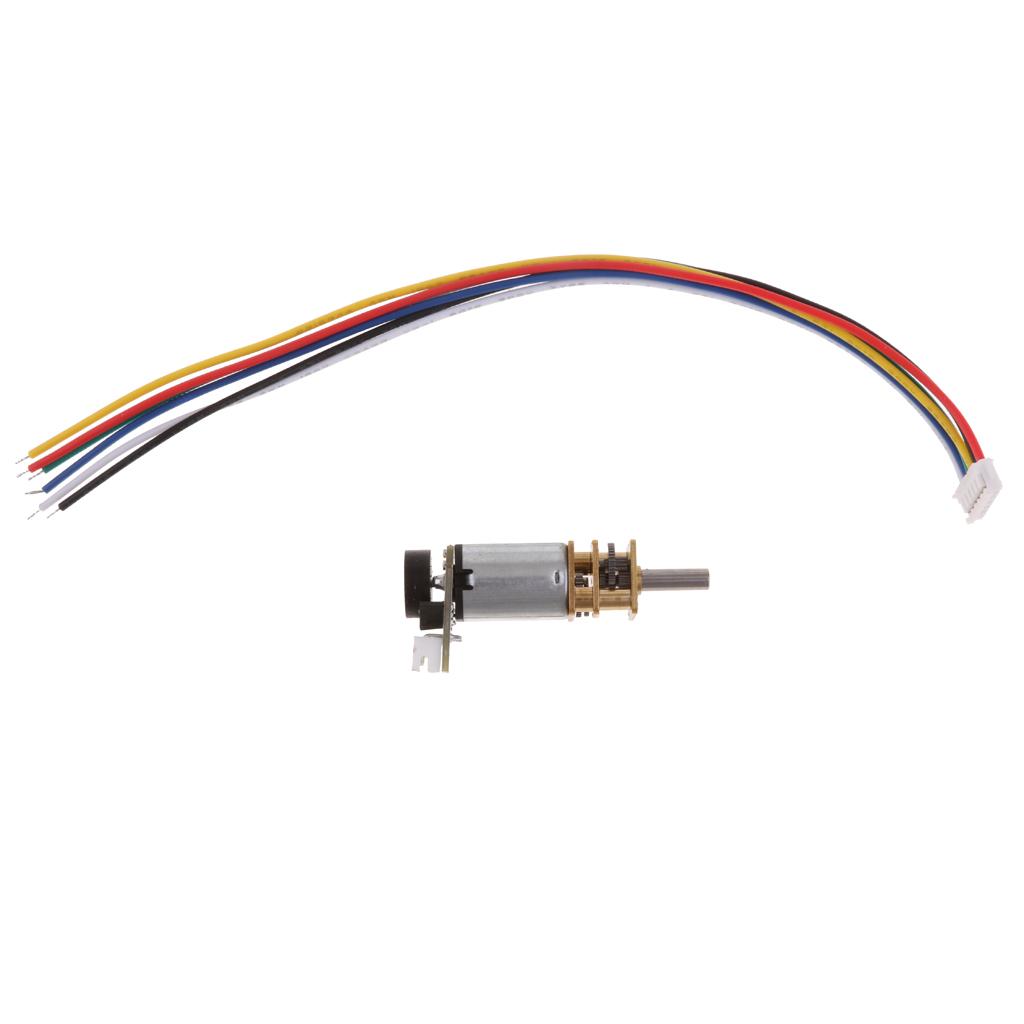

Max DC 12V Micro Gear Motor Electric Speed Reduction Motor Gearbox Coder 600rpm
Description:
Light weight, high torque, 600 RPM
DC12V mini metal gear motor, good for DIY engine, electric lock, vehicle and robot model, etc
With excellent stall characteristics, can climb hills easily
You can also easily mount a wheel on the motor's output shaft
Solidly construction and ready to install in numerous applications
Specification:
Material: Metal
Size: Approx. 4 x 1.1 x 1.8 CM/1.6 x 0.4 x 0.7 inch
Wire Length: Approx. 15CM/ 6 Inches
Model: N20
Working Voltage range: DC1.5V-DC12V
Encoder Wiring Method:
Red → motor power + (exchange can control the motor positive inversion)
Black → coded power + (positive and negative pole cannot be wrongly connected, 3.3-5V)
Yellow → signal feedback (motor rotates a round 7 signals)
Green → signal feedback (motor rotates a round 7 signals)
Blue → Encoder Power Supply - (positive and negative pole cannot be wrongly connected, 3.3-5V)
White→Motor power supply-(Transposition can control the motor positive inversion)

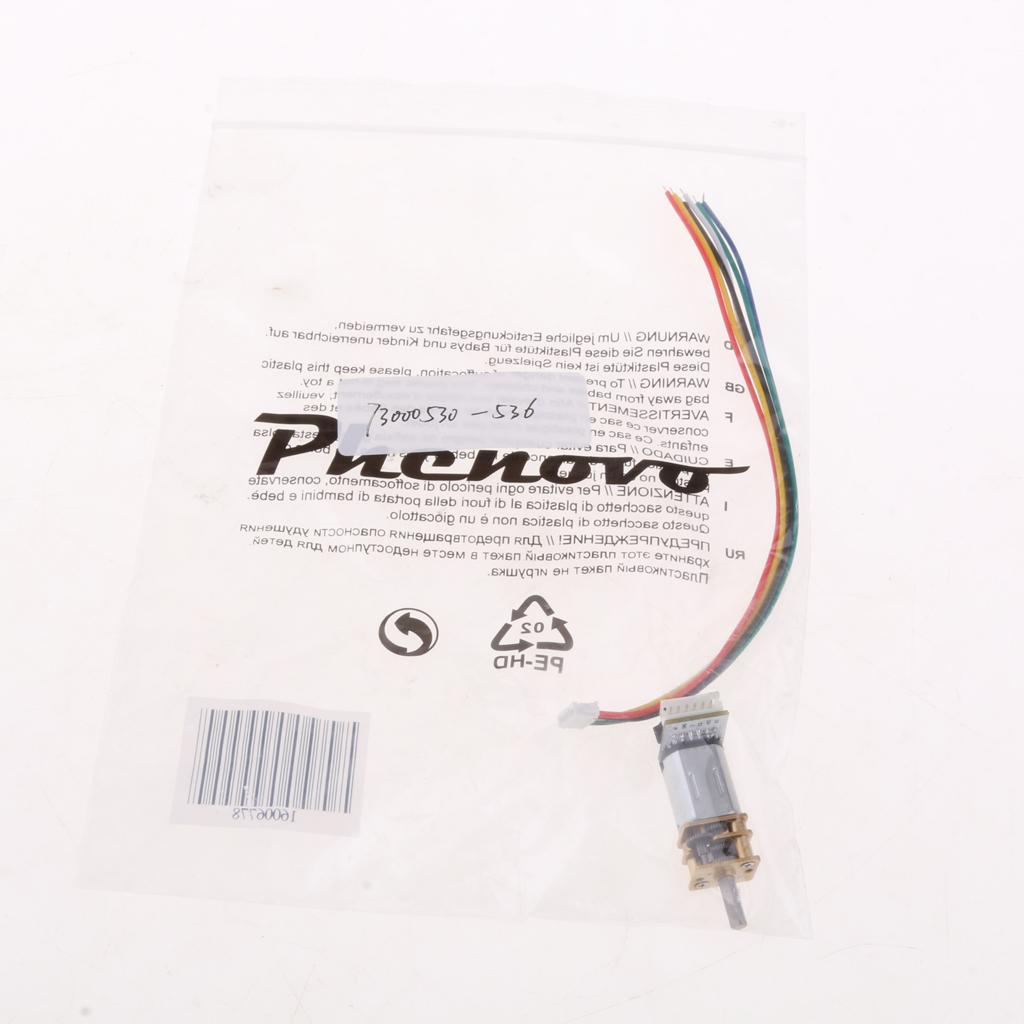

Package Includes:
1 Piece Speed Reduction Motor
1 Piece Wiring Terminal
