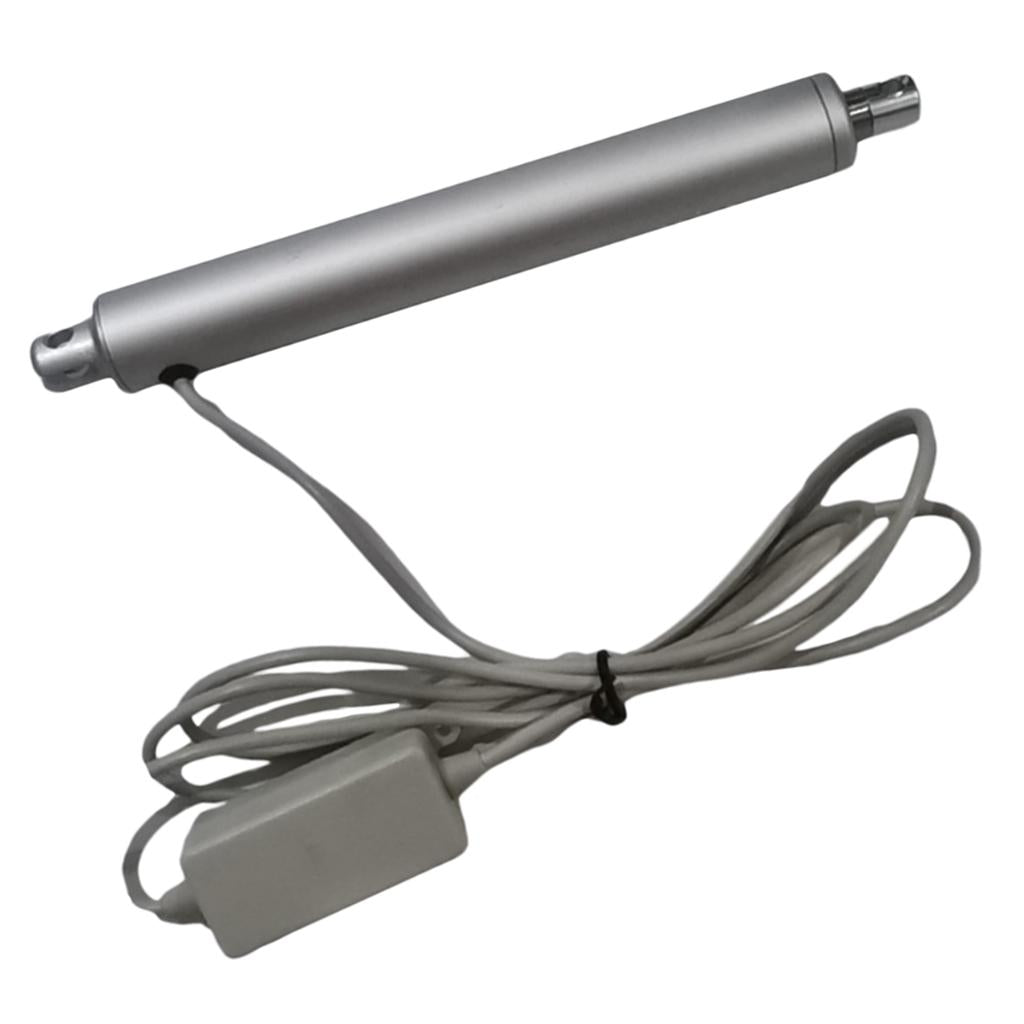

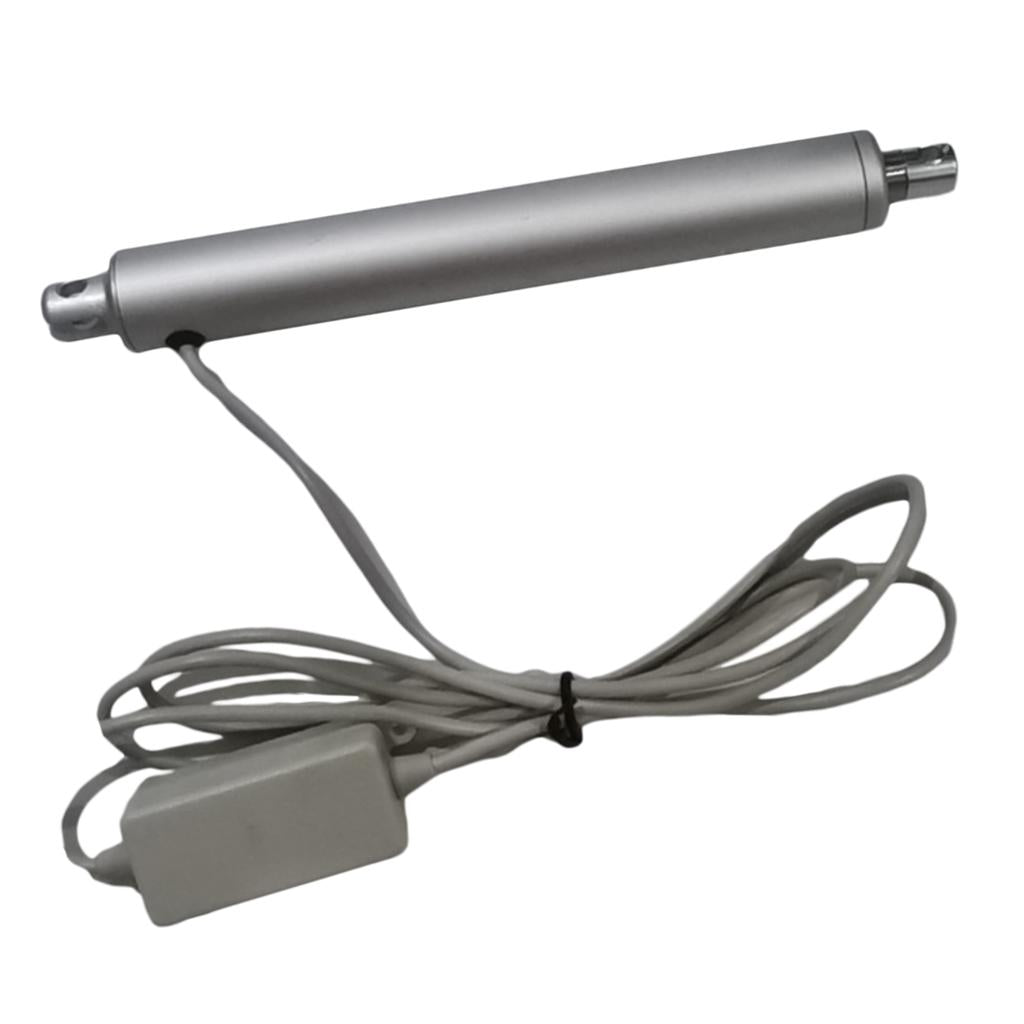

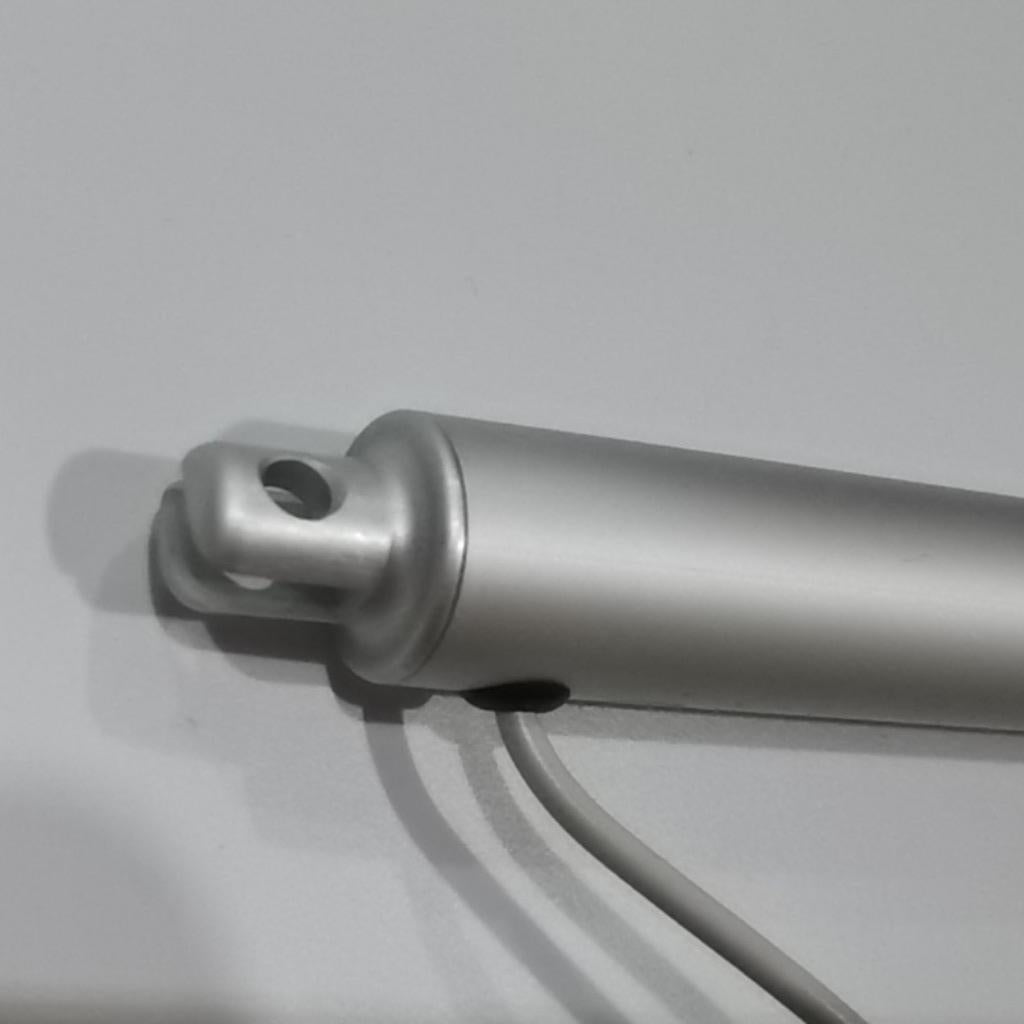

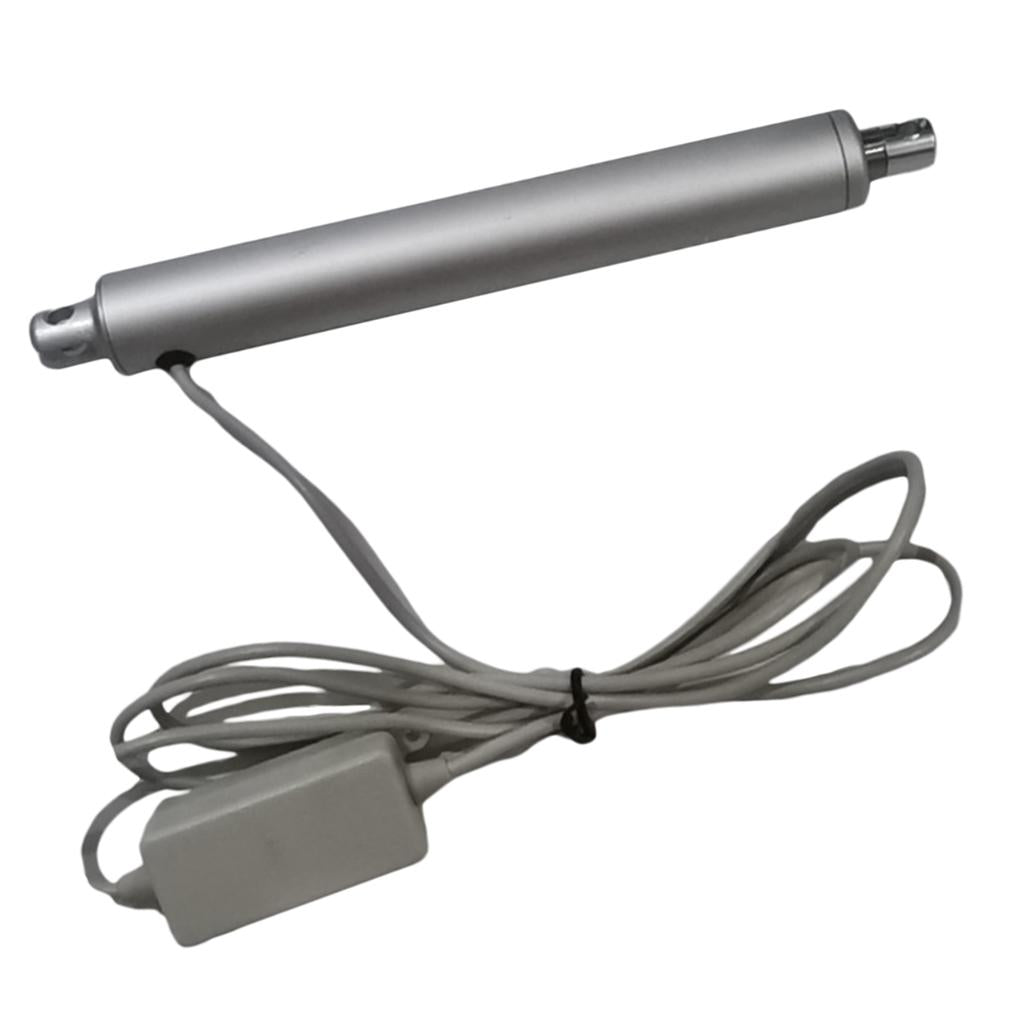

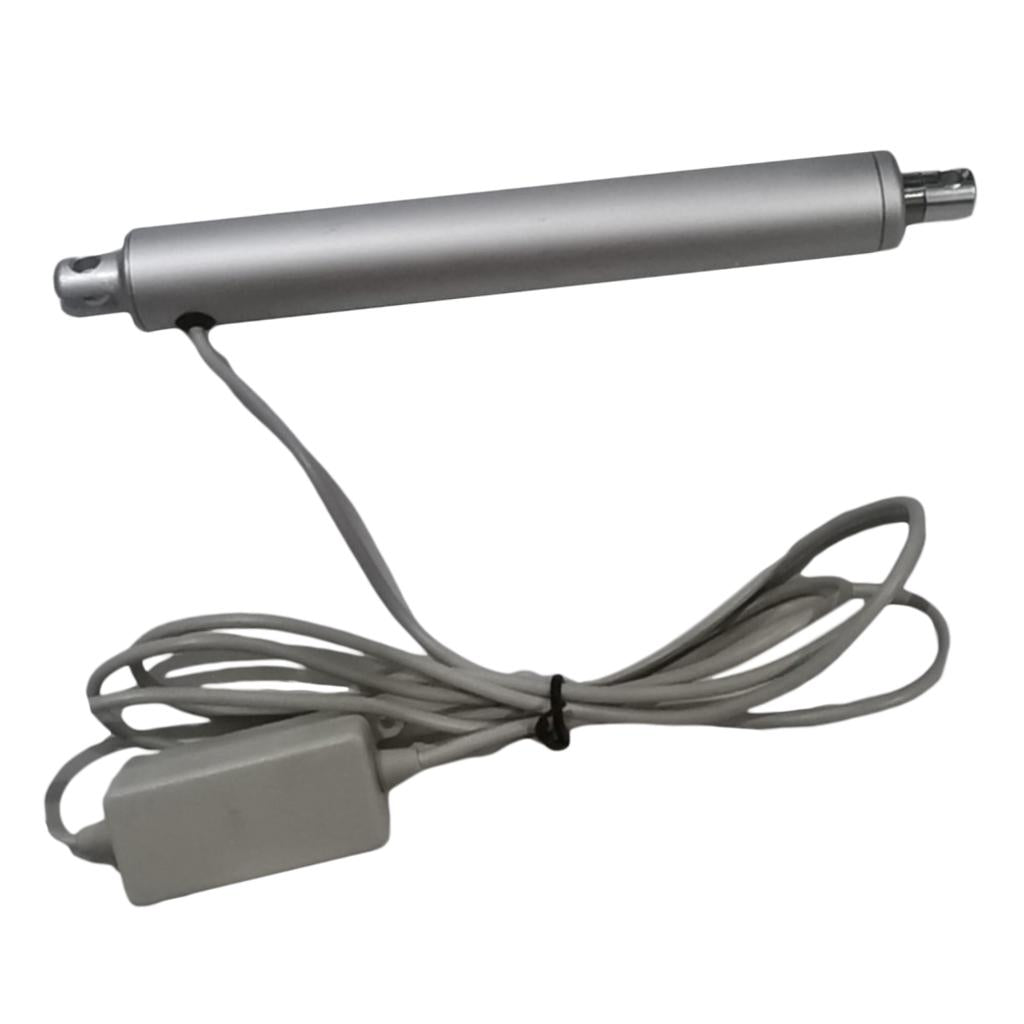

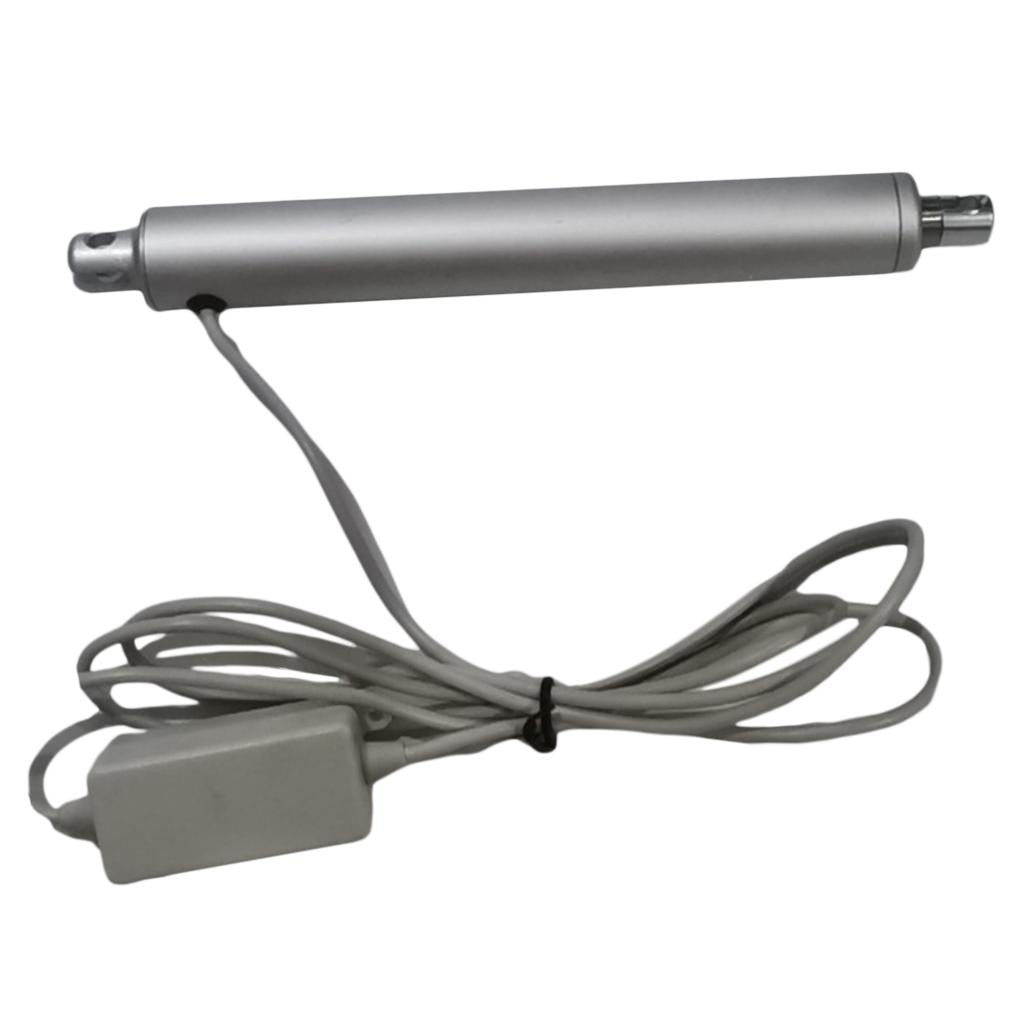

Maxbell Brush DC Motor Linear Actuator Stroke 50/100/150/200mm 250mm-24v
Description:
High precision planetary gear motor.
With limit and load overload protection.

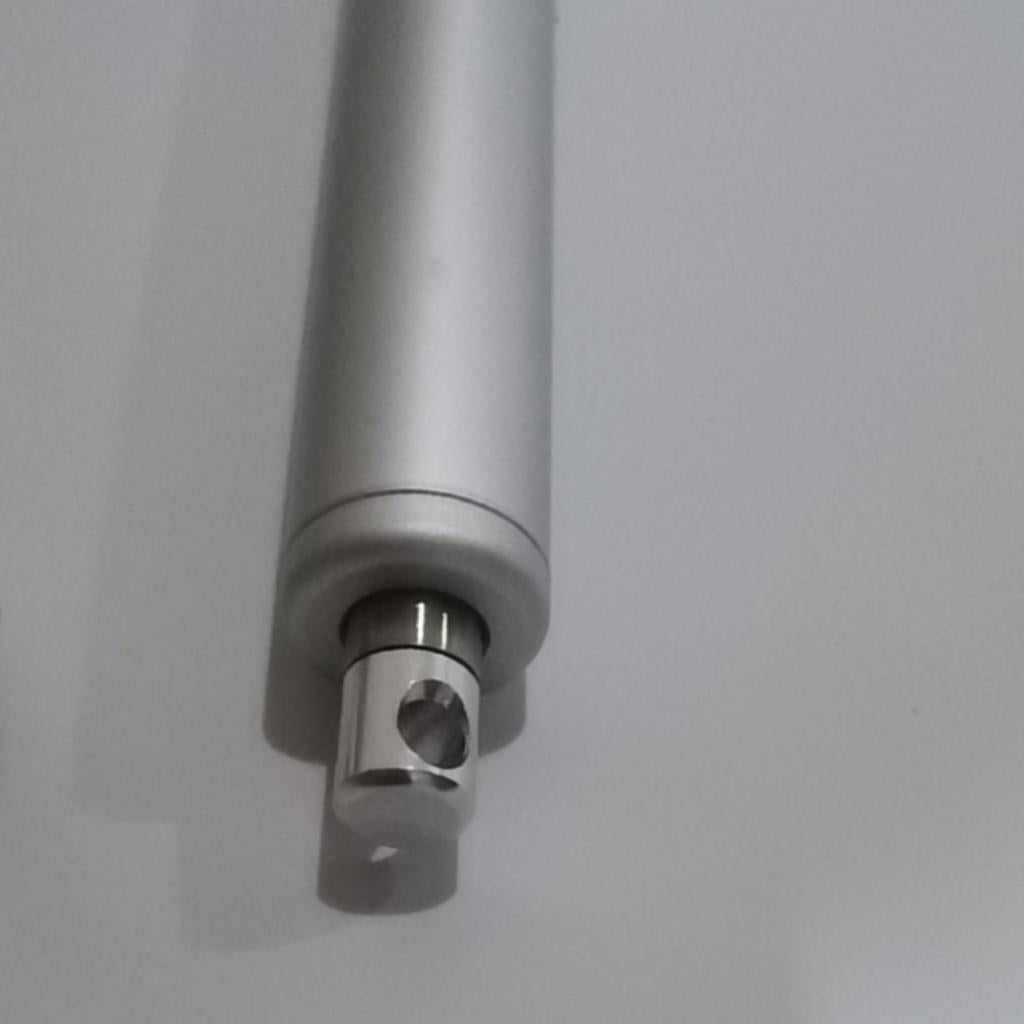

Stainless steel 10.0mm Inner Tube Diameter DC linear actuator.
Small size, over-current protection limit, stainless steel telescopic tube, fine workmanship and reliable quality.
Widely used in a variety of medical equipment, intelligent cabinet, equipment, intelligent simulator, small window opener, household automation household appliances and other automatic drive.
Specification:
Input Voltage: 12V-24VDC for choice
Max load:150N
Max Speed: 16.5mm/s
Low noise operation:≦45db
Minimum installation distance: Stroke+125
Material: Alloy
Type: Brush DC
Outer tube diameter 20mm/ 0.79inch
Inner tube diameter 10mm/ 0.39inch
Bolt center: 125mm+Stroke(50/100/150/200mm Stroke)
Bolt center: 155mm+Stroke(250/300mm Stroke)
12V : 4mm/s - 120N,16mm/s - 30N
24V: 8mm/s -- 120N; 16mm/s -- 30N
Package Includes:
1 Piece Linear Actuator
