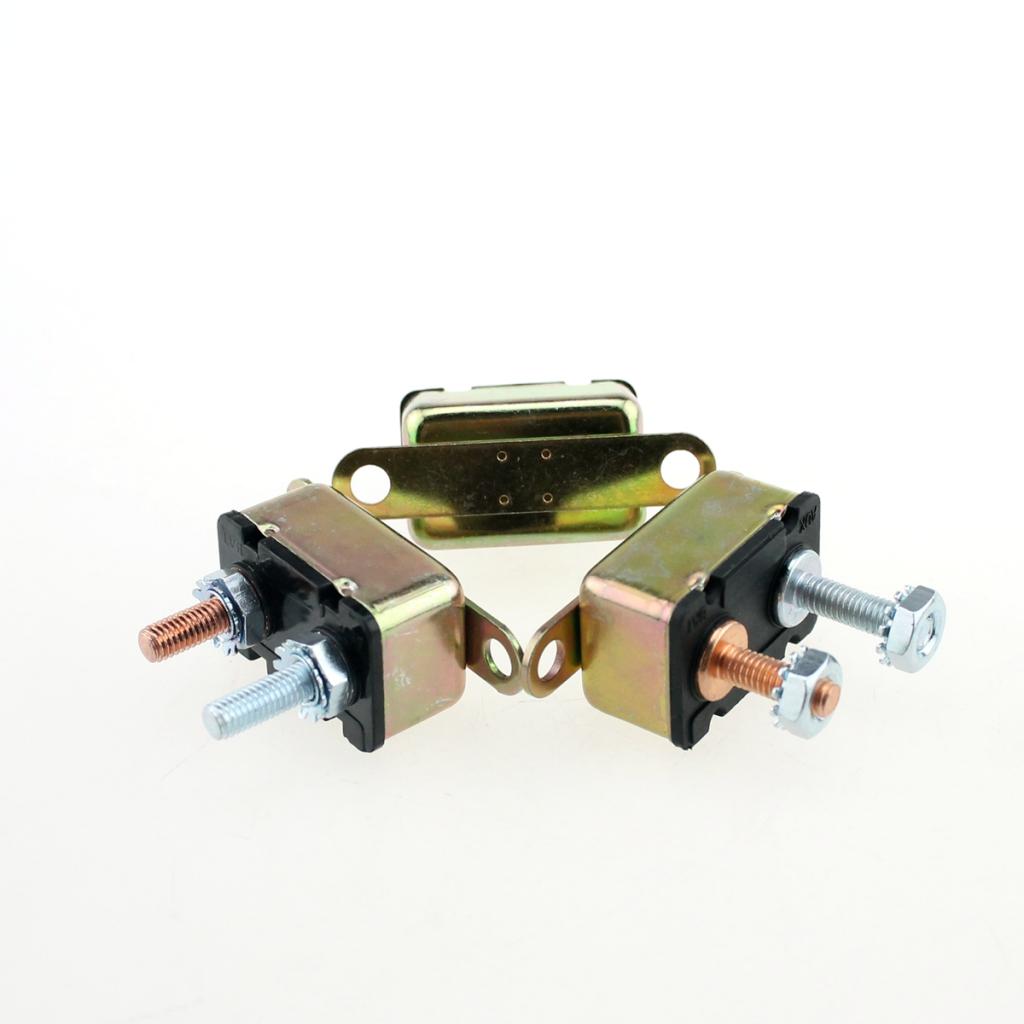

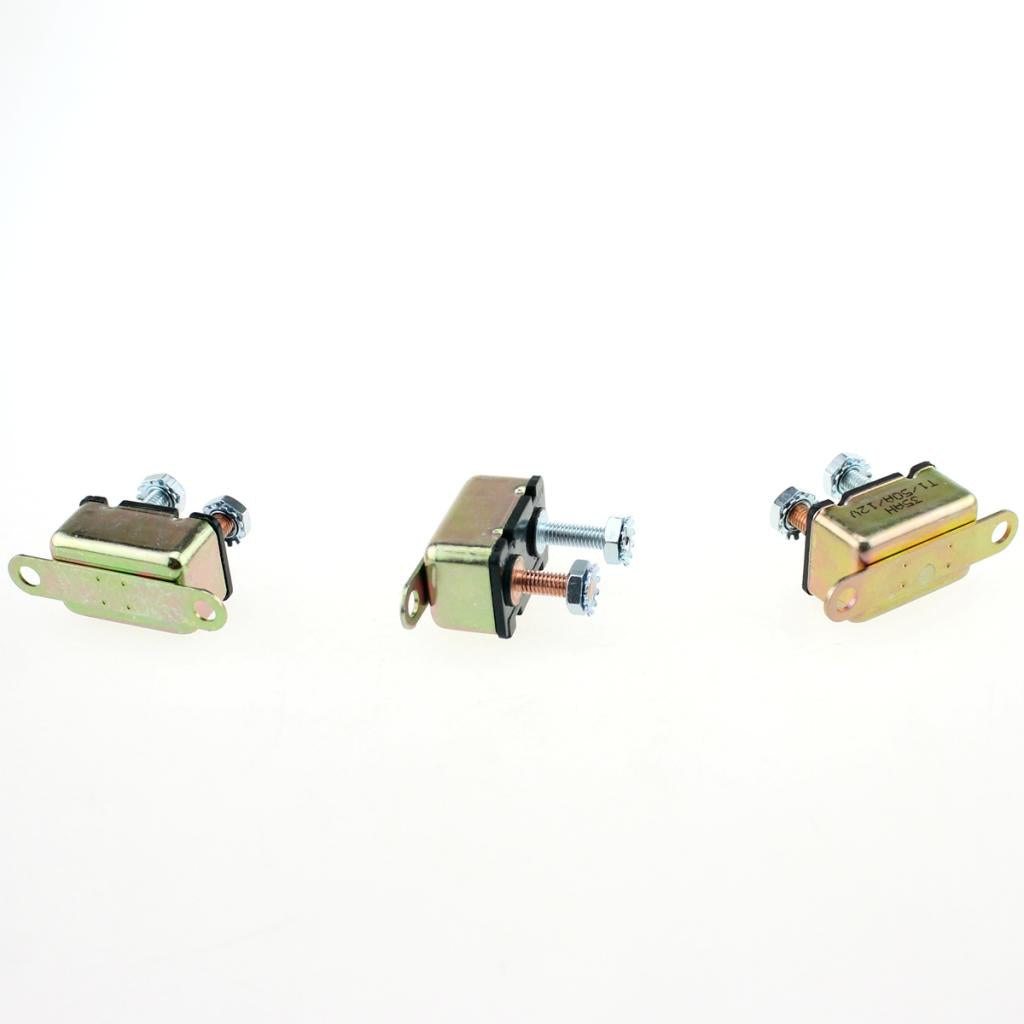

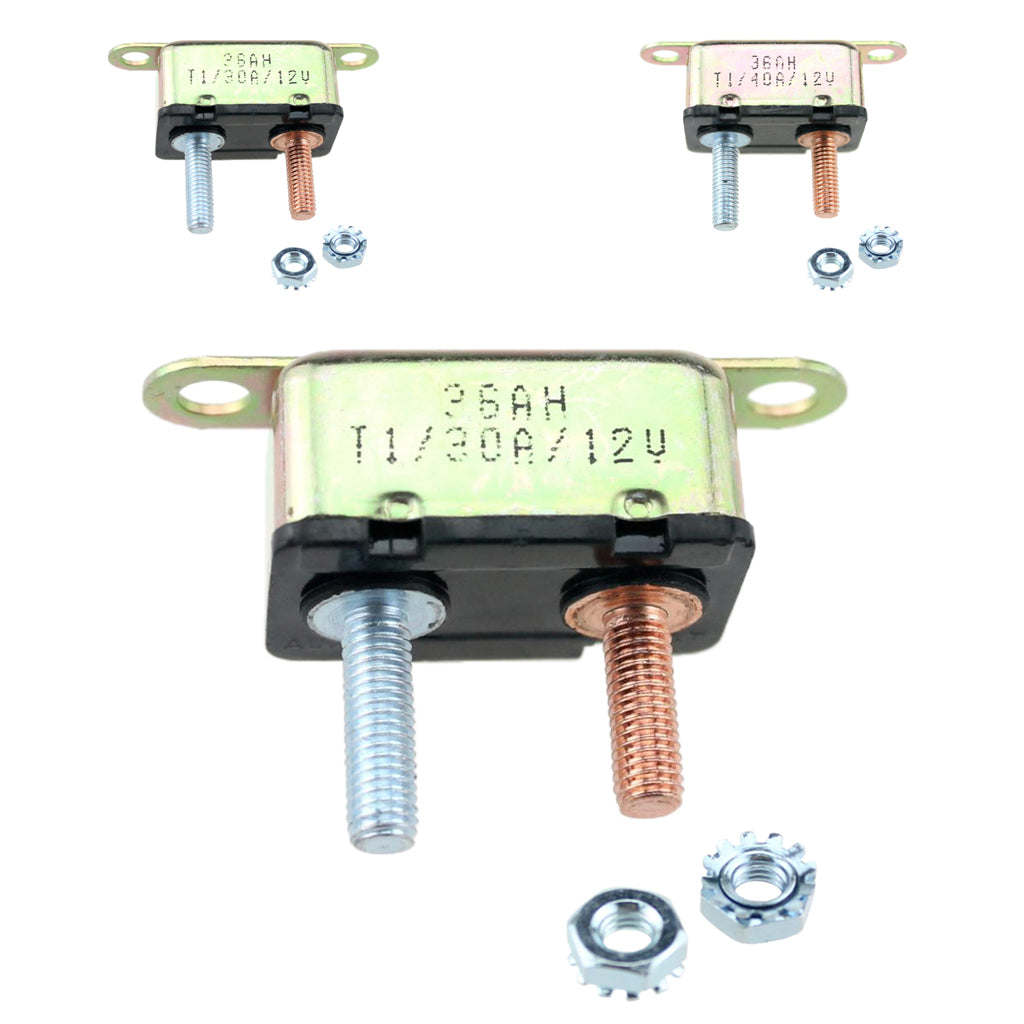

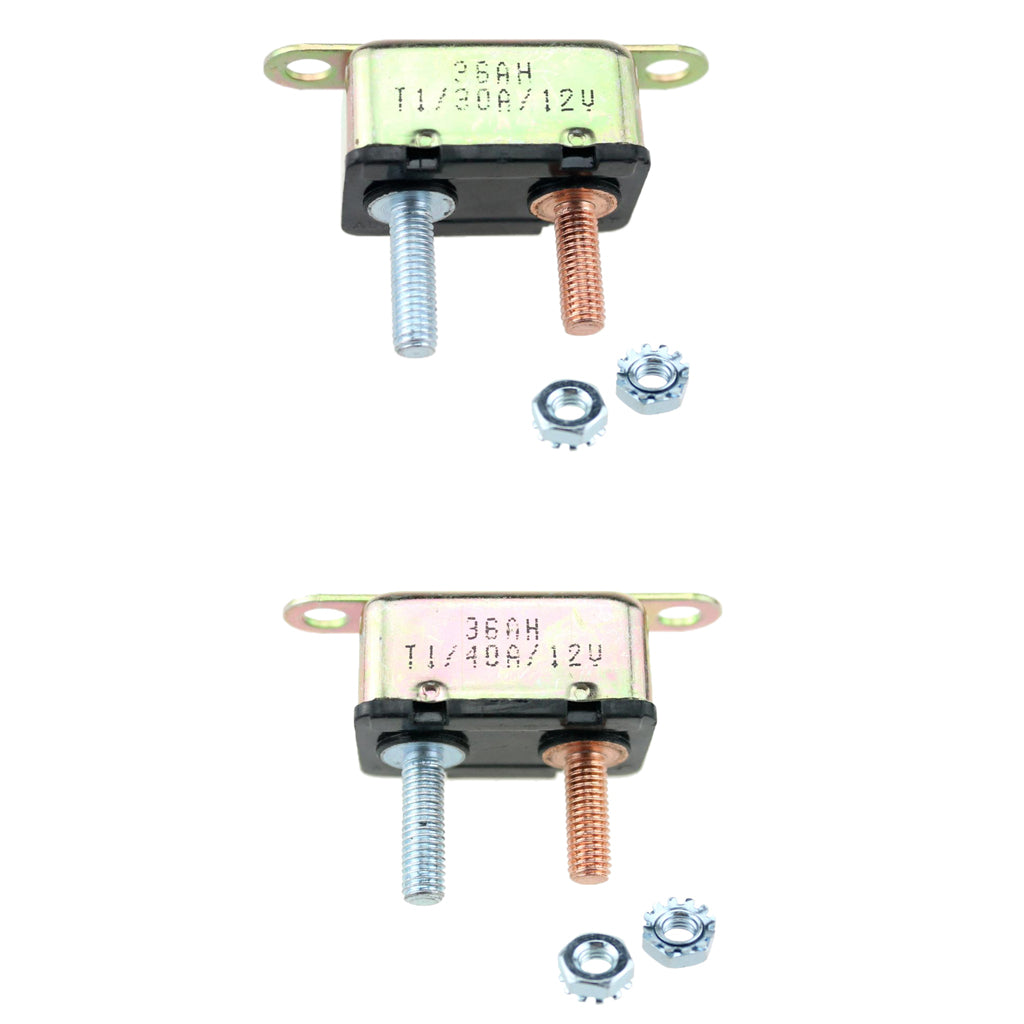

Maxbell Automotive 30AMP Metal Auto-Reset Circuit Breaker 30A 12V for RV Boat
Description:
100% brand new and high quality
Meterial: metal
Voltage: 12V, 30A
For use in electric brake set ups, auto , caravans and more

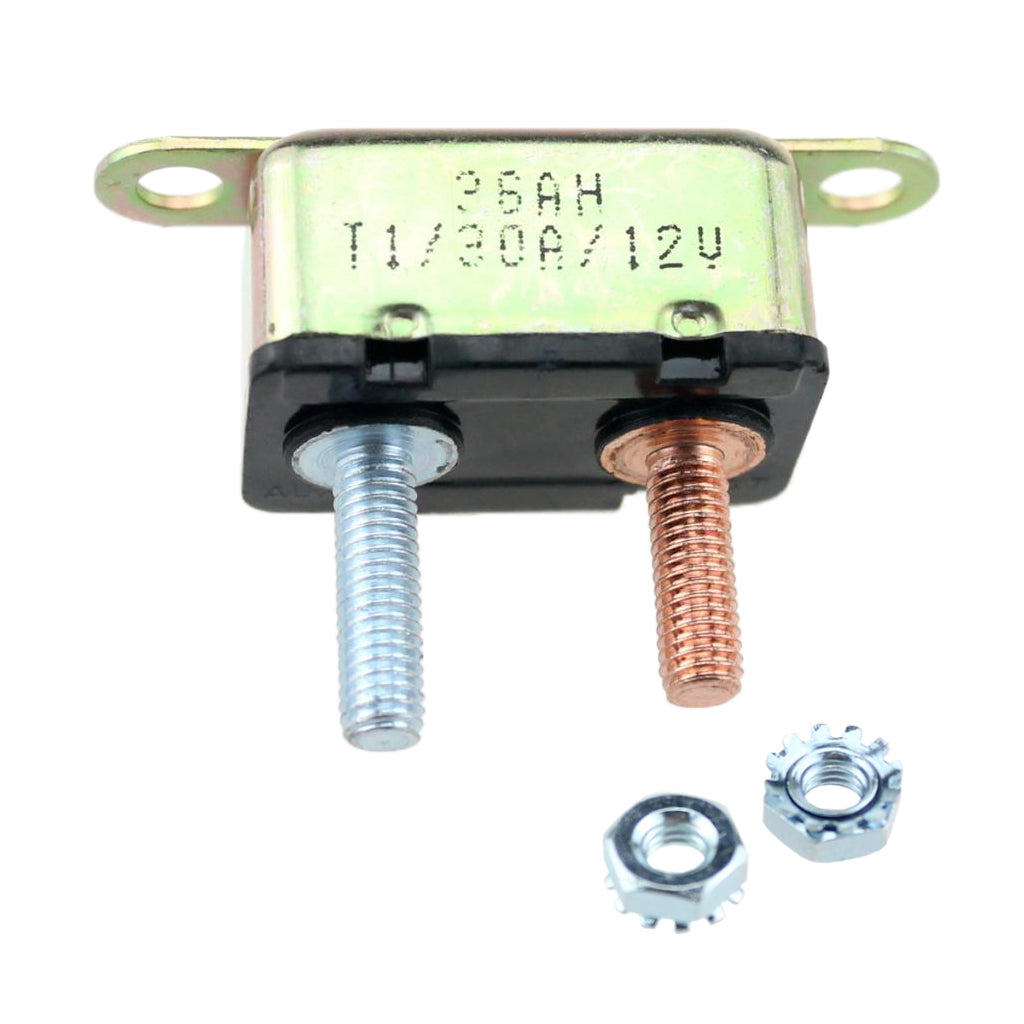

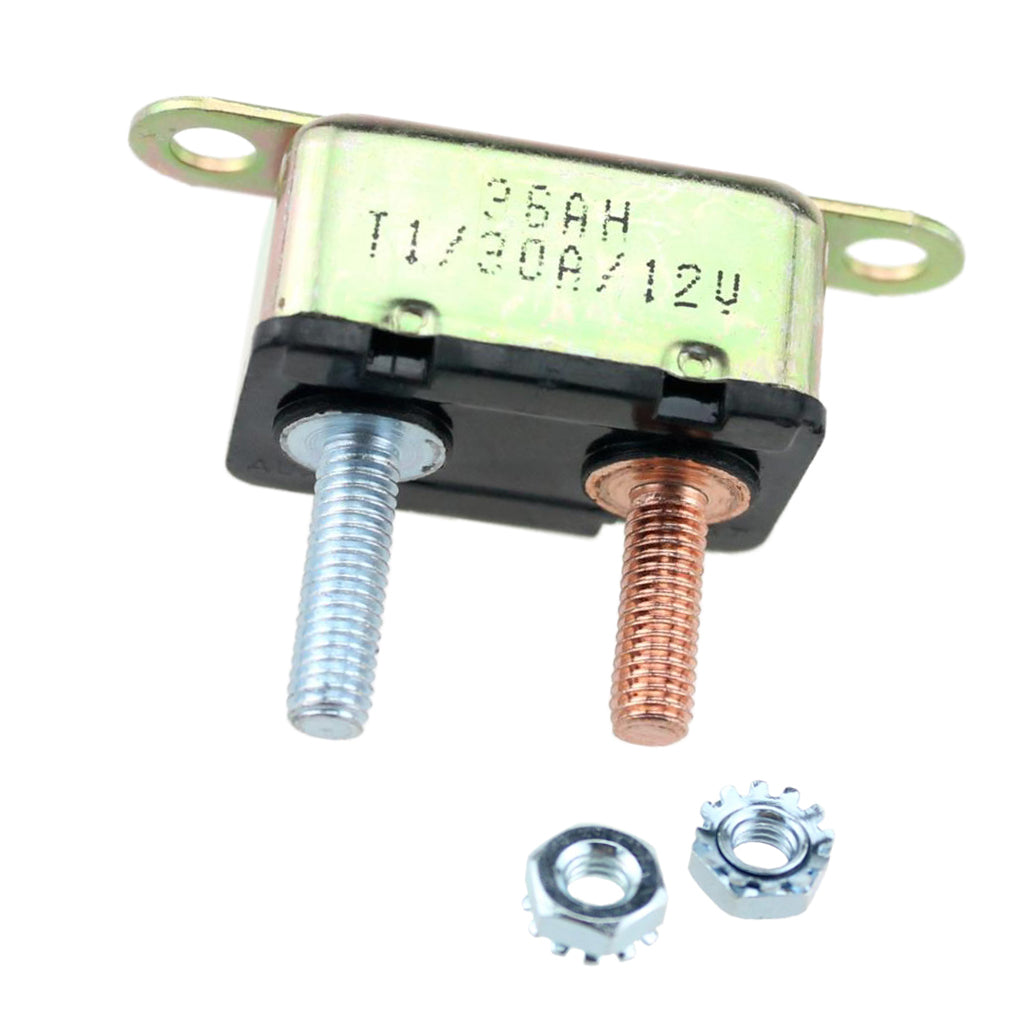

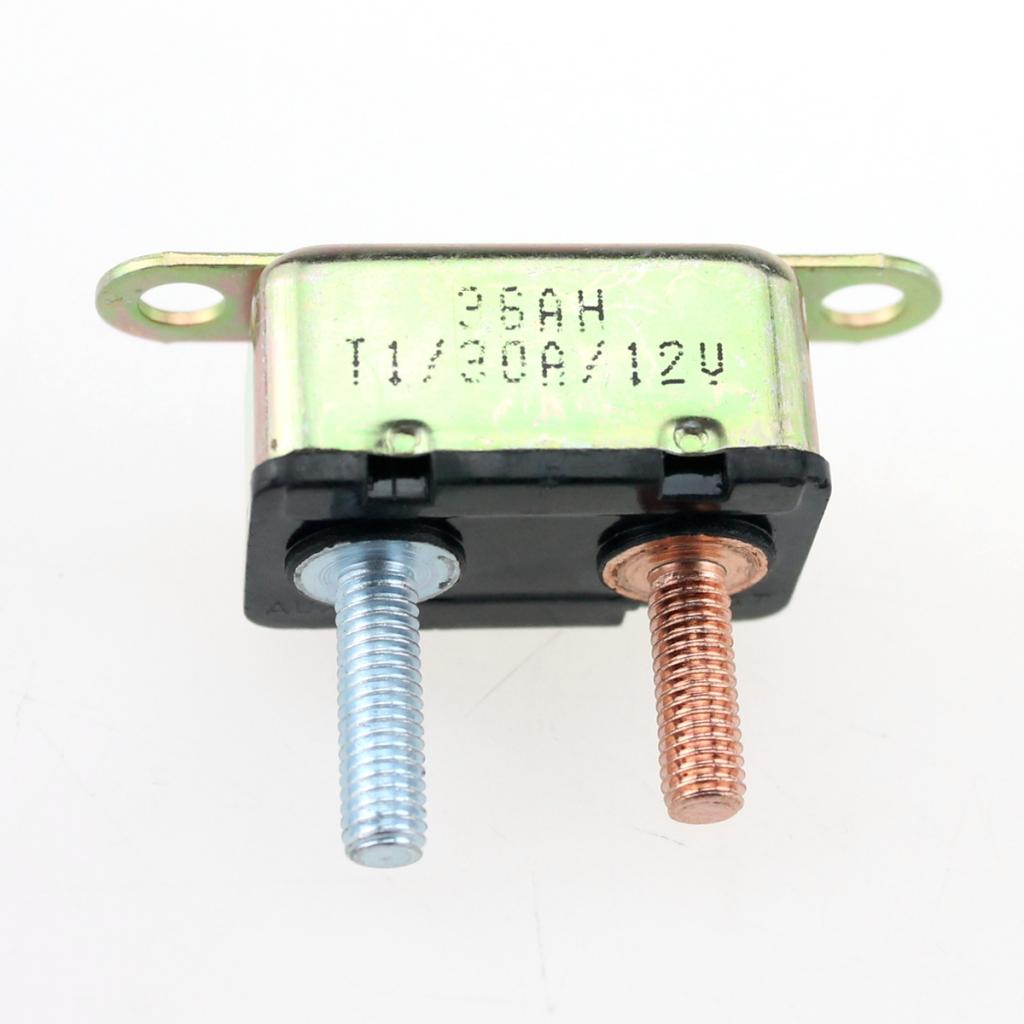

One copper post and one plated terminal
Battery side connects to the copper side and the plated side connects to your accessories generally take the place of a fuse but with the advantage of resetting itself,Ideal in applications where what is being connected could have a short circuit or a momentary short.
Specification:
Stud Type Circuit Breaker
Battery chargers, trucks, buses, RVs, trolling motors, etc
SAE J553; SAE J1171; UL1500
Voltage 14-28Vdc
Rated Current 30A

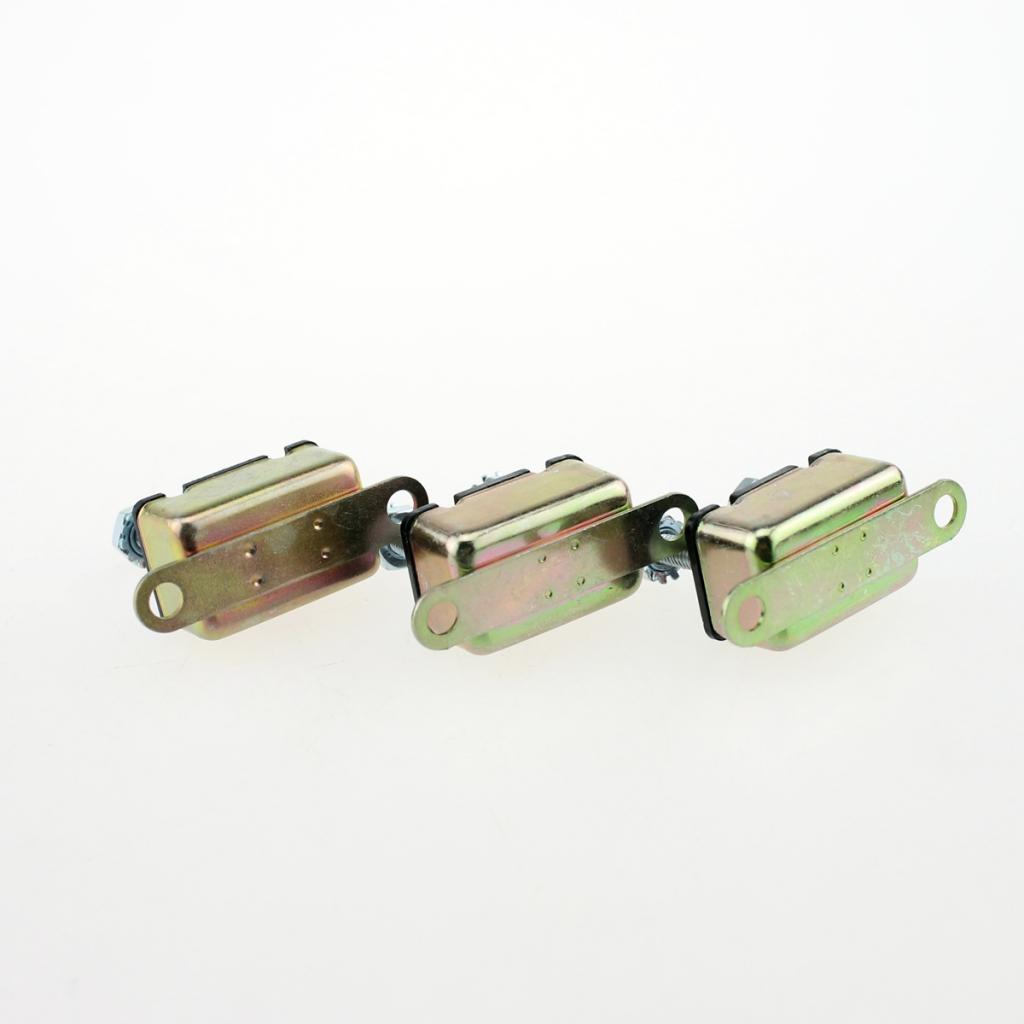

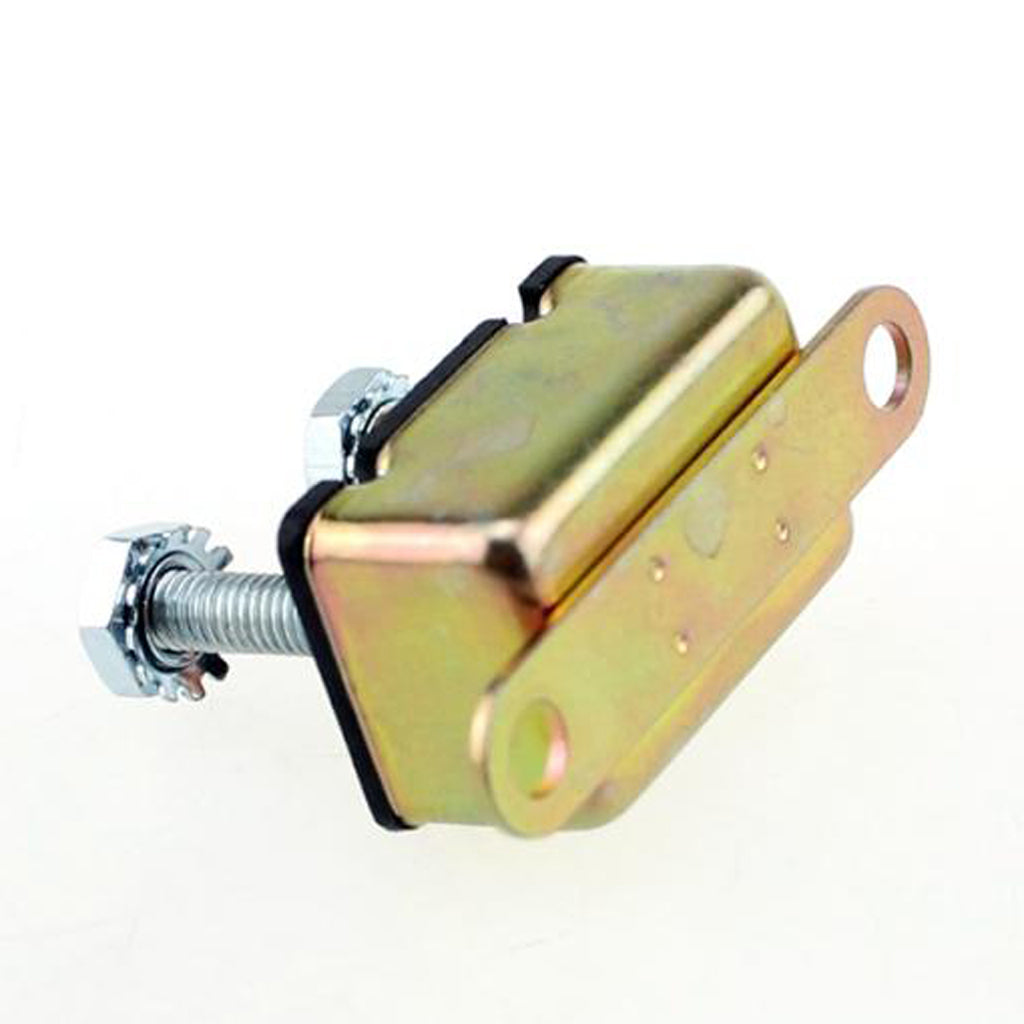

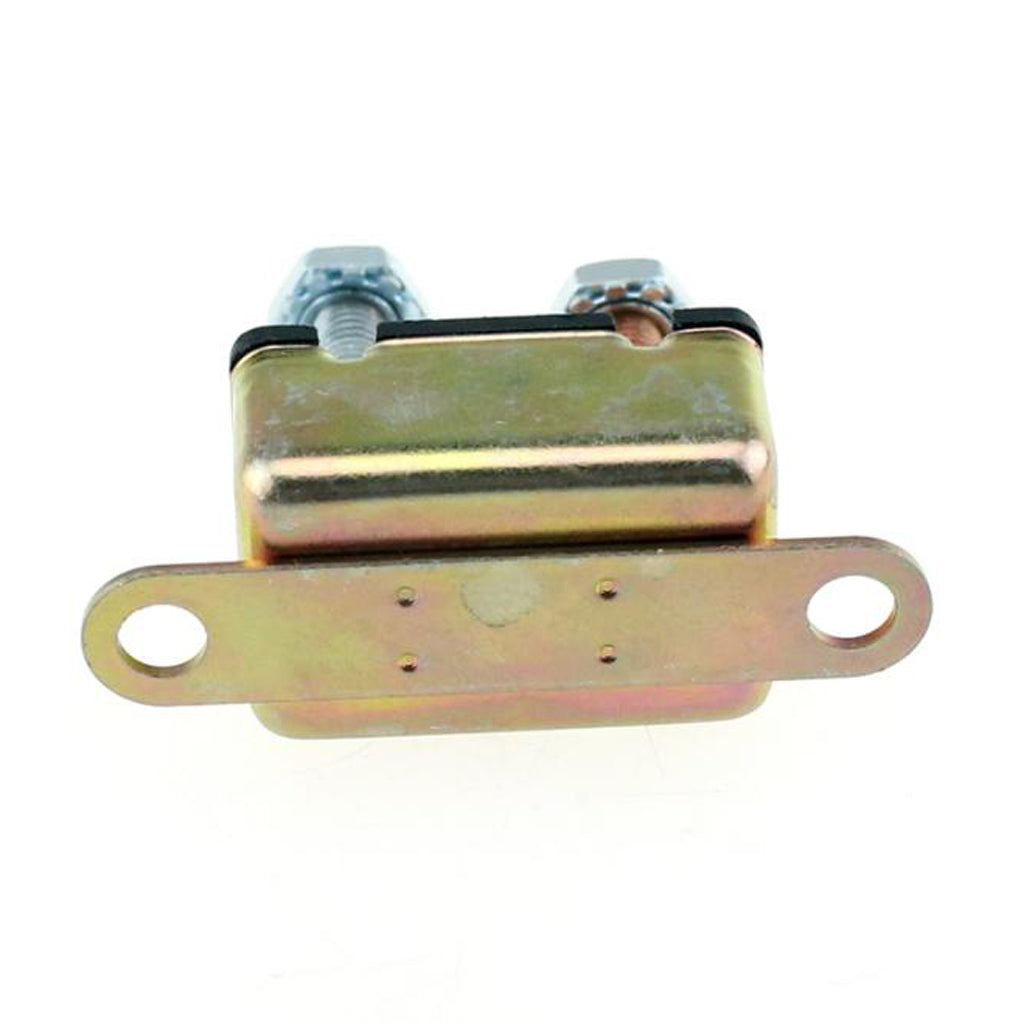

Mounting Parallel (Lengthwise) Mounting Bracket
Reset Type T1, Auto Reset
Operating Temperature -40ºC (-40ºF) to 85ºC (185ºF)
Interrupt Capacity 2.5kA @ 12Vdc

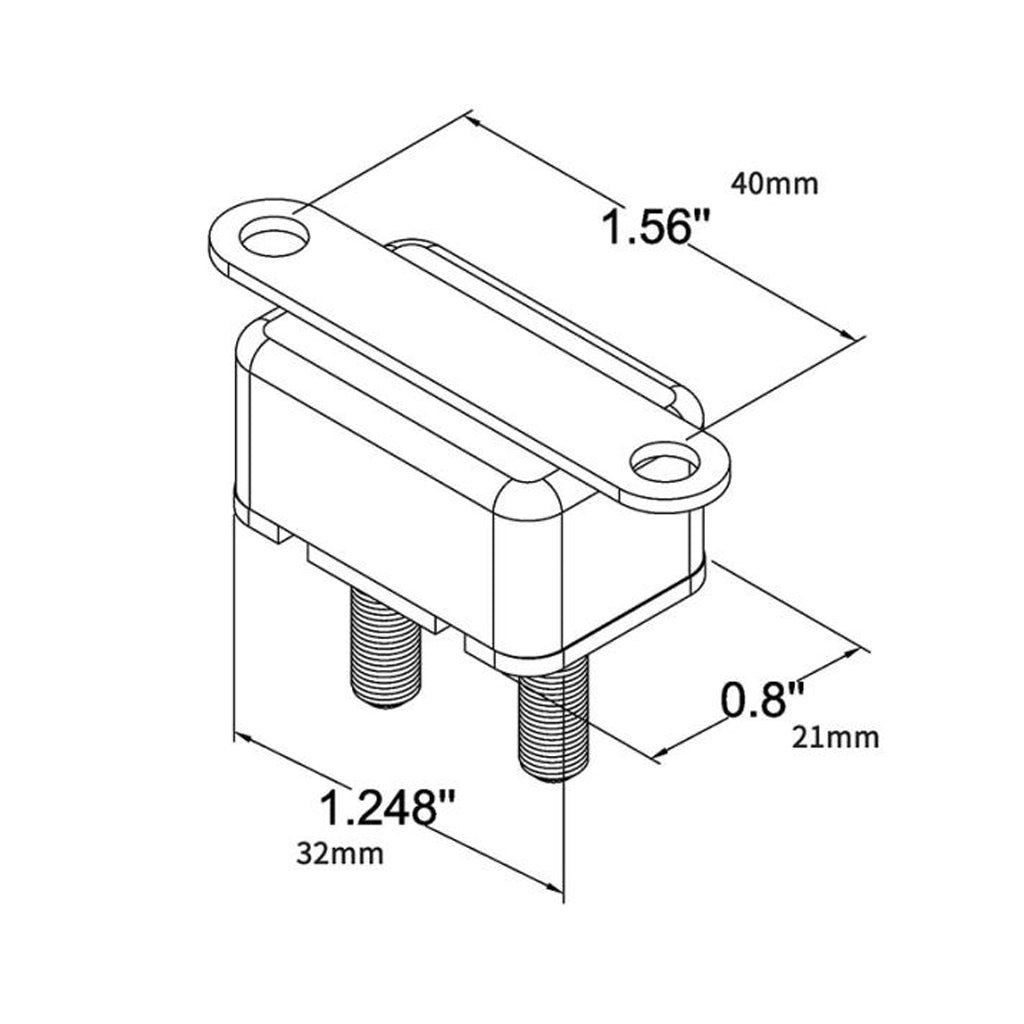

Dimension 1.248 x 0.693 x 0.8 inch
Regulatory Sepcification SAE J553; SAE J1171; UL1500
Termination #10-32 thread
Body Metal Cabinet
Storage Temperature -40ºC (-40ºF) to 125ºC (260ºF)

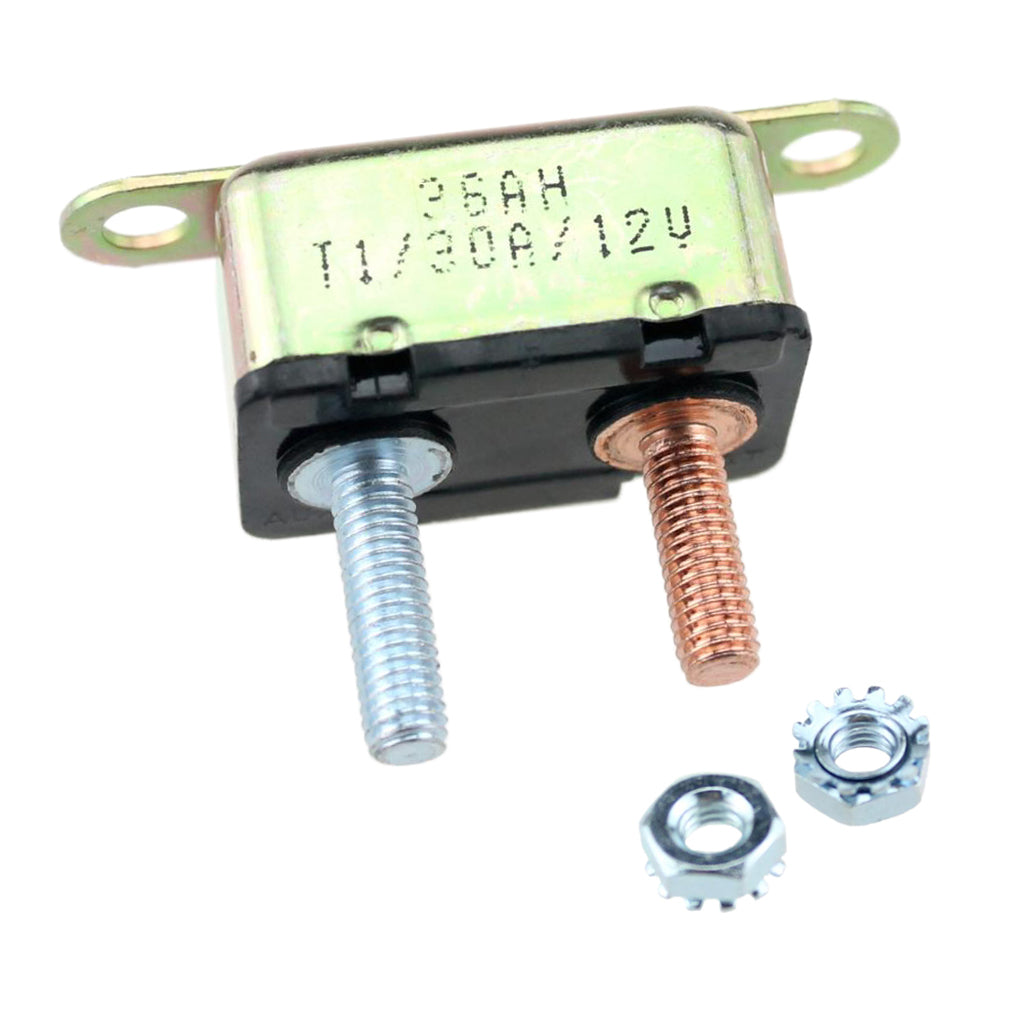

Package Includes:
1 Piece Circuit Breaker

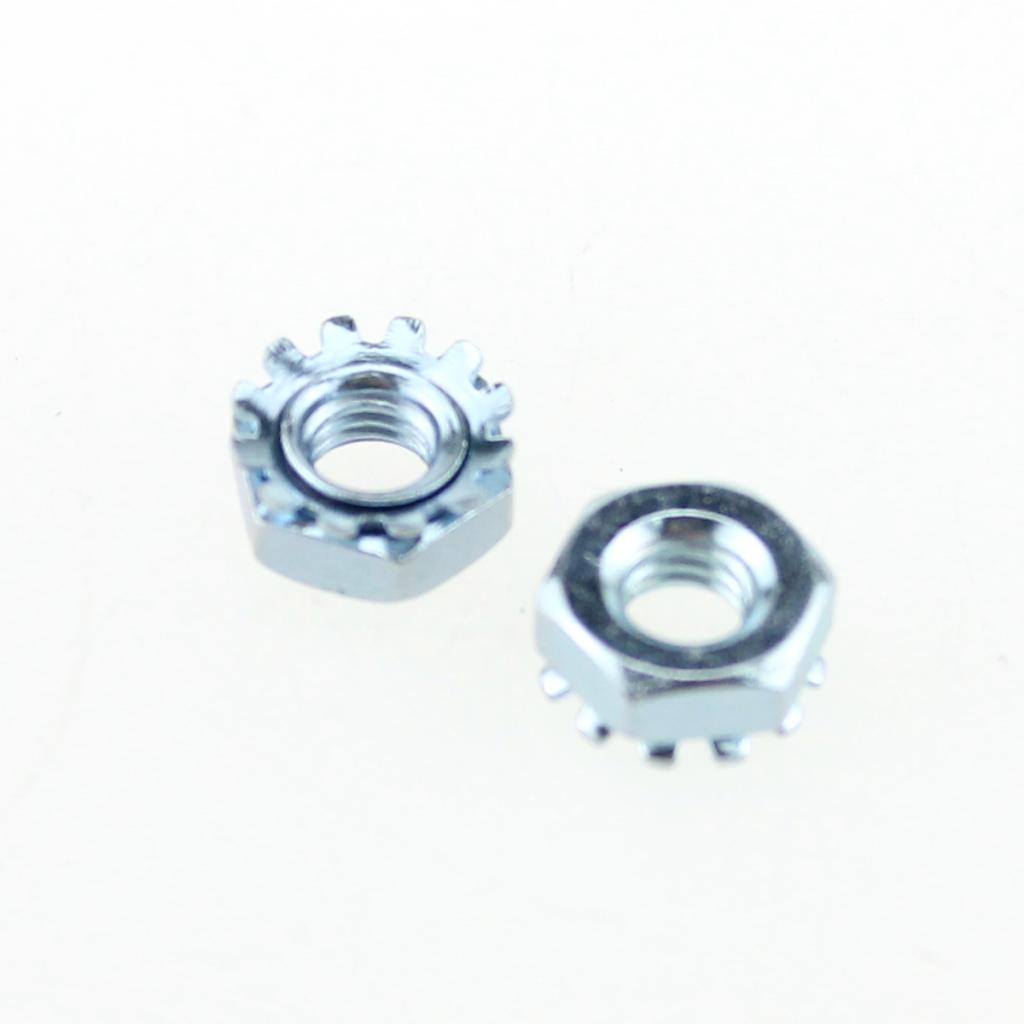

2 Pieces Screw Nuts
