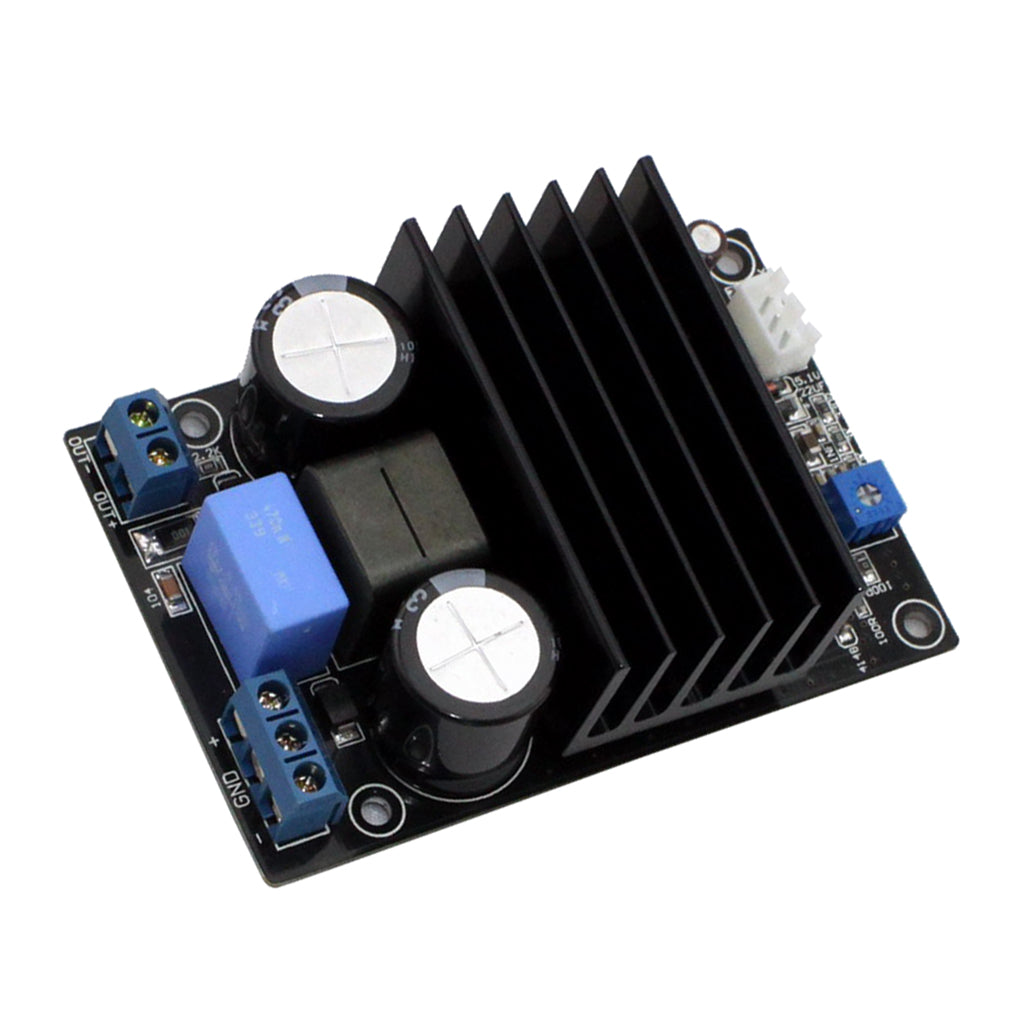

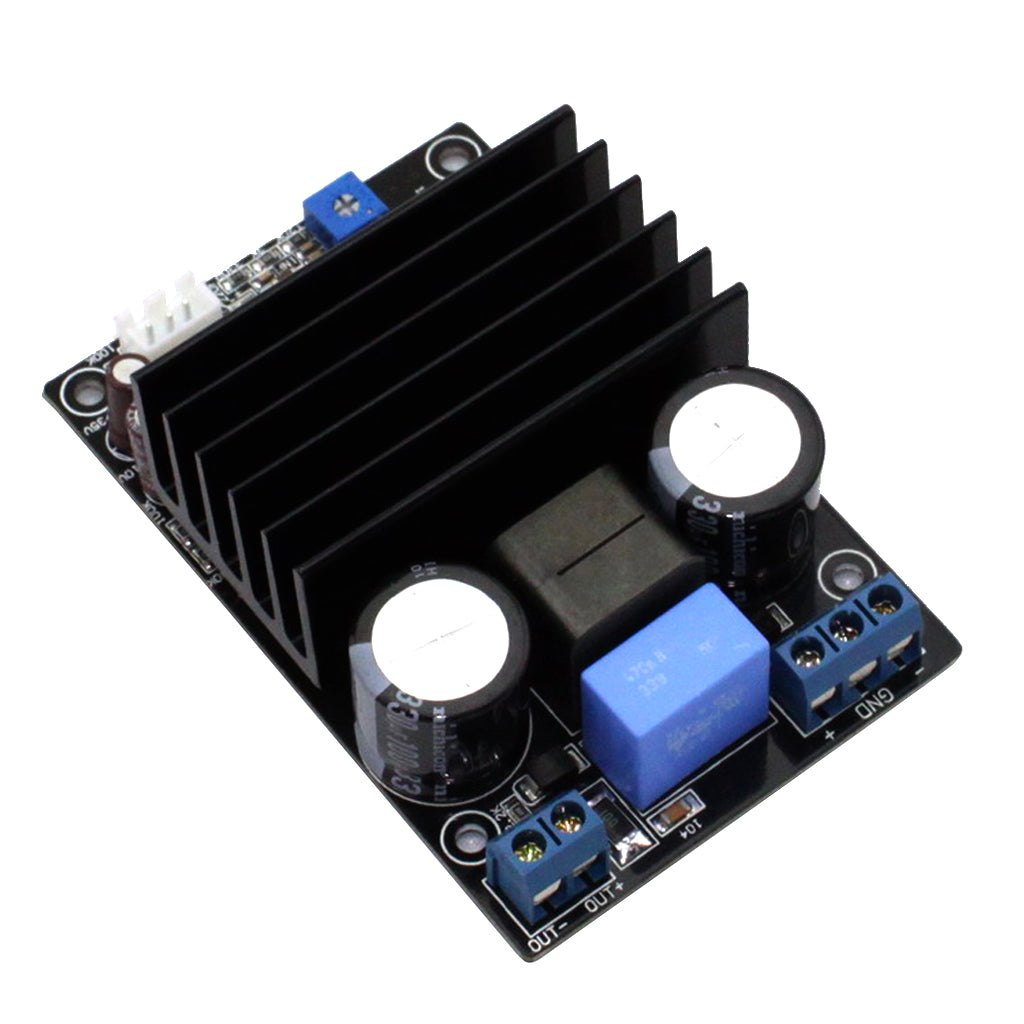

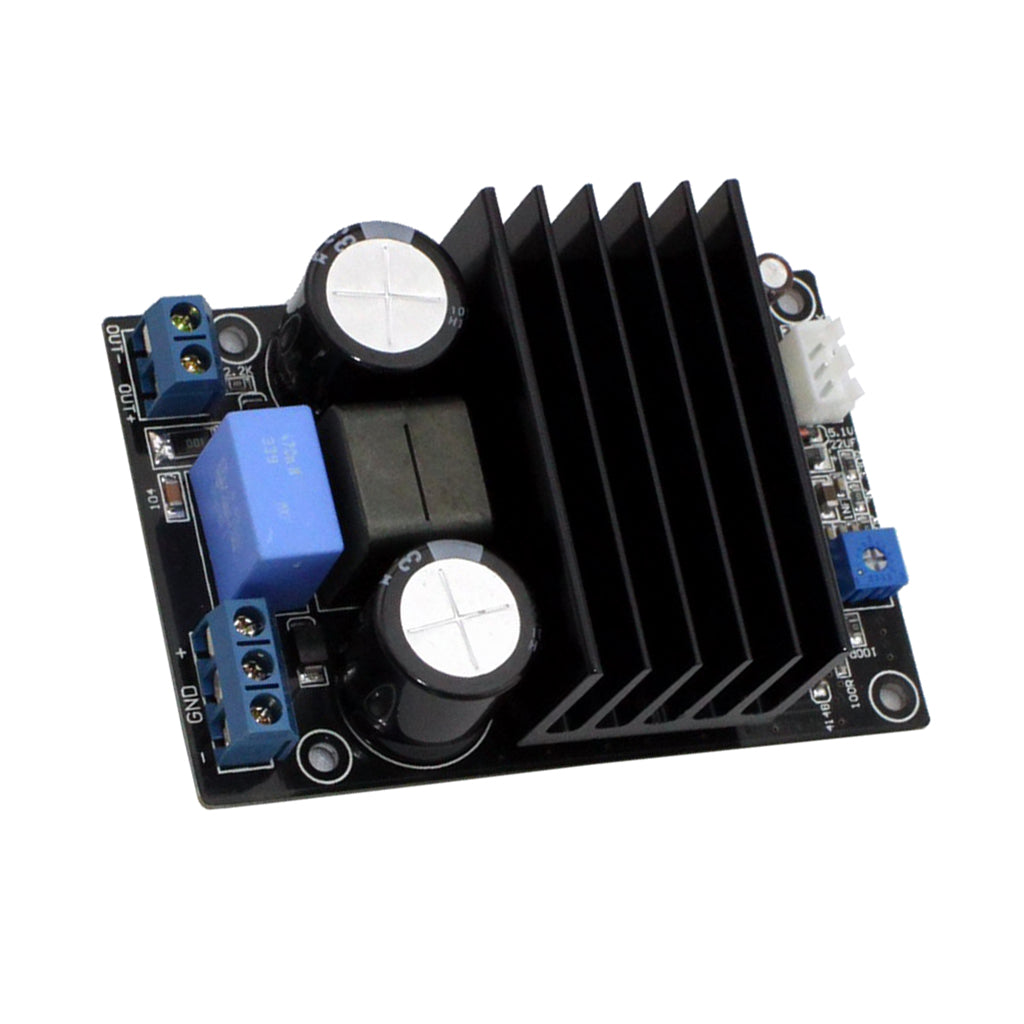

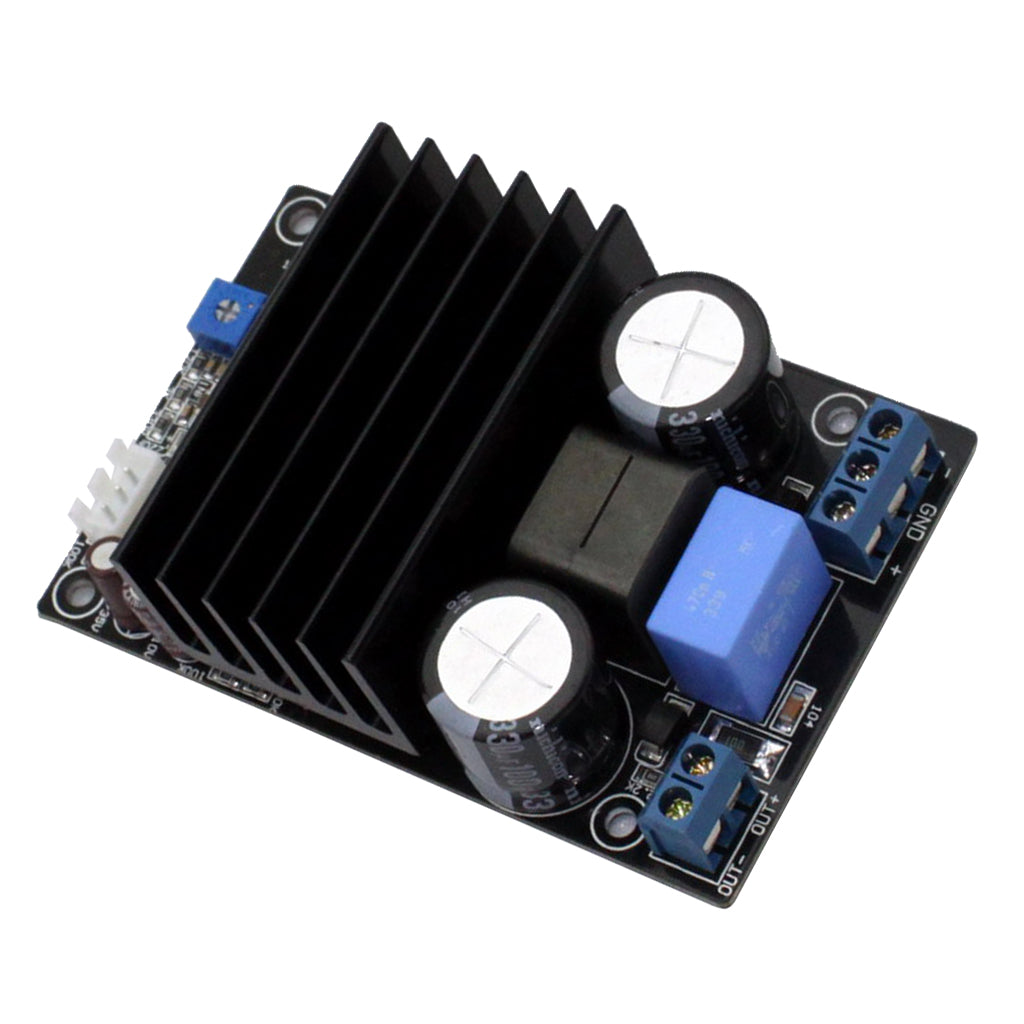

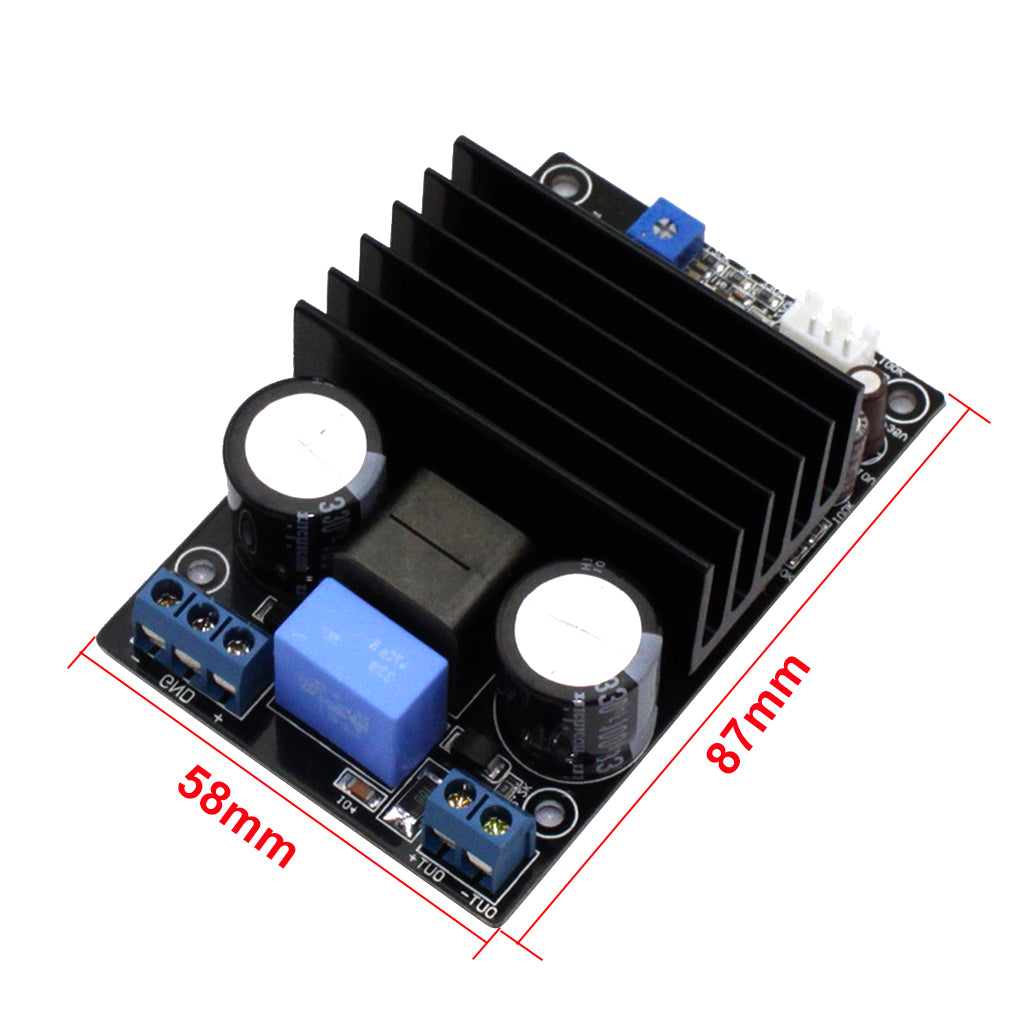

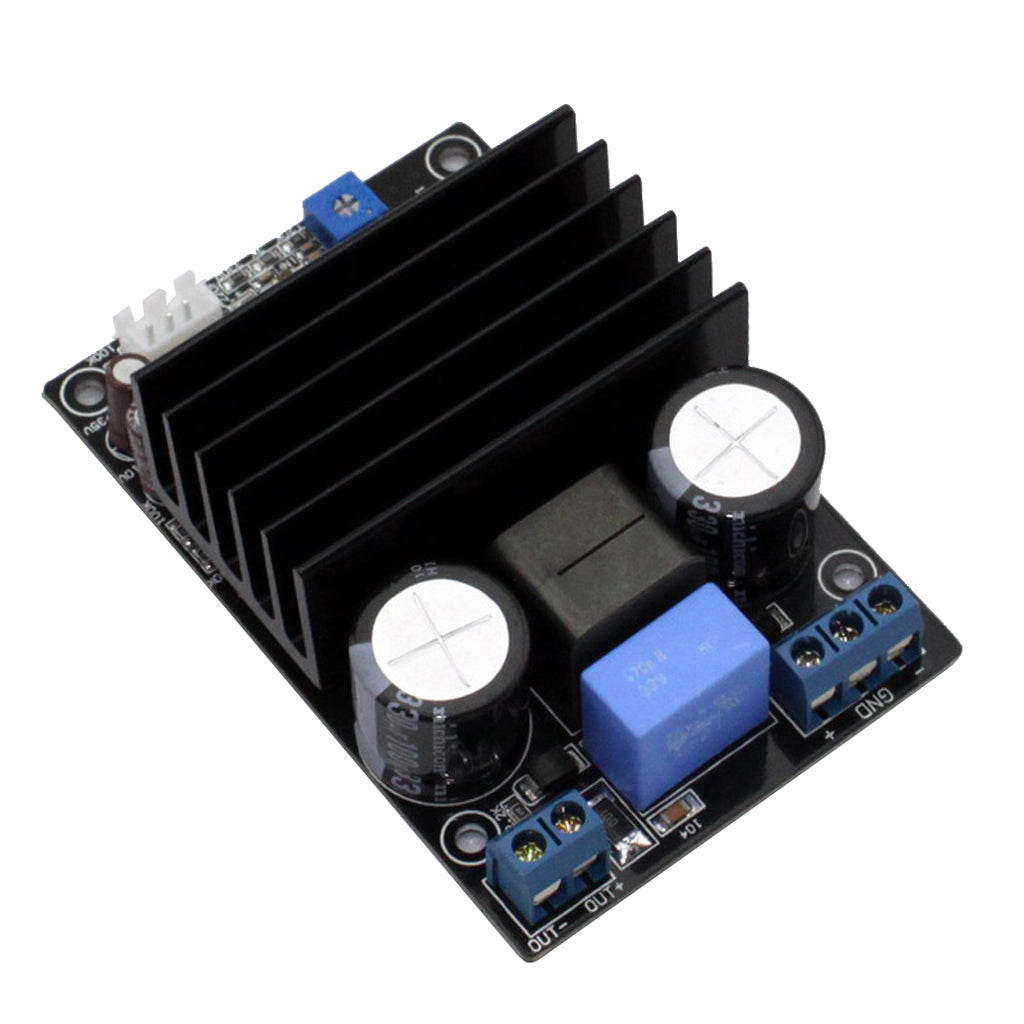

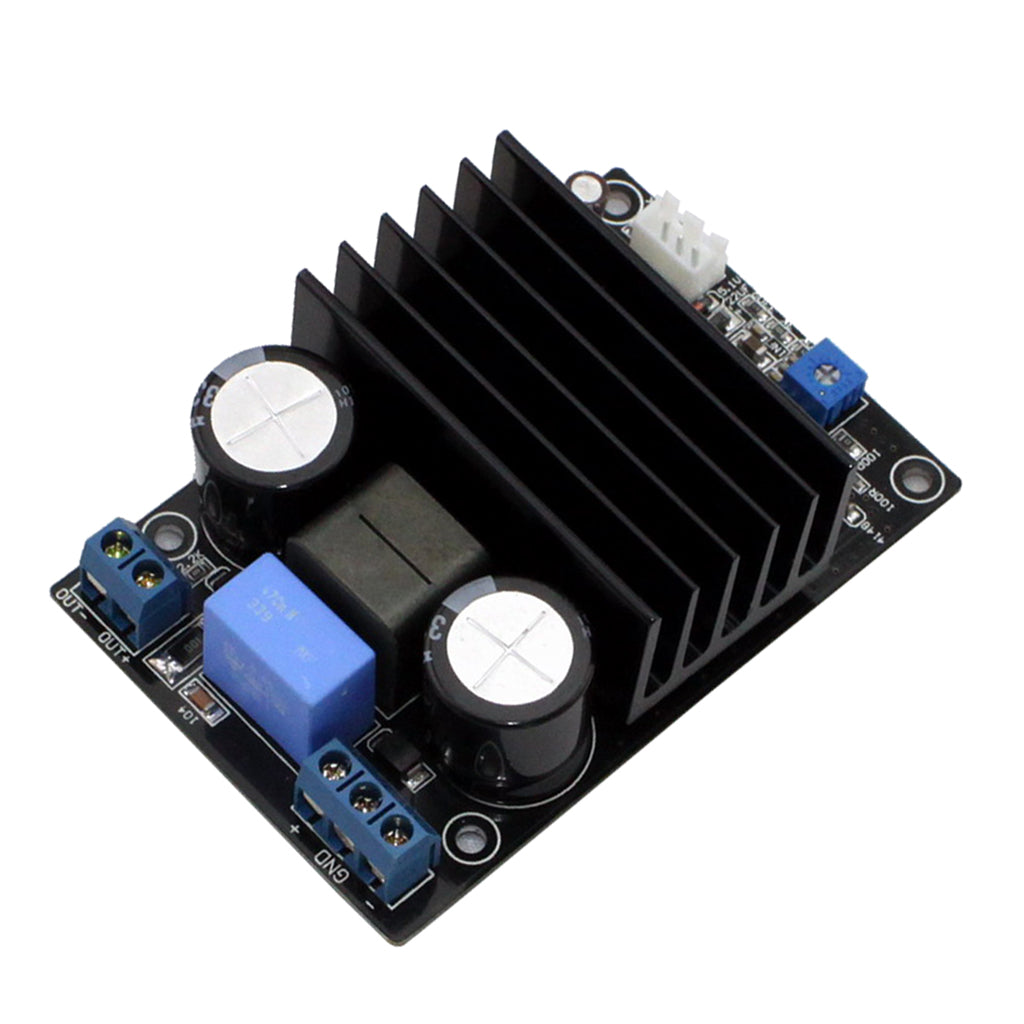

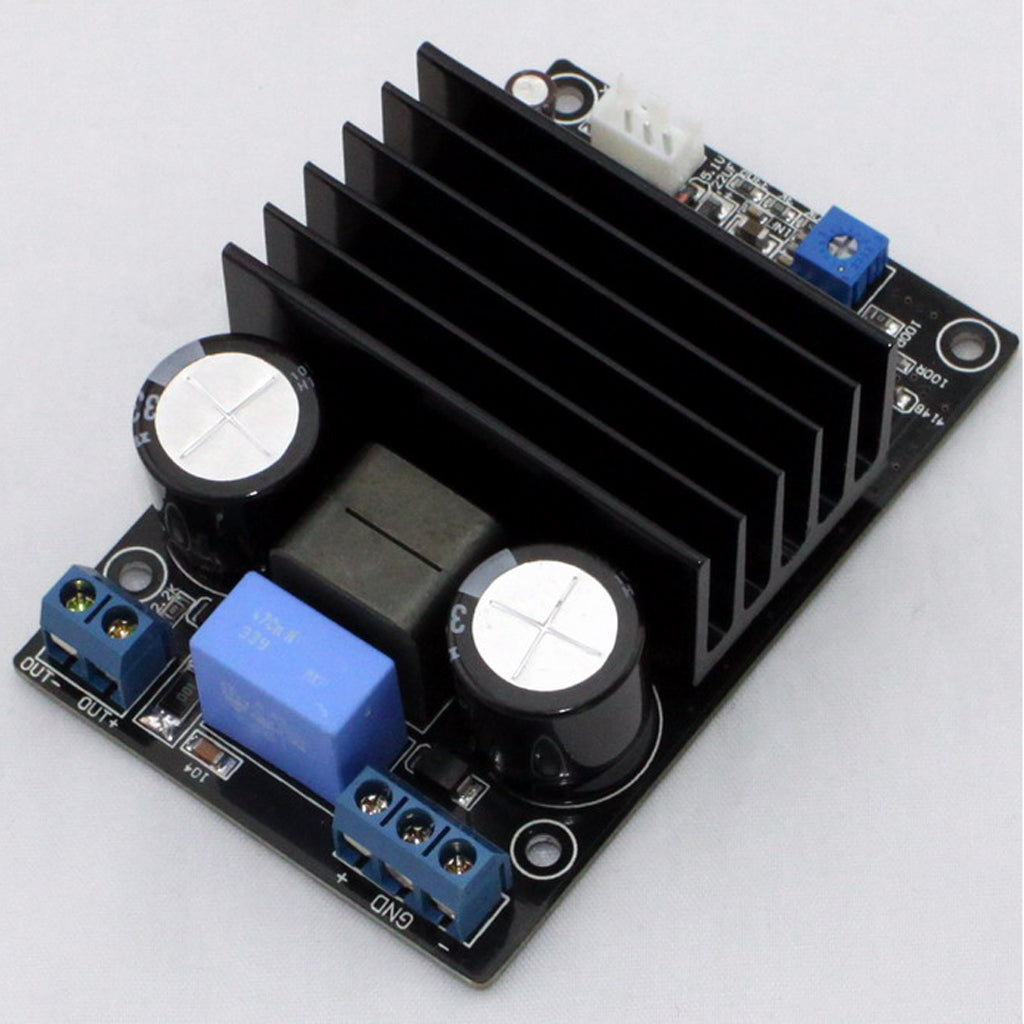

Maxbell Audio Amplifier Board, IRS2092 Digital Power Amplifier Board 200W Mono Amp Mini Class D Amplify DIY Circuit Module
Description:

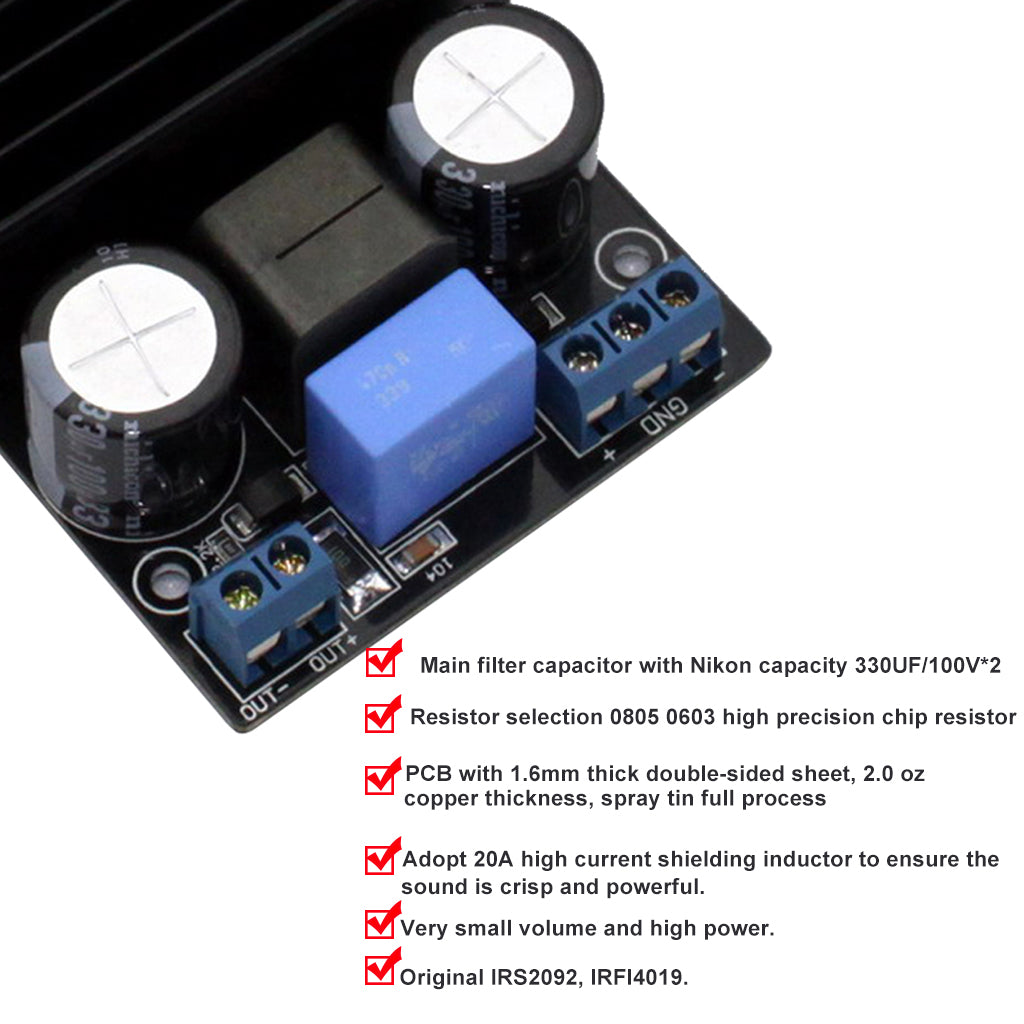

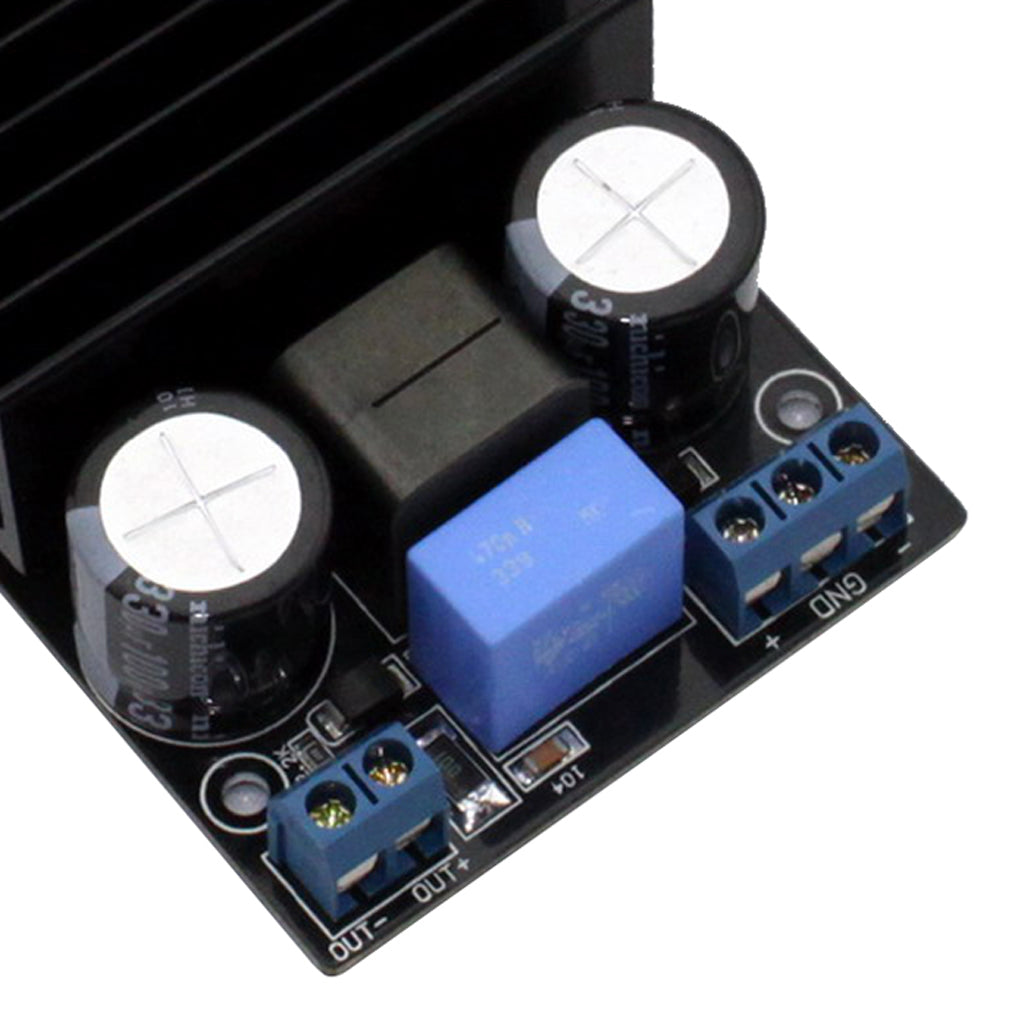

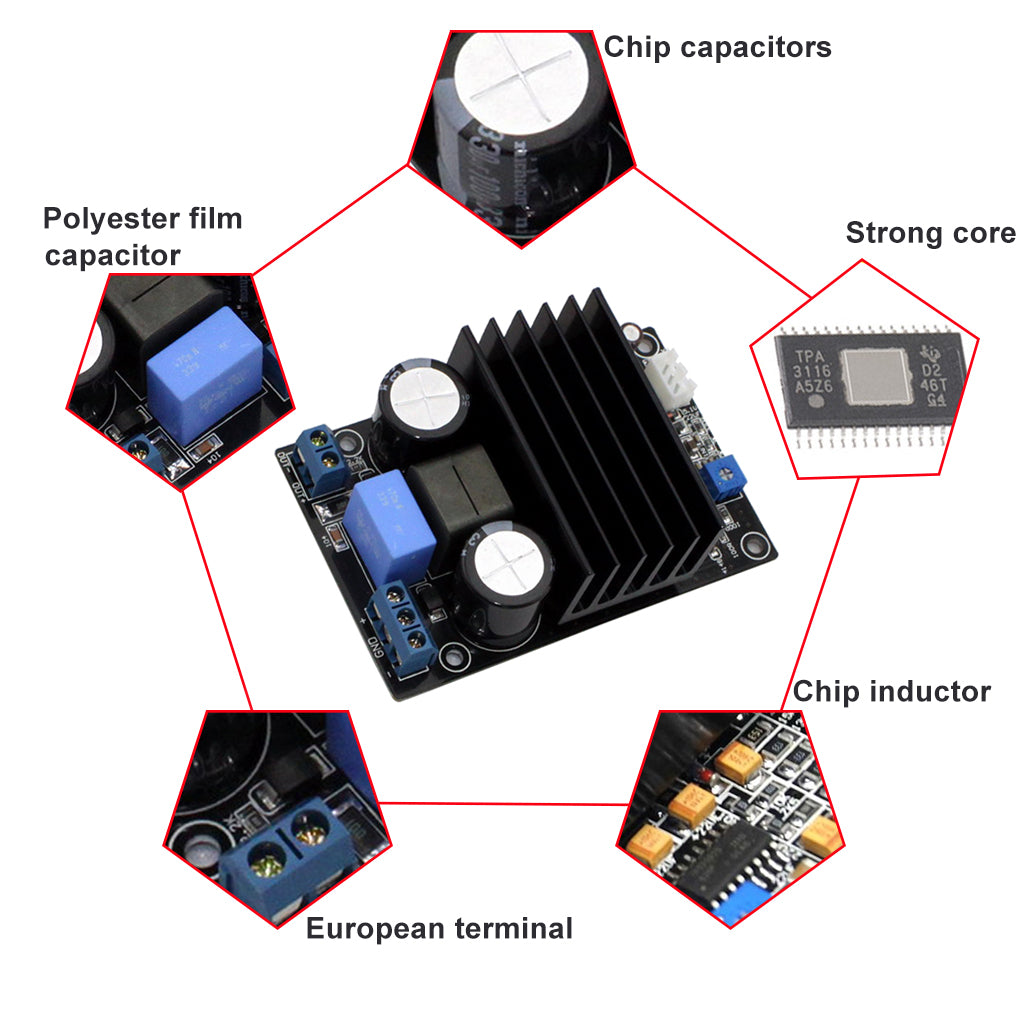

Use IRS2092, IRFI4019. The volume is very small and the power is large.
The main circuit of the electrolytic capacitor signal is adopted, and the main filter capacitor adopts the capacity of 330UF/100V*2 to ensure strong and continuous power support.
The resistor uses 0805 0603 high-precision chip resistor to ensure a good signal-to-noise ratio of the whole machine.
The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current. First-class PCB quality.
The 20A high current shielding inductor is used to ensure the sound is crisp and powerful.
Specification:
Working method: Class D
Quiescent current: 20mA
Work efficiency: 90%
Rated output power: 200W
Frequency response: 20Hz to 20KHz
Working voltage: +-30V to +-60V
Recommended power supply voltage: +-50V
Maximum output current: 8A

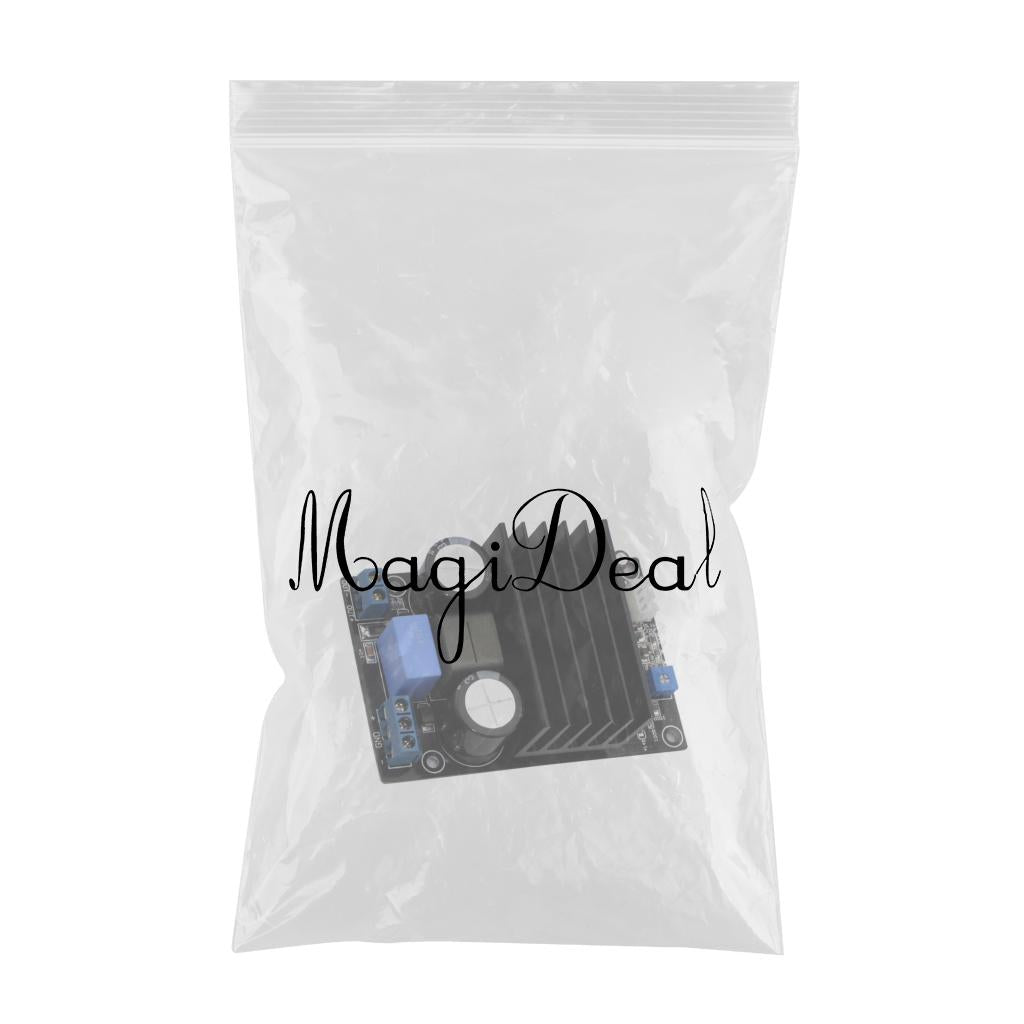

Package Includes:
1 Piece IRS2092 Stereo Amp Board
