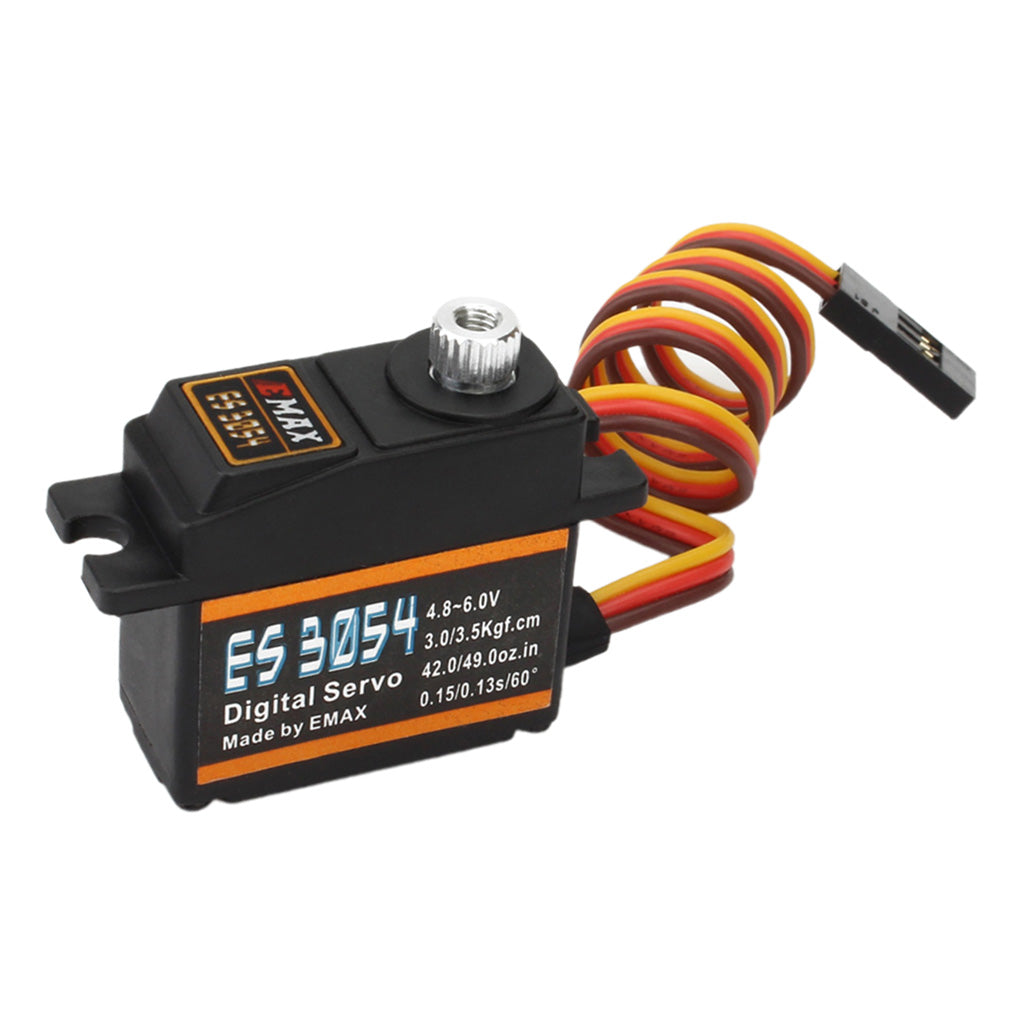

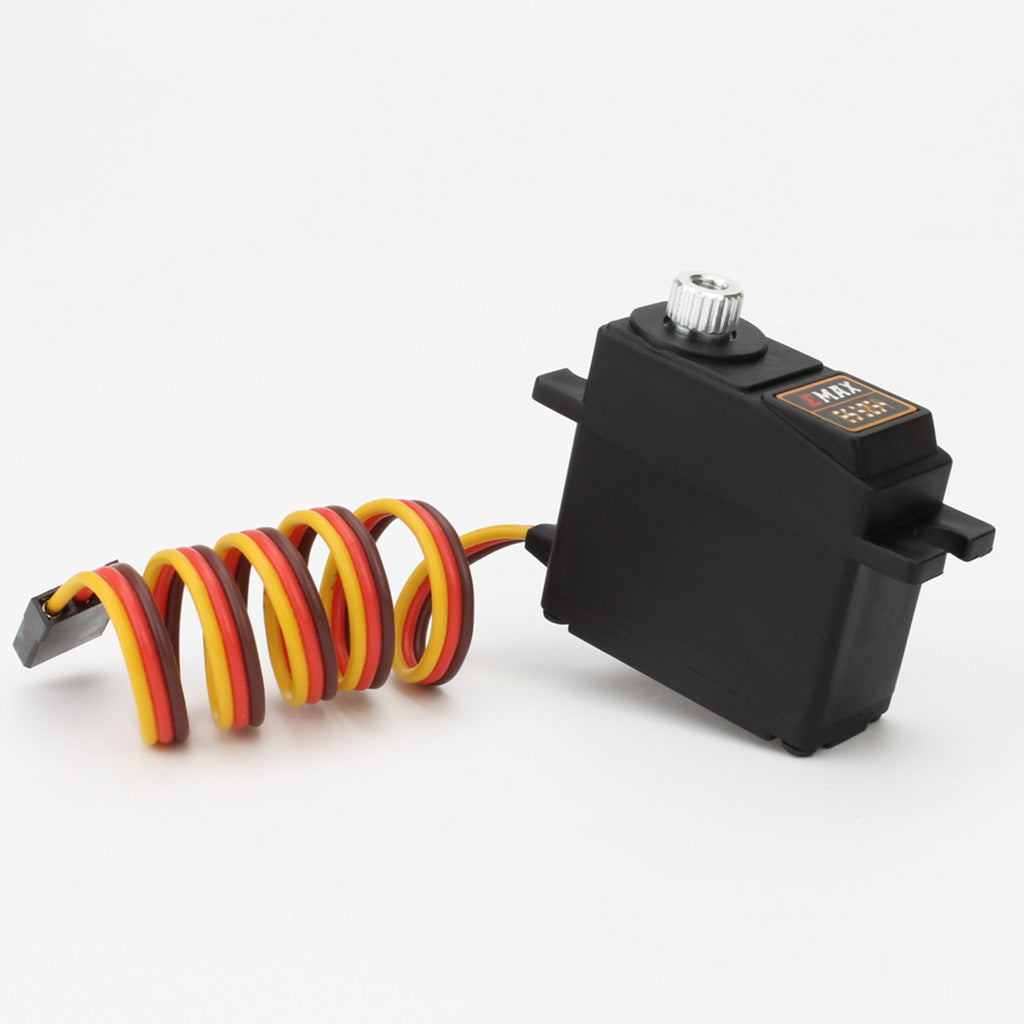

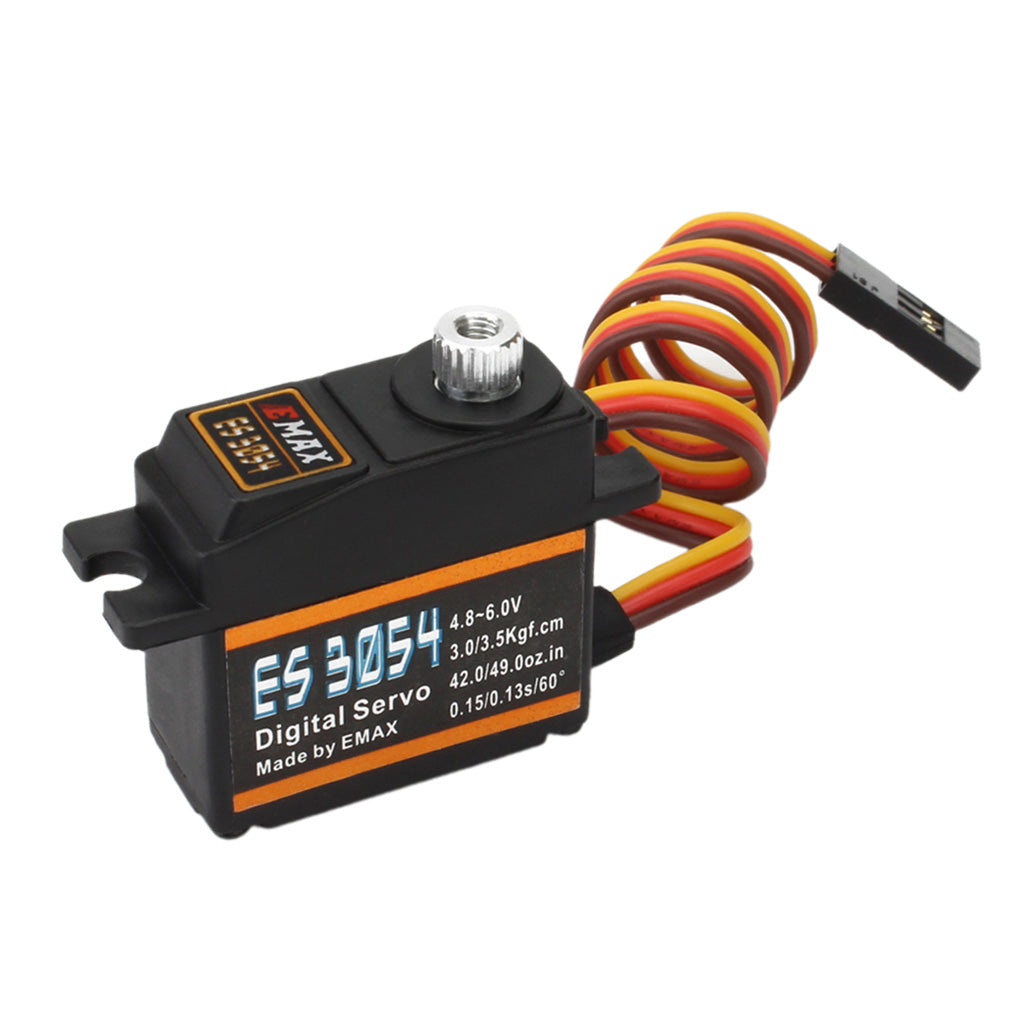

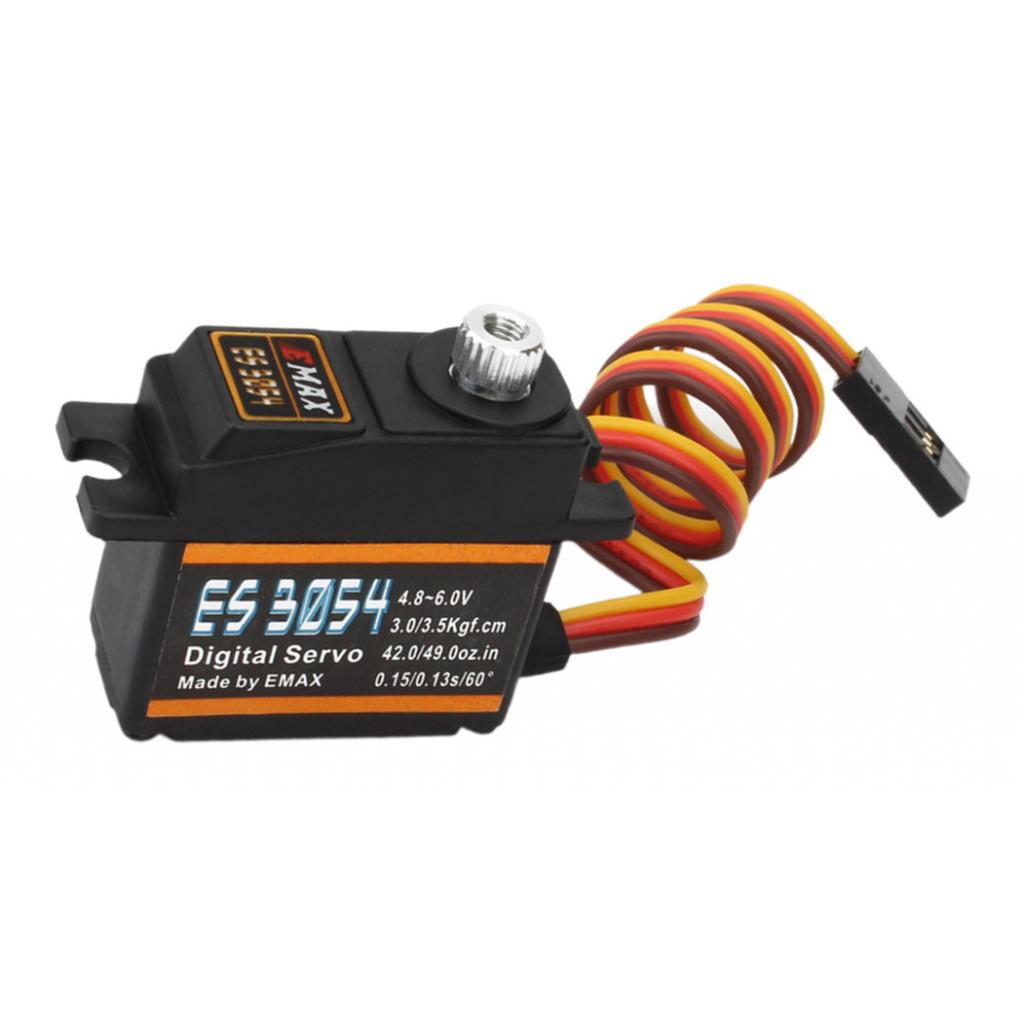

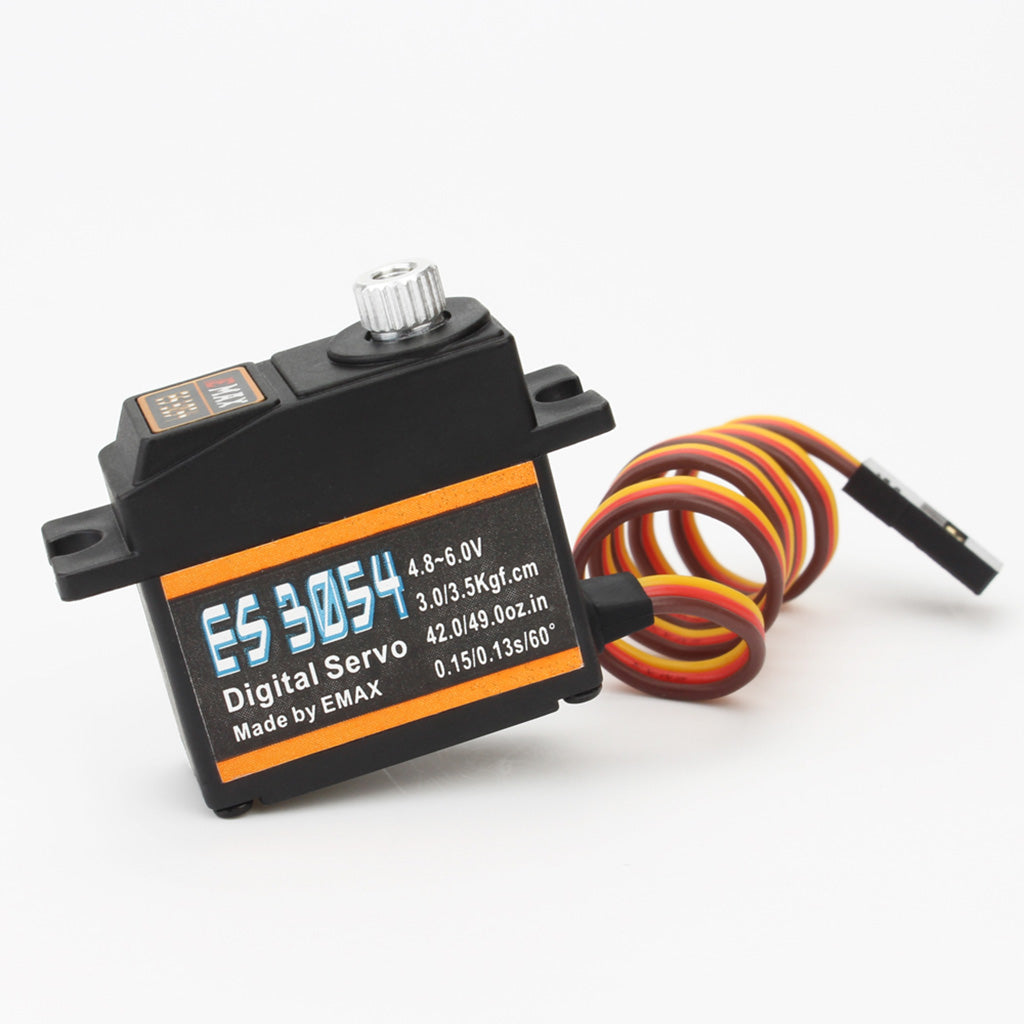

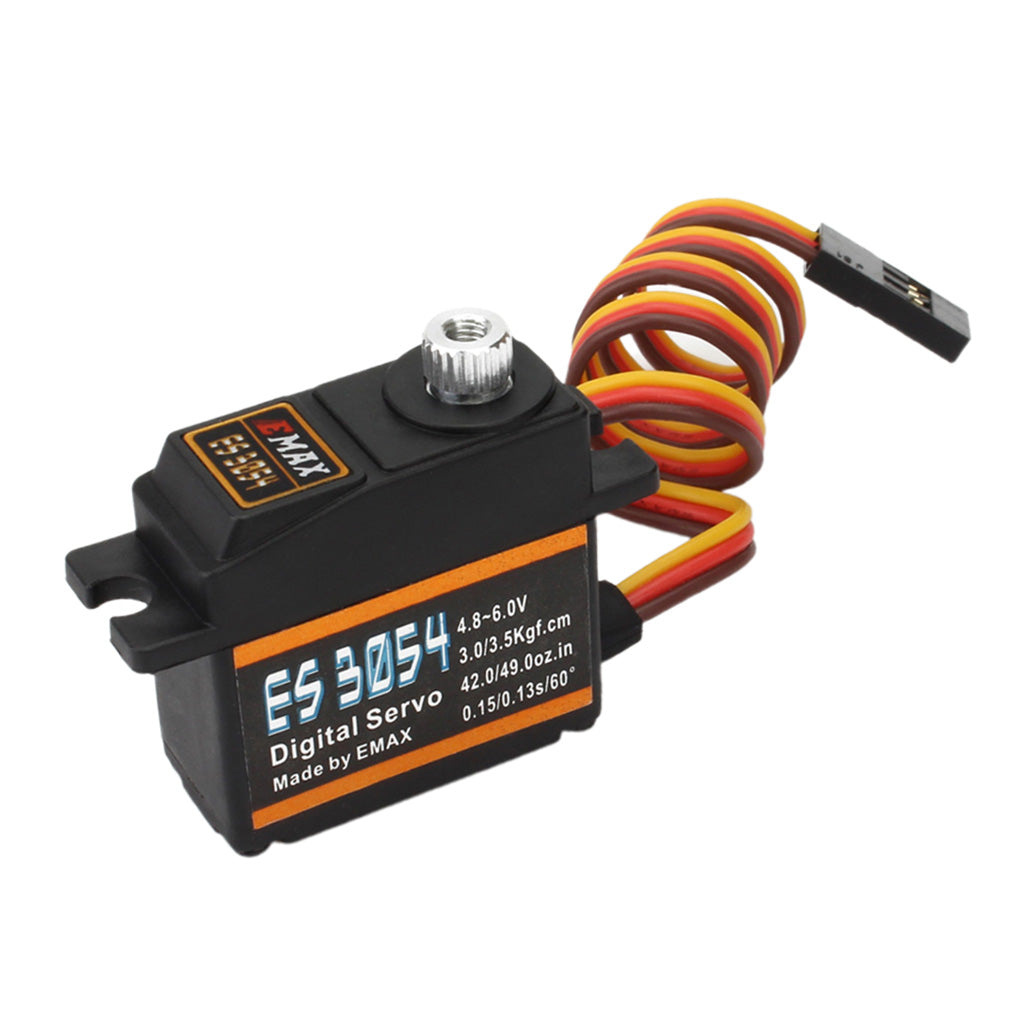

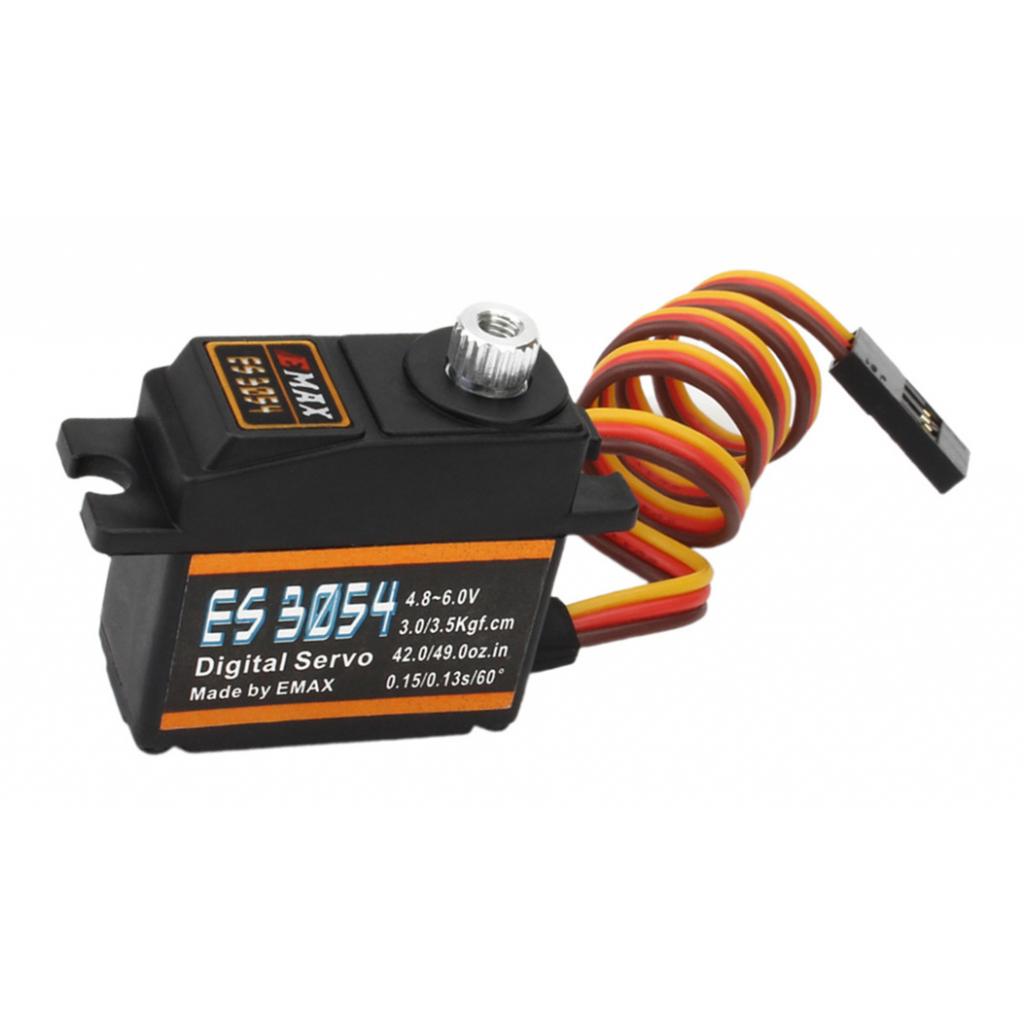

Maxbell Analog/Digital Metal Servo 17G Gear for RC FPV Airplane Copter Drone ES3054
Description:
Masters the core of gear box design technology, smooth and delicate, not easy to crack teeth.
Not afraid of high temperature and high current.
Operating Voltage: 4.8V-6.0V
Torque: 3.0/3.5kgf.cm
Rate: 0.15sec/0.13sec/60 degree
Specification:
ES3003 Analog servo; Plastic gear
ES3004 Analog servo; Metal gear
ES3053 Digital servo; Plastic gear
ES3054 Digital servo; Metal gear
Operating Voltage: 4.8V-6.0V
STD Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Stall Torque(4.8V): 3kg.cm Max
Operating Speed(4.8V): 0.15sec/60°at no load
Stall Torque(6.0V): 3.5kg.cm Max
Operating Speed(6.0V): 0.13sec/60°at no load
Size: approx. 28.45x13x31.1mm/1.12x0.51x1.22inch
Weight: 17g
Plug Available: FUT; JR
Flower Head: 23T
Maximum Travel: 145°±10°(700-2300μ sec)
Other: Bearing, Metal, Digital

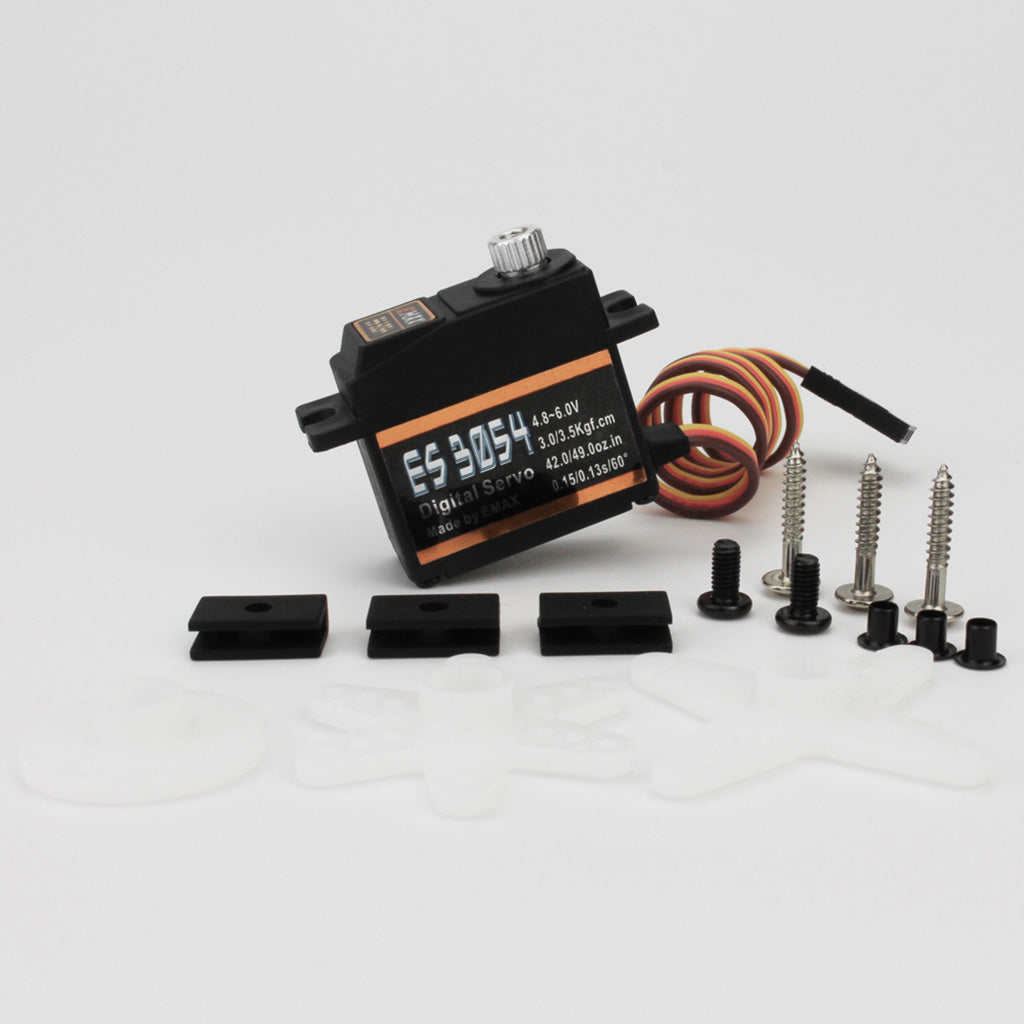

Package Includes:
1x RC Servo
Note:
Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
