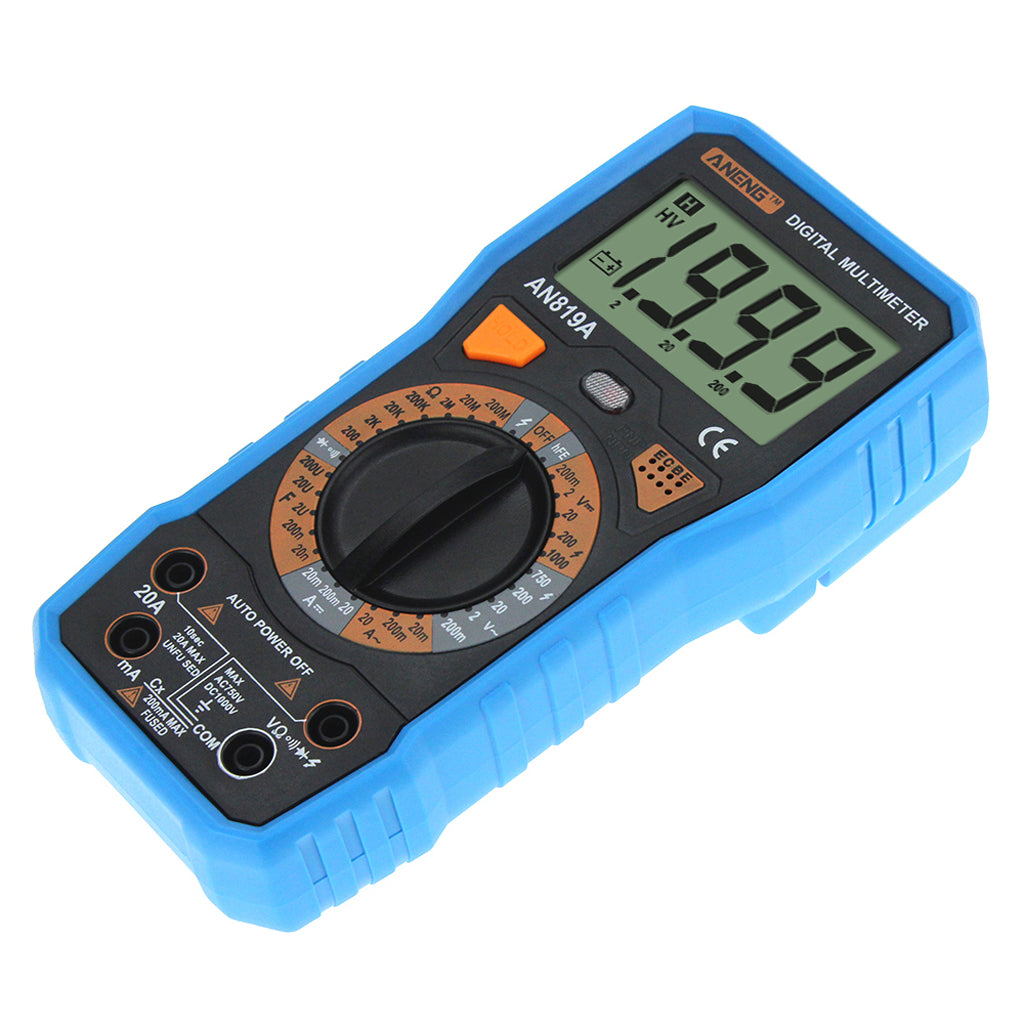

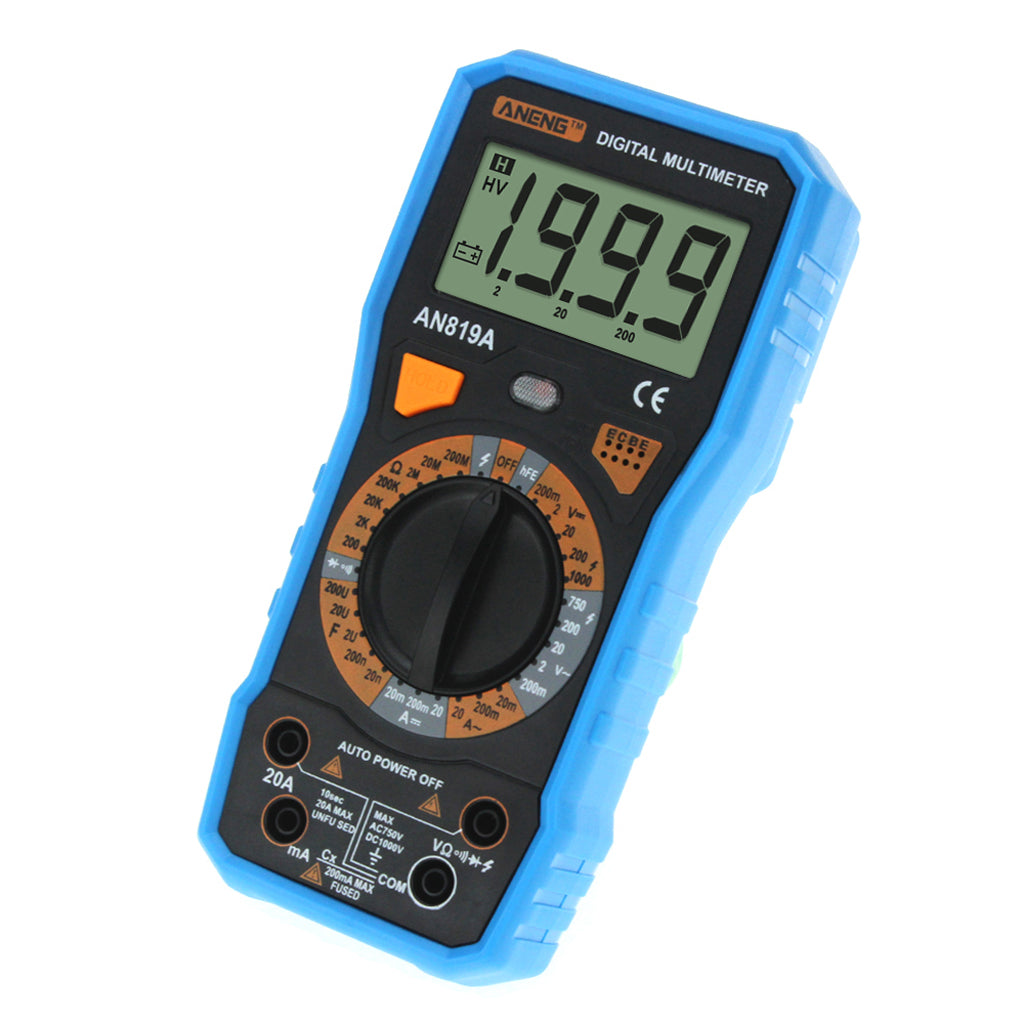

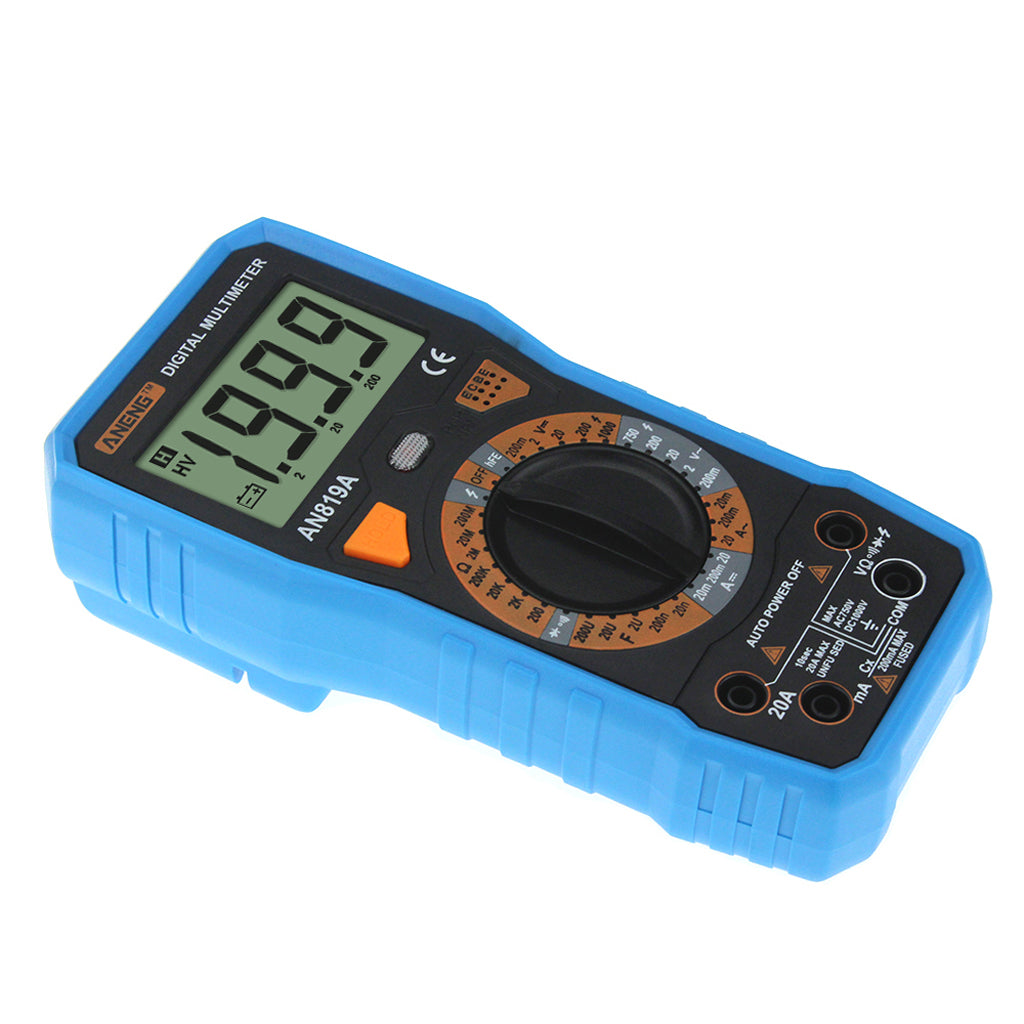

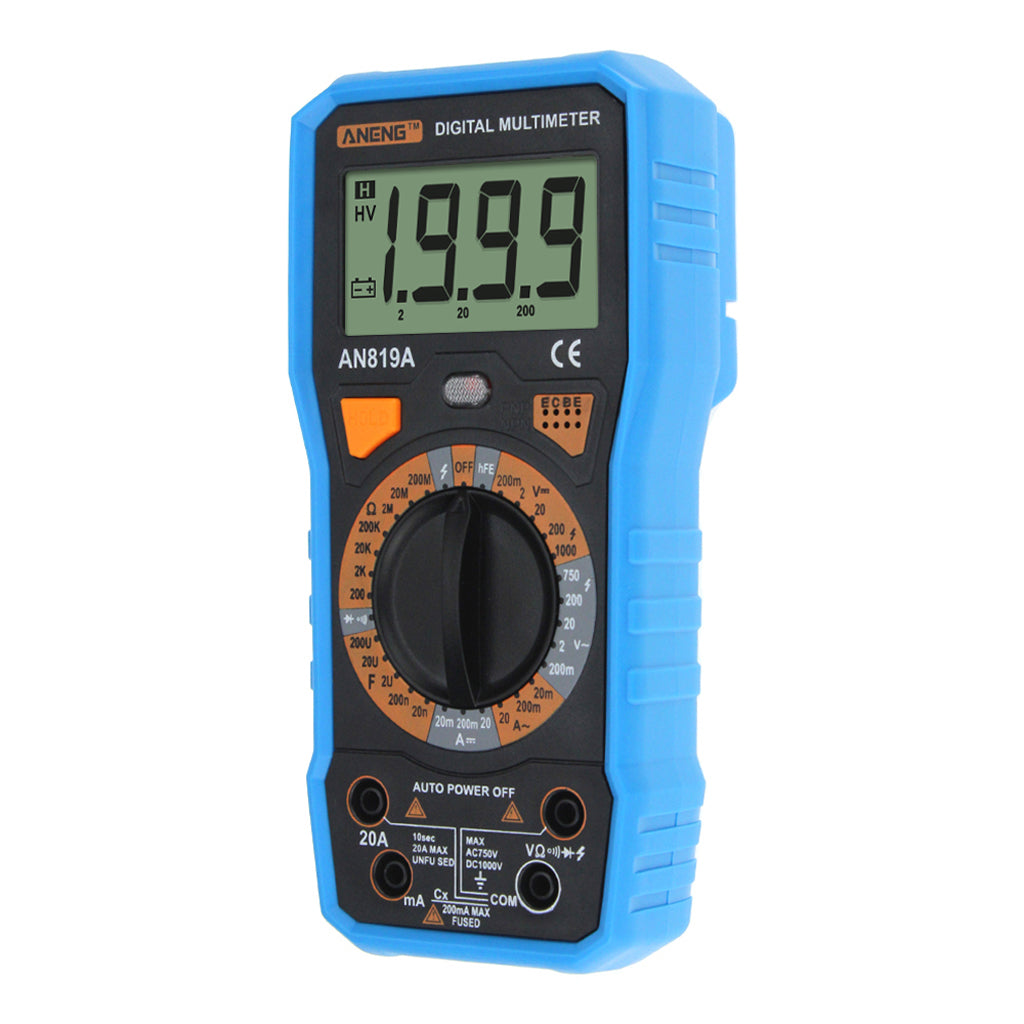

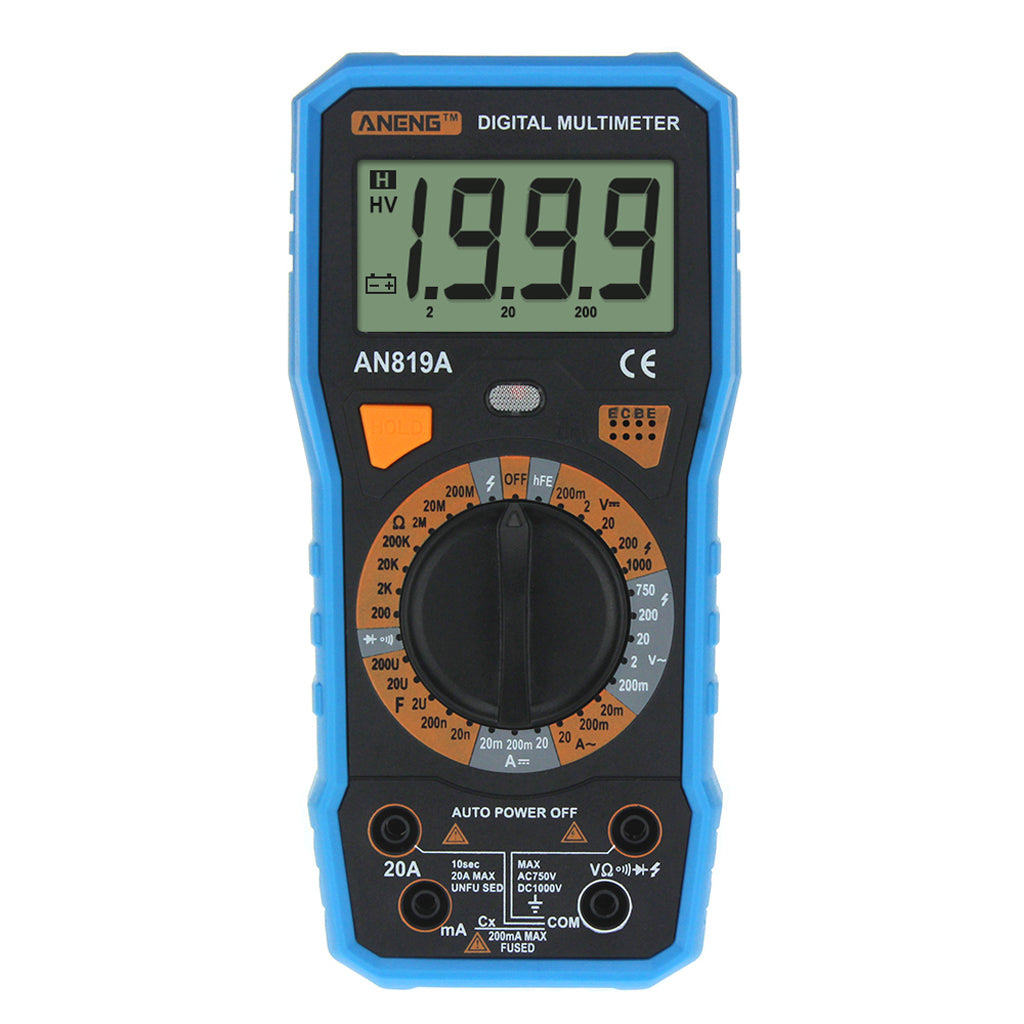

Max AN819A LCD Digital Multimeter Voltmeter Ammeter Ohmmeter with Test Leads Blue
Description:

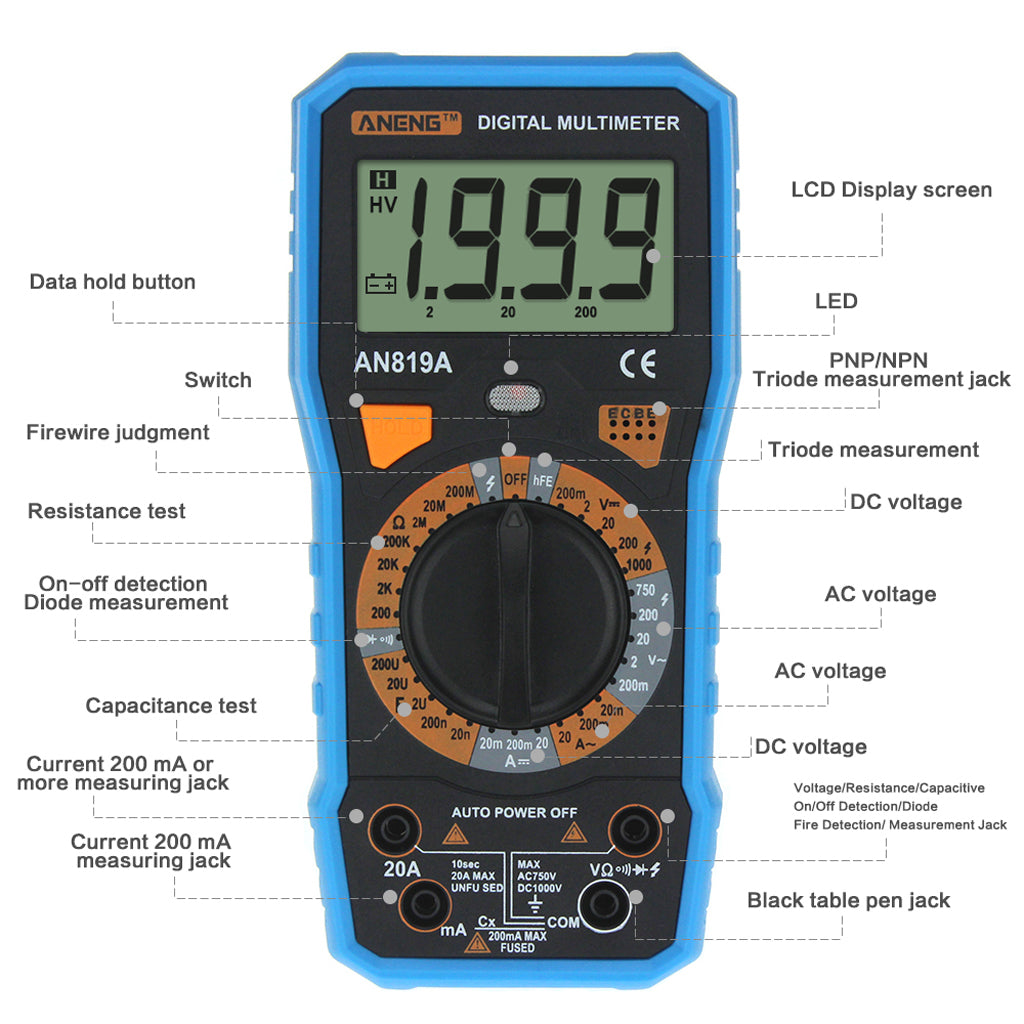

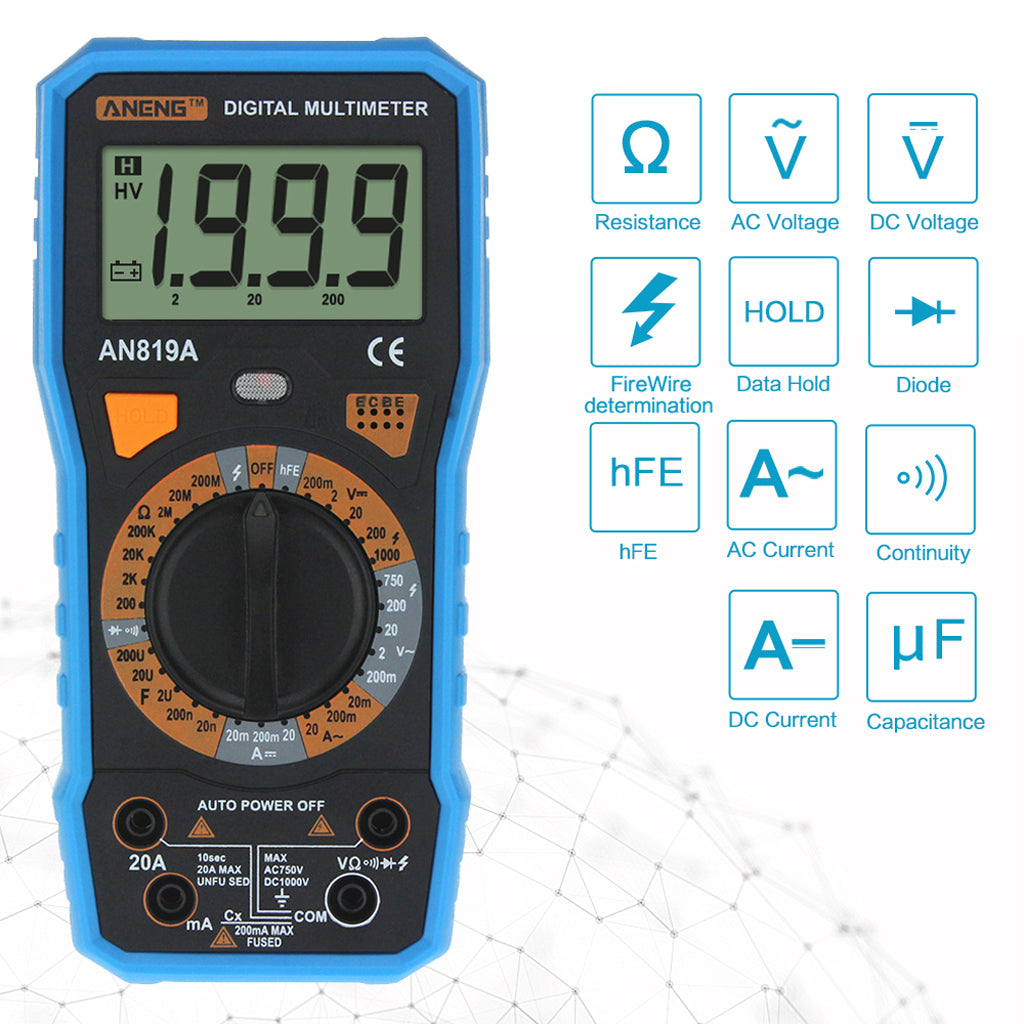

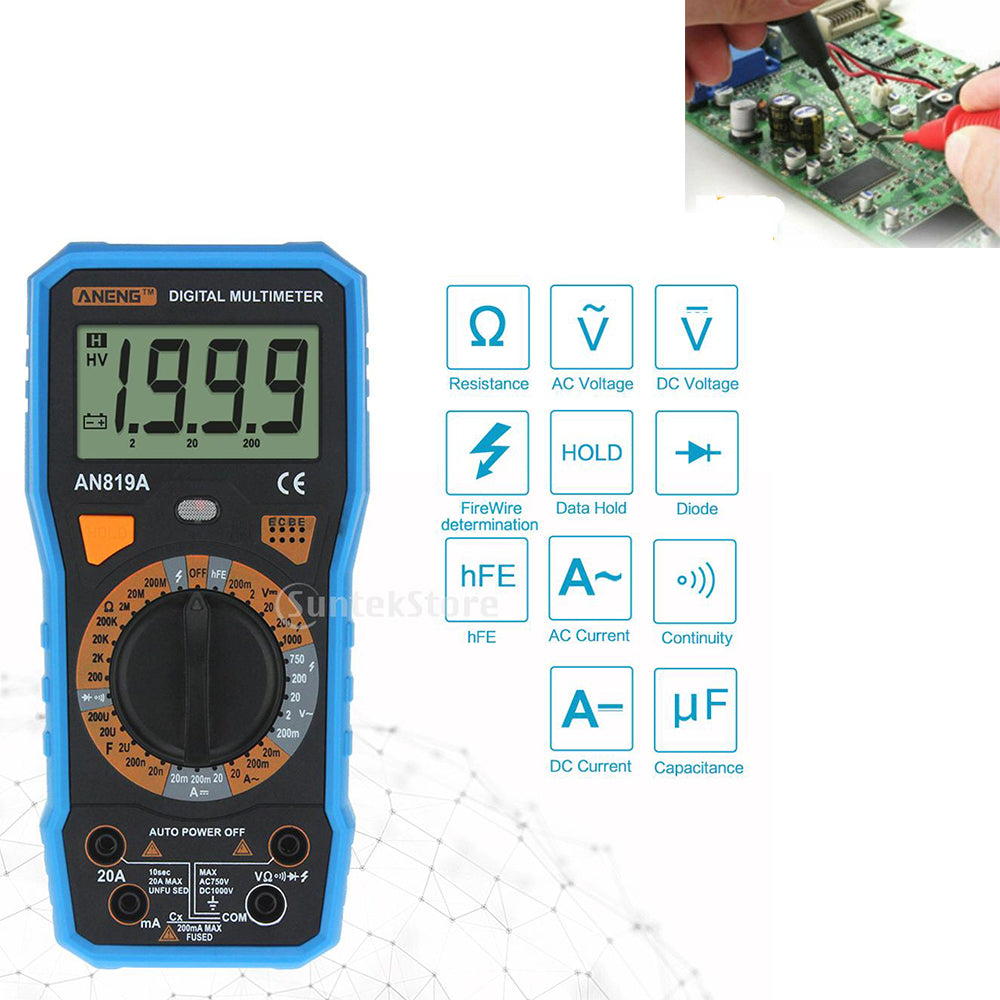

WIDE RANGE of tests for Voltage, Current, Resistance, Continuity, Capacitance, Frequency; Tests Diodes Transistors.
Used for measuring both AC/DC Current and Voltage.
Convenient features like Data Hold, Large LCD Backlit Screen, Auto Shut-off, with Kickstand make taking and recording measurements more easier.
High precision measurement, take the Max /min value of the object.
Internal use precision components, not simulated data set and is not affected by the test environment, using pure glass fiber PCB board, resistance to high temperature, damp, not deformation, can be used in a variety of environment, accessibility.

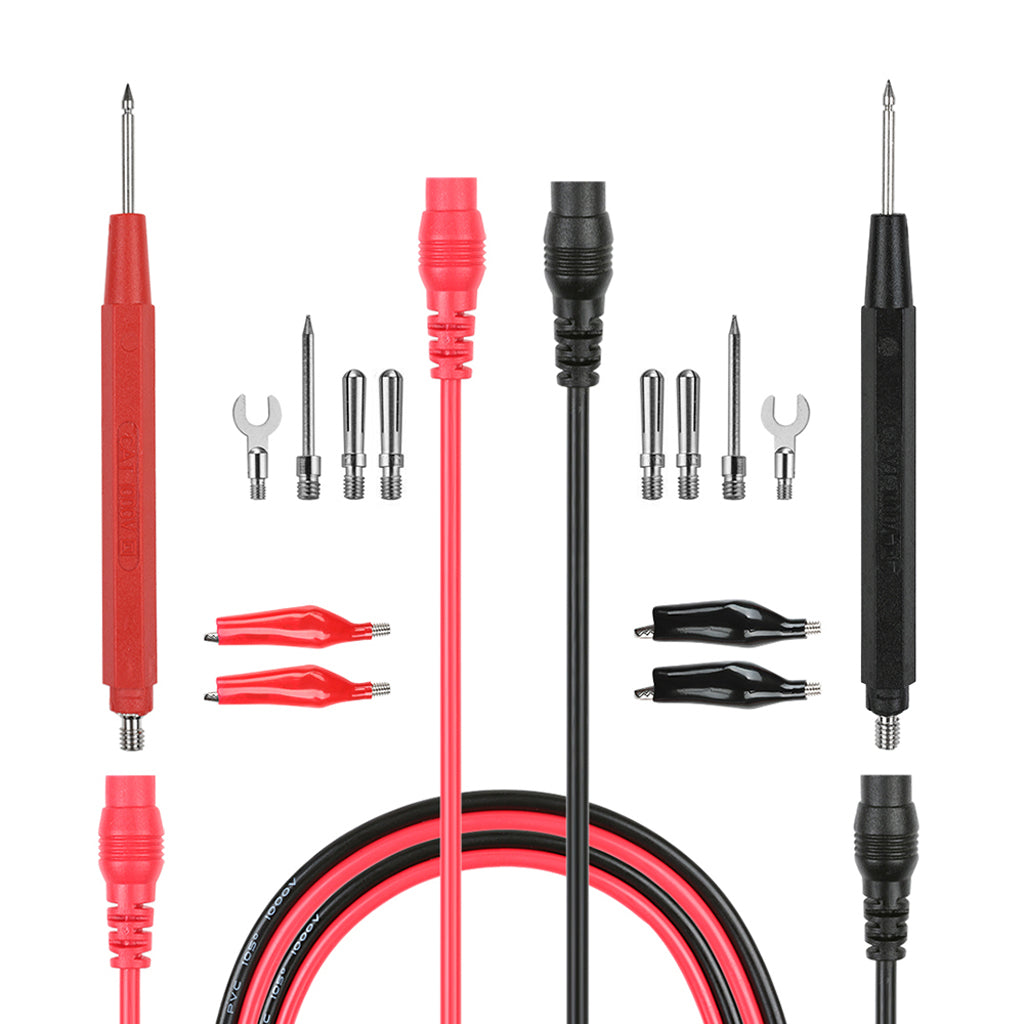

With 16 In 1 Test Leads, easy to test.
Specification:
Material: Rubber + electronic components

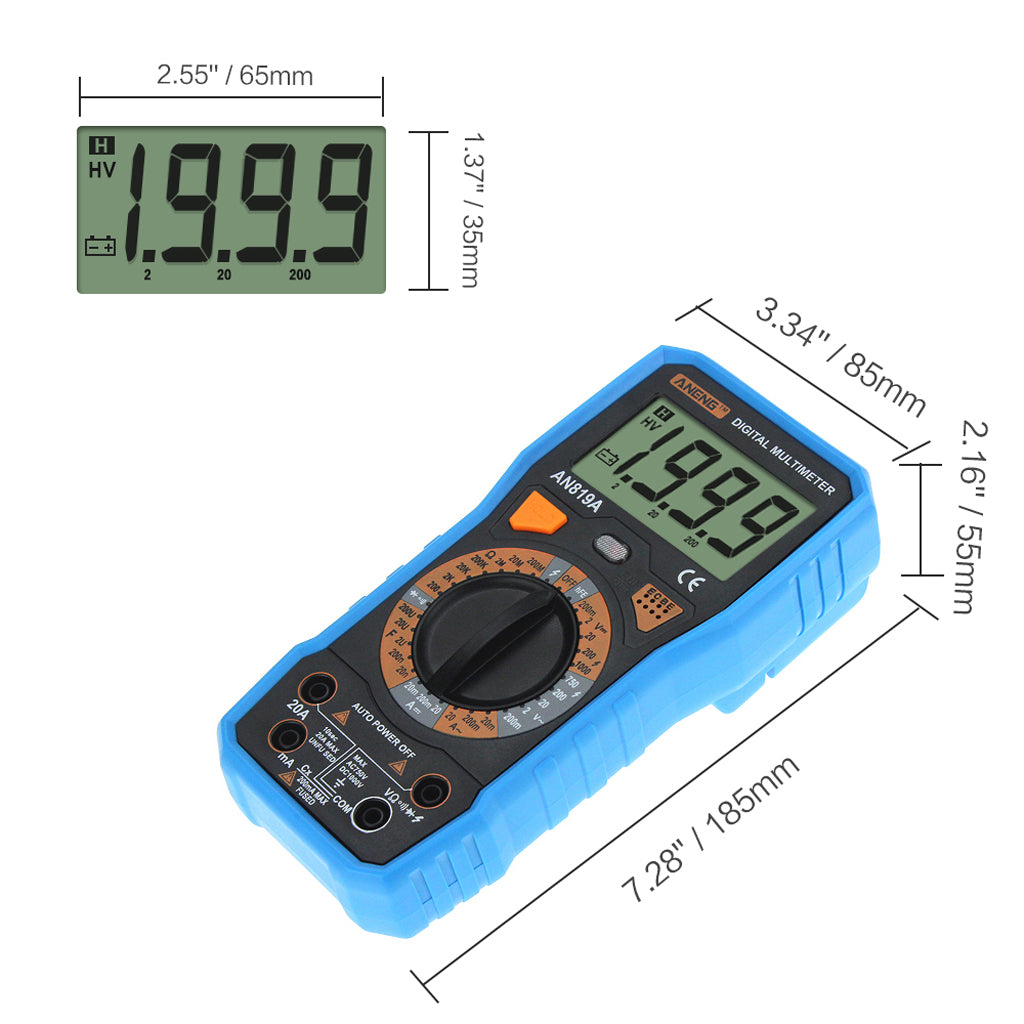

Multimeter Size: approx. 185 x 85 x 55mm
Display Screen Size: approx. 65 x 35mm
Measuring Capacitance Range:2nF/ 20nF/ 200nF/ 2uF/ 20uF/ 200uF
Measuring Resistance Range:200Ω/ 2KΩ/ 20KΩ/ 200KΩ/ 2MΩ/ 20MΩ/ 200MΩ/ 2000MΩ
Operating Temperature:0 - 40 ℃
DC Voltage: 200mV/2V/20V/200V/1000V
AC Voltage: 200mV/2V/20V/200V/750V
AC Current: 2mA/20mA/200mA/20A
DC Current: 2mA/20mA/200mA/20A
Use battery: 6F22 9V (Battery does not contain)
Max. display: 1999
Diode: Yes
Triode: Yes
LCD Backlight: Yes
Continuity Buzzer: Yes
Low Battery Indication: Yes
Data Hold: Yes
Measuring Inductance Range: No

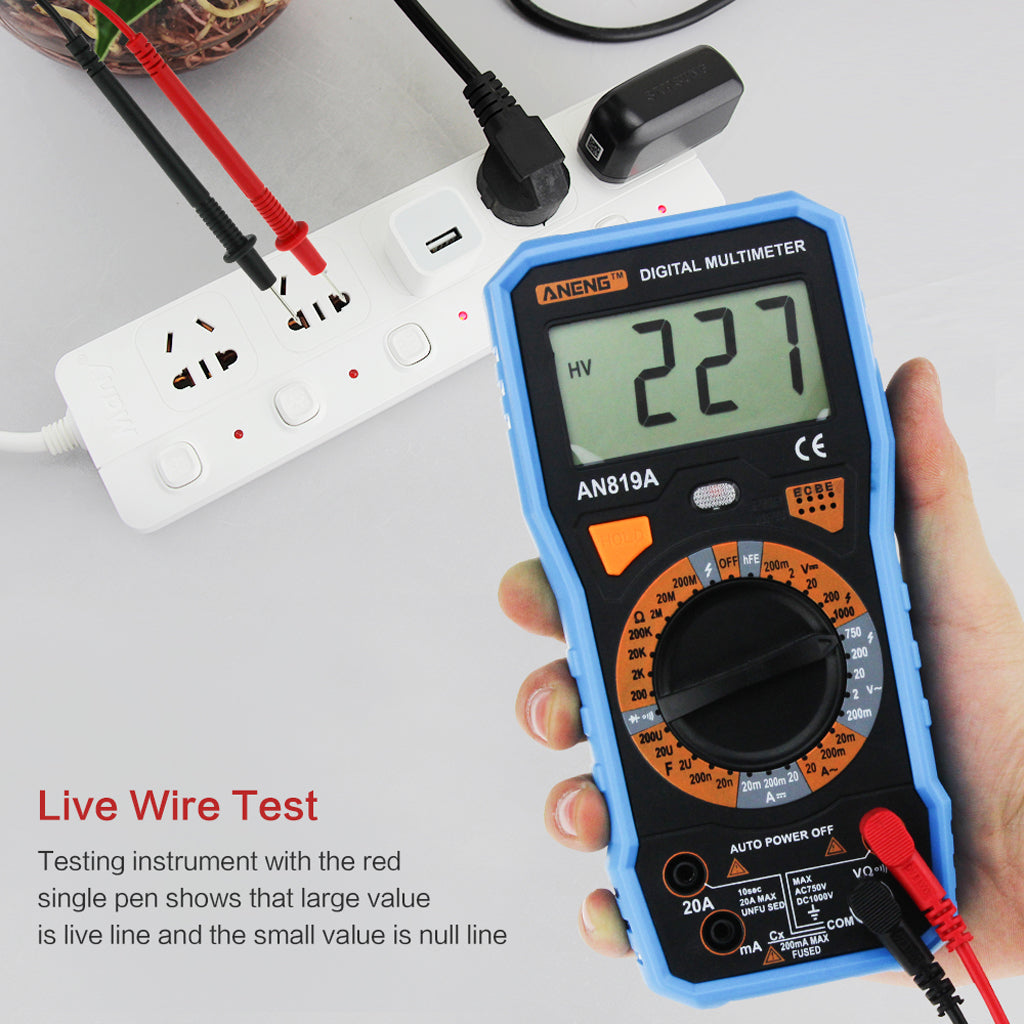

Finding Fire Wire: Yes
On-off Detection: Yes

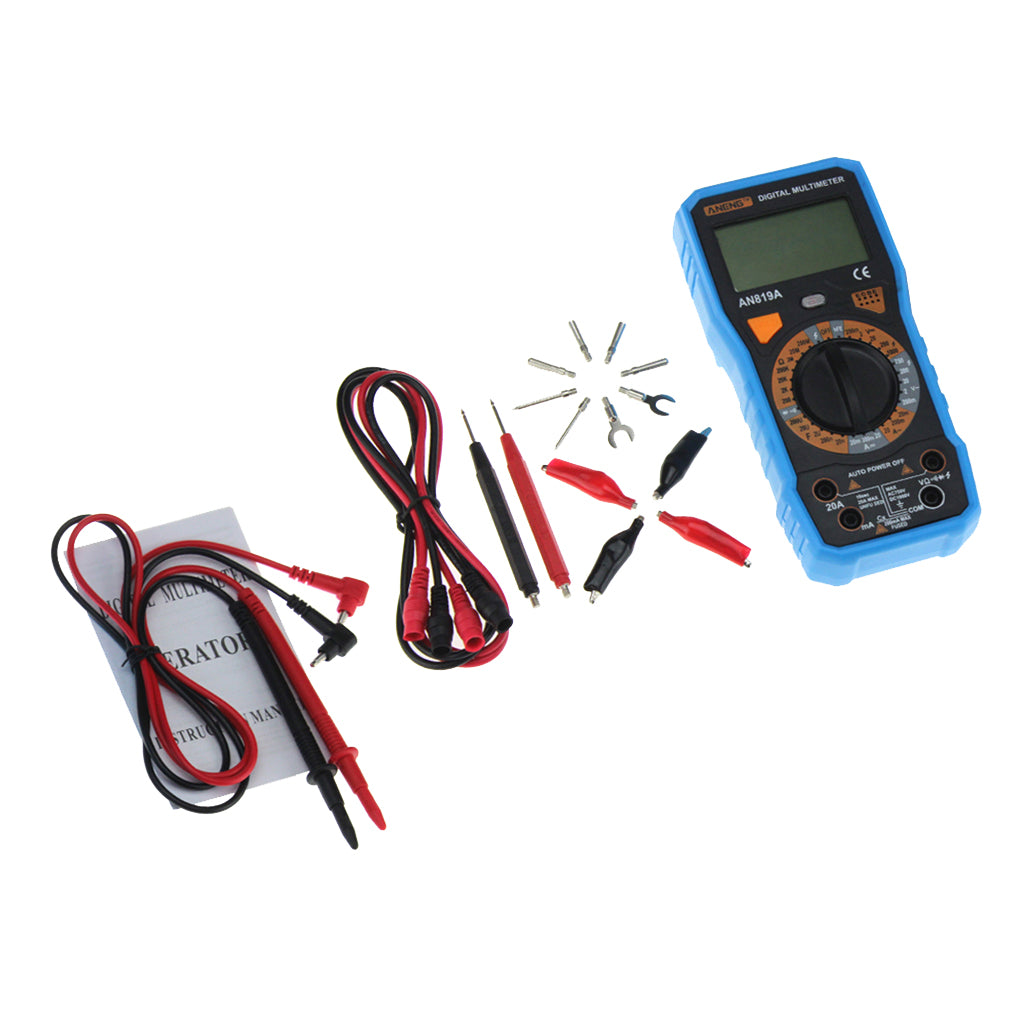

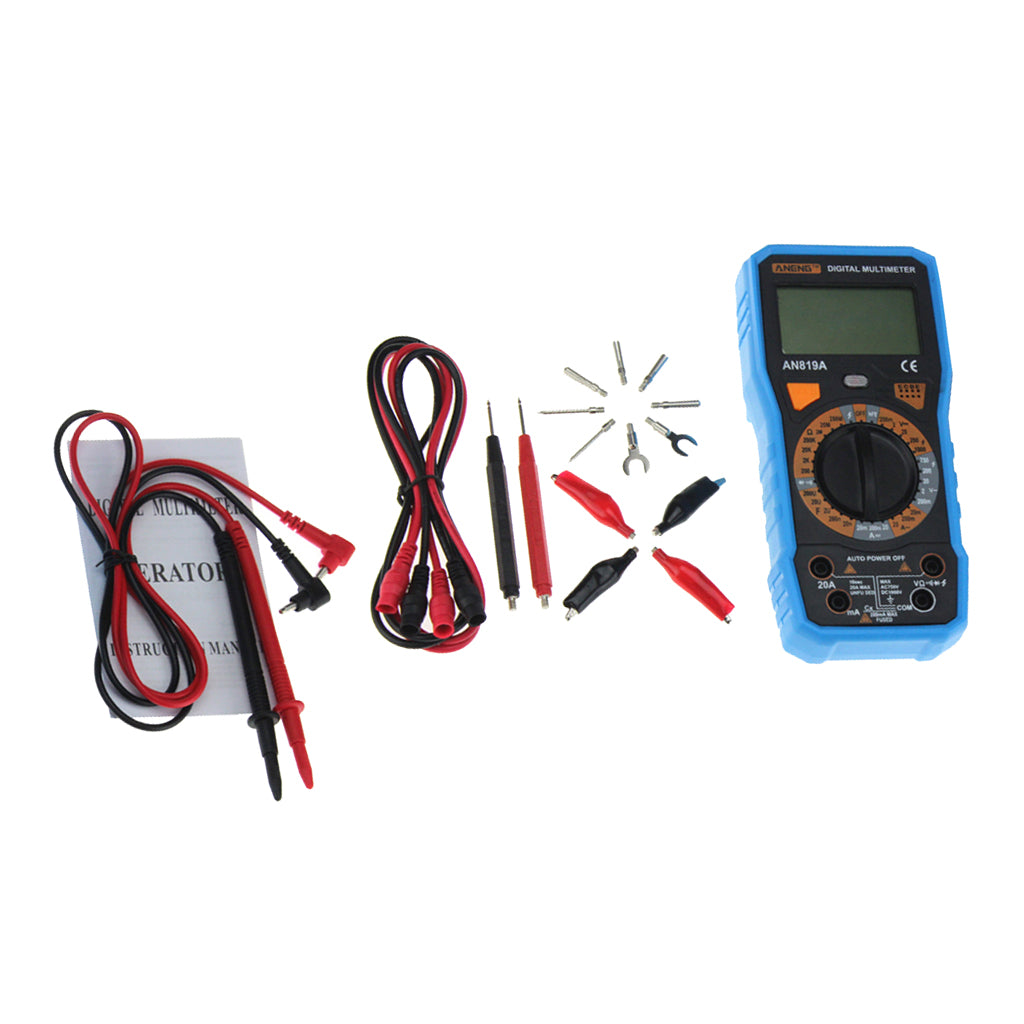

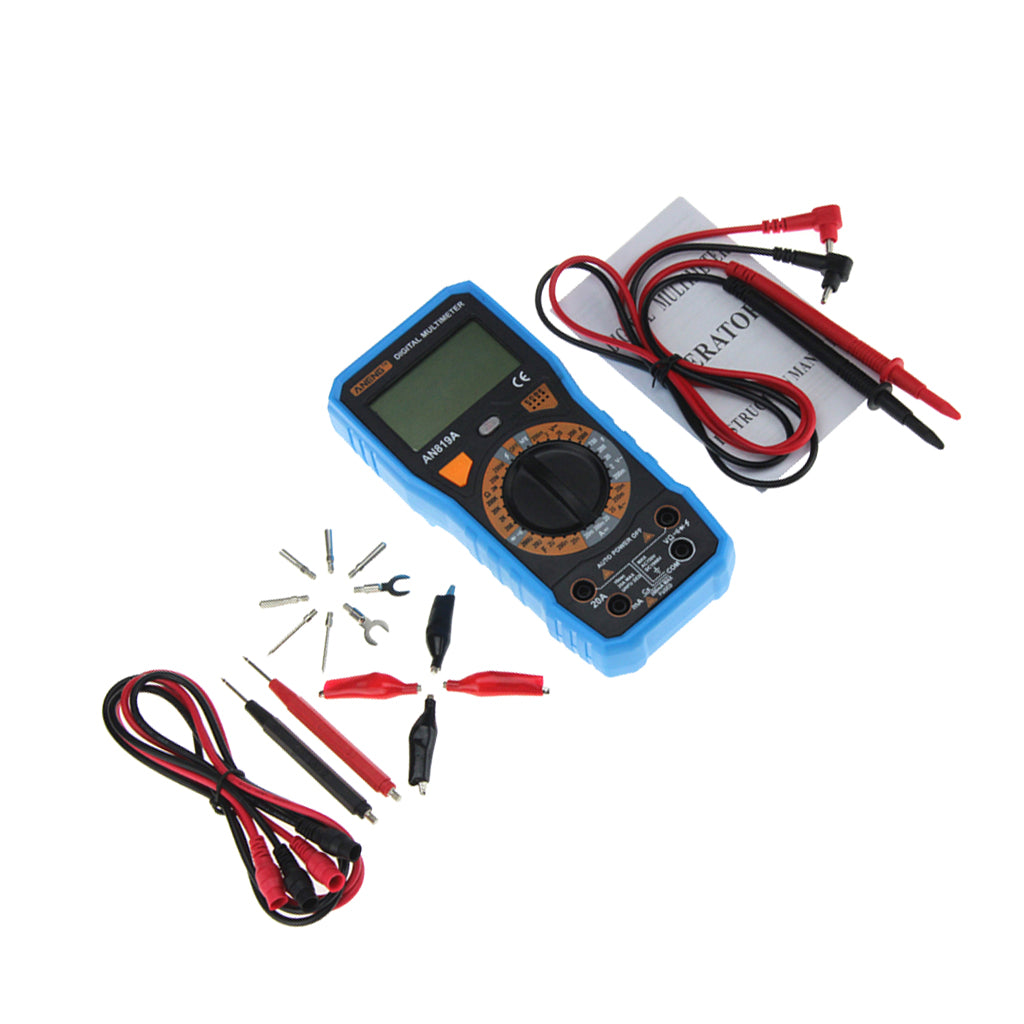

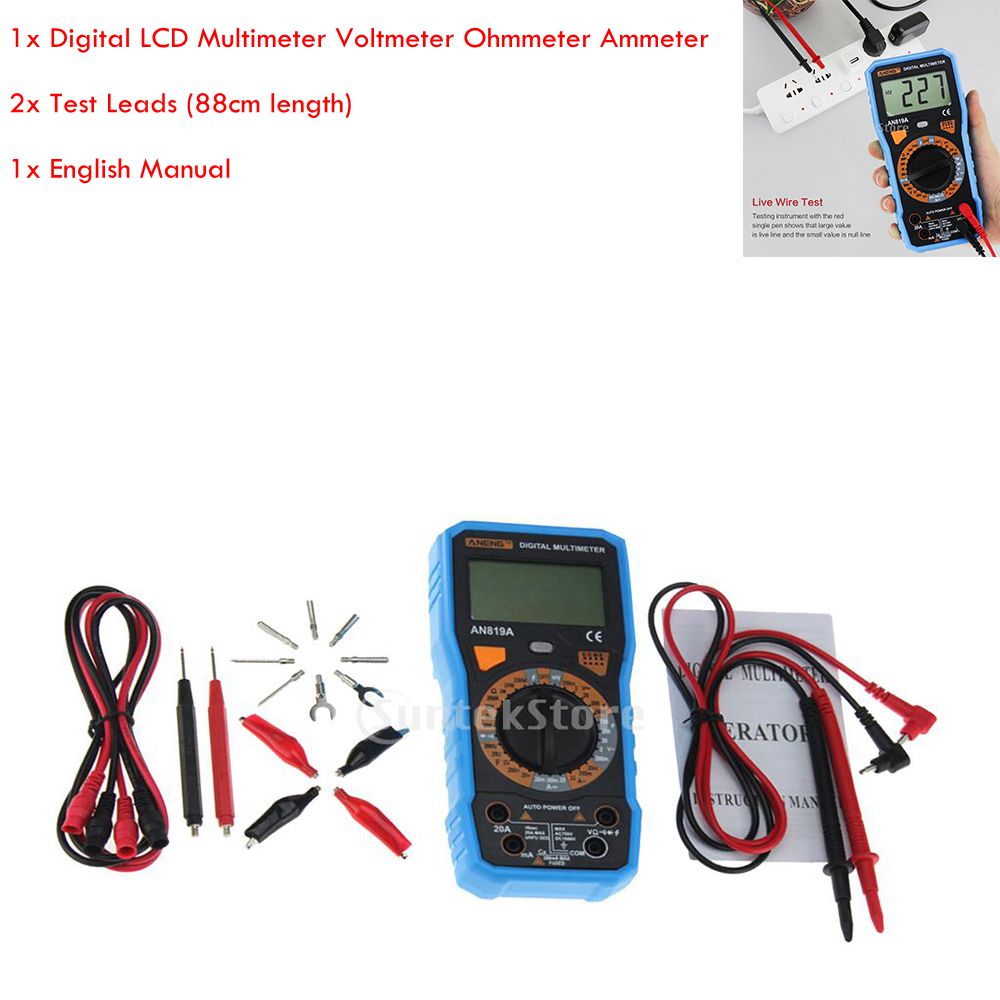

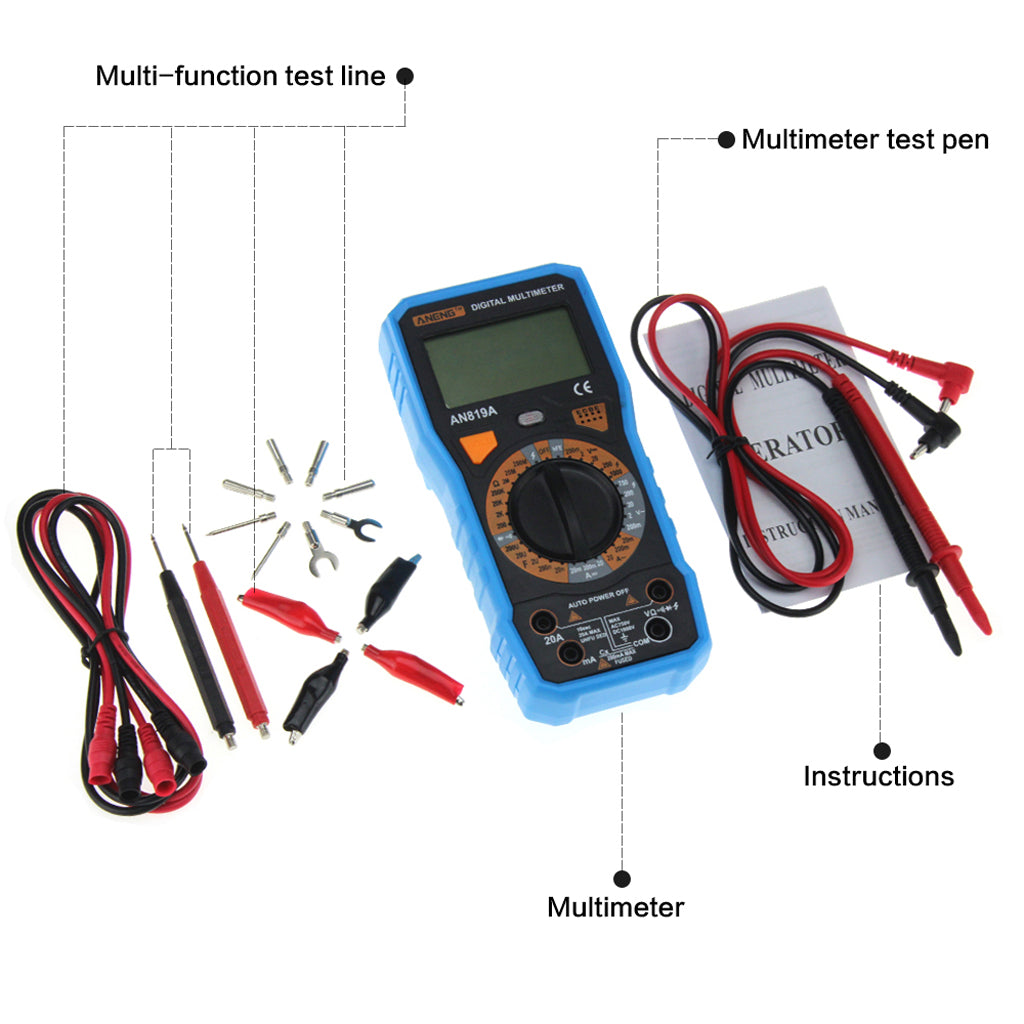

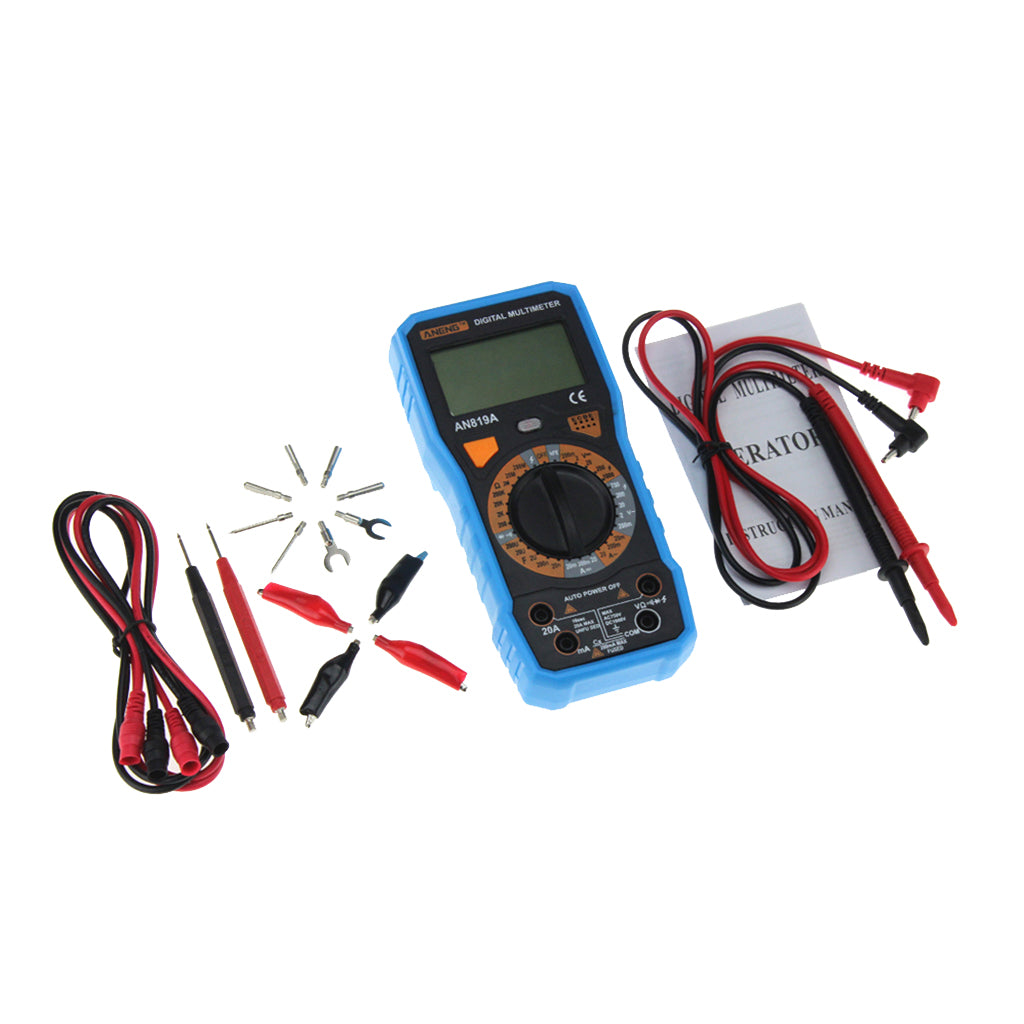

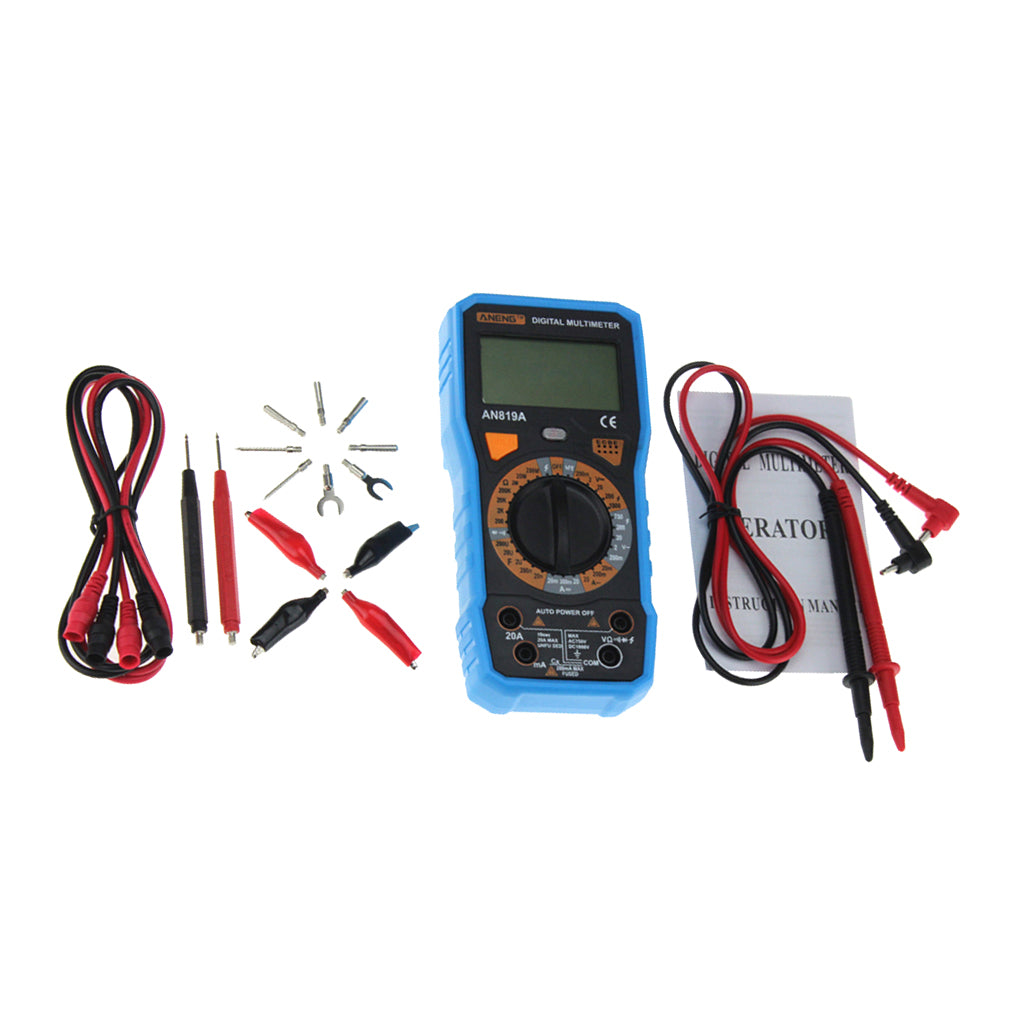

Package Includes:
1 Piece Digital LCD Multimeter Voltmeter Ohmmeter Ammeter
2 Pieces Test Leads (88cm length)
1 Piece English Manual
Note:
Color maybe slightly different due to different monitor.
The above size is measured by hand, please allow slightly difference. Thanks !
Delivery Time: 12-15 Days. Products are directly imported and dispatched from our Hong Kong warehouse. All India Shipping.
Return: If you have received a faulty or damaged product, please contact our support team within 7 days of delivery. We will investigate the issue and provide you with instructions on how to return the product for a replacement or a full refund.
Please Note: This is going to be a closed delivery, so if you want open delivery then it will not be possible and you can cancel your order by writing us at: support@aladdinshoppers.com before dispatch of your order.
Tracking Information will be sent to you once your product is dispatched.
