Maxbell A2212 1400KV Brushless Motor+30A ESC+9G Servo+Propeller for RC Airplane Part
Description:
100% Brand New and High Quality.
This is a pack of RC model vehicle parts & accs for RC airplane.
Designed to minimize power consumption.
Easy and quick Installation.
Servo less noise.
Specification:

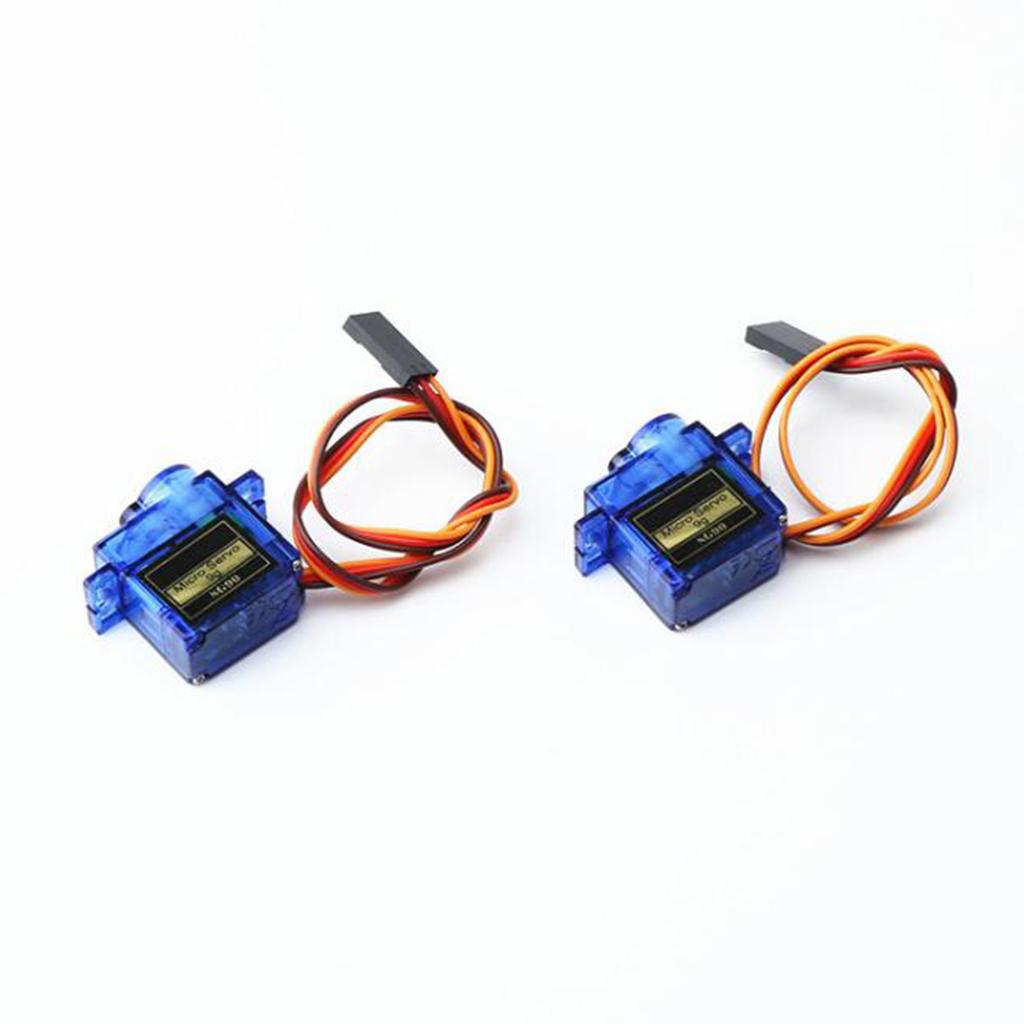

SG90A 9G servo Specification:
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V
Size: 21.5X11.8X22.7mm/0.85x0.46x0.89inch
Weight: 9g

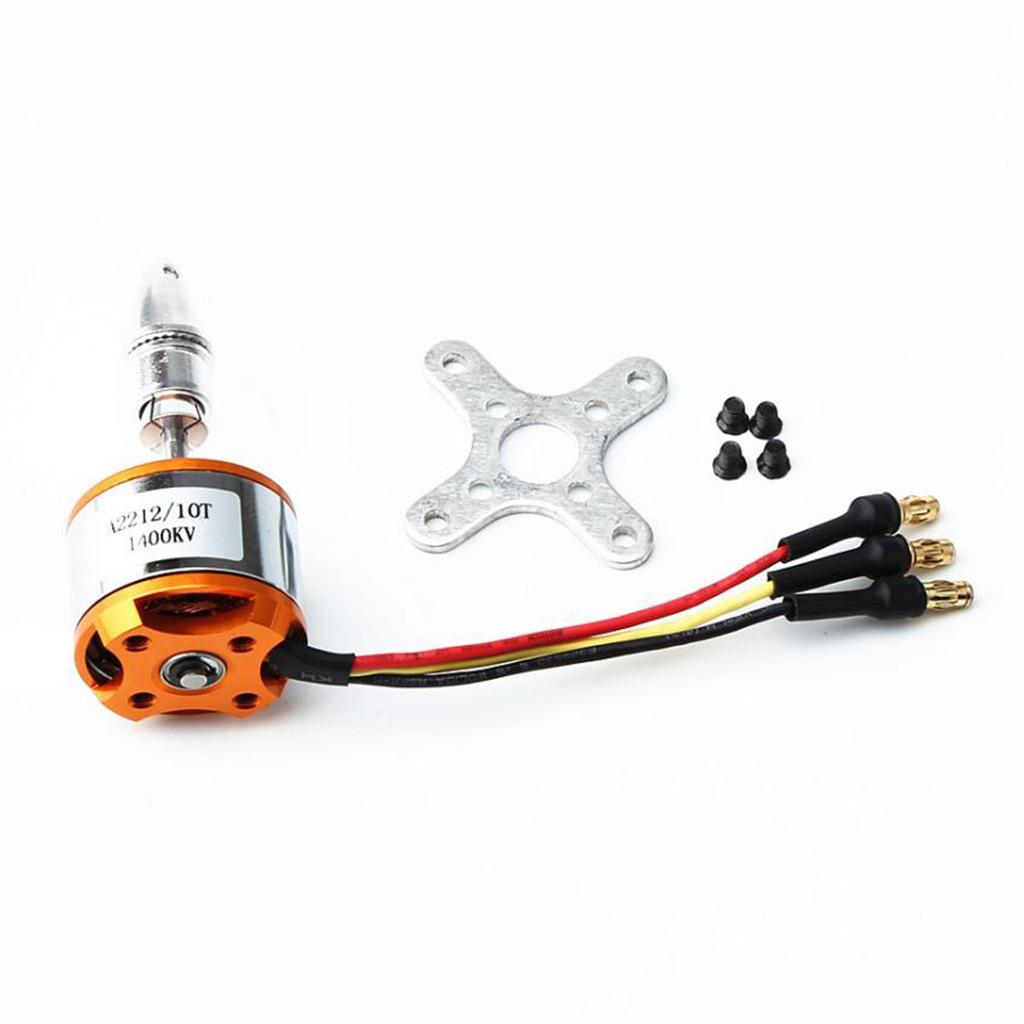

A2212 1400kv Motor Specification:
KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Approx. 27.5x30mm/1.08x1.18inch
Shaft Diameter: Approx. 3.17mm/0.12inch
Weight: 47g

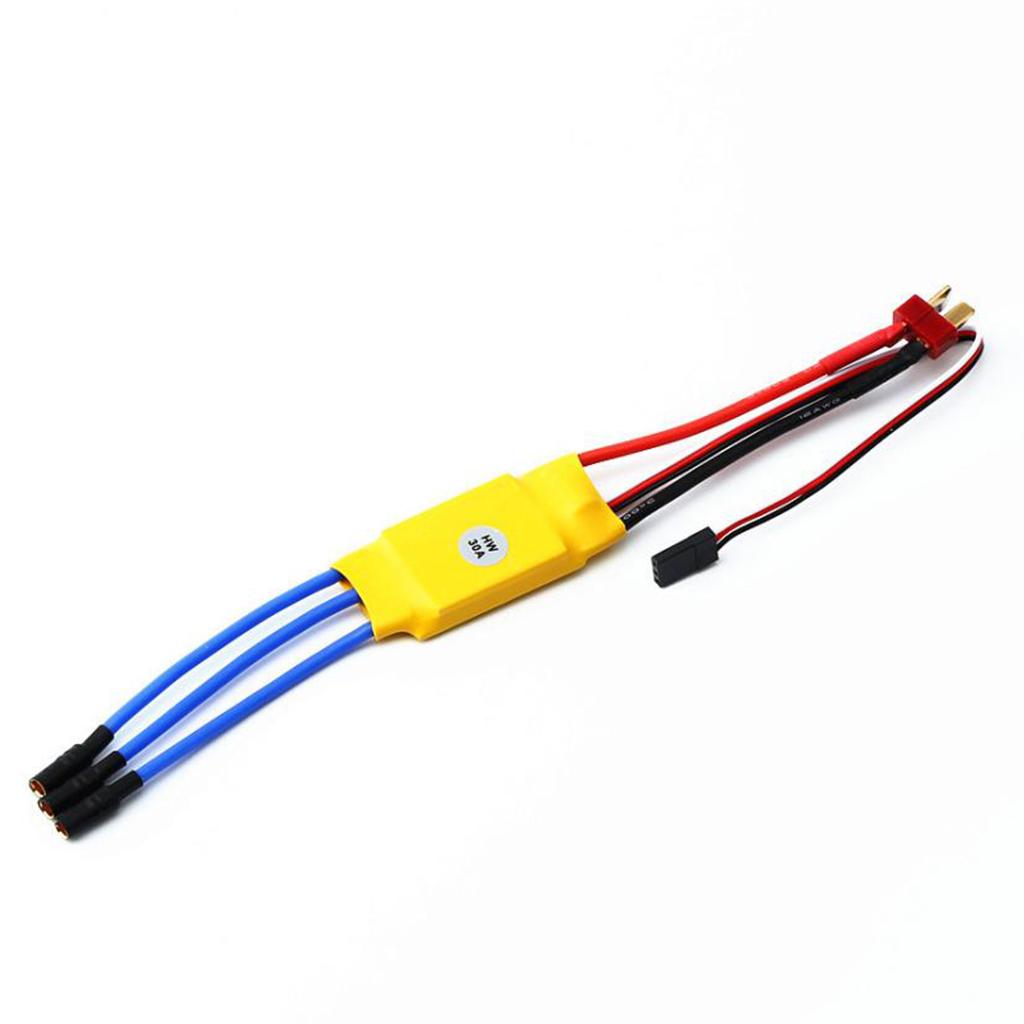

30A Brushless ESC Specification:
Output: Continuous 30A, Burst 40A up to 10 Secs.
Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
BEC: 2A / 5V (Linear mode).
Max Speed: 210,000rpm for 2 Poles BrushLess Motor, 70,000rpm for 6 poles BrushLess Motor, 35,000rpm for 12 poles BrushLess Motor.
With T plug and 3.5mm banana connectors

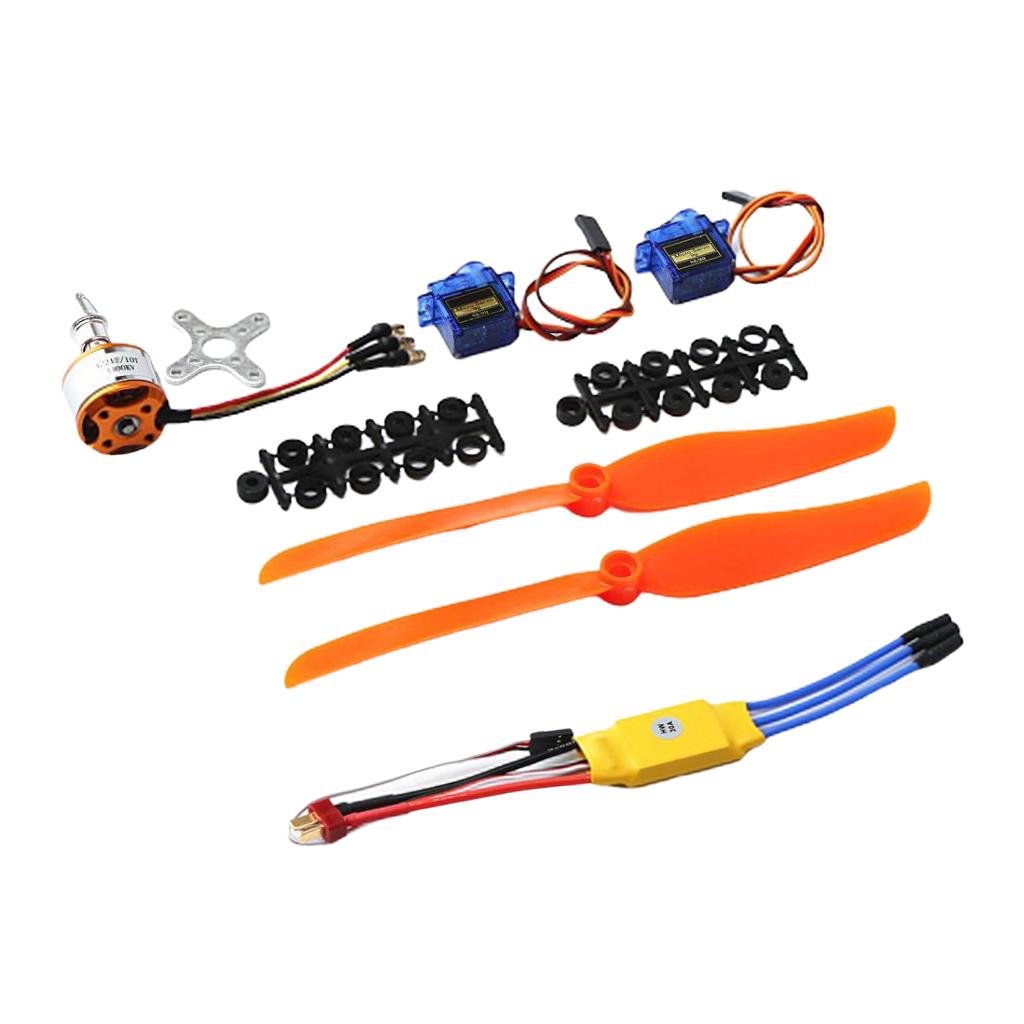

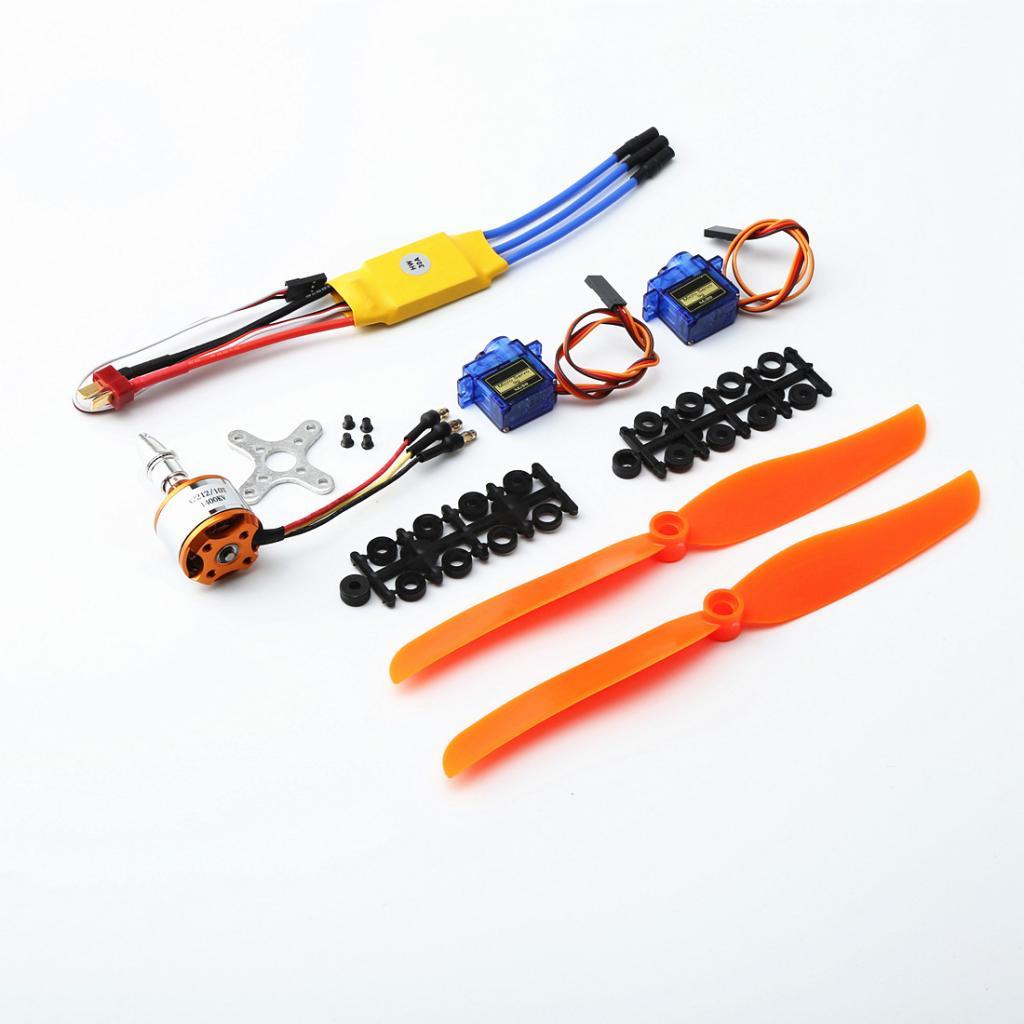

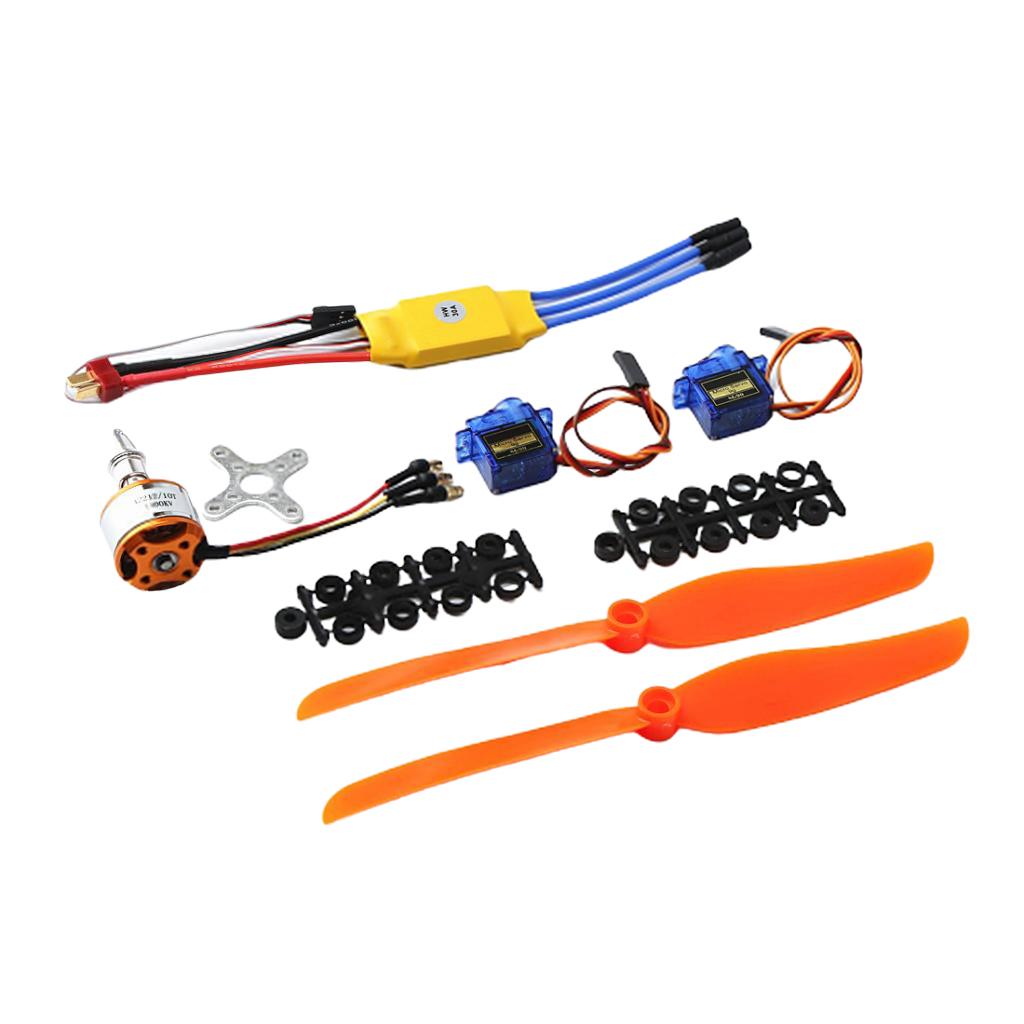

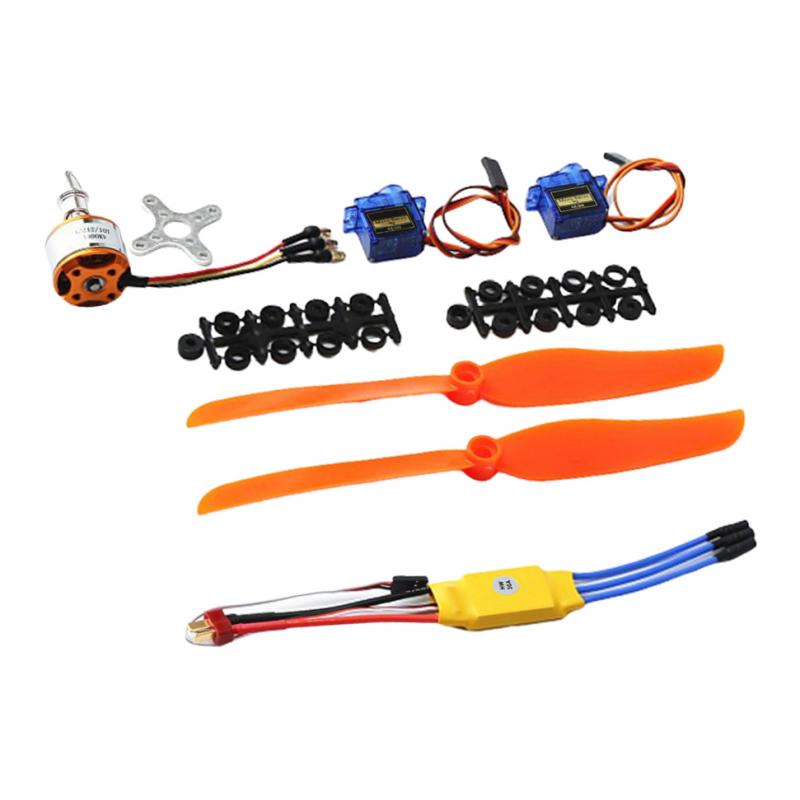

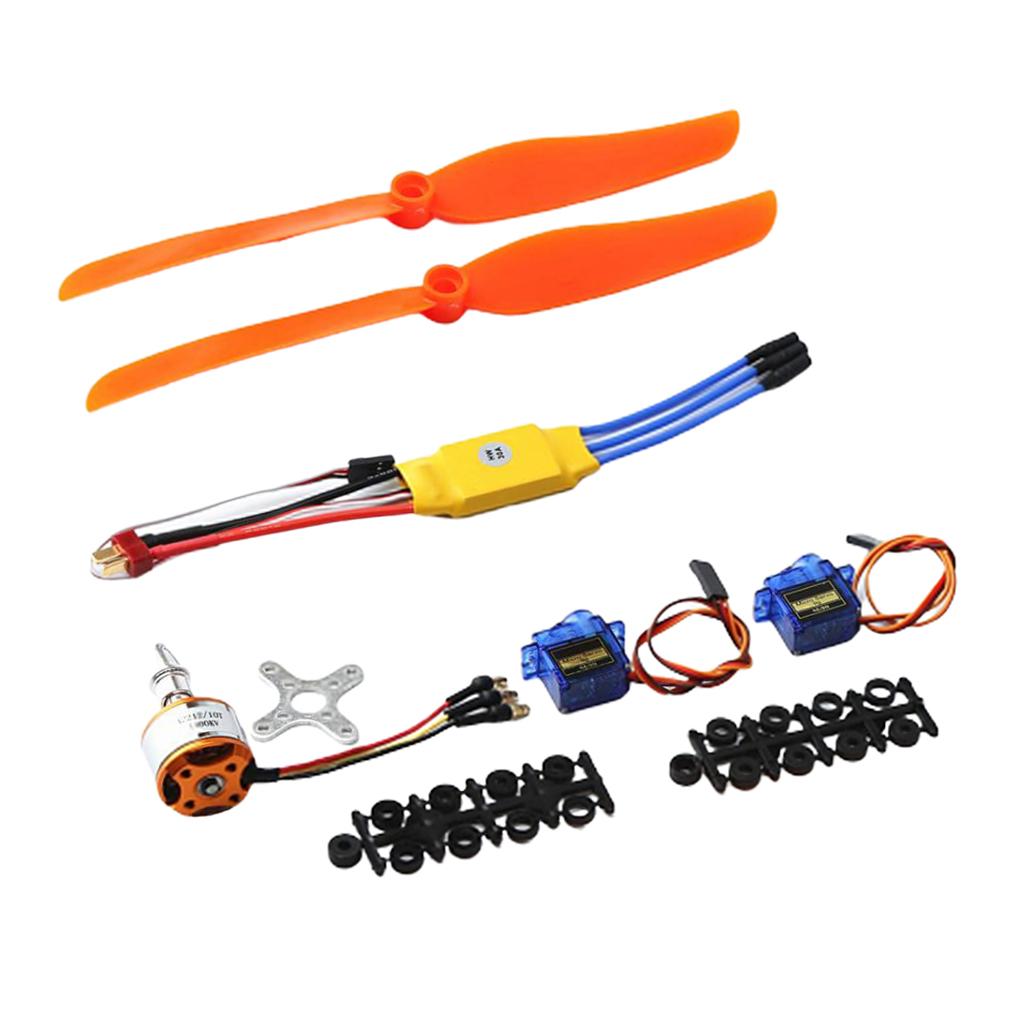

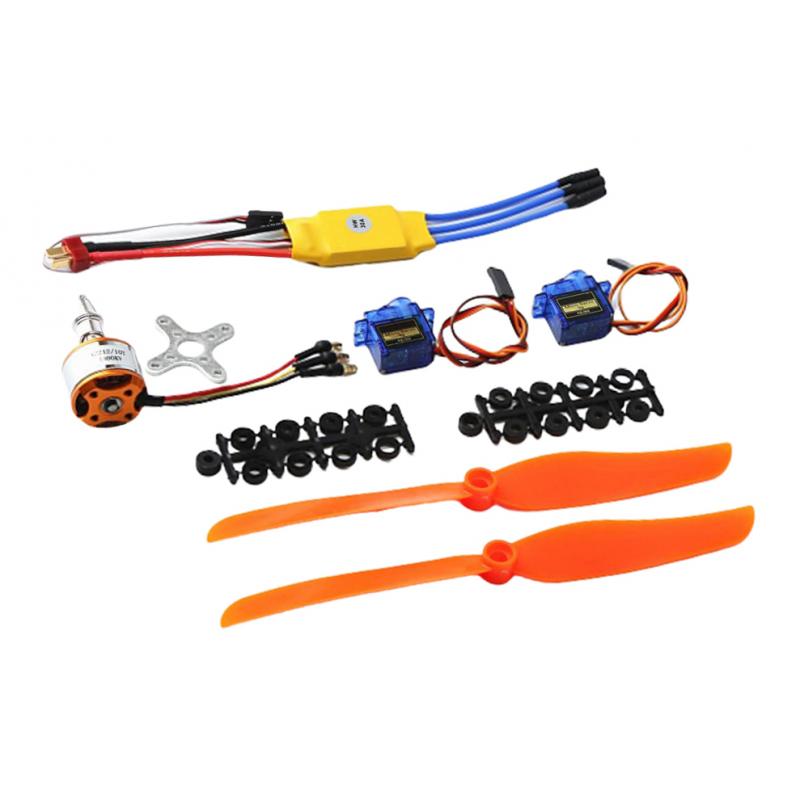

Package Includes:
2 Pieces 9G SG90A Servo
1 Piece A2212 KV1400 Brushless Motor

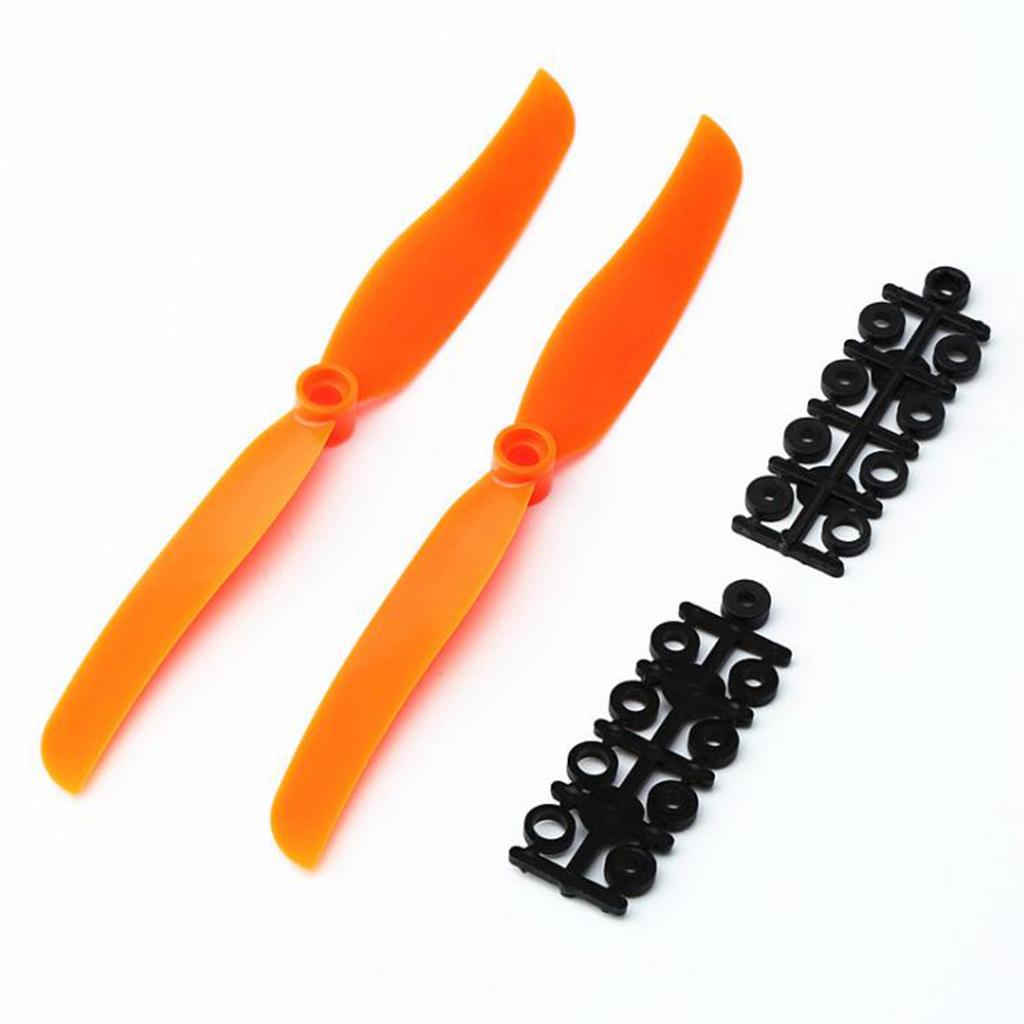

2 Pieces 8060 Propellers
1 Piece 30A Brushless ESC
Other Mounting Parts
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Due to manual measurement, there may be 1-2mm error in size.
