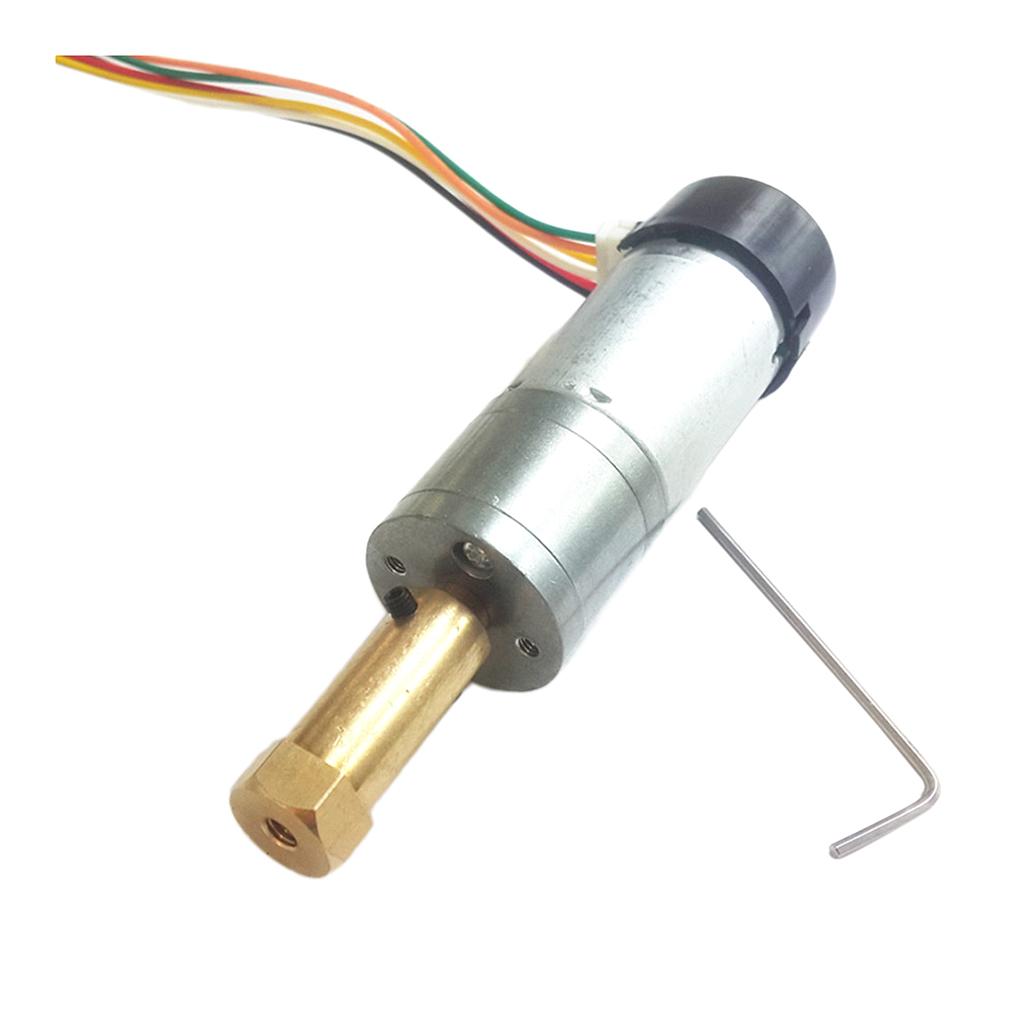

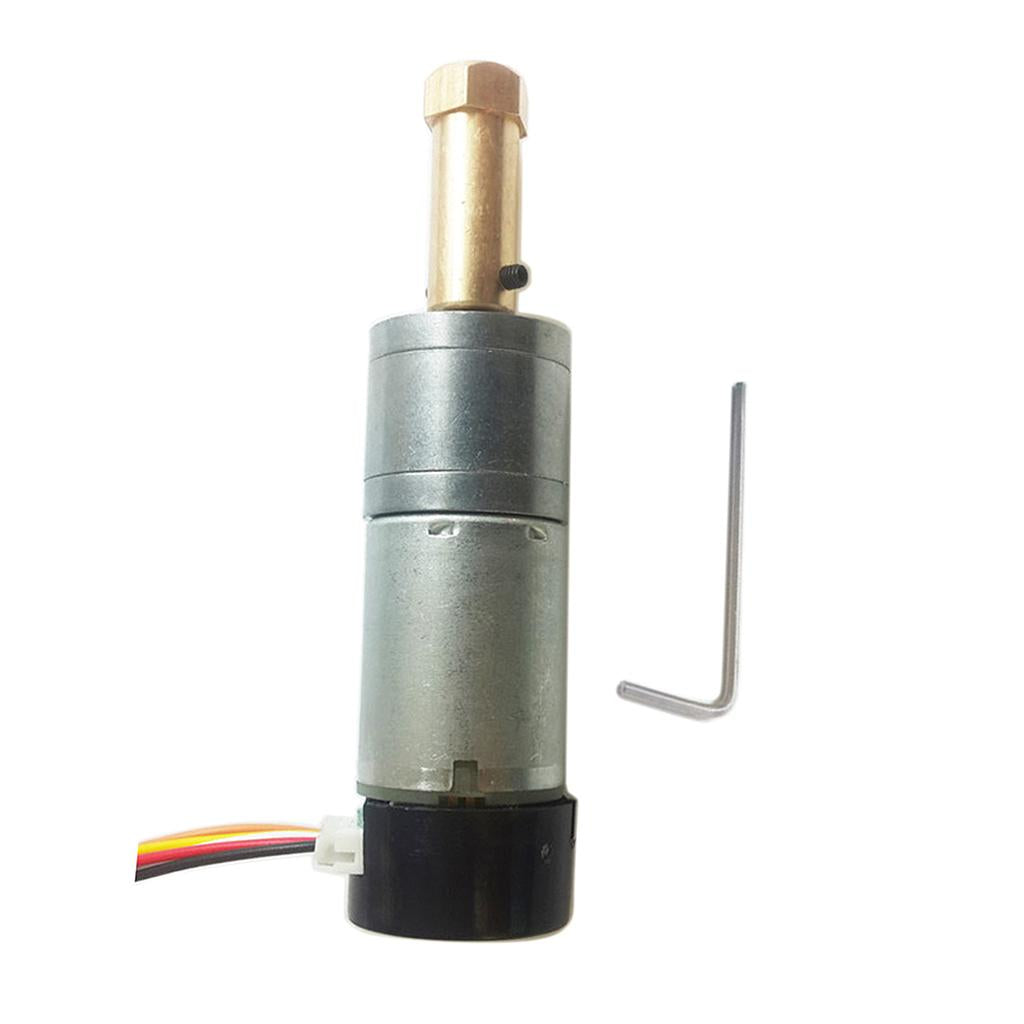

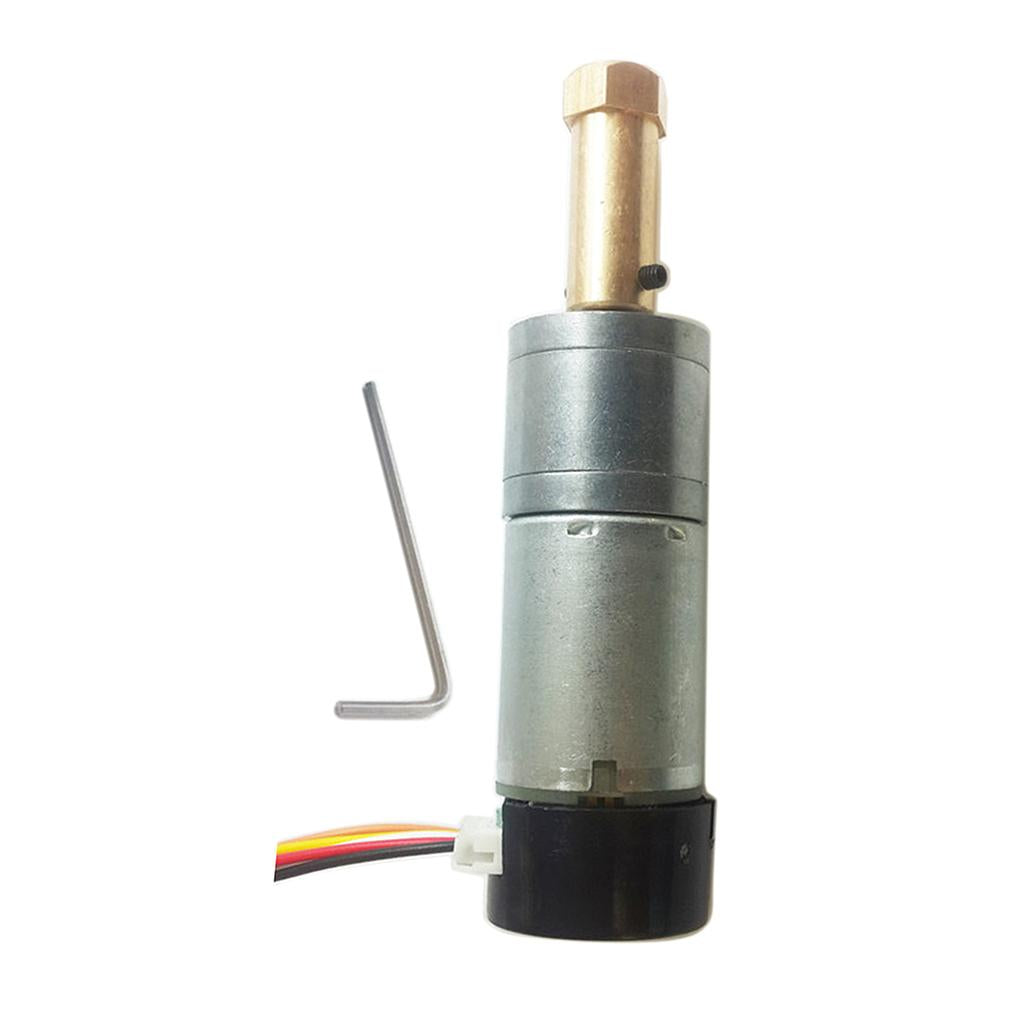

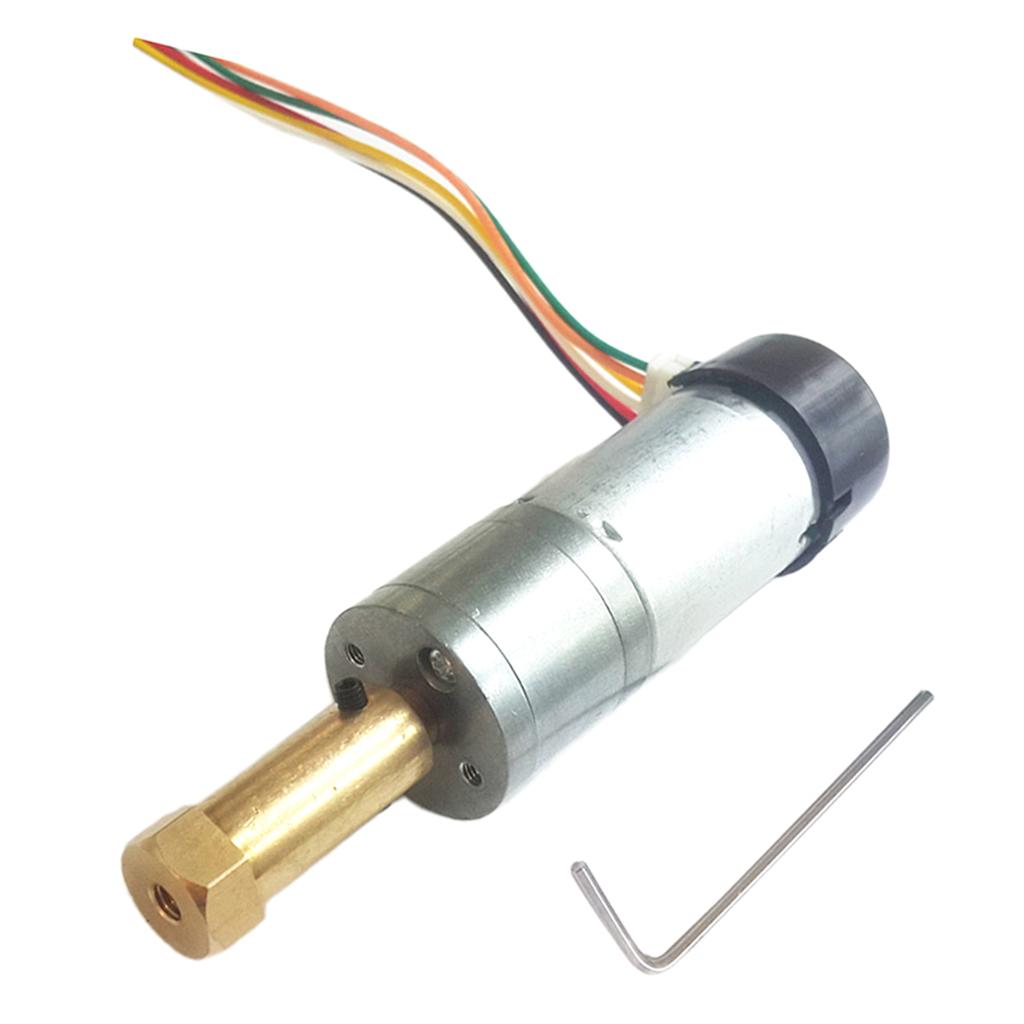

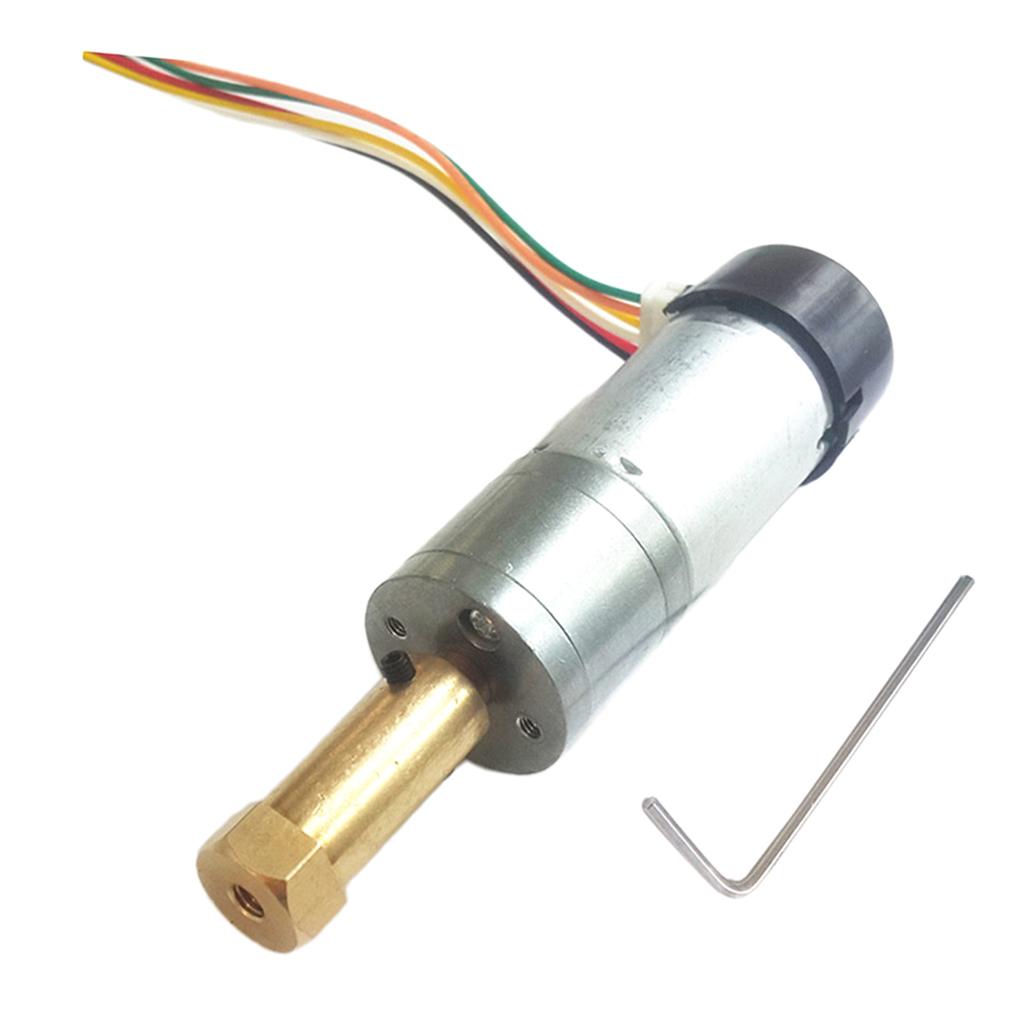

Max 9V High Torque Geared Speed Reduction DC Motor Brass Coupling
Description:
25 motor 9v+4mm lengthened 30mm brass coupling + motor line + M3 top wire (2) + top wire tool (1)
High torque geared speed reduction mini DC 9V DC motor
Features: dustproof, high torque, D shape shaft.
Fit for robotics, instrument, digital products, security monitoring, intelligent door lock, electronic toy, etc.
Ultra-low power for fast development
Specification:
Material: Alloy
Product detailed size: Coupling Motor hole (inside) Diameter: 4mm/0.16inch Total length: 30mm/1.18inch Size: edge to edge 12mm/0.47inch Side screw (2) Aperture: 3mm/0.12inch
Motor parameters
Name: 25mm DC carbon brush motor (with Hall sensor code plate)
Output rate: 150±10% rpm
Load current: 200mA (Max)
Stall current: 4500 mA (max)
Stalling torque: 9.5kg NaN
Load speed: 100±10% rpm
Load torque: 3000gNaN
Load current: 1200mA (Max)
Load noise: 56dB
Working voltage: 9V
Shaft extension size: 14.5mm
Axial clearance: 0.05-0.50mm
Screw size: M3.0
Shaft diameter: phi4mm, D3.5
Code wheel parameters: 2 pulses / circle
Sensor operating voltage: 3-5V.

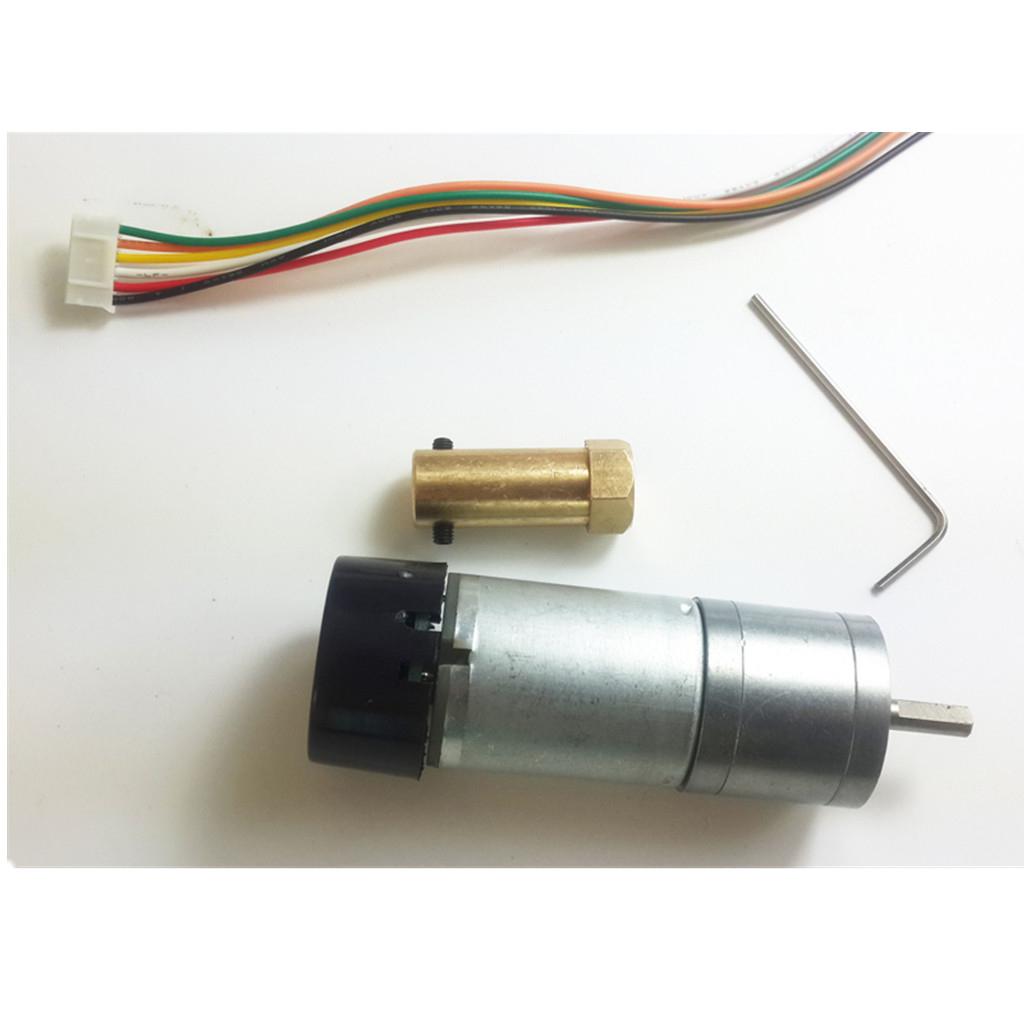

Package Includes:
1 Piece 25 motor
1 Piece Motor line
1 Piece Top wire tool
