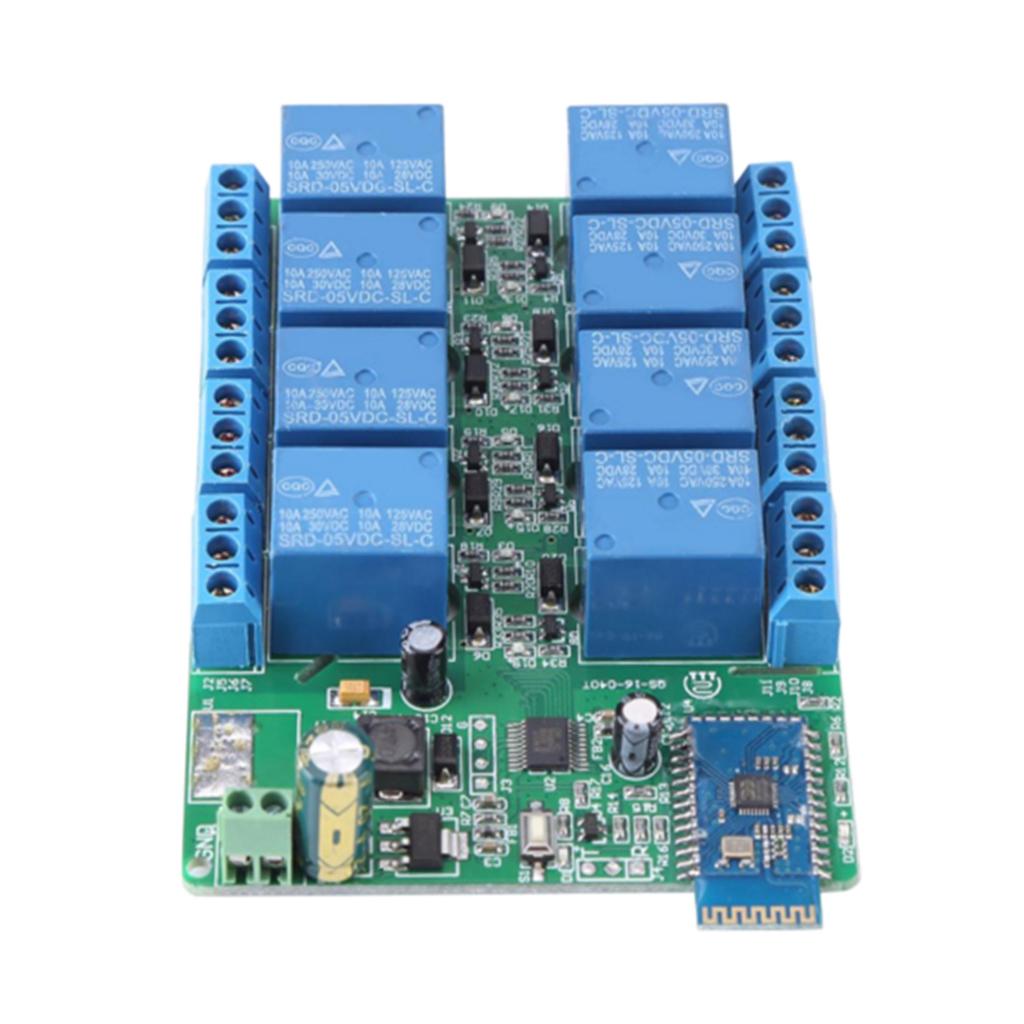

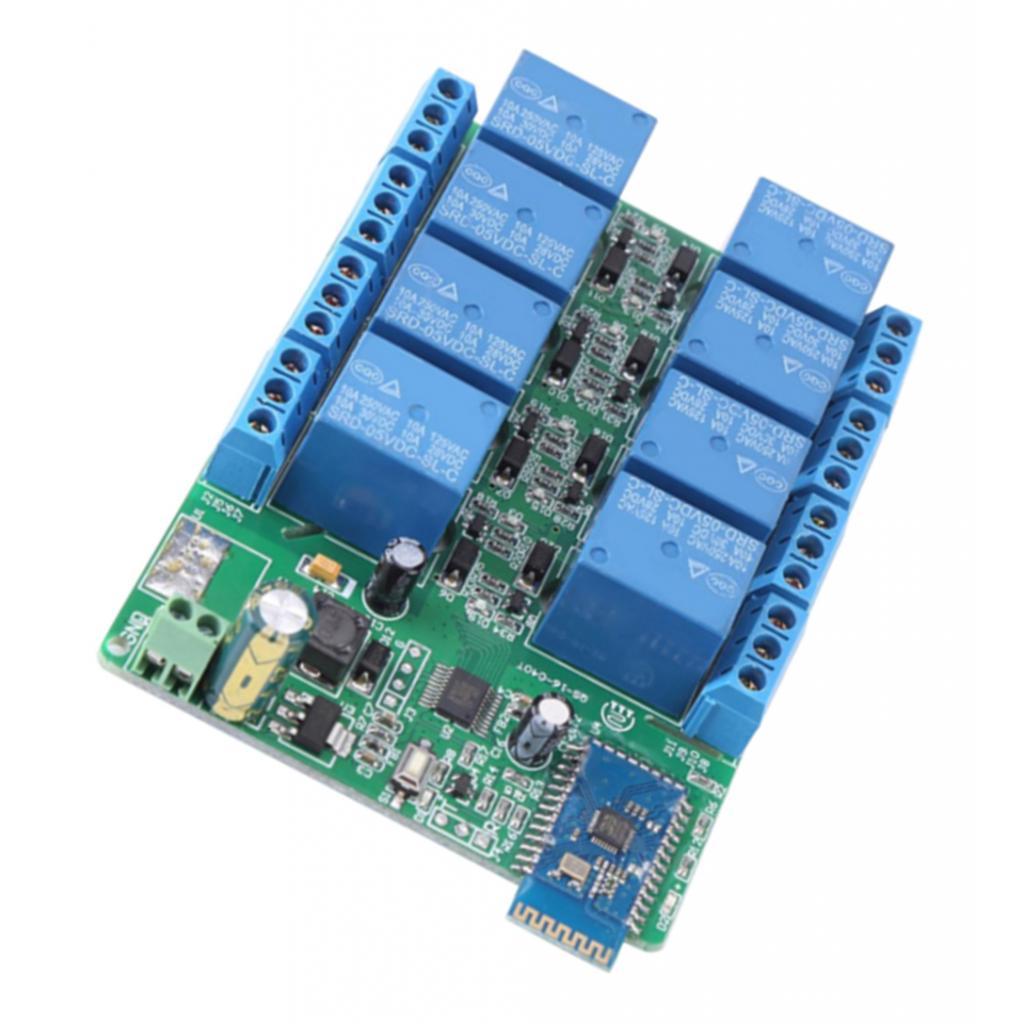

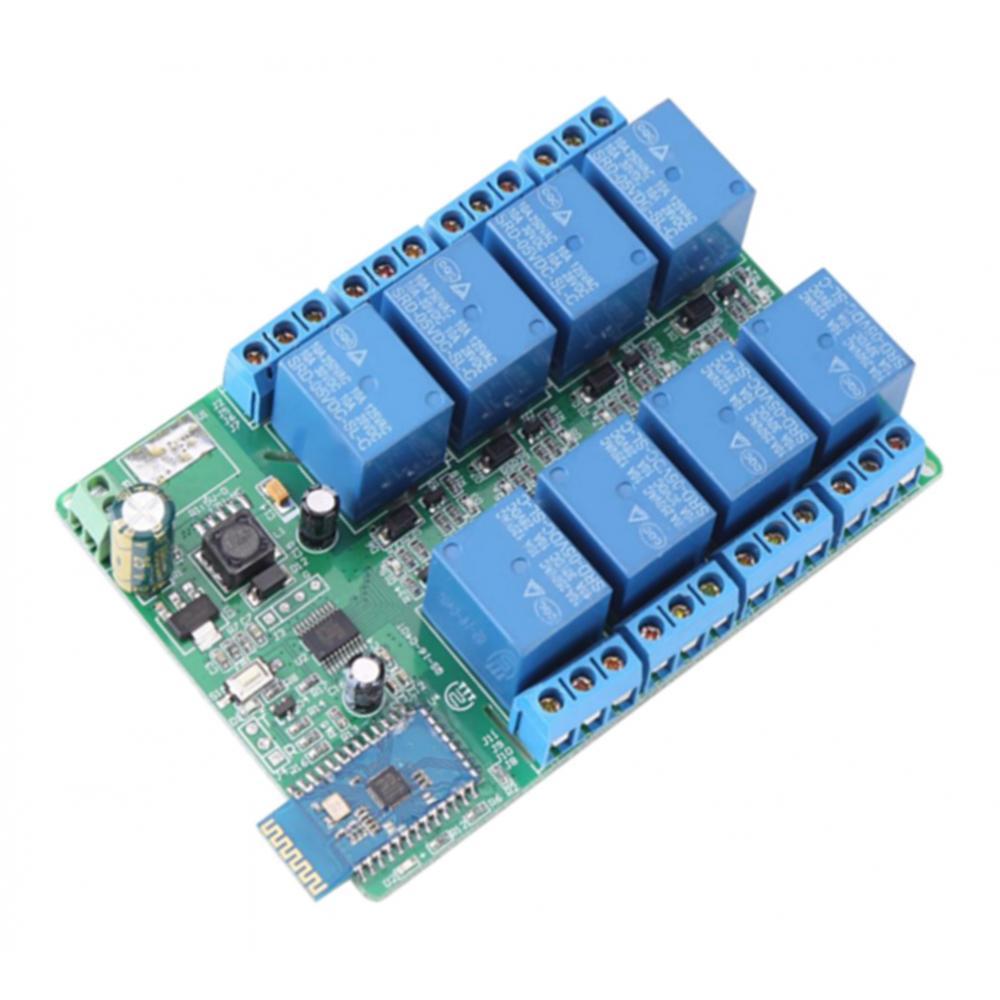

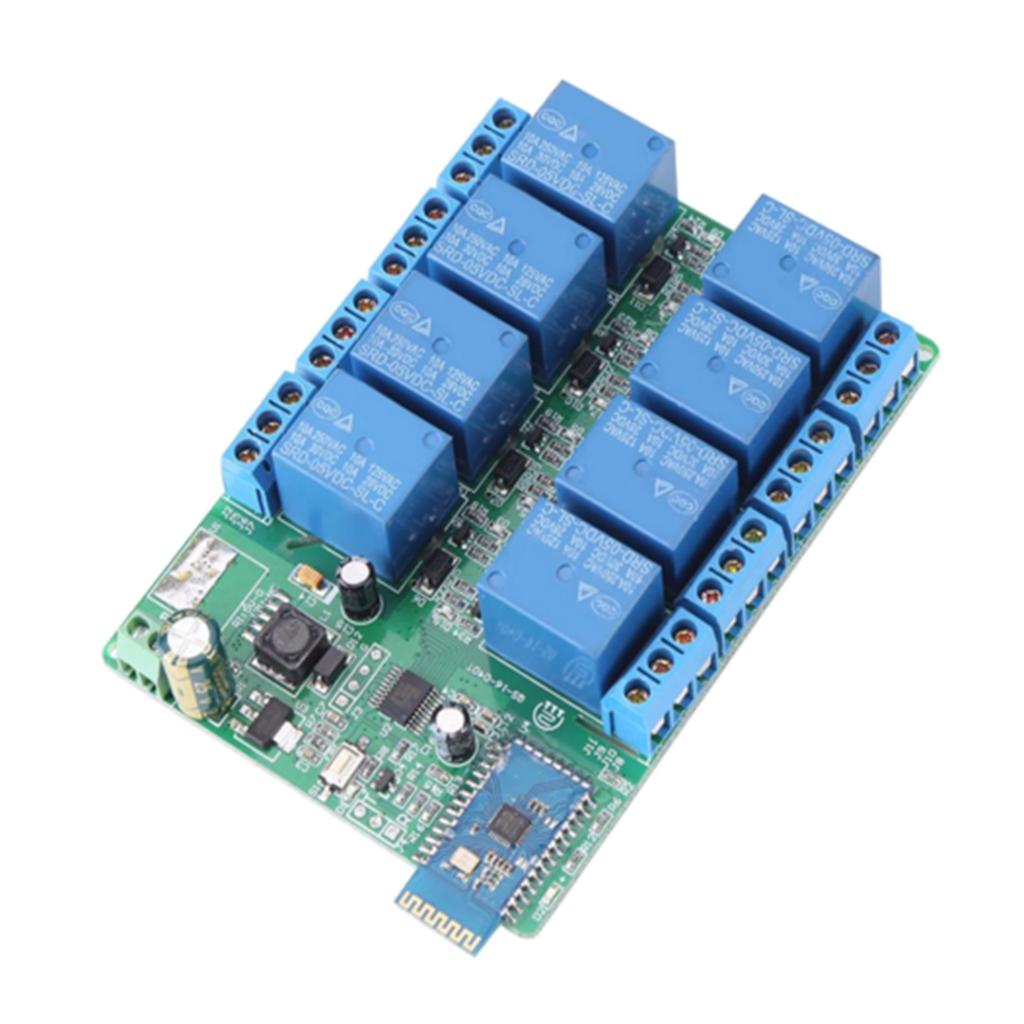

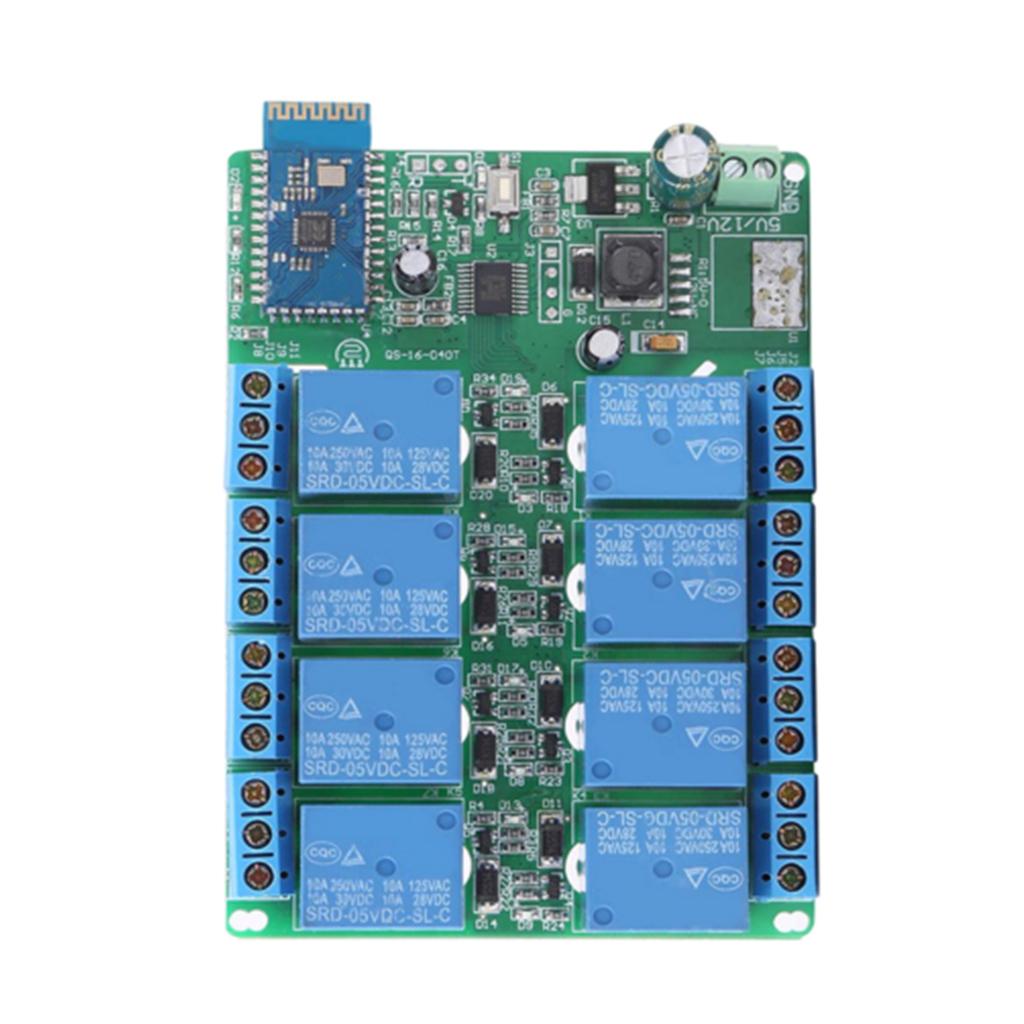

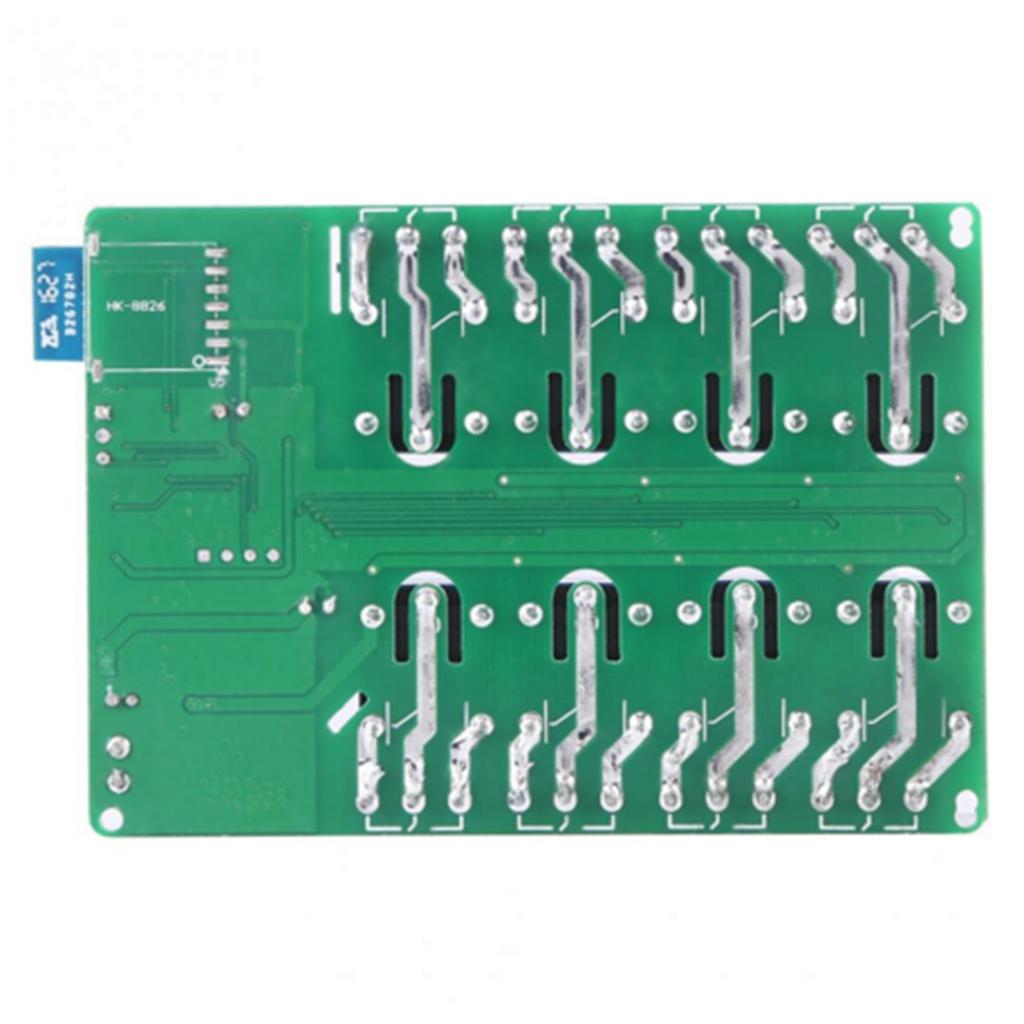

Max 8CH Relay Board Bluetooth Delay Relay Switch Module for Android Phone 12V
Description:
Wireless relay DC 5V 8 Channel Relay Board Bluetooth Delay Relay Switch Module for Android Phone
Operating Current: Standby current (all relays closed) 15MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA, 4 relays open 123MA, 5 relays open 150MA, 6 relays open 177MA, 7 relays open 203MA, 8 relays open 229MA.
Send commands via Android Bluetooth APP control relay turned on and off(just search Bluetooth APP in your APP store and then download).
Momentary, Self-locking, Interlock, Open, Close 5 Commands.
Maximum remote distance is up to 10 meter.
Only suitable for android phones with Bluetooth 4.0 functions
Specification:
Input current: 1A
Power supply voltage: DC 5V

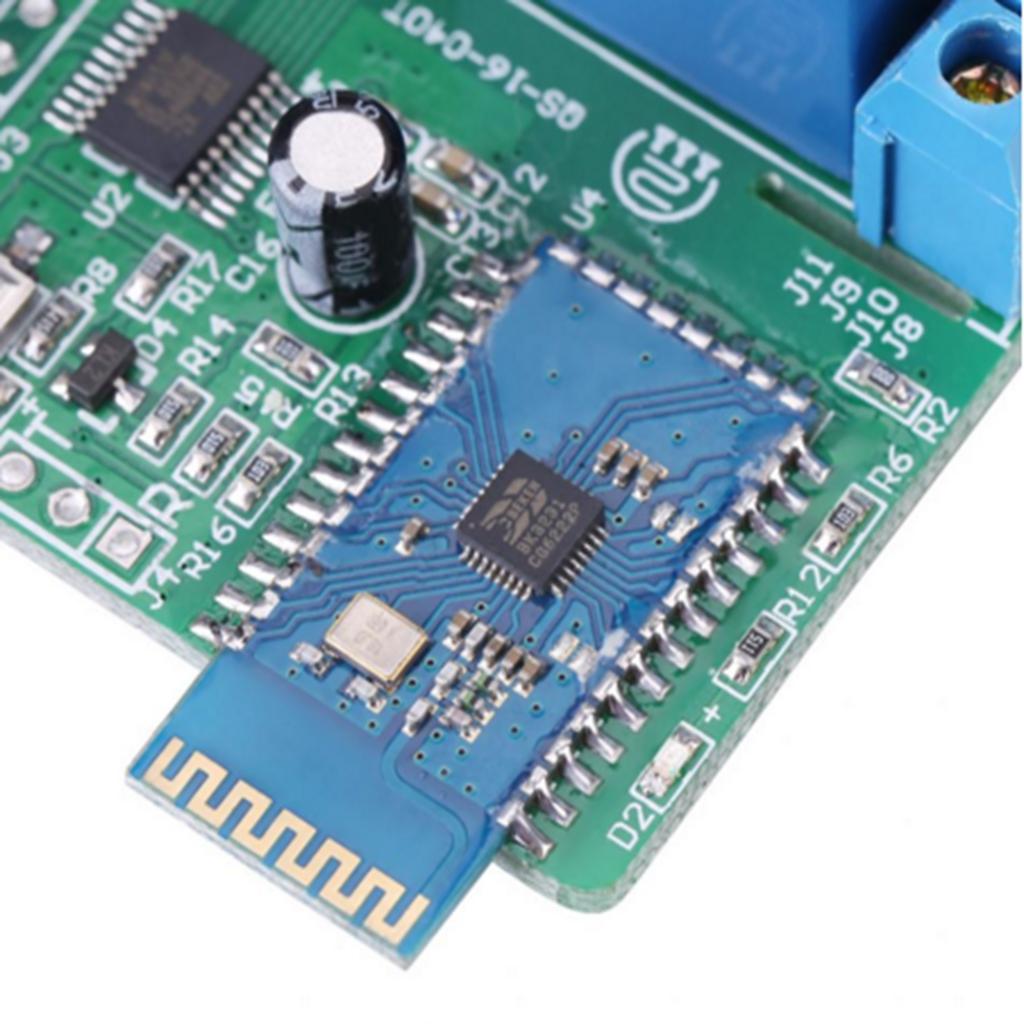

Bluetooth version: 4.0
Remote distance: Approx. 6-10meter(Different actual circumstances has different distance)
Control mode: Phone Bluetooth / Relay switch
Control voltage: AC 0-277V 10A / DC 0-30V 10A
Channel: 8 Channel
Delay time range: 1-255s
Weight: 114g

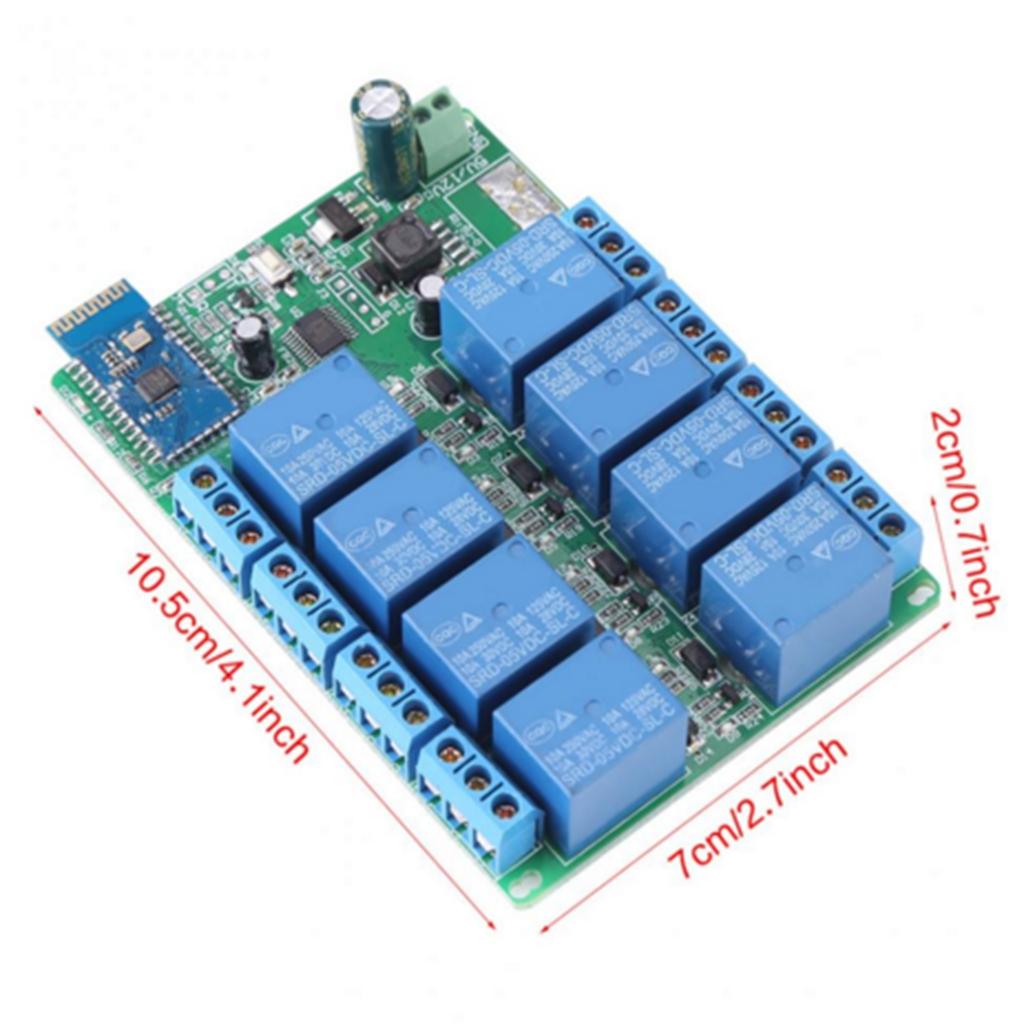

Size Chart:
Size: 105x70x20mm / 4.13x2.75x0.78inch
Package Includes:
1 Piece Bluetooth Relay
