Maxbell 8 Channel I2C IIC Logic Level Converter Module Bi-Directional for Arduino
Description:
Steps down 5V signals to 3.3V and steps up 3.3V to 5V at the same time
Bi-directional logic level converter works with 2.8V and 1.8V devices
Set high/ low voltages, step up/down between them on same channel
The board needs to be powered from two high and low voltage sources
Each level converter can convert 4 pins on the high side to 4 pins on the low
side with two inputs and two outputs provided for each side
Specification:
Compatible with 5-3V system
VIN connected 5V system power supply
5A connected 5V system
5B connected 5V system
GND connected 5V system GND
3V3 connected 3V system power supply
3A connected 3V system
3B connected 3V system
GND connected 3V system GND
Module Board Size: Approx. 2.8x1.4x0.3cm / 1.1x0.55x0.12inch
Pin Header Size: Approx. 4.1x1.8cm/ 1.61x0.71inch

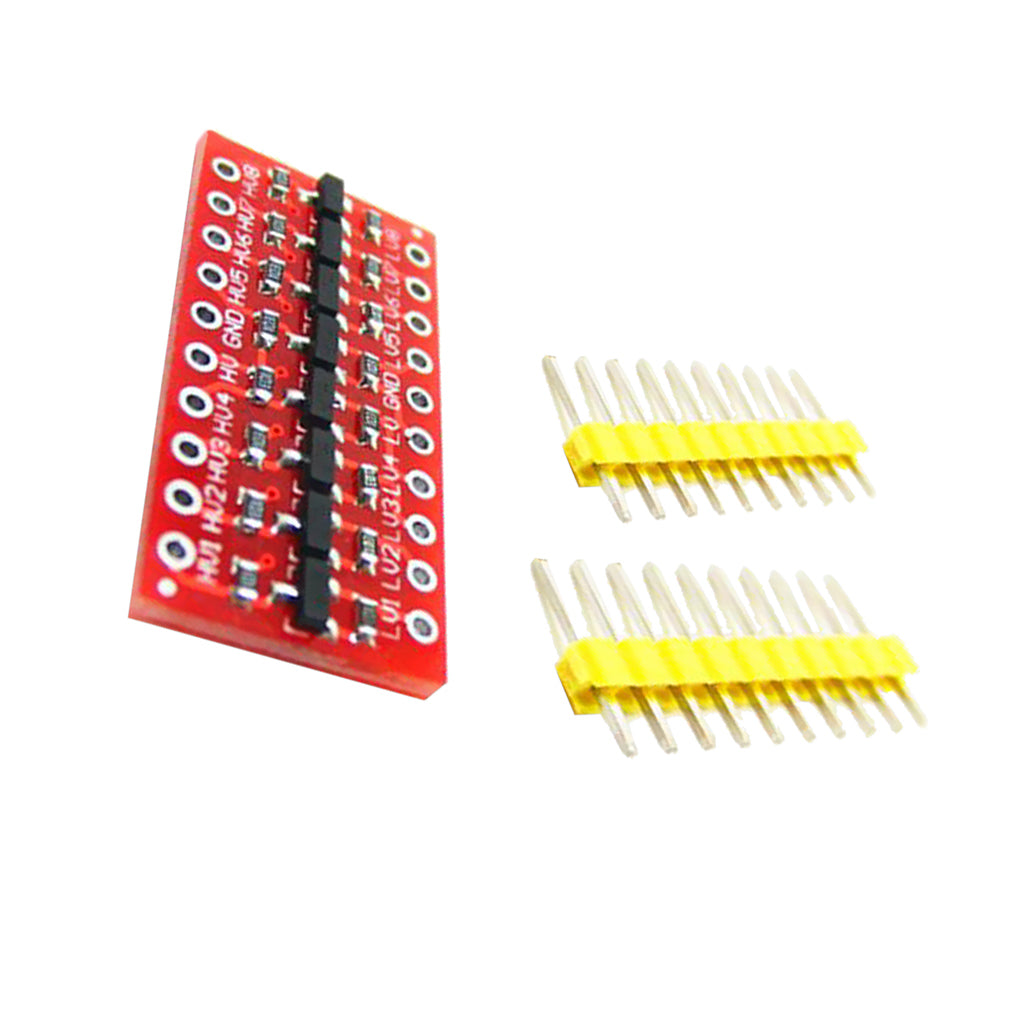

Package Includes:
1 piece Logic Level Converter Module
2 pieces Pin headers
Note:
Please allow 1-3mm differs due to manual measurement
