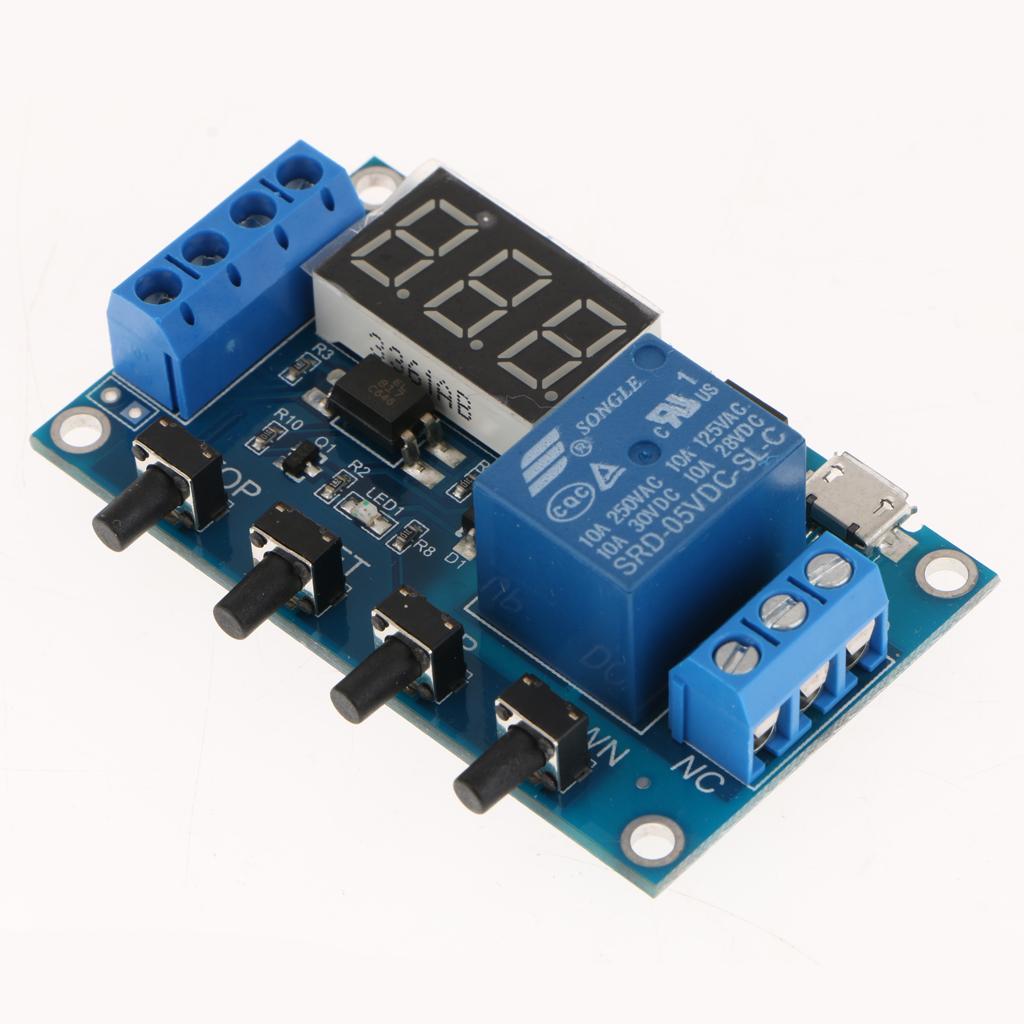

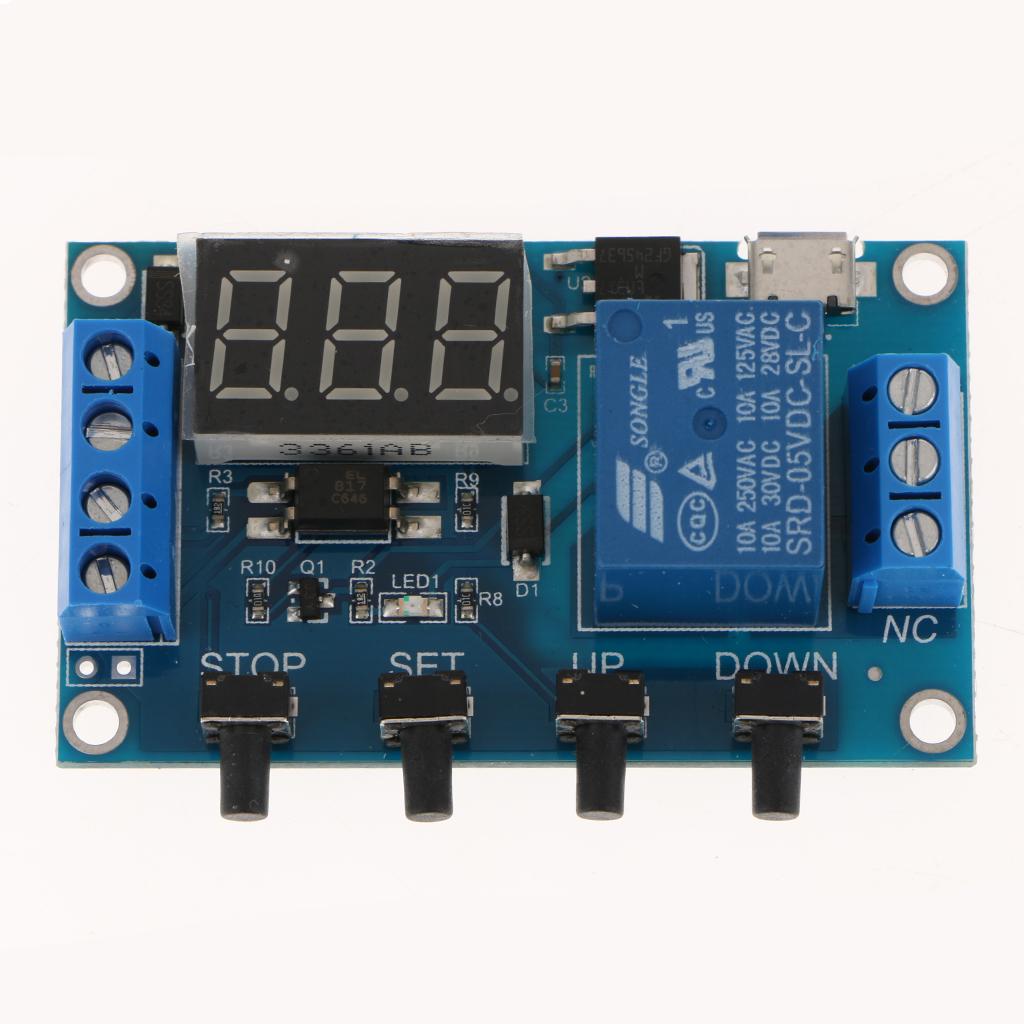

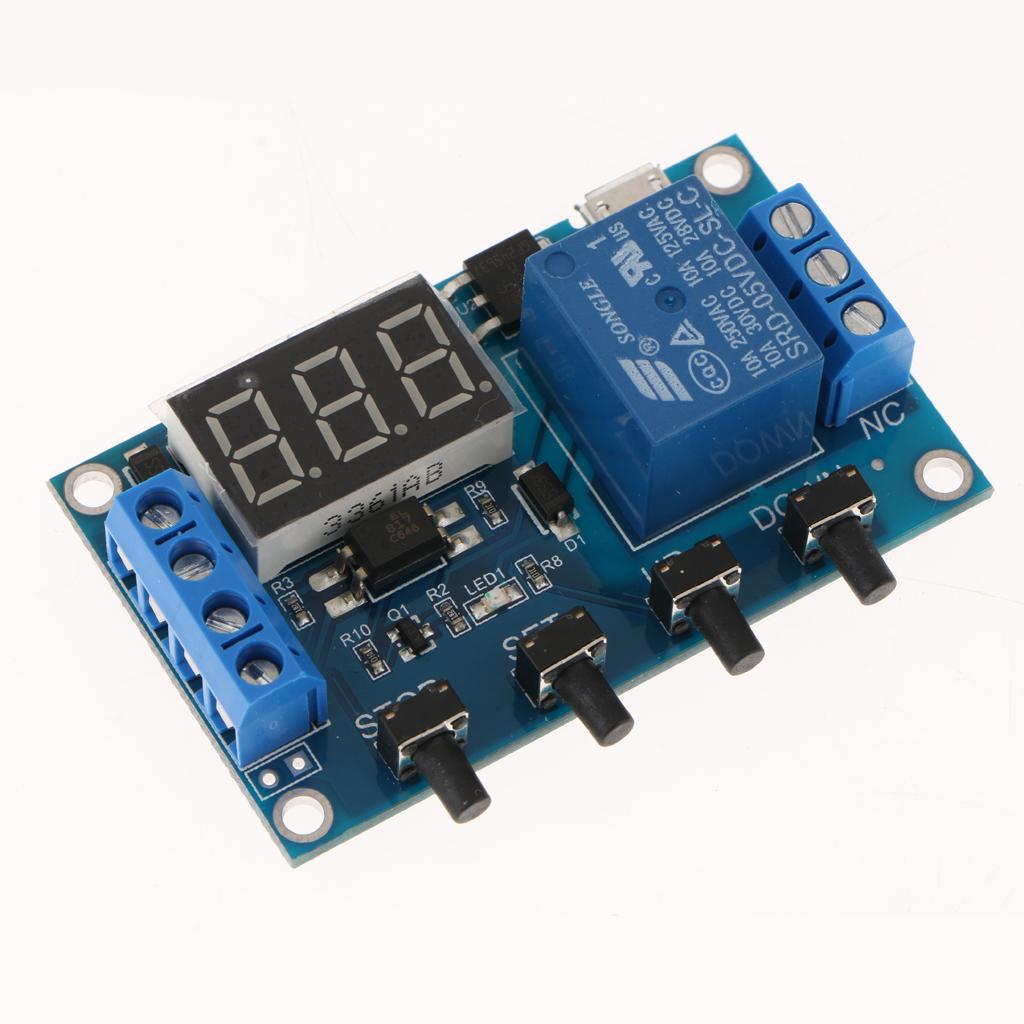

Max 6-30V Circuit Relay Module Switch Trigger Time Delay Timer Cycle With Case

Description:

Wide voltage power supply (6-30V) supports micro USB 5.0V; Parameter settings will automatically hold if power-down.
Operating interface is clear and simple to understand, powerful functions and meets all your needs.
There is an quick STOP function (STOP key) with reverse connection protection and reverse connection does not burn
Sleeping mode: automatically shut down the display without any operation in 5 minutes
It can set different OP,CL,LOP parameter which are mutually independent and hold seperately;Opto-isolator raises anti-interference ability

Specification:

Setting Time Range:0.1s- 999 minute
Material: electric component
Working voltage: 6-30V(supports micro USB 5.0V)
Trigger signal voltage: 3-24V; Which high level trigger signal ground and system ground are not common ground can raise capacity of resisting disturbance(also you can shortly connect to common ground by yourself)
Output parameter: DC 30V 0-5A；AC 220V 0-5A
Quiescent current: 20mA
Working current: 50mA
Operating temperature:-40—85℃
Size: approx. 62x38x17mm/2.44x1.49x0.66inch

Size Chart:

Operating Mode:
P1 mode: After signal is triggered, the relay connects the OP time and then disconnect.
During OP time, runs as the following step:
P1.1: Signal triggered again is invalid
P1.2: Signal triggered again will recount time
P1.3: Signal trigger reseting, the relay will disconnect and stop count time
P-2: After sending trigger signal and disconnecting CL time, the relay connects the OP time, relay will disconnect after finishing time count.
P3.1: After sending trigger signal and the relay connects the OP time, the relay will disconnect CL time ; Cycle the above movements, and then send trigger signal again, relay will disconnect and stop counting time; Number of cycles(LOP) can be seted.
P3.2: You don't need to trigger signal after powering on, the relay connects the OP time and the relay disconnect CL time;
Cycle the above movements, Number of cycles(LOP) can be seted.
P-4: Signal holding function: if there is a trigger signal, the time will be reset and the relay will keep connecting. When the signal disappears, the relay disconnects after OP time counting . During counting period, the signal appear again and the time will reset.

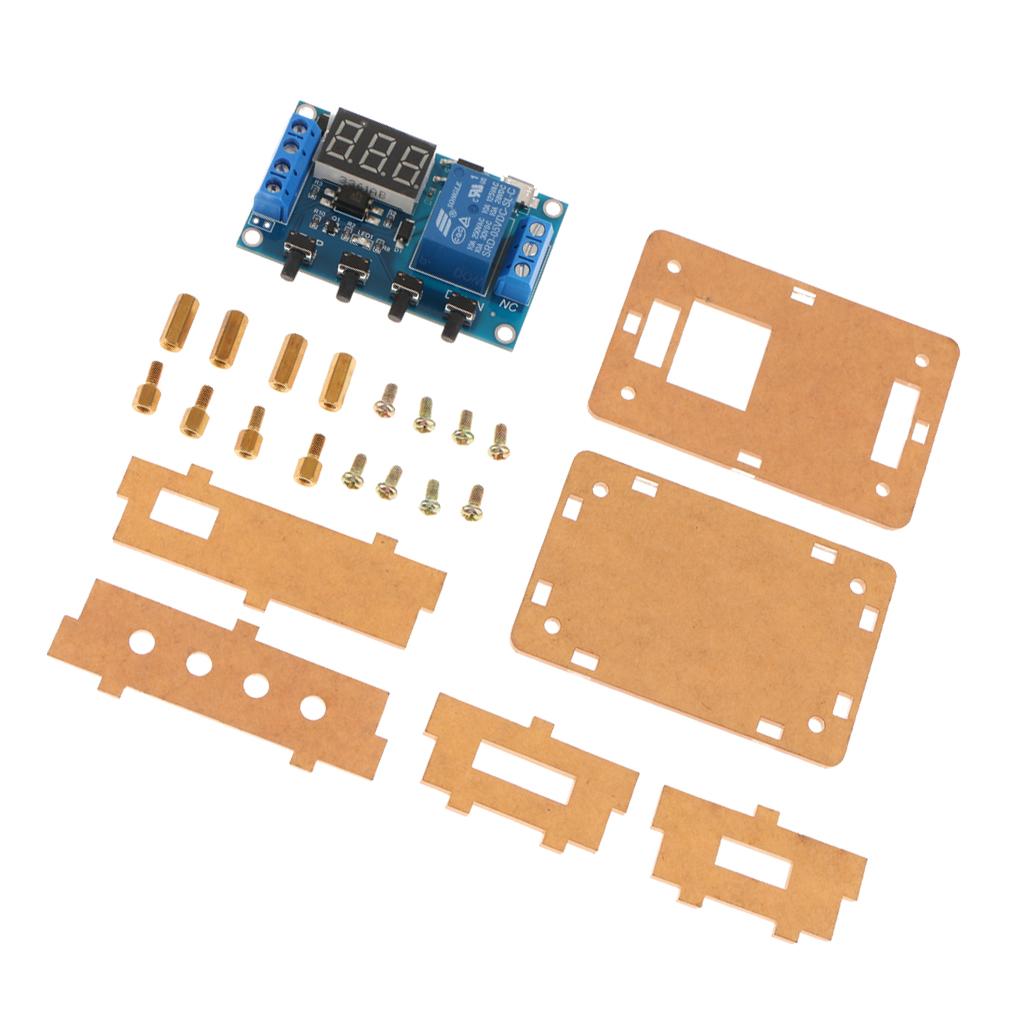

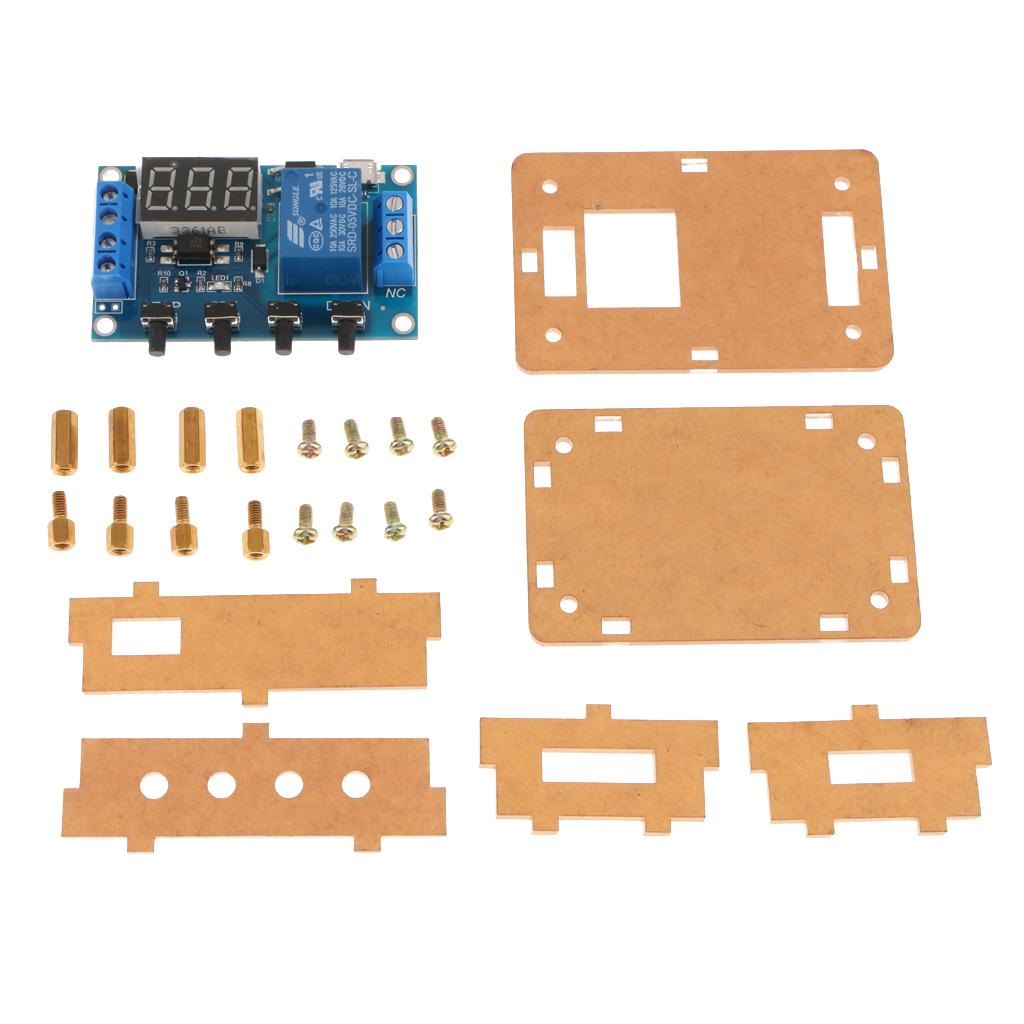

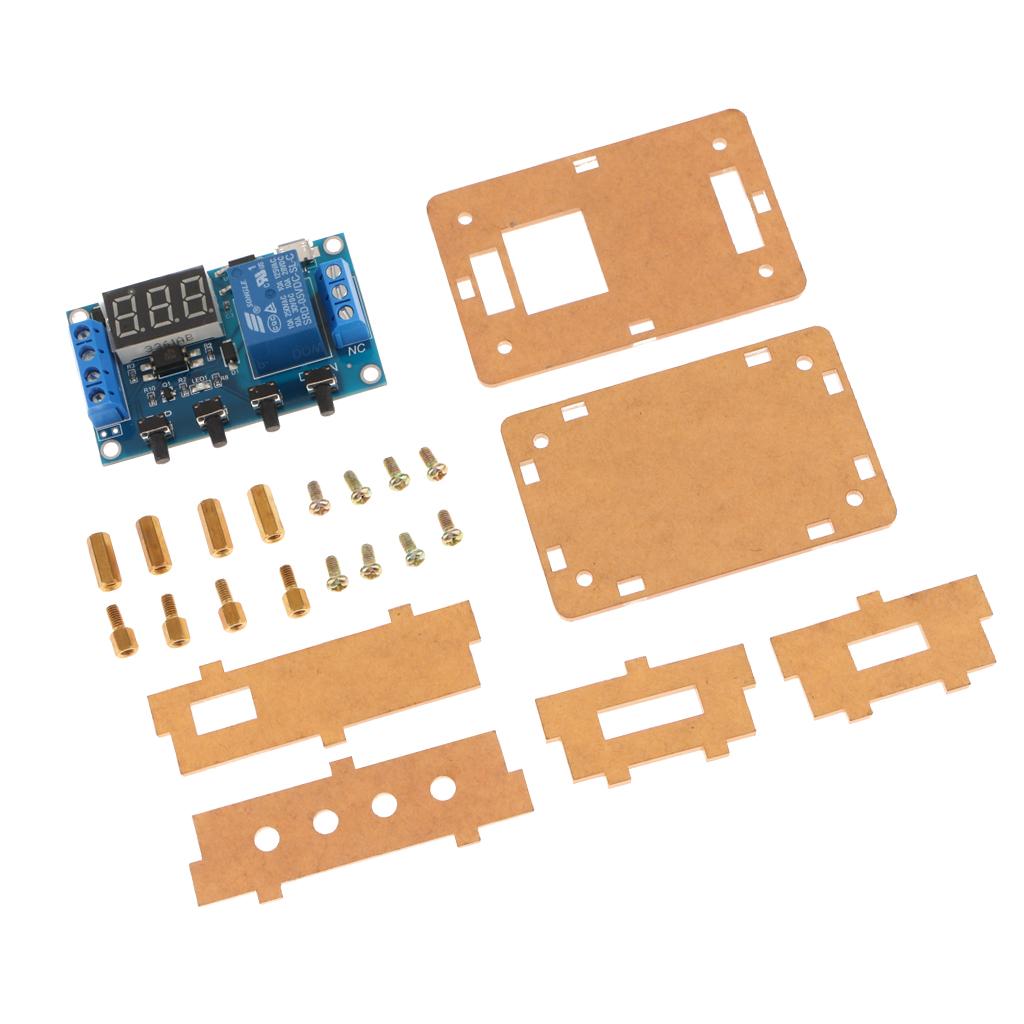

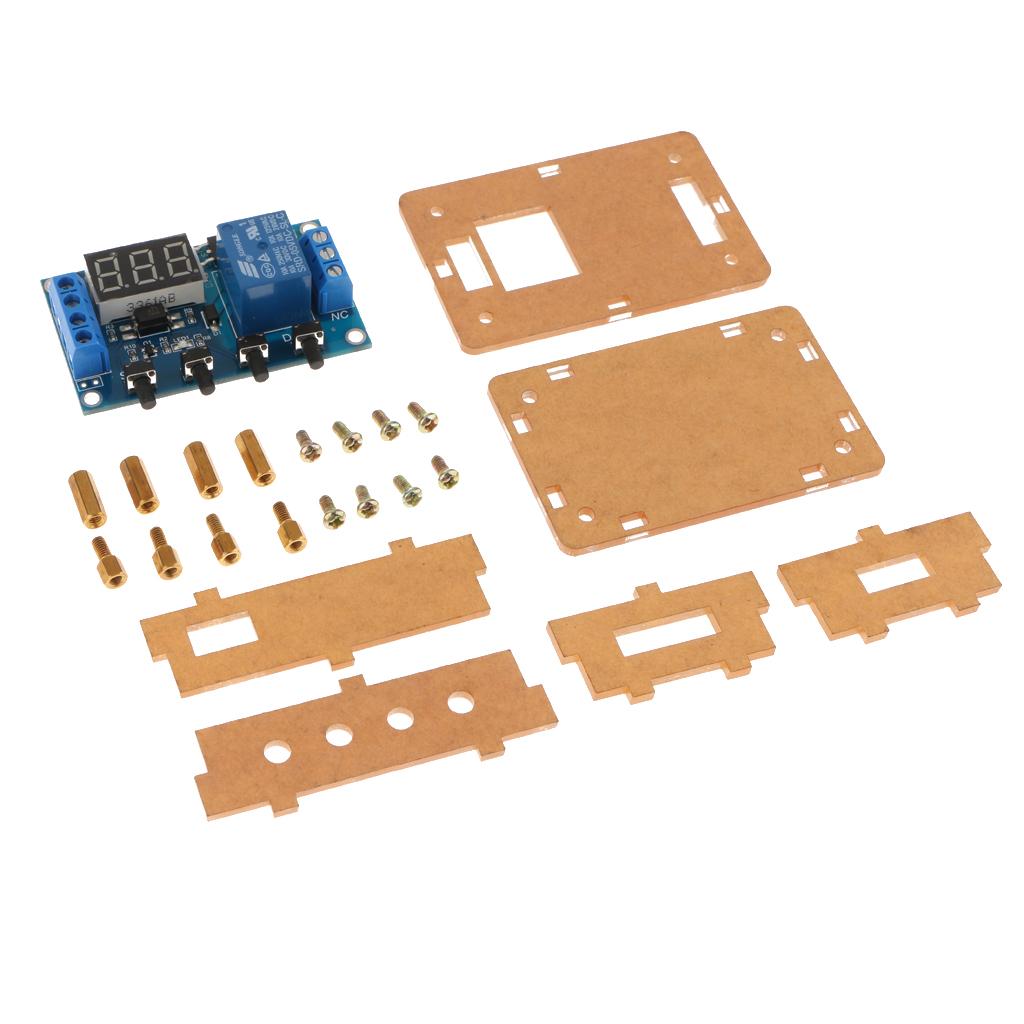

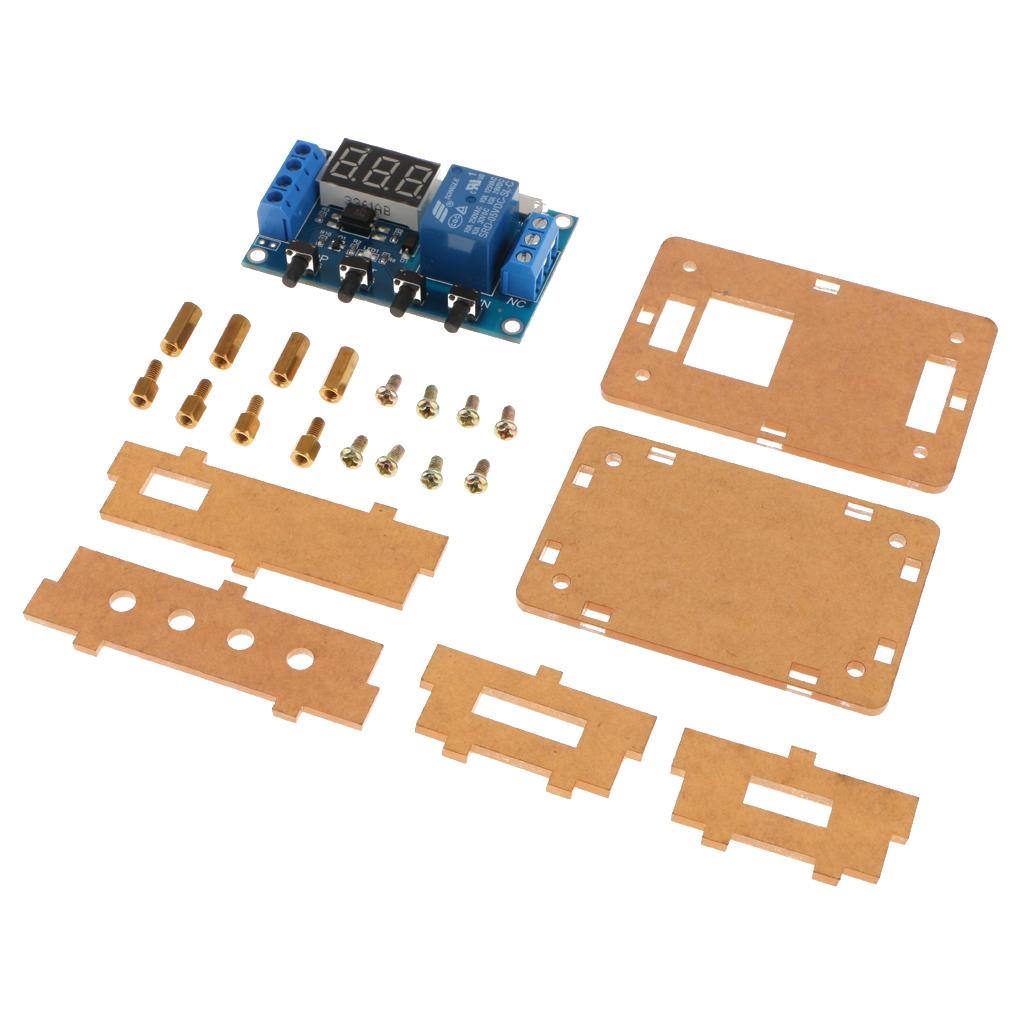

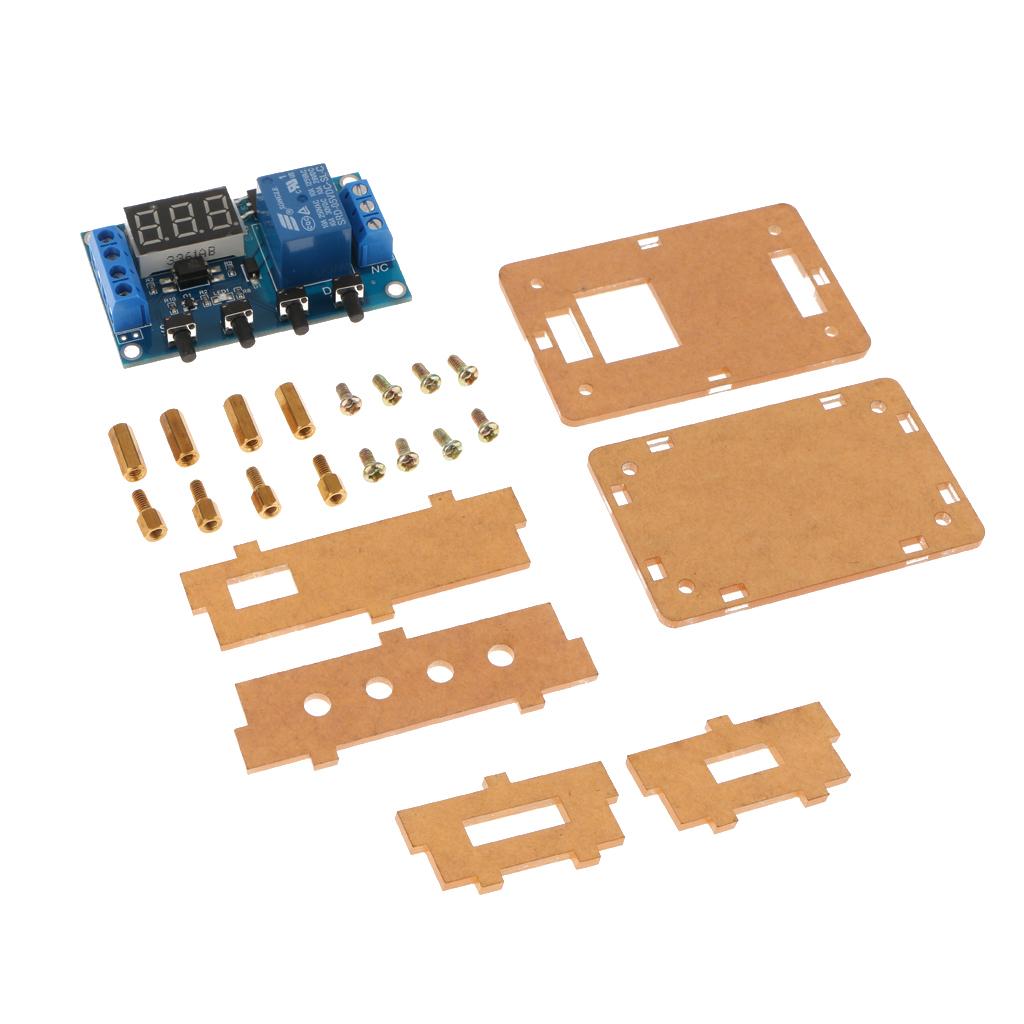

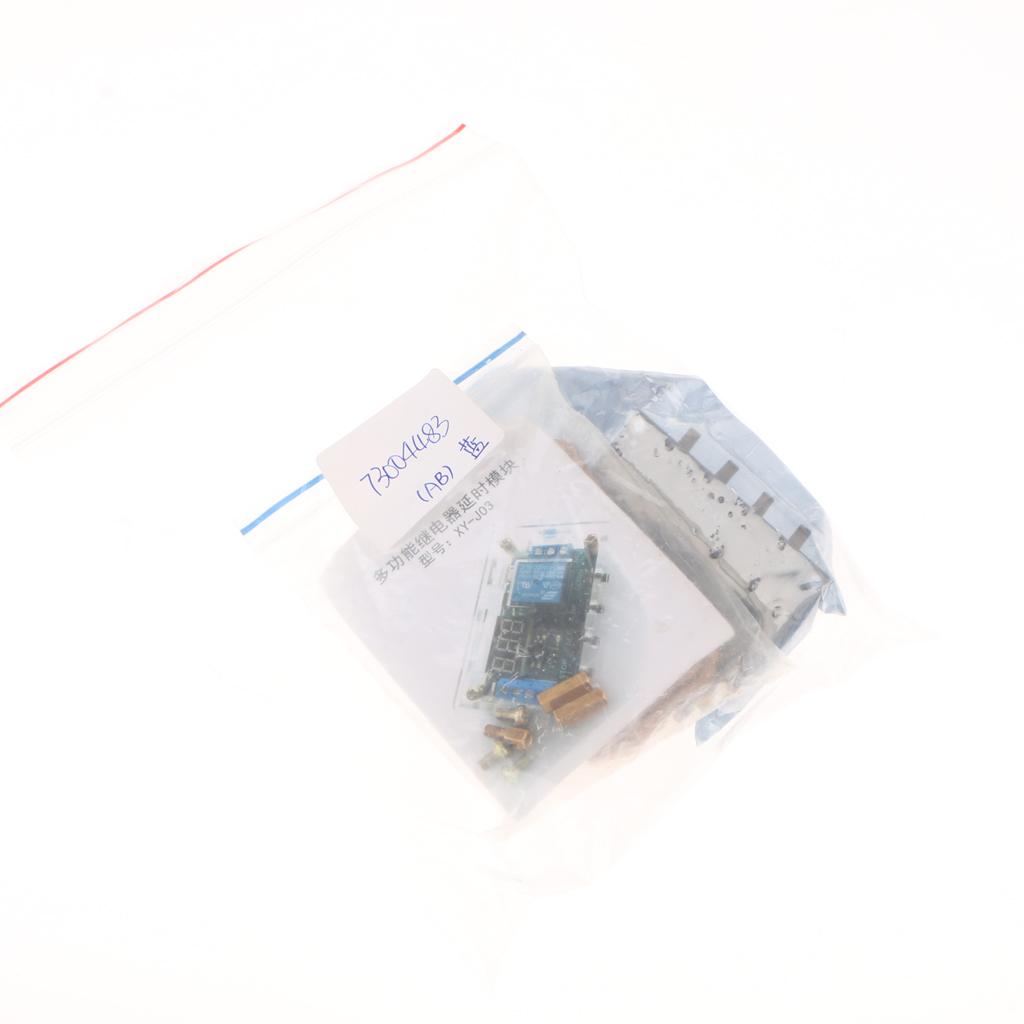

Package Includes:

1 piece relay module

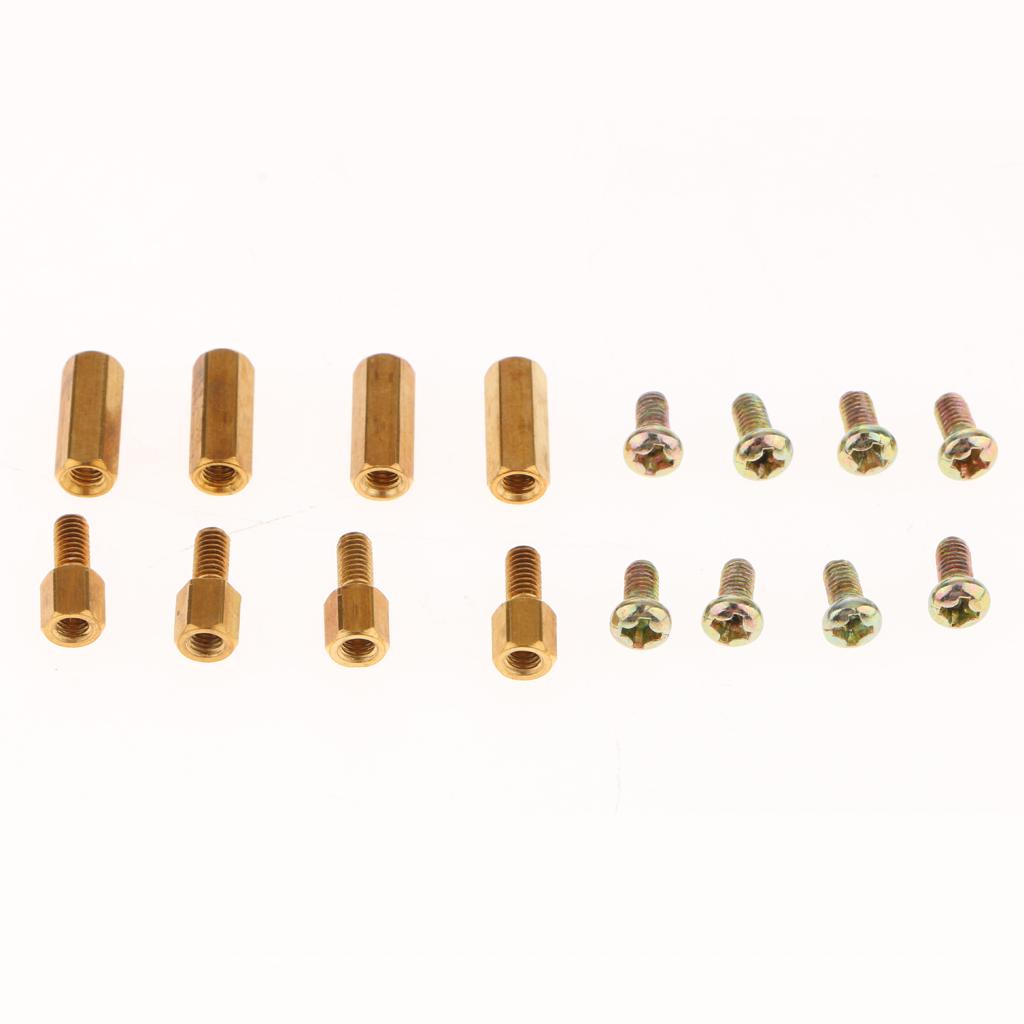

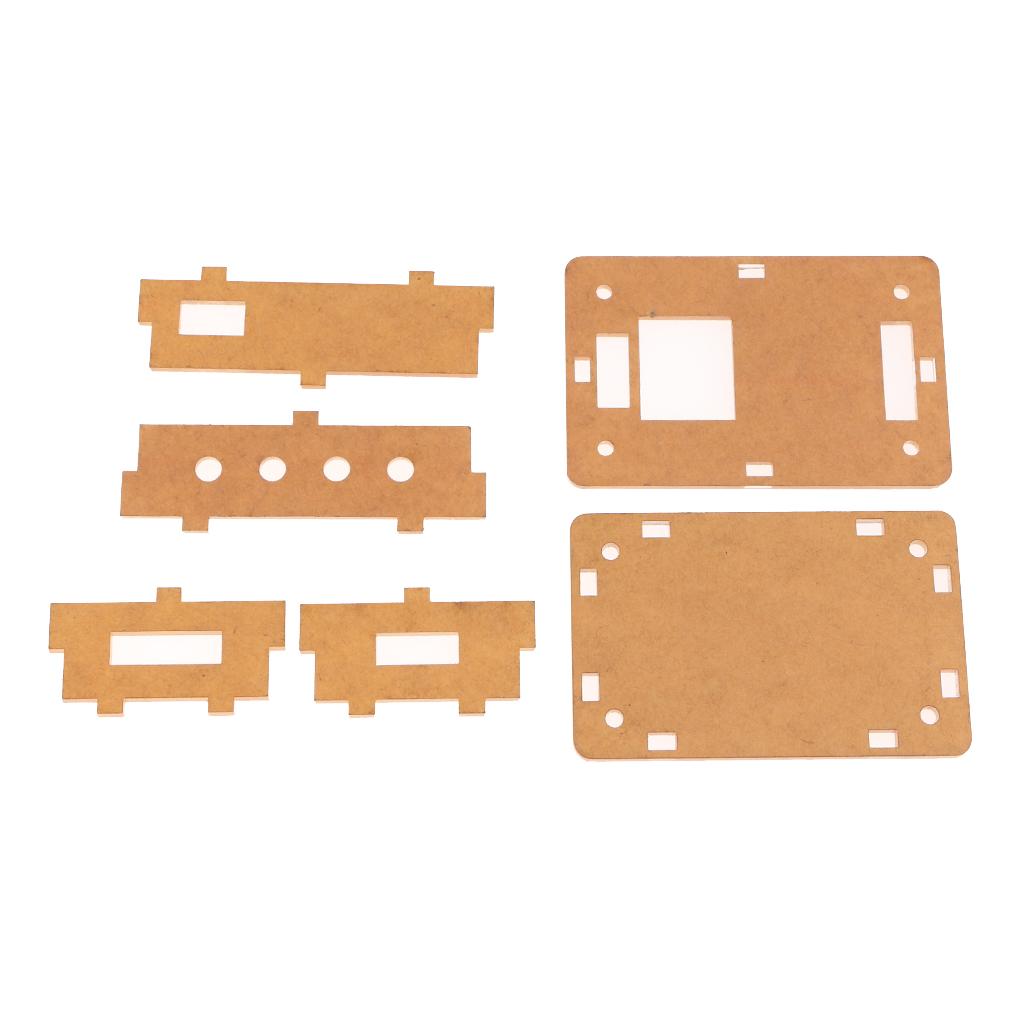

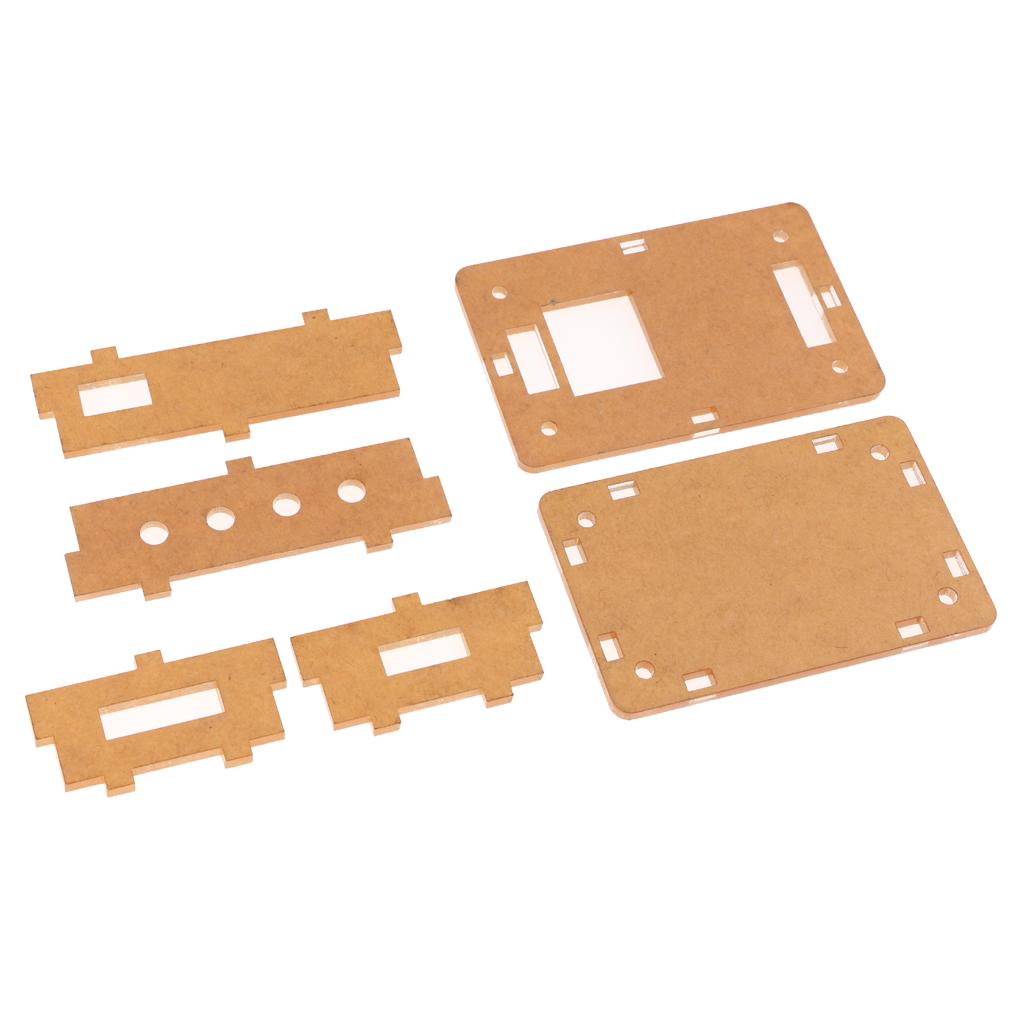

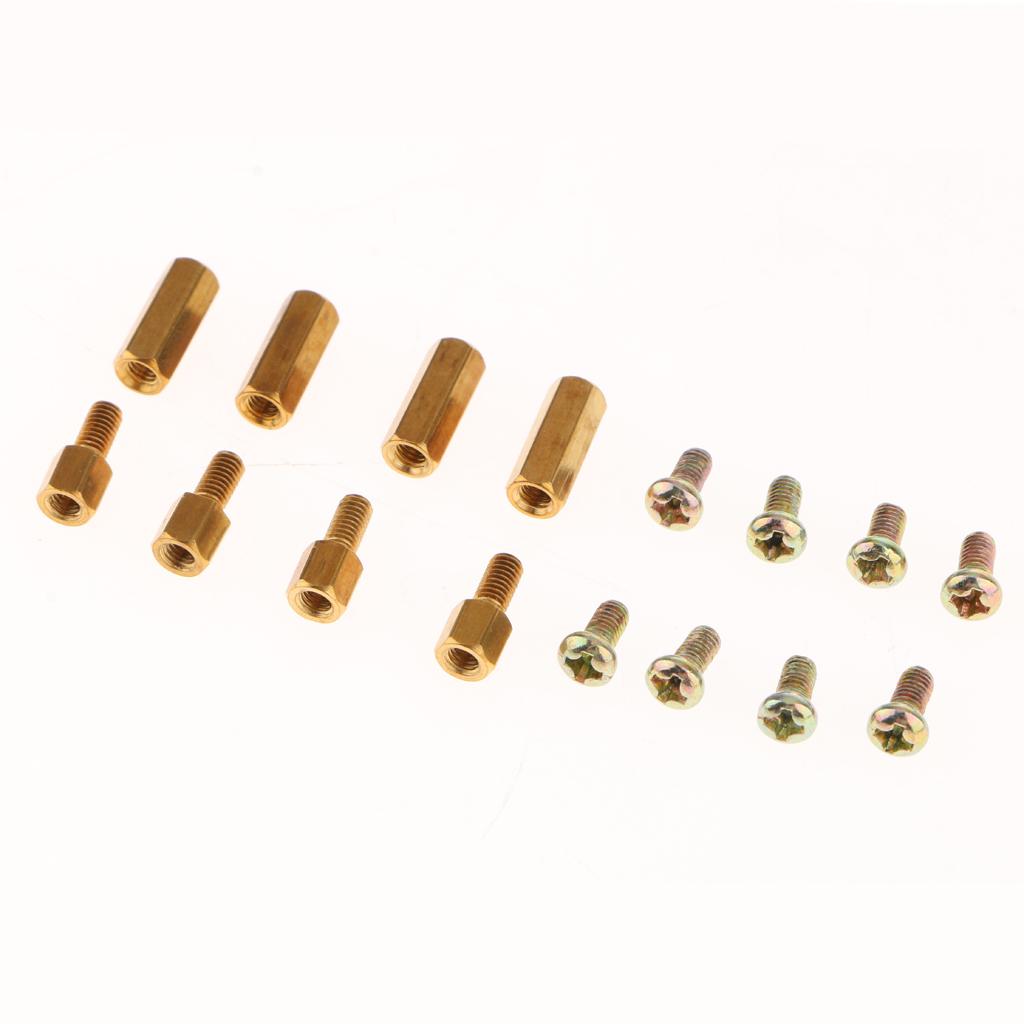

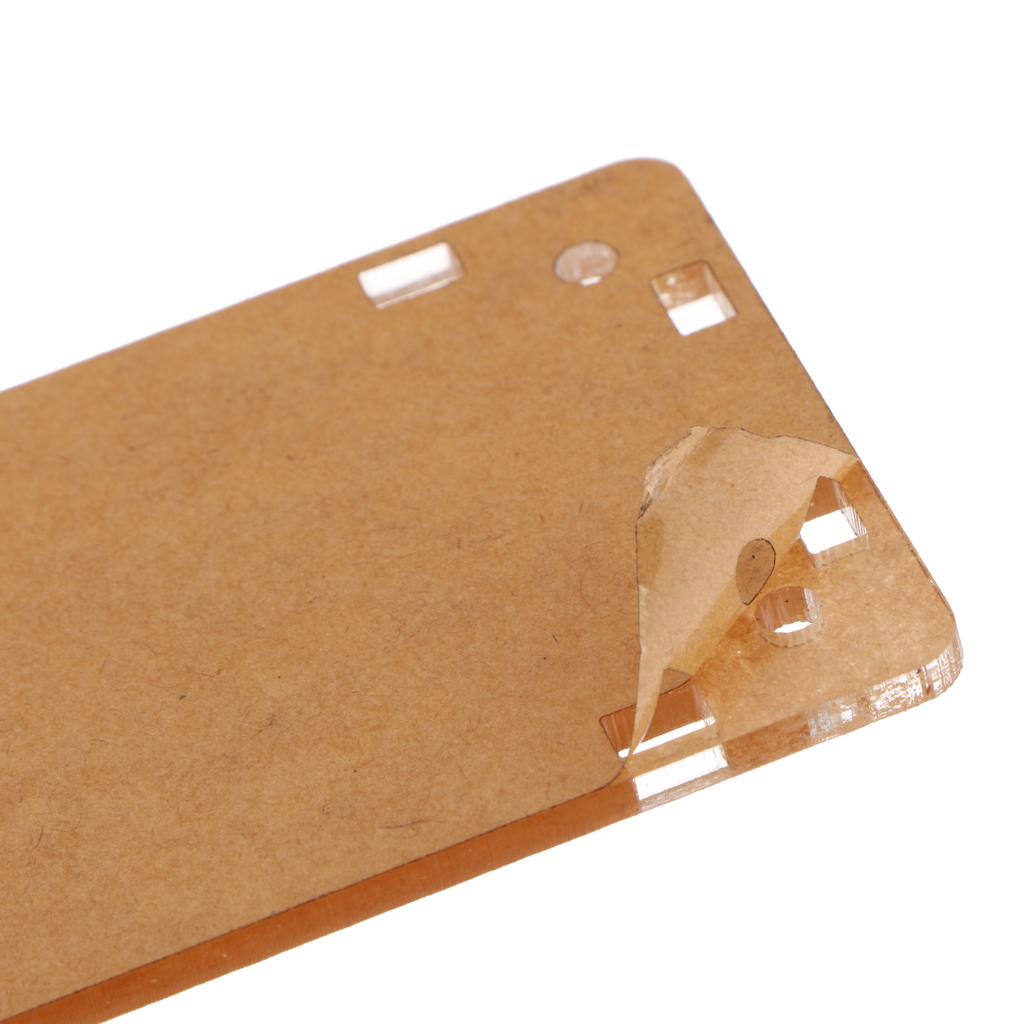

A pack of outer box elements

Note:

Relay output is passive contact and dead output.Only controlling a circuit to be on or off.
