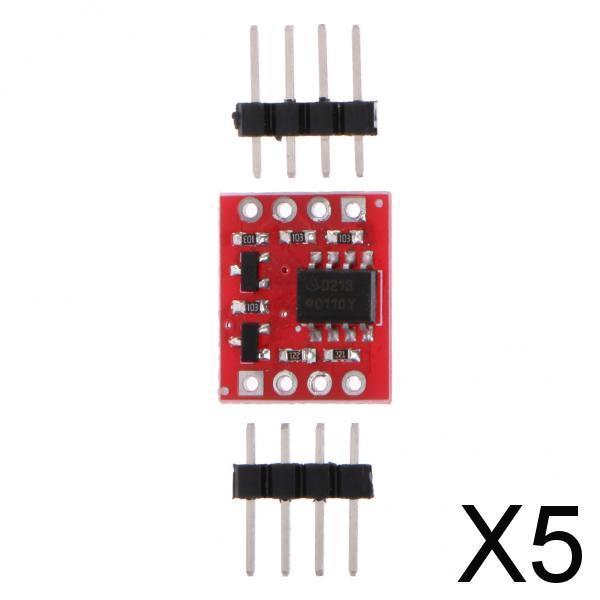

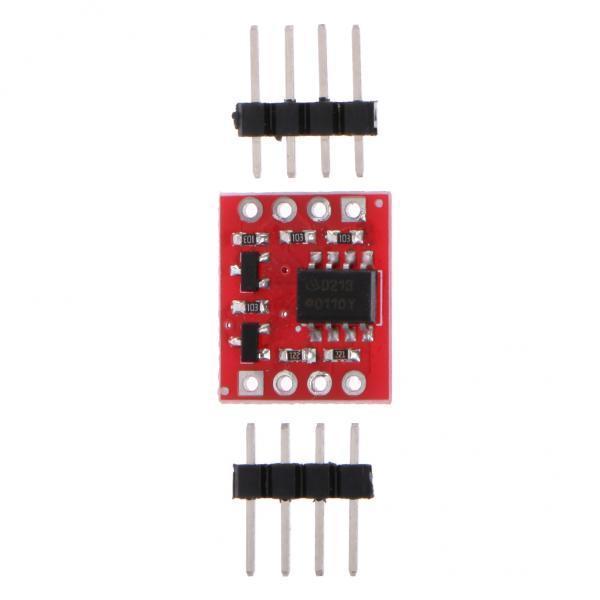

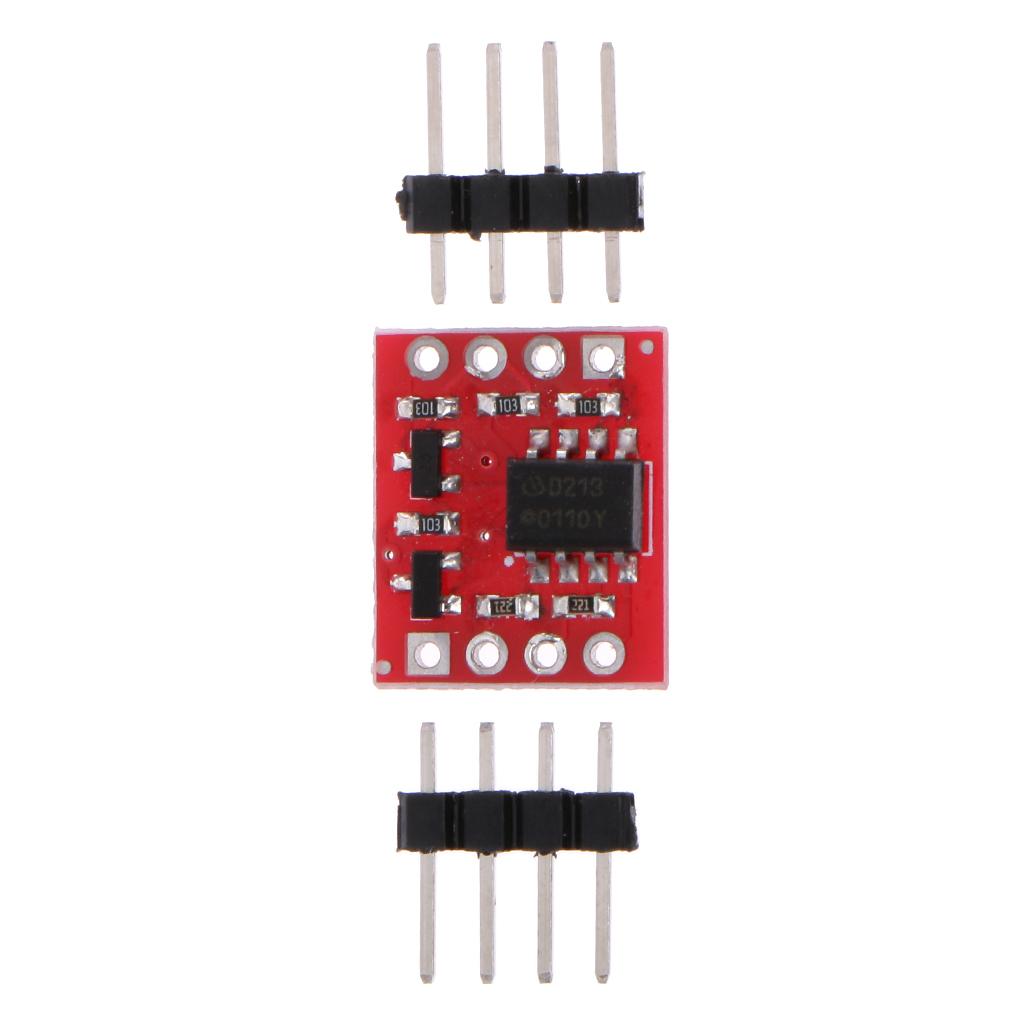

Maxbell 5xRed 2 channel opto-isolator Breakout for optoisolator optocoupler

Description :

• This is a board designed for opto - isolation .
• This board is helpful for connecting digital systems ( like a 5V microcontroller ) to a high - voltage or noisy system .
• This board electrically isolates a controller from the high - power system by use of an opto - isolator IC .
• This IC has two LEDs and two photodiodes built - in . allows the low - voltage side to control a high voltage side . We often use this board to allow a microcontroller control servos or other motors that use a higher voltage than the TTL logic on the ( 3 . 3V or 5V ) micro , and may cause electromagnetic interferance with our system as the motors turn on and off .

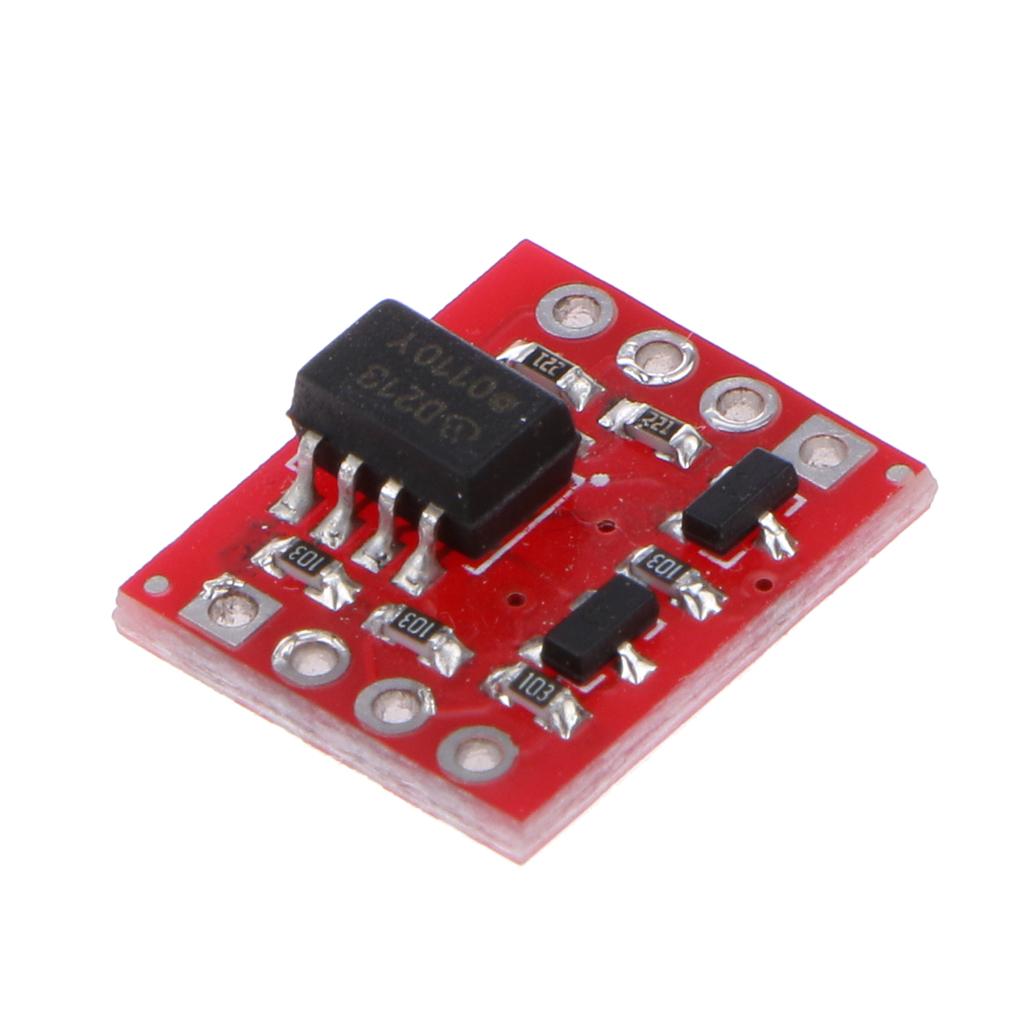

• This board will isolate the systems , creating a type of electrical noise barrier between devices . This breakout board uses the ILD213T optoisolator and discrete transistors to correct the logic .
• Comes with two channels . Great for use in noisy circuits where signal lines require electrical isolation .

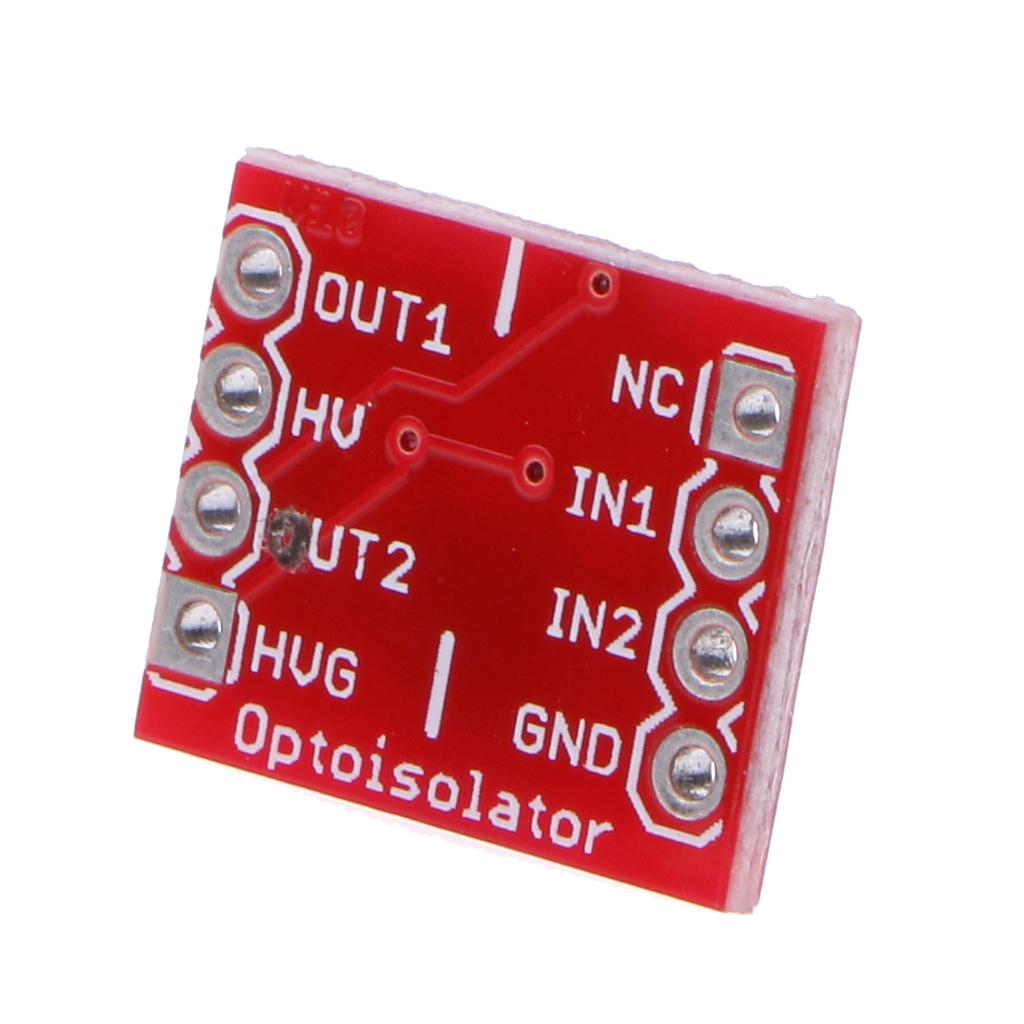

• A normal LED opto - isolator will invert the logic of a signal . We threw some transistors on this compact board to correct the inversion . What you put into the IN pins , will be replicated on the the OUT pins , but at the higher voltage ( HV ).
• Size : 15mm * 12mm * 5mm
• Material : Plastic
• Color : Red

Package Includes :

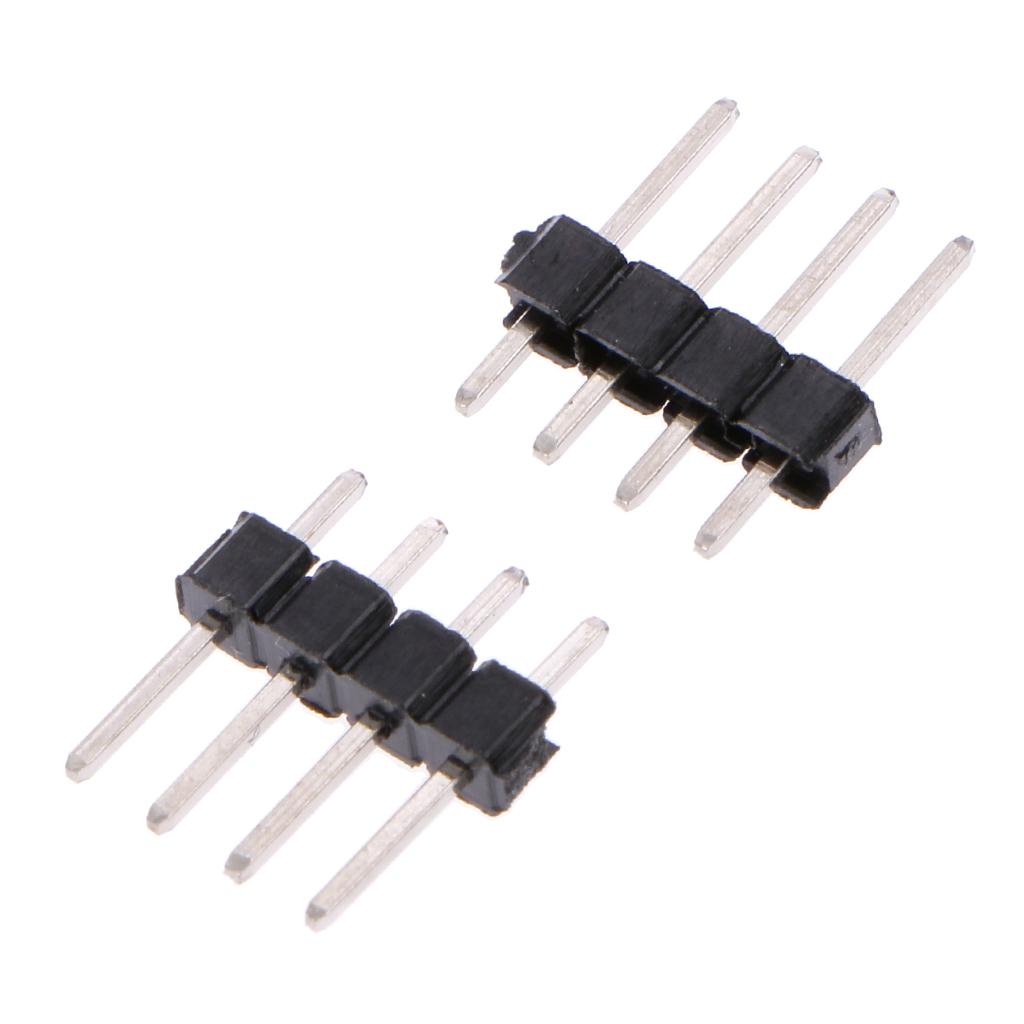

• 1x Module with 2 Pin Headers (5 Pack)
