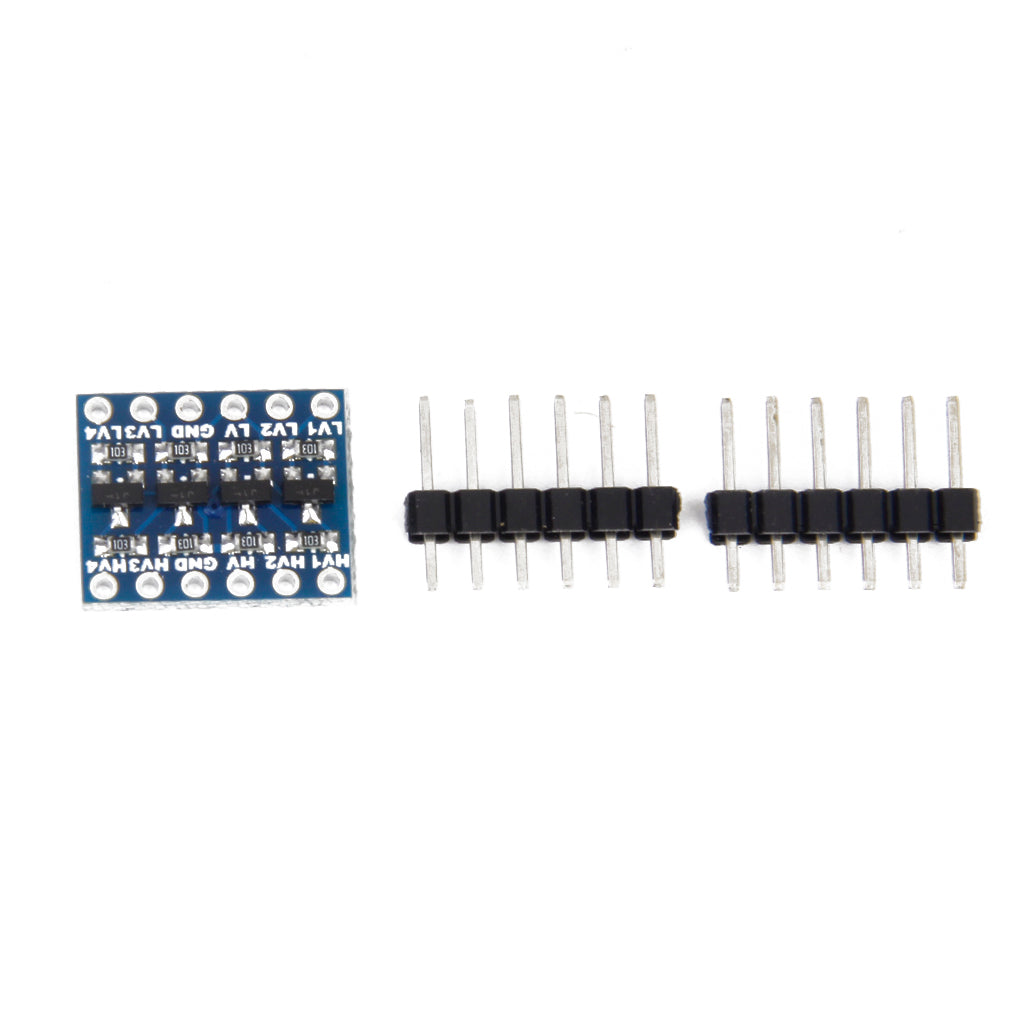

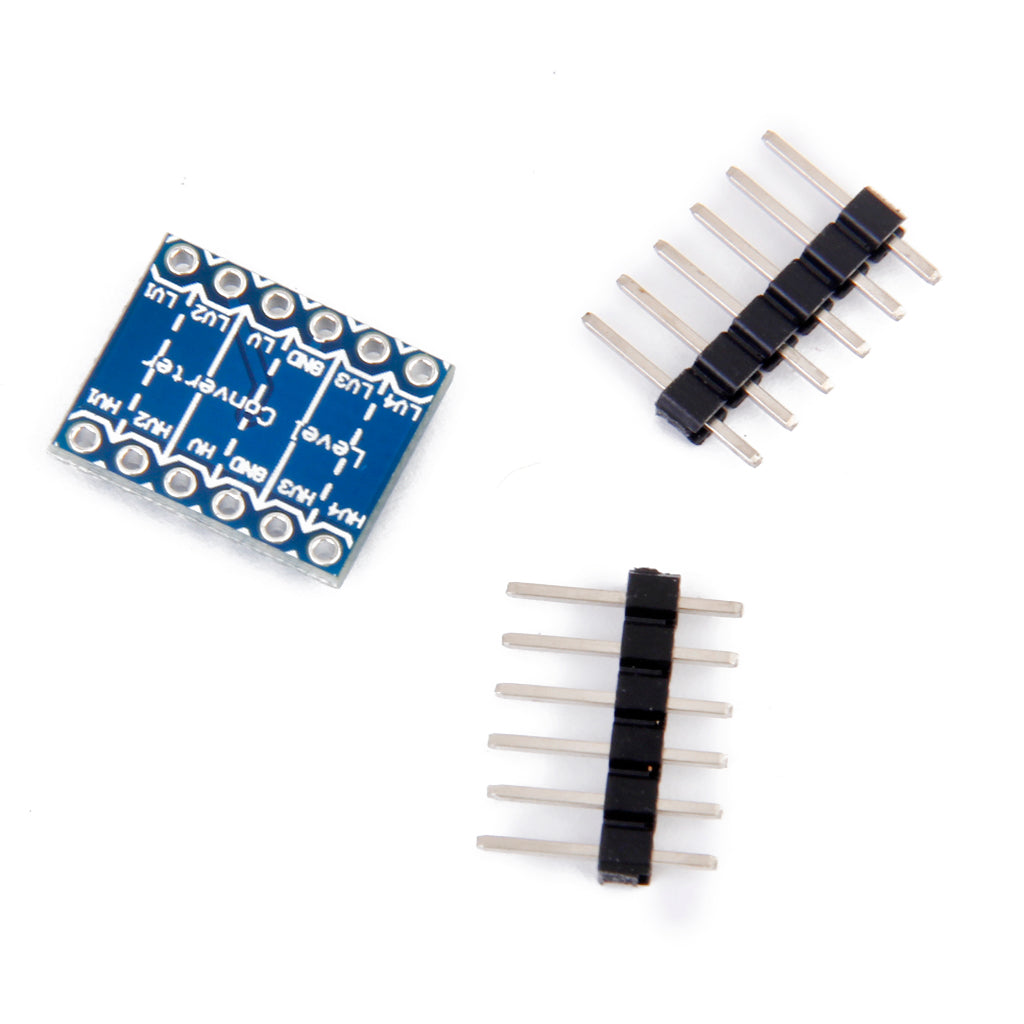

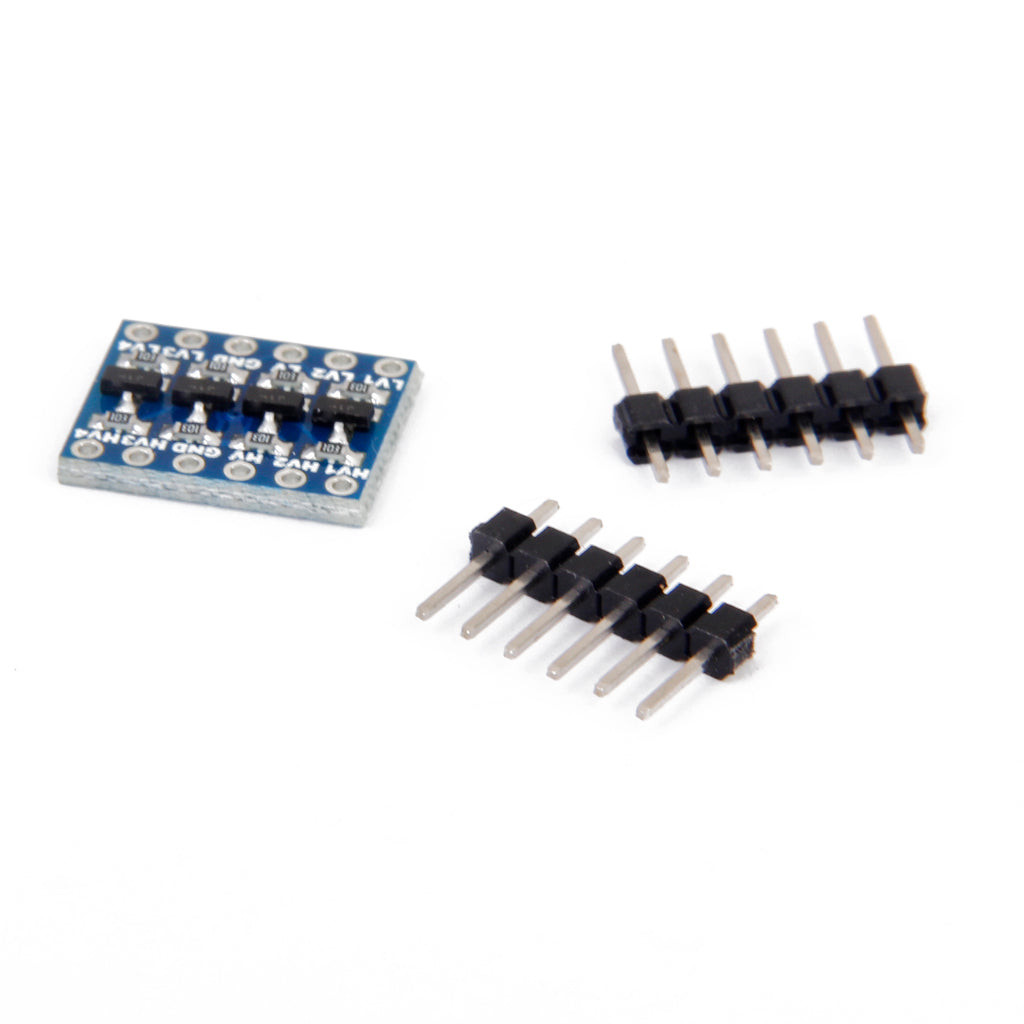

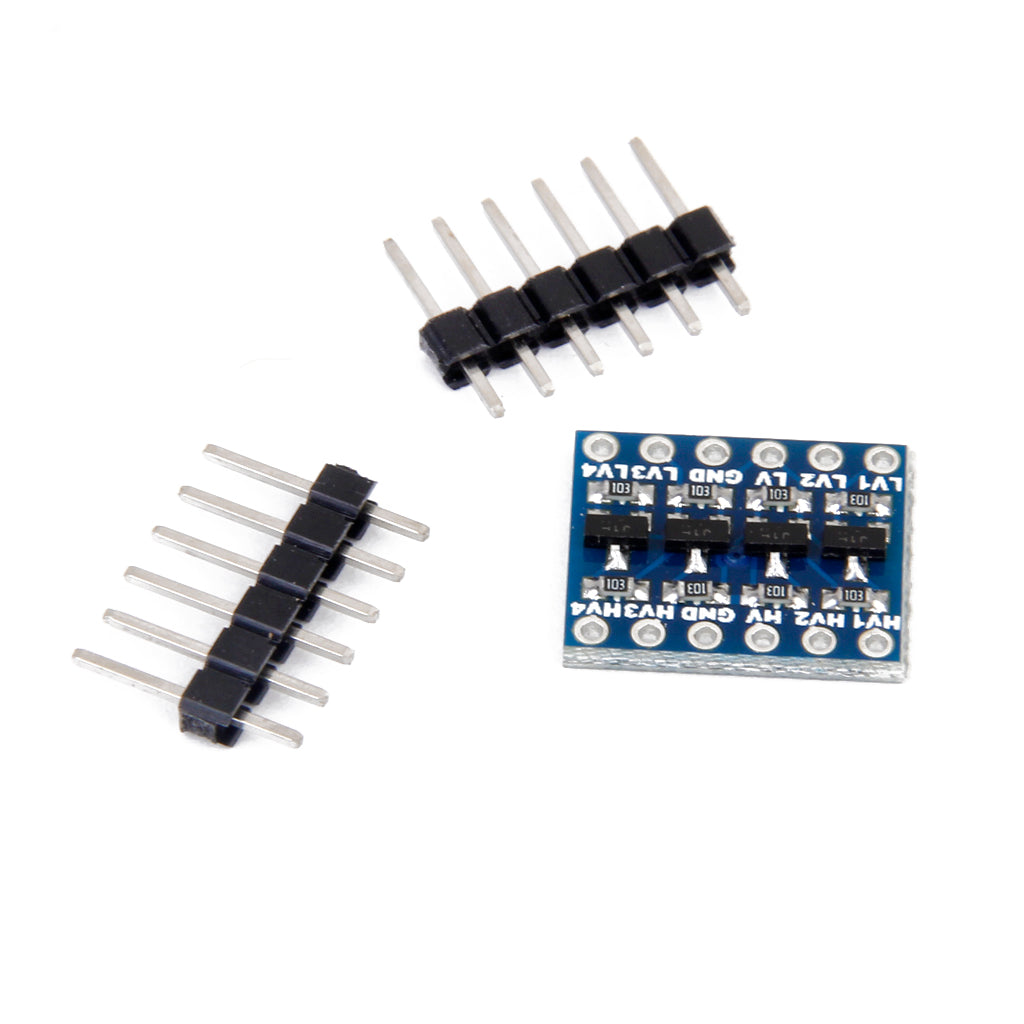

Maxbell 5V to 3.3V I2C IIC Logic Level Converter Bi-Directional Module for Arduino

If you've ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. Bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully

Description:

• Material: Plastic + metal
• Size: Approx 1.3*1.5cm / 0.5*0.6 inch
• Mutual transform between 5V TTL and 3.3V TTL

Features:

• Four channels of logic and high voltage low voltage logic can two-way transform
• Portable and lightness, with 2 rows 6 pin contact pins
• These are 4 Channel devices (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
• Compatible with the bread plate, can be used directly put on the bread board

How to use:

• High voltage (5V for example) to the ‘HV’ pin
• Low voltage (3.3V for example) to ‘LV’
• Gound from the system to the ‘GND’ pin

Package Includes:

• 1 x Logic Level Converter
