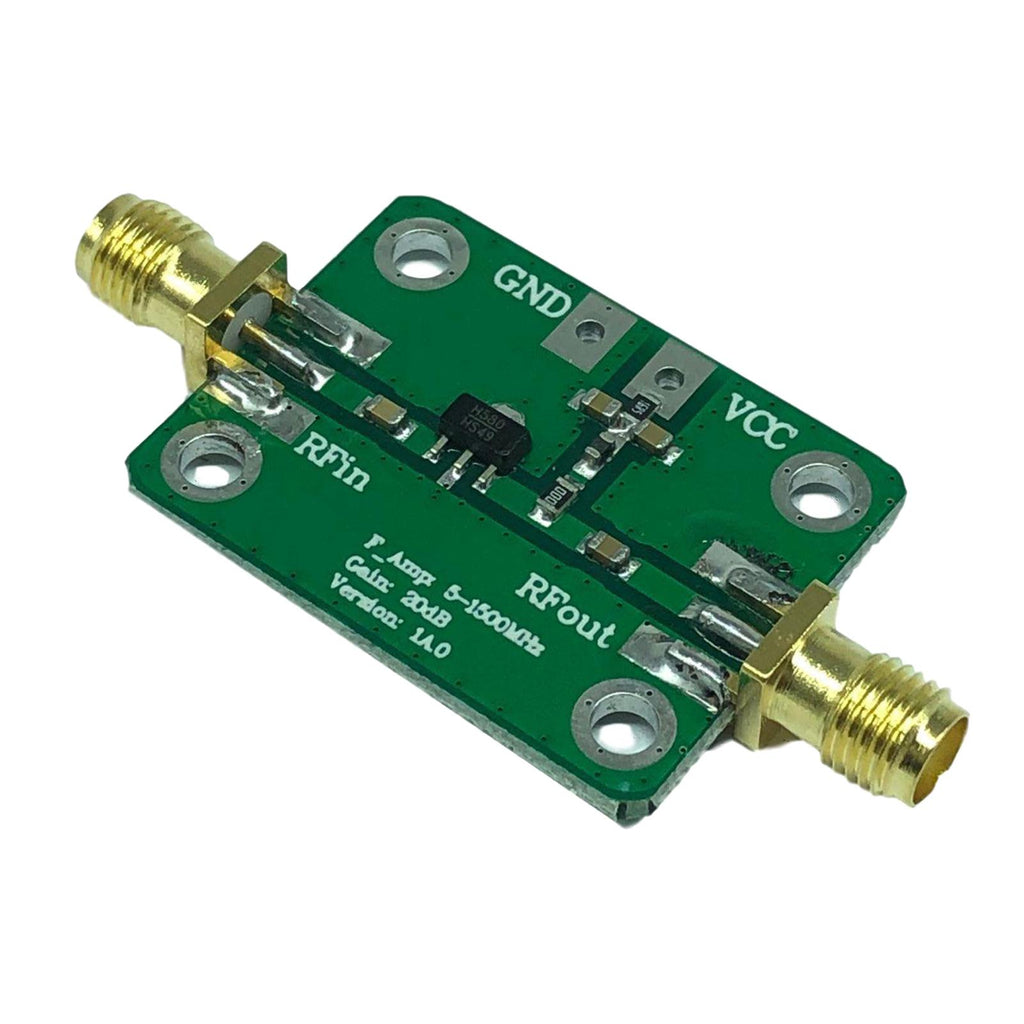

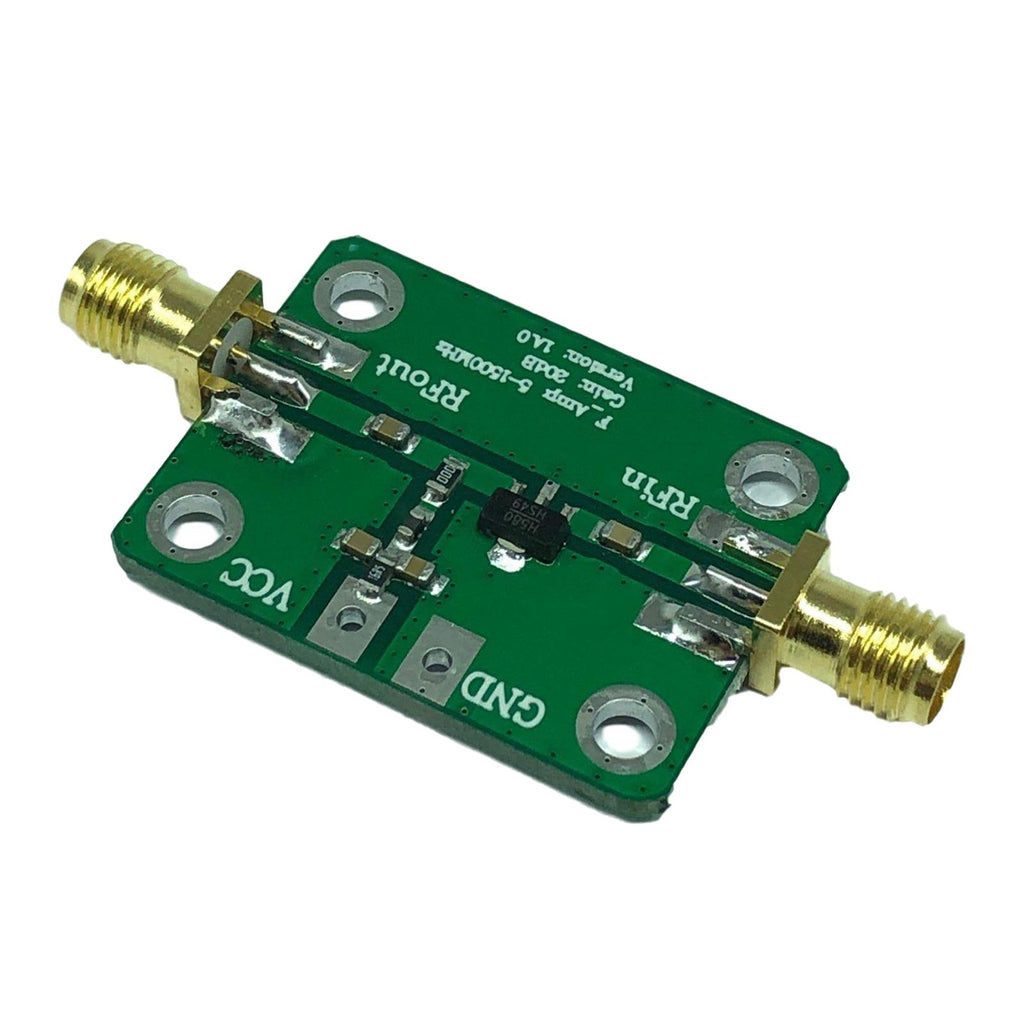

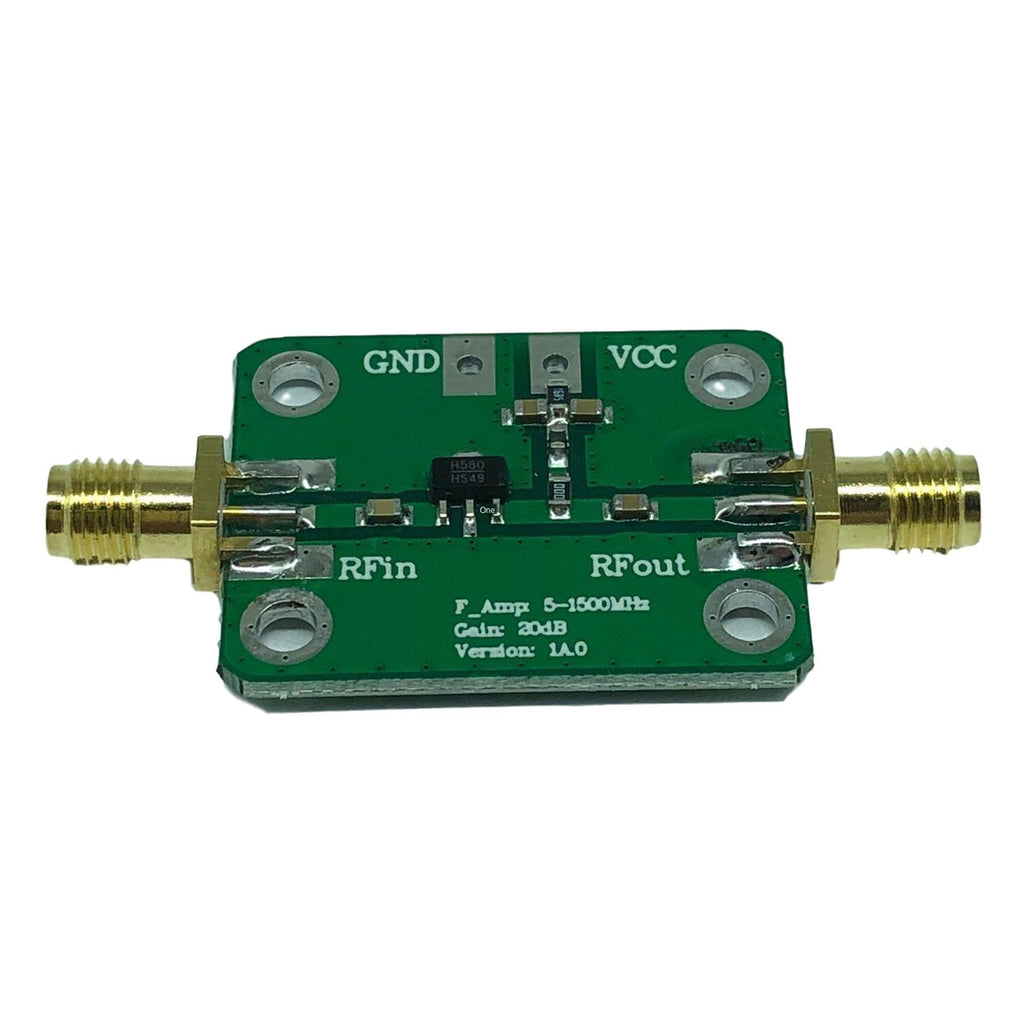

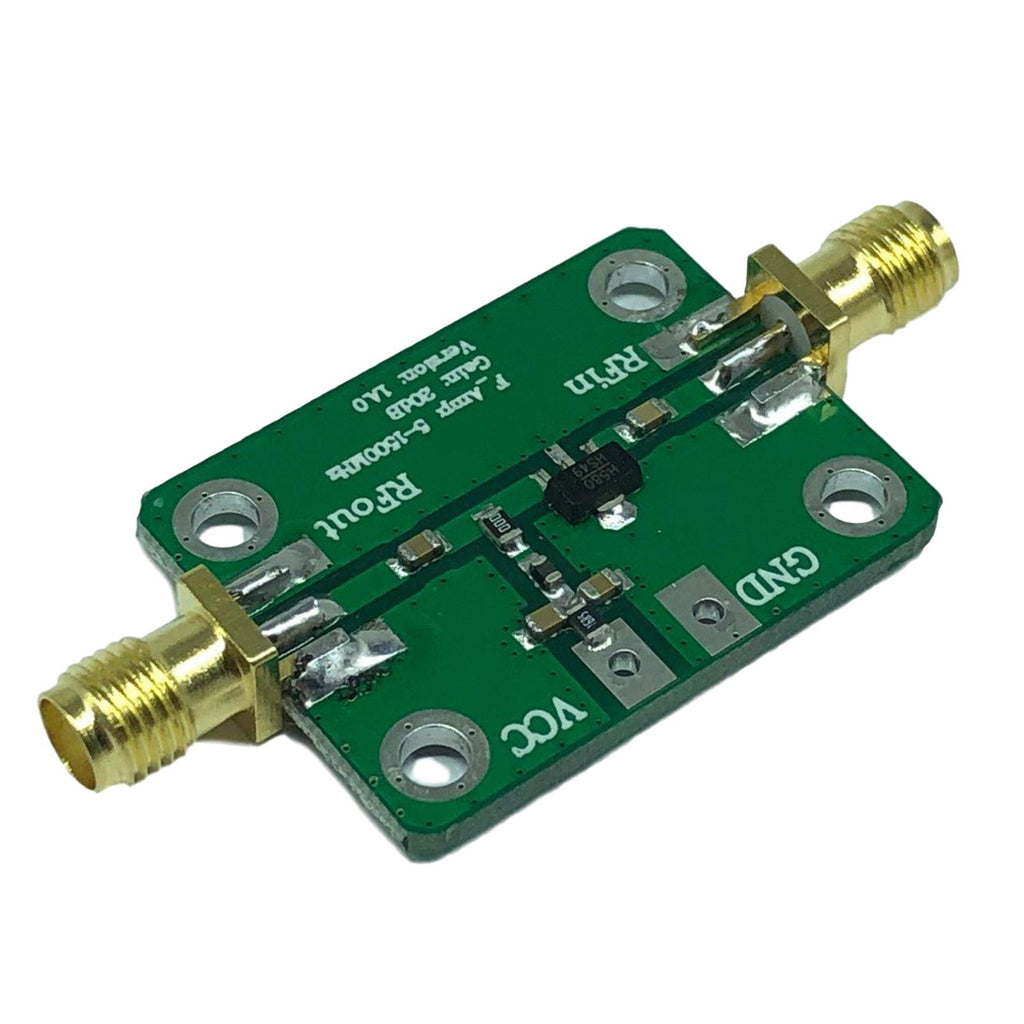

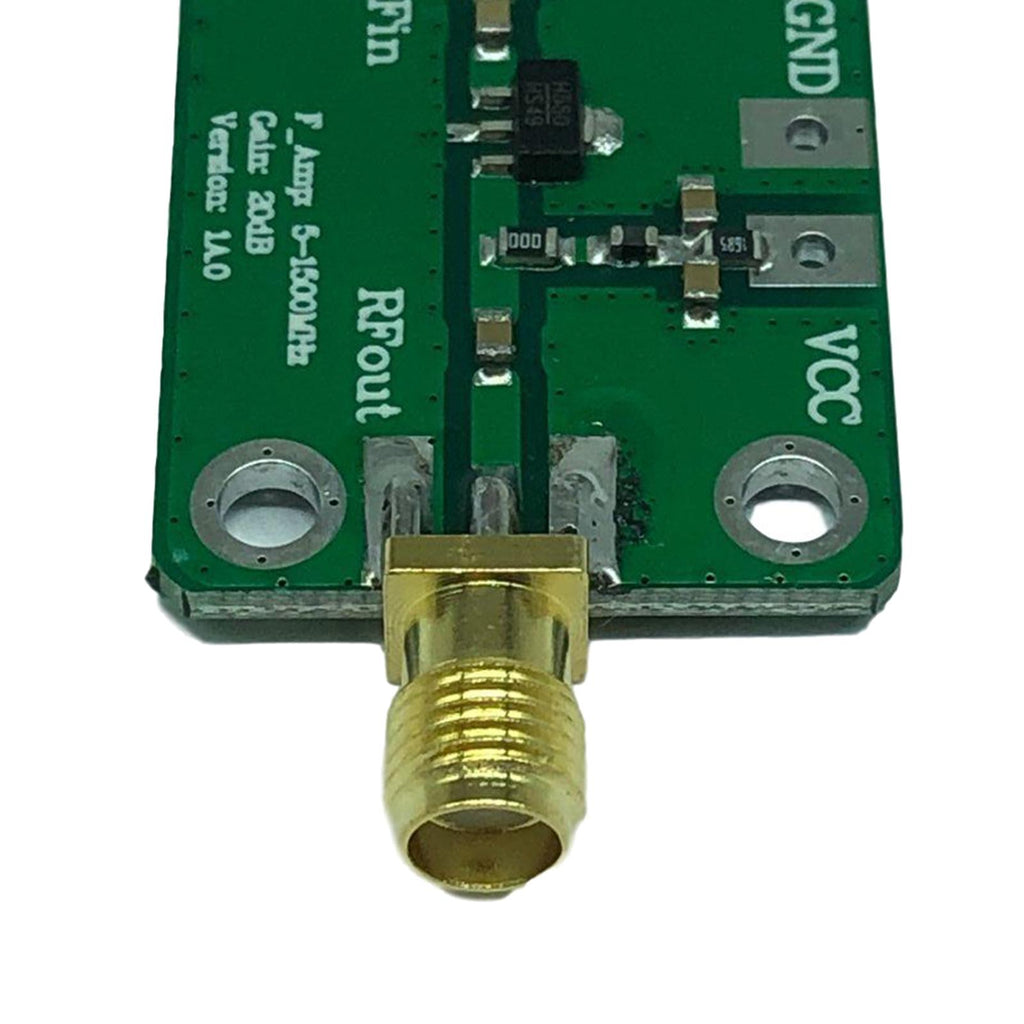

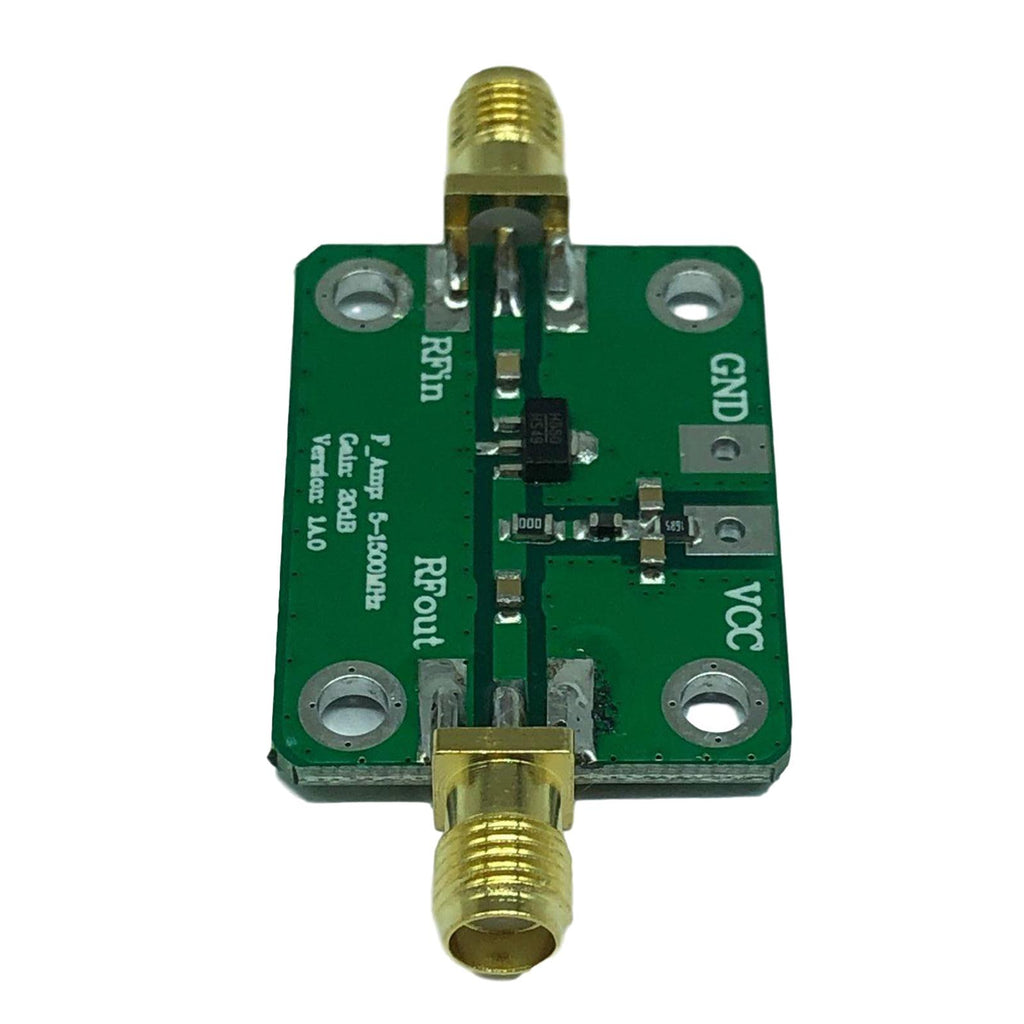

Maxbell 5V Receiver RF Amplifier Gain Module Wideband 20dB Gain Broadband Board
Description:
This is 5--1500MHz (20dB) amplifier module, large dynamic range and wide frequency range.
This provides communication between the receiver and the transmitter.
Widely used in FM radio, remote control receiver, cable TV, GPS, Beidou receiver, Wifi Bluetooth receiver circuits, etc.
Low noise and high overload amplification circuit.
It is suitable for fixed gain amplification of various RF signals.
Specification:
Material: Electronic Components
Operating frequency: 5-1500mhz
Power gain: 20dB
Maximum output power: +20dBm (100mW) @1dB compression point
Operating current: 85mA (5V)
Supply voltage: 5VDC
System impedance: 50 ohm
Size：approx. 32x24mm/1.25x0.94inch.
Weight:10g
Package Includes:
1 Piece Digital Amplifier Board
Note:
Please allow slight dimension difference due to different manual measurement.
