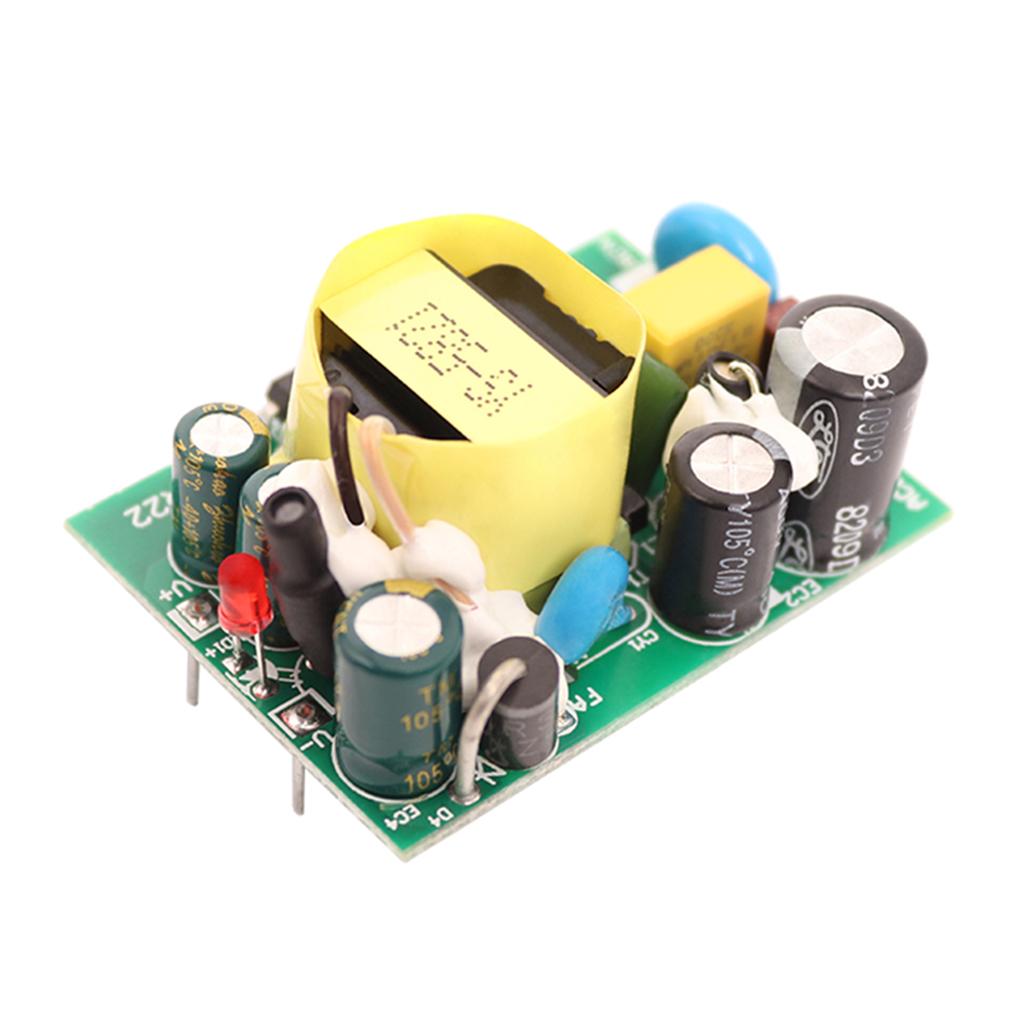

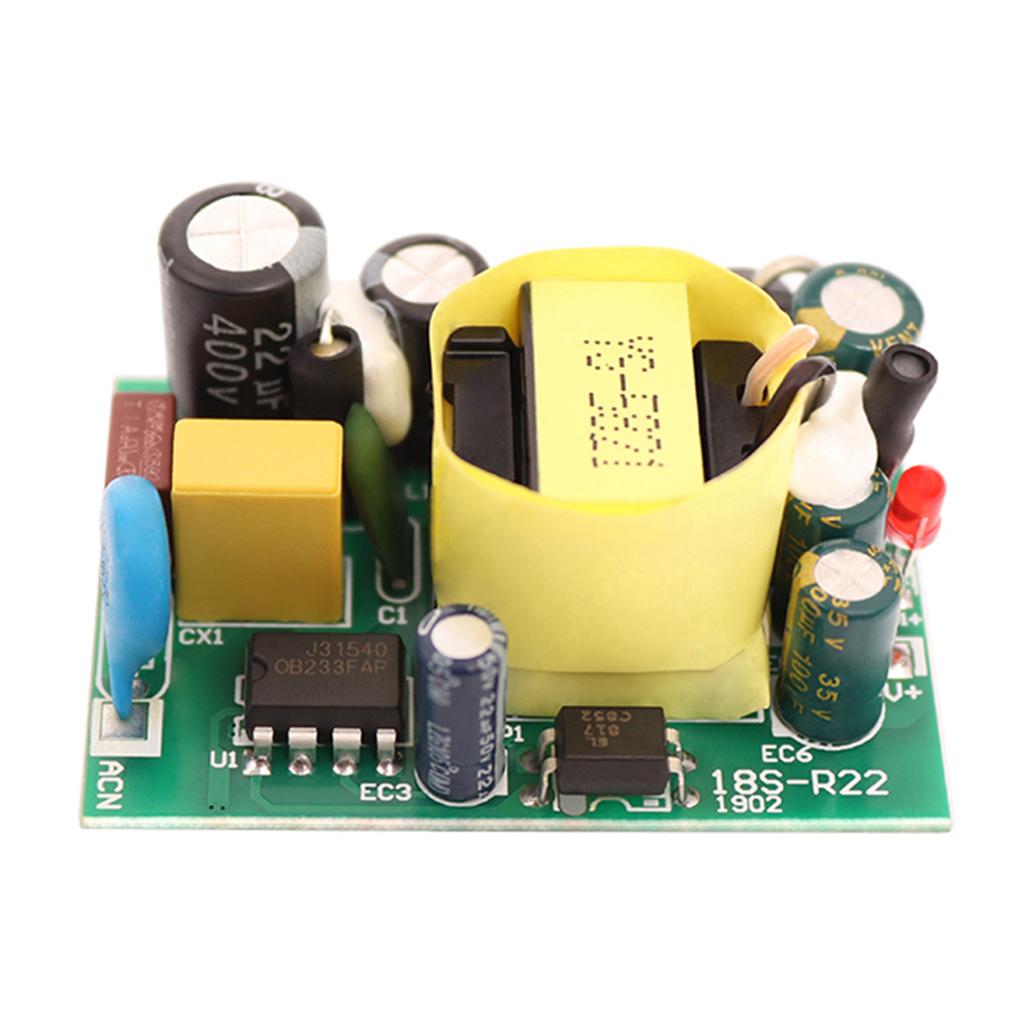

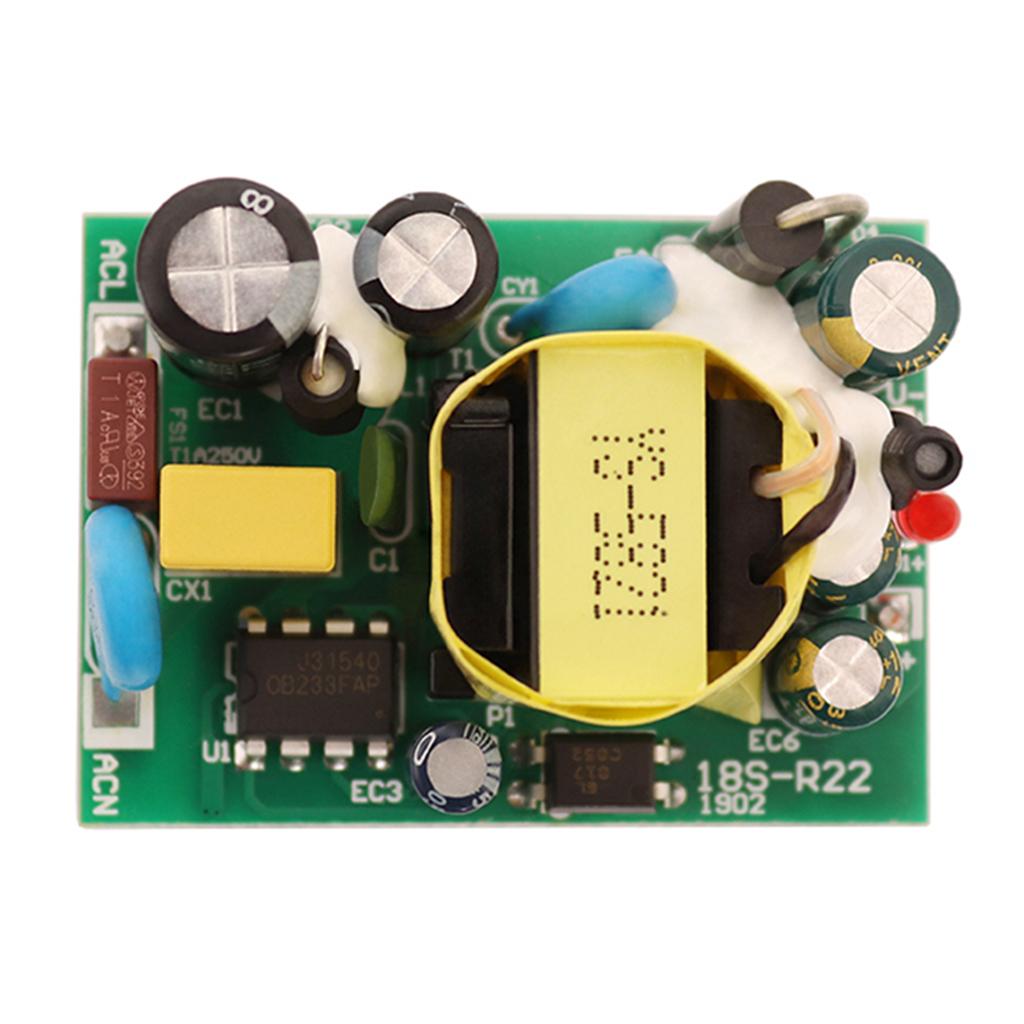

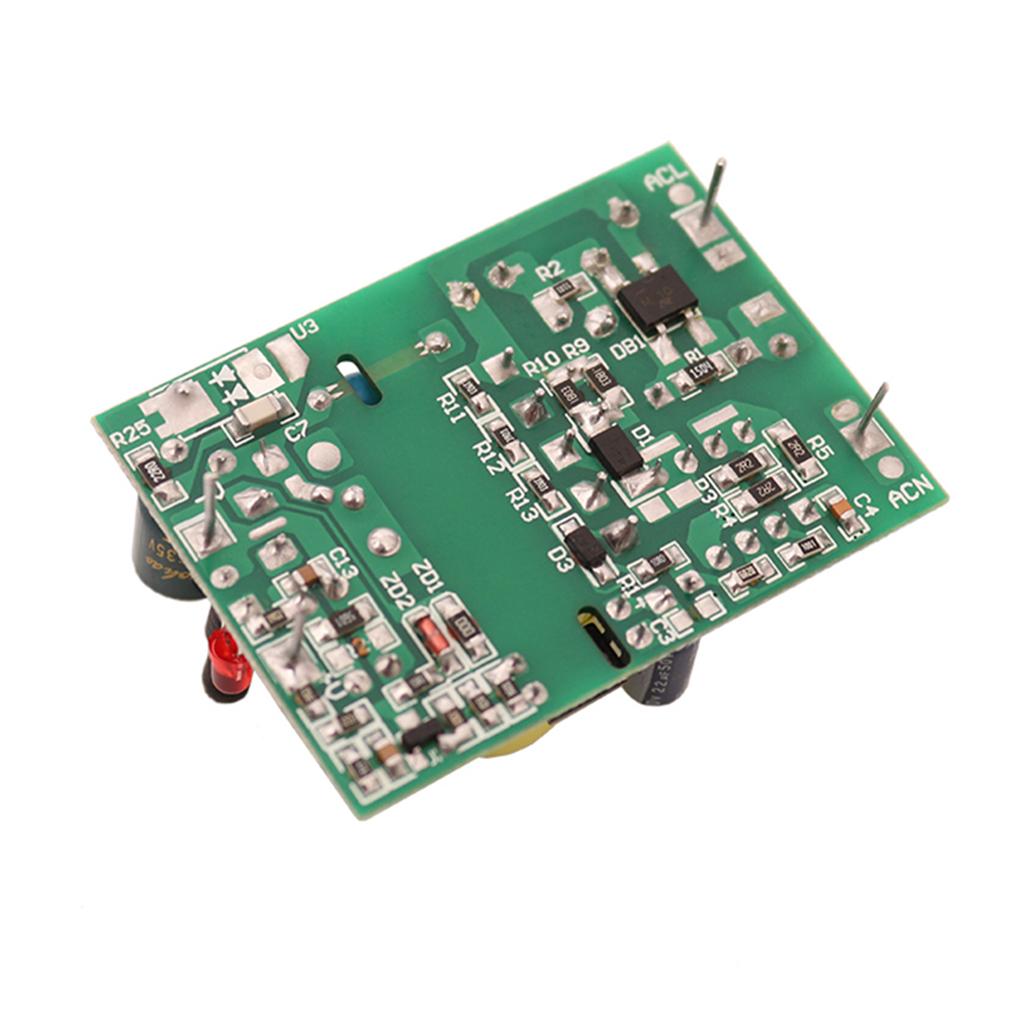

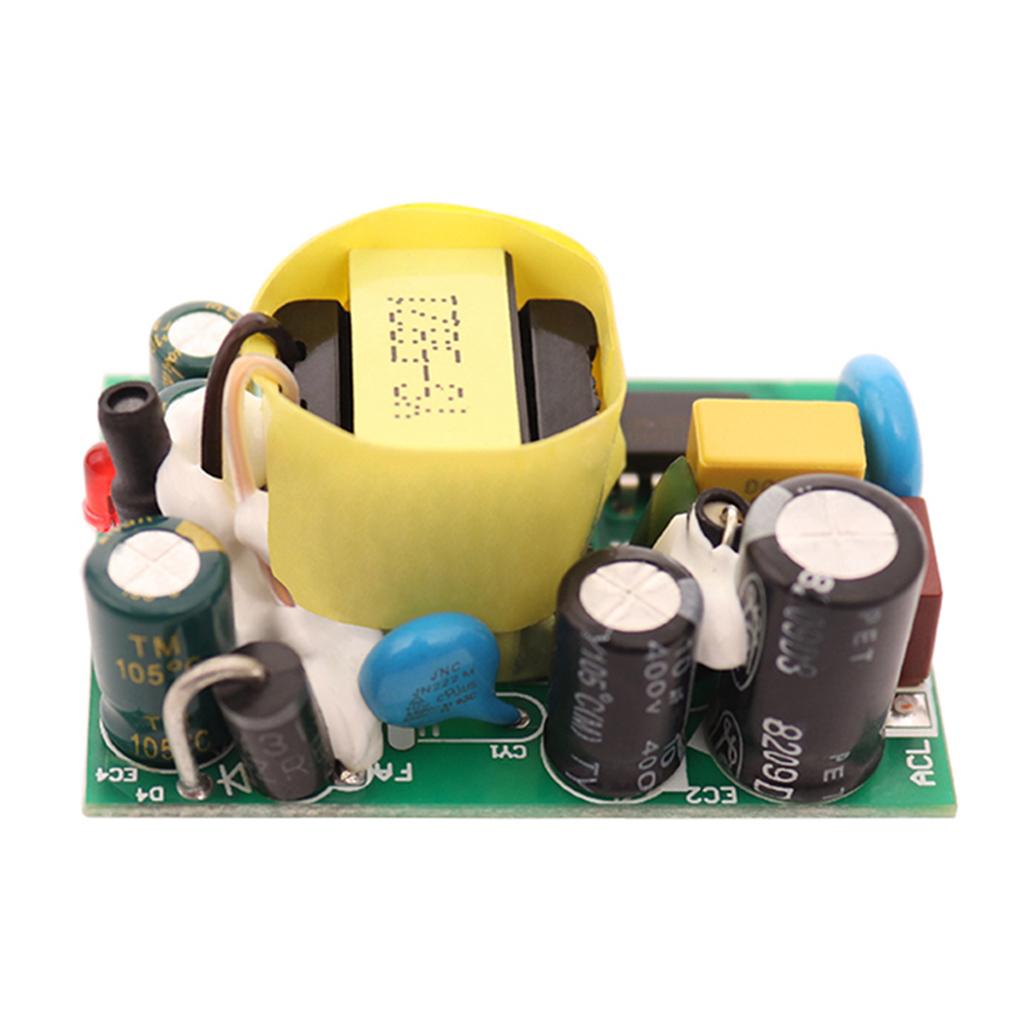

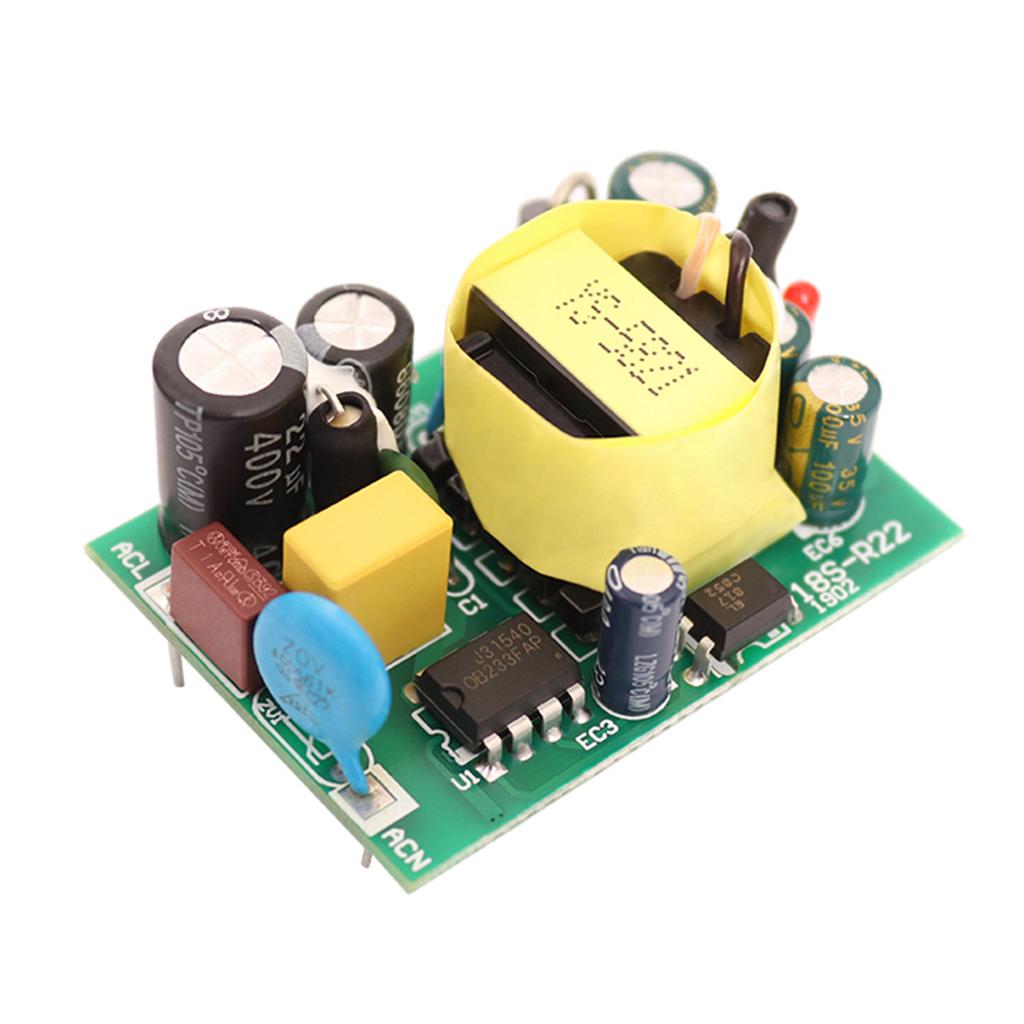

Max 5V 3A Switching Power Supply Board Converter Module 220V to 5V 18W
Description:
Wide input voltage range
Overload, short circuit, overvoltage protection
Small size, high efficiency
Low no-load power consumption
Meet CE certification requirements
Specification:
Output voltage: 5V
Rated current: 3A
Current range: 0-3.5A
Ripple: ＜80mVp-p
Output voltage range: 4.95-5.2v
Voltage regulation: ±1.1%
Load regulation: ±1.5%
Rated power: 17.5W
Efficiency: 83.5%
Input voltage range: 90～264V AC(DC 125V～375V)
Input current: ＜0.2A
Frequency range: 47Hz-63Hz
No-load power consumption: 220VAC IN:＜0.3W; 110VAC IN:＜0.1W
Inrush starting current: COLD START ＜30A/230VAC IN
Leak current: ＜3mA/220VAC
Overpower protection: 150-170% rated power, Fault removal automatic recovery
Over-voltage protection: VH1:＞50%
Output short circuit protection
Operating temperature & humidity: -20℃～+40℃@100%LOAD, +60℃@60%LOAD; 20%-90% RH
Storage temperature & humidity: -30℃～+85℃; 10%-95% RH
Withstand voltage: I/P-O/P: 3KVAC 1min.
Insulation resistance: I/P-O/P: 500VDC/100M Ohms
Size: 50x36x21mm
Weight: 35g
Package Includes:
1 x 5V 3A Switching Power Supply Board Module
