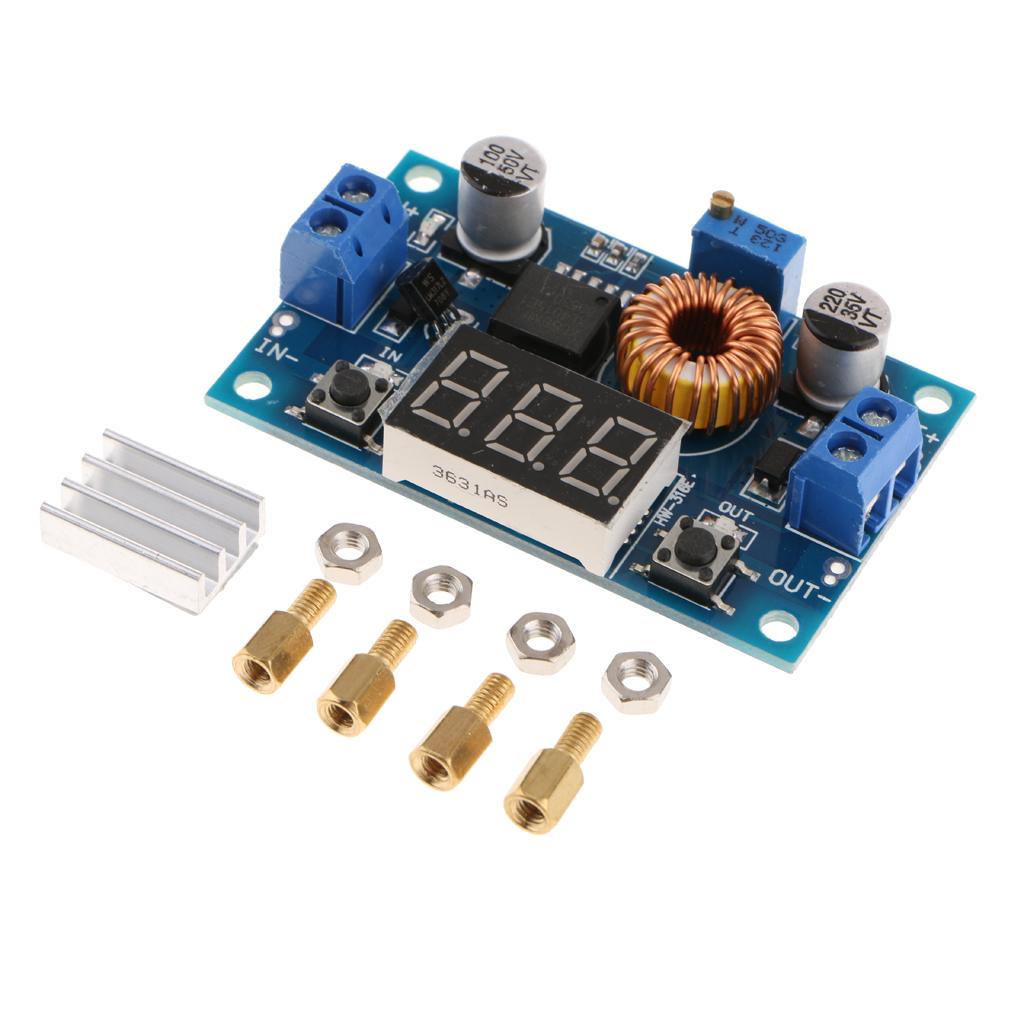

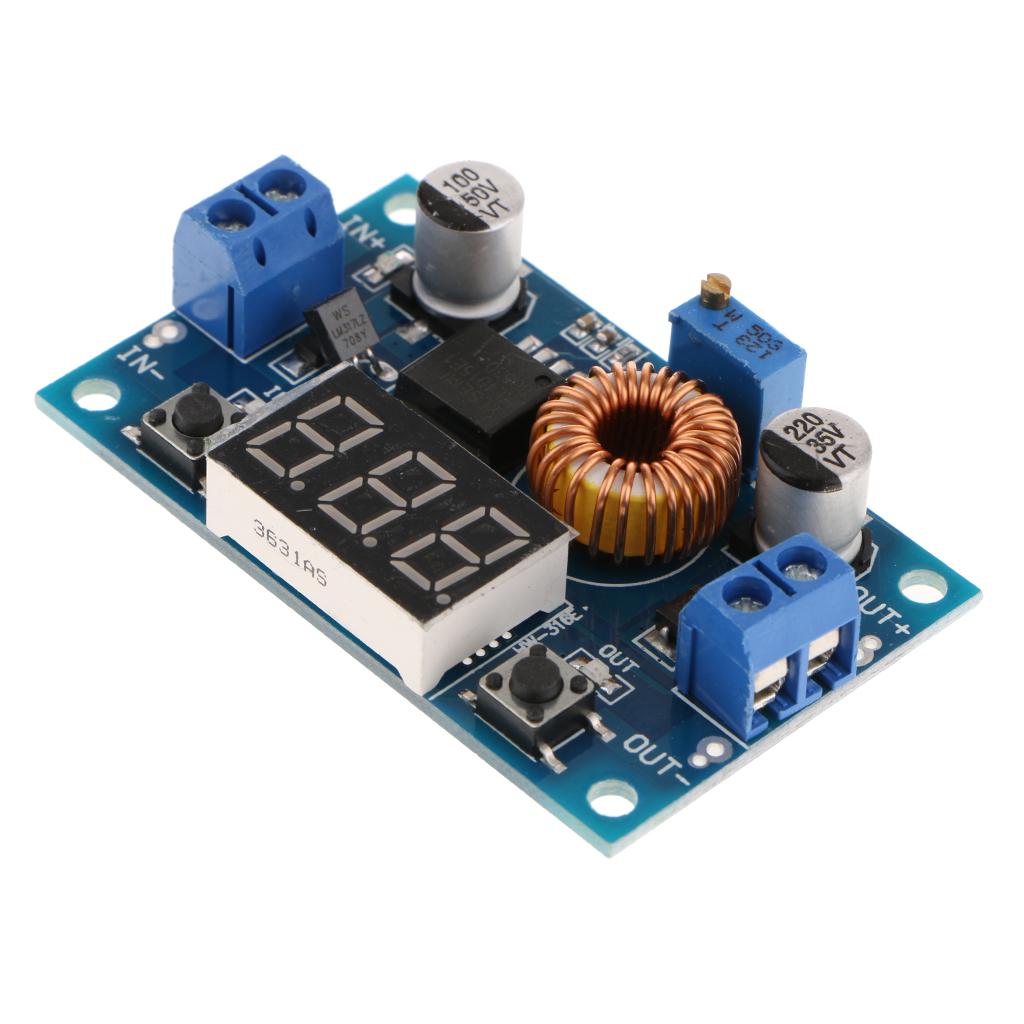

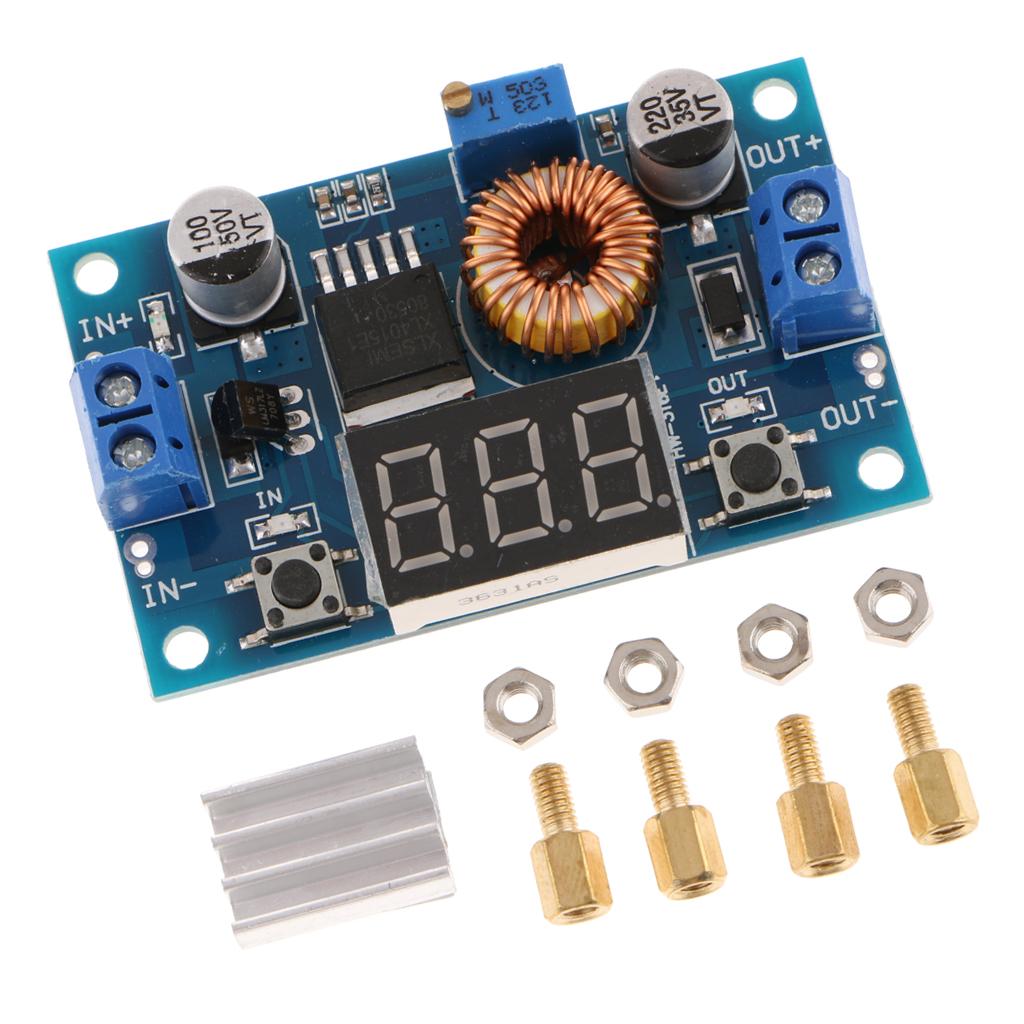

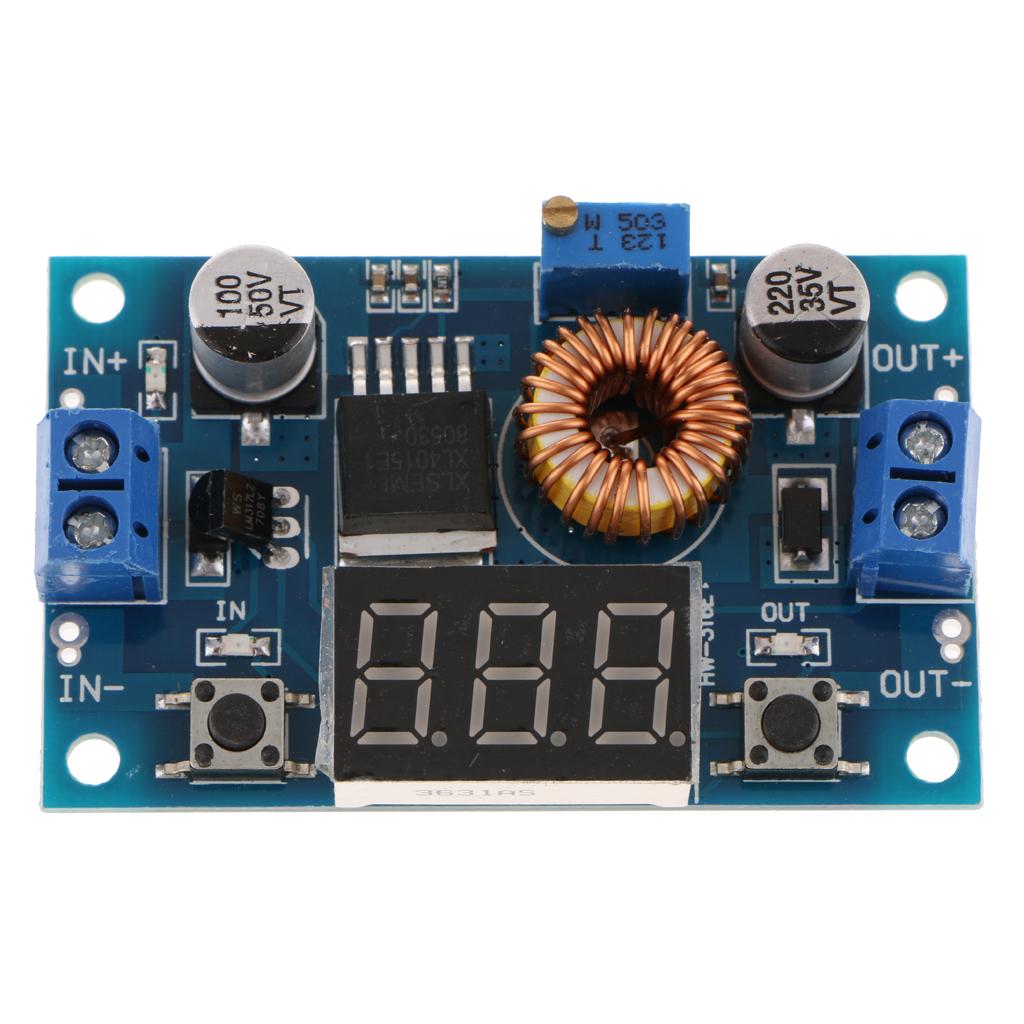

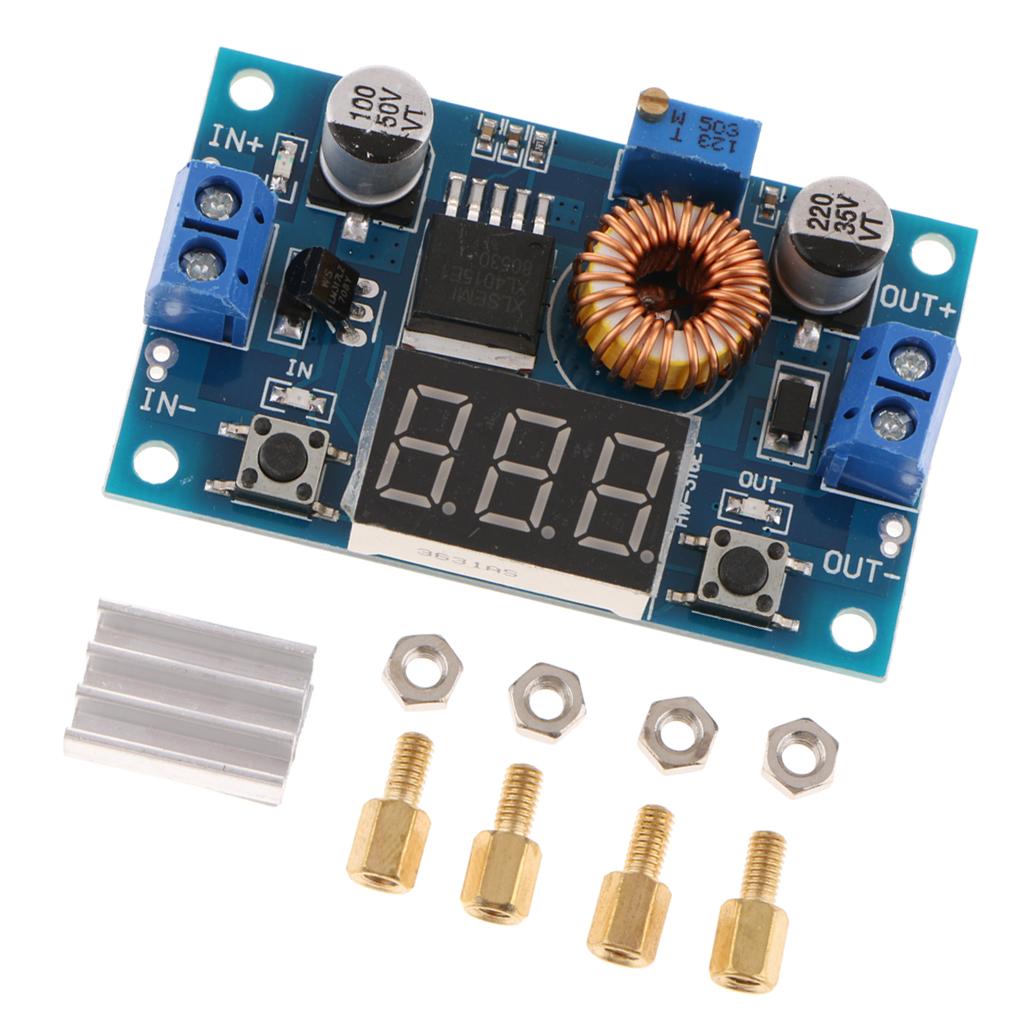

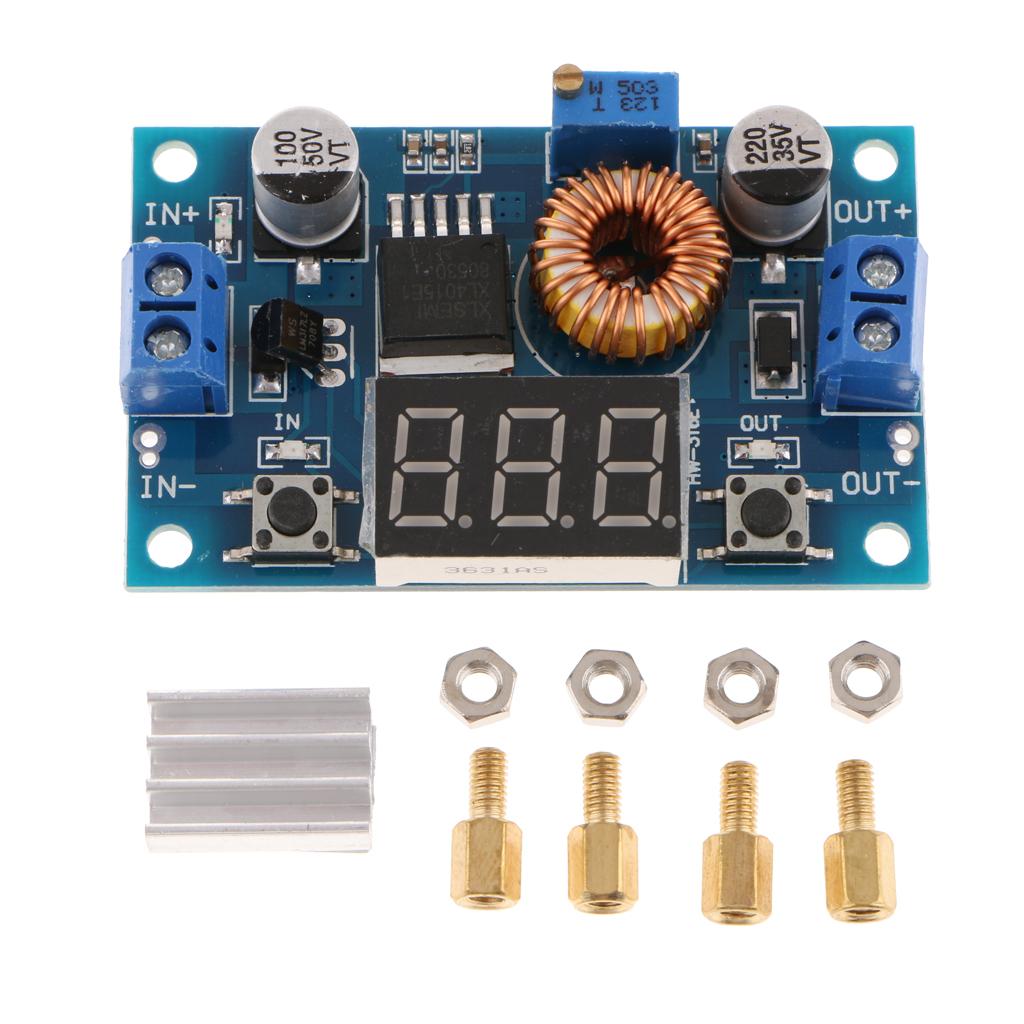

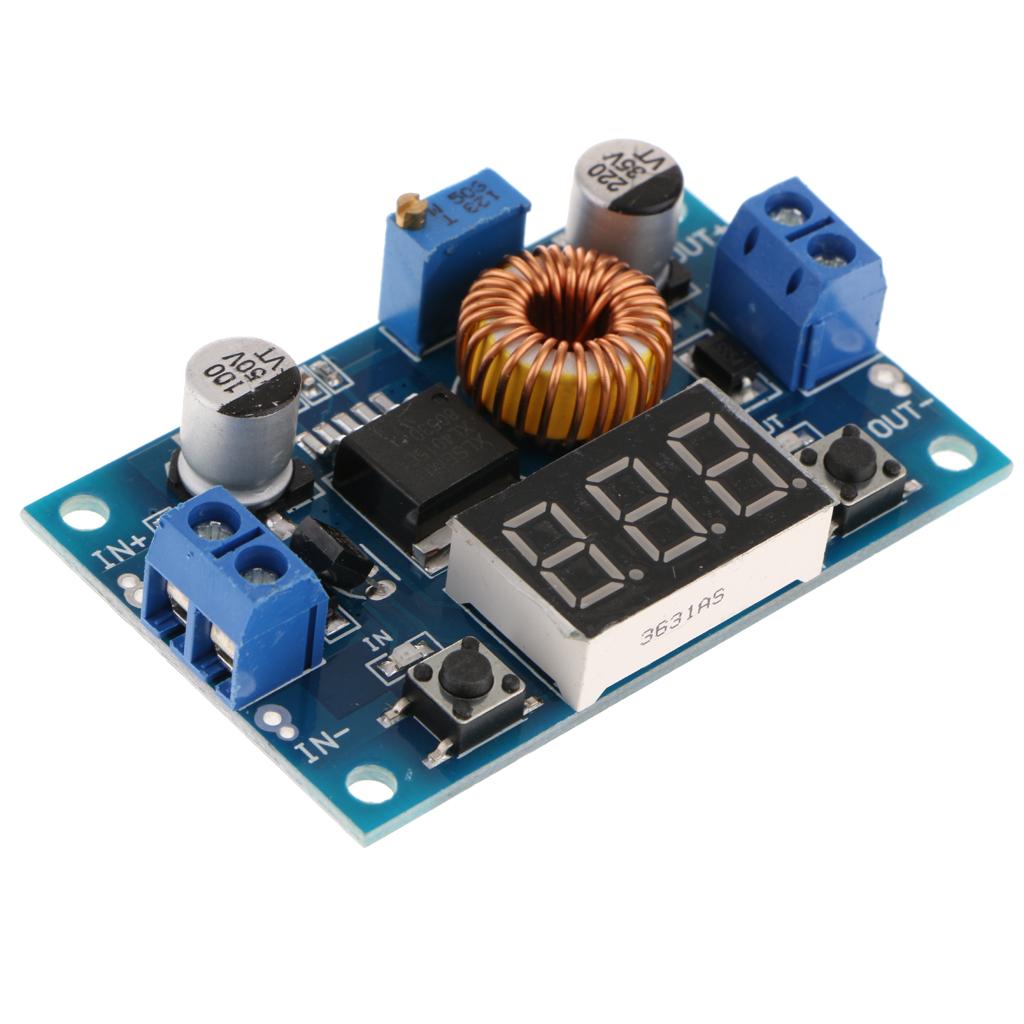

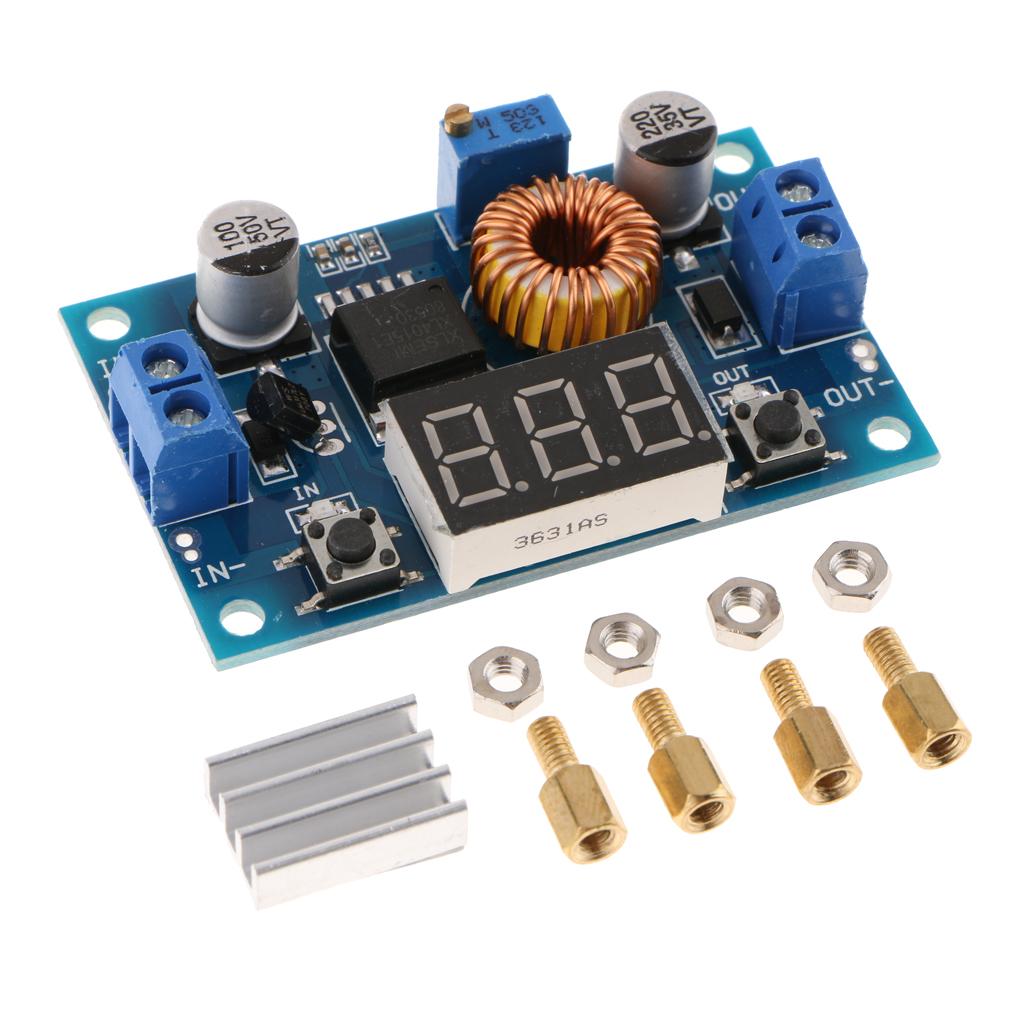

Max 5A 75W DC to DC Set Down Volt Constant Volt Converter with Display Voltmeter

Description:

Parameters:

Model: XL4015

Input Voltage Range: 4.0V-38V(input voltage should be 1.5V higher than output voltage)

Adjustable Output Voltage Range: 1.25V-36V continously adjustable (input voltage should be 1.5V higher than output voltage)

Maximum Output Current: 5A (recommend use below 4.5A)

Maximum Output Power: 75W

Maximum Conversion Rate: 96% (related with input, output voltage, current,differential pressure)

Load reglation S（I）≤0.8%，

Voltage regulation S（u）≤0.8%

Size(LxWxH): approx. 60x37x18mm/2.36x1.46x0.71inch

Weight: 28g

Features:

1.With Power Indicationg Light.

2.Output voltage self-adjusted display. We used more advanced voltage microprocessor,the voltage error is ±0.05V,range 0-40V.(Please make sure that the input voltage is above 4.5V that will ensure the accuracy of voltage gauge.)

3.Press the button slightly will switch input or output voltage, and the indicating light will show which way voltage is measured,and will save set voltage even when cut off the power and start again.

4.The voltage can be turned off just press the button on the left.

5.With wiring terminals that can be used even without soldering iron.

Self-regulation method of the on-board voltmeter:

1.When the on-board voltmeter displays the output voltage, press and hold the right button for 2 seconds and release, the voltmeter and the output voltage indicator “OUT” flash synchronously. At this time, the output voltage adjustment mode is entered; similarly, the voltmeter is displayed. When inputting the voltage, long press the right button for 2 seconds and then release, the voltmeter and the input voltage indicator “IN” flash synchronously, and enter the input voltage adjustment mode at this time;

2.Tap the right button to increase the voltage by one unit. Tap the left button to decrease the voltage by one unit. You need the press 1-5times since the voltage of one unit is less than 0.1V, you need to press 1-5 times to see the voltmeter. Changed by 0.1V, the specific continuous button press depends on the currently displayed voltage value, the higher the current voltage displays , the fewer the number of presses.

3.After the voltage adjustment is completed, press and hold the right button for 2 seconds and then release. At this point, the voltage calibration mode can be exited, and all parameter settings are automatically powered down.

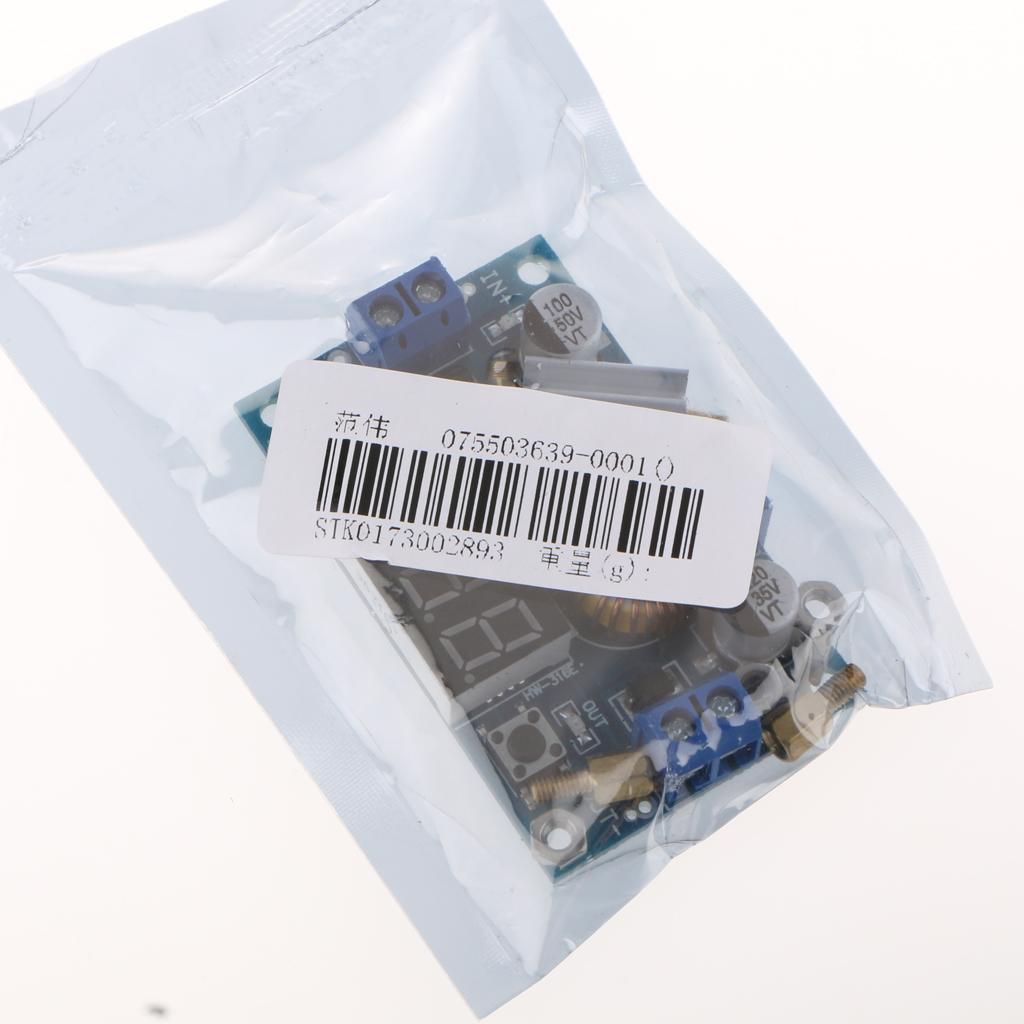

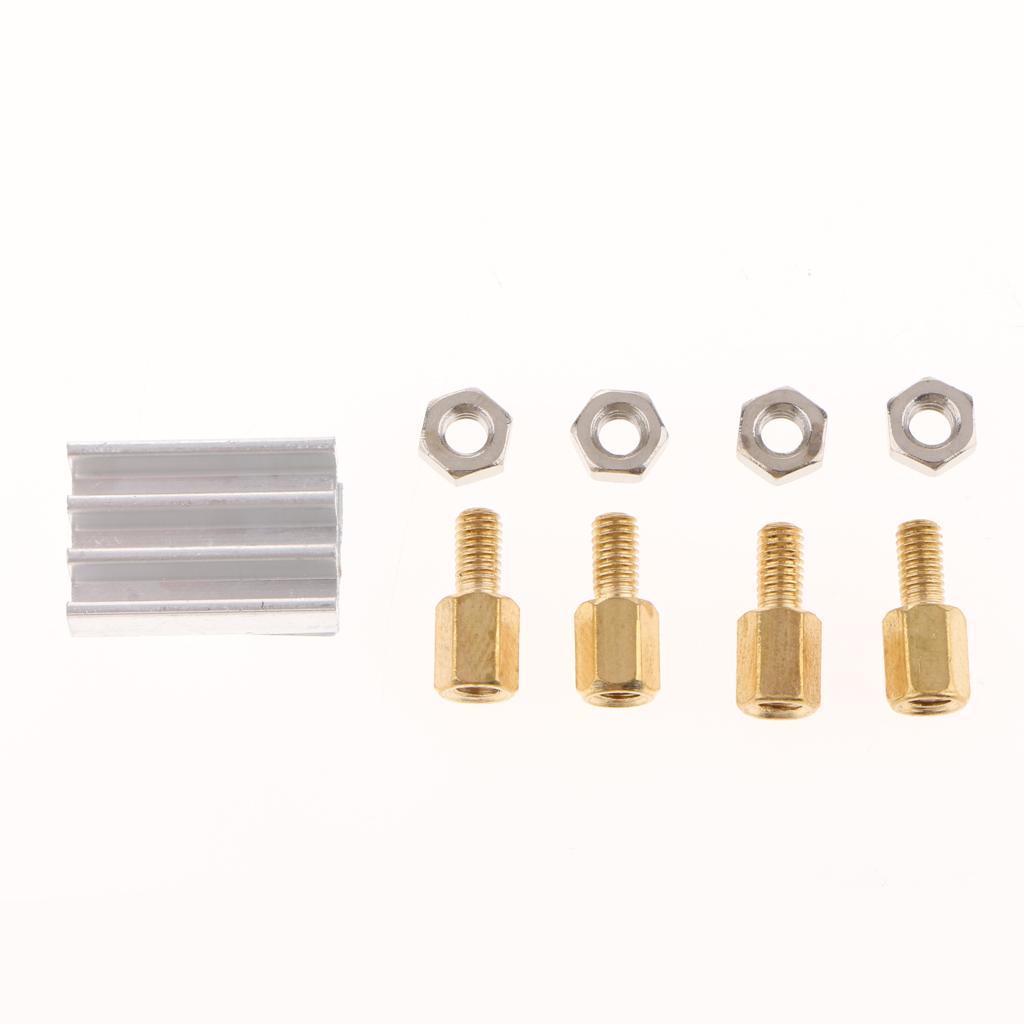

Package Includes:

1 Piece Buck Conveter
