Maxbell 5 Pieces Mini DC-DC 4-24V12V24V To 5V3A Step Down Power Module 97.5 For Car
Description:

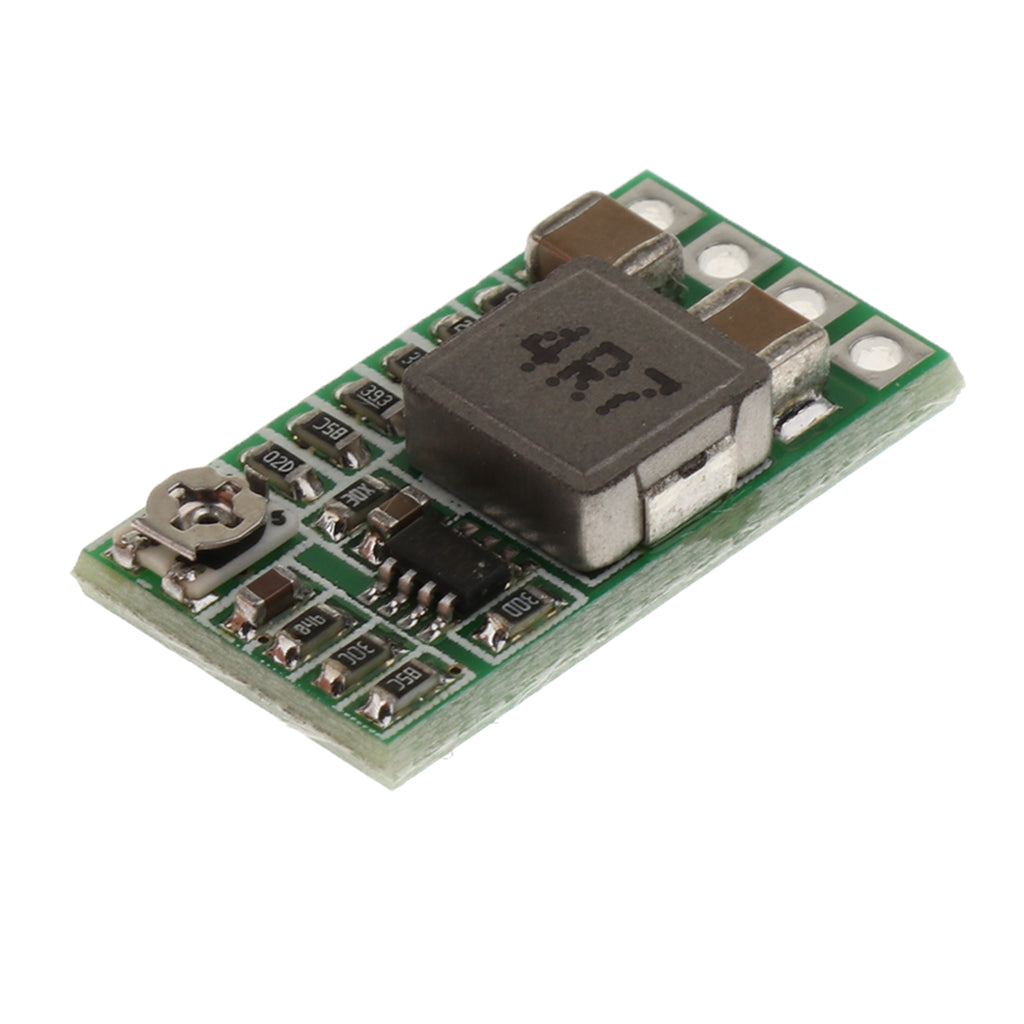

Item: DC-DC Step Down Converter
Input voltage: 4-24V
Output voltage: 5V
Output Current: 3A (MAX) actual testing input 12V output 1.5A

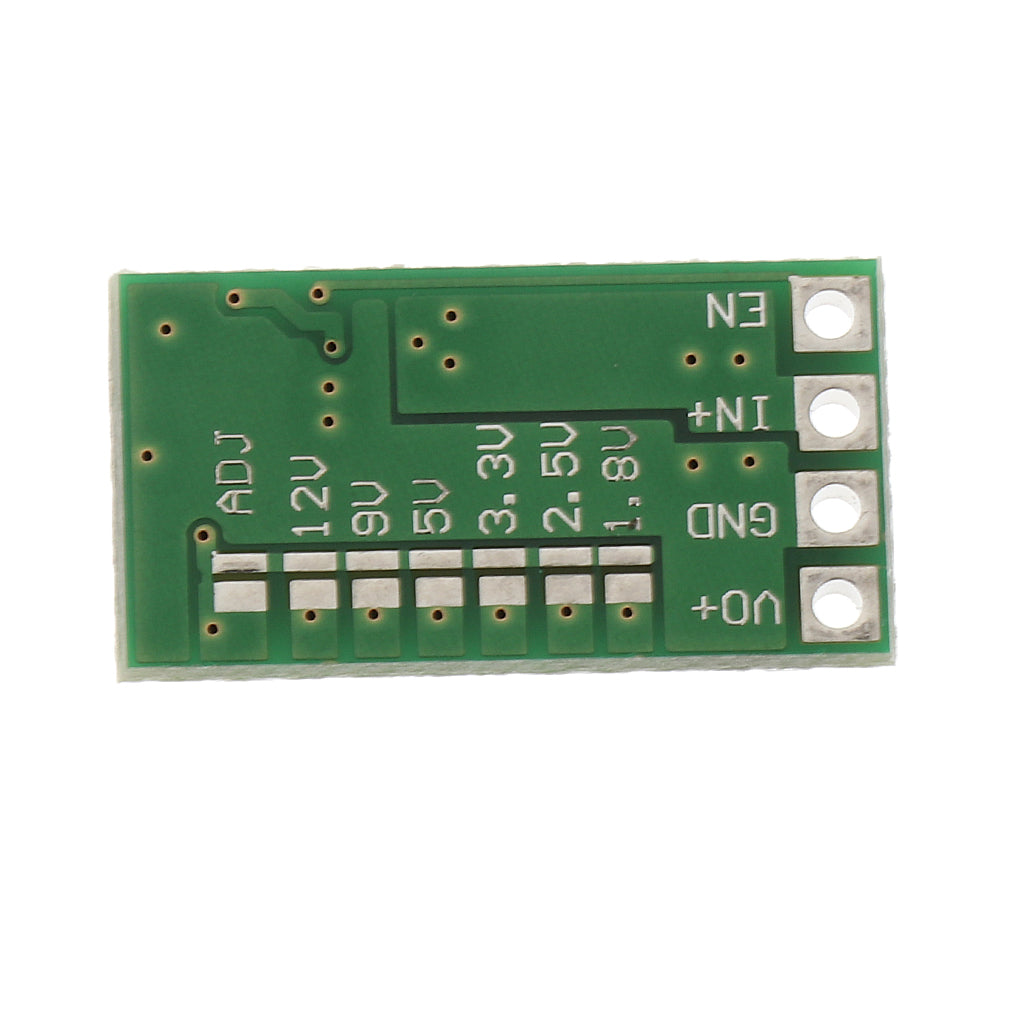

Output Voltage: integration adjustable and fixed output,back side can choose fiexd output voltage
Adjustable Range: 0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Efficiency: Up to 97.5% (6.5 to 5V 0.7A)
Switching frequency: 500KHZ
Output ripple: 20mV (12V to 5V 3A),20M band width
Quiescent Current: 0.85MA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output Overvoltage Protection: No
Output short circuit protection: Yes ( not for a long time )
Input Reverse Polarity Protection : No
Connecting Type: soldering
Input Way: soldering
Soldering Hole Space: 2.54mm
EN : enable port ; IN+ : Input positive ; GND : public negative ; VO+ : output positive
Size: approx. 20*10*1.5mm/0.79*0.39*0.06"
Package Includes:

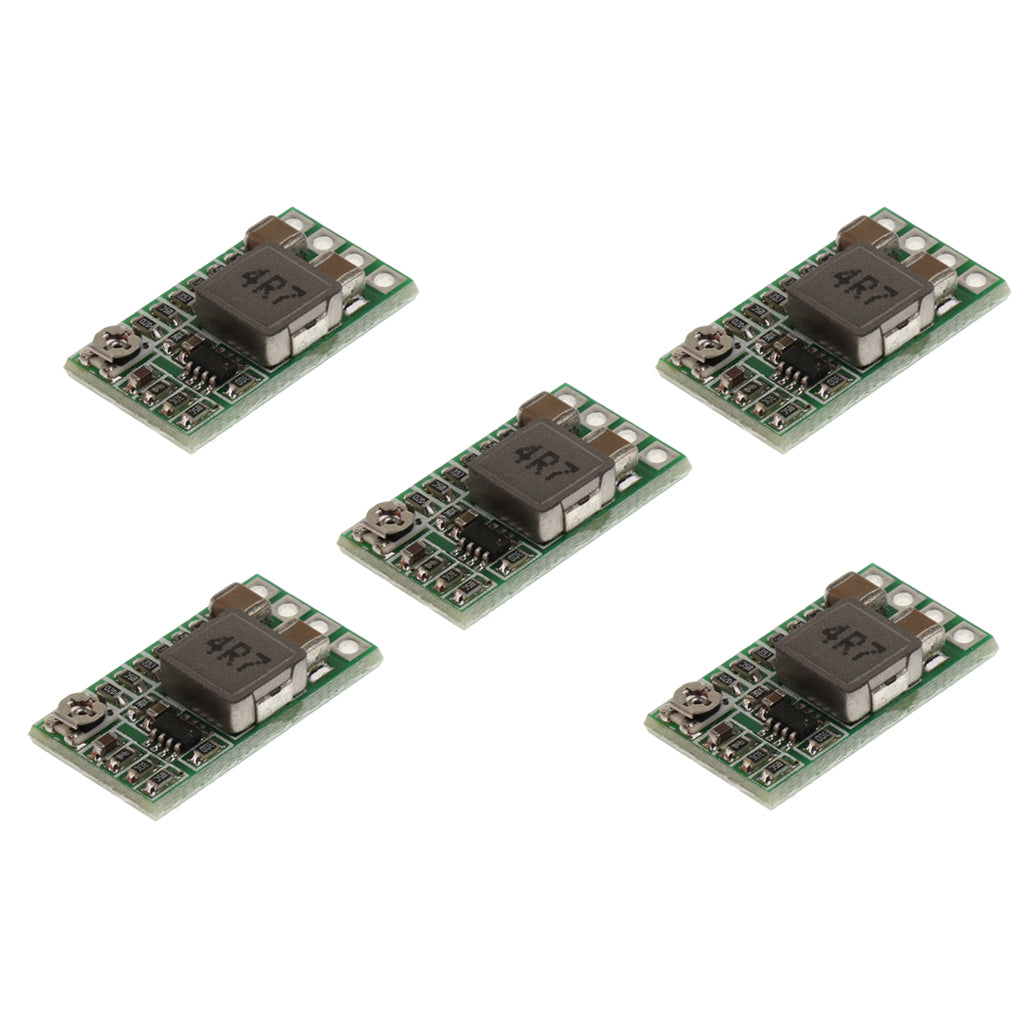

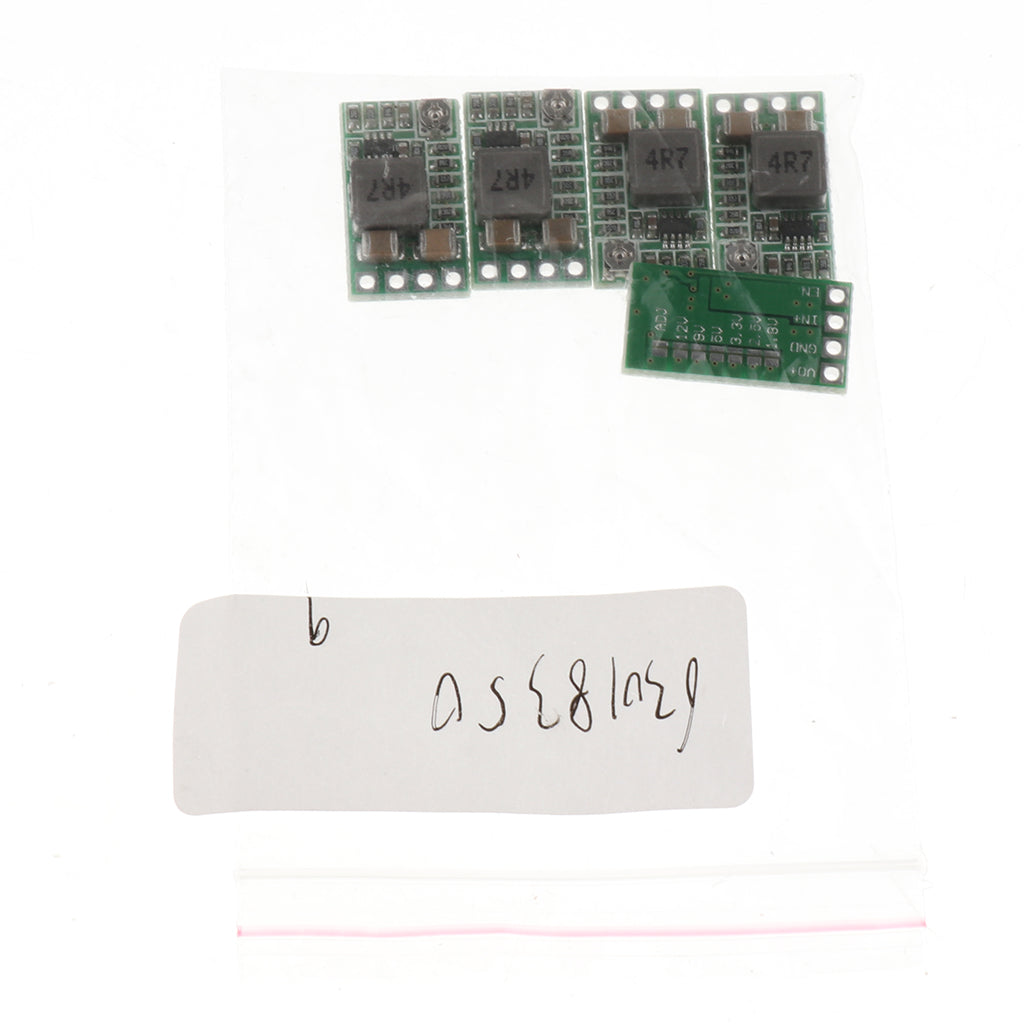

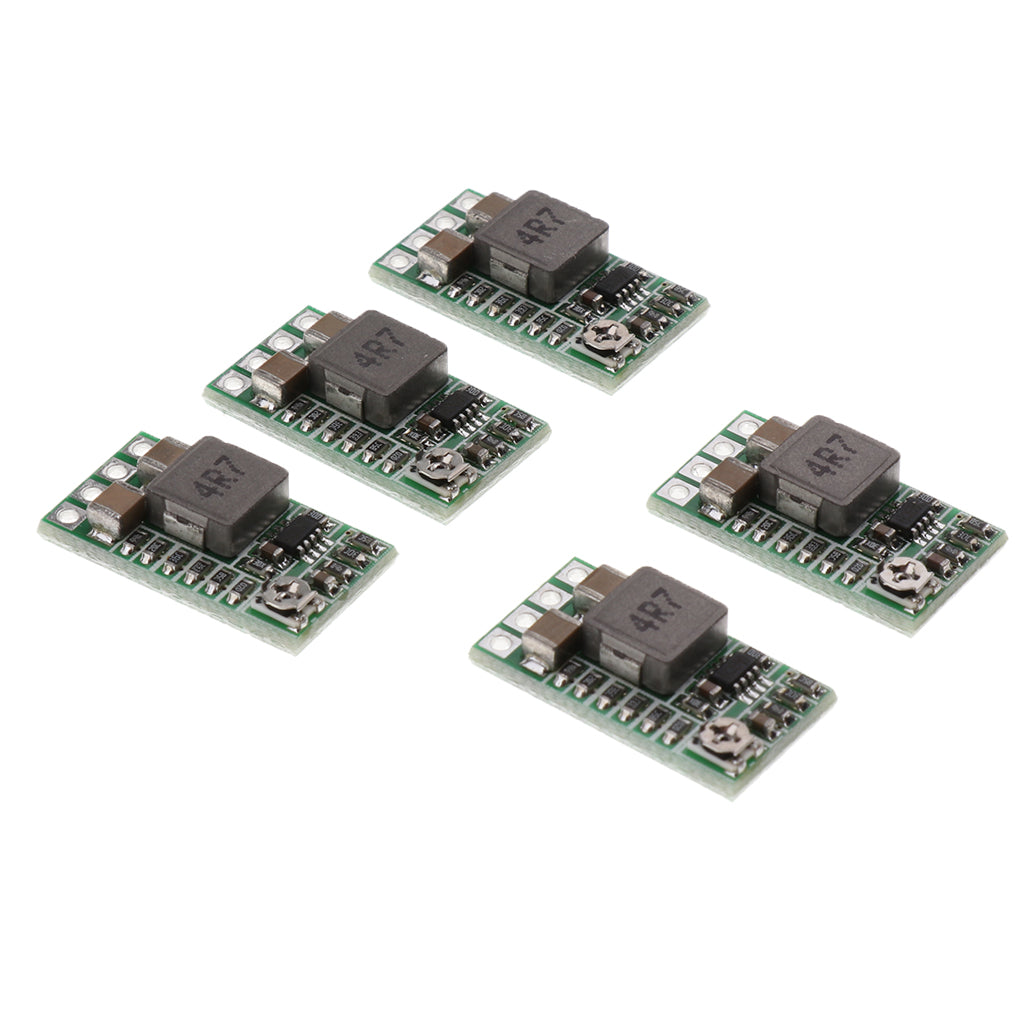

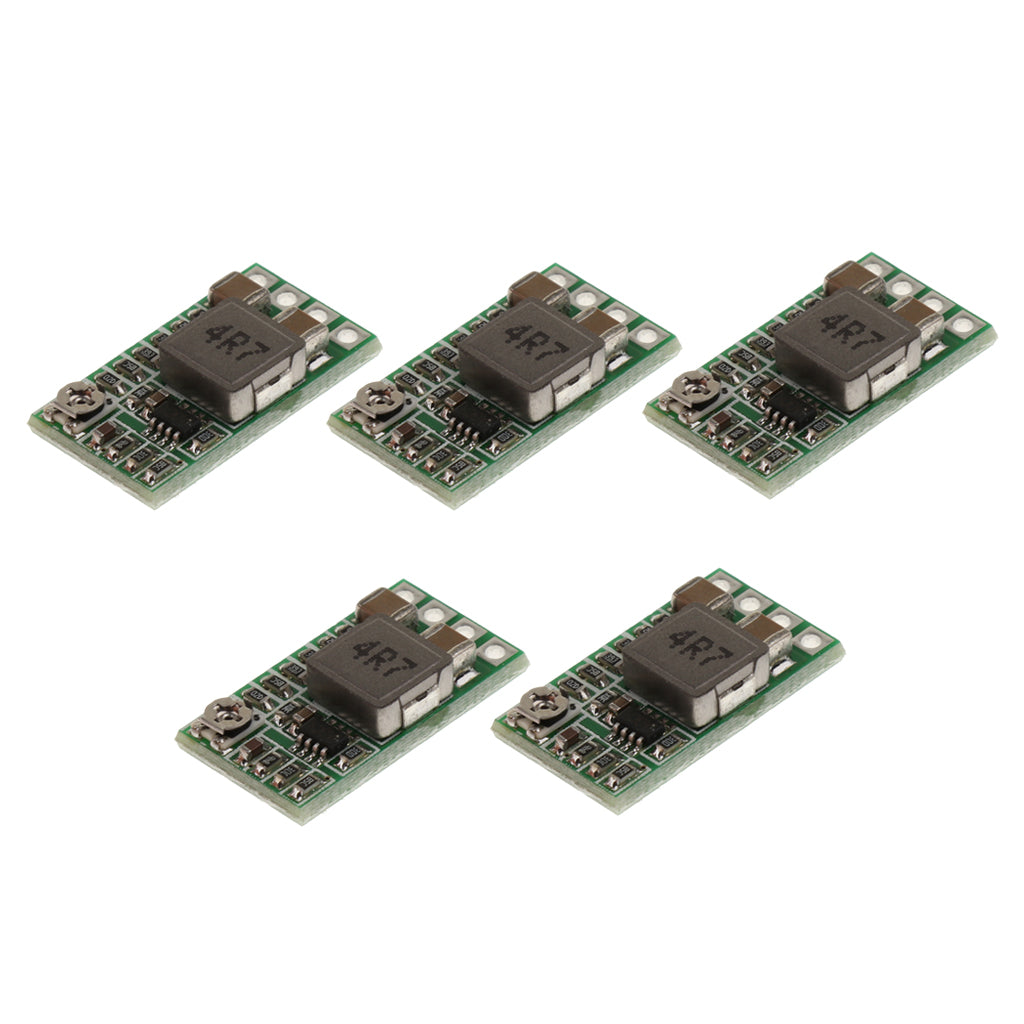

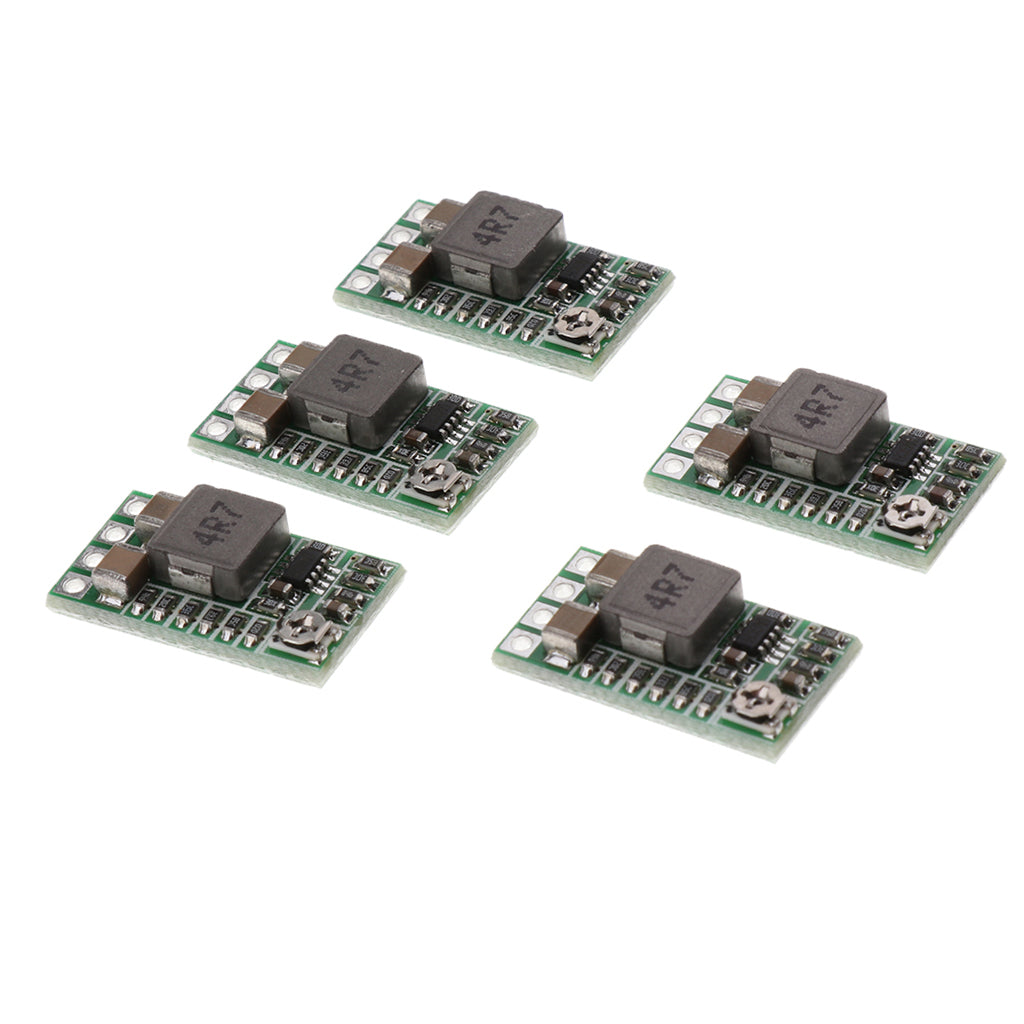

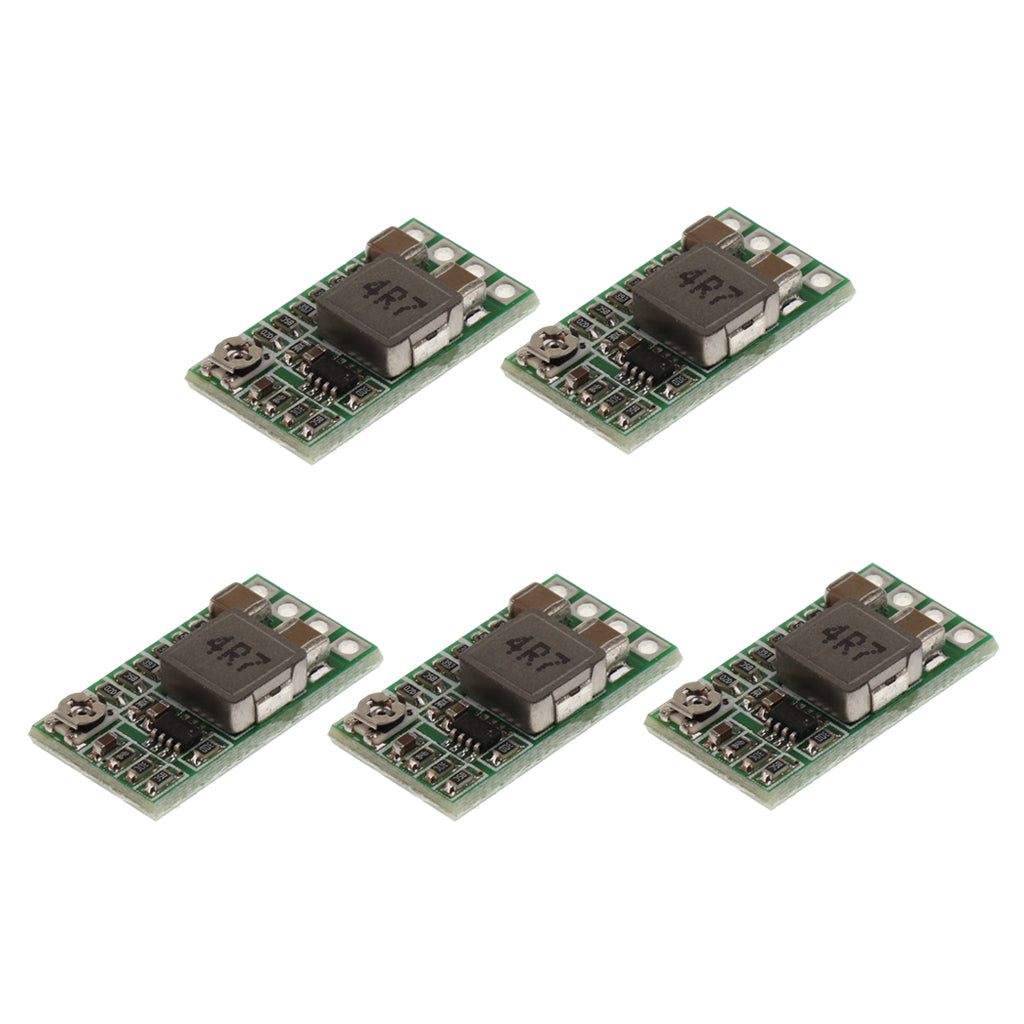

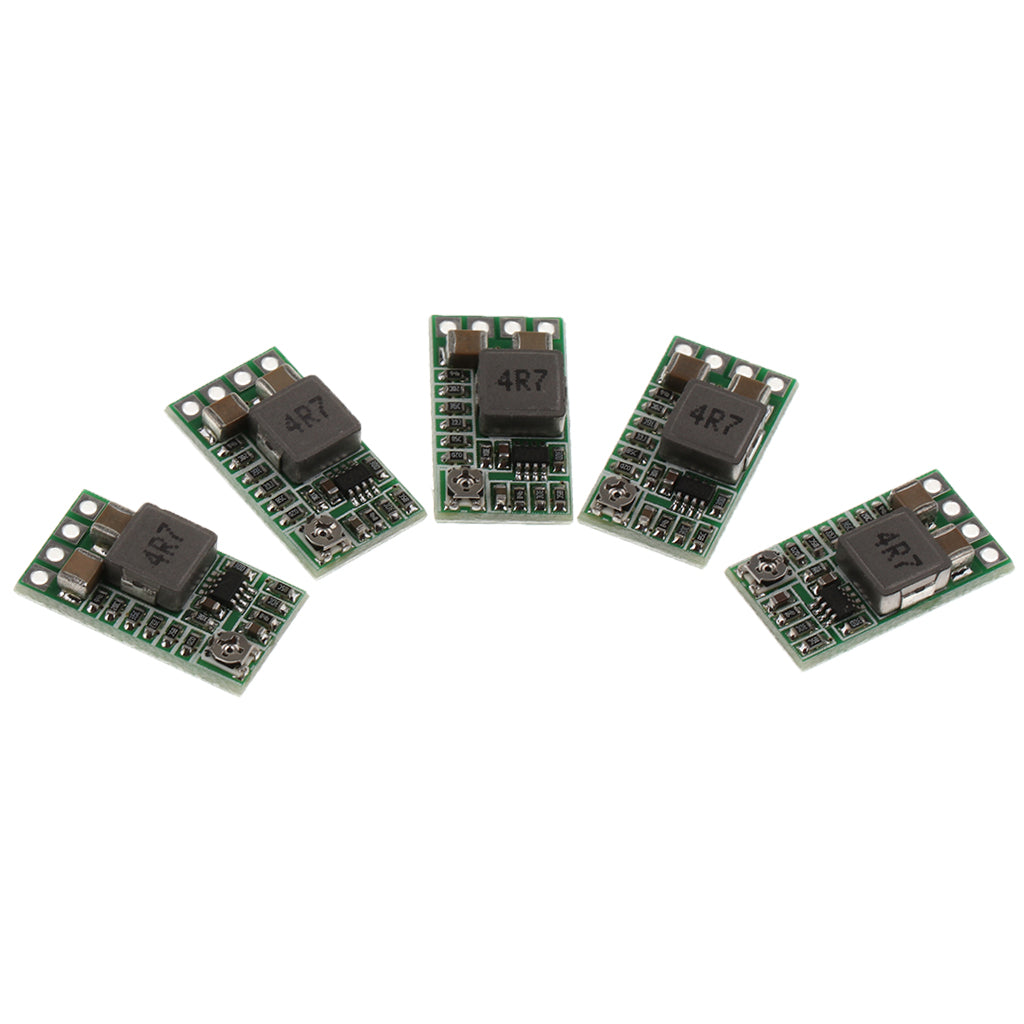

5 Pieces Step Down Power Module
Note:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
