Maxbell 4c Weight Weighing Load Cell Conversion Module Sensor for
Description:

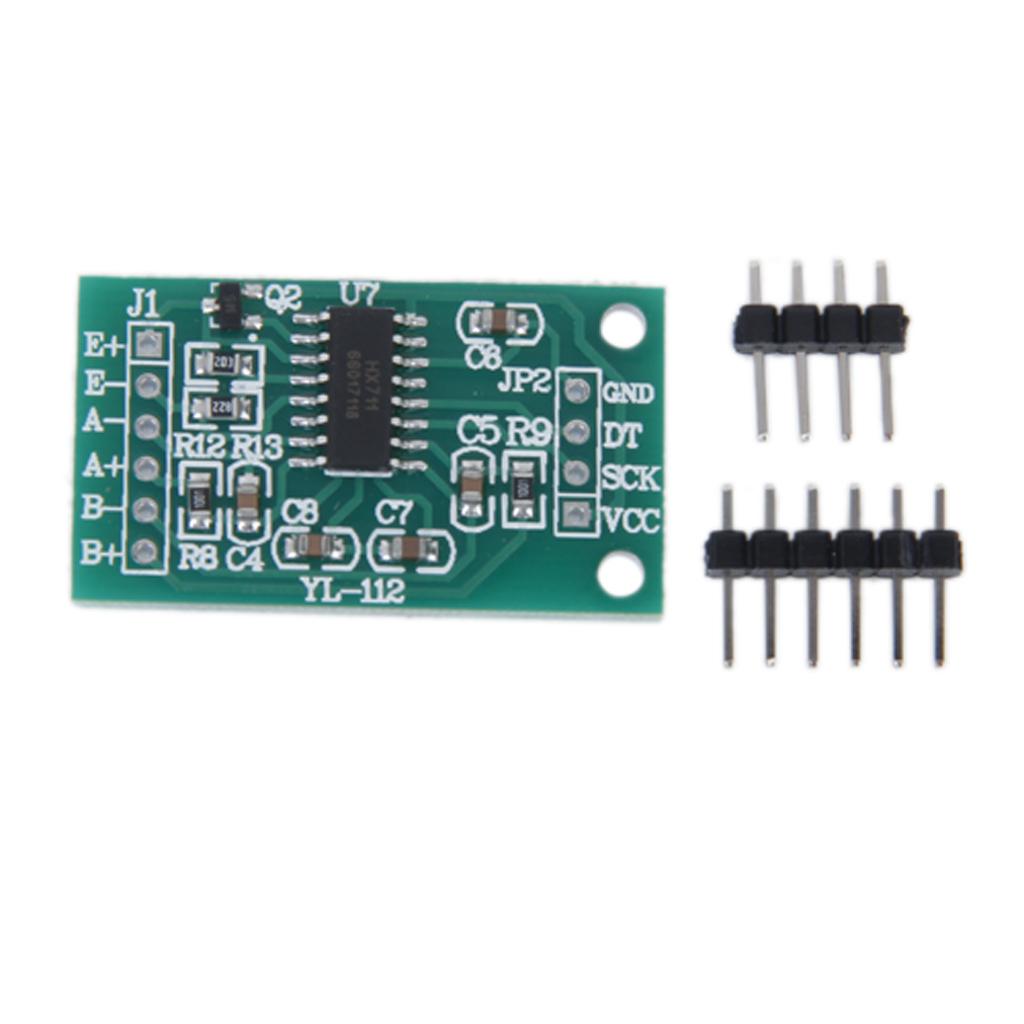

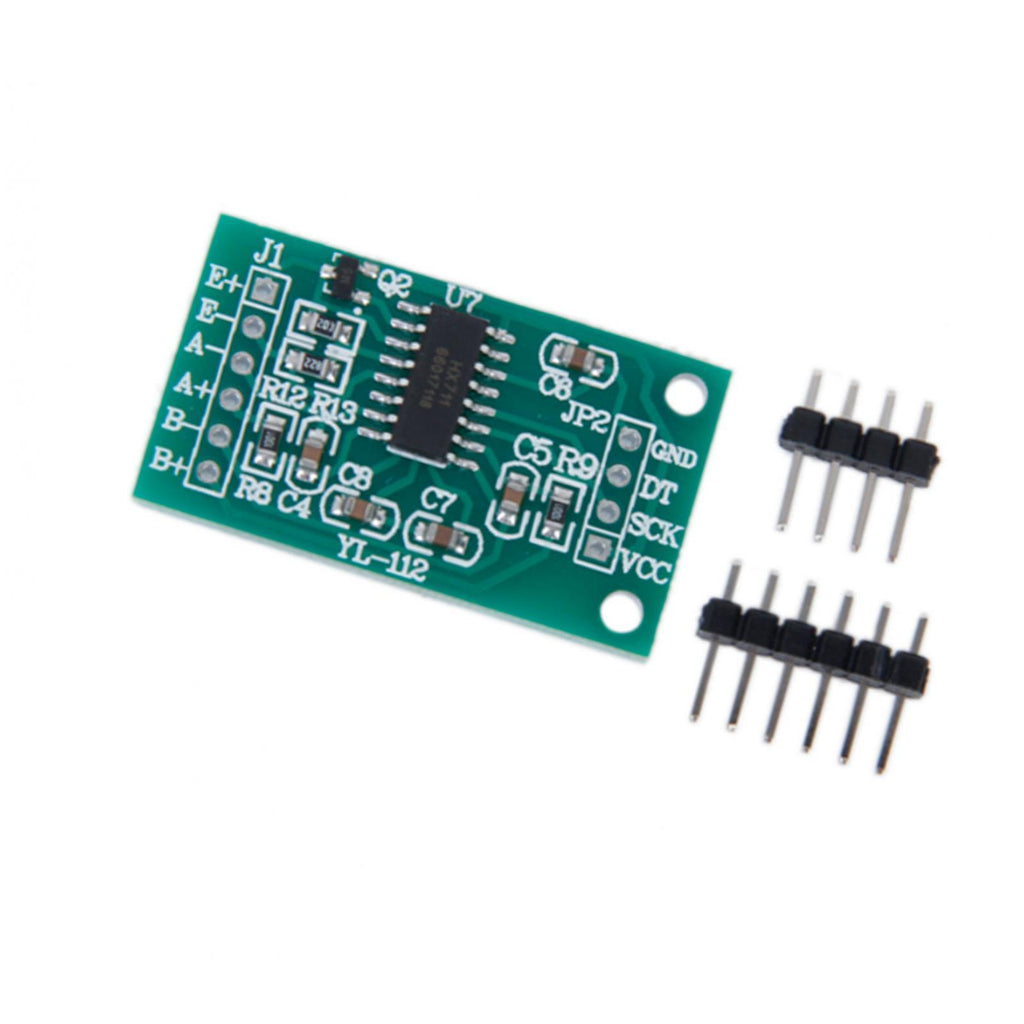

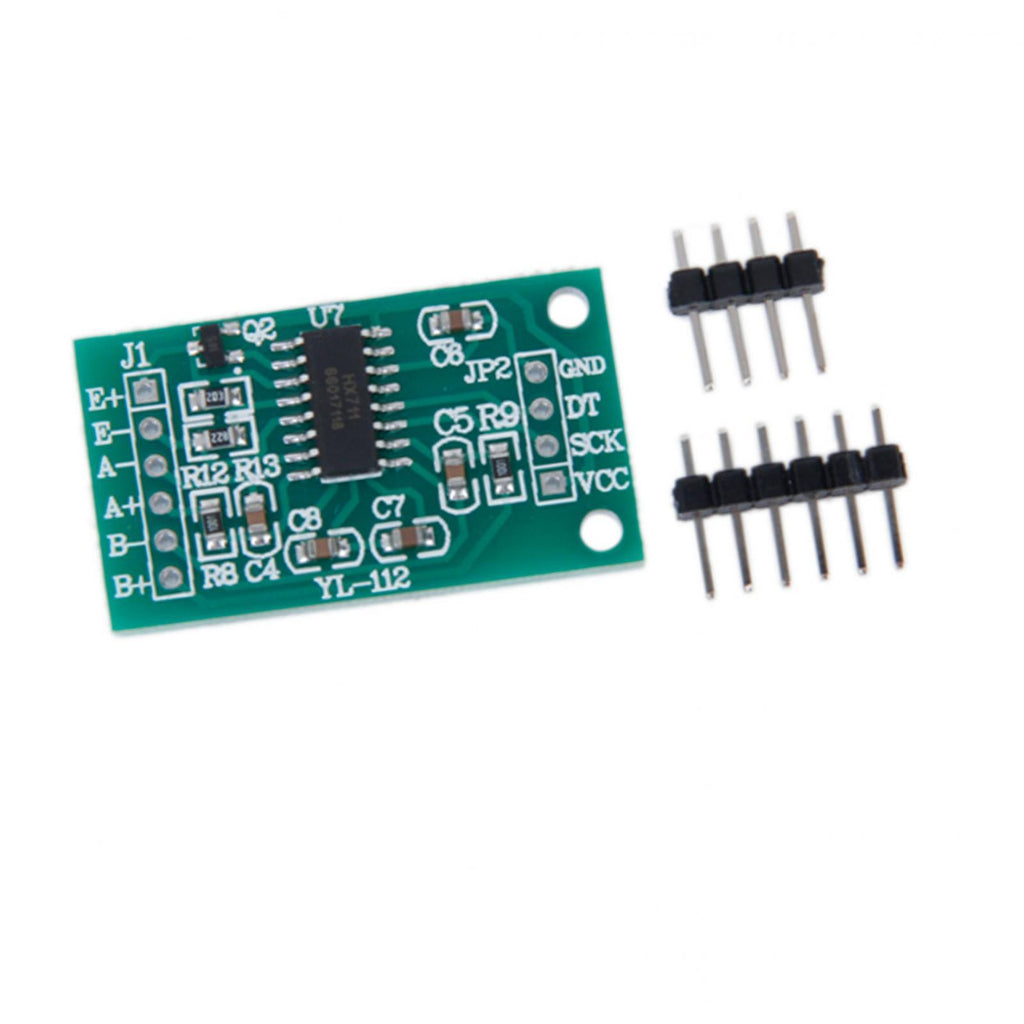

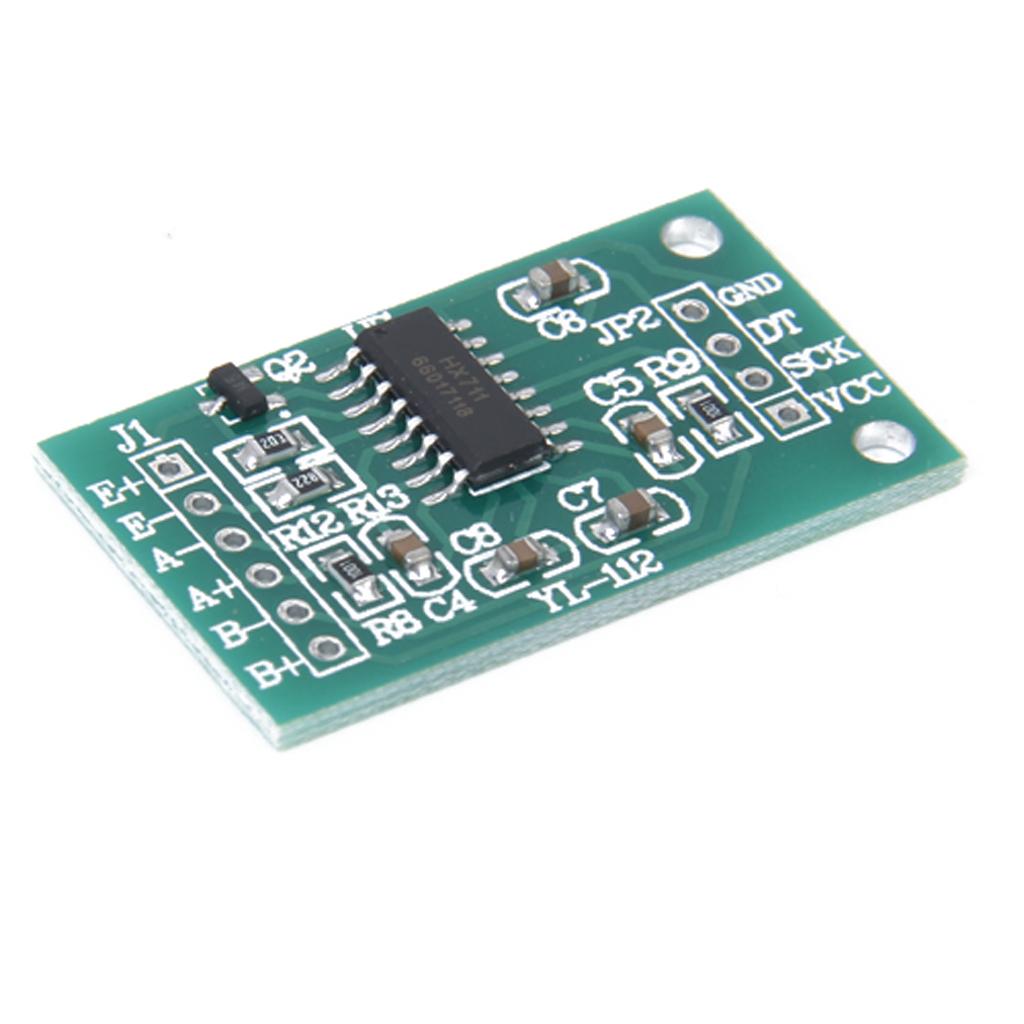

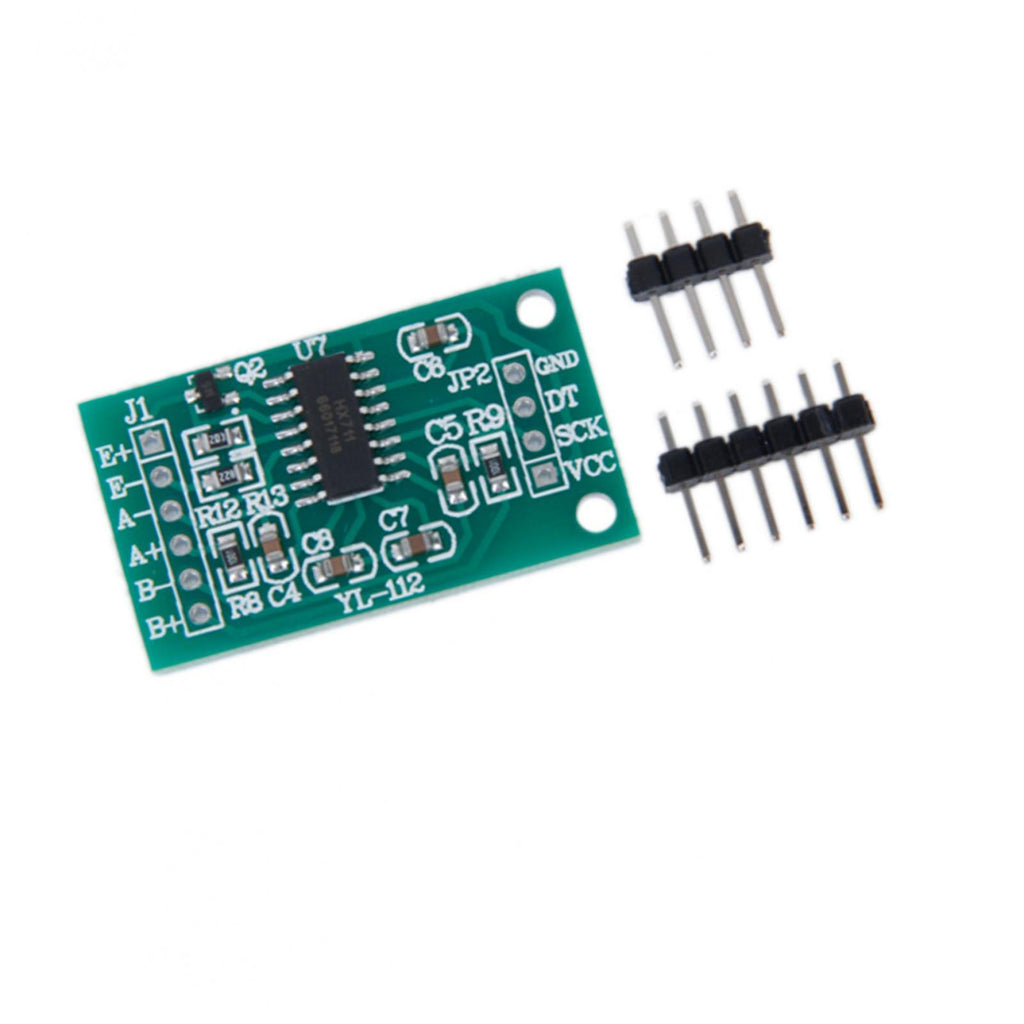

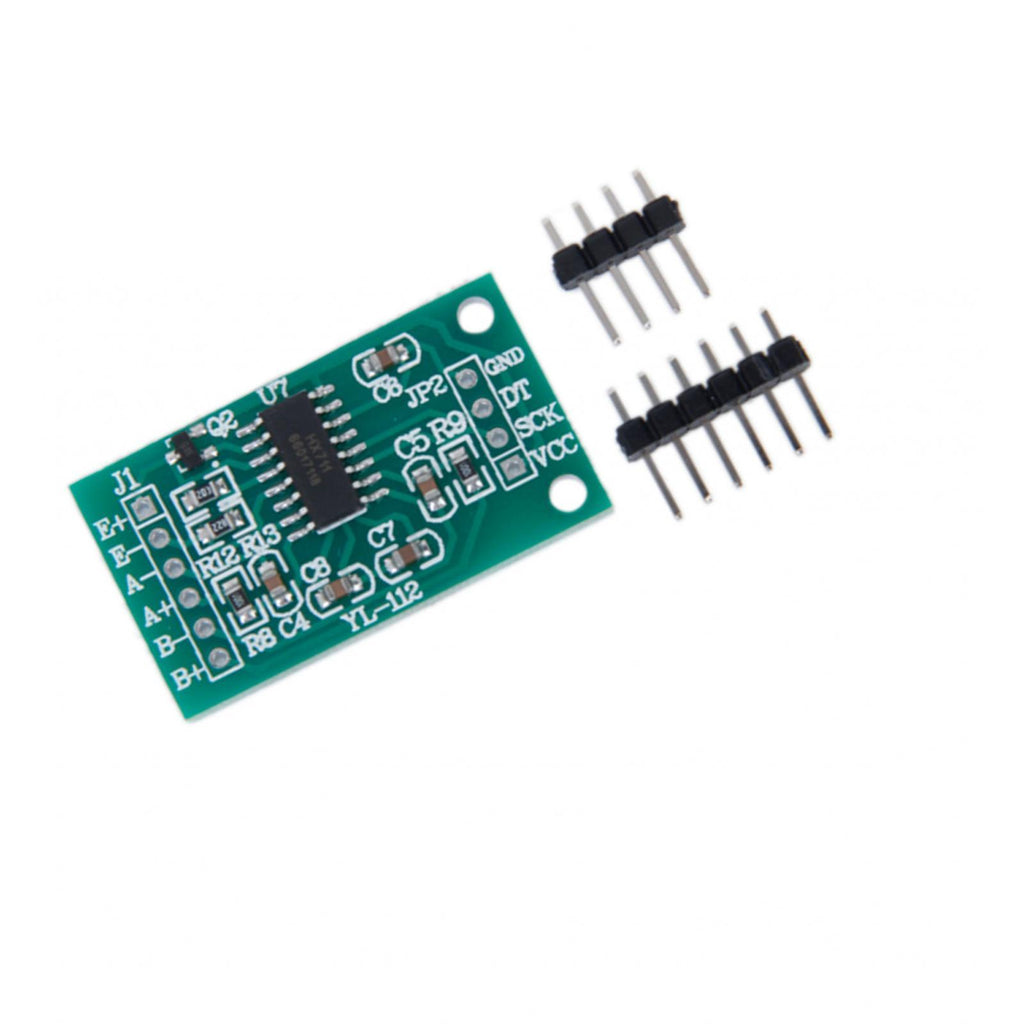

The module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog input channels, the internal gain amplifier integrated multiplier 128. The input circuit can be configured to provide an electrical bridge the bridge (e.g., pressure, weight) sensor mode is an ideal high-precision, low-cost sampling front-end module
Two selectable differential input channels
active low noise PGA with selectable gain of 32, 64 and 128
power supply regulator for load-cell and ADC analog power supply
oscillator requiring no external component with optional external
power-on-reset
Simple digital control and serial interface: pin-driven controls, no programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Operation supply range: 4.8 ~ 5.5V
Operation supply Current: 1.6mA
Operation temperature range: -20 ~ +85℃

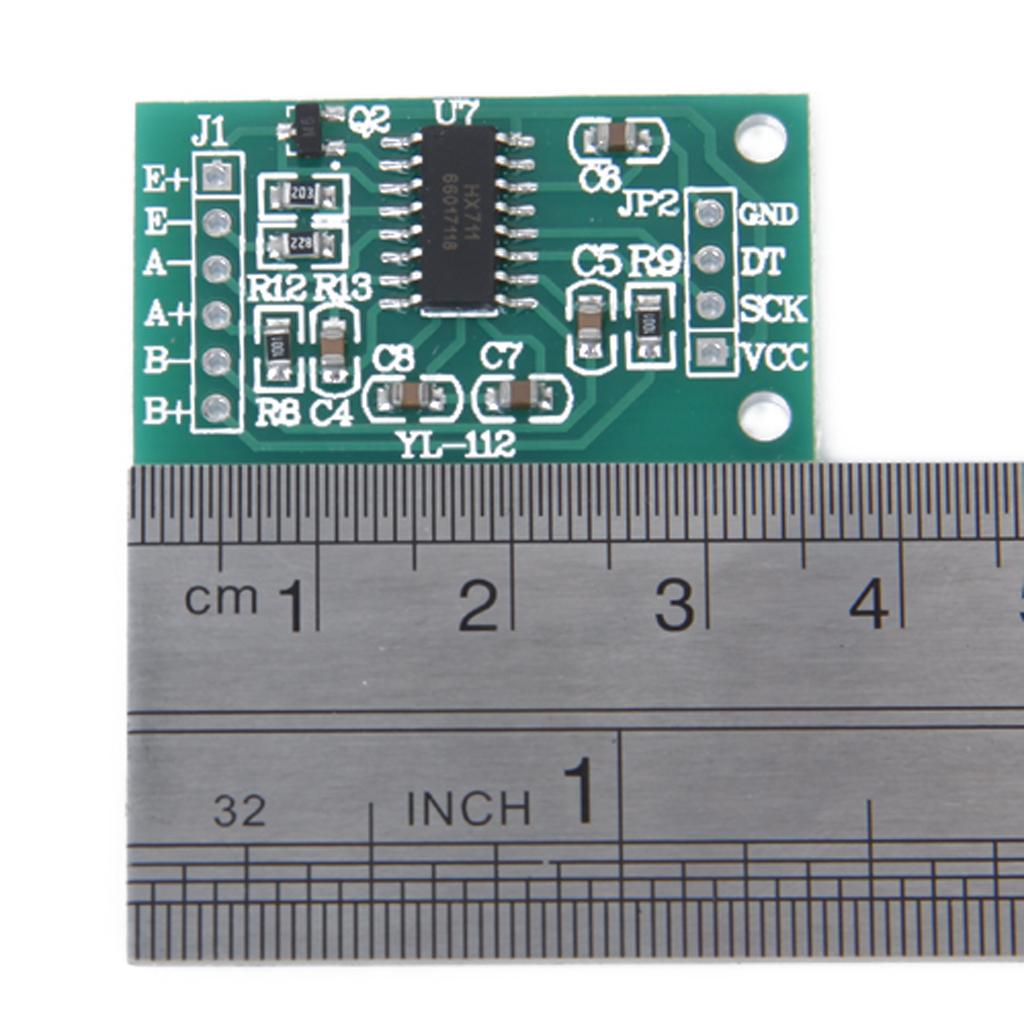

Demension: Approx. 36mm x 21mm x 4mm / 1.42" x 0.83" x 0.16"
Package Includes:

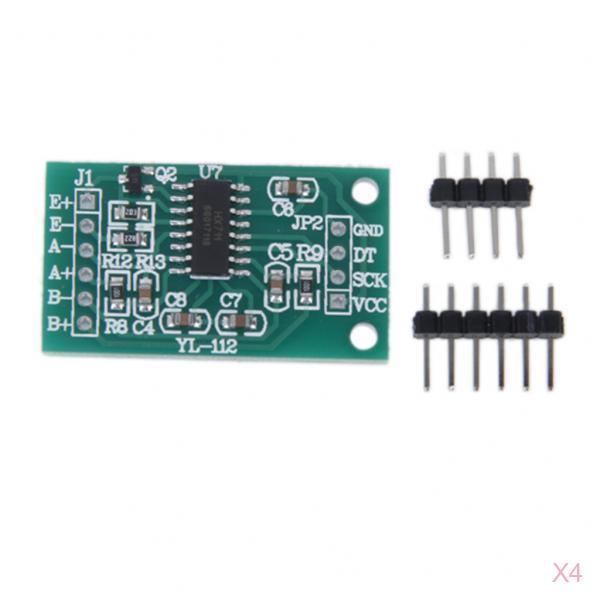

4x HX711 Weighing Sensor AD Module
