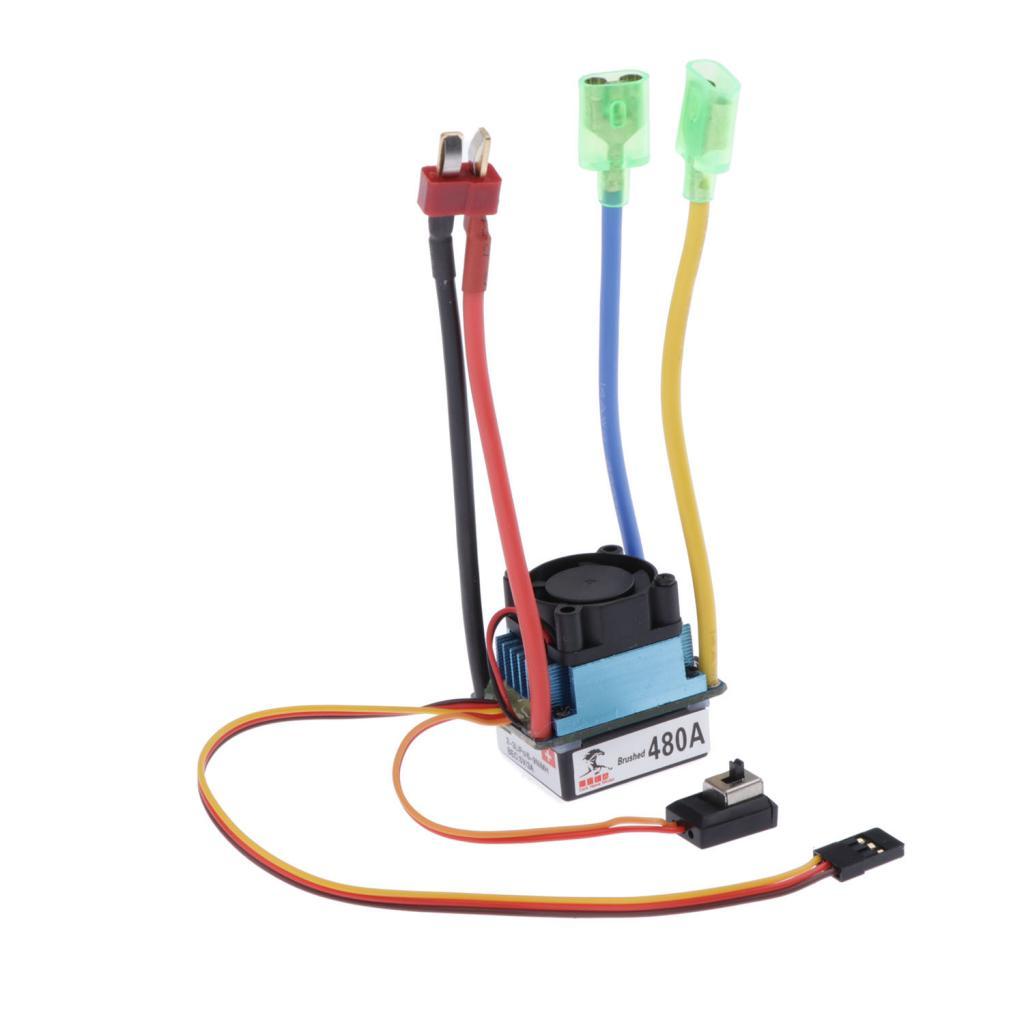

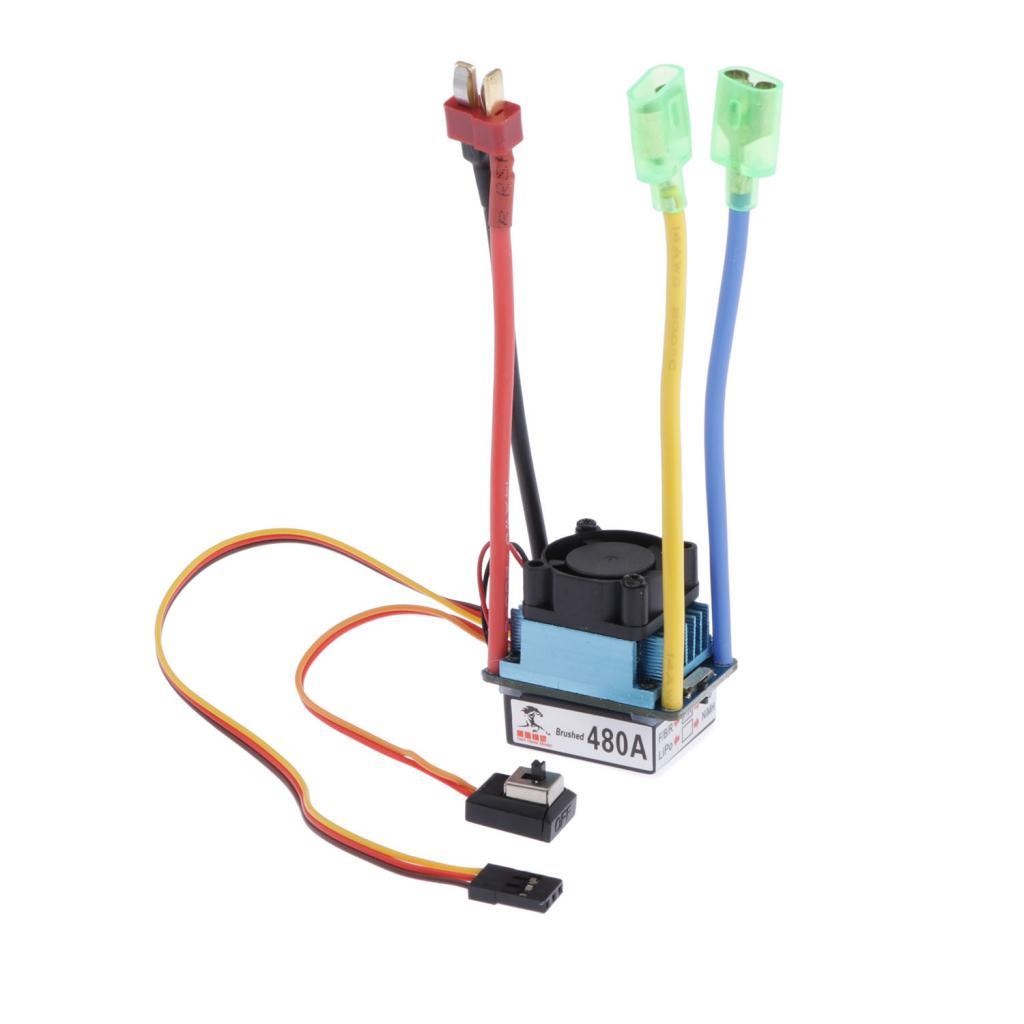

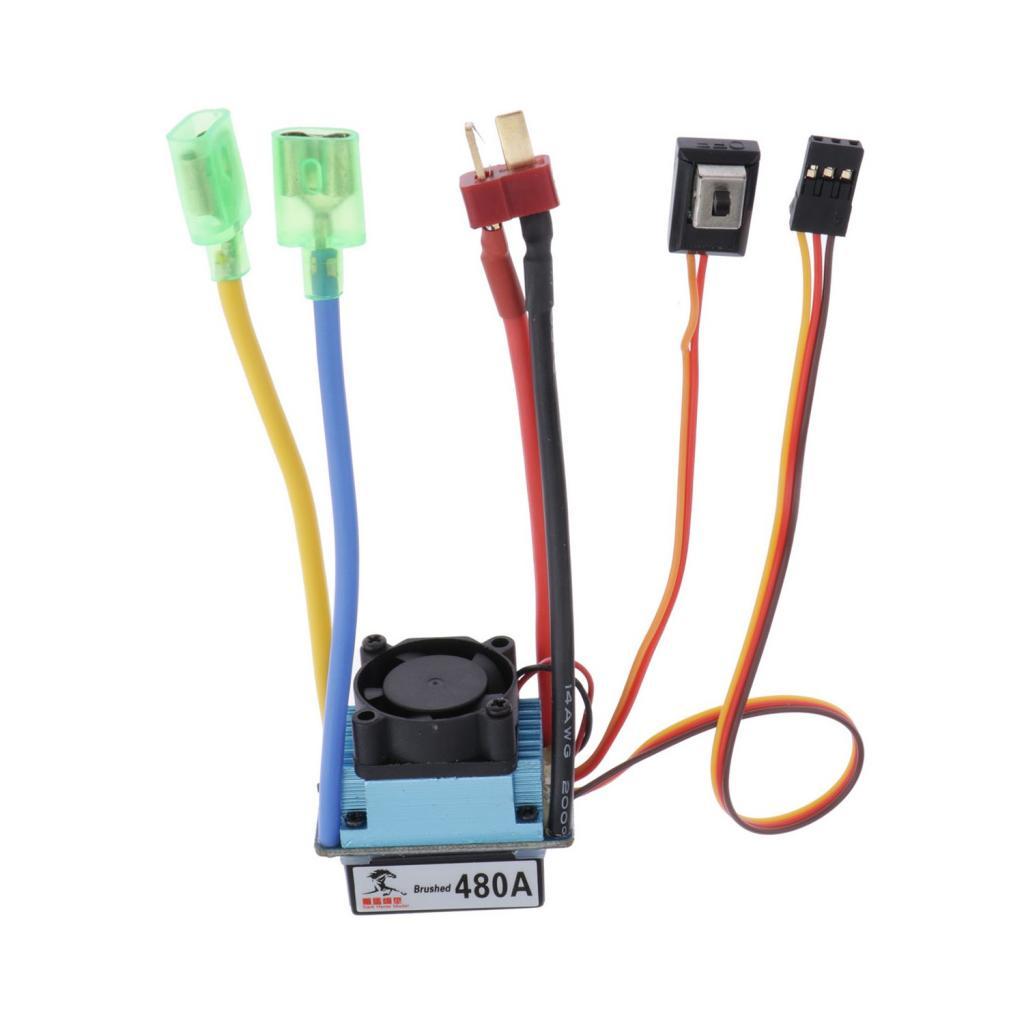

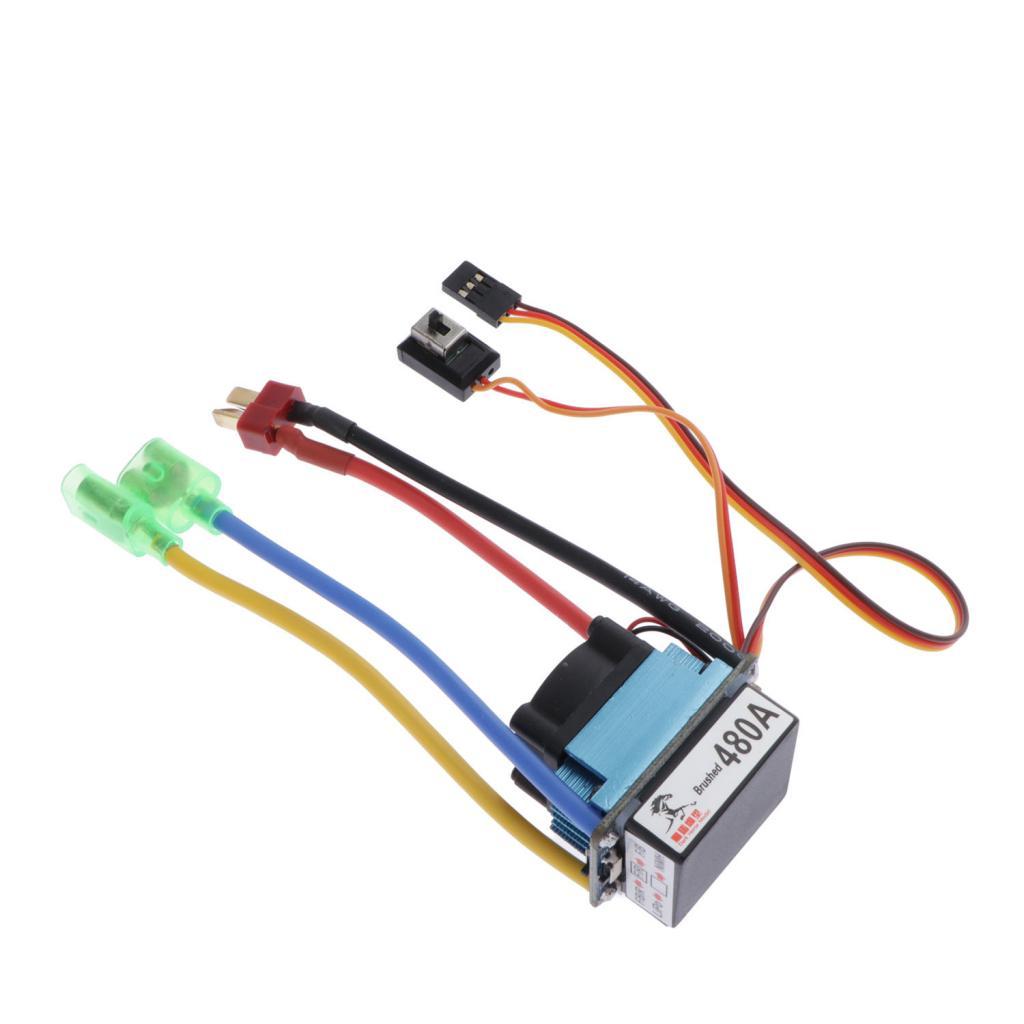

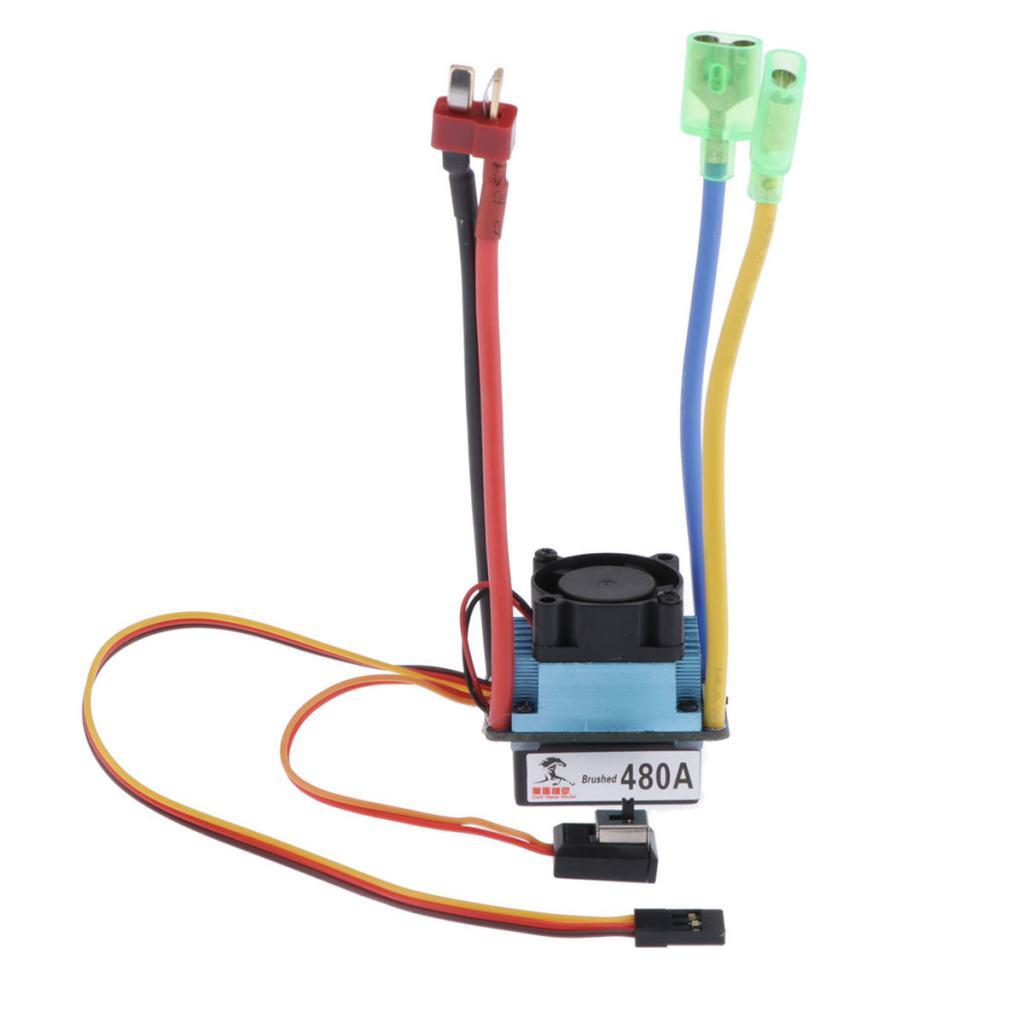

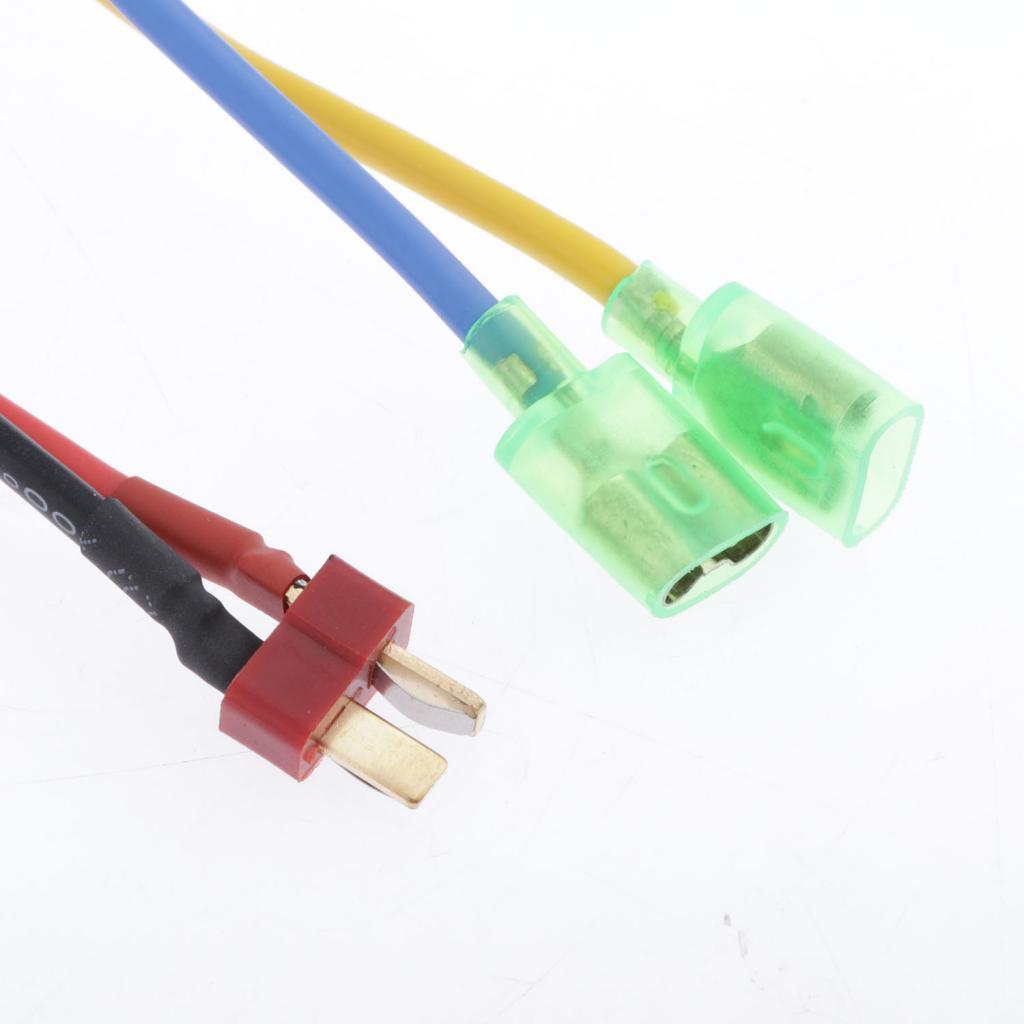

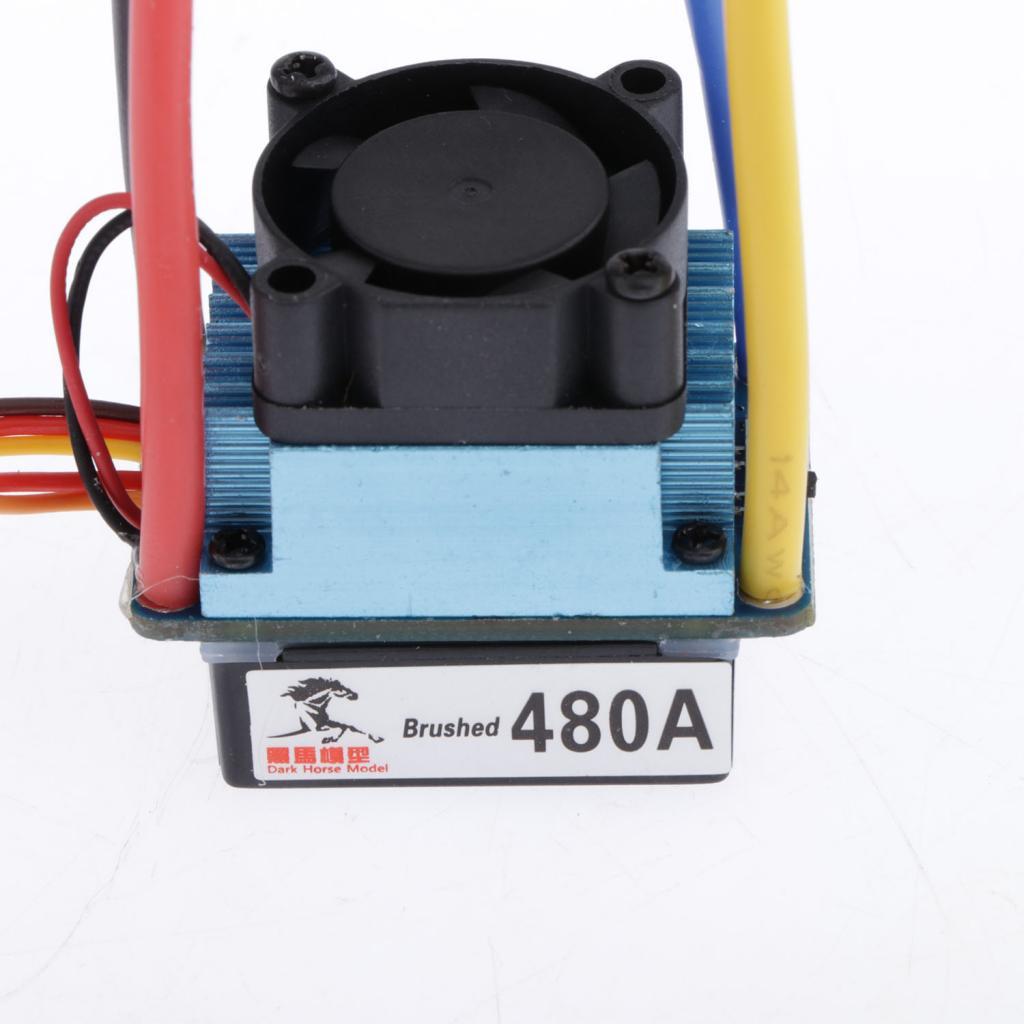

Max 480A Speed Controller Waterproof Brushed ESC for 540/550/775 Motor T Plug
Description:
Supports voltage range: 2-4 Lipo or 5-12 NiMH batteries.
Protection voltage: 6v (factory can be set), when the voltage protection is effective, the throttle motor will be activated for 3 seconds to stop, and the throttle valve can be operated again for 3 seconds.
Protection temperature: 90 degrees Celsius. When the ESC temperature reaches 90 degrees, the ESC will stop working completely until the temperature drips down 90 degrees.
Size: 40x27x35mm/1.57x1.06x1.37inch
Specification:
Forward: Continuous current 80A / peak current 480A
Reverse: Continuous current 60A / peak current 300A
2 lithium batteries or 6 nickel-metal hydride 540, 550, 775 size motors: ≥12T or RPM less than 20,000rpm.
3-cell lithium or 9-cell Ni-MH 540 550, 775 size motor: ≥18T or RPM less than 15000rpm.
4 lithium batteries or 12 nickel-metal hydride 540, 550, 775 size motors: ≥24T or RPM less than 10,000rpm.
BEC output: 5v / 3A
Package Includes:

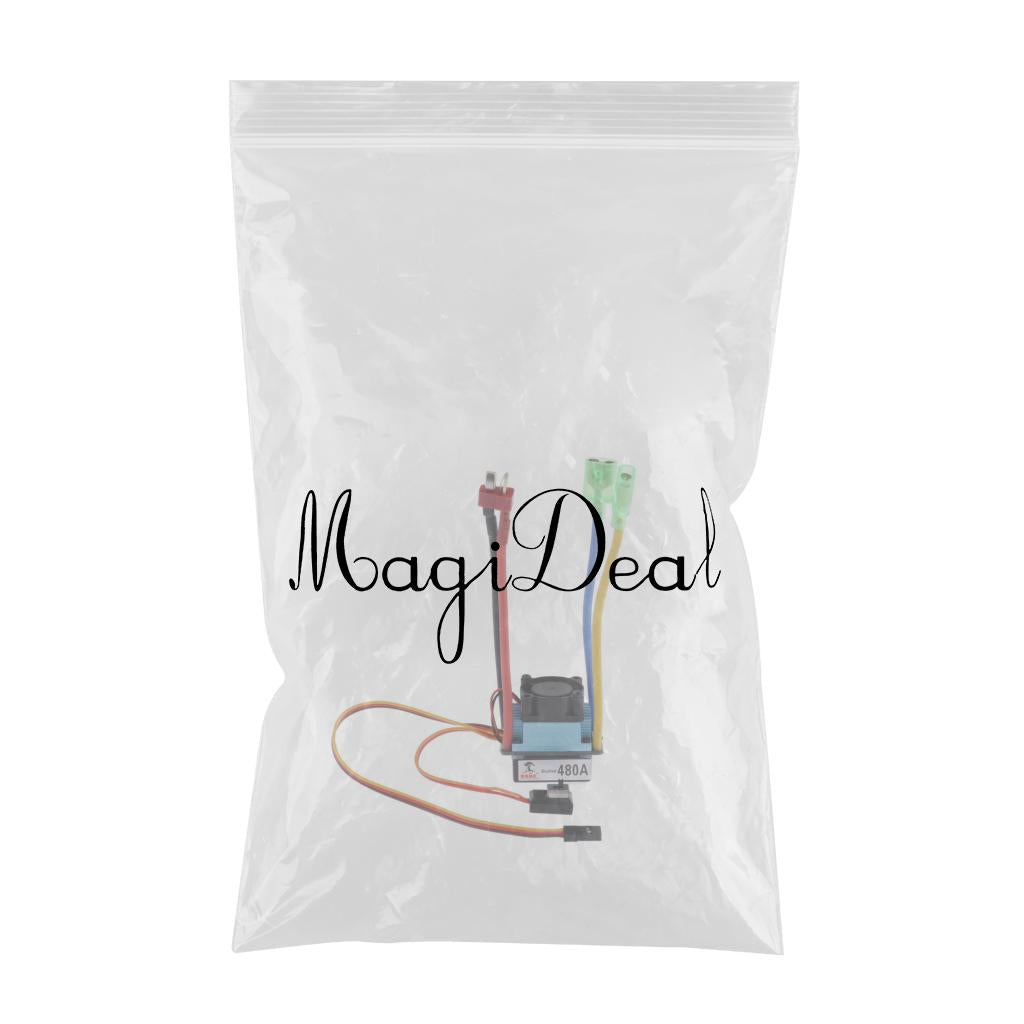

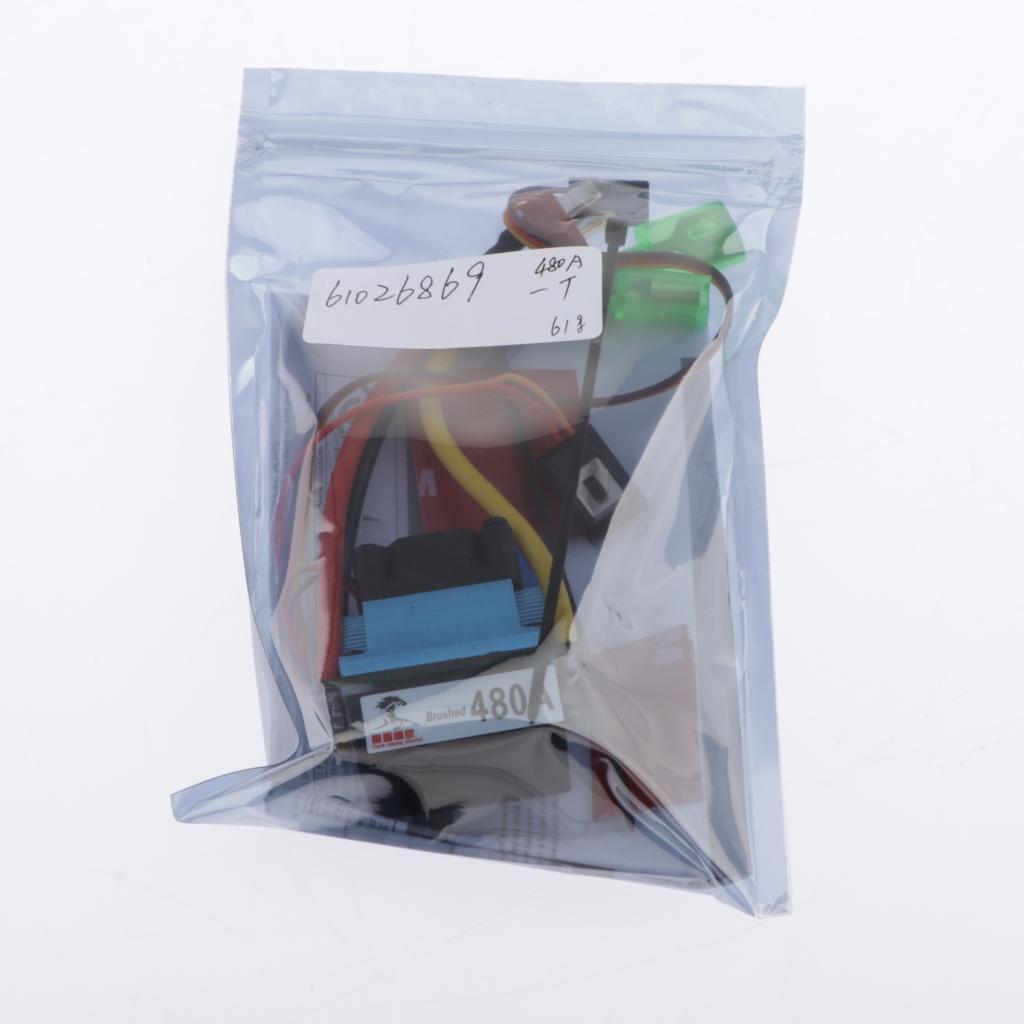

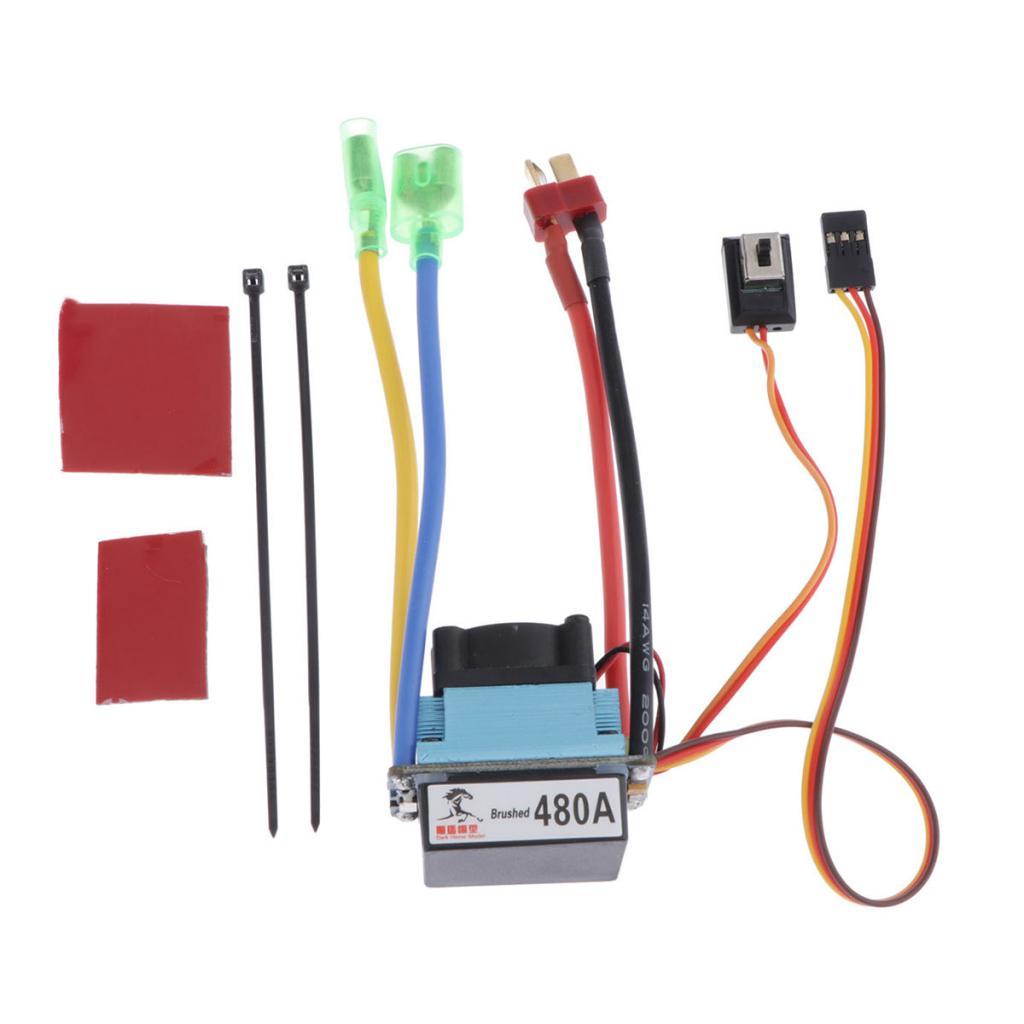

1 Piece 480A Electronic Speed Controller
